Contour Fills in Wilcom Hatch Digitize Blocks: The Clean “Flow” Effect (Without Turning It Into a Satin Mess)

When you first discover Contour fills in Wilcom Hatch, it feels like a cheat code: you draw a simple block, and suddenly the stitches flow like ripples on water or topographic map lines.

But here’s the reality that hits intermediate digitizers hard: Contour fills are incredibly sensitive to physical mechanics. Because they rely on open spacing, one wrong node placement doesn't just look ugly—it causes fabric distortion. If your angles fight the grain of the fabric, you get puckering that no amount of steam can fix.

This walkthrough rebuilds the exact workflow from the tutorial (Digitize Blocks → Contour → spacing 3.00 mm → Reshape → Duplicate → Backstitch outline), but we are going to add the "Safety Layer." These are the sensory checkpoints and physical considerations that turn a digital file into a flawless physical patch.

Calm Down First: Contour Fill in Wilcom Hatch Isn’t “Broken”—It’s Just Honest About Your Nodes

Contour fills don’t magically create beauty; they reveal your structure with brutal honesty. If your curves are lumpy, your stitch flow will look lumpy. If your angles fight each other, the fill will look like it’s collapsing.

In the video, Lusianne keeps it simple on purpose: one curved block, then a second “perspective” block. That’s exactly how you should practice.

The Mindset Shift: Treat Contour fill as a Design Effect, not a Coverage Stitch.

• Coverage (Tatami/Satin): Meant to hide the fabric (Spacing ~0.40mm).
• Contour (Effect): Meant to decorate the fabric (Spacing ~3.00mm).

If you try to use Contour for solid coverage, you will end up with a bulletproof vest. Stick to the "ripple" effect for now.

The “Hidden” Prep Before You Click Digitize Blocks: Set Yourself Up for a Clean Contour Fill

Before you draw a single line, you need a plan. Are you making a wave (Shape 1) or a tunnel (Shape 2)?

In the tutorial, the instructor immediately sets Fill type = Contour and Spacing = 3.00 mm in Object Properties.

• Why 3.00 mm? This creates "negative space." In the physical world, this gap allows the fabric color to show through, creating the contrast that defines the pattern.
• Design Risk: If you go tighter (e.g., 1.00 mm) on a large tunnel shape without proper stabilization, you risk "donut-ing" the fabric—where the center puffs up because of the surrounding tension.


Prep Checklist (Do not skip)

• Tool Check: Ensure you have selected Digitize Blocks (not Open Shape).
• Property Check: In Object Properties, set Fill to Contour.
• Spacing Check: Set Spacing to 3.00 mm (Verify units are mm, not inches).
• Consumable Check: If stitching multiple test blocks, have a water-soluble marking pen ready to mark centers on your test fabric.

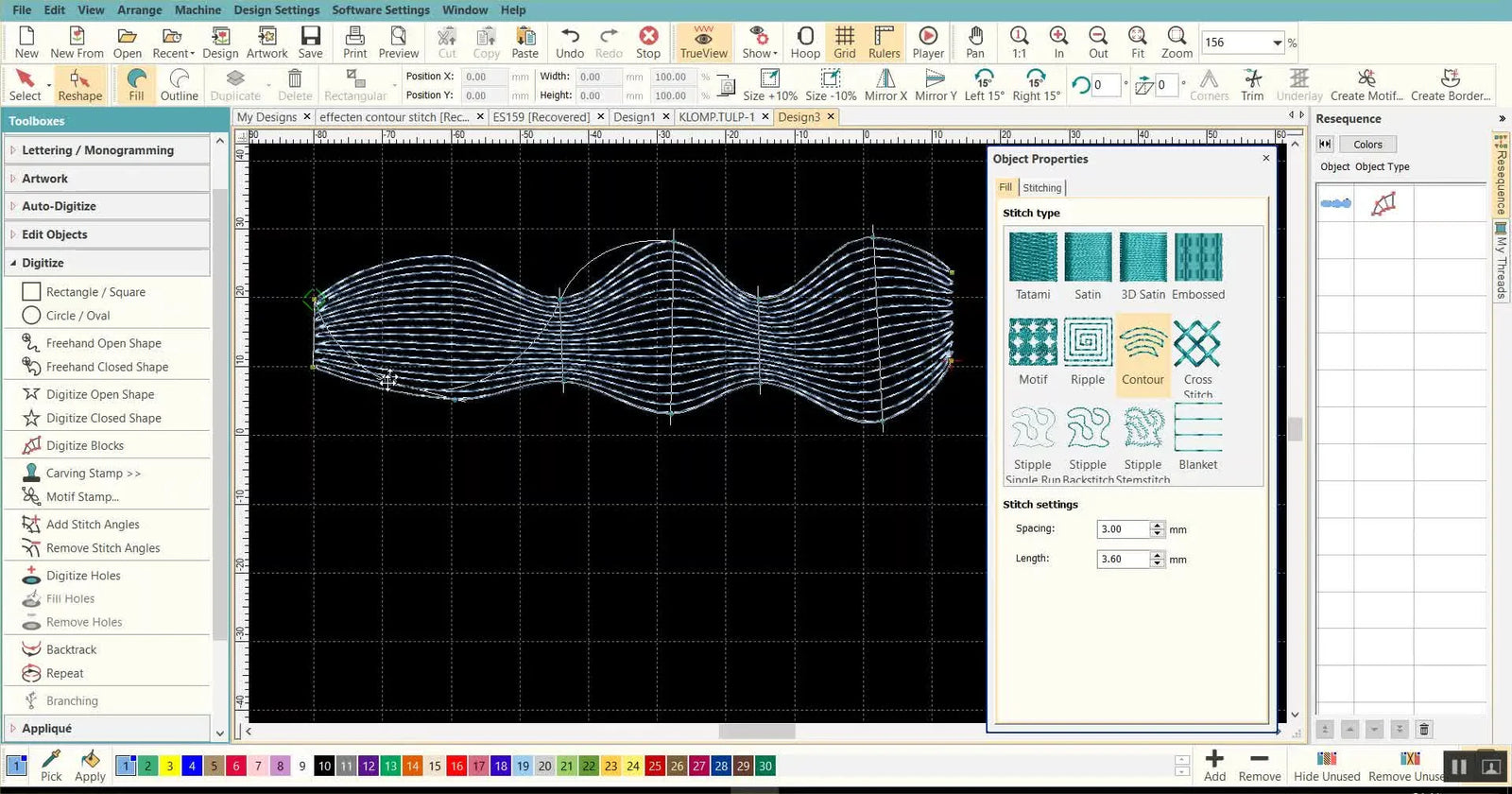

Lock In the Core Settings: Digitize Blocks + Contour + 3.00 mm Spacing (The “Readable Rings” Setup)

Here is the precise sequence to replicate the video’s success:

1. Select Tool: Click Digitize Blocks in the Toolbox.
2. Set Type: In Object Properties, change Fill type to Contour.
3. Set Density: Enter 3 in the Spacing field (3.00 mm).

The Sensory Check: On screen, you should see clear white space between the blue lines. If the lines look like a solid block of color, check that you didn't accidentally type "0.30 mm".

• 0.30 mm = Carpeting (Stifness).
• 3.00 mm = Drapery (Flow).


Draw Curves That Actually Look Curved: Right-Click Nodes in Hatch Digitize Blocks

The first shape is a wave. The secret to smooth waves in Wilcom Hatch is the Right-Click.

• Left-Click: Creates a sharp corner (Hard Point).
• Right-Click: Creates a smooth curve (Curve Point).

The Workflow:

1. Start on the left.
2. Right-click your way along the top path creates the gentle arc.
3. Cross over and do the bottom path.
4. Press Enter.

Expert Insight: If your contour rings look "jittery" or "nervous," you have too many nodes. A smooth curve only needs 3 points: Start, Peak, End. Beginner digitizers often click 10 times where 3 clicks would do. Less data = Smoother stitches.

The Magic Move: Reshape Tool + Blue Angle Handles to Sculpt Stitch Flow (Without Redrawing the Shape)

This is the "aha!" moment. You don't redraw the shape to fix the flow; you steer the current.

1. Select the object.
2. Click Reshape (or press H).
3. Locate the Blue Angle Lines.
4. Drag them to twist the stitch direction.

Physical Reality: These blue lines dictate the "pull" on your fabric.

• Vertical Angle lines: Will pull the fabric vertically (shortening the design).
• Horizontal Angle lines: Will pull the fabric horizontally (narrowing the design).
• Stabilizer Note: If you twist these angles aggressively (creating a vortex), you must use a stable cutoff stabilizer. Tearaway will perforate and your design will pop out of alignment.


Setup Checklist (Before finalizing the shape)

• Flow Check: Do the rings flow smoothly, or do they "crash" into each other? (Fix crashes by adjusting blue handles).
• Gap Check: Is the 3.00mm spacing consistent, or did a sharp turn crush one side into a solid knot?
• Start/Stop Check: In Reshape, ensure the Green diamond (Start) and Red cross (End) are not trapped in the middle of the design (move them to edges to prevent trapped tails).


The Outline Trick That Makes It Look Finished: Duplicate → Outline Tab → Backstitch

Contour fills have "soft" edges. Without a border, they can look unfinished on fluffy fabrics like fleece or pique polo shirts.

The Fix:

1. Select object → Duplicate (Ctrl+D).
2. Go to Outline tab.
3. Select Backstitch (or Triple Run).

Why Backstitch? Single run stitches get lost in the pile of the fabric. Backstitch (or Triple Run) stands up proud and defines the edge. It acts as a "frame" for your artwork.

The Trap Everyone Falls Into: Why Satin Stitch Destroys This Contour Effect

The video warns against converting this large block to Satin. Let's explain the physics of why.

If you have a block that is 50mm wide and you turn it into a Satin stitch, the machine tries to make a single jump of 50mm.

1. Speed drop: The machine will slow down to a crawl.
2. Snag Hazard: You now have 50mm loops of loose thread on your shirt. A button, a zipper, or a washing machine agitator will catch these loops and destroy the garment.

Warning: Mechanical Safety. Never force a wide shape (over 10-12mm) into a Satin stitch unless you have "Auto Split" turned on. Long, loose satin stitches can snag on the presser foot, causing needle deflection or even shattering the needle plate.

Build the 3D “Tunnel” Look: A Four-Sided Perspective Block with Center-Converging Angles

To create the "Pyramid" or "Tunnel" look shown in the second example:

1. Select Digitize Blocks.
2. Click four corners (creating a diamond or varied rectangle).
3. Press Enter.

The physics of this shape are different. because the stitches converge in the center, you are building up thread density in one spot (the bullseye). On a light t-shirt, this central knot can feel like a pebble.

Expert Tip: If the center feels too hard, slightly increase the spacing to 3.50mm or 4.00mm to give the thread room to breathe.

Center the Focal Point Like a Pro: Reshape the Yellow Corner Nodes and Blue Angle Nodes

Lusianne demonstrates moving the Yellow Squares (Nodes) and Blue Lines (Angles) to shift the tunnel's perspective.

• Moving Yellow nodes changes the Frame.
• Moving Blue nodes changes the Vanishing Point.

Visual Check: Look at the computer screen from 3 feet back. Does the "tunnel" look straight? Our eyes are very good at spotting asymmetry. If the tunnel looks bent, nudge the blue angle line until it straightens out.

Make It Read on Real Thread: Color and Overlap Choices That Keep Contour Rings Crisp

The visual success of a 3.00mm contour fill depends entirely on Contrast.

• Low Contrast: Red thread on Pink fabric. The rings will disappear.
• High Contrast: Neon Green thread on Black fabric. The rings will vibrate and pop.

Production Reality: If you are running this on a single-needle machine, every color change is a manual stop. This design (Base fill + Outline) is efficient because you can do it tone-on-tone (same color, texture difference) or two-tone.

Operation Checklist (Pre-Flight)

• Pathing: Does the machine finish the Fill before starting the Outline? (Check the Sequence docker).
• Underlay: For Contour fills, turn OFF automatic tatami underlay. You want the fabric to show through; underlay will messy up the negative space.
• Outline Alignment: Zoom in 600%. Does the Backstitch outline sit exactly on the edge, or slightly inside? (Slightly inside is safer to prevent gaps).


When You’re Stuck, Use the Built-In Hatch User Guide: Help → User Guide → Search “Contour” → Curved Fills

Don't guess. If the tool is grayed out or behaving oddly:

1. Go to Help > User Guide.
2. Search "Curved Fills".

Software updates change button locations. The User Guide is your map.

Quick Decision Tree: If You Plan to Stitch These Contour Fills, Choose Stabilizer Like You Mean It

Contour fills push and pull fabric in curves. Your stabilizer is the foundation.

Decision Tree (Fabric → Strategy):

• Scenario A: Stiff Fabric (Denim/Canvas)
  • Risk: Low.
  • Stabilizer: Medium Tearaway.
  • Hooping: Standard hoop is fine.
• Scenario B: Stretchy Fabric (Performance Tees/Polos)
  • Risk: High. The curves will distort the knit.
  • Stabilizer: No-Show Mesh (Fusible) + Cutaway.
  • Hooping: Do not over-stretch.
• Scenario C: A "Tunnel" effect on a T-Shirt
  • Risk: The center density will pucker (The "Volcano" effect).
  • Stabilizer: Heavy Cutaway.

The "Hoop Burn" Problem: When practicing new techniques like this, you will be hooping and un-hooping constantly. Traditional hoops leave ring marks ("hoop burn") that are hard to remove from delicate fabrics.

• The Fix: If you are doing frequent sampling or production runs, upgrading to a magnetic embroidery hoop saves immense frustration. They hold fabric without "crushing" the fibers, making them ideal for these open, negative-space designs where fabric texture is part of the art.

Warning: Magnetic Safety. High-quality magnetic hoops (like those from SEWTECH) use powerful magnets. Keep fingers strictly on the handles, not the rim. Do not place near pacemakers or magnetic storage media.

Troubleshooting Contour Fill in Hatch: Symptoms → Likely Cause → Fix

Fast fixes for common failures.

The Upgrade Path (When You Move From “Looks Cool” to “Sells Well”)

Mastering the software is Step 1. Mastering the production efficiency is Step 2.

The Trigger: You have perfected this Contour design. Now you have an order for 50 shirts.

• Pain Point: On a single-needle machine, changing threads for the outline on 50 shirts takes hours. Re-hooping 50 times hurts your wrists.
• The Criteria: If you are spending more time changing thread than stitching, or if you are rejecting garments because of hoop burn.

The Solutions:

1. Level 1 (Consistency): Use a hooping station for machine embroidery (like a generic hoop master embroidery hooping station alternative). This ensures every design lands in the exact same spot on the chest, which is critical for symmetry-heavy designs like Tunnels.
2. Level 2 (Speed): A magnetic embroidery hoop allows you to hoop a shirt in 5 seconds vs 30 seconds, with zero adjustment screw fiddling.
3. Level 3 (Scale): Move to a SEWTECH Multi-Needle Machine. You can set the Fill to Needle 1 and the Outline to Needle 2. The machine stitches the fill, trims, changes color, and outlines automatically. You press "Start" and walk away.

A Few Keywords You’ll Hear in Shops (So You Can Talk Like a Digitizer)

As you research production tools, you will see terms like hoopmaster or generic hooping stations. These refer to the physical jigs that hold the hoop while you load the shirt. They are standard in professional shops.

Similarly, seasoned pros swear by the magnetic embroidery hoop not just for speed, but for "floating" technique stability.

What to Practice Next (So This Skill Actually Sticks)

Don't just watch the video. Open Hatch and do this:

1. The Ripple Test: Draw a wave. Set spacing to 3.00mm. Stitch it on a scrap of denim.
2. The Warp Test: Use Reshape to twist the angles. Duplicate it. Outline it. Stitch it.

Listen to your machine. A happy machine makes a rhythmic hum. If it sounds like it's hammering (thump-thump), your spacing is too tight or your nodes are bunching up. Adjust, re-export, and stitch again.

FAQ

• Q: In Wilcom Hatch Contour Fill, why do the contour rings look like a solid block instead of “readable rings” at 3.00 mm spacing?
  A: Set Contour spacing to 3.00 mm (not 0.30 mm) so Hatch leaves intentional negative space.
  • Open Object Properties and confirm Fill type = Contour.
  • Type 3 in the Spacing field and confirm the unit is mm, not inches.
  • Recheck the object after applying settings; wrong spacing often comes from an accidental decimal.
  • Success check: On screen, the contour lines show clear white gaps between them rather than a filled blue “carpet.”
  • If it still fails: Redo the object using Digitize Blocks (not Open Shape) and reapply the Contour settings.
• Q: In Wilcom Hatch Digitize Blocks, why does a Contour Fill wave look jagged or “nervous” after stitching?
  A: Reduce node count—too many digitizing clicks usually create jittery contour flow.
  • Use Digitize Blocks with Right-click for curve points and Left-click only for corners.
  • Delete or simplify nodes (often removing ~50% of points makes the biggest improvement).
  • Keep the curve minimal (a smooth wave often only needs Start–Peak–End).
  • Success check: The stitched rings look smooth and consistent with no “wobble” along the curve.
  • If it still fails: Use Reshape (H) and adjust the blue angle handles to smooth how stitch direction travels through the curve.
• Q: In Wilcom Hatch Reshape (H), how do blue angle handles on a Contour Fill cause fabric distortion or puckering during stitching?
  A: Blue angle handles control stitch direction and pull—aggressive twists can physically distort fabric, especially on stretchy materials.
  • Select the object, press H (Reshape), and locate the blue angle lines.
  • Drag angle lines gradually; avoid extreme “vortex” twists unless the fabric is well stabilized.
  • Move Start (green diamond) and End (red cross) to the edge so stitch tails are not trapped in the middle.
  • Success check: The fabric stays flat after stitching and the contour spacing stays visually even, especially around tight turns.
  • If it still fails: Switch to a more stable foundation (often cutaway is safer than tearaway for aggressive angle changes) and retest.
• Q: In Wilcom Hatch Contour Fill, why does a Backstitch (or Triple Run) outline not line up with the fill edge on fleece or pique?
  A: Fabric shift during stitching is common—use safer outline placement and add pull compensation if needed.
  • Duplicate the fill object (Ctrl + D) and set the duplicate to Outline > Backstitch (or Triple Run).
  • Zoom in and place the outline slightly inside the edge rather than outside.
  • If shifting persists, increase Pull Compensation to 0.40 mm on the fill object.
  • Success check: At high zoom and on the sewn piece, the outline consistently hugs the edge without “shadow gaps” or drifting.
  • If it still fails: Recheck stabilization and hooping tension—fabric movement is usually the root cause, not the outline type.
• Q: In Wilcom Hatch Contour Fill, why does the design create a “hole” or cut-through area in fabric when stitching tight curved rings?
  A: Loosen the effect—increase spacing and consider a ballpoint needle to reduce cutting the same spot repeatedly.
  • Increase spacing from 3.00 mm to 3.50 mm (and only go further if needed for that fabric).
  • Switch to a ballpoint needle when stitching on knits to reduce fiber cutting.
  • Avoid crushing tight turns that collapse spacing into a dense knot.
  • Success check: The fabric surface remains intact with no perforation line where rings repeatedly hit the same path.
  • If it still fails: Redesign the curve with fewer nodes and smoother transitions so the rings don’t stack on top of each other.
• Q: In Wilcom Hatch, why is converting a 50 mm wide Contour Fill block into Satin Stitch a needle and snagging risk?
  A: Wide satin stitches create long loose thread spans that can snag and may cause needle deflection—avoid satin over wide areas unless properly split.
  • Keep wide areas as Contour (effect) or use a coverage fill type designed for large areas instead of satin.
  • If satin is required, use Auto Split for wide shapes (a safe practice is not forcing satin beyond typical narrow widths).
  • Slow down and test-stitch on scrap before running garments.
  • Success check: The machine runs smoothly without “hammering” sounds, and there are no long loose loops that can catch on zippers/buttons.
  • If it still fails: Stop immediately and revert the object away from satin; check machine manual guidance for maximum safe satin width.
• Q: When stitching Wilcom Hatch Contour Fill samples repeatedly, how can SEWTECH magnetic embroidery hoops reduce hoop burn and speed up re-hooping compared to standard hoops?
  A: Magnetic hoops help hold fabric without crushing fibers, which reduces hoop burn and can cut hooping time dramatically during sampling or production.
  • Use a standard hooping method for occasional tests; switch to a magnetic hoop when frequent hoop/unhoop is causing ring marks or wrist fatigue.
  • Load fabric carefully so the design area is held flat without over-stretching (especially on polos and performance knits).
  • Pair the hoop choice with the stabilizer strategy used for curved pull designs (often mesh + cutaway on stretch).
  • Success check: After unhooping, the fabric shows minimal ring marks and the stitched contour spacing stays consistent from piece to piece.
  • If it still fails: Upgrade consistency first (use a hooping station for repeat placement), then reassess stabilizer choice before changing the design file.
• Q: What magnetic safety rules should operators follow when using SEWTECH magnetic embroidery hoops during Contour Fill testing and production?
  A: Treat the magnets as a pinch hazard and a medical/device hazard—handle only by the grips and keep magnets away from sensitive devices.
  • Keep fingers on the handles, not on the rim where magnets close.
  • Do not use near pacemakers and avoid placing near magnetic storage media.
  • Close the hoop in a controlled way; don’t “snap” it shut over fabric with hands in the pinch zone.
  • Success check: No finger pinches during loading, and the hoop closes evenly without sudden slams.
  • If it still fails: Stop and retrain handling—magnetic hoop injuries usually come from rushing, not from the fabric or design.
