Combine Holes in Embrilliance Stitch Artist Without Tears: Clean “D” Letters, True Negative Space, and a Stitch Angle That Actually Sews Well

The Ultimate Guide to Compound Paths in StitchArtist: From Frustration to Flawless 'D's

If you’ve ever digitized a letter like “D”, “O”, “P”, or “R” and ended up with a filled-in center—or two shapes that refuse to behave like one—you’re not alone. This is the "rite of passage" for every digitizer moving from auto-digitizing to manual control.

The good news: in Embrilliance Stitch Artist, the fix is not complicated. However, it is unforgiving regarding selection order and vector hygiene.

This guide rebuilds the workflow from the tutorial video but adds the "Chief Education Officer" layer: the sensory checks, the specific parameter values, and the physical stabilization logic that ensures your file actually runs on your machine without breaking needles or ruining garments.

Calm the Panic: “My Letter D Has No Hole” Is Usually a Selection Problem in Embrilliance Stitch Artist

When a hole won’t cut out, most novices assume the software is broken. In reality, Stitch Artist is doing exactly what you told it to do: you created two separate closed shapes (a big cookie and a small cookie), but you didn’t tell the software to treat them as a "donut."

You are dealing with Vector Logic.

• Object A: The outer shape (positive space).
• Object B: The inner shape (negative space).

In the video, the instructor demonstrates a reliable pattern:

1. Trace the outer boundary.
2. Trace the inner boundary.
3. Multi-select both objects.
4. Run Create > Outline > Combine Holes.

Once you treat “holes” as a mathematical relationship between two lines, the feature becomes predictable.

The “Hidden” Prep Pros Do First: 300% Zoom + Spacebar Pan So Your Nodes Land Exactly Where You Think They Do

Before you place a single point, set yourself up to succeed. "Eyeballing it" at 100% zoom is the primary cause of lumpy satins and gaps.

In the video, the instructor increases the zoom to 3:1 (300%). That’s not a random preference—it’s a control strategy.

• The Reality: A screen pixel is square. A stitch is organic. At low zoom, placing a node "near" the edge can result in a 1mm gap on the final sew-out. An error of 1mm is huge in embroidery (standard satin columns are only 3mm-4mm wide).

The Hand Tool Trick: To move around the artboard without deselecting your drawing tool, hold the Spacebar. This temporarily turns your cursor into a Hand, allowing you to drag the canvas. Release the Spacebar, and you are instantly back to placing nodes.

Prep Checklist (do this before you start tracing)

• Visual Calibration: Set workspace zoom to 300%. Can you clearly see the pixelation of the background image? Good.
• Navigation Check: Press/release Spacebar. Does the cursor toggle between the Pen tool and Hand tool correctly?
• Centering: Is the artwork (the letter “D”) centered? You don't want to hit the edge of the virtual hoop while tracing.
• Corner Logic: Decide now—do you want a "Hard" geometric D or a "Soft" organic D?
  • Hard: Requires fewer points, sharp corners.
  • Soft: Requires Bezier curves and smooth transitions.


Trace the Outer Letter D with “Draw with Points”: Control Key for Straight Segments, Release for Curves

The instructor selects Draw with Points and begins tracing the outer perimeter. Here is the tactile rhythm you need to master.

The "Piano Player" Technique:

• Left Hand: Hovers over the Ctrl (or Command) key.
• Right Hand: Clicks the mouse.

The Rules of Engagement:

1. Hold Control + Click: Creates a Line Node (represented by a square or triangle depending on version). This forces a perfectly straight line to the previous point. Use this for the spine of the "D".
2. Release Control + Click: Creates a Curve Node (represented by a round dot). This creates a bezier curve that flows smoothly from the previous point. Use this for the belly of the "D".


Checkpoints (so you know you’re doing it right)

• Visual: You should see black vector nodes appear as you click.
• Audit: If the spine of your "D" looks slightly wavy, you forgot to hold Control. Undo (Ctrl+Z) and redo it.
• Closure: You must click back on the very first node to close the shape.
  • Sensory Check: Watch the cursor change (often a small 'o' appears next to the pen) indicating "Close Path."


Expected outcome

When the outer trace is complete, you should see a solid shape in the Object Pane. Do not panic if it fills with color and covers your artwork—that means it worked.

Digitize the Inner Hole (Negative Space) Like It’s a Second Shape—Because It Is

Now, repeat the process for the inner cutout. The video shows the instructor returning to Draw with Points and tracing the inner shape.

Crucial Experience Note: The inner hole is where the human eye detects "cheap" digitizing. If the outer curve is smooth but the inner curve is choppy, the satin column will fluctuate in width, creating a visual "wobble" in the light reflection of the thread.

Density & Underlay Strategy (The Pivot from Vector to Thread): While tracing is just geometry, embroidery requires physics.

• Points: Keep the number of nodes on the inner curve roughly similar to the outer curve.
• Gap: Ensure your inner shape isn't too close to the outer shape. You need at least 1.5mm to 2mm of column width for a clean satin stitch. Anything narrower than 1mm causes thread breaks/birdnesting.


Pro tip (quality control that saves test-stitches)

• Node alignment: Try to align the nodes of the inner shape radically with the nodes of the outer shape. This helps the software calculate cleaner stitch angles later.

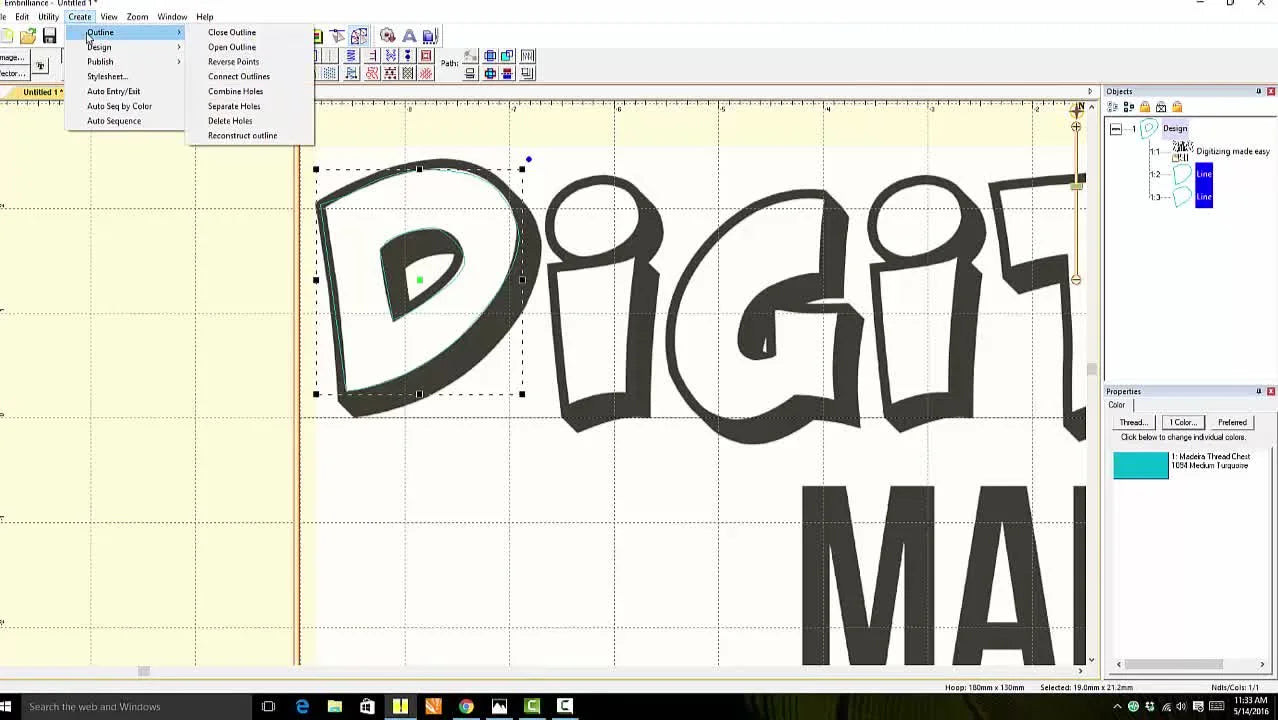

The Make-or-Break Click: Shift-Select Both Objects in the Object Pane, Then Run Create > Outline > Combine Holes

This is the "Magic Trick" moment.

The Sequence:

1. Look at the Object Pane (top right). You should see two separate objects.
2. Click the first object (Outer D).
3. Hold Shift and click the second object (Inner D).
4. Both should be highlighted in blue.
5. Navigate: Create > Outline > Combine Holes.


Warning: Selection Order Matters. If you don’t have both objects highlighted in the Object Pane before you click Combine Holes, the option might be greyed out, or nothing will happen. If you accidentally combine them with other background elements, press Ctrl+Z immediately.

Expected outcome

The two objects in the pane will merge into one object. Visually, on the canvas, the center should punch out, revealing the background (or grid) through the hole.

Turn On the “Eye” (3D View) and Read Your Inclination Line Like a Roadmap for Stitch Direction

A vector hole is not a stitch file. You must now tell the machine how to lay the thread.

Toggle 3D View: Click the Eye Icon (shortcut 's' on keyboard often works too).

• Diagnostics: If you see a flat fill of color but no texture, you are in Vector Mode. If you see thread texture, you are in Stitch Mode.


The Inclination Line (The Angle of Attack): The instructor demonstrates adjusting the "Inclination Line"—a line with two black handles crossing the shape.

• Horizontal Line: Creates vertical piling stitches (good for the spine).
• Diagonal Line: Creates satin stitches that wrap around the curve.


Why stitch direction matters (The Physics of "Push/Pull")

Embroidery shrinks. Period.

• Pull Compensation: Stitches pull the fabric in the direction the needle travels. A vertical column will make the "D" shorter and fatter.
• The Fix: Your inclination lines should generally remain perpendicular to the column width.
  • Visual Check: The stitches should look like water flowing through a pipe—smoothly following the curve.

Setup Checklist (before you export or stitch)

• Object Check: Does the Object Pane show one compound object?
• 3D Check: Toggle the Eye Icon. Do you see underlay? (You should verify "Edge Run" or "ZigZag" underlay is on for stability).
• Flow Check: Do the stitch angles look 90 degrees to the edges of the letter?
• Consumable Check: Do you have sharp 75/11 needles ready? A dull needle will ruin a crisp satin edge.

A Practical Decision Tree: Choosing Stabilizer + Hooping Strategy Based on Fabric (So Your “Perfect Hole” Doesn’t Distort in Real Life)

You can digitize the world's most perfect millimeter-precise "D", but if you hoop it incorrectly, physics will destroy it. The fabric will move.

Use this decision tree to match your digital file to physical reality:

1) What fabric are you stitching on?

• Stable woven (Denim, Canvas, Twill):
  • Stabilizer: Medium Tearaway (1.8oz - 2.0oz) is usually sufficient.
  • Pull Comp: Low (0.1mm - 0.2mm).
• Stretch knit (Performance Tees, Pique Polo):
  • Stabilizer: Must use Cutaway (2.5oz or 3.0oz). No exceptions. If you use tearaway, the "D" will become an oval.
  • Adhesion: Use temporary spray adhesive (like 505) to bond fabric to stabilizer.
  • Pull Comp: High (0.35mm - 0.4mm).
• High-pile (Fleece, Towels):
  • Stabilizer: Cutaway on bottom + Water Soluble Topping (Solvy) on top.
  • Why? Without topping, your beautiful satin stitches will sink into the loops and the edge of your "D" will disappear.

2) Are you seeing distortion around holes (like the inner “D” opening)?

• Symptom: The outline and the fill don't line up?
• Fix: It's rarely the file. It's usually "Hoop Burn" or loose hooping. The fabric is flagging (bouncing) in the hoop.

Comment-Style “Watch Outs” I Hear Constantly (Even When Nobody Says It Out Loud)

• Watch out: “My hole disappeared after I added stitches.”
  • Cause: You likely converted the shape to a "Fill" before combining holes. Combine the vectors first, then apply the stitch type (Satin or Fill).
• Pro tip: “My D looks great on screen but the hole closes up when sewn.”
  • The "Push" Effect: Satin stitches push out. If your hole is only 2mm wide on screen, the thread will expand and close it.
  • The Fix: Digitally, make the hole larger than you think it needs to be. Open that gap up by 0.5mm to compensate for thread thickness.
• Watch out: “I used too many points and now editing is miserable.”
  • Rule of Thumb: Use the minimum number of nodes possible. A curve only needs 2 nodes (start and end).

The Upgrade Path (When Your Real Problem Isn’t Digitizing—It’s Throughput)

This tutorial focuses on software, but successful embroidery is 50% digital and 50% mechanical. If your files look good on screen but fail on the machine, you need to look at your holding method.

Level 1: The Struggle. If you are using traditional screw-tighten plastic hoops, you are battling friction. To get a taught "drum-skin" feel without generating "hoop burn" (those shiny crushed fabric rings), you need immense hand strength and time. This is the #1 killer of profit in small shops.

Level 2: The Solution. This is why terms like magnetic embroidery hoop are constantly searched by growing businesses. They change the physics of hooping.

• Instead of forcing an inner ring into an outer ring (friction), a magnetic embroidery hoop uses vertical clamping force.
  • Benefit: No friction burn on delicate polos.
  • Benefit: It holds thick items (Carhartt jackets) that standard hoops physically cannot clip onto.

Level 3: Scale. If you are doing production runs—say, 50 left-chest logos—efficiency is math. A standard re-hoop takes 45-90 seconds. A magnetic re-hoop takes 10-15 seconds. If you pair this with a hooping station for embroidery to standardize placement, you eliminate the "is it crooked?" guessing game.

Professionals often debate between different systems, looking for terms like hoopmaster compatible fixtures or upgrading to stronger embroidery magnetic hoops (like the MaggieFrame) to ensure the fabric never slips, even at 1000 stitches per minute.

Warning: Magnetic Safety. Magnetic frames contain powerful industrial magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear of the edge.
* Medical: Keep them away from pacemakers and implanted medical devices.
* Electronics: Keep away from credit cards and phone screens.

And finally, if you find yourself spending more time changing thread colors than digitizing, it might be time to look at multi-needle productivity (like SEWTECH multi-needle solutions) to truly unlock your shop's potential.

Operation Checklist (the last 60 seconds before you call the file ‘done’)

• Closure Check: Are outer/inner paths definitely closed? (Zoom in on the start/stop nodes).
• Combination: Did you perform Create > Outline > Combine Holes?
• Underlay: Is your Underlay set to Edge Run (for definition) + ZigZag (for structure)?
• Compensation: Did you add 0.20mm - 0.35mm of Pull Compensation? (Without this, your "D" will clearly distort).
• Simulation: Run the "Stitch Simulator" (the VCR play button icons). Watch the needle virtually stitch out. Does it jump around, or flow logically?

A Few Keywords You’ll See in Real Buying Decisions (So You Don’t Overbuy Too Early)

If you are expanding your toolkit, distinguish between "Speed" and "Precision."

• For Placement Precision, look for alignment jigs and stations.
• For Holding Power and Speed, look for embroidery machine hoops with magnetic locking systems.
• For Complex Items (bags, thick jackets), standard hoops fail. You need magnetic clamping force to penetrate the layers without marking the fabric.

Digitizing the perfect "D" is the first step. holding the fabric still so it stats a "D" is the rest of the journey.

FAQ

• Q: In Embrilliance StitchArtist, why does the letter “D” hole not cut out after using Create > Outline > Combine Holes?
  A: This is usually a selection problem—Combine Holes only works when both the outer and inner closed vectors are selected together in the Object Pane.
  • Recheck: Confirm the outer “D” and inner “D” are two separate closed shapes in the Object Pane.
  • Shift-select: Click the outer object, hold Shift, click the inner object, and verify both highlight.
  • Run: Go to Create > Outline > Combine Holes only after both are highlighted.
  • Success check: The Object Pane shows one merged object and the center becomes a visible “punched-out” opening on the canvas.
  • If it still fails: Press Ctrl+Z, then verify you are not accidentally selecting background elements and that both paths are truly closed.
• Q: In Embrilliance StitchArtist “Draw with Points,” how do Control-key nodes prevent a wavy straight spine on a letter “D”?
  A: Hold Ctrl/Command while clicking to force straight segments; releasing Ctrl creates curved nodes, which can make the spine look wavy if used by mistake.
  • Trace: Use Hold Ctrl + Click for the straight spine segments of the “D”.
  • Curve: Use Release Ctrl + Click only on the rounded belly where a Bezier curve is needed.
  • Undo fast: Hit Ctrl+Z immediately if the spine starts to ripple.
  • Success check: The spine edge looks visually straight at high zoom, not slightly “wiggly” between nodes.
  • If it still fails: Reduce node count—too many points often makes a line look bumpy and harder to correct.
• Q: In Embrilliance StitchArtist, what is the fastest way to prevent gaps and lumpy satin edges when tracing a letter at 100% zoom?
  A: Work at 300% zoom and use Spacebar pan so nodes land exactly on the artwork edge without losing tool selection.
  • Set: Zoom to 3:1 (300%) before placing the first node.
  • Pan: Hold Spacebar to temporarily switch to the Hand tool, drag, then release Spacebar to continue placing nodes.
  • Close: Click back on the first node to fully close each path before moving on.
  • Success check: At 300% you can see pixelation and your vector line consistently sits on the intended boundary with no visible “daylight” gaps.
  • If it still fails: Re-center the artwork so you are not tracing near the edge of the workspace where control gets sloppy.
• Q: In Embrilliance StitchArtist, why does the “D” hole disappear after stitches are added or after converting the shape to Fill/Satin?
  A: The hole usually disappears because the stitch type was applied before the vectors were combined—combine the vectors first, then apply Satin/Fill.
  • Roll back: Use Ctrl+Z until you are back to two clean vector shapes (outer and inner).
  • Combine first: Select both in the Object Pane and run Create > Outline > Combine Holes.
  • Convert after: Apply the desired stitch type only after the compound object exists.
  • Success check: In stitch view, the center remains open and you can visually see stitches flow around the hole instead of covering it.
  • If it still fails: Verify you truly traced an inner closed shape (not an open line) and that it is inside the outer boundary.
• Q: In Embrilliance StitchArtist 3D View (Eye icon), how do inclination lines help prevent push/pull distortion on a satin letter “D”?
  A: Use 3D View to confirm stitch texture, then set the inclination line so stitches run generally perpendicular to the column width for smoother flow and less distortion.
  • Toggle: Click the Eye icon to enter stitch/3D view (thread texture should appear).
  • Adjust: Move the inclination line handles to guide stitch direction—avoid angles that fight the column shape.
  • Verify: Confirm underlay is enabled (Edge Run and/or ZigZag) for stability before exporting.
  • Success check: The stitch preview looks like “water flowing” smoothly around the curve and not fighting the edges.
  • If it still fails: Revisit the inner/outer node smoothness—choppy inner curves often create uneven satin width and visual wobble.
• Q: For stretch knit polos and performance tees, what stabilizer and adhesion method prevents a stitched letter “D” hole from turning into an oval during embroidery?
  A: For stretch knits, use cutaway stabilizer (2.5oz or 3.0oz) and bond fabric to stabilizer with temporary spray adhesive to reduce movement.
  • Choose: Use Cutaway (not tearaway) for knit garments.
  • Bond: Apply temporary spray adhesive (example mentioned: 505) to keep the knit from shifting on the stabilizer.
  • Set: Use higher pull compensation values mentioned for knits (0.35–0.4mm) as a starting point, then test.
  • Success check: The inner opening stays round/consistent after sewing, and the satin column width does not visibly fluctuate.
  • If it still fails: Treat it as hooping/flagging—distortion around holes is often caused by loose hooping or fabric bounce rather than the digitizing.
• Q: What magnetic embroidery hoop safety rules prevent finger pinch injuries and device interference during hooping?
  A: Magnetic hoops clamp with strong industrial magnets—keep fingers clear of the closing edge and keep the frame away from pacemakers and sensitive electronics.
  • Position: Hold the magnetic ring by safe grip areas and keep fingertips away from the mating edge before it snaps shut.
  • Separate safely: Open slowly and deliberately; do not “peel” where fingers can get caught.
  • Isolate: Keep magnetic hoops away from pacemakers/implanted medical devices and away from items like credit cards and phone screens.
  • Success check: The hoop closes without any finger contact near the clamp line, and the garment remains unmarked (no friction “hoop burn” ring).
  • If it still fails: If the fabric still slips or flags, move up the “holding method” solution path—improve hooping technique first, then consider a stronger holding system rather than changing the design.
