Combine Built-In Designs on the Brother F540E Without Wasting Hoop Space (Frames + Motifs + Text That Actually Fits)

If you’ve ever stared at your Brother F540E screen thinking, “I know the machine can do this… why does it look like a mess?”—you’re not alone. Combining built-in frames, motifs, and lettering is one of the fastest ways to get custom-looking embroidery without digitizing software, but it’s also where beginners accidentally create overlaps, cramped text, or a design that stitches beautifully on-screen but puckers into a disaster on real fabric.

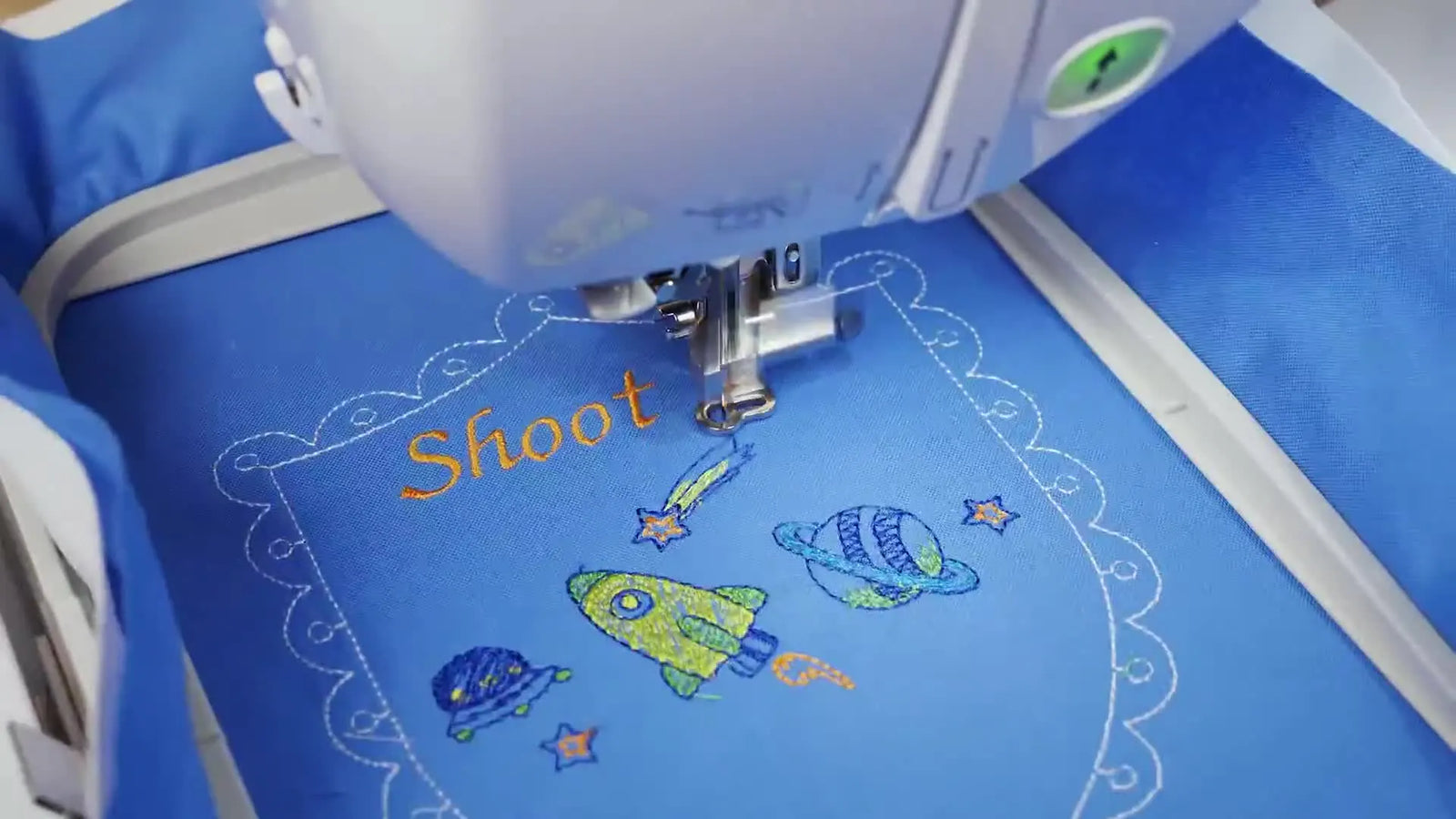

This project builds a space-themed composition—shield frame + rocket/planets + two lines of text (“Shoot for” and “the stars”)—using only the Brother F540E’s on-screen editing tools. I’ll keep the steps faithful to the machine workflow, but I am going to add the "shop-floor" sensory checks and safety margins that usually take years to learn.

Don’t Panic: The Brother F540E *Can* Combine Designs—You Just Need a Layout Habit

On the Brother F540E, combining designs isn't about fancy features; it's about discipline. We are building a house: foundation (frame), furniture (motifs), and decoration (text). You cannot hang pictures before the walls are up.

A quick reality check from the start: the standard hoop boundary indicator is 180.0 mm x 130.0 mm. In this project, we are resizing the shield frame to about 166.0 mm x 128.0 mm.

Why this matters: You are working within 2mm of the vertical limit. That is razor-thin. If your fabric slips even slightly, the needle hits the plastic hoop.

• The Sound of Success: When you tap the hoop, it should sound like a tight drum skin ("thump-thump"), not a dull thud.
• The Visual Check: Ensure your hoop's inner ring is flush with the outer ring.

If you’re new and you’re still learning hooping for embroidery machine, treat “near-max hoop designs” as a Level 2 skill. It is doable, but only if your stabilization is bulletproof.

The “Hidden” Prep Pros Do Before Touching the Screen (Fabric + Stabilizer + Thread Plan)

The video stitches on blue woven/cotton fabric. This is a forgiving fabric, but don't get complacent. Frame designs act like "truth serum" for your stabilization—any shifting makes the border look wavy and drunk.

Fabric & Stabilizer Mindset (The "Sandwich" Logic)

• Fabric: Woven Cotton (Non-stretch).
• Stabilizer: Medium Weight Tear-away (2 layers if the cotton is thin) OR 1 layer of Cut-away for maximum security.
• The "Why": Why do frames distort? Because stitches pull fabric inward. To prevent this, spray a light mist of temporary adhesive spray (like 505) on your stabilizer before hooping. This bonds the fabric to the stabilizer, preventing that dreaded "micro-shifting."

Thread Change Expectation

A beginner asked a fair question: “Do I need to remove the hoop and change the bobbin thread at every color?”

• The Rule: No. commonly, you use white bobbin thread (60wt or 90wt) for the entire project unless the back of the design will be visible.
• The Action: You will only change the top thread 4 times.

Warning: Needle Safety. Keep fingers, scissors, and loose sleeves at least 10cm away from the needle area when the machine is running. Never reach under the presser foot to “smooth” fabric while stitching—stop the machine first. A generic needle through the finger is a hospital trip you don't want.

Prep Checklist (Do this OR fail verification)

• Fabric: Pressed flat using spray starch (makes it crisp like paper).
• Stabilizer: Cut 1 inch larger than the hoop on all sides.
• Bobbin: Visual Check: Is the thread wound evenly? If it looks spongy or loose, throw it out and re-wind.
• Top Threads: Staged in order (Yellow, Green, Blue, Purple) to avoid panic searching mid-stitch.
• Needle: Touch Check: Run your fingernail down the needle tip. If it catches, the needle is burred—replace it immediately. Use a 75/11 Embroidery Needle.
• Hidden Consumable: Have curved snips ready for jump stitches.


Build the Base: Selecting the Shield Frame on the Brother F540E (Category 2, Page 3, No. 09)

Start by clearing the previous design. We are creating the container first.

1. Tap the Frame icon.
2. Choose the shield shape category.
3. Navigate to page 3 using the arrow keys.
4. Select design #09 (Shield).
5. Press Set to bring it into the edit screen.

You’ll see the design appear on the left of the LCD. This is your perimeter fence. Nothing goes outside this line.

Max Out the Shield Without Crossing the Boundary: Resizing to ~166.0 mm x 128.0 mm

Now you’ll enlarge the shield so it fills the hoop nicely.

1. Tap Size.
2. Tap the expansion arrows repeatedly.
3. Stop when the shield reaches approx 166.0 mm x 128.0 mm.

The "Red Box" Danger Zone: Use the "Check Size" key on your machine. Watch not just the screen, but the actual carriage movement. Does the foot come dangerously close to the plastic frame edges?

• Beginner Safety Tip: If the machine beeps and refuses to enlarge further, do not force it. Back off 1 mm to give yourself a safety cushion.


Add the Space Motif Layer: Brother F540E “Add” Button + Space Design #25

To layer a second design:

1. Press Add (in the purple banner).
2. Go to the thematic design menu (the icons shown in the video).
3. Scroll until you find item #25 (rocket/planets).
4. Tap it and press Set.

You’ll now see the rocket/planets overlaid on the shield frame. It will look cluttered—don't worry, we are about to organize it.

Nudge the Rocket Up the Y-Axis (+3.5 mm) So Your Text Doesn’t Get Crushed

This is where amateurs ruin layouts: they center everything mathematically, leaving no room for the human eye to read the text.

1. Go into Size and make the rocket/planets slightly larger (trust your eye, but keep it inside the shield).
2. Use Move arrows to shift the motif upwards on the Y-axis (approx +3.5 mm).

Visual Check: Imagine a "Letterbox" rectangle above and below the rocket. Is there enough white space? If the rocket nose is touching the top frame, your text will look like it was an afterthought.

The Lettering Trap on the Brother F540E: Font #04 Works—But Large (L) Won’t Fit

Now add the first line of text (“Shoot for”).

1. Press Add again.
2. Choose the Fonts menu.
3. Select Font No. 04.
4. Type a capital “S”.
5. CRITICAL STEP: Before typing more, switch the text size from Large (L) to Medium (M) using the L/M/S toggle.
6. Type the rest of the line (“hoot for”).
7. Press Set.

Why Medium? Embroidery fonts expand when stitched because thread has thickness. Large font here would crash into the shield borders.

Commercial Insight: If you constantly struggle with fitting designs and need larger working areas, many users eventually research brother embroidery hoops sizes to see if larger aftermarket frames are available, but mastering sizing within your 180x130mm limit is the skill that pays off first.

Place “Shoot for” at the Top of the Shield (Watch the Coordinates)

With the first text line loaded into the edit menu:

1. Use Move arrows to position it at the top of the shield.
2. The video places the text around Y +47.3 mm.

The "1mm Rule": Zoom in on your screen. Ensure there is at least 1-2mm of clear space between the top of the letters and the satin stitches of the shield. If they touch on screen, they will overlap on fabric.

Add “the stars” in Medium (M) and Drop It to the Bottom (Y −35.2 mm)

Repeat the text process for the second line:

1. Press Add.
2. Select Font No. 04.
3. Confirm the size is Medium (M).
4. Type “the stars”.
5. Press Set.
6. Use Move arrows to drag it down into the bottom area.
7. Target coordinate: around Y −35.2 mm.

Visual Check: Look at the "O" in "Shoot" and the "s" in "stars". Are they roughly aligned vertically with the center?

The “Edit End” Moment: Lock the Whole Layout Before You Stitch

Once you like the composition:

1. Tap Edit End (bottom right).
2. You’ll reach a screen where you can adjust the position of the entire grouped design at once.

Since we are nearly maxed out, you likely cannot move much. This step is just to confirm nothing has accidentally shifted off-center.

The Pre-Stitch Reality Check: 7,010 Stitches, 17 Minutes, 4 Colors—Then Commit

1. Press Embroidery (bottom right).
2. Review the metrics: 7,010 Stitches, 17 Minutes, 4 Colors.

The Professional's Calculation: At a beginner speed (approx 400-500 stitches per minute), plus thread change stops, this 17-minute estimate will effectively take 25-30 minutes.

• Do you have 30 minutes of uninterrupted time? If not, don't start.

If you are using standard brother embroidery hoops, ensure the screw is tightened firmly. If you can pull the fabric and see it move even 1mm, you must re-hoop. Loose fabric causes "bird nests" (tangles) underneath the plate.

Setup Checklist (The "Takeoff" Protocol)

• Clearance: Check that the embroidery arm has space to move back and forth without hitting a wall or coffee mug.
• Tail Management: Hold the top thread tail for the first 3-5 stitches to prevent it being sucked down.
• Hoop Check: Push the hoop corners down. Sound Check: Did it "click" firmly into the carriage? If it wobbles, it's not locked.
• Presser Foot: Is it down? (Review your screen for red error lights).
• Speed: Set the speed slider to Medium for the first layer to ensure the stabilizer holds.

Color Changes on the Brother F540E: What You Actually Do When the Machine Stops

The machine will stop automatically when a color is finished.

1. Cut top thread: Leave a 10cm tail.
2. Raise Presser Foot: (If not auto).
3. Pull thread: Remove the old spool.
4. Insert New Color: Follow the numbered path 1-2-3-4-5-6-7.
5. Tension Check: When flossing the thread through the tension discs (usually step 3 or 4), you should feel a slight resistance, like flossing teeth. No resistance = No tension = Bird's nest.


Why Hooping Quality Decides Whether Your Frame Looks “Premium” or “Wobbly”

Here is the physics: A frame design acts like a ruler. If your fabric is stretched "drum tight" vertically but loose horizontally, your circular shield will stitch out as an oval.

The Pain Point: Standard hoops require force to tighten the screw, and they often leave "hoop burn" (white crease marks) that are hard to remove from delicate fabrics. The Solution (Level 2): If you struggle with hand strength or alignment, a hooping station for embroidery keeps the hoop static while you manipulate the fabric. The Solution (Level 3): For frequent stitchers, upgrading to magnetic embroidery hoops for brother eliminates the screw-tightening struggle. Magnets automatically apply even tension around the perimeter, reducing fabric distortion and hoop burn.

Warning (Magnetic Safety): Magnetic hoops use industrial-grade neodymium magnets. They are powerful. PINCH HAZARD. Keep fingers clear of the snap zone. Do not use if you have a pacemaker.

Stabilizer Decision Tree for This Kind of “Frame + Text” Design

When in doubt, use this logic:

• Scenario A: Standard Woven Cotton (Pillowcase, Shirt)
  • Solution: 1 Layer Medium Tearaway.
  • Tip: Use Spray Adhesive to fix fabric to stabilizer.
• Scenario B: Stretchy Knit (T-Shirt, Hoodie)
  • Solution: 1 Layer Poly-mesh Cutaway (fusible is best).
  • Tip: Do NOT pull the fabric when hooping. Let it rest naturally. The stabilizer bears the load.
• Scenario C: Thick Towel or Fleece
  • Solution: 1 Layer TEARAWAY on bottom + 1 Layer Water Soluble Topping on top.
  • Reason: The topping prevents the text from sinking into the fluff.

Troubleshooting: Symptoms You’ll See, What They Usually Mean, and the Fast Fix

The Upgrade Path: When a Simple Project Turns Into Real Production

This design is 7,010 stitches. One run takes ~25 minutes.

• Hobby Pace: Making 1 for a nephew? Enjoy the process. The standard setup is perfect.
• Side Hustle Pace: Need to make 20 of these for a school team? That is 8.5 hours of labor, mostly spent changing threads.

The Production Reality: If you find yourself spending more time changing threads than stitching, your single-needle machine has become your bottleneck.

• Level 1 Fix: Pre-wind 20 bobbins and organize threads.
• Level 2 Fix: Use Magnetic Hoops to cut hooping time from 3 minutes to 30 seconds per shirt.
• Level 3 Fix (The Scale-Up): A multi-needle machine (like SEWTECH compatible commercial machines) holds all 4 colors simultaneously. It stitches the whole design in 12 minutes without you lifting a finger.

Operation Checklist (What “Good” Looks Like During Stitching)

• Sound: A rhythmic "chug-chug-chug". Any loud "CLACK" means stop immediately.
• Sight: No fabric bunching at the front of the frame.
• Thread: Top thread is not shredding or fraying at the needle eye.
• Result: The text is legible, and the shield border meets perfectly at the end.


When you can reliably combine built-in designs like this, checking your tension and respecting the hoop limits, you stop guessing and start crafting. That’s the moment embroidery stops being stressful and starts being profitable.

FAQ

• Q: How can Brother F540E users prevent the needle from hitting the hoop when resizing a frame close to the 180.0 mm x 130.0 mm limit?
  A: Keep a 1–2 mm safety cushion and confirm clearance using the Brother F540E “Check Size” movement before stitching.
  • Use “Check Size” and watch the actual carriage travel, not only the LCD preview.
  • Back off the frame size by 1 mm if any point looks close to the plastic hoop edge or the machine refuses further enlargement.
  • Re-hoop if the fabric can be pulled and shifts even 1 mm, because near-max designs amplify slip.
  • Success check: During “Check Size,” the presser foot never approaches the hoop edge in a way that makes you nervous, and the machine runs the boundary without beeping.
  • If it still fails: Confirm the correct hoop size is selected in the machine settings and reduce the overall design by 1–2 mm.
• Q: What stabilizer setup is a safe starting point for a Brother F540E “frame + text” design to prevent wavy borders and fabric shifting?
  A: Start with medium tear-away on woven cotton, and add spray adhesive to bond fabric to stabilizer to stop micro-shifting.
  • Use 1 layer medium tear-away for standard woven cotton; use 2 layers if the cotton is thin, or switch to 1 layer cut-away for maximum security.
  • Spray a light mist of temporary adhesive on the stabilizer before hooping so the fabric does not creep during dense frame stitches.
  • Cut stabilizer at least 1 inch larger than the hoop on all sides.
  • Success check: The stitched shield border looks smooth and symmetrical (not “wavy and drunk”), and the outline meets cleanly at the end.
  • If it still fails: Upgrade the stabilizer choice (often cut-away is more forgiving) and re-check hoop tightness (“drum tight” feel and flush rings).
• Q: What are the fastest checks Brother F540E owners can do before stitching to avoid bird nests and tension problems?
  A: Re-thread and verify the bobbin and top-thread tension feel before pressing start—most nesting comes from missing tension or a bad wind.
  • Inspect the bobbin: If the winding looks spongy/loose, re-wind or replace the bobbin.
  • Re-thread the top thread through the numbered path and “floss” through the tension discs; you should feel slight resistance.
  • Hold the top thread tail for the first 3–5 stitches so it does not get sucked down.
  • Success check: The machine forms clean stitches immediately with no thread wad under the needle plate and no white bobbin thread popping on top.
  • If it still fails: Stop, remove the hoop, clear the underside tangle, and re-thread again—no resistance while flossing usually means the thread is not seated in tension.
• Q: Why does Brother F540E built-in lettering overlap the frame when using Font No. 04 in Large (L), and what setting prevents cramped text?
  A: Switch Brother F540E Font No. 04 from Large (L) to Medium (M) before typing the full line to keep spacing stitch-safe.
  • Add text, choose Font No. 04, type the first letter, then toggle size to Medium (M) before entering the rest of the word(s).
  • Keep at least 1–2 mm clear space between lettering and the satin stitches of the shield border.
  • Nudge the motif upward (the project uses about +3.5 mm) to create readable “white space” for top and bottom text lines.
  • Success check: On-screen, letters do not touch the frame border and there is visible breathing room above/below the text line.
  • If it still fails: Reduce text size/spacing further and reposition using Move until the 1–2 mm gap is visible everywhere.
• Q: What causes white bobbin thread showing on top on a Brother F540E, and what is the quickest fix?
  A: White bobbin thread on top usually means the top tension is too tight or the bobbin thread is not seated correctly—re-thread first.
  • Re-thread the top thread completely, following the numbered path carefully.
  • Reinstall the bobbin and confirm the bobbin thread is in the small metal slit/tension spring.
  • Run a short test stitch sequence if possible before committing to the full design.
  • Success check: The top surface shows clean top-thread coverage with no bobbin thread peeking through.
  • If it still fails: Stop and inspect for threading mistakes again—most cases resolve with correct seating through tension points.
• Q: What needle-safety rule should Brother F540E beginners follow when stitching and trimming jump stitches?
  A: Keep hands and tools at least 10 cm away from the needle area while the Brother F540E is running, and never reach under the presser foot to smooth fabric mid-stitch.
  • Stop the machine before trimming jump stitches or adjusting fabric—do not “help” the fabric while the needle is moving.
  • Stage curved snips ahead of time so there is no rushed cutting near the needle.
  • Replace a burred needle immediately (a snaggy tip can cause breaks and unexpected pulls).
  • Success check: Trimming and adjustments happen only when motion is fully stopped, with clear space around the presser foot.
  • If it still fails: Slow the speed to Medium for the first layer and restart only after confirming the presser foot area is clear.
• Q: How can Brother F540E users improve hooping consistency and reduce hoop burn, and when does upgrading to a magnetic embroidery hoop make sense?
  A: Start by improving standard hooping technique, then consider a hooping station or magnetic hoop if screw-tightening causes misalignment, hoop burn, or hand/wrist pain.
  • Level 1 (Technique): Hoop so the fabric sounds like a tight drum skin (“thump-thump”) and the inner ring sits flush with the outer ring.
  • Level 2 (Tool): Use a hooping station to keep the hoop stable while placing fabric and stabilizer.
  • Level 3 (Upgrade): Use a magnetic hoop to apply more even tension and avoid repeated screw twisting when hooping volume increases.
  • Success check: Frames stitch as true shapes (not oval/wavy) and fabric shows fewer visible crease marks after unhooping.
  • If it still fails: Re-evaluate stabilizer firmness and add temporary spray adhesive to prevent micro-shifting; do not pull fabric while hooping.
  • Magnetic safety: Keep fingers clear of the snap zone and do not use magnetic hoops if the operator has a pacemaker.
