Color-Blending in PE-DESIGN: Build a 4th of July Layered Stitch File That Actually Sews Clean (and Fits Your 9.5" Hoop)

Mastering Density: How to Stabilize, Hoop, and Stitch Complex Color Blends Without Ruining the Fabric

If you’ve ever watched a “color blending” design simulate beautifully on-screen—and then watched in horror as it turned into a puckered, bullet-proof mess on your fabric—you are not alone. This is the "Expectation vs. Reality" gap that keeps beginners up at night.

Dense overlapping layers, like the 4th of July design analyzed in this guide, create premium visual texture. However, they also act as a stress test for every weak link in your workflow: stabilization, hooping tension, speed settings, and thread path.

This guide rebuilds the workflow for a complex, 28,155-stitch custom design (approx. 9.12" x 9.15"). We will move beyond the software simulation and into the physics of the machine. I will teach you how to read the "danger signs" in a file, how to secure your fabric so it survives 44 minutes of needle penetration, and when to upgrade your tools to preserve your sanity.

Don’t Touch the Rotation: The Physics of Layer Logic

The walkthrough begins by loading the design into PE-DESIGN. The stitch order is critical: a red star base, followed by blue flags that stitch over it. The crossing of these layers creates darker, blended intersections that give the flag dimension.

Here is a rule of thumb for any dense file: Stitch it exactly as digitized first.

Why? When a professional digitizer creates an overlap, they calculate the "push and pull" of the fabric based on the grainline.

• 0° Stitch Angle: Pulls fabric in.
• 90° Stitch Angle: Pushes fabric out.

If you rotate the design 45° or 90° in your machine or software to make it fit a specific hoop, you align those force vectors differently against the fabric grain. The result is often "muddy" blending where layers don't line up, or gaps (white space) appearing where colors should touch.

When using standard machine embroidery hoops, you are physically limited by the attachment arm. If you must rotate a design to fit, you must increase your stabilization to counteract the new tension forces.

The Simulator: Your "Flight Check" Before Takeoff

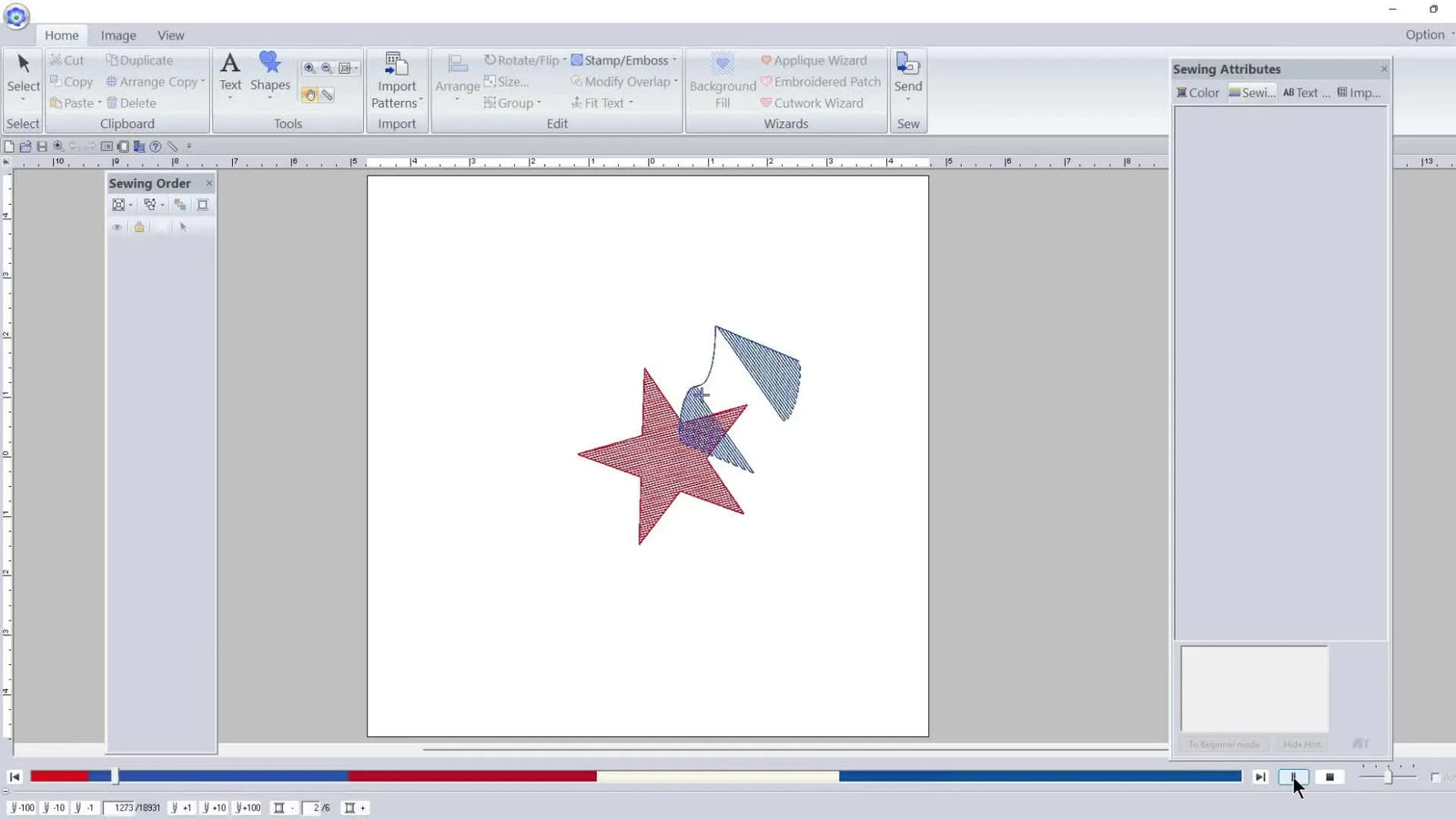

In the video, the creator runs the sewing simulator to verify the order: red star, then blue flags. Beginners often skip this step to save time. Do not skip this.

Think of the simulator as your pre-flight check. You aren't just looking at pretty colors; you are looking for structural integrity.

1. Watch the Overlap: Does the blue layer fully cover the red anchor points?
2. Check for "Travels": Watch the virtual needle move between the separate flag segments. Are there long jump stitches?
3. Verify Layering: Ensure the background (red) finishes before the foreground (blue details) begins.

Sensory Tip: If the simulator looks "cluttered" or "black" in certain areas, that indicates extreme thread buildup. On the actual machine, this will sound like a heavy, dull thud-thud-thud as the needle struggles to penetrate. If you see this, you must slow your machine down ensuring the needle doesn't deflect and hit the plate.

Prep Checklist: The "No-Go" Criteria

Before you cut a single piece of stabilizer, verify these four points. If any are "No," stop and adjust.

• Hoop Clearance: Is the design really 9.12" wide? Does your hoop have at least 10mm of buffer space on all sides to prevent the presser foot from hitting the frame?
• Thread Inventory: Do you have enough thread on the spool for the dominant color (Blue/Red)? varying dye lots mid-design will rain the gradient effect.
• Bobbin Level: For a 28k stitch design, start with a full, freshly wound bobbin. Do not trust a half-empty bobbin.
• Needle Inspection: Run your fingernail down the needle tip. If you feel a "tick" or catch, the needle is burred. Throw it away. Use a fresh 75/11 Ballpoint (for knits) or Sharps (for wovens).

Jump Stitches and Trims: The "Is My Machine Broken?" Moment

As the design moves to the flag sections, you will notice the machine stopping and moving frequently. Because the flag stripes are separate geometric objects, the machine must cut the thread (trim) or drag the thread (jump) to get to the next starting point.

This is normal mechanics, not a file error.

• Commercial Machines (Multi-Needle): will trim automatically and resume instantly.
• Home Machines (Single-Needle): May leave a long "jump thread" if the distance is short, or stop and ask you to trim.

The Pro Tactic: If your machine leaves jump threads, do not pull them while the machine is stitching nearby. You risk distorting the active tension. Wait until the machine moves to a completely different color block, or trim them all at the end.

The "Big Design" Reality: Time, Friction, and Heat

The Design Properties window reveals the truth:

• Stitches: 28,155
• Dimensions: ~9.15" x 9.12"
• Time: ~44 minutes (Estimated)

Expert Correction: That 44-minute estimate assumes the machine runs at full speed (e.g., 800-1000 SPM) constantly. It does not account for:

1. Trim cycles (7-10 seconds each).
2. Color changes (1-2 minutes manual labor on single-needle machines).
3. Slow-down zones for density.

The Sweet Spot for Speed: For a dense, layered design like this, do not run your machine at max speed. High speed adds vibration and heat. Heat softens synthetic stabilizer, leading to registration shifts (the "outline" missing the "fill").

• Recommended Speed: 600 - 700 SPM.
• Why: It reduces friction on the thread and gives the fabric fibers time to recover between penetrations, resulting in a cleaner blend.

If you are using specific brother embroidery hoops, check your machine's manual for the maximum safe sewing field. Just because a hoop fits physically doesn't mean the carriage can travel to the absolute edge without shaking.

Setup Checklist: Physical Configuration

• Stabilizer Stack: For a 28k stitch design, one layer is rarely enough. Use 1 layer of Cutaway (for stability) + 1 layer of Tearaway (for stiffness), or a heavy-performance Cutaway.
• Needle Plate: Ensure the needle plate screws are tight. Vibration from 44 minutes of stitching can loosen them.
• Thread Path: Floss the thread through the tension discs. You should feel resistance similar to pulling a dental floss through teeth—smooth, but firm.
• Command Center: Clear the table space behind the machine. The embroidery arm needs to move the full 9 inches back and forth; don't let it hit the wall or a coffee cup.

The Invisible Foundation: Stabilization and Hooping Physics

This is where 90% of beginners fail with dense designs. The video shows the software, but the battle is won at the hooping station.

The Physics of Pull: 28,000 stitches will pull the fabric inward toward the center of the design. If your hooping is loose, the fabric will bunch up (puckering). If your hooping is too tight (stretched), the fabric will snap back when removed, creating wrinkles around the design.

The "Tactile Drum" Test:

• Wrong: Tapping the fabric sounds like a high-pitched ping (Too tight—you have stretched the fibers).
• Wrong: Fabric ripples when you push it (Too loose).
• Right: Fabric feels taut and neutral, like a well-made bed sheet. It should not stretch the grain.

The Tooling Gap: Standard plastic hoops require significant hand strength to tighten the screw while keeping tension even. This often leads to "hoop burn" (crushed fabric fibers) or uneven tension. This is the primary scenario where professionals switch to Magnetic Hoops.

• Why: They use vertical magnetic force to clamp the fabric instantly without "screwing and pulling."
• Result: Even tension across the entire 9-inch surface, reducing the chance of the design warping.

If you are struggling with pain in your wrists or consistent "slipping" of fabric, search regarding hooping for embroidery machine upgrades. High-friction magnetic frames are the industry answer to density drift.

Warning: Physical Safety
When using strong magnetic hoops, keep your fingers clear of the clamping zone. The magnets snap together with significant force—enough to pinch skin severely.
Medical Alert: Keep these magnets away from pacemakers, insulin pumps, and credit cards.

The "Not Sewn" Function: Surgical Editing

The walkthrough demonstrates a crucial skill: hiding elements without deleting them. By selecting the stars and toggling them to "Not Sewn," the creator converts them from stitch data to visual placeholders.

Why not just delete them?

1. Reference: You can see where they would have been, ensuring you don't place other elements (like text) in that negative space.
2. Versioning: You can save one master file ("4th_July_Master.pes") and simply toggle the stars on or off for different clients, rather than managing two separate files.
3. Bridge Integrity: As noted in the video, removing these surface stars doesn't leave a "hole" in the underlying structure, so the integrity of the flag patch remains solid.

If you are setting up a workflow at an embroidery hooping station, having one master file that can be customized on the fly is a massive time-saver compared to reloading different USB files.

Recoloring Logic: The "Select-All" Trap

We watch the creator attempt to turn the stars gold, but accidentally turn the entire design gold. This happens because the "Select All" box was active.

The fix is simple: CTRL + Z (Undo). The prevention is better:

• Click off: Always click in the empty white space of the virtual hoop to deselect everything before selecting a new object.
• Box Select: Click and drag a box only around the specific stars you want to change.

Color Advice: When swapping colors (e.g., Pink stars instead of White), check the contrast. The simulator might look okay, but on fabric, a light pink thread might blend too much with a white background. Always hold the actual thread spool against the fabric to verify visibility.

Operation Checklist: Monitoring the Stitch-Out

• The First 500 Stitches: Do not walk away. Watch the first layer (the Red Star). If the fabric creates a "wave" in front of the foot, stop immediately. Your hooping is too loose.
• Sound Check: Listen for the click-click-click of clean stitching. A grinding noise or a thud sound means the needle is dull or hitting a knot.
• Top Tension: Look at the stitches. If you see loops of bobbin thread (white) on top, your top tension is too tight. If you see loops of colored thread on the bottom, top tension is too loose.
• The "Puff" Zone: When the machine gets to the center puff area mentioned in the video, slow the speed down by 20% to ensure precision.

Decision Tree: Matching Stabilizer to Fabric

For a dense 9" design, use this logic to choose your consumables.

Variable 1: The Fabric

• A) Stretchy (T-Shirt, Hoodie, Performance Knit) -> Go to 2A
• B) Stable (Denim, Canvas, Twill Jacket) -> Go to 2B

Variable 2: The Stabilizer Stack

• 2A (Stretch): YOU MUST USE CUTAWAY.
  • Recipe: 1 sheet No-Show Mesh (closest to fabric) + 1 sheet Medium Weight Cutaway. Bond fabric to stabilizer with temporary spray adhesive.
  • Hoop: Magnetic hoop preferred to avoid stretching the knit during clamping.
• 2B (Stable): YOU CAN USE TEARAWAY (Maybe).
  • Recipe: 2 sheets of Medium Tearaway, strictly cross-grain (rotate sheets 90 degrees to each other).
  • Hoop: Standard or Magnetic hoops work fine.

Variable 3: The Topping

• Is the fabric fluffy (Fleece/Towel)?
  • Yes: Add Water Soluble Topping (Solvy) to keep stitches from sinking.
  • No: No topping needed.

The Finishing Touches: Borders and Anchors

The video describes an optional running-stitch border and a center "puff" section.

• The Border: This is your "frame." It hides minor edge unevenness. However, if your stabilizer was too loose, by the time the machine gets to this outer border, the fabric may have shifted. If the border doesn't line up with the edge of the flag, it's proof of stabilization failure.
• The Puff: Stitching a dense center point acts as a structural anchor. Never delete the center-most stitches of a large design; they help "pin" the fabric to the backing early in the process.


The "Tower of Babel": File Formats (PES, DST, EXP)

The creator mentions converting files and the anxiety that comes with it. "You never know what might happen."

• The Risk: Converting a file from native format (like .BE) to machine format (.PES or .DST) freezes the stitch data. If you resize a .PES file by 20%, the software often adds or subtracts stitches in specific patterns (dithering) that can ruin a gradient blend.
• The Rule: Always resize or edit in the native software format first, then export to machine format as the very final step.
• The Hardware Fix: If you run a shop with mixed machines (some read DST, some PES), you invite error. Standardizing your fleet—switching to a unified platform like SEWTECH multi-needle machines—allows you to use a single, reliable file format across all heads, eliminating "conversion surprise."


The Profitable Workflow: When to Upgrade Your Tools

This specific 28k stitch design highlights the bottleneck of hobbyist equipment.

• The Pain: Changing thread 5 times on a single-needle machine adds 10 minutes of idle time. Re-hooping thick garments causes wrist strain and "hoop burn" marks that take time to steam out.
• The Solution Level 1 (Hooping): Use magnetic embroidery hoops. They clamp faster, leave fewer marks, and hold dense designs flatter. For anyone doing production runs, this is the highest ROI accessory you can buy.
• The Solution Level 2 (Machine): If you are stitching designs this large and complex regularly, a SEWTECH Multi-Needle Machine solves the thread-change delay. You load all 5 colors once, press start, and walk away for 40 minutes while the machine handles the work.

Warning: Machine Limits
Do not force a hoop that is too large onto a small machine attachment arm. Even if the connector fits, the heavy weight of a 9" magnetic hoop plus heavy denim fabric can strain the Y-axis motor of a smaller domestic machine, causing layer shifting. Ensure your machine is rated for heavy-duty hoops.

Quick Troubleshooting Guide

Even with perfect prep, things happen. Here is your fix-it list for this specific design type.

Final Thoughts: The Clean Finish

A successful stitch-out of this design isn't just about the software settings; it's about physical control. When you pull the hoop off the machine:

1. Inspect the Back: It should look neat, with about 1/3 bobbin thread visible in the center of satin columns.
2. Tear/Cut: Trim your jump threads close to the surface before removing the stabilizer.
3. Release: If you used a magnetic hoop, slide the magnets apart (don't pry them).

If the design lays flat without looking like a topographical map of wrinkles, you have mastered the balance of density and tension. If not? Add more heavy stabilizer, slow the machine down, and try again.

FAQ

• Q: Why does a dense 28,000-stitch blend design shift or show gaps after I rotate the PES file in Brother PE-DESIGN or on a Brother embroidery machine?
  A: Quick fix: Stitch the design in the original digitized orientation and avoid rotating whenever possible, because rotation changes how push/pull forces hit the fabric grain.
  • Re-load the original file orientation and re-check the stitch order in the simulator (background first, then overlap layers).
  • Increase stabilization if rotation is unavoidable (add an extra stabilizer layer and bond fabric to stabilizer with temporary spray adhesive).
  • Leave at least 10 mm buffer space inside the hoop so the presser foot doesn’t strike the frame during the new travel path.
  • Success check: Overlap intersections stay aligned (no new white gaps where colors should touch) through the final border.
  • If it still fails: Slow down to the dense-design speed range (about 600–700 SPM) and re-evaluate hoop tension for slipping.
• Q: What is the correct stabilizer stack for a 9-inch, 28,155-stitch dense embroidery design on a T-shirt or hoodie (stretch knit) when using a single-needle embroidery machine?
  A: Quick fix: Use cutaway-based stabilization for stretch knits—tearaway alone is not stable enough for dense layering.
  • Layer 1: Place No-Show Mesh closest to the fabric; Layer 2: add a Medium Weight Cutaway behind it.
  • Bond fabric to stabilizer with temporary spray adhesive before hooping to reduce shifting during long stitch time.
  • Prefer clamping methods that don’t stretch the knit during hooping (magnetic hooping often helps).
  • Success check: After stitching and unhooping, the knit lies flat without “snap-back” wrinkles around the design.
  • If it still fails: Add more cutaway (heavier or an extra layer) and reduce speed in dense zones.
• Q: How can I tell if embroidery hoop tension is too tight or too loose for a large dense fill, and how do I prevent hoop burn with standard plastic embroidery hoops?
  A: Quick fix: Hoop the fabric “taut and neutral,” not stretched and not rippling, to prevent puckering and hoop burn during heavy density.
  • Tap-test the hooped fabric: avoid a high-pitched “ping” (too tight) and avoid visible ripples when pressed (too loose).
  • Tighten the hoop screw evenly without over-cranking; focus on flat, even tension across the full hoop area.
  • If standard hoops crush fibers or tension is uneven, switch to a magnetic hoop to clamp evenly without aggressive pulling.
  • Success check: The fabric surface stays smooth during the first 500 stitches (no wave building in front of the presser foot).
  • If it still fails: Add stabilization (stack cutaway + tearaway or heavier cutaway) to reduce inward pull from 28k stitches.
• Q: Why does a home single-needle embroidery machine keep stopping for jump stitches and trims on a geometric flag-stripe design, and should the jump threads be pulled during stitching?
  A: Quick fix: Frequent stops/jumps are normal on separated objects—do not pull jump threads while the needle is stitching nearby.
  • Let the machine complete the nearby area before trimming; trim jump threads when the design moves to a different color block or at the end.
  • Use the simulator to confirm the travel paths and expect jumps between separate segments.
  • Keep the work area clear so the arm can travel the full field without snagging threads or fabric.
  • Success check: The fabric does not distort around active stitching when jump threads are trimmed (no sudden shifting or puckering).
  • If it still fails: Reduce speed in dense areas and verify the top thread is correctly seated through the take-up lever and tension discs.
• Q: How do I prevent birdnesting (thread tangles) under the needle plate on a long, dense embroidery run, and what should I do the moment birdnesting starts?
  A: Quick fix: Stop immediately, remove the nest safely, then re-thread completely with the presser foot UP so the thread seats in the tension discs.
  • Stop the machine as soon as the tangle starts; continuing will pack thread under the plate and can bend/break needles.
  • Cut and clear the birdnest carefully, then re-thread the upper path (floss it through the tension discs) and check bobbin area cleanliness.
  • Start with a full, freshly wound bobbin for 28k-stitch designs to avoid tension instability mid-run.
  • Success check: Stitch sound returns to a clean, consistent click (not grinding or dull thudding) and the underside looks neat rather than ropey.
  • If it still fails: Inspect for thread out of the take-up lever and replace the needle (a burred tip can trigger repeated issues).
• Q: What needle and speed settings are a safe starting point to reduce needle breaks and “thud-thud” penetration sounds on extremely dense overlapping embroidery layers?
  A: Quick fix: Slow the machine down and upgrade the needle for penetration strength when density stacks—this is common and usually not a machine defect.
  • Set speed to the dense-design range (about 600–700 SPM), and slow down further (around 500 SPM) if breaks occur in overlap zones.
  • Replace the needle immediately if it feels burred (“tick” on a fingernail test); use a fresh 75/11 Ballpoint for knits or Sharps for wovens.
  • If breaks persist on overlaps, switch to a #14/90 Titanium needle for more penetration power.
  • Success check: The machine stitches overlaps without needle deflection, and the sound stays crisp rather than heavy dull thuds.
  • If it still fails: Recheck stabilization stack and confirm the design is not being forced near hoop edges where vibration increases.
• Q: What are the safety rules for using strong magnetic embroidery hoops on thick garments, and how do I avoid finger injuries and device interference?
  A: Quick fix: Treat magnetic hoops like a pinch hazard—keep fingers out of the clamping zone and keep magnets away from medical implants and sensitive items.
  • Slide magnets apart to release; do not pry them open where fingers can get caught in the snap zone.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
  • Do not force an oversized/heavy magnetic hoop onto a small domestic machine if the machine is not rated for that load (it can strain the axis and cause shifting).
  • Success check: Hooping is fast and even with no crushed fabric rings, and the fabric stays clamped flat through the full stitch-out.
  • If it still fails: Move to a lighter hoop size for the machine or increase stabilization to reduce the need for excessive clamping force.
• Q: If dense 9-inch blend designs keep causing re-hooping, hoop slipping, and long downtime on a single-needle machine, when should I upgrade to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Quick fix: Upgrade in levels—first fix hooping control (magnetic hoop), then fix color-change downtime (multi-needle) if the workload is frequent.
  • Level 1 (Technique): Slow to 600–700 SPM, add stabilizer layers, bond fabric to stabilizer, and monitor the first 500 stitches closely.
  • Level 2 (Tool): Use magnetic hoops to clamp thick or stretchy garments evenly and reduce hoop burn and mid-stitch hoop pop-open.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle machine when repeated 5-color designs are routine and manual thread changes are the main bottleneck.
  • Success check: Registration stays consistent to the final border with fewer restarts, and total operator time drops (less trimming, fewer re-hoops, fewer interruptions).
  • If it still fails: Audit the file workflow (edit/resize in native format first, export machine format last) to reduce conversion-related surprises.
