Master Class: The Engineering Behind Perfect T-Shirt Appliqué

An advanced guide for fabricators moving from "hoping it works" to "knowing it works."

If you’ve ever watched an appliqué font stitch-out and thought, “That looks easy… until I try it,” you’re not alone. The panic usually hits in three distinct phases: the struggle to hoop a stretchy T-shirt without creating ripples, the terror of trimming fabric close to the stitches without slicing the garment, and the frustration of the appliqué fabric "creeping" before the satin border locks it in.

This project is absolutely beginner-friendly, but only if you treat it like a controlled engineering process—not a craft gamble. Below is the full, industry-standard workflow demonstrated on an Elna multi-needle embroidery machine (mechanically identical to the Janome MB4 series), utilizing specific chemical bonding (Heat’n Bond Lite), structural support (black cutaway stabilizer), and mechanical clamping (magnetic hoop on a station).

Don’t Panic: A College Appliqué Letter on a T-Shirt Is “Easy”… When You Control Hooping and Layers

A college-style appliqué font is essentially a smart sequence of four operations:

1. Placement: A map of where to put the fabric.
2. Tack-down: A running stitch to clamp the fabric.
3. Trim: The manual removal of excess material.
4. Seal: A zigzag and satin column to lock the edge.

The video proves it can be quick—and the comments prove what beginners worry about: “Did I miss prep steps?”, “Will it wash?”, “How do I keep it from stitching the back of the shirt?”, and “What represent those strange duck-billed scissors?”

Here’s the calm truth from a production mindset: Most appliqué failures aren’t caused by the design file—they’re caused by fabric physics. If the fabric moves 1mm, your outline will fail. Your job is to stop movement before the first stitch, and again before the satin stitch.

One more reassurance: The creator confirms the finished shirt is washable and durable, noting she uses industry-standard Madeira and RA embroidery thread for colorfastness.

The “Hidden” Prep That Makes Heat’n Bond Lite Behave (and Keeps Your Appliqué Flat)

The video uses a gingham fabric scrap and Heat’n Bond Lite. The key detail is subtle but critical for preventing adhesive bleed: the Heat’n Bond is cut slightly smaller than the fabric square so you don’t fuse adhesive right to your iron or work surface.

The Physics of Adhesion: Heat’n Bond is a thermal-plastic. It melts to stick, but it only cures when cool. If you peel the paper while it's hot, you disrupt the chemical bond, leading to a bubbling appliqué later.

Prep workflow (The "Cool Down" Rule):

1. Cut your appliqué fabric to 6" x 6".
2. Cut Heat’n Bond Lite slightly smaller than the fabric square (e.g., 5.75").
3. Fuse Heat’n Bond Lite onto the back of the fabric using a medium iron (no steam).
4. Wait. Let it cool completely. It should feel stiff and sound "crispy" when flicked.
5. Peel the paper backing to expose the shiny adhesive layer.

Pro tip from the shop floor: Heat-activated adhesives often grab more cleanly after they cool because the glue layer sets. If you peel too soon, you can stretch the fabric bias or lift adhesive unevenly, which later shows up as "puffy" zones under your satin stitching.

Comment-based watch out (To wash or not to wash?): A common question arises: "Must I prewash the appliqué fabric?"

• Casual wear: Not strictly necessary.
• Commercial sale: Yes. Pre-shrinking prevents the appliqué from shrinking inside the satin border after the customer washes the shirt, which causes puckering.


Prep Checklist (Do not bypass)

• Material: Appliqué fabric cut to 6" x 6".
• Adhesive: Heat’n Bond Lite fused and cooled completely before peeling.
• Substrate: Garment identified as cotton T-shirt (knit/stretch).
• Stabilizer: Cutaway stabilizer (black) selected (Knits = Cutaway. Always.).
• Tools: Double-curved or Duckbill scissors are on hand.

Magnetic Hoop + Hooping Station: The “Bam” Moment—But Only If You Set the Base Correctly

The creator uses a hooping station fixture and a magnetic hoop, explicitly noting how much easier it makes the process. This is exactly why magnetic frames are a productivity tool, not just a luxury. They resolve the two biggest enemies of T-shirt embroidery: Hoop Burn (crushed fibers) and Uneven Tension (stretching the knit).

In the demo, the stabilizer is clipped to the bottom frame first. The shirt is positioned over it. Then—crucially—the clips are removed while holding the fabric, and the top magnetic ring is dropped. Snap.

If you’re shopping or comparing, this is the specific category where professionals research magnetic embroidery hoops. The value isn't just the "magnet"; the value is the vertical clamping force that holds the fabric without forcing you to tighten a screw that might distort the weave of a T-shirt.

Hooping a T-Shirt on an Elna Multi-Needle Machine: Stabilizer First, Shirt Second, Then Snap the Hoop

The "Sandwich" Sequence:

1. Base: Place the bottom magnetic frame on the hooping station.
2. Support: Lay black cutaway stabilizer over the bottom frame.
3. Anchor: Use sewing clips (Wonder Clips) to hold the stabilizer to the frame wings. This prevents the stabilizer from sliding while you adjust the shirt.
4. Drape: Position the T-shirt over the stabilizer, centering the chest area.
5. Release & Hold: Remove the clips carefully while keeping a hand on the fabric to maintain position.
6. Clamp: Drop the top magnetic hoop onto the bottom frame—snap-in happens instantly.

The creator notes the clips “worked out great” for keeping stabilizer from sliding. This is a massive friction-reducer for novices.

Expert Insight: The "Neutral Tension" Concept With woven fabrics (denim), we want "drum tight." With knits (T-shirts), we want Neutral Tension.

• Test: Pull the shirt fabric gently. It should be flat and smooth, but not stretched. If you stretch a T-shirt while hooping, it will snap back after un-hooping, creating permanent puckers around your beautiful embroidery. Magnetic hoops excel here because they clamp down rather than pulling out.

Tool upgrade path (Commercial Loop):

• Pain Point: Hand strain from screwing hoops tight, or "Hoop Burn" rings on dark shirts.
• Diagnosis: Traditional tubular hoops rely on friction and friction damages delicate fibers.
• Solution (Level 1): Use backing spray and float the hoop (messy).
• Solution (Level 2): Upgrade to Magnetic Hoops. For home users, SEWTECH offers magnetic solutions that fit standard single-needle machines, eliminating the "screw-tighten" struggle.
• Solution (Level 3): For volume, a dedicated hooping station for machine embroidery allows you to prep the next shirt while the machine is running, turning "eyeballing" into a repeatable science.


Setup Checklist (Pre-Flight)

• Sandwich: Stabilizer is clipped and centered on the bottom frame.
• Tension: Shirt is positioned flat but not stretched (Neutral Tension).
• Clearance: Clips represent removed before the top magnet drops.
• Lock: Top magnetic ring is fully seated (listen for the solid "clack").
• Load: Hoop is loaded onto the machine arms securely.
• Center: Design center point verified (manually or via laser).

Warning: Physics Hazard
Keep fingers clear of the rim when the top magnetic ring snaps down. Magnetic frames possess immense clamping force. They can pinch skin severely. Never hoover your fingertips over the edge of the bottom frame.

The Stitch-Out Order That Prevents Appliqué Drift: Placement → Fabric → Tack Down → Trim → Fuse → Satin

This is the heart of the tutorial. The machine runs color stops in a rigorous order. Do not skip stops.

1) Placement Stitch (The Map)

The first operation draws the outline directly on the shirt. Using a contrasting thread (like white on black) helps you see where to place the fabric.

• Sensory Check: You should see a crisp, continuous line. If the shirt fabric is puckering inside this line, your hoop tension is too loose.

2) Place the Appliqué Fabric

When the machine stops, place the prepared fabric (Heat'n Bond side down) over the outline.

• Target: The fabric must cover the outline completely. A 2mm overlap is safer than a "just perfect" fit.

3) Tack-down Stitch (The Clamp)

Start the machine. It stitches a running line inside the placement line to anchor the fabric to the shirt.

• Why this matters: Tack-down is your mechanical clamp. If the fabric shifts here, stop immediately.

4) Trim Excess Fabric (The Risk Zone)

Remove the hoop from the machine (do not remove the fabric from the hoop). Use Duckbill Scissors.

• Technique: The wide "bill" or "paddle" of the scissors goes inside the appliqué shape, pressing down the appliqué fabric, while the sharp blade cuts the excess.




• Comment integration: Viewers are terrified of cutting the shirt. Duckbill scissors are the specific antidote to this fear. They physically separate the layer you are cutting from the layer you are protecting.

Warning: The "Fatal Snip"
Trimming is the highest-risk moment for garment destruction. Work on a flat table. Keep the duckbill flat. Never tilt the scissors tip-down toward the shirt. Small, rhythmic snips are safer than long shears.

5) Fuse In-Hoop (The Securing Move)

The creator places a rigid heat mat under the hoop and uses a mini iron to press the appliqué letter while it’s still in the hoop.

• Expert Insight: Fusing after trimming but before the satin stitch is the "Secret Sauce." It bonds the raw edges to the stabilizer, preventing them from lifting or fraying when the needle starts the heavy satin stitching action.

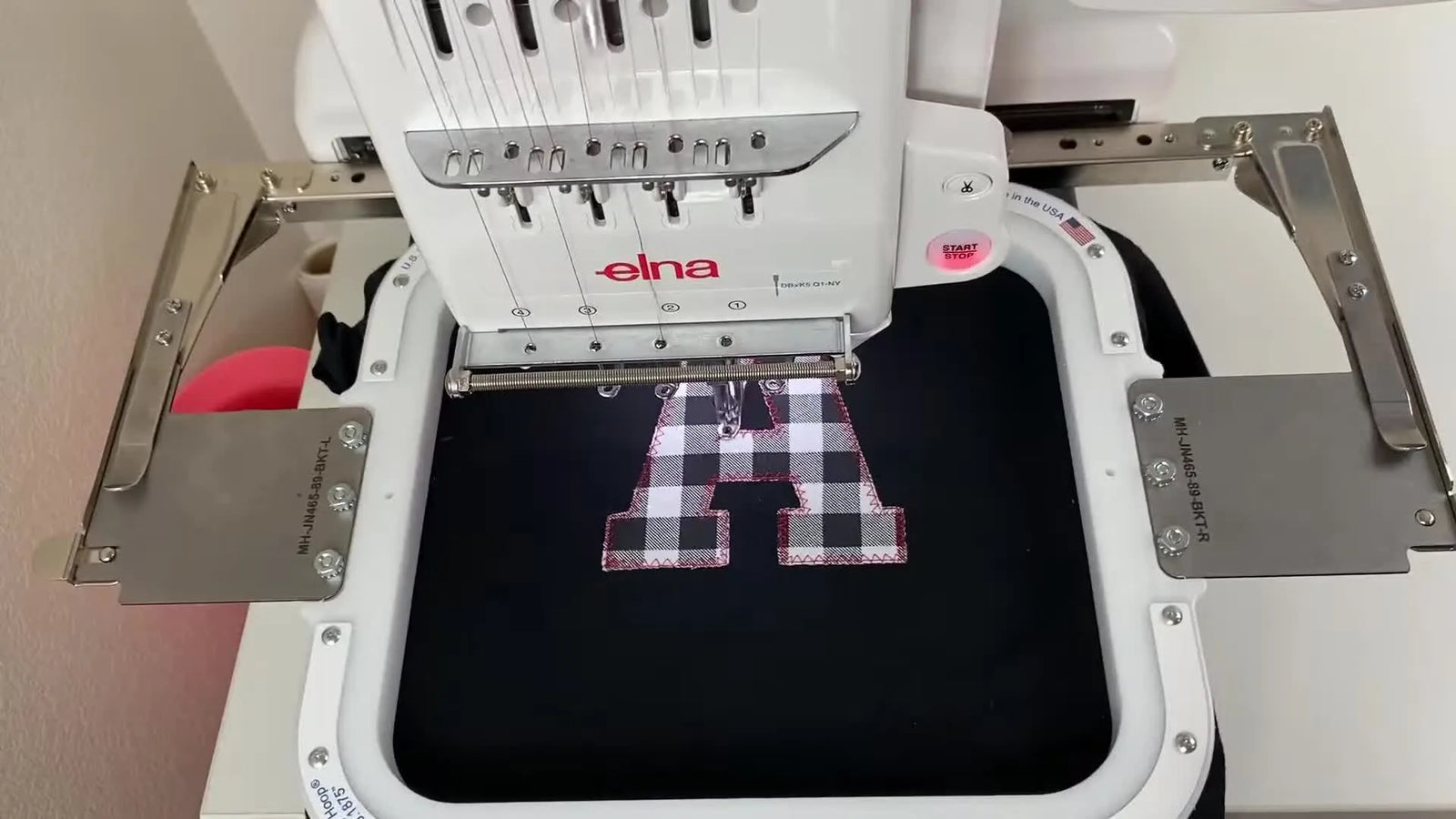

6) Finalize: Zigzag + Satin Border

Re-attach the hoop. The machine runs a zig-zag underlay (to build a foundation) and then the final satin column.

• Quality Check: The satin should essentially "roll" over the raw edge. You should feel a raised, dense texture.

“Will It Sew the Back of My Shirt?”—Managing Layers on Multi-Needle vs. Single-Needle

A viewer asked the golden question: "How do you keep the machine from stitching through the back of the shirt?"

The creator explains the mechanical advantage of a multi-needle machine (Free Arm):

• Multi-Needle (MB4/Elna 940): There is a long gap under the needle plate. You thread the neck of the shirt onto the machine arm. The back of the shirt hangs freely underneath the arm, physically separated from the embroidery field.
• Single-Needle (Flatbed): You cannot let the shirt hang. You must tuck, roll, and clip the back of the shirt out of the way.

Practical Shop Habit: The "Hand Check" Before pressing Start on any machine: Slide your hand between the layers of the shirt under the hoop. If you feel the needle plate and the back of the shirt, you are about to sew the shirt shut. If you feel only the stabilizer and front layer, you are safe.

This layer management is a primary driver for why growing businesses switch to multi-needle machines. However, for current flatbed users, using a standard magnetic hoop can speed up the inevitable "re-hooping" process if you do make a mistake or need to adjust layers.

Stabilizer Decision Tree: Cutaway vs. “It Looked Fine Until I Washed It”

The video utilized black cutaway stabilizer. This is the correct engineering choice for knits.

Decision Tree (Fabric → Stabilizer Choice)

1. Is the garment a knit (T-shirt, Hoodie, Performance Polo)?
   • YES: Use Cutaway. Knits stretch; stabilizer must not stretch correctly to support the stitches forever. Tearaway will leave the embroidery unsupported after one wash.
   • NO: Go to #2.
2. Is the design dense (Satin borders, large fill counts)?
   • YES: Use Cutaway (or heavy Tearaway with adhesion). Dense stitches act like a saw; they can perforate tearaway during stitching, causing the design to fall out.
   • NO: Lighter designs on woven fabrics (denim, canvas) can use Tearaway.

Pro Tip: If using Cutaway on a white shirt, use "No Show" Mesh Cutaway to prevent a heavy square patch from showing through the front.

Trimming Like a Pro: Clean Inner Corners on the Letter “A”

The demo shows trimming the tight inner triangle of the “A.” Technique:

• Do not turn your wrist into uncomfortable angles.
• Rotate the hoop.
• Keep your scissor hand in a comfortable, dominant position and spin the hoop on the table to meet the blade.

A viewer mentioned using a rotating cutting mat ("lazy susan" style). This is excellent ergonomic advice. If you are producing team shirts, ergonomics matter. Many professionals eventually look for specific sizes, searching terms like mighty hoops for janome mb4, because the correctly sized hoop allows for better rotation and hand access during these trimming phases.

Troubleshooting: The "Why Did That Happen?" Guide

Symptom: Stabilizer slides before the top ring drops

• Likely Cause: Static friction isn't enough to hold the slick stabilizer against the smooth plastic/metal frame.
• Fix: As shown in the video, use Sewing Clips to anchor the stabilizer to the bottom frame wings before placing the shirt.

Symptom: A "Ridge" or "Tunnel" forms under the Satin Stitch

• Likely Cause: The fabric was stretched during hooping. When un-hooped, the fabric relaxed, bunching up under the rigid thread.
• Fix: Practice "Neutral Tension" hooping. Upgrade to Magnetic Hoops to eliminate the "pull-and-screw" distortion factor.

Symptom: Thread Breaks or "Bird Nests" under the plate

• Likely Cause: Adhesive buildup on the needle.
• Fix: You are barely stitching through glue (Heat'n Bond). Use a Non-Stick (Anti-Glue) Needle or clean your needle with alcohol every few letters.

Finishing Standards: Fusing, Washing, and Thread

The creator fuses the appliqué after trimming. Why? Ironing the appliqué before the satin stitch melts the edges into the stabilizer. This acts as a secondary anchor, preventing the "flagging" (bouncing) of the fabric that causes skipped stitches.

The Upgrade Path: When a Magnetic Hoop Stops Being a “Nice Tool” and Starts Being a Business Advantage

If you are making one shirt for a grandchild, the method in the video is perfect. If you are making 25 shirts for a local softball team, hooping with standard screw-hoops becomes a bottleneck that hurts your hands and your hourly rate.

Here is the practical logic for when to upgrade your tools:

1. Level 1: The Strain Solver. If hooping hurts your wrists or you struggle with hoop burn on delicate fabrics, a Magnetic Hoop is the immediate medical and technical solution.
2. Level 2: The Workflow Accelerator. If you simply cannot get shirts straight, or it takes you 5 minutes to hoop one shirt, a hoopmaster hooping station pairing ensures every logo lands in the exact same spot, cutting prep time to under 60 seconds.
3. Level 3: The Production Beast. The creator mentions she loves her Elna but wishes for a 7-needle machine to reduce thread changes. If you are turning away orders because you "don't have time," it is time to look at SEWTECH Multi-Needle Machines. Moving from single-needle to multi-needle triples your output because you stop babysitting thread changes.

Operation Checklist (End-of-Run Quality Control)

• Coverage: Placement outline was fully covered by appliqué fabric.
• Security: Tack-down stitch held firm; no fabric shifting.
• Trim Quality: No "whiskers" of fabric poking out from the satin border.
• Integrity: No nicks or holes in the garment base.
• Seal: Satin stitch is dense (no underlay showing).
• Back: Shirt back remained free and un-sewn.

Warning: Magnetic Safety
Magnetic hoops contain powerful neodymium magnets. They must be kept at least 6 inches away from pacemakers or insulin pumps. Do not place them on laptops or near credit cards. Treat them as industrial equipment, not toys.

FAQ

• Q: How do I prep Heat’n Bond Lite for a T-shirt appliqué so the adhesive does not bleed onto the iron or cause bubbling later?
  A: Cut the Heat’n Bond Lite slightly smaller than the appliqué fabric and let the fuse cool completely before peeling the paper.
  • Cut appliqué fabric to 6" × 6", then cut Heat’n Bond Lite slightly smaller (example: 5.75") so no glue reaches the iron/work surface.
  • Fuse with a medium iron with no steam, then stop and wait until the piece cools fully before peeling the paper.
  • Success check: The fused fabric feels stiff and “crispy” and the paper backing peels cleanly without stretching the fabric.
  • If it still fails: Slow down the cooling step; peeling while hot often disrupts the bond and leads to later puffiness under satin stitches.
• Q: How do I hoop a knit T-shirt with a magnetic embroidery hoop to avoid hoop burn and puckering from overstretching?
  A: Hoop the shirt at “neutral tension” and let the magnetic hoop clamp down rather than pulling the knit outward.
  • Clip the cutaway stabilizer to the bottom frame first, then drape and center the T-shirt over the stabilizer.
  • Hold the shirt in position, remove the clips, then drop the top magnetic ring straight down to clamp.
  • Success check: The shirt surface looks flat and smooth but does not look stretched; a gentle tug does not “spring” the fabric tighter in the hoop.
  • If it still fails: Re-hoop and reduce tension—tunnels/ridges under satin stitching often come from the shirt being stretched during hooping.
• Q: What stabilizer should be used for a cotton knit T-shirt appliqué, and why does tearaway often fail after washing?
  A: Use cutaway stabilizer for knits because it supports stitches long-term after the garment stretches and washes.
  • Choose cutaway for T-shirts/hoodies/performance knits; knits stretch and need non-stretch support.
  • Keep the stabilizer under the entire design area during stitch-out, then trim excess after.
  • Success check: After un-hooping, the design stays flat and supported instead of looking wavy or collapsing around the satin border.
  • If it still fails: If the design is very dense (satin borders/fills), stay with cutaway; dense stitching can perforate tearaway during sewing.
• Q: How do I trim appliqué fabric close to stitches with duckbill scissors without accidentally cutting the T-shirt garment?
  A: Keep the duckbill “paddle” flat against the appliqué and make small controlled snips with the hoop on a table.
  • Remove the hoop from the machine but do not take the shirt out of the hoop.
  • Slide the duckbill inside the appliqué shape so the paddle physically shields the shirt layer while the blade cuts only excess appliqué fabric.
  • Success check: No garment nicks/holes and no fabric “whiskers” sticking out beyond the tack-down line.
  • If it still fails: Rotate the hoop (not your wrist) for tight corners like the inner triangle of an “A,” and avoid long cuts that can dive into the shirt.
• Q: When should Heat’n Bond Lite appliqué be fused in-hoop during the stitch sequence to prevent appliqué drift and edge lifting before satin stitching?
  A: Fuse after trimming but before the final zigzag/satin border so the raw edges bond down before heavy satin motion starts.
  • Run placement stitch, place fabric (adhesive side down), run tack-down, then trim excess fabric.
  • Press the appliqué while it is still hooped using a heat-safe mat under the hoop and a mini iron.
  • Success check: The trimmed edges stay flat and do not lift or fray when the machine starts the dense satin border.
  • If it still fails: Re-check hooping tension and trimming—edge lift is often worse when the knit was stretched or when the fabric barely covered the placement outline.
• Q: What causes bird nesting and thread breaks when stitching through Heat’n Bond Lite, and how do I fix adhesive buildup on the embroidery needle?
  A: Adhesive can build up on the needle; switch to a non-stick (anti-glue) needle or clean the needle regularly.
  • Stop and inspect the needle if thread starts breaking or nests form under the needle plate.
  • Clean the needle with alcohol between letters/colors if glue residue is visible or suspected.
  • Success check: Stitching runs smoothly without sudden thread shredding, breaks, or a growing nest under the plate.
  • If it still fails: Replace the needle (a fresh needle often helps) and re-check that fusing/pressing did not leave excess adhesive exposed at the stitch line.
• Q: What safety precautions are required when using a magnetic embroidery hoop and hooping station to avoid finger pinch injuries and magnet hazards?
  A: Keep fingers clear when the top ring snaps down, and treat magnetic hoops as powerful industrial magnets around medical devices and electronics.
  • Hold fabric from the sides and never hover fingertips over the rim when dropping the top magnetic ring.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps and away from laptops and credit cards.
  • Success check: The top ring seats with a solid “clack” without any finger contact near the rim, and the hoop is fully seated before loading onto the machine.
  • If it still fails: Slow the motion and reset your hand placement—most pinches happen when fingers are used to “guide” the ring at the edge during the snap.
