From Screen to Stitch: Mastering Outline Cleanup in Creative DRAWings

If you’ve ever zoomed into an outline design and thought, “Why does this look perfect on screen but messy when stitched?”, you’re experiencing the disconnect between digital vectors and physical thread physics. In Creative DRAWings, tiny leftover vector bits and grouped objects aren't just visual noise—they are instruction errors that cause your machine to slow down, knot up, and ruin a clean redwork or quilting line.

In this lesson, we are bridging the gap between software clicking and physical stitching. We will perform three high-impact edits on the “My Outline Teddy Bear” file:

1. Eliminate Noise: Deleting a tiny nose spot that creates unnecessary tie-offs.
2. Regain Control: Breaking apart a grouped head selection for independent editing.
3. Refine Structure: Fixing the eyes by removing the middle ring for a crisp, single-run aesthetic.


The “Calm Down” Moment: Why Your Teddy Bear Outline Looks Over-Selected in Creative DRAWings

When you click one part of the teddy bear (like the nose) and the software grabs the eyes, cap bill, and even the little cap button, it creates a feeling of "stickiness." The file isn't broken—the objects are simply grouped.

The Physical Consequence: In software, a grouped object is just an inconvenience. On the machine, if you can't isolate the nose from the eyes, you cannot control the sequence or trims for those specific areas.

A practical mindset shift: For outline work (Redwork/Quilting), you are not chasing "more detail." You are chasing "Flow." Every tiny extra shape (like a 1mm dot) forces the machine to stop, lock stitches, trim, and move. This creates a "bird's nest" of thread on the back and a visible knot on the front. We perform these edits to ensure the machine runs smoothly—listen for a steady rhythm, not a choppy start-stop-cut noise.

The “Hidden” Prep Pros Do First: Zoom Discipline, Selection Control, and a Quick Reality Check

Before you delete anything, we need to establish a safety protocol. Keep in mind that what looks clear at 600% zoom might be invisible to the naked eye on fabric.

The "Sweet Spot" Reality Check: Experienced digitizers use zoom as a measuring tool. Zoom in to select, but zoom out to 100% (1:1 scale) to judge importance. If a detail is smaller than 2mm, ask yourself: Will the thread thickness (usually 0.4mm) swallow this detail up? If yes, delete it.

Prep Checklist (The "Pre-Flight" Safety Protocol):

• Version Control: Save a copy of your file as Teddy_Bear_v2_Working.draw before touching anything.
• Visual Scan: Zoom into the head area. Look for "connector lines" that might indicate grouping.
• Selection Test: Click once on the nose. Does the highlights box surround just the nose or the whole head?
• Hardware Check (Hidden Consumables): Before you even think about stitching this, check your Needle. For outline work, a standard needle often punches holes too large. Ensure you have a fresh 75/11 Sharp or Embroidery needle ready.
• Sequence Plan: Decide to clean from "Outer to Inner" to avoid accidental deletions.


Delete the Nose Spot Without Regret: Removing a Tiny Vector Detail for Redwork/Quilting

The first cleanup is simple, but it saves your machine from performing an unnecessary "micro-stitch."

The Action Steps:

1. Zoom Target: Scroll into the teddy bear’s nose until it fills your screen.
2. Select: Left-click the small spot on the nose. Watch for the highlighting box.
3. Execute: Press Delete on your keyboard.

Sensory Success Check: Visually, the spot disappears. Physically, imagine the machine path: now, instead of stitch-stop-knot-trim-move-knot-stitch, the machine will glide continuously around the nose contour. This reduces friction and thread breakage.

Why this matters for quilting: In quilting, "stops" create tension points where fabric can pucker. Removing this spot allows the fabric to lay flatter.

Warning: Be extremely careful with "Select All" + Delete shortcuts. At high zoom, you lose context. Always verify you haven't accidentally selected a background layer or a hoop boundary before pressing delete.

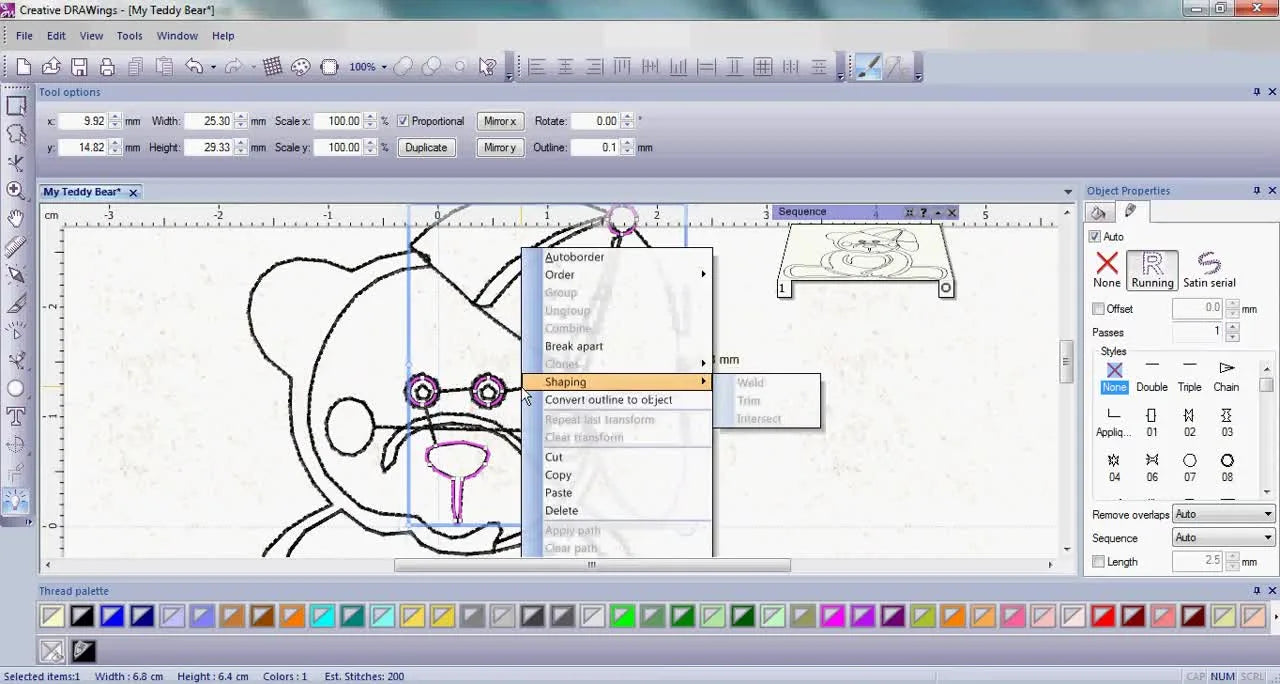

Break Apart in Creative DRAWings: The Fastest Way to Stop “One Click Selects Everything”

Now we solve the "sticky" problem. You click the nose, and the selection box traps the hat, eyes, and button. This is common in imported vector files.

The Action Steps:

1. Select: Click the nose (or the grouped head area) to reveal the large bounding box.
2. Command: Right-click to open the context menu.
3. Execute: Choose Break Apart.

Visual Confirmation: Watch the bounding box. It should "explode" from one giant rectangle into several smaller rectangles tailored to each specific shape (nose, bill, eyes).

The Strategy: This is the digital equivalent of untying a knot. Once separated, you can assign different stitch properties (like a lighter density for the eyes vs. a heavier beam stitch for the cap) later on.

The “Deselect Ritual” That Prevents Mis-Clicks: Verify Separation Before You Touch the Eyes

After using 'Break Apart,' the software often keeps everything selected by default. If you press delete now, you lose the whole face.

The Action Steps:

1. Reset: Left-click once in the empty white workspace (the "Void"). This deselects everything.
2. Verify Zone A: Click the nose—confirm only the nose highlights.
3. Verify Zone B: Click the cap bill—confirm only the bill highlights.

Success Metric: Each object should act like an island—completely independent of its neighbors. This prevents the "Oh no, I deleted the hat" panic 20 minutes later.

Fix Double-Ring Eyes the Clean Way: Break Apart Again, Then Delete the 2.6 mm Middle Ring

Double-ring eyes in outline files are a major trap. On screen, they look like detail. On fabric, two lines of thread stitched 1mm apart often bleed together into a messy blob, or worse, cut a hole in delicate fabric. We want a clean, single-run look.

Left Eye (First Pass)

The Action Steps:

1. Focus: Zoom in tightly on the eyes.
2. Select: Click the outside of the left eye. Note that it might still group the inner and outer rings together.
3. Refine: Right-click → Break Apart (yes, again—sometimes groups are nested!).
4. Target: Click the middle ring (usually the 2.6 mm ring).
5. Execute: Press Delete.

Checkpoint: The eye should now look "open." You have removed the visual clutter.

Right Eye (Repeat for Consistency)

The Action Steps:

1. Select: Click the right eye assembly.
2. Refine: Right-click → Break Apart.
3. Target: Carefully select the inner/middle ring. Crucial: Do not select the tiny pupil dot if you want to keep it!
4. Execute: Press Delete.

Expert Insight: At this scale, your mouse hand stability matters. If you struggle to grab the right line, zoom in further. It’s better to zoom in 800% and be right than stay at 200% and guess.

The “Why” Behind These Edits: Cleaner Stitch Paths, Fewer Needle Hits, and Better-Looking Redwork

We don't edit just to make the screen look pretty. We edit to control Needle Penetration and Pull Compensation.

• Fewer Penetrations: By removing the extra eye ring, you reduce the number of times the needle punches the fabric in a 3mm area. Too many punches = holes in knit fabrics.
• Less Distortion: Dense outlines create specific tension. When you minimize the line work, you minimize the "Push/Pull" effect where the fabric bunches up.

To ensure these clean files translate to reality, you must master the physical variable: stabilization. When users struggle with hooping for embroidery machine, it is often because they try to force a messy file onto loose fabric. Clean files require less aggressive stabilization.

Stabilizer Decision Tree for Outline Quilting/Redwork: Keep the Line Clean on Fabric

The file is clean. Now, don't ruin it with the wrong consumables. Use this logic gate to choose your setup:

The Professional's Standard: If you are producing volume, stop guessing. Keep a "Stabilizer Matrix" of Cutaway, Tearaway, and Water Soluble on hand. Never stitch a test "naked" without stabilizer.

Troubleshooting Creative DRAWings Break Apart + Eye Cleanup: Symptoms, Causes, Fixes

When things go wrong, use this diagnostic table to fix it fast (Low cost -> High Cost).

Warning: Mechanical Safety. When testing your new outline file, keep your hands away from the needle bar. Trimming jump stitches while the machine is running is the #1 cause of needle-through-finger injuries. Use tweezers, not fingers.

Setup That Saves Your Hands (and Your Time): Hooping Tools That Match Your Volume

We have cleaned the software side, but if you clamp that fabric crookedly, the perfect file is worthless. This is where beginners often hit a wall of frustration.

The "Tool Upgrade Path" (Commercial logic):

1. Level 1: The Hobbyist (Occasional Use)
   • Focus on technique. Use a grid ruler to mark your center.
   • Pain point: Hoop burn (creases) on delicate redwork fabric.
   • Solution: Use a "floating" technique with adhesive spray, or gently steam marks out later.
2. Level 2: The Semi-Pro (Weekly Orders)
   • Pain point: Re-hooping takes longer than stitching. Wrist fatigue from tightening screws.
   • Solution: Look for magnetic embroidery hoops. These use powerful magnets to automatically clamp fabric. They eliminate hoop burn and reduce hooping time by 40%.
   • Why: They allow delicate adjustments after clamping, which is impossible with screw hoops.
3. Level 3: The Production Shop (Volume)
   • Pain point: Inconsistent placement across 50 shirts.
   • Solution: Invest in an embroidery hooping station. Whether you look at a basic hooping station for embroidery or a branded system like the hoop master embroidery hooping station, the goal is repeatability.
   • ROI: If a station saves you 2 minutes per shirt, and you do 30 shirts, you've gained an hour of profit time.

Warning: Magnet Safety. Magnetic hoops are industrial tools with pinch force. Keep fingers strictly on the handle edges. Never place near pacemakers. Do not let two magnets snap together without a separator—they can pinch skin severely.

If your current machine struggles with tension on these delicate outlines, or if you are tired of single-needle thread changes, researching an embroidery machine for beginners that offers multi-needle capabilities (like the SEWTECH series) acts as the ultimate productivity multiplier.

Run the Edit Like a Pro: A Repeatable Mini-Workflow You Can Use on Any Outline Design

You now possess a repeatable workflow. Use this Logic Loop on every file you download:

1. Identify Clutter: Are there specks <2mm?
2. Explode Groups: Can I select individual parts?
3. Simplify Paths: Are there double lines where one will do?

Operation Checklist (Final "Go/No-Go"):

• Visual Scale: Zoom out to 100%. Does the face look recognizable?
• Independence: Click the nose. Does it select only the nose?
• Consumable Check: Is the bobbin full? (Running out mid-outline creates a nasty seam).
• Safe Speed: Set machine speed to 600-700 SPM (Stitches Per Minute). Outlines need slower speeds for precision; 1000 SPM is too risky for this detail level.
• Save: Did you save as a machine format (DST/PES) and the working file?


FAQ

• Q: In Creative DRAWings, why does clicking the teddy bear nose select the eyes, cap bill, and button as one object?
  A: The teddy bear shapes are grouped (sometimes in nested groups), so Creative DRAWings is selecting the whole group, not a single part.
  • Right-click the selected area and choose Break Apart.
  • Repeat Break Apart if the selection still grabs multiple parts (nested grouping is common).
  • Click in empty white workspace to deselect, then click the nose again to confirm it isolates.
  • Success check: the big bounding box “explodes” into several smaller boxes, and each click selects only one shape.
  • If it still fails: zoom in further and check whether the object/layer is locked in the object manager.
• Q: In Creative DRAWings, how do you safely delete the tiny nose spot on an outline teddy bear without deleting the whole face?
  A: Zoom in, select only the tiny spot, and press Delete—but always deselect and re-check selection before deleting.
  • Save a new working copy first (version control) before any edits.
  • Zoom until the nose fills the screen, then click the tiny spot and verify the small highlight box.
  • Press Delete, then zoom back out to 100% to confirm the change still makes sense at real size.
  • Success check: the dot disappears, and the outline path visually looks simpler with no extra micro-detail.
  • If it still fails: click in the white workspace to deselect everything, then reselect only the spot and delete again (avoid “Select All + Delete”).
• Q: In Creative DRAWings outline files, how do you decide whether a tiny detail should be deleted before stitching redwork/quilting?
  A: Use a 1:1 reality check—if a detail is under about 2 mm at 100% view, it often won’t stitch cleanly and can create unnecessary stops.
  • Zoom in to select and inspect, then zoom out to 100% (1:1) to judge real size.
  • Ask: will typical thread thickness (often around 0.4 mm) visually swallow the detail on fabric?
  • Clean “outer to inner” to reduce accidental deletions of important contours.
  • Success check: at 100% view the design still reads clearly, with fewer tiny specks that would cause extra tie-offs/trims.
  • If it still fails: run a slow test stitch (outline work benefits from reduced speed) and evaluate whether the detail actually adds clarity on fabric.
• Q: In Creative DRAWings, how do you fix double-ring eyes in an outline teddy bear design for a clean single-run look?
  A: Break the eye group apart and delete the middle ring (the example is a 2.6 mm ring) so the eye doesn’t stitch as crowded double lines.
  • Zoom tightly on the eye, select the eye assembly, then right-click → Break Apart (repeat if needed).
  • Click only the middle ring and press Delete (avoid selecting the pupil dot if you want to keep it).
  • Repeat the same cleanup on the other eye for consistency.
  • Success check: each eye looks “open” on screen (no extra inner ring clutter) and the eye area is less congested.
  • If it still fails: zoom in further (600–800% can help) and confirm the ring is a separate object after Break Apart.
• Q: Which stabilizer setup should be used to keep redwork/quilting outline stitches clean on cotton, knits, or high-pile fabric?
  A: Match stabilizer to fabric movement and surface—tearaway for stable cotton, cutaway mesh for knits, and water-soluble topper for high pile.
  • Use medium-weight tearaway for standard cotton/quilt tops to support the line without permanent bulk.
  • Use cutaway (mesh) for T-shirts/knits/stretch fabrics to prevent long-term distortion.
  • Add a water-soluble topper on terry cloth/fleece so the outline stitch doesn’t sink and disappear.
  • Success check: the outline sits flat without puckers, distortion, or “missing” lines in pile fabrics.
  • If it still fails: reassess hooping tension (fabric slipping causes gaps) and confirm the file isn’t forcing dense double lines in tiny areas.
• Q: When using standard embroidery hoops for outline quilting/redwork, what are the success signs of correct hooping tension, and what causes outline gaps?
  A: Standard hoops need firm, even tension; outline gaps commonly come from loose hooping that lets fabric slip during stitching.
  • Hoop the fabric/stabilizer evenly and tighten until it feels very firm (the blog’s benchmark is “tight as a drum skin”).
  • Watch for hoop burn risk on delicate fabric and adjust technique if marks appear.
  • If gaps show up, stop and re-hoop rather than trying to “pull it straight” mid-run.
  • Success check: the outline meets cleanly with no visible gaps where lines should connect, and the fabric stays flat without shifting.
  • If it still fails: consider a magnetic hoop to hold fabric flat with less distortion and less fiber crushing.
• Q: What needle type should be installed before stitching outline redwork/quilting to reduce holes and improve line quality?
  A: Start with a fresh 75/11 Sharp or Embroidery needle for outline work to avoid oversized holes from a worn or too-large needle.
  • Replace the needle before the test stitch, especially if the current needle has unknown hours.
  • Stitch a small test segment at a controlled speed before committing to the full design.
  • Pair the needle choice with the right stabilizer for the fabric type to reduce distortion.
  • Success check: the line looks crisp without visible needle holes enlarging the fabric around tight curves or small details.
  • If it still fails: slow down the machine (outlines are often safer around 600–700 SPM) and confirm the design is not stitching double lines too close together.
• Q: What are the key safety rules when test-stitching an edited outline file and when using magnetic embroidery hoops?
  A: Keep hands away from the needle bar during operation, and treat magnetic hoops as pinch-hazard tools with strong snap force.
  • Stop the machine before trimming or handling jump stitches; use tweezers instead of fingers near the needle area.
  • Hold magnetic hoops by the handle edges and keep fingers out of the pinch zone when closing.
  • Keep magnetic hoops away from pacemakers and avoid letting magnets snap together without control.
  • Success check: no hands enter the needle area while running, and hoop clamping is controlled with no finger pinches.
  • If it still fails: pause and reset the workflow—safe habits beat speed, especially during first test runs of a newly edited file.
