Clean, Stitchable Logos on a Baby Lock Solaris: The IQ Designer Eraser Trick That Saves Your Lettering (and Your Sanity)

Logos are emotional.

One minute you’re thinking, “I’ll just put my kid’s team logo on a shirt,” and the next minute your Baby Lock Solaris is showing a jagged, pixelated mess where the inside of the letters should be open. You feel that rising panic: Is it the machine? Is it the file? Is it me?

Here is the truth: Machine embroidery is an exact science that relies on variables you can control. The workflow Jeff demonstrates on the Baby Lock Solaris 2 (which applies equally to the Destiny and Meridian) is a solid foundation. However, success lies in the nuance—knowing the beginner sweet spot for settings, understanding the physics of fabric stabilization, and mastering the tools that convert a flat image into a dimensional object.

By the end of this guide, you will understand how to properly crop, threshold colors, and use the IQ Designer Eraser tool to turn a simple JPEG into a stitchable logo without outsourcing—and without the frustration.

The “Don’t Panic” Primer for Baby Lock Solaris IQ Designer Logos: You’re Not Doing Anything Wrong

If your first import looks rough, that is normal. It is not a failure of your skill; it is a limitation of the technology. IQ Designer is performing "Auto-Digitizing." It is reading pixels (little colored squares) and trying to calculate needle penetrations.

Jeff’s example uses a "City of Grand Junction" logo pulled as a JPEG/BMP clip-art style image. This distinction is critical.

• Clip Art/Logos: Have hard edges and defined colors. Machines love this.
• Photos: Have gradients and thousands of colors. Machines struggle with this.

The Mindset Shift: You are not trying to make the screen preview look like a pretty picture. You are trying to force the machine to recognize geometry. Specifically, you are fighting to protect the negative space inside letters like r, a, e, and o. If the machine sees a blurred edge, it will fill that hole with stitches, turning an "a" into a blob.

The “Hidden” Prep: USB Stick Discipline + Logo File Choices That Keep Solaris Stable

Before you touch the screen, we must secure the inputs. A computer is only as good as the data it is fed. Jeff emphasizes the importance of hardware discipline.

He inserts the USB stick into the top USB port on the Solaris. However, there are invisible pitfalls here that cause machine freezes.

The Empirical Rules of Digital Prep:

1. USB Hygiene: Use a distinct Stick. Do not use the massive 64GB drive you use for family photos. Embroidery machines prefer smaller capacity drives (4GB–16GB) formatted to FAT32.
2. File Physics: Jeff specifically chooses clip art (JPEG/BMP) over photos. This reduces the "noise" the machine has to filter.
3. The Resolution Sweet Spot: Check your manual for maximum pixel dimensions. A file that is too large (e.g., 4000px wide) may crash the importer. Aim for a resolution that roughly matches your hoop size at 300 DPI.

A Note on Copyright: Jeff warns against importing protected characters (like Mickey Mouse). Beyond legal trouble, these designs are often complex and require professional manual digitizing, not auto-digitizing.

Hidden Consumables Strategy: Before you begin, ensure you have 70/10 or 75/11 Sharp needles (not Ballpoint) for crisp lettering, and a fresh bobbin. A low bobbin near the end of a logo stitch-out is a preventable tragedy.

Prep Checklist (Do this before touching IQ Designer)

• Drive: USB stick (formatted FAT32, <16GB) inserted into the machine.
• File: Logo saved as JPEG or BMP (Clip-art style, high contrast).
• Resolution: File size is within machine limits (approx. 1000–2000 pixels wide is usually safe).
• Hardware: Fresh 75/11 Needle installed to prevent fabric keyholing.
• Test Material: A scrap of fabric + stabilizer combo identical to your final project.

Importing a JPEG into IQ Designer on Baby Lock Solaris: The Exact Screen Path Jeff Uses

On the Solaris home screen, navigate to IQ Designer, select the Image Key, and choose Illustration Design.

The Workflow:

1. Select the USB source icon. (Note: Jeff accidentally touches wireless first—avoid this. Be deliberate with your touches).
2. Scroll the file list.
3. Select the file (e.g., "City of Grand Junction.jpg").


Why "Illustration Design"? IQ Designer has different algorithms for distinct inputs. "Line Design" looks for thin skeletons; "Illustration Design" looks for filled blocks of color. Since a logo is made of solid shapes, "Illustration" is the correct mathematical engine to use.

Organization Tip: If you begin doing these for clients, create a folder structure on your stick: USB > CLIENTS > [Name]. Scrolling through hundreds of loose files on a small machine screen is a recipe for selecting the wrong file.

Crop Tight + Reduce Colors to 3: The Baby Lock Solaris Setting That Prevents Weird Artifacts

Once the logo is on screen, use the red crop arrows to pull the boundary in tight around the text.

• Action: Drag crop lines until they almost touch the logo.
• Why: This removes "white noise" from the edges and forces the processor to focus only on the relevant pixels.


Next, adjust Max Number of Colors. Jeff sets this to 3.

This is the most critical technical setting in the entire process.

The "Thresholding" Concept: Your JPEG image might look like it has 3 colors (Blue, Green, White), but digitally, the fuzzy edges contain hundreds of shades of light blue and grey.

• Set to 10 colors: The machine tries to stitch those grey edge pixels, creating messy "confetti" stitches.
• Set to 2 colors: You might lose a distinct element (like the green tree).
• Set to 3 colors: This is often the Sweet Spot. It forces all those light blues to become "Blue" and all the greys to become "White."

Sensory Check: Watch the screen preview as you change this number. You want the image to look "flat" and cartoon-like. If you see speckles, lower the number. If whole sections disappear, raise it.

The 800% Reality Check: Zoom + Hand Tool to Catch Blocked Letters Before You Stitch

Jeff zooms in to 400% and then 800%.

At this magnification, the flaw is revealed: The negative space inside the letters r and a is blocked. The machine has interpreted the tiny white hole as a blue filled area.

Navigational Physics: You cannot simply swipe to move at this zoom level—you might accidentally draw a line. You must select the Hand (Pan) icon to drag the canvas.

The Golden Rule of Digitizing: Trust the Zoom, not the Room. From a normal viewing distance, the logo looks fine. At 800%, the truth comes out. If you stitch without this check, you will get a solid block of blue thread where an "a" should be.

The IQ Designer Eraser Tool Trick: Why 20mm Fails and 6–9mm Wins on Small Lettering

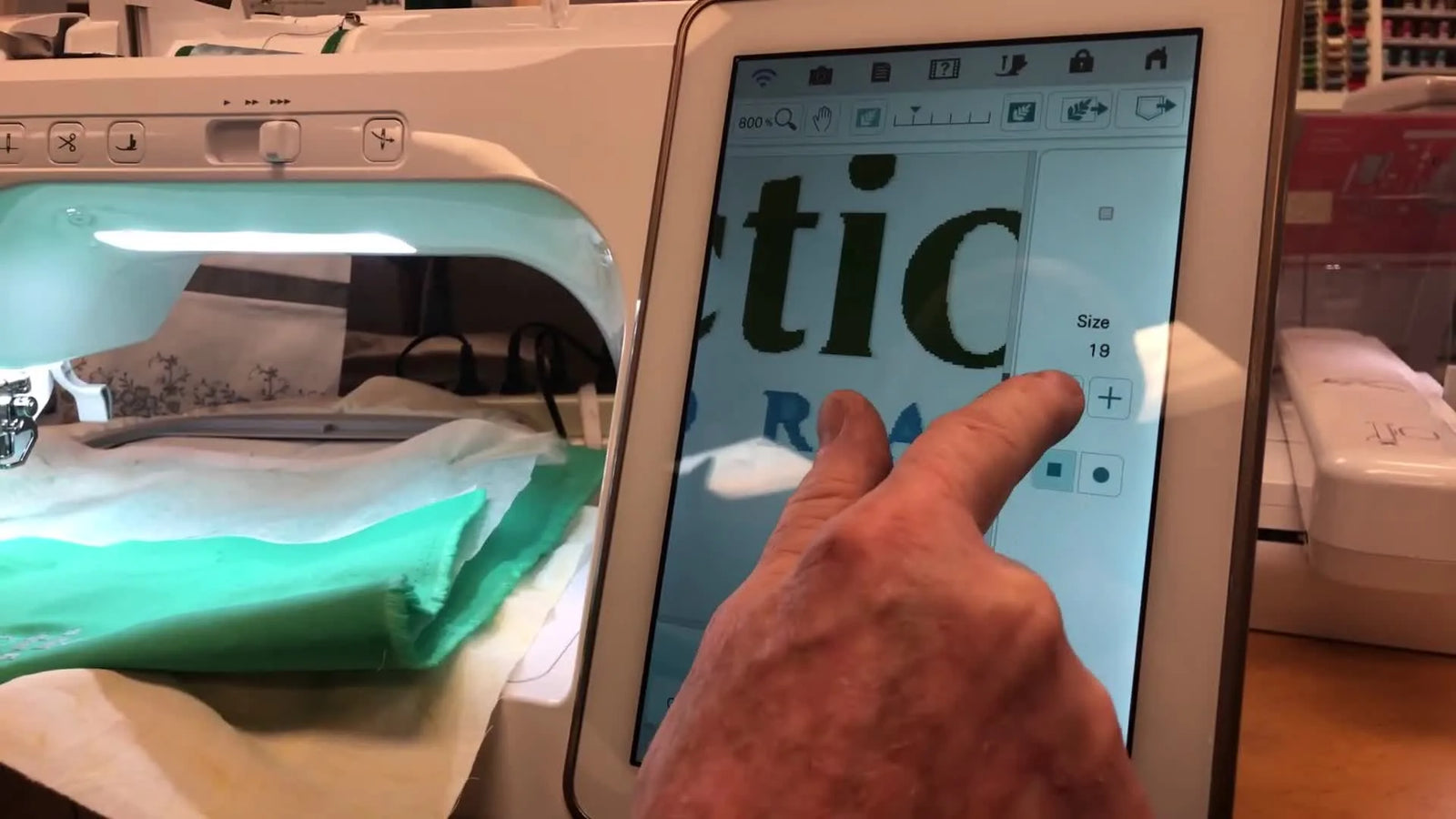

Jeff selects the Eraser tool to fix the blocked letters.

The Pitfall: The default eraser size is a massive 20mm square. When he taps, it obliterates half the word. The Recovery: He immediately hits Undo. Always keep your finger near the Undo button during this phase.

Jeff’s refinement process is a masterclass in scale:

1. He reduces the eraser to 9mm.
2. Then down to 8mm.
3. He carefully taps the pixelated mess inside the r.


For the tighter loop of the a, he reduces further to 6mm and switches to the Circular Eraser shape.

Sensory Guide:

• Visual: Look for the white background color to reappear clearly inside the letter.
• Tactile: Without a mouse, using your finger on the screen can be imprecise. Use a stylus if available for better accuracy.

Warning: Mechanical Safety
When working intently on the screen with the machine powered on, ensure your hands and styling tools stay clear of the start/stop button and the needle area. Accidental activation while your hand is in the stitching zone can cause severe injury.

Technical Insight: You are technically "re-asserting negative space." By erasing the blue pixels in the center, you are telling the digitizing engine: "Do not put needle penetrations here."

Save to Machine Memory Before You Convert: The One Habit That Prevents Re-Doing Everything

Before Jeff hits "Next" to generate the stitch data, he performs a critical safety save.

• Action: Tap Memory.
• Select: The Machine icon.


Why this matters: Once you hit "Next," the image is converted to stitches. You cannot easily go back and erase pixels on the stitch file. If you test stitch and find a mistake, you would have to start over from the USB import—unless you saved this edited artwork. This step saves you 20 minutes of frustration.

Then, hit Next to generate the embroidery data.

Setup Checklist (Execute right before conversion)

• Crop: Tightened to edges (eliminates noise).
• Colors: Reduced to the minimum necessary (Jeff uses 3).
• Inspection: Zoomed to 800% using the Hand Tool.
• Correction: Blocked letters opened using the Eraser (Size 6mm–9mm).
• Safety Net: Artwork saved to Machine Memory.

The “Scary” White Layer in Embroidery Preview: Skip the Color Stop and Move On

After conversion, Jeff enters the embroidery stitch-out screen. He notices an issue: The machine generated a White color layer that fills all the white areas of the logo.

If you are stitching on a white shirt, this is redundant. If you are stitching on a colored shirt, this creates a heavy, bulletproof block of thread.

The Fix: Simply skip the white color stop. You do not need to delete it in the software; just tell the machine to ignore it during the stitch-out sequence.

Expert Nuance: Occasionally, you do want that white layer—for example, if you are stitching on a black shirt and need a white base for the colors to pop. But for a simple logo on a white background, skipping it reduces stitch count and prevents the design from becoming "bulletproof" (overly stiff).

The Sample-First Rule: Stabilizer + Scrap Fabric Testing That Saves $50 Shirts

Jeff’s mantra is non-negotiable: Always stitch a sample.

Do not test on the final garment. Test on a scrap that mimics the specific properties of your target garment.

Stabilizer Decision Tree (Diagnostic Tool)

Use this logic to select your "sandwich" for the test:

1. Is the Fabric Stretchy? (e.g., T-Shirt, Polo, Performance Wear)
   • Yes: You MUST use Cutaway Stabilizer (Mesh or Medium Weight). Tearaway will disintegrate and cause the logo to distort after one wash.
   • Recommendation: Use a fusible cutaway / "No-Show Mesh" to keep the knit stable.
2. Is the Fabric Stable? (e.g., Denim, Woven Cotton, Towel)
   • Yes: You can use Tearaway Stabilizer.
   • Recommendation: Use medium weight tearaway.
3. Is the Design Dense/Heavy?
   • Yes: Add a second layer of stabilizer or switch to a heavier weight perfectly tight hoop.

Sensory Check (The "Ping" Test): When hooped, the fabric should feel taut. Tap it with your finger. It should sound like a dull drum—thump-thump. If it is loose or creates wrinkles when you push it, re-hoop.

Hooping for Small Logos: How to Prevent Shift, Wrinkles, and “Hoop Burn” on Shirts

Jeff advises starting with a shirt or towel before attempting hats. This is sound advice, but garments present a unique physical challenge: Hoop Burn and Alignment.

Standard plastic hoops rely on friction and brute force. You screw them tight, crushing the fabric fibers. This often leaves a permanent ring ("hoop burn") on delicate performance wear or velvet. Furthermore, wrangling a slippery shirt into a plastic hoop while keeping it straight is a major source of wrist fatigue and crooked logos.

The Solution Phase: If you struggle with hoop burn or alignment, this is a hardware limitation, not a skill failure. This is why professionals upgrade to magnetic hoops for babylock embroidery machines.

Instead of crushing the fabric, magnetic hoops use powerful magnets to clamp the fabric firmly but gently. This allows you to slide the fabric to adjust alignment without un-hooping the whole garment.

Warning: Magnetic Field Safety
magnetic embroidery hoops use industrial-grade magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers away from the snapping zone.
* Medical Devices: Maintain a safe distance (usually 6+ inches) from pacemakers or insulin pumps.

When to Upgrade (The Commercial Loop):

• Hobbyist: Stick to the standard hoop. Learn the technique.
• Volume User: If you are doing 10+ shirts, standard hoops will slow you down. A magnetic hoop dramatically speeds up the "load-stitch-unload" cycle.
• Sensitive Fabrics: For velvet, silk, or moisture-wicking polos, magnetic frames prevent the friction marks that standard hoops cause.

Ensure you select baby lock magnetic hoop sizes that match your machine's field—too large, and the magnets might hit the machine arm; too small, and you restrict your sewing area.

Production Reality: Turning One Clean Solaris Logo into 50 Repeat Orders Without Losing Your Weekend

Jeff’s video covers a single logo, but the real challenge is repeatability.

If you scale this up to a team order, you cannot rely on "eyeballing it."

1. Standardize Placement: Use a template or placement ruler (e.g., center of logo is 7-8 inches down from the shoulder seam).
2. Hoop Consistency: This is where hooping for embroidery machine technique becomes critical. If every shirt is hooped with slightly different tension, your logos will vary in width.
3. The Station: To ensure the logo is perfectly straight on every shirt, consider using hooping stations. These are physical boards that hold the hoop and shirt in a fixed position, allowing you to clamp consistently every time.

Troubleshooting IQ Designer Logo Imports on Baby Lock Solaris: Symptoms → Causes → Fixes

Stop guessing. Use this table to diagnose the issue immediately.

The Upgrade That Actually Matters: Faster, Cleaner Garment Logos with the Right Hoop Strategy

Mastering the IQ Designer on the Baby Lock Solaris is your first victory. It unlocks the ability to create without outsourcing. But as you move from "can do" to "can do efficiently," your bottlenecks will shift from software to hardware.

If you find yourself dreading the hooping process, or if you are discarding shirts due to hoop marks, recognize that you have outgrown the stock tools. A babylock magnetic embroidery hoop is not just a luxury; for garment work, it is an efficiency engine.

By combining the software precision Jeff demonstrates with the hardware stability of magnetic embroidery hoops, you create a workflow that is safe, repeatable, and profitable.

And finally, if you are moving into mass production—where you need to embroider the same chest logo on 50 polos with identical placement—combining quality babylock magnetic hoops with a systematic hooping station is the secret to finishing the job before the weekend is over.

Operation Checklist (The "Pre-Flight" Safety Check)

• Sample: Stitched on scrap fabric with correct stabilizer (Cutaway for knits!).
• Sequence: Checked stitch order; White background layer is set to SKIP.
• Hoop: Fabric is taut (drum sound), no wrinkles underneath. Magnetic hoops checked for secure clamping.
• Observation: Watch the first 500 stitches. Do not walk away until the underlay is complete.
• Recovery: If it fails, do not re-import. Go to Machine Memory and edit your saved artwork file.

FAQ

• Q: Why does a Baby Lock Solaris IQ Designer logo show blocked holes inside letters like “a,” “e,” “o,” or “r” after importing a JPEG?
  A: This is common—Baby Lock Solaris IQ Designer auto-digitizing often fills tiny negative spaces, so the fix is to zoom in and erase those filled pixels before converting to stitches.
  • Zoom to 800% and switch on the Hand (Pan) tool to move safely without drawing by mistake.
  • Select Eraser and reduce size to 9mm, then 8mm; for tighter loops (like “a”), go to 6mm and use the Circular Eraser.
  • Tap only inside the letter counters to restore the background color (negative space), and use Undo immediately if too much disappears.
  • Success check: At 800% you can clearly see open, clean holes inside letters—not blue “blobs” filling them.
  • If it still fails, reduce “Max Number of Colors” (often 3 is the sweet spot) and re-check the letters again at 800%.
• Q: What USB stick settings help prevent Baby Lock Solaris IQ Designer from freezing or failing to import logo files?
  A: Use a small, dedicated FAT32 USB drive and keep logo files within reasonable image size to avoid import instability on Baby Lock Solaris.
  • Use a separate USB stick (often 4GB–16GB) formatted to FAT32 instead of a large photo drive.
  • Choose clip-art style JPEG or BMP logos (hard edges, limited colors) rather than photos with gradients.
  • Keep image dimensions within machine limits; a safe starting point is roughly 1000–2000 pixels wide (confirm in the Solaris manual).
  • Success check: The file list loads quickly and the image appears on-screen without long delays or lockups.
  • If it still fails, try a smaller-capacity stick and a lower-resolution copy of the same logo.
• Q: What “Max Number of Colors” setting in Baby Lock Solaris IQ Designer prevents speckled “confetti” stitches on logo edges?
  A: Set “Max Number of Colors” to the minimum that preserves the logo—3 is often the best starting point for clean edges on Baby Lock Solaris IQ Designer logos.
  • Crop tight around the logo first to remove background noise before adjusting colors.
  • Lower “Max Number of Colors” until the preview looks flat and cartoon-like (less speckling), but not so low that parts disappear.
  • Watch the preview while changing the number and stop where edges look clean and shapes stay intact.
  • Success check: The preview has solid color areas with minimal random speckles along borders.
  • If it still fails, re-check the source artwork (use higher-contrast clip art) and repeat the crop + color reduction steps.
• Q: Why does Baby Lock Solaris IQ Designer generate a white background layer in the stitch preview, and how do you prevent a stiff “bulletproof” logo?
  A: If the white background becomes a stitched color stop, skip the white color stop during stitch-out to reduce stiffness—especially on garments.
  • Identify the white color layer on the embroidery stitch screen after conversion.
  • Use the machine’s stitch sequence controls to skip that white color stop instead of stitching it.
  • Keep the white layer only when you truly need an underbase on dark fabric (test first).
  • Success check: The stitched logo feels more flexible and the fabric is not heavily packed with unnecessary background stitches.
  • If it still fails, stitch a sample on matching fabric/stabilizer and reassess whether the background should be skipped for that garment color.
• Q: Why does Baby Lock Solaris IQ Designer erase work disappear after converting to stitches, and what is the correct save step to avoid redoing everything?
  A: Save the edited artwork to Baby Lock Solaris machine memory before tapping “Next” to convert, because conversion makes pixel edits hard to revisit.
  • After cropping, color reduction, and erasing, tap Memory and choose the Machine icon to save the edited image/artwork state.
  • Then tap Next to generate stitch data only after the save is confirmed.
  • Use the saved file as your “return point” if a test stitch reveals a problem.
  • Success check: The edited artwork is retrievable from machine memory without re-importing from USB.
  • If it still fails, repeat the edit on the saved artwork version (not the converted stitch file) and re-convert.
• Q: What stabilizer should be used for a Baby Lock Solaris chest logo on a stretchy T-shirt or polo to prevent distortion after washing?
  A: For stretchy knits (T-shirts, polos, performance wear), use cutaway stabilizer—tearaway often fails on knits and can lead to distortion.
  • Choose cutaway (mesh or medium weight); a fusible “no-show mesh” is often a safe starting point for polos.
  • Stitch a sample on scrap fabric that matches the final garment’s stretch and thickness.
  • Add a second layer if the logo is dense/heavy or the fabric is very stretchy.
  • Success check: The hooped fabric passes the “ping test”—taut like a drum (thump-thump) and stays smooth during stitching.
  • If it still fails, re-hoop for tighter tension and consider increasing stabilization (second layer) before changing the design.
• Q: How do you prevent hoop burn and crooked alignment when hooping shirts on a Baby Lock Solaris, and when is a magnetic hoop the right upgrade?
  A: If standard hoops cause hoop burn or slow, inconsistent alignment, improve hooping technique first—then consider a magnetic hoop for gentler clamping and faster repeatability.
  • Level 1 (technique): Re-hoop until fabric is taut and wrinkle-free; use the drum “ping test” to confirm tension.
  • Level 2 (tool): Use a magnetic hoop when fabric marks, shifting, or repeated re-hooping is the bottleneck; magnetic clamping lets you fine-adjust placement without crushing fibers.
  • Level 3 (capacity): If doing repeat orders (e.g., 10+ shirts) and consistency/time are the main pain points, consider upgrading production workflow (hooping station and/or multi-needle equipment).
  • Success check: The garment shows minimal or no hoop ring marks and repeated logos stitch straight with consistent size/placement.
  • If it still fails, stop and stitch a sample with the same stabilizer + hoop method to isolate whether the issue is hooping tension, stabilizer choice, or design density.
• Q: What safety rules should be followed when using Baby Lock Solaris IQ Designer on-screen editing and when handling magnetic embroidery hoops?
  A: Stay clear of the needle/start area during on-screen editing, and treat magnetic hoops as industrial pinch hazards—both risks are real even for careful users.
  • Keep hands, tools, and stylus away from the start/stop button and needle zone while focusing on IQ Designer edits.
  • Handle magnetic hoops slowly; keep fingers out of the snap zone and let magnets clamp in a controlled way.
  • Maintain a safe distance between strong magnets and medical devices (follow device guidance; the blog notes keeping distance is important).
  • Success check: Editing and hoop changes are done with zero accidental starts and no pinched fingers—controlled, deliberate movements only.
  • If it still feels risky, power down during non-stitch operations and practice magnetic hoop handling off the garment before production work.
