Clean, Sellable Preview Images in Baby Lock Palette / PE-Design: Capture Decorative Fill Quilt Blocks Without the Mess

If you’ve ever eagerly watched your machine stitch a decorative fill, only to find the fabric puckering like a raisin or the back looking like a tangled bird’s nest, you have learned the hard way that what you see on screen is not always what you get on fabric.

Embroidery is an "experience science." The clean, professional preview images you see in expert groups aren't just good screenshots; they are the result of a workflow that respects the physics of thread tension and density. As someone who has spent two decades listening to the rhythm of embroidery machines, I can tell you that a pretty preview is useless if the stitch path destroys your garment.

In this white paper-style guide, we will deconstruct Regina’s process for building a "quilt block" decorative fill. We will move beyond simple button-clicking and dive into the sensory cues, safety parameters, and professional workflows that turn a digital design into a physical masterpiece. We will also cover how to capture three distinct preview images (A/B/C views) to ensure your digital library reflects physical reality.

Start Calm: Set the 8x8 Hoop in Layout & Editing So Your Block Isn’t Lying to You Later

The fastest way to induce "hoop stress" is designing on a boundless canvas and trying to force-fit it later. In the physical world, your hoop is your hard limit. Regina starts by setting the Design Page to an 8-inch hoop because this is the industry standard for quilt-block style fills.

Open Layout & Editing and set your Hoop Size = 8 inch (approx. 200mm x 200mm) in the Design Page settings. This establishes a "safe zone" for your needle.

Why this matters (The Physics of Stability):

• Visual Calibration: When your screen boundary matches your physical hoop, your brain begins to understand scale. You stop designing motifs that are too small to stitch cleanly or too large to stabilize.
• The "Center-Out" Principle: By defining the boundary first, you ensure your design calculates from the true center, preventing the dreaded "frame hit" noise—that loud clank when the pantograph hits the limit switch, ruining calibration.

Prep Checklist (The "Pre-Flight" Safety Check):

• Module Check: Confirm you are in Layout & Editing (verify the window title bar).
• Boundary Set: Set Hoop Size = 8 inch in Design Page settings.
• Directory Safety: Create a folder named “Quilt Blocks” on a drive that is not your temporary desktop.
• Mental Output: Decide your goal: “A/B/C images” (Full, Medium, Small) before you start.


Draw the Square Block Shape Once—Then Let the Decorative Fill Do the Heavy Lifting

Go to Shapes, choose the rectangle/square tool, and click and drag to draw a square. You will see a red outline appear. This is your "block boundary."

In embroidery terms, this shapes the "container" for your stitches. Experienced digitizers know that this boundary is not just a line; it is the edge of your stabilization field.

Pro Tip: The Rule of Margins If you are designing for an 8-inch hoop, do not draw an 8-inch square. Draw a 7.85-inch square.

• Why? You need a "sewing allowance" or "safety margin." If you stitch right to the plastic edge of the hoop, the presser foot may collide with the frame (listen for a scraping sound), or the fabric tension will be uneven near the edge, causing distortion.

Kill the Satin Outline and Apply Decorative Fill—Because the Preview Should Showcase the Fill, Not the Border

In the Sewing Attributes / attribute panel, we need to alter the stitch physics:

1. Change the outline stitch from Satin Stitch to Not Sew (None).
2. Set the inside stitch type to Decorative Fill.
3. Choose a floral pattern from the library.


The Mechanics of Distortion: Why remove the satin outline?

• The "Push-Pull" Effect: A heavy satin border stitches with high tension, pulling the fabric inward. If you stitch a dense border around a light fill, the fabric will ripple (the "bacon effect").
• Cognitive Clarity: When creating previews, a border distracts the eye. You want to evaluate the texture of the fill, not the framing.

Resize the Decorative Fill to 7.85" (Maintain Aspect Ratio) So One Big Motif Covers the Whole Block

Regina notes the default fill size is often small (3.94 inches). To make a single large pattern repeat cover the block:

1. Select the design.
2. Change the decorative fill size to 7.85 inches.
3. Crucial: Check Maintain aspect ratio.


Expert Elevation: The Danger of "Bulletproof" Embroidery When you resize decorative fills, you are altering the relationship between stitch points.

• If you shrink a pattern too much: The stitch density increases. If stitches land closer than 0.3mm to each other, you risk "needle deflection" (where the needle hits a previous thread and bends) or fabric perforation (cutting a hole in the fabric).
• If you expand a pattern too much: The "float" (the loose thread between penetration points) becomes too long. Any stitch longer than 7mm - 9mm is a snag hazard.
• The "Sweet Spot": For quilt blocks, aim for a density where you can’t see the batting through the thread, but the block remains pliable. Touch Test: The stitched block should drape over your hand, not stand up stiff like cardboard.

Warning: Physical Safety
Always verify the maximum stitch length in your software settings after resizing. If the software generates stitches longer than 12mm, your machine's trimmer might catch, or the foot can get tangled in the loop, creating a "bird's nest" that can snap the needle. Wear eye protection when testing new files with extreme size changes.

Stitch View Dotted Lines = Jump Stitches = Tie-Offs = Knots on the Back (Yes, That’s the Chain Reaction)

This is the segment most novices skip, leading to "Tactile Failure"—when the back of the project feels scratchy or bumpy.

Go to View and engage Stitch View. Look for the dotted lines.

• The Signal: A dotted line means the machine stops, lifts the needle, moves (Jump), and starts again.
• The Consequence: Every jump requires a "Lock Stitch" (tie-off) before and after.


Sensory Troubleshooting:

• Sight: If your screen looks like a spiderweb of dotted lines, your machine will spend more time trimming than sewing.
• Sound: You will hear a rhythmic Chunk-Whirrr-Chunk (Lock-Jump-Lock) instead of a smooth Hummmmm.
• Touch: On the back of the fabric, every lock stitch creates a hard "knot" of thread. If this is a baby quilt, those knots will be uncomfortable.

Optimization Strategy: If you see excessive jumps, use your software’s "Connect Points" or "Optimize Entry/Exit" features to create a continuous running path. Your goal is a smooth, flowing stitch path with minimal interruptions.

Flip to Realistic View Before You Screenshot—So Your Image Looks Like Thread, Not a Technical Diagram

Click Realistic View. This renders the thread with simulated texture and lighting.

The Psychology of "Realistic View": When you look at the technical view, you are thinking like an engineer (editing nodes). When you switch to Realistic View, you are thinking like a customer.

• The 3-Foot Rule: Realistic view mimics what the embroidery looks like from 3 feet away. If it looks muddy or cluttered here, it will look like a mistake on fabric. Use this to judge if your pattern is too busy.

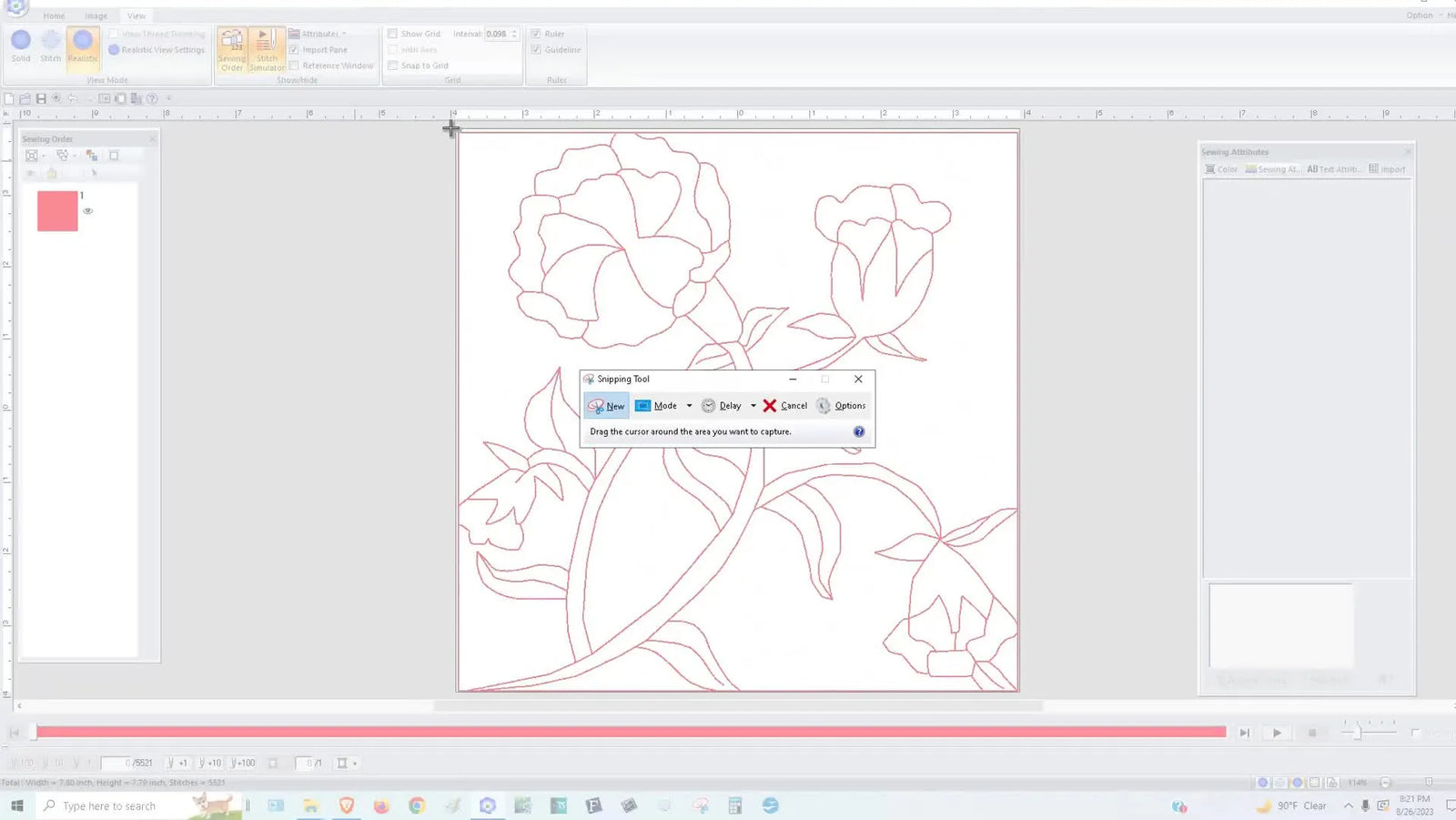

Capture a Clean Screenshot with Windows Snipping Tool (Tight Crop, No UI, No Distractions)

Now we capture the digital asset.

1. Open Windows Snipping Tool.
2. Click New.
3. Click and drag crosshairs from just outside the top-left to the bottom-right.
4. Save As into your "Quilt Blocks" folder.




Setup Checklist (The Quality Protocol):

• Mode: Ensure Realistic View is active.
• Zoom: Zoom level is roughly 100-120% (block fills the viewport).
• Crop: Crop marks should be tight to the design, excluding all toolbars and gridlines.
• Convention: Use a repeatable naming convention (e.g., Floral_Block_01_ViewA).

The A/B/C Image Habit: Show Full Size, Medium (3.94"), and Small (2.63") So People Understand Density

A single image is a liar. Scale changes perception and physical density. Regina advises saving three distinct views (A, B, and C).

A View (Full Size - 7.85")

This represents the intended "Quilt Block" usage. It looks airy and sophisticated.

B View (Medium Size - 3.94")

Select the design and resize to ~4 inches.

The Texture Shift: Note how the pattern becomes denser. The "white space" between stitches shrinks. This simulates how the design would look on a shirt pocket.

C View (Small Size - 2.63")

Resize again to ~2.6 inches.

The Stress Test: At this size, the design is highly dense. This alerts you (or your customer) that using this fill on a delicate fabric (like silk) might cause puckering because there is too much thread in too small a space.

Commercial Value: By providing A/B/C views, you are managing expectations. You are saying, "Here is the texture at different scales." This reduces ruined garments and wasted test runs.

Center the Motif with the Point Tool—Because “Technically Centered” Isn’t Always “Visually Centered”

Auto-center features often place the mathematical center of the design in the middle. However, if your floral motif has a heavy leaf on the right and a thin stem on the left, it will look off-balance.

Use the Point Tool / Select Tool to manually drag the internal pattern until it achieves "Visual Equilibrium."

Cognitive Anchor: Imagine the block is a framed painting hanging on a wall. Does it feel like it's tilting? If yes, nudge the motif until it feels stable. This subtle adjustment is the hallmark of a master digitizer.

When Snipping Tool “Disappears,” Don’t Panic—Alt+Tab Brings It Back

Workflow friction kills creativity. If you lose the Snipping Tool behind your main window:

• Hold Alt.
• Tap Tab repeatedly until the Snipping Tool is highlighted.
• Release keys.


This muscle memory (Alt+Tab) is essential for maintaining flow when batch-processing images.

Final Proof: Review Your A/B/C Files in File Explorer Before You Post or List Anything

Open File Explorer to inspect your work. This is quality control.

Operation Checklist (The Final Inspection):

• Completeness: Do you have files ending in _A, _B, and _C?
• Clarity: Open each file at 100% zoom. Is the image crisp?
• Honesty: Does the image accurately represent the stitch density?
• Consistency: Are the margins comparable across all three images?

A Quick Decision Tree: Which Preview Size Should You Lead With?

When presenting your work (to a client or for your own catalog), context is everything. Use this logic flow:

1. Is the design intended for a large surface (Quilt, Pillow, Tote Bag)?
   • Yes: Lead with A View (7.85").
   • Why: It showcases the drape and openness of the pattern.
2. Is the design for apparel branding (Pocket, Sleeve, Cap)?
   • Yes: Lead with C View (2.63").
   • Why: It honestly reveals the density intensity. A client needs to know if the logo will be a rigid "bulletproof vest" patch.
3. Is it a general-purpose library pattern?
   • Yes: Lead with B View (3.94").
   • Why: It is the "Golden Mean"—a balanced representation of repeat behavior.

The Quiet Upgrade Path: When Better Hooping and Better Machines Start to Matter (Even for Digitizers)

We have discussed software, but embroidery is a physical act. When you move from designing to actual production—especially with square quilt blocks—you will encounter Physical Friction Points.

• The "Squaring the Circle" Problem: Trying to hoop a square quilt block perfectly straight in a round or oval standard hoop is frustrating. You pull the fabric, tighten the screw, and it slips. The repeated wrist strain is real.
• The Trigger: If you find yourself re-hooping a garment 3 or 4 times to get it straight, or if you see "hoop burn" (crushed fibers) on your delicate quilting cotton, your current tools are costing you money and quality.

The Solution Hierarchy (Pain -> Criteria -> Upgrade):

1. Pain: Fabric distortion and hoop burn.
   • Criteria: Are you stitching on delicate velvets, bulky quilt sandwiches, or slippery performance wear?
   • Upgrade: Consider using magnetic embroidery hoops. Unlike traditional screw-hoops that rely on friction (and hand strength), magnetic hoops clamp straight down. This prevents the fabric from being "dragged" and eliminates hoop burn. Many professionals start searching for hoop for brother embroidery machine alternatives specifically to solve this issue.
2. Pain: Wrist fatigue and slow throughput.
   • Criteria: Are you doing runs of 20+ items?
   • Upgrade: Look into a hooping station for embroidery. Consistency is key. A station allows you to preset the placement. If you are serious about efficiency, a hoop master embroidery hooping station system is the industry standard for ensuring every left-chest logo lands in the exact same spot, every time.
3. Pain: Changing threads is taking longer than stitching.
   • Criteria: Is your single-needle machine constantly stopped while you swap spools?
   • Upgrade: This is the sign to move to a multi-needle machine. SEWTECH offers multi-needle solutions that allow you to set up 10+ colors at once. This shifts your role from "machine operator" to "business manager."

Warning: Magnetic Safety Zones
magnetic hoops for embroidery use industrial-strength neodymium magnets.
* Pinch Hazard: They can snap together with crushing force. Keep fingers clear of the mating surfaces.
* Device Safety: Keep them at least 6 inches away from computerized machine screens, pacemakers, credit cards, and smartphones to prevent data corruption or interference.

If you are looking for specific compatibility, such as babylock magnetic hoops or a baby lock magnetic embroidery hoop, always cross-reference your specific machine model (e.g., "Embroidery Arm Type A vs Type B") before purchasing, as the attachment brackets vary significantly.

The “Don’t Get Burned” Notes I Wish Every Designer Heard Before Posting Decorative Fill Previews

To wrap up, here are the "Hidden Consumables" and habits that will save you from embarrassment:

• The Hidden Consumable: Temporary Spray Adhesive (e.g., 505 Spray). When stitching large quilt blocks, hooping alone often isn't enough. A light mist of spray adhesive attaches your fabric to the stabilizer, preventing the "pucker" in the center of the block.
• A clean preview doesn’t guarantee a clean stitch path. Always glance at stitch view dotted lines (Sound Check: Listen for excessive trimming).
• Three images beat one. The A/B/C habit prevents density disasters.
• Centering is a design choice. Use the Point Tool to achieve visual balance, not just mathematical centers.

Your embroidery machine is a precision robot, but it relies on your judgment. By mastering the software preview, understanding the physical density, and upgrading your tools when the volume demands it, you bridge the gap between "hobbyist" and "professional."

(And remember: If you are stitching on a Brother platform and evaluating frame options, note that fit can be model-specific—people often search for hoop for brother embroidery machine solutions, but the safest move is always to confirm compatibility with your exact machine and arm style.)
