Clean, Profitable Embroidery Patches on a Ricoma: The Magnetic Hoop Workflow That Saves Your Hands (and Your Batch)

Mastering Batch Patch Production: A Zero-Failure Protocol for Embroidery Professionals

If you’ve ever watched a patch batch running and thought, "This is either going to be beautiful… or iIt’s going to eat my afternoon and waste $50 in materials," you’re not alone. Patches are deceptively simple: the materials are basic, but the workflow has three specific "kill zones"—hooping tension, heat-press chemistry, and cutting precision—where things often go wrong.

This guide rebuilds the full process—from uncoated twill and stabilizer to the final heat seal—with the shop-floor discipline required to scale beyond "one test patch."

The Calm-Down Moment: Why Patch Production Feels Risky (And How to Fix It)

Patches often feel scarier than Direct-to-Garment (DTG) embroidery because you are stacking variables. You aren't just stitching; you are engineering a textile sandwich that must withstand heat, cutting, and washing.

However, once you master the "Recipe," patches are the ultimate scalable product:

• Inventory Control: You can stock patches without stocking expensive jackets.
• Risk Mitigation: Ruining a piece of twill costs pennies; ruining a customer’s North Face jacket costs hundreds.
• Consistency: With the right hoop (especially magnetic ones), every patch is identical.

If you are building a production workflow around industrial standards (similar to ricoma mighty hoops), your goal is simple: Stable Hooping + Safe Trace + Chemical Bond.

The "Hidden" Prep Pros Never Skip: Twill, Stabilizer, and Chemistry

The video keeps the material list refreshingly basic, but let's break down the why behind the choices so you can replicate the results.

The Material Stack

• Uncoated Twill: (Black). Why uncoated? It has no pre-applied glue, allowing the fabric to breathe and flex during stitching before you add the heavy-duty adhesive later.
• Stabilizer: 3 oz Cutaway. Why not Tearaway? Patches need a "skeleton." Tearaway disintegrates over time; Cutaway remains inside the patch, providing the permanent structure needed for crisp edges.
• Adhesive: P600 5 MIL Heat Press Adhesive. Note: This is a double-sided activation film.
• Spray Adhesive: Odif 505.
• The "Hidden" Consumables:
  • Fresh Needles: Start a batch with new 75/11 sharp points.
  • Lint Roller: Twill attracts dust like a magnet; roll it before hooping.


Spray Discipline: The "Box" Rule

In the video, the creator sprays Odif 505 onto the cutaway while it’s sitting on packing paper.

• The Mistake: Spraying in the air or near the machine. This gums up your rotary hook over time.
• The Fix: Use a "spray box" or designated packing paper station.
• Sensory Check: The stabilizer should feel "tacky" like a Post-it note, not wet or gummy. If it looks wet, you sprayed too much. Wait 60 seconds for it to dry before applying the twill.

Prep Checklist (End-of-Prep)

• Uncoated twill sheet cut for the 10x19 hoop area (plus 1 inch margin).
• 3 oz Cutaway stabilizer cut to match.
• Fresh Needle Check: Are needles sharp and unbent?
• Odif 505 sprayed on stabilizer (away from machine).
• Twill smoothed over stabilizer. Tactile Check: Rub your hand across the surface; if you feel a bubble or ripple, lift and re-smooth.
• Heat Press turned on (set to 320°F / 160°C).


Magnetic Hooping That Doesn't Bite: Tension Physics & Safety

The workflow uses a 10x19 inch magnetic frame. Whether you use generic brands or branded ones, the physics are identical: you are clamping essentially a "drum skin."

Warning: Magnetic Safety
Magnetic hoops are incredibly powerful. Never place your fingers between the top and bottom rings. If you have a pacemaker, consult your doctor before handling large magnetic frames.

The "Drum Skin" Standard

Here is the physics that matters in long runs: you aren't just making the fabric "tight." You need even radial tension.

• Traditional Hoops: Often pull tighter on the screws and looser in the corners, leading to "pucker" marks.
• Magnetic Hoops: Provide uniform downward pressure. This prevents the fabric from "creeping" inward as the needle adds thousands of stitches.

How to hoop without failure:

1. Align: Place the bottom frame on a flat, stable surface.
2. Float: Lay your Twill/Stabilizer sandwich over it.
3. Orient: Ensure the tab on the top hoop faces away from the bracket tab on the bottom hoop.
4. Snap & Listen: Drop the top hoop. You should hear a solid, singular CLACK. If it sounds like a double-click, one side didn't seat properly.

Business Insight: If you are hooping 50+ patches a day, traditional screw hoops will cause wrist fatigue (Carpal Tunnel risk) and "Hoop Burn" (shine marks on fabric). Upgrading to Magnetic Hoops avoids hoop burn and increases production speed by roughly 40%. Many users search for terms like mighty hoops magnetic embroidery hoops specifically to solve this ergonomic pain point.

Setup Checklist (End-of-Setup)

• Top frame tab oriented correctly (Opposite to bracket).
• Tension Check: Tap the fabric. It should sound like a dull drum. It should not deflect more than 2-3mm when pressed lightly.
• Clearance Check: Ensure no excess fabric is hanging below the operational area where it could snag the pantograph.


The "Don't Break a Needle" Ritual: Trace & Speed Calibration

Once loaded into the machine (the video features a Ricoma 15-needle, but this applies to any multi-needle machine like SEWTECH), you must calibrate for safety.

1. The Trace (Non-Negotiable)

Switch to Super Wide Mode (if applicable) and run the Trace Function.

• Visual Check: Watch the needle bar. Does it come within 2mm of the metal frame? If yes, nudge the design inward.
• Why: Hitting a magnetic hoop with a needle at 800 SPM can shatter the needle, scarring the hoop and potentially throwing the machine's timing out of sync.


2. Speed: The "Sweet Spot" vs. The "Pro Zone"

The video creator mentions running at 700 SPM (Stitches Per Minute).

• Beginner Sweet Spot: 600-700 SPM. This creates cleaner satin columns and reduces thread breaks.
• Pro Zone: 800-900 SPM. Only go here if your tension is perfect and your stabilizer is heavy.
• Sensory Anchor: Listen to the machine. A rhythmic thump-thump-thump is good. A harsh clatter or high-pitched whining means you are running too fast for the fabric's stability.

Warning: Always trace before hitting Start. "Eye-balling it" is the number one cause of broken needle bars in commercial shops.

Production Reality

This batch is 190,000 stitches.

• Time: 4–5 hours.
• Thread Breaks: The creator reports zero breaks. This confirms that uncoated twill + cutaway + 700 SPM is a stable formula.

If you are comparing ricoma embroidery hoops against third-party magnetic frames, remember: the hoop doesn't make profit—uptime makes profit. Stability prevents thread breaks.

Heat-Seal Backing: The Chemistry of Bonding

After stitching, you must turn raw fabric into an iron-on product. This is chemistry, not art. Temperature and Pressure must be exact.

The Formula

1. Pillow: Place a Heat Press Pillow on the bottom platen. (This protects the 3D satin stitches from being crushed flat).
2. Pre-Press: 5 seconds (removes moisture from the twill).
3. Sandwich: Place adhesive sheet Shiny Side Down against the back of the embroidery.
4. Cover: Teflon sheet.
5. Act: Press at 320°F (160°C) for 10 seconds.


Troubleshooting the "Square Box" Mark

A common fear is seeing a square impression from the heat press on the fabric.

• The Cause: High pressure + Heat.
• The Fix: Do not panic. As the fiber cools, it relaxes.
• Pro Tip: Wipe the area gently with a damp cloth immediately after pressing to steam the fibers back up.

Adhesive Note: The product used is P600 5-Mil. It is critical to use "Patch Adhesive," not standard "Web Interfacing," which is too weak for patches.

The Hot Knife Secret: The "Safety Barrier" Technique

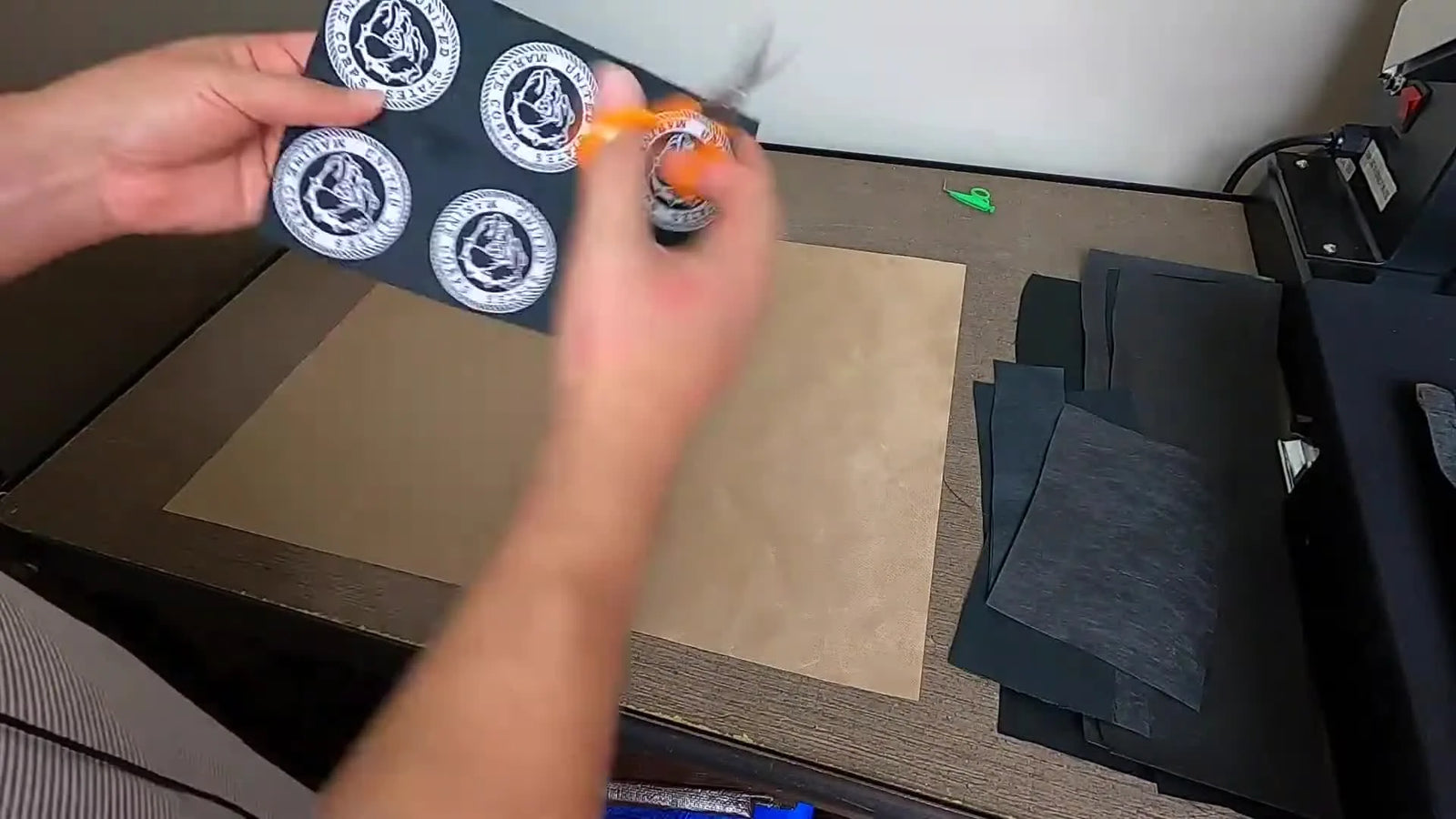

Scissors leave frayed edges. A Hot Knife melts and seals the edge for a retail finish.

The Digitizing Secret

The creator uses a brilliant fail-safe: They digitized a Single Running Stitch (Black) just outside the satin border.

• Why: This acts as a physical guide rail for your knife. You cut on this line, ensuring you never slice into the expensive satin border.
• Software: Whether using Wilcom, Hatch, or others, always add this "Cut Line" layer.

If you are looking for hooping for embroidery machine tips, remember that hooping gets you the stitch, but digitizing the "Cut Line" gets you the finished product.

Warning: Hot Knife Safety
* Ventilation: Melting polyester produces fumes. Open a window or use a fan.
* Fire: Do not cut near your 505 spray cans.
* Burn Hazard: The tip is 900°F+. Use a glass or ceramic cutting mat, never a plastic cutting mat.

Alternative: The Lighter Trick

If you see white fuzzies after cutting, quickly pass a butane lighter over the edge. Do not hold it there. Just a flick of heat will singe the loose fibers back into the seal.

Application: The "Rest Rule"

The final step is applying the patch to the garment (Port Authority Polo in the video).

1. Position: Use a template helper (like the "Embroiderer’s Helper") to ensure center-chest alignment.
2. Temp/Time: 340°F (170°C) for 20 seconds. Note the higher temp compared to the adhesive bond step.
3. The Golden Rule: Let it rest for 24 hours.
   • The Science: The adhesive is liquid when hot. If you pull it now, it fails. It needs to recrystallize into the fabric fibers.

Operation Checklist (End-of-Operation)

• Polo pre-pressed (removes moisture).
• Patch applied at 340°F / 20 seconds.
• Teflon sheet used to prevent scorching embroidery.
• Adhesion Check: After cooling, try to pick the corner with your fingernail. It should be fused solid.

Business Logic: When to Upgrade?

If you are doing this as a hobby, standard tools work. If you are running a business, time is money. Use this decision matrix to know when to upgrade your gear.

Search Context: Professionals often search for magnetic embroidery frames not just for speed, but to solve the "slippage" issue that ruins bulk orders.

Final Take: Systems Beat Talent

The video proves that a perfect patch isn't about artistic talent; it's about a rigid system:

1. Stabilize securely (Cutaway).
2. Hoop magnetically (Even tension).
3. Trace religiously.
4. Bond chemically (Temperature accuracy).
5. Seal thermally (Hot knife).

Follow this protocol, and your 50th patch will look identical to your first.

FAQ

• Q: How do I prevent Odif 505 overspray from gumming up a Ricoma or SEWTECH rotary hook during batch patch production?
  A: Spray Odif 505 onto the cutaway stabilizer only on packing paper (or in a dedicated spray box) and keep spraying away from the embroidery machine.
  • Spray: Place cutaway on packing paper and mist lightly; do not spray in the air near the machine.
  • Wait: Let adhesive flash off about 60 seconds before laying down uncoated twill.
  • Reduce: If stabilizer looks wet, stop and let it dry; heavy spray is the usual cause of residue.
  • Success check: Stabilizer feels tacky like a Post-it note, not wet or gummy.
  • If it still fails: Clean lint/adhesive buildup per the machine manual and reduce spray amount on the next hooping.
• Q: Why does a 10x19 magnetic embroidery hoop leave “hoop burn” shine marks or wrist fatigue compared with a traditional screw hoop on patch twill?
  A: Hoop burn and fatigue usually come from uneven or excessive screw tension; a properly used magnetic hoop clamps evenly and reduces over-tightening.
  • Loosen: Avoid cranking traditional screw hoops tighter to “fix” slippage; that often creates shine marks.
  • Clamp: Use the magnetic frame to apply uniform downward pressure instead of corner-to-corner stretching.
  • Standardize: Hoop on a flat surface so the frame seats evenly every time.
  • Success check: Fabric is evenly taut with no corner slack and no glossy pressure ring after unhooping.
  • If it still fails: Re-check stabilizer weight (3 oz cutaway in this workflow) and reduce handling friction on the twill before hooping.
• Q: What is the correct “drum skin” tension standard for hooping uncoated twill + 3 oz cutaway in a 10x19 magnetic embroidery frame?
  A: Aim for even radial tension—taut like a dull drum—without over-stretching the twill.
  • Align: Set the bottom frame on a stable, flat surface before placing the twill/stabilizer sandwich.
  • Orient: Keep the top frame tab facing away from the bottom bracket tab, then seat the hoop in one clean motion.
  • Tap: Check tension by tapping and lightly pressing the fabric surface.
  • Success check: Fabric sounds like a dull drum and deflects no more than 2–3 mm with light finger pressure.
  • If it still fails: Re-seat the top ring (a “double-click” sound often means one side did not seat) and re-smooth bubbles/ripples before snapping down.
• Q: How do I avoid broken needles when running the Trace Function near a 10x19 magnetic embroidery hoop on a Ricoma 15-needle or SEWTECH multi-needle machine?
  A: Always run Trace in Super Wide Mode (if available) and confirm the needle path clears the metal hoop before pressing Start.
  • Trace: Run the machine’s trace function every time the design or hoop position changes.
  • Watch: Look for any point where the needle bar comes within about 2 mm of the frame.
  • Nudge: Move the design inward if clearance looks tight; do not “eye-ball” clearance at speed.
  • Success check: Full trace completes with clear visible gap from the hoop and no near-contact points.
  • If it still fails: Stop immediately, re-hoop squarely, and re-run trace before restarting (a hoop strike at high SPM can cause larger mechanical issues).
• Q: What embroidery speed should be used for a long patch batch (e.g., 190,000 stitches) on uncoated twill with 3 oz cutaway on a Ricoma or SEWTECH multi-needle machine?
  A: A safe starting point for clean satin and fewer breaks is 600–700 SPM; only push 800–900 SPM after stability is proven.
  • Start: Run 600–700 SPM to reduce thread breaks and keep satin columns crisp.
  • Listen: Use sound as feedback; rhythmic “thump-thump” is healthy, harsh clatter/whine often means too fast for the stack.
  • Confirm: Keep the stabilizer choice consistent (cutaway in this process) to maintain structure over hours.
  • Success check: Stitching stays consistent with minimal/no thread breaks and no visible fabric creep inside the border.
  • If it still fails: Reduce SPM, re-check hoop seating/tension, and replace needles at the start of the batch (fresh 75/11 sharp points in this workflow).
• Q: Why does a heat press leave a “square box” impression on embroidered patches when using P600 5 MIL heat press adhesive at 320°F (160°C) for 10 seconds?
  A: The square mark is usually a pressure + heat imprint; it often relaxes as the fibers cool, and a damp wipe can help immediately after pressing.
  • Protect: Use a heat press pillow under the patch to avoid crushing raised satin stitches.
  • Follow: Press adhesive shiny-side down with a Teflon cover at 320°F (160°C) for 10 seconds after a short pre-press.
  • Recover: Wipe the marked area gently with a damp cloth right after pressing to steam fibers back up.
  • Success check: Adhesive is bonded evenly with no loose areas, and the surface mark fades as it cools.
  • If it still fails: Re-check press pressure (too high is the common trigger) and confirm patch adhesive film is being used (not weak web interfacing).
• Q: What magnetic hoop safety rules should be followed when using a 10x19 magnetic embroidery frame for batch patches?
  A: Treat the magnets like a pinch hazard—keep fingers out of the clamp zone and seat the hoop in a controlled, single motion.
  • Keep clear: Never place fingers between the top and bottom rings when closing the frame.
  • Seat safely: Drop the top hoop straight down; do not “walk” it down with fingers near the edge.
  • Verify: Listen for one solid clack; stop and re-seat if the closure sounds uneven.
  • Success check: Hoop closes cleanly with no finger contact in the pinch zone and the frame sits fully seated all around.
  • If it still fails: Slow down the hooping motion and use a flat surface to control alignment; if a pacemaker is involved, consult a doctor before handling large magnetic frames.
