Clean Polo Shirt Embroidery on an SWF Single-Head: Hoop Master Setup, 700 RPM Sweet Spot, and a Pricing Formula You Can Trust

Polos look simple—until you’re staring at a knit shirt that wants to stretch, ripple, and swallow your stitches.

If you’re feeling that familiar pressure ("I need this logo to look crisp, and I can’t afford to replace a $40 shirt due to a mistake"), take a breath. In my 20 years of running embroidery floors, I’ve learned that a polo is absolutely a controllable job. It just requires a shift in mindset: you aren't fighting the fabric; you are engineering its stability.

Success relies on locking down three variables: hooping tension (the "drum" feel), knit stabilization (the foundation), and realistic production timing (the profit).

The Calm-Down Check: What “Good” Looks Like on a Polo Shirt Knit Before You Even Stitch

A polo shirt (whether jersey knit, pique, or performance blend) is a moving target. The fabric is elastic, and the surface is often textured. The goal isn’t to force it to behave like canvas—it’s to control the movement so the design lands exactly where you placed it and the stitches sit on top of the fabric rather than sinking into it.

In the reference video, the presenter runs a 9,000-stitch, two-color logo on a 100% cotton jersey knit polo using a single-head SWF machine. Crucially, they keep the speed conservative to ensure quality.

Here’s the Sensory Standard I use in my shop: Before the first stitch, lightly tap the hooped area.

• Touch: You should feel a firm, even surface. It should feel like a "tuned drum"—taut, but not stretched to the breaking point.
• Sight: Look at the vertical distinct lines (wales) of the knit. Are they straight? If they look bowed or curved like an hourglass, you have over-stretched the fabric. This will result in a perfectly stitched logo that puckers immediately when you unhoop it.


The “Hidden” Prep Pros Do: Weblon Stabilizer, Ballpoint 75/11, and a Hooping Plan That Prevents Knit Distortion

The video’s prep choices are solid and production-minded. However, beginners often miss the "why" behind the gear. Let's decode the "Recipe for Stability":

1. The Stabilizer (Weblon/Poly-Mesh): The video uses two pieces of Weblon. This is a "Cutaway" type stabilizer.
   • The Physics: Knits stretch. Cutaway stabilizer does not. By using two layers, you create a non-stretch foundation that holds the stitches permanently, even after washings. Never use Tearaway on a flexible polo—it will result in a distorted design after the first laundry cycle.
2. The Needle (Ballpoint 75/11):
   • The Logic: A sharp needle cuts through fibers. A ballpoint needle pushes knit fibers aside. Using a ballpoint 75/11 prevents the needle from cutting the yarn of the knit, which leads to those tiny annoying holes that appear around the embroidery later.
3. The Orientation: The presenter inverts the shirt to embroider the right side. This isn't just a trick; it's about keeping the bulk of the fabric outside the throat of the machine to prevent drag.

Hidden Consumables Upgrade: Beyond the basics, keep these usually unmentioned items nearby:

• Temporary Spray Adhesive (or Sticky Backing): To keep the stabilizer from sliding before hooping.
• Water Soluble Topping: Essential for Pique (textured) knits.
• Spare Bobbin Case: Clean and tension-tested.

Prep Checklist (Verify before you hoop):

• Fabric ID: Confirm if it is 100% cotton (stable), 50/50 blend (average), or Performance Poly (slippery).
• Needle Check: Install a fresh Ballpoint 75/11. Rub your finger on the tip—if it scratches you, replace it.
• Stabilizer: Cut two pieces of Cutaway/Weblon. Ensure they cover the entire hoop area.
• Topping Decision: If the fabric has any texture (like Pique), cut a piece of water-soluble topping.
• Orientation: Plan your hoop inversion (Left Chest vs. Right Chest).

Warning: Industrial machines are powerful. Needles and moving pantographs are unforgiving. Keep fingers, snips, and loose sleeves away from the needle area and hoop arms while the SWF machine is running.

Dialing the Hoop Master Fixture to “15” Without Guesswork (and Why That Number Matters for Repeat Orders)

The presenter sets the Hoop Master fixture to the “15” mark. In a professional environment, "eyeballing it" is the enemy of profit.

If you’re using a hoop master embroidery hooping station, the real win is repeatability. The "15" isn't a magic number; it's a coordinate. Once you confirm that "15" places the logo exactly where the customer wants it (usually centered on the placket line, 7-9 inches down from the shoulder seam), you never measure again.

The Level-Up Concept: For those looking to scale, consistency reduces cognitive load. You stop asking "Is this straight?" and start saying "Next shirt."

A practical hooping principle preventing knit headaches: Let the stabilizer do the work. By clamping the Weblon tightly, you allow the knit fabric to "float" on top with just enough tension to remain flat, rather than stretching the life out of it.

Hooping the Polo Shirt (Including the “Invert the Shirt” Move) So the Logo Lands Exactly Where You Promised

In the video, the polo is pulled onto the station and hooped, utilizing the inversion technique for the right chest.

Here is the "Zero-Friction" Hooping Micro-Workflow:

1. Load the Foundation: Place your two pieces of Weblon (and optional backing paper) on the lower fixture.
2. Dress the Station: Pull the polo onto the station smoothly. Stop pulling the moment the fabric is flat. Do not yank.
3. The Alignment Check: Look at the vertical lines of the knit fabric. They should run parallel to the sides of the hooping station. If they are diagonal, your logo will be crooked.
4. The Invert (If needed): If stitching the right chest, fold the hem upward to expose the inside, keeping the target area flat.
5. The Press: Push the outer hoop down evenly. Listen for the distinct "clunk" of the magnetic flaps or the "click" of the friction fit.

Checkpoint: After hooping, run your hand over the fabric. It should be flat. If the button placket or side seams look "pulled" or bowed toward the hoop, you have applied too much tension. Release and redo.

Locking the Tubular Hoop Into the SWF Pantograph Without Fighting It (and the One Habit That Saves Needles)

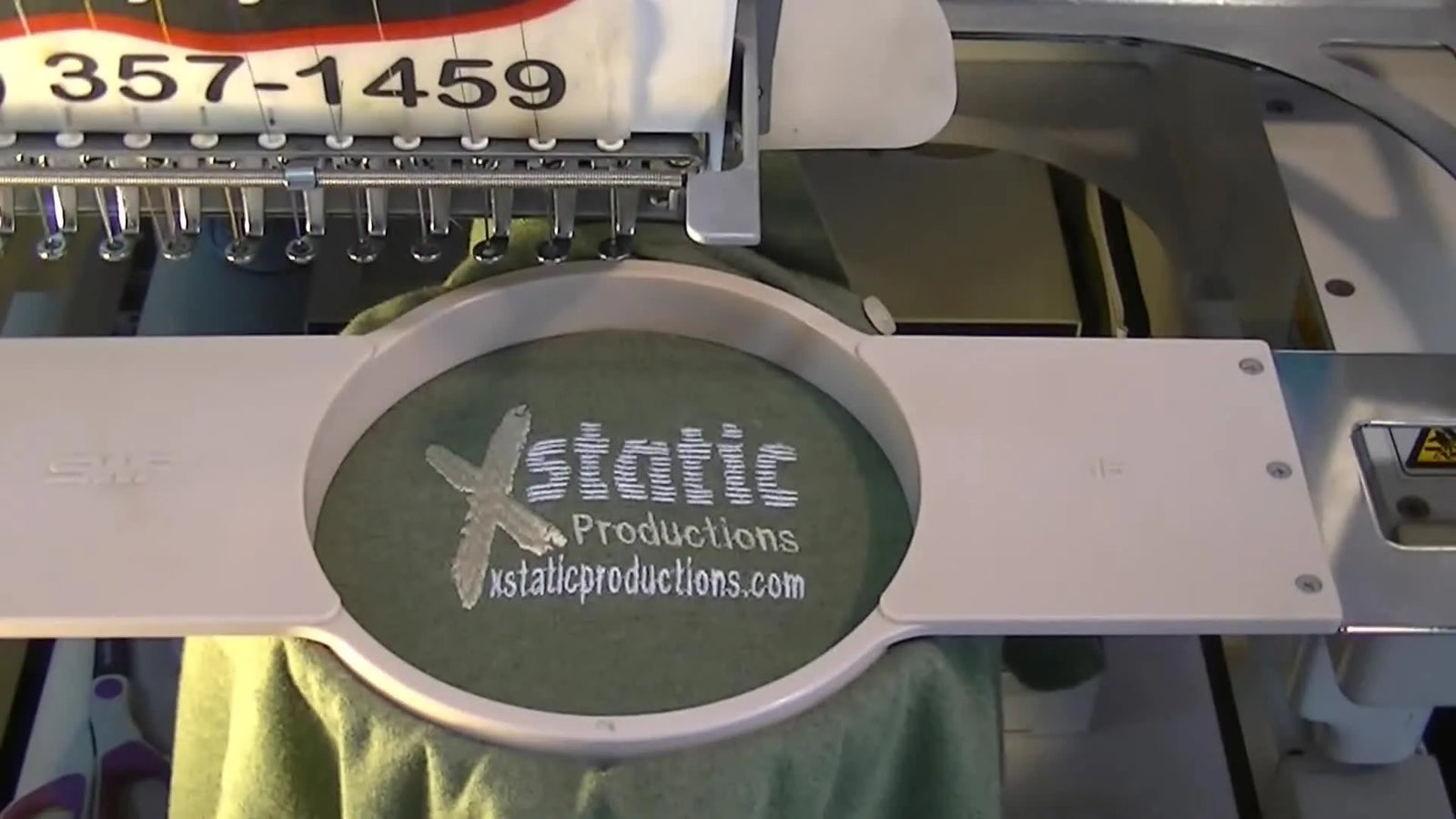

The hooped shirt is locked into the SWF machine’s pantograph. This is the moment where 90% of "bird's nests" (thread tangles) are created—by user error during loading.

If you’re running a swf embroidery machine, build this "Safety Pause" habit:

1. Slide and Click: Slide the hoop arms into the pantograph. Listen for the double click (left arm, right arm).
2. The Under-Check: Reach your hand under the hoop. Ensure no part of the shirt tail or sleeve is folded underneath the embroidery area. Getting a sleeve sewn into the chest logo is a rite of passage, but let's avoid it today.
3. Clearance: Ensure the garment hangs freely and won't snag on the table edge.


The 700–750 RPM Sweet Spot on an SWF Commercial Head: Why Slowing Down Often Makes You More Money

The video presenter runs the machine around 700–720 RPM, suggesting 750 RPM as a max. For a machine capable of 1,000+ RPM, this feels slow. Do it anyway.

The Physics of Speed: On rigid denim, you can run fast. On stretchy knits, high speed (850+ RPM) creates a "flagging" effect—the fabric bounces up and down with the needle. This causes:

• Registration issues: Outlines don't line up with the fill.
• Loping: Loops of thread on the surface.
• Thread breaks: Due to increased friction.

If you’re using a swf commercial embroidery machine, treat 700–750 RPM as your "Quality Sweet Spot." It is better to run 2 minutes longer and have a perfect shirt than to save 2 minutes and spend 20 minutes picking out stitches.

Jersey Knit vs Pique Knit: When Water-Soluble Topping Is Optional—and When It’s Non-Negotiable

The video draws a hard line here, and I agree.

• Jersey Knit (T-shirt feel): Smooth surface. Topping is optional but recommended for fine text.
• Pique Knit (Waffle texture): Rough surface. Topping is Mandatory.

Without topping on Pique, your stitches will sink into the "valleys" of the waffle weave. Your crisp lettering will look like it's drowning.

Decision Tree: Fabric → Stabilizer Strategy

• Scenario A: 100% Cotton Jersey Knit
  • Backing: 2 layers Weblon (Cutaway).
  • Topping: Optional (Use if design has tiny text <5mm).
• Scenario B: Pique Knit (Texture)
  • Backing: 2 layers Weblon (Cutaway).
  • Topping: REQUIRED (Water-soluble).
• Scenario C: Performance/Dri-Fit
  • Backing: 2 layers No-Show Mesh (so it's invisible on thin fabric).
  • Topping: Recommended.
  • Note: Use a fresh needle to prevent runs in the fabric.


Watching the Stitch-Out Like a Pro: What to Listen and Look For During Underlay and Lettering

In the video, as the underlay begins, the operator monitors the machine. You should not walk away during the first 60 seconds.

Sensory Monitoring:

• Sound: Listen for a rhythmic hum-thump-hum. A sharp snap, clicking, or grinding noise indicates a problem (dull needle, burr on the hook, or thread caught).
• Sight: Watch the "Underlay" (the scaffolding stitches). Are they sinking? If the underlay disappears into the fabric, stop immediately. You need topping.
• Tension Check: Look at the back of the embroidery (if you can safe safely peek). You should see about 1/3 bobbin thread (white) in the center of the satin column. If you see only top color, your top tension is too loose.


The Pricing Formula From the Video: 9,000 Stitches ÷ 700 RPM ≈ 12.8 Minutes (Then Add the “Hidden” Minutes)

The presenter calculates:

• Stitch Count: 9,000
• Speed: 700 RPM
• Math: 9,000 ÷ 700 ≈ 12.8 minutes.

The Reality Check: The video wisely warns that this number is Stitch Time, not Job Time. If you quote based only on 12.8 minutes, you will lose money.

The "True Cost" Equation: Total Time = (Hooping: 2 mins) + (Load/Trace: 1 min) + (Stitch Time: 13 mins) + (Trimming/Packing: 3 mins) = 19 Minutes.

When you price, charge for the 19 minutes (plus setup fees), not the 13 minutes.

Calibrating Your Quote With a Digital Timer: The Simple Habit That Stops Undercharging

The video shows a digital timer next to the machine. This is your reality anchor.

Action Step: Don't guess. For one week, strictly time yourself.

1. Start timer when you touch the shirt to hoop it.
2. Stop timer when the shirt is folded in the finished pile.
3. Record this "Cycle Time."

You will likely find that your "10-minute job" is actually a "20-minute cycle." Adjust your pricing accordingly. This data is the difference between a hobby and a business.

When Quality Falls Apart: The Two Polo Problems the Video Calls Out (and How to Fix Them Fast)

The video highlights two specific failures. Let's expand them into a Troubleshooting Matrix.

Watch out: As the video notes, don't ignore "sinking" on the first shirt. It creates a perceived quality issue that makes the logo look cheap.

Finishing the Polo Shirt Like a Shop That Gets Repeat Orders: Unhoop, Trim Backing, and Keep the Knit Relaxed

The finish is just as important as the start. The video shows the unhooping process.

The "Clean Finish" Protocol:

1. Unhoop Gently: Pop the hoop open without dragging the fabric.
2. Trim Backing: Use curved embroidery scissors. Cut the Weblon stabilizer about 0.5 inches from the stitches. Do not square it off—cut a rounded shape. Sharp corners on stabilizer can irritate the wearer's skin.
3. Topping Removal: If you used topping, tear it away. Use a damp cloth or steam to dissolve the tiny remnants.

Operation Checklist (Quality Control):

• Crispness: Are the edges of the letters sharp?
• Density: Can you see the fabric color through the thread? (If yes, fix the file).
• Puckering: Lay the shirt flat. Does the logo ripple? (If yes, loosen hooping tension next time).


The Upgrade Path That Actually Saves Time on Polos: Faster Hooping, Less Hoop Burn, and Scaling Beyond One Shirt

The video demonstrates the baseline: Hooping Station + Tubular Hoop. This works, but it causes fatigue.

The "Hoop Burn" Pain Point: Traditional plastic hoops require you to force an inner ring into an outer ring. On delicate performance polos, this leaves a shiny "burn" mark that is hard to remove. It also hurts your wrists after 50 shirts.

The Solution: Magnetic Hoops (Level 2 Upgrade) If you are serious about polos, consider upgrading to Magnetic Hoops (compatible with your machine).

• Why: They clamp the fabric using magnetic force, not friction.
• Benefit: Zero hoop burn. Faster hooping (just "snap" and go). No adjustment screws needed for different fabric thicknesses.

Warning: Magnet Safety
Magnetic hoops use powerful industrial magnets. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and mechanical watches.

The Productivity Gap (Level 3 Upgrade): As you fill your schedule, the 13-minute run time on a single head becomes a bottleneck. If you have an order for 50 polos, that's 10+ hours of stitching.

• The Fix: This is when shops upgrade to a Multi-Needle setup (like SEWTECH's commercial line). Running multiple heads or a more efficient 15-needle machine allows you to prep the next shirt while the current one runs (overlap logic), doubling your hourly profit.

If you’re currently shopping for embroidery hoops for swf, prioritize tools that reduce rework. A slightly more expensive hoop that eliminates hoop burn pays for itself in saved shirts.

Setup Checklist (To lock in consistency):

• Hooping Station: Set it once, mark it with tape if needed.
• Needle: Ballpoint 75/11 (Standardize this for all knits).
• Speed: Cap at 750 RPM max.
• Topping: 100% Policy for Piques.
• Data: Log the real time, not the screen time.

For shops comparing hooping station for machine embroidery options, remember: the best station is the one that allows you to be mindless. If you have to think about alignment every time, you are losing money.

And if you’re still collecting tools, remember that high-quality machine embroidery hoops—specifically magnetic ones—are often the cheapest "labor insurance" you can buy. They protect your wrists and your garments simultaneously.

FAQ

• Q: How do I hoop a knit polo shirt for machine embroidery without causing puckering after unhooping?
  A: Hoop the stabilizer firmly and let the knit fabric stay flat—not stretched—so the design relaxes back cleanly.
  • Clamp two layers of cutaway (Weblon/poly-mesh) securely so the backing provides the “drum” feel.
  • Stop pulling the polo as soon as the target area is flat; do not yank the knit to make it tighter.
  • Align the knit wales (vertical lines) so they run straight and parallel to the hoop edges before pressing the hoop closed.
  • Success check: Tap the hooped area—feel firm and even, and visually confirm the wales are straight (not hourglass-bowed).
  • If it still fails: Slow the machine to the 650–750 RPM range and re-hoop with less fabric tension.
• Q: What stabilizer should be used for embroidering a knit polo shirt logo, and why should tearaway stabilizer be avoided?
  A: Use two layers of cutaway (Weblon/poly-mesh) because knits stretch and need a permanent non-stretch foundation.
  • Choose cutaway for jersey knit and pique; use no-show mesh cutaway for thin performance fabrics when appearance matters.
  • Avoid tearaway on flexible polos because the support is removed and the design may distort after washing.
  • Add temporary spray adhesive (or use sticky backing) to prevent stabilizer shifting before hooping.
  • Success check: After stitching, the design stays flat when the polo is laid on a table (no rippling around the logo).
  • If it still fails: Add water-soluble topping (especially on textured pique) and re-run a test stitch-out.
• Q: When is water-soluble topping required for polo shirt embroidery on pique knit versus jersey knit?
  A: Water-soluble topping is mandatory on pique knit and optional (but often helpful) on smooth jersey knit.
  • Apply topping on pique to prevent stitches from sinking into the waffle texture.
  • Use topping on jersey when designs include very small lettering where clarity matters.
  • Tear away the topping after stitching, then remove remnants with a damp cloth or steam.
  • Success check: Lettering edges look crisp on top of the fabric instead of “drowning” into texture.
  • If it still fails: Stop early in the next run if underlay disappears into the fabric—add topping and reassess density carefully.
• Q: What needle type and size should be used for embroidering polo shirts, and how do I know the needle should be replaced?
  A: A fresh ballpoint 75/11 needle is a safe, production-proven choice for knit polos to reduce holes and fiber cutting.
  • Install a new ballpoint 75/11 before starting knit jobs, especially performance fabrics.
  • Check the needle tip by lightly rubbing a finger across it; replace immediately if it scratches.
  • Keep a spare bobbin case that is clean and tension-tested so needle/thread issues don’t get misdiagnosed.
  • Success check: The stitching forms cleanly without tiny holes forming around the embroidery as the knit relaxes.
  • If it still fails: Listen for sharp snapping/clicking during the first minute—inspect for a dull needle or hook burr and re-thread.
• Q: How can SWF embroidery machine operators prevent bird’s nests when loading a hooped polo into the pantograph?
  A: Build a “safety pause” habit during loading: lock both arms fully and confirm no garment fabric is trapped under the hoop.
  • Slide the hoop arms into the SWF pantograph and confirm the double-click engagement (left and right).
  • Reach under the hoop to ensure no sleeve, tail, or fold is under the stitch field.
  • Verify the garment hangs freely and will not snag on the table edge during movement.
  • Success check: The first stitches form cleanly with no sudden thread wad/tangle at the start.
  • If it still fails: Stop immediately, remove the hoop, clear thread from the needle area, and re-load with a full under-check.
• Q: What is the recommended SWF commercial embroidery machine speed (RPM) for stitching logos on knit polo shirts, and what problems does overspeed cause?
  A: Keep knit polo logos around 700–750 RPM to reduce fabric flagging and protect registration and thread performance.
  • Cap speed near 750 RPM for quality on stretchy knits; go lower (around 650 RPM) if distortion starts.
  • Watch for flagging-related issues: outlines not lining up, surface loops, and thread breaks.
  • Stay at the machine for the first 60 seconds to catch underlay sinking or abnormal sounds early.
  • Success check: Underlay remains visible on top of the knit (not disappearing), and outlines track cleanly without shifting.
  • If it still fails: Re-evaluate hooping tension (too tight stretches knit) and add topping for textured fabrics.
• Q: How do I fix hoop burn (a shiny ring) on embroidered polos, and when should magnetic hoops be considered?
  A: Start by relaxing the fibers (steam/wash) and reduce friction pressure; consider magnetic hoops if hoop burn repeats in production.
  • Steam the ring out (do not iron it) and wash the polo if needed to let knit fibers recover.
  • Re-hoop with less squeeze pressure so the fabric is taut but not crushed by plastic hoop friction.
  • Consider magnetic hoops to clamp with magnetic force instead of friction squeeze, which often reduces hoop burn and speeds hooping.
  • Success check: The shiny ring fades after steaming/washing and the next hooped shirt shows no new gloss marks.
  • If it still fails: Move to a magnetic hoop workflow and standardize the hooping routine to reduce rework and garment loss.
• Q: What safety precautions should be followed when running an SWF embroidery machine and when handling magnetic embroidery hoops?
  A: Treat both the moving needle/pantograph and the magnets as pinch hazards—keep hands clear and control loose items at all times.
  • Keep fingers, snips, sleeves, and garment bulk away from the needle area and moving hoop arms while the SWF machine is running.
  • Pause during loading/unloading and confirm fabric clearance so nothing gets pulled into the stitch field.
  • Handle magnetic hoops carefully to avoid severe finger pinches; close the hoop in a controlled, even motion.
  • Keep magnetic hoops away from pacemakers, credit cards, and mechanical watches.
  • Success check: Loading/unloading is calm and repeatable with no near-misses, pinches, or fabric caught under the hoop.
