Clean Imported Designs in Floriani Total Control U: Remove Jump Stitches, Add Trims, and Stop Those “Mystery Lines” Before You Stitch

If you have ever stood by your machine, watching with dread as it drags a long, ugly thread across the pristine white space of a polo shirt, you know the sinking feeling. The file looked perfect on the computer screen… until the machine started proving you wrong.

In the world of professional embroidery, "screen nice" and "sew nice" are two different languages.

This guide focuses on the Floriani Total Control U (FTCU) workflow, but we are going deeper than just button clicks. We are bridging the gap between digital theory and the physical reality of needle and thread. Our goal is simple: make the stitch path behave like a professional digitized file—no random travel lines (jump stitches), no bird-nesting knots, and no "surprise" stitches that ruin a $20 garment.

This article follows the exact on-screen process, but adds the "Chief Education Officer" context: why your machine hates those travel lines, the sensory cues of a bad file, and how to fix it before you break a needle.

Don’t Panic: The FTCU Stitch Sequence Viewer Is Where You Regain Control (Even on Messy Imports)

Imported designs (DST, EXP, PES) often arrive like a messy suitcase—everything is thrown in, including travel stitches that were never meant to be sewn. You might see objects that start or stop in the center of a design for no logical reason, or travel lines that zigzag across empty space.

The video begins with the Stitch Sequence Viewer on the left panel. This is your GPS. It tells you exactly where the needle is going next.

Why this matters physically: When you look at the design canvas, you see the final picture. When you look at the Sequence Viewer, you see the time timeline.

• The Click Trick: Clicking inside a frame in the sequence viewer isn't just for selection. In FTCU, this often behaves like a context menu, allowing you to access properties without hunting through the top ribbon.

The "Red Flag" Scan: Before you edit, scroll through the viewer and look for these symptoms:

1. Tiny Objects: Frames that look like single dots (often accidental "phantom" stitches).
2. Color Salad: A design that changes color, then changes back to the original color 30 seconds later (inefficient sequencing).
3. The "Spiderweb": Long, straight lines connecting two unconnected objects.


The “Hidden” Prep Before You Touch a Single Stitch in FTCU (So You Don’t Delete the Wrong Thing)

Novices dive in and start deleting. Masters prepare the operating room first. Before you remove a single stitch, you must standardize your workspace to ensure every cut is reversible.

Prep checklist (Do this before editing)

• The "Safety Net" Save: always—always—do a "Save As" (e.g., Design_Name_EDIT_v1). Never work on your only copy of the customer's file.
• Visual Logic Check: Open the Stitch Sequence Viewer. Does the design stitch from the center out (ideal for caps)? Or top to bottom? knowing this prevents you from breaking the registration logic.
• Define Success: Are you just removing one jump stitch? Or are you optimizing this for a run of 50 shirts? (The latter requires more aggressive cleaning).
• Physical Prep: Have your hidden consumables ready at the machine: sharp curved scissors, a fresh needle (size 75/11 is the universal sweet spot), and a water-soluble marking pen for testing.

Warning: Be careful not to delete Lock Stitches (Tie-ins/Tie-offs). These are the tiny knots at the start and end of an object. If you delete an object and its associated lock stitches, your embroidery will unravel in the wash.

Delete Unwanted Objects in FTCU Without Guessing: Ctrl-Select + Ctrl+Delete (and Handle Locked Objects Safely)

The first concrete fix demonstrates removing entirely unwanted design segments—perhaps a copyright mark or a stray element you don't need.

What to do:

1. In the Stitch Sequence Viewer, select Segment A.
2. Hold the Ctrl key.
3. Click Segment B (multi-select).
4. Press Ctrl + Delete on your keyboard.

The Scary Pop-up: You will likely see a dialog: “Some of the objects are locked. Do you want to delete them anyway?”

• Standard Reaction: Panic.
• Expert Reaction: Confidence. Locked usually just means the file format (like a DST) grouped them to protect integrity. If you visually confirmed they are the wrong objects, click Yes.

Sensory Check: After deleting, look at the transition on screen. Does the thread path now jump cleanly to the next object, or does it leave a "tail"? A clean deletion should leave no visible thread connecting the empty space.

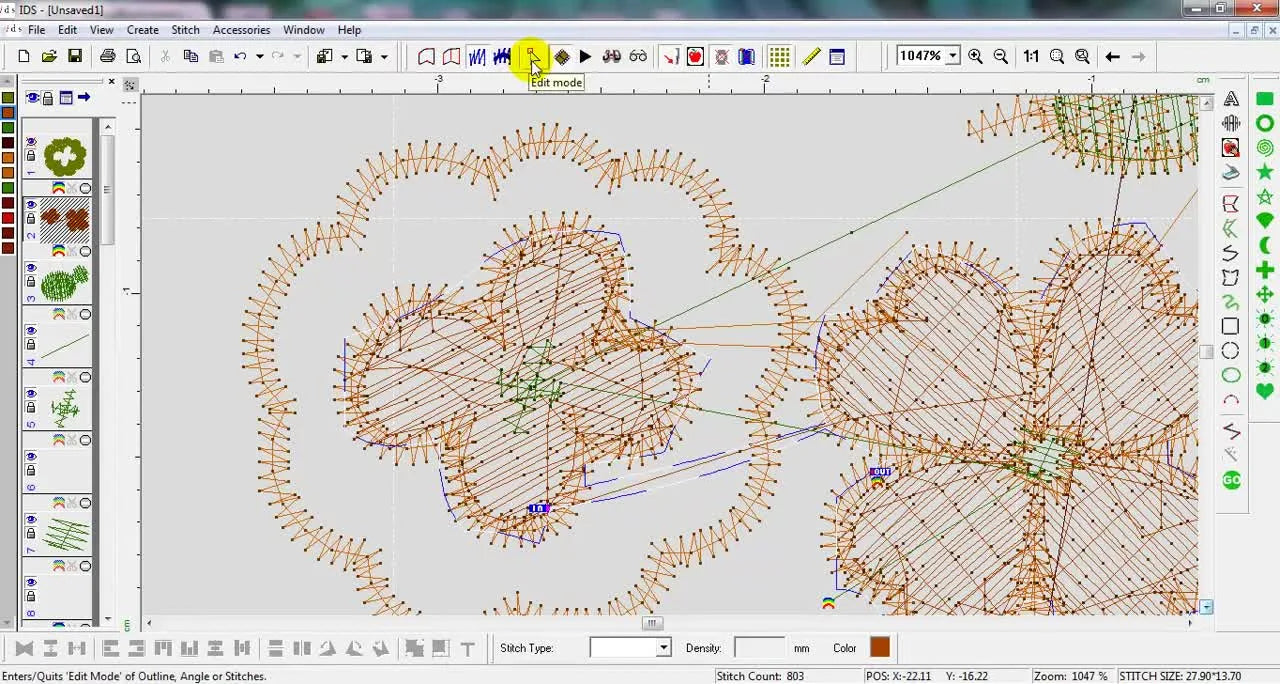

Zoom Like a Surgeon: Needle Penetrations + Edit Stitch Mode Reveal the Real Travel Path

This is the most critical technical skill in the tutorial. To fix a file, you cannot look at the "3D satin view" which mimics thread. You must see the "skeleton" of the design.

The video shows zooming in tightly on a long, ugly travel stitch connecting two flowers.

Switch Your Vision:

1. Zoom Logic: Zoom in until the stitch fills your screen.
2. Toggle on "Needle Penetrations": This changes the line into a series of dots. Each dot represents a physical hole the needle will punch in your fabric.
3. Activate "Edit Stitch Mode": This allows you to grab those individual dots.


The "Why" (Physics): A travel line isn't just a line. It is a series of needle penetrations. If your machine runs at 800 stitches per minute (SPM), and that travel line has 5 intermediate points, the machine will punch the fabric 5 times in a split second, potentially dragging the fabric and ruining the registration of the next flower.

Arrow-Key Navigation in FTCU: Delete the One Bad Stitch That Creates a Zig-Zag

In the video, the narrator selects a single stitch point (marked by a red X) and uses the keyboard to "walk" the path.

The Micro-Procedure:

• Select: Click a node (stitch point) on the travel line.
• Walk: Use Down Arrow (move forward in time) or Up Arrow (move backward).
• Diagnose: Watch the red X. Does it walk in a straight line? Or does it zig-zag back and forth?
• Fix: If you find a stitch that steps backward or laterally for no reason, press Delete.


Expert Context: That single zigzag stitch is a "snag magnet." Only straight lines should exist between objects if you aren't trimming. A zigzag travel stitch will catch on a button, a zipper, or even the presser foot, causing the dreaded "birdnest" under the throat plate.

The Cleanest Fix for Connecting Lines: Replace Stitches by Trim at the First Stitch of the Next Area

Deleting stitches manually is fine for small fixes. But for professional results, you want the machine to Cut and Jump.

The video shows the gold standard of cleanup: converting a movement into a command.

The "Trim" Protocol:

1. Identify the travel line.
2. Follow it to the very first stitch of the next object (where the flower actually starts).
3. Hover over until the cursor changes to a crosshair.
4. Right-Click on that specific node.
5. Select Replace stitches by → Trim.

What happens physically: Instead of dragging the thread, your machine will now:

1. Lock the thread at the end of the previous object.
2. Engage the knife (you will hear a distinct ka-chunk sound on most machines).
3. Move freely to the new location.
4. Lock the thread and begin sewing.


Hardware Note: This command works best if your machine has an auto-trimmer. If you are using a basic single-needle machine without a trimmer, this command will simply stop the machine or create a long jump you must hand-trim later.

The Production Mindset: Hide Finished Layers, Work Color-by-Color, and Repeat the Same Cleanup Loop

Efficiency is about rhythm. The video demonstrates a "cleanup loop" that prevents you from getting overwhelmed by complex designs.

The Loop:

1. Hide: Use the eyeball icon in the Sequence Viewer to hide layers you have already fixed.
2. Scan: Look for the next long travel line.
3. Decide: Delete the line (if short) or Insert Trim (if long).
4. Repeat.


Setup Checklist for Flow:

• Visibility: Turn off the 3D view (simulation). It hides errors. Work in "flat" or "wireframe" view.
• Scale: Zoom out to "Fit to Screen" after every few edits to catch a glimpse of the overall flow.
• Backup: Every 10 minutes, hit Ctrl+S. Software crashes happen, usually when you are 90% done.

Watch Out for “Phantom” Stitch Points: Zoom In, Then Move or Delete the Stray Node

A classic rookie mistake: you delete a travel line, but you leave one single stitch point behind in the middle of nowhere.

The Symptom: machine moves to empty space, drops the needle once, then moves on. The Result: A tiny loop of thread on the fabric surface, or a knot on the back.

The Fix:

• Zoom in aggressively.
• If you see a stray node, select it.
• Option A: Delete it (if it’s truly useless).
• Option B (The Pro Move): If deleting it ruins the stitch flow, drag the node underneath the upcoming fill stitch. This buries the tie-in so it is invisible on the finished garment.

When Arrow Keys Jump to a Different Area: What It Means (and How to Stay Oriented)

In the tutorial, the narrator notices that pressing the arrow key suddenly jumps the cursor to a completely different part of the screen.

Cognitive Anchor: This happens because the Stitch List is linear, but the Design is 2D.

• If object A is at the top left, and Object B is at the bottom right.
• When you scroll from the end of A to the start of B, your visual focus must jump across the screen.

Orientation Tip: If you get lost, look at the Sequence Viewer. The highlighted box tells you "when" you are, even if you don't know "where" you are.

Decision Tree: Jump Stitch vs Trim vs Delete (Choose Based on Gap Size and Stitch-Out Risk)

When should you delete, and when should you trim? Use this logic gate to decide instantly.

Visualizing the Gap:

1. Is the gap smaller than 2mm (roughly 1/16 inch)?

• Action: Leave it alone.
• Why: Trimming takes time (machine stops, cuts, starts). For tiny gaps, it's faster to let the machine jump. The thread will be barely visible.

2. Is the gap between 2mm and 12mm (1/2 inch)?

• Action: Check the Fabric.
• If Stitching on Towels/Fleece: Insert Trim. (Travel lines get trapped in the loops).
• If Stitching on Flat Cotton: Leave or Hand-Trim later.

3. Is the gap longer than 12mm?

• Action: Must Insert Trim.
• Why: A long floating thread is a snag hazard. It will ruin the garment eventually.

4. Is the line a "Walk Stitch" (intentionally sewing a path)?

• Action: Do NOT Delete. This is likely an underlay or a travel path to get to a new section without cutting. Hide it under a fill if possible.

The Comment You’ll Relate To: “No Volume After 9:56???”—How to Keep Working When Tutorials Cut Out

As noted in the source video, the audio cuts out. This is a perfect metaphor for embroidery: sometimes, you are on your own.

If you understand the logic described above (Sequence -> Zoom -> Node Edit -> Trim), you don't need the narration. The visual cues—the red lines turning into dashed lines—are your confirmation that the edit worked.

The “Why” Behind Cleaner Files: Less Thread Waste, Fewer Snags, and More Predictable Hooping Results

Why spend 15 minutes cleaning a file?

1. Thread Economy: Every trim saves an inch of thread. Over 1,000 shirts, this adds up to entire cones.
2. Machine Health: Constant unnecessary stitching wears out your reciprocator.
3. Hooping Stability: This is the big one.

When a machine drags a thread across the fabric (a travel stitch), it creates lateral tension. It pulls the fabric. If your hooping is loose, the fabric ripples. By the time the machine stitches the next flower, the registration is off by 3mm, and you have a reject.

This is where hardware meets software. Even a clean file can fail if the hoop is weak. Traditional screw hoops often leave "hoop burn" (crushed fibers) or slip during high-tension jumps.

Many professionals mitigate this physical risk by using a magnetic embroidery hoop. Unlike standard hoops that rely on friction and muscle power, magnetic hoops use vertical clamping force to hold the fabric flat without distortion. This provides a "stable canvas" that makes your file cleanup efforts actually shine.

Warning (Safety): magnetic frames for embroidery machine use industrial-strength magnets. They are incredibly strong. Pinch Hazard: Keep fingers clear of the snapping zone. Medical: Keep them away from pacemakers. Tech: Keep away from phones and credit cards.

The Upgrade Path (Without the Hard Sell): When Better Hooping Tools Pay for Themselves

You are editing files to save time and improve quality. But if you fix the file and still struggle with the physical setup, you are only solving half the problem.

Here is the "Scenario-Based" upgrade path for the growing embroiderer:

• Scenario A: "I hate trimming jump stitches by hand."
  • Solution: Master the "Insert Trim" command in FTCU (Level 1).
  • Solution: Upgrade to a multi-needle machine like the SEWTECH series, which handles trims automatically and seamlessly (Level 2).
• Scenario B: "My outline is always slightly off, no matter how much I clean the file."
  • Diagnosis: Your fabric is shifting (Flagging).
  • Solution: Use a firmer Cutaway stabilizer.
  • Solution: Introduce a magnetic hooping station. This tool holds the hoop in a fixed position while you clamp it, ensuring the fabric is perfectly tensioned before it even hits the machine.
• Scenario C: "I have 50 shirts to do, and hooping takes forever."
  • Solution: A embroidery hooping station combined with magnetic hoops allows you to hoop a shirt in under 15 seconds with perfect placement repeatable accuracy.

Operation Checklist: Final Verification Before You Export and Stitch

You have cleaned the file. You are ready to sew. Do not export yet. Run this "Pre-Flight" check to avoid a crash.

Pre-Flight Checklist

• The "Travel" Scan: Scroll through the Sequence Viewer one last time. Are there any unexplained long jumps?
• 3D Simulator Run: Run the slow-motion simulator in FTCU. Watch the needle. Does it weave back and forth unnecessarily?
• Trim Verify: In the simulator, look for the "Trim" icon (usually tiny scissors) at the end of sections. No scissors = No cut.
• Format Check: Are you exporting to the correct language? (PES for Brother/BabyLock, DST for Tajima/Industrial). Note: DST files often lose color info but keep stitch commands perfectly.

Warning (Mechanical): Always check that the embroidery foot is high enough to clear your hoop, especially if using third-party magnetic hoops. A collision between the needle bar and the hoop frame will break your machine instantly. Spin the handwheel manually for the first rotation to ensure clearance.

A Final Note on Efficiency: Clean Files + Consistent Hooping Is the Real “Pro” Combo

Embroidery is a symbiotic relationship between the digital instructions (your file) and the mechanical execution (your machine and hoop).

You can have the cleanest file in the world, but if the fabric slips in a loose hoop, it will look amateur. Conversely, you can use the best embroidery magnetic hoop on the market, but if your file is full of messy travel stitches, you will get birdnests.

Master the cleaning workflow in FTCU. Then, support that digital perfection with the right physical tools. That is the secret to the "painted on" look that separates the hobbyist from the professional.

FAQ

• Q: In Floriani Total Control U (FTCU), what should be checked in the Stitch Sequence Viewer before deleting jump stitches in an imported DST/EXP/PES file?
  A: Do a fast “red flag” scan in the Stitch Sequence Viewer first so the wrong stitches do not get removed.
  • Scroll: Look for tiny one-dot frames (phantom stitches), “color salad” (colors switching and switching back), and long straight “spiderweb” connectors.
  • Click: Select the suspicious frame in the Sequence Viewer (often faster than hunting on the canvas).
  • Decide: Mark which connectors are true travel lines versus intentional walk stitches/underlay paths.
  • Success check: The highlighted sequence boxes match the on-screen sewing order, and the problem travel line is clearly identified before any edits.
  • If it still fails: Run the slow simulator and watch whether the needle movement matches the Sequence Viewer timeline.
• Q: In Floriani Total Control U (FTCU), what is the safest prep checklist before editing stitches so the changes are reversible and lock stitches are not accidentally deleted?
  A: Save a protected copy first, then confirm stitch logic before touching any nodes—this is common and prevents irreversible mistakes.
  • Save: Use “Save As” (example: Design_Name_EDIT_v1) and never edit the only customer file.
  • Verify: Check whether the design is logically sequencing (center-out for caps vs top-to-bottom) so registration logic is not broken.
  • Stage: Keep curved scissors, a fresh needle (75/11 is a safe starting point), and a water-soluble marking pen ready for testing at the machine.
  • Success check: After the first small edit, the start/end of the next object still has tie-ins/tie-offs (lock stitches) and nothing looks “unanchored.”
  • If it still fails: Undo and re-check whether a lock stitch segment was deleted along with an object.
• Q: In Floriani Total Control U (FTCU), how does Ctrl-select + Ctrl+Delete remove unwanted segments, and what should be done when FTCU warns “Some of the objects are locked”?
  A: Select the exact segments in the Sequence Viewer and delete with confidence after visual confirmation—locked objects are common in imported files.
  • Select: Click Segment A in the Stitch Sequence Viewer, hold Ctrl, then click Segment B (multi-select).
  • Delete: Press Ctrl + Delete.
  • Confirm: If the pop-up says objects are locked, click “Yes” only if the segments are clearly unwanted (like a stray element).
  • Success check: The on-screen transition shows no visible thread tail or connector line bridging the deleted area.
  • If it still fails: Zoom in with Needle Penetrations on to find leftover nodes that are still linking areas.
• Q: In Floriani Total Control U (FTCU), how do Needle Penetrations and Edit Stitch Mode help remove a zig-zag travel stitch that causes birdnesting?
  A: Switch to the “skeleton view” and delete the single bad stitch point that creates the zig-zag—don’t rely on 3D satin preview.
  • Zoom: Enlarge the travel path until it fills the screen.
  • Toggle: Turn on Needle Penetrations so the travel line becomes individual needle holes (dots).
  • Edit: Enter Edit Stitch Mode, select a node, then use Up/Down Arrow to “walk” the stitch path and spot the backward/lateral zig-zag.
  • Success check: The travel between objects becomes a clean straight movement with no unnecessary side-steps that could snag.
  • If it still fails: Replace the connector with a Trim command instead of manual point deletion.
• Q: In Floriani Total Control U (FTCU), how do you replace a long connecting travel line using “Replace stitches by → Trim” at the first stitch of the next object?
  A: Convert the movement into a trim so the machine cuts and jumps instead of dragging thread across open fabric.
  • Locate: Follow the travel line to the very first stitch of the next sewing area (where the next object truly begins).
  • Apply: Right-click that node and choose “Replace stitches by → Trim.”
  • Verify: Re-run simulation and look for the trim/scissors indicator at the end of the prior section.
  • Success check: On stitch-out, the machine performs a distinct trim action (often an audible “cut” sound on machines with auto-trimmers) and no long floating thread remains.
  • If it still fails: If the machine has no auto-trimmer, plan for hand-trimming or reduce long jumps by re-sequencing and hiding connectors under fills where possible.
• Q: In Floriani Total Control U (FTCU), what should be done when a deleted travel line leaves a “phantom” stitch point that makes the machine drop one needle in empty space?
  A: Remove or bury the stray node—one leftover point is enough to create a surface loop or a back-side knot.
  • Zoom: Magnify aggressively around the empty area where the needle “pokes once.”
  • Select: Click the single stray node that remains.
  • Fix: Delete the node, or drag it under an upcoming fill stitch to hide the tie-in if deleting breaks stitch flow.
  • Success check: Simulation no longer shows the needle traveling to blank space for a single penetration.
  • If it still fails: Re-check the Stitch Sequence Viewer for tiny dot-like frames that represent additional phantom stitches.
• Q: When cleaning Floriani Total Control U (FTCU) files and stitching with magnetic embroidery hoops, what safety checks prevent hoop collisions and magnet pinch injuries?
  A: Treat both the hoop and magnets as hazards: verify mechanical clearance first, then handle magnets like a clamping tool—not a toy.
  • Clear: Before stitching, manually rotate the handwheel for the first rotation to confirm the embroidery foot and needle bar clear the hoop frame.
  • Avoid: Keep fingers out of the snapping zone when closing magnetic hoops to prevent pinch injuries.
  • Separate: Keep strong magnets away from pacemakers and away from phones/credit cards.
  • Success check: No contact occurs between machine head/foot and the hoop during the manual handwheel test, and the hoop closes without finger contact in the clamp area.
  • If it still fails: Stop immediately and re-check hoop height/positioning; do not run the design at speed until clearance is confirmed.
• Q: For removing jump stitches in Floriani Total Control U (FTCU), when should the workflow stay at Level 1 (edit/delete/trim), upgrade to magnetic hoops, or move up to a multi-needle SEWTECH embroidery machine?
  A: Use a tiered decision: fix the file first, then stabilize hooping, then upgrade production only when volume and repeat issues demand it.
  • Level 1 (software): Use Delete for truly unwanted segments and “Replace stitches by → Trim” for long connectors to stop thread-drag and snags.
  • Level 2 (hooping/tooling): If outlines stay off due to fabric shifting/flagging or hoop slip/hoop burn, move to firmer stabilizer and consider magnetic hoops (often improves fabric hold without distortion).
  • Level 3 (production): If repeated hand-trimming and frequent stops kill throughput on runs (example: 50 shirts), a multi-needle SEWTECH machine can streamline trims and workflow.
  • Success check: After changes, stitch-out shows no long floating threads, fewer snags/birdnests, and placement remains consistent without fabric rippling in the hoop.
  • If it still fails: Re-run FTCU simulation to confirm trim commands exist, then re-check hoop tension/stabilizer choice before changing machines.
