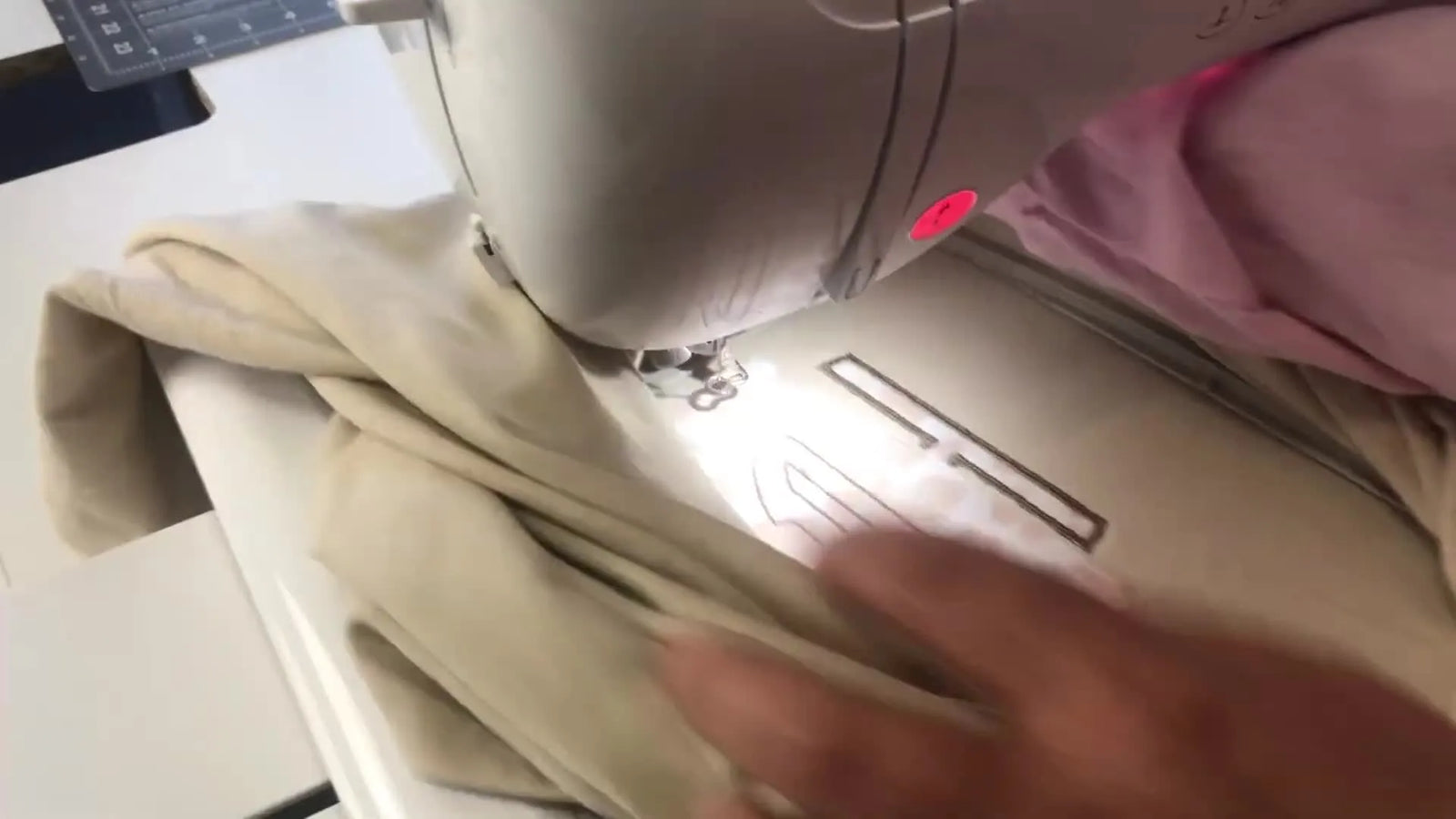

Clean Appliqué on a Gildan T-Shirt with a Brother PE800: The 7-Inch Placement Rule, the 2.2 Tension Sweet Spot, and Trimming Without Fear

Mastering T-Shirt Appliqué: The Zero-Distortion Guide for Brother PE800 Users

Appliqué on a knit T-shirt (like the ubiquitous Gildan cotton series) is the "final boss" for many beginners. It feels like a high-wire act: the shirt wants to stretch, the standard hoop wants to leave "burn marks," and one careless snip with the scissors can ruin the entire garment.

If you have stared at a puckered shirt and thought, "I’m just bad at this," stop. You are not bad at embroidery; you are fighting physics. Knits behave like fluids—they flow and stretch. Woven cottons are solids—they stay put.

This guide rebuilds the method shown in the video into a production-grade Standard Operating Procedure (SOP). We will break down the leopard-print appliqué monogram on a Brother PE800, but we will add the sensory checks, the "sweet spot" numbers, and the tool upgrades that separate hobbyist struggles from professional results.

The Physics of Failure: Why Knits Fight the Hoop

Before we touch the machine, understand the enemy. A Gildan T-shirt is a knit structure. When you force it into a standard inner/outer ring hoop, you rely on friction to hold it. To get friction, you tighten the screw. This creates two problems:

1. Hoop Burn: The plastic ring crushes the cotton fibers, leaving a shiny circle that often won't wash out.
2. The Trampoline Effect: You stretch the fabric to make it tight. You stitch on stretched fabric. When you un-hoop, the fabric relaxes, but the stitches don't. Result? Permanent puckering.

In the video, the creator uses two specific levers to counteract this: Cutaway Stabilizer (structural support) and Low Tension (mechanical gentleness).

The "Hidden" Prep: Consumables That Save Your Project

Successful embroidery happens on the cutting mat, not the machine. Before you even look at the hoop, you must stabilize the biology of the fabric.

The Appliqué Arsenal

• The Machine: Brother PE800 (or similar single-needle unit).
• The Fabric: Gildan Cotton T-Shirt.
• The Stabilizer: Cutaway (2.5oz or 3.0oz). Never use tear-away for wearables; it provides no long-term support.
• The Adhesion: HeatnBond Lite.
• The Hooping Aid: Spray adhesive (optional but recommended) or a magnetic frame system.
• HIDDEN CONSUMABLE: Ballpoint Needle (75/11). The video might not mention this, but using a sharp needle on knits cuts the fibers, leading to holes. Always swap to a Ballpoint needle for T-shirts.


Why HeatnBond is Non-Negotiable

You might think, "Can I skip the iron-on stuff?" No. HeatnBond turns your floppy leopard print fabric into a rigid, paper-like material. Without it, the fabric will bubble up inside the satin stitch, creating a "puff" that looks amateur. It also stops the edges from fraying while you execute the critical trim step.

Prep Checklist: The "Pre-Flight" Inspection

• Needle Check: Is a fresh 75/11 Ballpoint needle installed? (Sharp needles cut knits; ballpoints slide between fibers).
• Stabilizer Check: Do you have Cutaway (not Tear-away)?
• Adhesion Check: Is HeatnBond Lite ironed onto the back of your appliqué fabric?
• Tool Check: Are your curved appliqué scissors (Duckbill or double-curved) within reach?
• Machine Check: Is the bobbin area clear of lint? (Knits generate dust; dust messes up tension).

The HeatnBond Protocol: Fusing Without Crushing

In the video, the creator irons HeatnBond onto the appliqué fabric.

Sensory Check (Tactile): After peeling the paper backing, the fabric should feel stiff, like a playing card. The adhesive side should look shiny. Pro Tip: Do not over-iron the T-shirt itself. If you blast the T-shirt with high heat before embroidery, you might shrink it before the stitches land. Iron the appliqué patch firmly; press the T-shirt gently.

The 7-Inch Standard: repeatable Placement

Placement anxiety is real. "Where does the logo go?" The video uses the industry standard: 7 inches down from the shoulder seam to the center of the design for an adult Large/XL.

Why this matters: If you are doing 10 shirts for a team, you cannot eyeball it. You need a rule.

• Action: Find the intersection of the center crease and the 7-inch mark. Mark this with a water-soluble pen or a crosshair sticker.
• Commercial Logic: Customers don't notice if a logo is 6.8 inches or 7.2 inches down. They do notice if Shirt A is different from Shirt B. Consistency creates trust.

Hooping Physics: Clamping vs. Friction

The video demonstrates hooping the shirt with cutaway stabilizer. This is the moment most errors are born.

The Objective: You want the fabric to be "Neutral Flat."

• Wrong: Tight like a drum (stretched).
• Wrong: Loose and rippling.
• Right: Flat, smooth, and resting naturally on the stabilizer.

The Hoop Burn Problem: To hold a heavy shirt without it slipping, you have to tighten a standard plastic hoop significantly. This pressure creates "hoop burn."

• Level 1 Fix (Technique): Float the shirt. Hoop only the stabilizer, spray it with temporary adhesive (like 505 spray), and stick the shirt on top. This eliminates hoop burn but risks shifting.
• Level 2 Fix (Tool Upgrade): Use a magnetic embroidery hoop. Magnetic hoops use vertical magnetic force rather than horizontal friction. They clamp the shirt without crushing the fibers and—crucially—without stretching the knit.

Warning (Safety): If you upgrade to magnetic hoops, be aware they are powerful industrial tools. Pinch Hazard: Keep fingers away from the meeting points of the magnets. Do not let children handle them.

For Brother PE800 users specifically, the challenge is the proprietary hoop connector. You cannot just grab any magnet. You need to verify compatibility. Many efficient hobbyists eventually search for a brother pe800 magnetic hoop to bridge the gap between home machine limitations and professional fabric handling.

Tension Verification: The 2.2 Sweet Spot

The video explicitly suggests setting the top tension to 2.2.

Why 2.2? (The Science): Standard tension (usually ~4.0) balances the top and bottom thread in the middle of the fabric. For appliqué satin stitches, we want the top thread to be slightly loose so it wraps around the raw edge of the fabric, pulling underneath. This creates a smooth, "tubular" edge.

Expert Calibration: 2.2 is a starting point. Your machine's springs may vary.

• The H-Test: Flip your test stitch over. You should see white bobbin thread taking up about 30-40% of the width of the satin column.
  • If you see almost no bobbin thread: Top tension is too tight (Lower the number).
  • If you see loops on top: Top tension is too loose (Raise the number).

The Execution Sequence: Placement, Tack, Satin

This sequence is universal. Memorize it to reduce cognitive load.

Phase 1: Placement Stitch

The machine runs a running stitch to show you where the fabric goes.

Action: Spray the back of your HeatnBonded appliqué patch lightly with adhesive (or trust the fuse if you iron it inside the hoop—though ironing in a plastic hoop is risky). Place it over the outline. Visual Check: The fabric must overlap the stitch line by at least 5mm on all sides.

Phase 2: Tack-Down Stitch

The machine runs a zigzag or loose double-run stitch to lock the fabric down.

Sensory Check (Auditory): Listen to the machine. It should sound rhythmic. If you hear a loud SLAP-SLAP-SLAP, the fabric is flagging (bouncing) because the hoop is loose. Pause and check.

Phase 3: The Surgical Trim (The Danger Zone)

Remove the hoop from the machine but do not remove the fabric from the hoop. Place it on a flat table.

The Technique:

• Lift the excess fabric edge upward with your non-dominant hand.
• Slide your appliqué scissors flat against the stabilizer.
• Cut close (1-2mm) to the stitching, but do not cut the stitches.


Warning (Operational): This is the moment usually resulted in a ruined shirt. Do not lift the stabilizer. If you cut a hole in the T-shirt fabric, there is no rework. Proceed slowly. If you feel resistance, stop—you are likely catching the tack-down stitches.

Ergonomic Note: If you are doing 50 shirts, this trimming action will hurt your wrist. This is why commercial shops run multi-needle machines where trimming is sometimes automated or handled differently.

Phase 4: The Satin Finish

Reattach the hoop. The final pass is a dense zigzag (satin) that covers the raw edge.

Visual Check: The satin stitch is eating the raw edge.

• If fibers are poking out: You didn't trim close enough.
• If the satin stitch is "tunneling" (making the shirt pucker): Your stabilization was too weak. Next time, add a floating layer of tear-away under the cutaway for specific density support.

Decision Tree: Stabilizer Strategy for Knits

Stop guessing. Use this logic gate for every knit project.

Troubleshooting: The "Why Did It Fail?" Guide

Symptom: "The design is puckered like a raisin."

• Likely Cause: You stretched the shirt while hooping.
• Fix: Float the shirt (stick it on top of hooped stabilizer) OR invest in a magnetic hoop for brother to eliminate friction stretching.

Symptom: "I see white bobbin thread on top."

• Likely Cause: Top tension is too tight or the bobbin case has lint in it.
• Fix: Lower top tension (try 2.0 or 1.8). Clean the bobbin race.

Symptom: "Hoop Burn won't wash out."

• Likely Cause: You crushed the cotton fibers.
• Fix: Steam the mark (do not iron directly). For prevention, many users searching for a mighty hoop for brother pe800 or generic alternatives do so specifically to solve this issue on delicate branded garments.

Symptom: "My wrists hurt from hooping."

• Likely Cause: Repetitive strain from tightening screws.
• Fix: This is a workflow issue. A hooping station for machine embroidery allows you to use gravity and alignment jigs to hoop faster and with less force. If you are doing volume, this is an ergonomic necessity, not a luxury.

The Production Mindset: From Hobby to Profit

If you are doing this for fun, take your time. If you are doing this for profit, time is your enemy. The video shows a great manual process. However, if you scale up:

1. Batch Prep: Iron HeatnBond onto 20 patches at once.
2. Optimize Hooping: If you spend 5 minutes hooping a shirt, you lose money. Magnetic frames cut this to 30 seconds.
3. Optimize Trimming: Use the sharpest double-curved scissors you can buy (Kai or Famore brands are industry standards).


Conclusion: Consistency is King

Kate’s final result is clean, flat, and professional.

To achieve this every time:

1. Respect the Physics: Use Cutaway.
2. Trust the Sweet Spot: Verify the 2.2 tension on a scrap first.
3. Upgrade the Weak Links: If hooping is your nightmare, look into a brother 5x7 magnetic hoop or similar tool to remove the variable of human strength from the equation.

Final Operational Checklists

Setup Checklist (Do NOT Press Start Until Checked):

• Needle: 75/11 Ballpoint installed?
• Bobbin: Full and properly seated (check the "H" pattern)?
• Hoop: Shirt is "Neutral Flat" (not drum tight)?
• Position: Measured 7" down from shoulder seam?
• File: Do you know which color stop is the Tack-Down?

Operation Checklist (Running the Job):

• Stop 1: Did the outline match your mark?
• Stop 2 (Placement): Did you cover the entire outline with fabric?
• Trim Phase: Did you remove the hoop without popping the inner ring?
• Finish: Did you trim loose threads before un-hooping?

Embroidery is 90% preparation and 10% stitching. Follow the SOP, and the machine will do the rest.

FAQ

• Q: For Brother PE800 T-shirt appliqué, should a 75/11 ballpoint needle be used instead of a sharp needle to prevent holes in knit fabric?
  A: Yes—use a fresh 75/11 ballpoint needle for knit T-shirts to reduce fiber cutting and prevent holes.
  • Install: Replace any sharp/regular needle with a 75/11 ballpoint before starting.
  • Verify: Re-thread and run a small test stitch on a scrap knit with the same stabilizer.
  • Success check: The knit surface shows no puncture “runs,” and the stitching forms cleanly without snagging.
  • If it still fails: Replace with a brand-new ballpoint again and re-check hooping tension (over-stretching can make holes more likely).
• Q: On a Brother PE800, how can “Neutral Flat” hooping be verified on a Gildan cotton T-shirt to prevent permanent puckering?
  A: Hoop so the T-shirt lies flat and relaxed—never drum-tight—so the knit is not stretched when stitching begins.
  • Hoop: Use cutaway stabilizer and smooth the shirt until it is flat with no ripples, but not stretched.
  • Avoid: Do not over-tighten the hoop screw to “force” grip on the knit.
  • Success check: The fabric looks smooth and natural (no shine from crushing, no trampoline-tight tension when tapped).
  • If it still fails: Float the shirt on hooped stabilizer with temporary spray adhesive to eliminate friction-stretching.
• Q: For Brother PE800 appliqué satin stitches, how can the “2.2 top tension” setting be checked using the bobbin-thread percentage test?
  A: Set top tension to 2.2 as a starting point, then confirm by checking the underside for about 30–40% bobbin thread in the satin column.
  • Stitch: Run a small satin test on a scrap knit with the same cutaway stabilizer.
  • Inspect: Flip the sample and look for bobbin thread showing roughly 30–40% of the satin width.
  • Success check: The satin edge looks smooth and wrapped, not tight and flat, and the underside shows the target bobbin coverage.
  • If it still fails: If almost no bobbin shows, lower top tension (e.g., 2.0 or 1.8); if loops appear on top, raise the number and clean lint from the bobbin area.
• Q: For Brother PE800 T-shirt appliqué, why is cutaway stabilizer recommended instead of tear-away stabilizer for wash-and-wear garments?
  A: Use cutaway (2.5 oz or 3.0 oz) because it provides lasting support after washing, while tear-away can allow long-term distortion.
  • Choose: Select cutaway as the default for T-shirts that will be worn and washed.
  • Upgrade: For heavy, solid monograms, add a floated layer of tear-away under the cutaway for extra density support.
  • Success check: After stitching and un-hooping, the design stays flat with minimal tunneling or “raisin” puckering.
  • If it still fails: Re-check hooping for stretching and consider the “cutaway + floated tear-away” sandwich for dense satin coverage.
• Q: During Brother PE800 appliqué tack-down stitches, what does a loud “SLAP-SLAP-SLAP” sound mean, and how should it be fixed?
  A: A loud slapping sound usually means the fabric is flagging (bouncing) because the hooping/support is not stable enough.
  • Pause: Stop the machine as soon as the slapping starts.
  • Check: Confirm the fabric is held stable and flat; ensure stabilizer support is firm.
  • Resume: Restart only after the fabric is secure and the hoop feels stable.
  • Success check: The machine sound becomes steady and rhythmic, and stitches land consistently without gaps.
  • If it still fails: Strengthen stabilization (cutaway, and add a floated layer under it for dense designs) and confirm “Neutral Flat” hooping.
• Q: When using magnetic embroidery hoops/frames to reduce hoop burn on T-shirts, what pinch-hazard safety steps should be followed?
  A: Treat magnetic hoops as powerful tools—keep fingers clear at magnet meeting points to prevent pinching.
  • Handle: Separate and rejoin magnets slowly and deliberately, keeping fingertips away from edges.
  • Control: Place the hoop/frame on a stable surface before closing magnets.
  • Prevent: Do not allow children to handle magnetic hoops.
  • Success check: Magnets close without any sudden snap near fingers, and fabric is clamped evenly without crushing marks.
  • If it still fails: Stop using the magnetic system until safe handling is comfortable, and use a float method (hoop stabilizer, adhere shirt on top) as a low-risk alternative.
• Q: If Brother PE800 T-shirt appliqué production is slowed by difficult hooping and wrist strain, what is a practical “technique → tool → capacity” upgrade path?
  A: Start by improving hooping technique, then consider magnetic hoops/frames for faster clamping, and only then consider higher-capacity equipment if volume demands it.
  • Level 1 (Technique): Float the shirt on hooped stabilizer with temporary spray adhesive to reduce screw-tightening and hoop burn.
  • Level 2 (Tool): Use a magnetic clamping system to cut hooping time and reduce crushing/stretching on knits (confirm safe handling and compatibility).
  • Level 3 (Capacity): If volume is high and trimming/handling becomes the bottleneck, consider moving to higher-throughput workflows (often multi-needle setups) based on workload.
  • Success check: Hooping time drops noticeably and shirts remain flat after un-hooping with fewer rejects.
  • If it still fails: Track where time is lost (hooping vs. trimming vs. rework) and address the biggest bottleneck first rather than changing everything at once.
