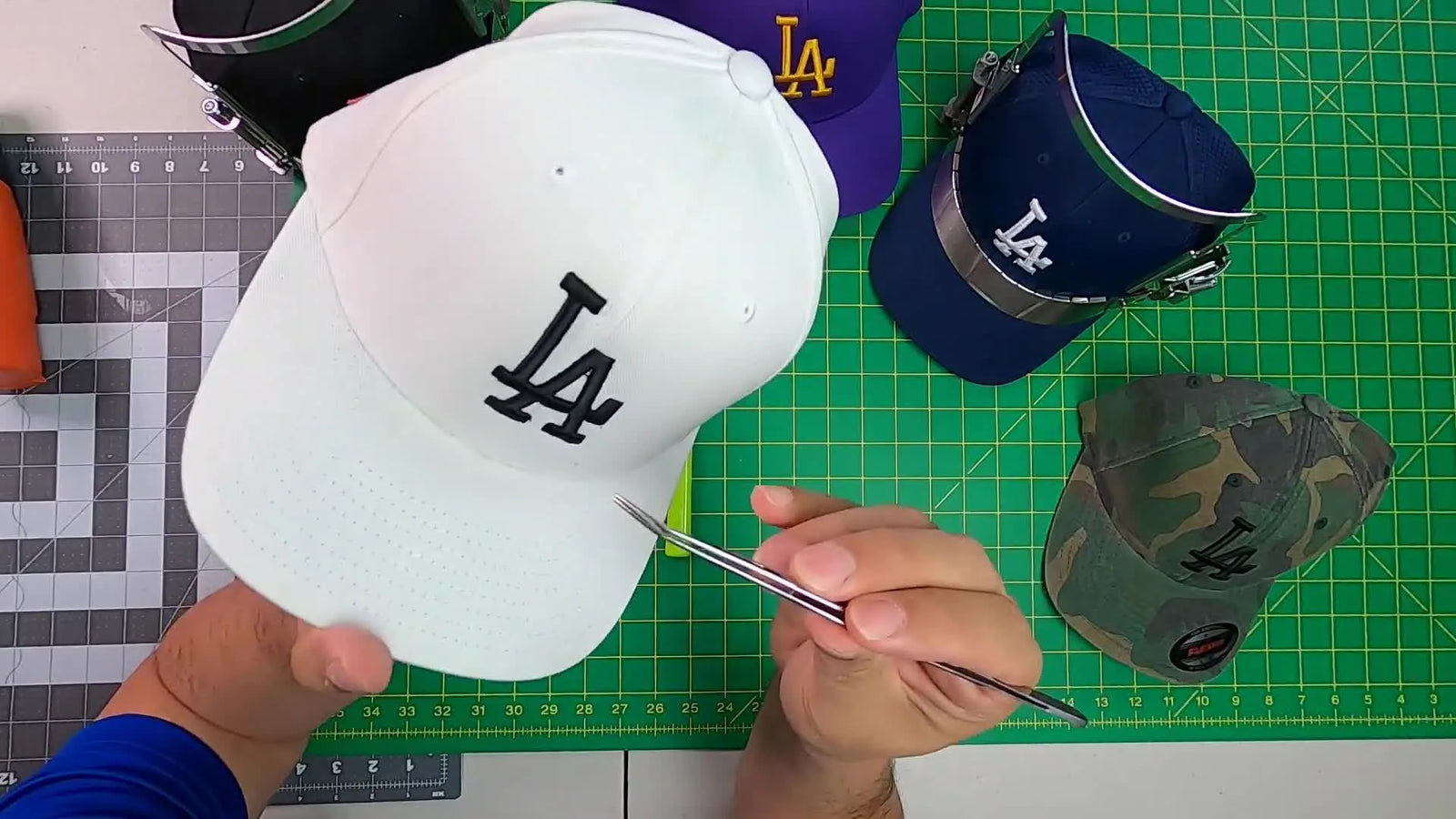

Clean 3D Puff LA Hats on a Ricoma: The Gen 2 Cap Frame Centering Trick, Foam Cleanup, and Heat-Gun Finish That Sells

It is a universal sinking feeling: You pull a structured cap off the machine, expecting a crisp, raised 3D logo, but instead see a fuzzy, lopsided disaster with foam poking out like whiskers. You ask yourself, Did I just burn $15 on a blank hat?

Breathe. Machine embroidery, especially 3D puff, is an "experience science." It relies on physics, friction, and specific habits. Puff is designed to be messy until you master the cleanup rhythm and the mechanical discipline of hooping.

This guide rebuilds the workflow for recreating an iconic LA-style cap logo. We will move beyond basic instructions into the "why" and "how"—using a Ricoma multi-needle machine context, a Gen 2 cap frame, and the exact tools needed to turn a "garage experiment" into a "retail-ready" product.

Pick the Right Cap Blank (Flexfit 6277 vs Yupoong Dad Hat) so Puff Doesn’t Collapse Mid-Run

Your choice of canvas determines the war you are about to fight. The video categorizes caps into two distinct mechanical environments:

• Structured Caps (e.g., Flexfit 6277): These have a buckram backing (a stiff mesh) fused to the front two panels.
  • The Sensory Check: Tap the front. It should sound dull and feel stiff, like thin cardboard. This structure supports the foam, preventing the satin stitches from crushing the fabric.
• Unstructured "Dad Hats" (e.g., Yupoong): These have no support.
  • The Sensory Check: The fabric collapses when you set it down. Without heavy stabilization, 3D foam stitches will warp the fabric, causing the infamous "puckered" look.

The practical takeaway: If you are new to puff, start with structured caps. They are more forgiving. Unstructured caps require perfect tension and stabilization; they punish rookie mistakes by sinking the foam.

Pro Tip from Production Reality: Many operators blame their digitizer when the foam sinks. Often, it is just the cap blank fighting the thread tension. If you must use unstructured hats, you must double your defense (stabilizer).

Build Your Consumables Stack: 3D Puff Foam + Tearaway Stabilizer + Polyester Thread (and Why Each One Matters)

In embroidery, "Consumables" are your insurance policy. Do not skimp here. The workflow uses a standard stack that balances cost with performance:

• Tearaway Stabilizer: Pre-cut into 4" x 12" strips. (Cap frames are narrow; broad sheets just get in the way).
• 3D Puff Foam: Variable colors (Black, White, Yellow, Pink). Standard thickness is usually 2mm or 3mm.
• Polyester Thread: 40wt is standard.
• Hidden Consumables:
  • Spray Adhesive (Temporary): To hold backing to the cap rotary motion.
  • Fresh Needles: 75/11 Titanium Sharp. (Ballpoints will not cut the foam cleanly).


Stabilizer Layering Rule (The "Stiffness" Metric)

• Structured Hats: Use 1 layer of tearaway. The hat provides 50% of the stability.
• Unstructured Hats: Use 2 layers of tearaway. You are artificially building the "skeleton" the hat lacks.

Foam Color Strategy (The "Labor Cost" Variable)

• Tone-on-Tone (Yellow Foam / Yellow Thread): The "Quiet Professional" move. If the foam doesn't cut perfectly, the matching color hides the mistake. This cuts finishing labor by 50%.
• Contrast (Black Foam / Yellow Thread): The "High Risk" move. Any spec of foam poking out will look like pepper on a fried egg. Only do this if you have the patience for intense cleanup.

Watch out: If you search for hooping for embroidery machine tutorials, you will often find conflicting advice on tension. Here is the truth: Puff quality is a triad of Digitizing Density, Hoop Stability, and Needle Sharps. Tension is secondary to these three.

The “Shift-Into-Center” Trick on the Gen 2 Cap Frame (and How to Stop Sewing the Sweatband)

Hooping caps is often the most hated part of the job because it requires physical strength and finesse. The video demonstrates the Gen 2 Cap Frame, a mechanical device that wraps the cap around a cylinder.

What you’re aligning

• Visual Anchor: The center seam of the cap.
• Mechanical Anchor: The red notch/mark on the metal driver.

The Sweatband Tuck (The "Red Zone")

The sweatband is your enemy. If you stitch it to the forehead of the cap, the hat is ruined.

Action: Flip the sweatband out. Use your fingers to smooth it flush against the bottom of the rim. Verify: Run your finger along the inside rim. It should feel smooth, with no lumpy ridges in the sew field.

The Centering Trick: "Pre-Turn Left"

Here is a physics problem: When you clamp the Gen 2 lever, the mechanism creates torque that naturally twists the cap slightly to the right (clockwise). If you center it perfectly before clamping, it will be off-center after clamping.

The Fix:

1. Align the seam to the red center mark.
2. Rotate the hat 2-3mm to the left (counter-clockwise).
3. Lock the clamp.
4. Listen: You should hear a solid metal "clunk."
5. Look: The torque will pull the hat back to the right, landing exactly on the red mark.




Expert Insight: When to Upgrade Your Tooling

This "fight" with the clamp is normal for mechanical frames. However, if you are doing production runs of 50+ caps, this wrist-twisting motion invites fatigue and Carpal Tunnel issues.

This is the "Trigger Point" for business owners. If you are researching hoop master embroidery hooping station setups or advanced tools, you are looking for consistency.

The Level-Up Option: Many high-volume shops switch to Magnetic Cap Frames. Unlike mechanical clamps that torque the fabric, magnetic frames snap down vertically. This eliminates the "twist" and the shifting.
Criteria:* If you ruin 1 in 10 hats due to crooked hooping, a magnetic hooping station or frame pays for itself in retained inventory and saved labor hours.

Stitch the Puff on a Ricoma Multi-Needle: What the Video Shows (and What It Quietly Implies)

The stitching phase is where preparation meets reality. We are looking at a Satin Stitch over foam.

The "Sweet Spot" Data (Beginner vs. Pro)

The creator mentions running at 600 SPM (Stitches Per Minute).

• Beginner Safety Zone: 450 - 550 SPM.
  • Why? Puff foam generates heat when penetrated. High speeds can melt the foam causing it to stick to the needle, or "hammer" the cap so hard it shifts. Slow down.
• Needle: 75/11 Sharp.
  • Why? You need a blade to slice the foam. A ballpoint needle (common for knits) will just mash the foam, leaving ragged edges.
• Tension:
  • Bobbin: Standard (200-220g tension gauge, or the "Yo-Yo drop" test where it drops 1-2 inches when jerked).
  • Top Tension: Loosen it slightly. If standard is 120-130g, aim for 100-110g. You want the thread to lay over the foam, not slice through it like a cheese wire.

Pro Tip on Thread Breaks: If your ricoma mt 1501 embroidery machine (or any commercial unit) is breaking thread on caps:

1. Check the Needle Orientation: Is the eye facing forward?
2. Check the Path: Is the thread caught on a guide?
3. Check the Speed: Drop to 500 SPM.

Do not touch the tension knobs until you verify these three physical factors.

Peel the Foam Cleanly Without Tearing Stitches: The “Perforation Line” Moment You’re Waiting For

Once the machine stops, the magic happens. You rip the foam sheet away.

Expert Insight: The "Notebook Tear" Sensation

The foam should separate like a perforated page in a notebook.

• Good: A crisp "zipper" sound. The foam creates a clean edge.
• Bad: You have to pull hard, and stitches distort.
  • Diagnosis: Your needle was too dull, your density was too low (stitches too far apart), or you didn't use a sharp needle.

The Seam Ripper “Tuck-Back” Method: Fix Foam Poke-Through Without Chewing Up Satin Columns

Even with perfect digitizing, tiny "hairs" of foam will poke out. The video demonstrates surgical cleanup using a seam ripper.

The Technique:

• Do NOT use the blade (the U-shape curve).
• Use the sharp point only.
• Action: Gently poke the protruding foam back inside the satin tunnel. Think of it as stuffing a pillow.

Warning: A seam ripper is the most dangerous tool on your table. If you slip and cut a satin stitch, the logo will unravel. Always angle the point into the foam, never under the thread.

The Business of Cleanup

If you chose contrasting foam (Black foam / Yellow thread), prepare to spend 3-5 minutes per hat on this step. Multiply that by 100 hats. That is 5 hours of labor.

• Lesson: Color-match your foam whenever possible. It is the single biggest productivity hack in puff embroidery.

Tweezers First, Heat Gun Last: The Finishing Sequence That Makes Puff Look Retail-Ready

Amateurs stop at peeling. Professionals finish with heat.

1. The Tweezer Pluck

Before heating, use sharp tweezers to pull out any large chunks. Heat shrinks foam; it doesn't make it disappear. If a piece is big enough to grab, grab it.

2. The Heat Gun "Hover"

The creator uses a standard heat gun on the Low Setting.

Action:

• Hold the gun 4-6 inches away.
• Keep it moving. Never park the heat on one spot.
• Visual: Watch the tiny foam hairs shrivel and recede into the embroidery. Ideally, the puff will also tighten up slightly, looking more solid.

Warning: Synthetic caps are plastic. They melt. If you hold the heat gun too close, the cap visor will warp, or the polyester thread will melt.
Sensory Check:* Touch the cap embroidery immediately after heating. If it burns your finger, you used too much heat. It should be warm, not hot.

Check the Backing Like a Pro: The Bobbin-Side “Truth Test” Before You Celebrate

Flip the hat over. Look at the inside (the backing).

• The "1/3 Rule": You should see a white strip of bobbin thread down the center of each satin column, taking up about 1/3 of the width.
• Birdnesting: If you see a giant clump of knotted thread, your top tension was zero, or the machine lost hold of the thread.

This is critical analysis. A pretty front with a messy back will eventually fall apart in the wash.

If you are setting up a ricoma em 1010 embroidery machine for the first time, keep a dedicated bobbin case set specifically for caps (slightly tighter bobbin tension) to save time switching between flats and hats.

Decision Tree: Stabilizer Layers and Hooping Choices for Caps

Use this logic flow to make fast decisions generally accepted in the industry.

If you are comparing ricoma embroidery hoops or generic alternatives, always check the "vertical height" (flag height). High-profile caps need frames that can handle the taller crown without rubbing the machine arm.

Troubleshooting the Scary Stuff: Thread Breaks, Tight Thread, and the Crooked Top of the “L”

Symptom: Foam is sticking out *everywhere*.

• Likely Cause: Needle is a Ballpoint (standard for t-shirts).
• Quick Fix: Change to 75/11 Titanium Sharp.
• Prevention: Label your needle bar. Know which needle is which.

Symptom: Thread Breaks repeatedly on the foam.

• Likely Cause: Friction. The thread is dragging through thick foam and heavy cap canvas.
• Quick Fix:
  1. Apply a tiny drop of silicone thread lubricant to the spool.
  2. Slow machine speed to 450 SPM.
  3. Check if the cap is "bouncing" (flagging) on the needle plate. If so, add another layer of backing to stiffen it.

Symptom: Hat shifts off-center (The "Slant").

• Likely Cause: You didn't compensate for the Gen 2 clamp torque.
• Quick Fix: Un-hoop. Align to center, then twist left before locking.
• Long-Term Sol: If this kills your efficiency, research a magnetic embroidery hoops system. Magnets clamp straight down—no torque, no slant.

Symptom: "The top of the L doesn't look straight."

• Likely Cause: Digitizing.
• Reality: Puff pushes fabric. Digitizers must add "pull compression" to compensate. If the file wasn't digitized specifically for foam, the geometry will distort. You cannot fix bad digitizing with good hooping.

The “Hidden” Prep That Saves Hats: Needles, Backing Cuts, and a Calm Workstation

Success is 90% preparation. Do this before you touch the machine.

Prep Checklist (Pre-Flight)

• Consumables: Cut Tearaway backing to 4" x 12".
• Needle Check: Install a Sharp 75/11. (Verify it is not dull).
• Bobbin Check: Is the bobbin full? (Running out of bobbin thread on a cap is a nightmare to fix).
• Tool Staging: Place Tweezers, Seam Ripper, and Heat Gun within arm's reach.
• Design Check: Verify the design is flipped/rotated correctly for a cap driver (usually rotated 180 degrees depending on machine).

If you are building a hooping station for embroidery in your shop, clear the table. A messy table snags the bill of the cap, causing alignment errors during mounting.

Setup Checklist: Lock the Cap in the Gen 2 Frame Without Guessing

• Insert Stabilizer: Slide backing between the sweatband and the cap face.
• Sweatband Tuck: Flip the band out and under. Action: Run finger sweep to confirm it’s clear.
• Mark Align: Align Center Seam to Red Guide.
• The "Left Twist": Rotate cap 2mm Counter-Clockwise (Left).
• Lock: Engage the clamp strap. Listen for the snap.
• Verify: strap is tight (like a drum). If the cap feels loose, tighten the strap screw before hooping the next one.

Magnet Safety Warning:

Warning: If you upgrade to Magnetic Hoops, keep your fingers clear of the snapping zone. Industrial magnets are powerful enough to pinch skin severely. Also, keep them away from pacemakers and credit cards.

Operation Checklist: The Clean Finish Routine (Peel → Tuck → Pluck → Heat)

• Peel: Rip the foam sheet away. Listen for the "clean tear."
• Inspect: Look for raw foam edges.
• Tuck: Use Seam Ripper Point to push foam "hairs" back inside the satin tunnel.
• Pluck: Tweezer out large chunks.
• Heat: Wave Heat Gun (Low Setting) for 3-5 seconds max.
• Final QC: Check the bobbin side. Trim any long thread tails.

The Upgrade Path (When You’re Ready): Faster Hooping, Cleaner Results, and Less Operator Fatigue

If you master this workflow, you will eventually hit a ceiling. Your hands will hurt from the clamps, or you won't be able to hoop fast enough to keep the machine running.

1. The "Safety" Upgrade: Magnetic Hoops If you are tired of hoop burn (ring marks on the fabric) or fighting the "Gen 2 Twist," magnetic embroidery hoops are the logical next step. They reduce the physical force required to hoop a cap and hold thick structured caps more securely than a friction strap.

2. The "Scale" Upgrade: Multi-Needle Machines If you are doing this on a single-needle home machine, you are suffering through thread changes. A multi-needle (like the SEWTECH/Ricoma platform) allows you to set up your Puff colors and standard colors once, increasing output by 30-40%.

3. The "Workflow" Upgrade Standardize your consumables. Find a backing you like and buy a roll. Find a needle you trust and buy 100. Consistency in materials leads to consistency in results.

FAQ

• Q: What needle should be used on a Ricoma multi-needle machine for 3D puff cap embroidery to stop foam “whiskers” and ragged edges?
  A: Switch to a 75/11 titanium sharp needle, because a sharp point slices foam cleanly while a ballpoint tends to mash it.
  • Action: Install a fresh 75/11 Sharp and verify the needle is not dull.
  • Action: Avoid ballpoint needles for puff caps, even if they work fine on t-shirts.
  • Success check: After tearing the foam, the edge separates with a clean “perforated notebook” tear and minimal foam hairs.
  • If it still fails: Re-check stitch density in the design and confirm the foam tears with a crisp “zipper” sound rather than needing force.
• Q: How do I set stabilizer layers for structured caps vs unstructured dad hats for 3D puff cap embroidery so the foam does not sink or pucker?
  A: Use 1 layer of tearaway on structured caps and 2 layers of tearaway on unstructured caps to build enough stiffness.
  • Action: Cut tearaway into 4" × 12" strips so it fits cap frames without excess bulk.
  • Action: For unstructured hats, stack two layers before hooping to “build the skeleton” the cap lacks.
  • Success check: The cap front stays firm during stitching and the design area does not look warped or puckered after sewing.
  • If it still fails: Slow the machine down and confirm the cap is hooped drum-tight with the sweatband kept out of the sew field.
• Q: How do I center a cap on a Gen 2 cap frame so the design does not stitch crooked from clamp torque?
  A: Pre-turn the cap 2–3 mm to the left before locking the Gen 2 clamp to counter the right-twist torque.
  • Action: Align the cap center seam to the red center mark on the driver.
  • Action: Rotate the cap slightly counter-clockwise (left) by about 2–3 mm, then lock the clamp.
  • Action: Listen for a solid metal “clunk” when the clamp engages.
  • Success check: After clamping, the center seam lands exactly on the red mark (not shifted to the right).
  • If it still fails: Un-hoop and repeat the left-twist step; if crooked hooping keeps ruining hats in production, consider switching to magnetic cap frames that clamp straight down (no torque).
• Q: How do I stop a cap embroidery machine from stitching the sweatband when hooping caps on a Gen 2 cap frame?
  A: Flip and tuck the sweatband out of the sew field before clamping so it cannot get caught under the needle.
  • Action: Flip the sweatband out and smooth it flush against the bottom of the rim.
  • Action: Run a finger sweep along the inside rim to ensure there are no lumpy ridges in the sew area.
  • Success check: The inside sew field feels smooth to the touch and the sweatband edge is clearly below the stitching zone.
  • If it still fails: Re-hoop and verify the backing is slid between the sweatband and cap face without dragging the sweatband back into position.
• Q: What speed and tension are a safe starting point on a Ricoma multi-needle machine for 3D puff caps to reduce thread breaks and foam melting?
  A: Start slower (about 450–550 SPM) and slightly loosen top tension so the thread lays over the foam instead of cutting into it.
  • Action: Reduce speed first if thread breaks occur; puff generates heat and friction at higher speeds.
  • Action: Keep bobbin tension at a standard setting (using a tension gauge method or a controlled “drop” test), and only slightly loosen top tension.
  • Success check: Satin stitches sit smoothly over the foam without slicing down through it, and thread breaks reduce without needing extreme tension changes.
  • If it still fails: Check needle orientation (eye facing forward) and confirm the thread path is not snagging on any guide before touching tension knobs again.
• Q: How do I diagnose and fix birdnesting on the bobbin side of a cap after stitching 3D puff on a commercial multi-needle machine?
  A: Treat birdnesting as a tension/thread-hold problem and confirm the bobbin-side “1/3 rule” before you celebrate.
  • Action: Flip the cap and inspect satin columns—look for a bobbin thread strip centered at about 1/3 of the column width.
  • Action: If you see a big knotted clump, assume the top thread lost control (effectively zero top tension or thread not held) and re-thread carefully.
  • Success check: The back looks consistent (no giant clumps) and each satin column shows a clean, centered bobbin strip.
  • If it still fails: Use a dedicated bobbin case set for caps (often slightly tighter) so switching between flats and hats is faster and more consistent.
• Q: What is the safest way to remove and clean up 3D puff foam on a cap without cutting satin stitches during finishing?
  A: Peel foam like a perforated page, then tuck small foam hairs back in using only the seam ripper point—never the blade under stitches.
  • Action: Tear the foam sheet away until it “zips” off cleanly; do not yank hard enough to distort stitches.
  • Action: Use tweezers to pluck any large chunks before applying heat.
  • Action: Use the sharp point of a seam ripper to poke foam hairs back inside the satin tunnel (angle into foam, not under thread).
  • Success check: The satin columns remain intact (no cut threads) and the edge looks clean with minimal visible foam.
  • If it still fails: Hover a heat gun on low from 4–6 inches away while constantly moving to shrink tiny hairs; if the embroidery becomes hot enough to burn a finger, reduce heat/time immediately.
• Q: What magnetic hoop safety steps should embroidery operators follow when upgrading to magnetic cap frames for high-volume cap production?
  A: Keep fingers out of the snap zone and keep strong magnets away from pacemakers and credit cards.
  • Action: Position fabric and hands first, then lower the magnetic ring vertically with controlled placement.
  • Action: Keep fingertips clear where the magnets meet—industrial magnets can pinch skin severely.
  • Success check: The magnetic frame closes cleanly without hand pinch incidents and the cap stays secure without twisting during clamp-down.
  • If it still fails: Slow the hooping motion down and reorganize the workstation so nothing forces hands near the closing edge during alignment.
