Chroma Inspire Bulk Name Drops for Wedding Napkins: The Fast, Repeatable Setup That Won’t Ruin Your Placement

Mastering Batch Personalization: The "Zero-Error" Workflow for Bulk Embroidery

Bulk personalization sounds simple on paper. But when you are staring at 100 white wedding napkins, the reality sets in: The enemy isn’t the digitizing software; the enemy is repeatability.

In a bulk run, you aren't just an artist; you are a manufacturing line. If your placement drifts even 1/8th of an inch from napkin #1 to napkin #50, or if your small text turns into a thread-nest, the entire order looks "homemade" in the worst possible way.

This guide works through a production-proven workflow using Chroma Inspire (and universal principles) to build a file structure that eliminates variables. We will transform a chaotic list of names into a disciplined, boringly consistent production checklist.

The "Stacking" Strategy: Why One File Beats 100 Files

When you run a one-off monogram, you can "babysit" the machine, tweaking positioning as you go. When you run 100 unique names, you need a system that is uniform.

The core concept we are using today is "Stacking." Instead of creating 100 separate files, we create one master production file where every single name is forced to the exact same X/Y coordinate (0,0). We then program the machine to stop automatically between names.

This allows you to develop a rhythm: Stitch, Swap, Stitch, Swap. If you are building a workflow around hooping for embroidery machine efficiency, this file structure is the software foundation that makes physical speed possible.

Phase 1: The "Hidden" Prep (Do This Before Digitizing)

Jeff, our case study expert, mentions something veteran shops do instinctively: The Sacrificial Test.

New operators often type out all 100 names, hit "Export," and pray. This is a recipe for disaster. You must digitize one name—preferably the longest or most complex one—and sew it out on a scrap of the exact same fabric you will be using.

The "Small Text" Physics Check

For sophisticated items like napkins, you are often dealing with text under 0.5 inches (12mm) tall.

• The Thread: Standard 40wt thread is often too thick for delicate script. Jeff recommends stepping up to 60wt thread (thinner).
• The Needle: If you switch to 60wt thread, you must switch your needle. A standard 75/11 needle leaves a hole too large for thin thread to fill. Use a 65/9 or 70/10 needle.
• The Font: Jeff uses "Manila." Choose a font with even column widths. Avoid fonts with hairline serifs; they will disappear.

Prep Checklist: The "Pre-Flight" Ritual

• Measure the Reality: Don't guess. Measure the physical area permitted by the client. (Example: 3" x 2").
• Select Consumables: 60wt Thread + 65/9 Needle + Stabilizer (See Decision Tree below).
• The "Thread Floss" Test: With thinner 60wt thread, your tension needs to be slightly looser. Pull the thread through the needle eye; it should feel like pulling dental floss through teeth—resistance, but smooth flow. If it yanks or stutters, your tension is too high.
• Scrub the Data: Clean your name list in a spreadsheet first. Flag potential disasters: Hyphenated names (e.g., "Mary-Ann") or descenders (g, j, p, q) that might hit the hoop frame.

Warning: Never skip the test sew. Small text failures—caused by poor underlay, loose density, or improper stabilization—are permanent. You cannot "un-stitch" a delicate linen napkin without leaving visible scars.

Phase 2: Clean Text Entry in Chroma Inspire

Jeff’s first move in the software is straightforward: Open the Text Tool, select the font, type a name, and hit Apply.

However, there is a hidden trap here. When typing names rapidly, it is muscle memory to hit "Enter" after a name to start a new line. Do not do this.

The "Carriage Return" Trap

If you type "George [Enter]" in the text box, the software sees that invisible "Enter" as a second line of text. It will then calculate the "Center" of that design based on two lines (one text, one empty). This shifts "George" upward, effectively ruining your vertical alignment.

The Workflow:

1. Create a text object for "Grant" → Apply.
2. Create a new text object for "Peter" → Apply.
3. Create a new text object for "George" → Check for accidental empty lines → Apply.

This "One Name = One Object" structure is critical for the Stacking method.

Phase 3: The Placement Lock (The "Zero" Technique)

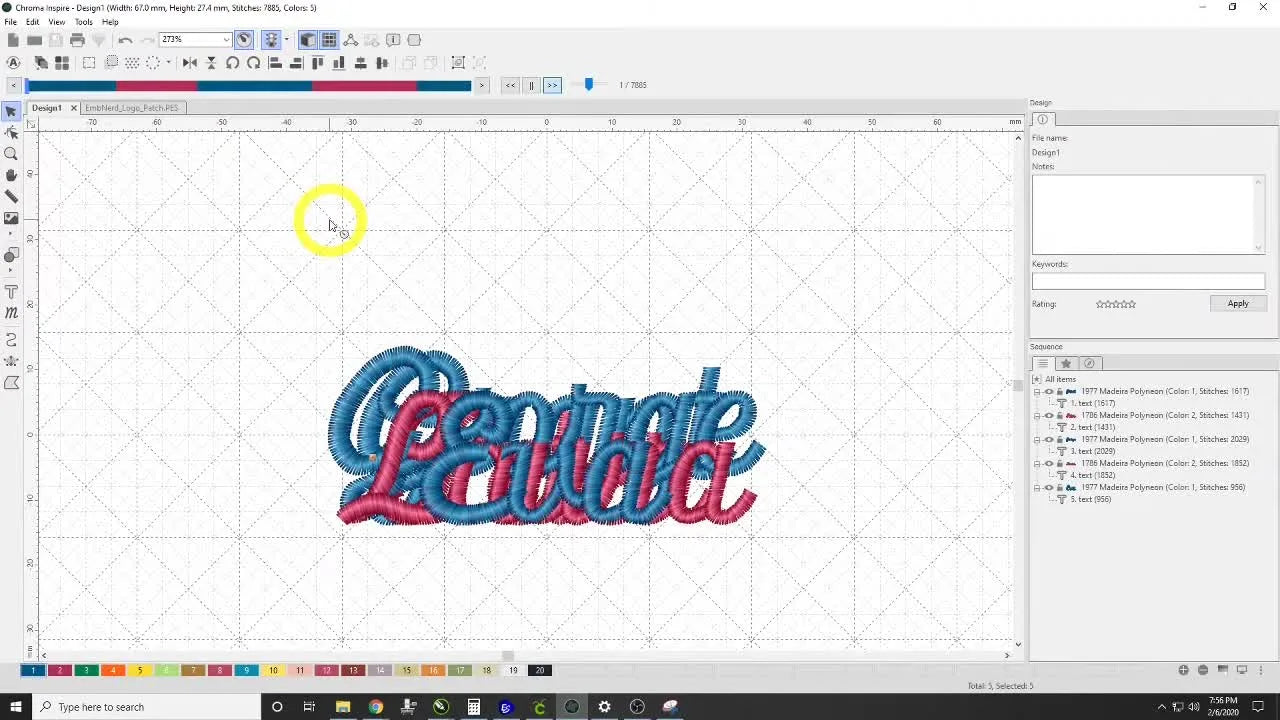

Once you have entered 10 or 20 names, your screen will look like a mess—names scattered everywhere. This is normal. Now we impose order.

Jeff’s Method:

1. Select a text object.
2. Navigate to the Transform/Position tab.
3. Enter 0 for X and 0 for Y.
4. Press Enter.

Suddenly, the name jumps to the absolute center of the hoop. Repeat this for every name. They will stack on top of each other, creating an illegible black blob on screen. This is good. It means every name shares the exact same origin point.

Why does this matter? It means you don't need to re-center your machine for every napkin. You set the machine’s center point once on the hoop, and every single name will land in that target zone.

If your shop uses hooping stations to standardize mechanical placement, this software technique is the digital equivalent. You are removing "human guessing" from the equation.

Phase 4: The Secret Sauce (Underlay & Density for 60wt)

Small text is unforgiving. If you use default settings designed for standard thread, 60wt thread will look sparse, and the fabric will show through. Jeff shares specific adjustments to bulk up the fine thread.

The "Sweet Spot" Settings

In Chroma Inspire’s parameter tab:

• Underlay: Enable Contour (Edge Run) AND Parallel (Center Run).
  • Why? The Parallel run locks the fabric to the backing. The Contour run creates a "rail" for the satin stitches to sit on, keeping edges crisp on textured napkins.
• Density: 0.35 mm.
  • Expert Note: Standard density is usually 0.40mm - 0.45mm. Because 60wt thread is finer, we must pack the stitches closer together (0.35mm) to get solid coverage.
• Pull Compensation: 0.2 mm - 0.3 mm.
  • The "Cookie Dough" Analogy: Stitches are like elastic bands; when they tighten, they pull the fabric edges inward (like shrinking cookie dough). Pull compensation deliberately makes the column wider to account for this shrinkage. On small text, if you don't have this, your letters will look skinny and disjointed.






Phase 5: The "Color Change" Hack (Forcing the Stop)

If you export the file now, with all names in "Black," the machine will stitch Name #1, then immediately stitch Name #2 right on top of it. Disaster.

We need to force the machine to pause. Commercial machines interpret a "Color Change" command as a mandatory stop (and usually a trim).

The Alternating Pattern:

• Name 1: Blue
• Name 2: Red
• Name 3: Blue
• Name 4: Red

Even though you have a single spool of Gold thread on the machine, the data tells the computer: "Stop! We are changing to Red." This is your safety window to un-hoop the finished napkin and load the next one.

This rhythm is essential for high-speed workflows, especially if you are using a magnetic hooping station setup where the goal is to swap frames in under 10 seconds.

Setup Checklist (Digital Pre-Check)

• Zero Check: Are all names set to X=0 / Y=0?
• Clean Text: click through standard names to ensure no "phantom" empty lines are shifting alignment.
• Density Validated: Settings adjusted for 60wt thread (0.35mm Density / 0.3mm Pull Comp).
• Stop Commands: Are colors alternating (Blue/Red/Blue...)?
• Simulation: Run "Slow Redraw." Does the simulation pause between names?

Warning: Needle changes and frame movements are mechanical pinch points. When the machine stops for a "Color Change," wait for the pantograph (the arm moving the hoop) to come to a complete rest before reaching in.

Phase 6: The "Safety Window" (The 3x2 Box)

Jeff demonstrates a crucial visual aid. Clients often say, "Keep it small." But "small" is subjective.

1. Change software units to Inches.
2. Drag ruler guides to create a box: 3 inches wide by 2 inches tall.
3. Center this box on your 0,0 origin.

This is your Kill Zone. As you scroll through your stacked names, if "Christopher" or "Maximilian" pokes outside this box, you know immediately that you have a problem.

The Fix: Select only that long name and scale it down proportionally until it fits inside the guides. Expert Tip: If you scale down more than 20%, double-check that your column widths haven't become too thin. You may need to bump the "Pull Comp" up slightly for that specific name.

Phase 7: The Physical Reality (Hooping Strategy)

You have the file. Now you have to hoop 100 napkins. This is where most profit is lost. Jeff describes the rhythm: Stitch, Swap, Re-hoop while running. But let's look at the physics of the hoop itself.

The "Hoop Burn" Problem

Traditional plastic hoops require you to jam an inner ring into an outer ring. On delicate wedding linens, this friction causes "Hoop Burn"—a shiny, crushed ring mark that is often permanent. Furthermore, tightening that screw 100 times is a recipe for repetitive strain injury (RSI).

The Solution: Tooling Up

If you catch yourself dreading the hooping process, this is the trigger to upgrade.

• Level 1 (Technique): Use "float" techniques where you hoop the stabilizer and spray-glue the napkin on top. (Risk: Alignment drift).
• Level 2 (Hardware): Switch to magnetic embroidery hoops. These claim victory over hoop burn because they clamp straight down rather than dragging across the fabric. For a 100-piece run, the ability to just "snap" the hoop shut without adjusting a screw saves roughly 30-45 seconds per napkin. That’s an hour of labor saved on one order.

Warning: Magnetic Safety
magnetic hoops for embroidery machines use industrial-strength neodymium magnets.
1. Pinch Hazard: They clamp instantly. Keep fingers clear of the mating surfaces.
2. Medical Devices: Keep them at least 6 inches away from pacemakers.
3. Electronics: Do not place phones or credit cards directly on the magnets.

Decision Tree: Stabilizer Selection for Napkins

Goal: No puckering, minimal show-through.

1. Is the fabric stretchy or loose-knit (e.g., Jersey/Soft Cotton)?
   • YES: Use Cutaway stabilizer (Mesh is best for softness). Reason: Stretchy fabric moves; cutaway prevents distortion.
   • NO: Go to Step 2.
2. Is the fabric textured (Waffle weave / Linen)?
   • YES: Use Tearaway + Water Soluble Topping (Solvy). Reason: Topping prevents the 60wt thread from sinking into the texture and disappearing.
   • NO: Go to Step 3.
3. Is it a semi-transparent formal napkin (Polyester/Silk)?
   • YES: Use Tearaway (Clean tear, not fibrous). Reason: You don’t want a square of stabilizer visible through the fabric.

Troubleshooting Guidelines

The Upgrade Path: Moving from "Surviving" to "Scaling"

Once you master this workflow, you will hit a new ceiling. You can create files perfectly, but your physical hands can't keep up, or your single-needle machine takes too long to change colors.

Here is how to identify when it's time to invest in your business infrastructure:

1. The Fatigue Barrier: If your wrists ache from tightening hoop screws, or you are rejecting fabric types because you can't hoop them securely, look into a comprehensive embroidery hooping station with magnetic frames. This isn't just about comfort; it's about consistent placement on slippery performance wear.
2. The Volume Barrier: If you are turning down orders because you can't stitch fast enough, or if the "thread change" time on a single-needle machine is eating your profit margin, consider the jump to a Multi-Needle machine (like the SEWTECH value line). The ability to pre-load 10+ colors and hoop the next garment while the machine runs continuously is how hobbyists become production houses.

Operation Checklist (Go Live)

• Hoop Consistency: Use the exact same mark on the hoop (or hooping station) to align the napkin corner every single time.
• First Article Inspection: Watch the first name sew out completely. Check the back for tension issues.
• The Rhythm:
  1. Breathe.
  2. Start Machine (Stitches "Grant").
  3. Machine stops (Color Change).
  4. Remove Hoop.
  5. Install next prepared hoop.
  6. Check Screen: Does it say "Peter"?
  7. Press Start.
  8. Hoop "Grant's" replacement while "Peter" stitches.

By locking down your data in the software and your physics in the hooping stage, you aren't doing 100 designs. You are doing one design, 100 times. That is the definition of professional embroidery.

FAQ

• Q: How do I prevent Chroma Inspire text designs from shifting upward due to an accidental Enter key (carriage return) when batch-personalizing napkins?
  A: Do not press Enter inside the Text Tool box; create “one name = one text object” to keep the center point consistent.
  • Recreate the problem name by opening the Text Tool, deleting any hidden second line, and clicking Apply.
  • Build the file as separate objects: type “Grant” → Apply, then start a new text object for “Peter” → Apply (repeat for every name).
  • Click through several finished names to confirm none contain an empty second line.
  • Success check: each name stays at the same vertical position after Apply and after centering (no “mystery” upward jump).
  • If it still fails: delete that text object and retype it from scratch as a brand-new object (do not copy/paste the faulty one).
• Q: How do I make sure every name stitches in the exact same spot by forcing X=0 and Y=0 in Chroma Inspire for the stacking workflow?
  A: Manually set every text object to X=0 and Y=0 in the Transform/Position tab so all names share the same origin.
  • Select one name, open Transform/Position, type 0 for X and 0 for Y, then press Enter.
  • Repeat for every name until the screen looks like a stacked “blob” (that is expected).
  • Run a quick visual audit by selecting random names and confirming their X/Y fields still read 0/0.
  • Success check: multiple names selected one-by-one all report X=0 and Y=0, and the stack sits dead-center of the hoop preview.
  • If it still fails: re-check for any unselected objects (missed names) and re-enter 0/0 for those specific items.
• Q: How can I force a commercial embroidery machine to stop between each name in one stacked file using the Chroma Inspire color-change method?
  A: Alternate thread colors per name (Blue/Red/Blue/Red…) so the machine interprets each name boundary as a required Color Change stop.
  • Assign Name 1 as Blue, Name 2 as Red, Name 3 as Blue, and continue alternating for the full list.
  • Export and run Slow Redraw (or an equivalent simulation) to confirm a pause occurs between names.
  • Keep the physical thread the same if desired; the “color” is serving as a stop command in the data.
  • Success check: the machine stops (and typically trims) after each name instead of stitching the next name immediately on top.
  • If it still fails: verify no two adjacent names share the same color and re-export the corrected file.
• Q: What are the Chroma Inspire underlay, density, and pull-compensation settings recommended for small text with 60wt thread on napkins?
  A: Use Contour + Parallel underlay, set density to 0.35 mm, and set pull compensation to about 0.2–0.3 mm for cleaner, fuller 60wt text.
  • Enable Underlay: Contour (Edge Run) AND Parallel (Center Run).
  • Set Density to 0.35 mm (tighter than many defaults).
  • Set Pull Compensation to 0.2–0.3 mm, then test-sew the longest/most complex name first.
  • Success check: letters look solid (fabric not showing through), edges stay crisp, and skinny gaps between strokes are minimized.
  • If it still fails: re-run the sacrificial test sew on the same fabric/stabilizer combination and adjust only one variable at a time (often density or pull compensation).
• Q: What needle and thread combination prevents bumpy or illegible 4–12 mm embroidery text on delicate napkins during bulk personalization?
  A: Switch to 60wt thread with a 65/9 or 70/10 needle to match fine lettering and avoid oversized needle holes.
  • Load 60wt thread for small text where 40wt often looks too thick.
  • Change the needle to 65/9 or 70/10 when using 60wt thread.
  • Do a quick “thread floss” tension feel test: the thread should pull smoothly with some resistance, not yank or stutter.
  • Success check: satin columns look smooth (not bumpy), curves are readable, and holes are not visibly larger than the thread fill.
  • If it still fails: confirm the stabilizer choice matches the fabric type and perform the sacrificial test sew on scrap before committing to the full batch.
• Q: How do I troubleshoot embroidery thread bird-nesting on the back of a napkin on a commercial embroidery machine during a bulk run?
  A: Rethread the top thread correctly (with the presser foot up) because a thread-path or tension-disk issue is a common cause of nesting.
  • Stop the machine and remove the hoop safely.
  • Raise the presser foot, then completely rethread the top path from spool to needle.
  • Verify the thread is seated in the tension disks (presser foot up while threading is key).
  • Success check: the next test stitches show a clean underside (no tangled “bird’s nest” clumps forming immediately).
  • If it still fails: inspect for snag points in the thread path (guides) and re-test on scrap before resuming production.
• Q: What safety steps should operators follow when using magnetic embroidery hoops to reduce hoop burn and speed up hooping for 100 napkins?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers and sensitive electronics while snapping them closed for fast, low-friction clamping.
  • Keep fingers clear of the mating surfaces before bringing the magnet top and bottom together.
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
  • Do not place phones or credit cards directly on the magnets.
  • Success check: the hoop closes with a controlled “snap,” fabric clamps evenly without a dragged/shiny friction ring, and operators avoid finger pinches.
  • If it still fails: slow down the close motion and confirm the fabric and stabilizer stack is lying flat before engaging the magnets.
