CD to USB on a Mac for Baby Lock Embroidery Machines: The Drag-and-Drop Method That Never Fails

Baby Lock Embroidery Design Transfer Guide: From Mac to Machine Without Data Corruption

If you’ve ever stared at a Kimberbell (or similar) embroidery CD and thought, “Why is this so confusing—I just want the design on my machine,” you are not alone. There is a specific kind of anxiety that comes with digital embroidery: the fear that one wrong click will turn a $500 software file into digital gibberish, or worse, that your machine simply won't see it.

The good news: on a Mac, this is a clean, repeatable workflow once you understand the logic. As an instructor, I don't just want you to "copy files"; I want you to understand the data hygiene that prevents the two most common disasters in professional shops: (1) copying the wrong language (file format), and (2) corrupting the data by yanking the USB stick too early.

Calm the Panic: The Logic of CD → USB → Stitch

Here is the simple truth: Your embroidery machine is a robot, not a computer. It cannot read the complex folders, PDF instructions, or marketing images on a CD. It only speaks one specific language. For Baby Lock, that language is .PES.

Your job is not to "copy the CD." Your job is to extract that specific .PES data and place it on a clean vessel (the USB drive) that the robot can hold.

1. Open the CD (The Source).
2. Locate the raw Embroidery Files.
3. Isolate the machine format (PES).
4. Transfer to USB (The Vessel).
5. Eject Safely (The Seal).


Phase 1: The "Clean Room" Prep

Before you click a single file, we need to set up your workspace to prevent drag-and-drop errors.

What the video shows: Insert the CD and plug in the USB, then wait for icons. The "Experience-Level" Adjustment: embroidery machines are sensitive to USB formatting.

• Capacity Sweet Spot: Use a USB drive between 2GB and 8GB. Many older Baby Lock machines struggle to read drives larger than 16GB or 32GB.
• Format: Ensure your USB is formatted to FAT32 (Disk Utility on Mac can do this). If your machine ever freezes while reading a stick, it’s usually because the stick is too large or formatted incorrectly.




Sensory Check: plug in your USB drive. watch your Mac desktop. You should visually see the icon appear. If the name is generic like "NO NAME" or "Untitled," rename it immediately to "EMB_USB."

Why? When you have three windows open, dragging a file to "Untitled" is a guess. Dragging it to "EMB_USB" is a certainty.

Prep Checklist: The "Pre-Flight" Inspection

• Physical Connection: Both CD and USB drive are inserted; both icons are visible on the desktop.
• Capacity Check: The USB drive is 16GB or smaller (recommended for stability).
• Identity Check: The USB drive has a distinct name (e.g., "EMB_USB").
• Workspace Hygiene: Close all unrelated Finder windows (photos, documents) to prevent accidental drops.
• Hidden Consumable: Keep a spare USB drive nearby. Flash memory fails eventually; pros always have a backup.


Phase 2: Navigating the Folder Maze

Double-click the CD icon to open it.

The CD is often cluttered with marketing materials. Ignore them. You are looking for a folder named "Embroidery Files" or "Designs."

Pro Tip: If you see a PDF file labeled "Instructions" or "Color Chart," drag that to your computer's desktop (not the USB). Use this to print your color sequence. You will need this physical paper next to your machine later.

Phase 3: Speaking the Language (Selecting PES)

Inside the embroidery folder, you will see a list of acronyms: DST, JEF, VIP, VP3, XXX.

For a standard machine babylock, you must select the PES folder.

Why this matters: Do not copy the DST folder unless you know specific commercial trim codes. PES contains the color information regular Baby Lock machines need to display the design correctly on your screen.

The "Size" Nuance: Inside the PES folder, you may see sub-folders like "4x4," "5x7," or "8x12." These refer to your hoop size.

• If you own a baby lock 6 needle embroidery machine, copy all sizes. You have the screen real estate to sort them later.
• If you own a single-needle machine with a small screen, copy only the size that fits your hoop to avoid scrolling frustration.

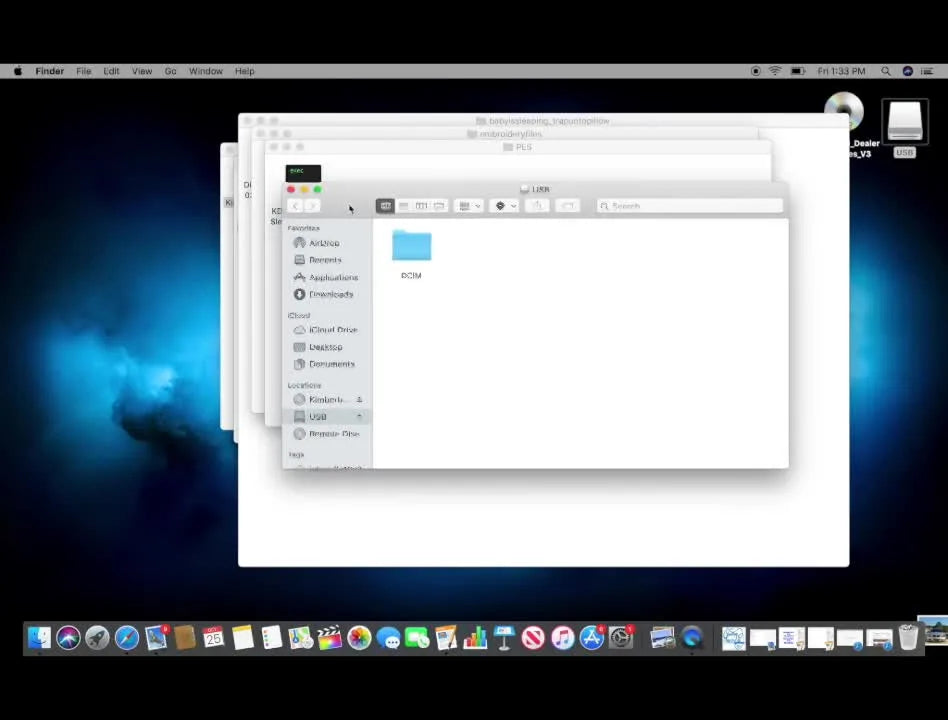

Phase 4: The 2-Window Setup (Source vs. Destination)

Open your USB drive in a second Finder window. Position them side-by-side.

Visual Anchor:

• Left Side: Source (CD / PES Folder)
• Right Side: Destination (USB Drive)


Setup Checklist:

• CD window is open to the .PES files (you see the file icons).
• USB window is open and empty (or organized).
• No windows overlap; you have a clear "line of sight" between them.

Phase 5: The Transfer (Drag, Drop, Verify)

Method A: The Single File Transfer

1. Click and Hold the specific .PES file in the CD window.
2. Drag it across the screen to the USB window.
3. Look for the green "+" icon (on some Mac versions) indicating a copy.
4. Release.


Method B: The Batch Transfer (Multiple Sizes)

1. Click in the white space of the CD window.
2. Drag a "lasso" box around the files you need.
3. Verify they are all highlighted blue.
4. Drag the cluster to the USB window.




Verification: Do not pull the drive yet. Look at the USB window. Do you see the files there? Does the file size look correct (e.g., 50KB, not 0KB)?

Operation Checklist: Final Data Audit

• File extension is .PES.
• File size is >0KB.
• "Hidden" files (like .DS_Store) are ignored.
• You have printed the PDF color chart (if available) for reference.

Phase 6: The "Eject or Regret" Rule

Embroidery files are tiny, but computer file systems use "write caching." Even if the transfer looks done, the computer might still be finishing the code in the background. Yanking the drive now breaks that code.

The Ritual:

1. Right-click the USB icon on your desktop.
2. Select "Eject."
3. Wait until the icon disappears entirely.
4. Physically remove the drive.


Warning: Data Corruption Risk
Never remove a USB drive while the light is flashing or the icon is visible. A corrupted USB stick can freeze your embroidery machine's screen, requiring a restart and potential loss of stored settings.

Troubleshooting: The "Quick Fix" Table

If things go wrong, follow this Low-Cost to High-Cost troubleshooting path.

Beyond the USB: Breaking the Physical Bottlenecks

Congratulations. You have successfully digitally transported the design. But as you start stitching, you will realize that data transfer was the easy part. The real frustration in embroidery—especially repeat orders—is physical setup.

If you are running a business, your profitability is determined by how fast you can get fabric into the machine, not how fast you drag files.

The "Pain Point" Upgrade Path

Use this logic to decide when to upgrade your tools:

Scenario 1: The "Hoop Burn" Struggle

• Trigger: You see ring marks on delicate fabrics, or your wrists hurt from tightening screws.
• Diagnosis: Traditional hoops rely on friction and brute force.
• Solution Level 1: Use "floating" techniques with adhesive stabilizer (messy but cheap).
• Solution Level 2 (Tool): Switch to magnetic hoops for babylock embroidery machines. These snap fabric into place using magnetic force rather than friction, eliminating "hoop burn" and saving your wrists.

Scenario 2: The "Placement Anxiety"

• Trigger: You spend 10 minutes measuring to ensure the logo is straight.
• Diagnosis: Free-hand hooping is inaccurate.
• Solution Level 1: Mark grids with water-soluble pens.
• Solution Level 2 (Tool): Use a hooping station for machine embroidery. This ensures every shirt is hooped in the exact same spot, essential for team orders.

Scenario 3: The "Color Change" Bottleneck

• Trigger: You are babysitting the machine to change threads 12 times for one design.
• Diagnosis: hooping for embroidery machine single-needle operations limits throughput.
• Solution Level 2 (Tool): Upgrade to babylock magnetic embroidery hoops to speed up reloading.
• Solution Level 3 (Machine): If you produce 30+ items a week, a baby lock alliance embroidery machine or a dedicated multi-needle system (like SEWTECH production gear) becomes mathematically necessary. The time saved on thread changes pays for the machine.

Warning: Magnetic Safety
If you choose to upgrade to magnetic hoops, be aware they use powerful Neodymium magnets. Keep them away from pacemakers. Watch your fingers—they snap together with enough force to pinch skin painfully.

FAQ: Technician's Corner

"Can I create designs in Photoshop and save them to the USB?" No. Photoshop creates pixels (images). Your Baby Lock needs coordinates (stitches). You need "Digitizing Software" to convert an image into a .PES file. Without that conversion, the machine will see nothing.

"My machine has a USB cord. Can I plug my Mac directly in?" Technically, yes, on some models. Empirically? Don't do it. Direct cables often require specific drivers that break with every MacOS update. The USB stick method is "air-gapped" and bulletproof. It works 100% of the time regardless of OS updates.

"I have a 6-Needle machine. Is the process different?" The file type (.PES) is the same. However, the commercial-style machines (like the baby lock 6 needle embroidery machine) have computers that read files faster and can handle slightly larger folder structures. The USB hygiene rules (Small Capacity + FAT32) still apply strictly.

Final Thought

Mastering the CD → PES → USB workflow is your first step toward embroidery confidence. Once you trust that your files are safe, you stop worrying about the computer and start focusing on what matters: the tension, the stabilizer, and the perfect stitch.

Make the digital part boring so the creative part can be exciting.

FAQ

• Q: What is the safest Mac workflow to transfer Kimberbell embroidery designs to a Baby Lock embroidery machine without corrupting .PES files?
  A: Use a clean CD → PES folder → FAT32 USB workflow, then eject the USB properly every time.
  • Open the CD and locate the “Embroidery Files” or “Designs” folder, then enter the “PES” folder.
  • Open a second Finder window for the USB drive and drag only the needed .PES files to the USB.
  • Eject the USB from the Mac (right-click USB icon → Eject) and wait for the icon to disappear before removing it.
  • Success check: The .PES files show on the USB with normal file sizes (not 0KB), and the USB icon fully disappears before unplugging.
  • If it still fails: Delete the copied files and repeat the transfer, focusing on ejecting properly (do not “yank” the USB).
• Q: What USB drive size and format works best for a Baby Lock embroidery machine reading .PES files from a Mac?
  A: A small FAT32 USB drive is the most reliable choice for many Baby Lock embroidery machines.
  • Use a USB drive in the 2GB–8GB range as a stability sweet spot (many older machines may struggle with larger drives).
  • Format the USB to FAT32 using macOS Disk Utility before loading embroidery designs.
  • Rename the drive to something obvious like “EMB_USB” to avoid dragging files to the wrong destination.
  • Success check: The USB appears on the Mac desktop by name, and the Baby Lock machine does not freeze or show “Cannot Read.”
  • If it still fails: Try a smaller-capacity USB drive and reformat to FAT32 again, then copy only .PES files.
• Q: Why does a Baby Lock embroidery machine say “Cannot Read” after copying designs from a Mac USB drive?
  A: “Cannot Read” is commonly caused by the wrong file type or an incompatible USB setup, not the design itself.
  • Confirm the files on the USB end with “.PES” (not DST/JEF/VP3/VIP/XXX).
  • Confirm the USB is FAT32 and not overly large for the machine to scan reliably.
  • Recopy the files, then eject the USB properly from macOS before inserting into the Baby Lock machine.
  • Success check: The Baby Lock screen displays the design thumbnails/names instead of showing an unreadable USB error.
  • If it still fails: Test with a different (smaller) USB drive that is freshly formatted FAT32 and contains only a few .PES files.
• Q: Why do Baby Lock .PES designs look like “garbage” or stitch incorrectly after transferring from a Mac to USB?
  A: A “garbage” design display is often a corrupted transfer caused by removing the USB drive too soon.
  • Delete the questionable .PES file(s) from the USB and copy them again from the CD’s PES folder.
  • Keep the CD window (source) and USB window (destination) side-by-side to avoid mis-drops into the wrong folder.
  • Eject the USB properly and wait until the icon disappears before physically removing the drive.
  • Success check: The file size on the USB is normal (not 0KB) and the Baby Lock preview displays correctly.
  • If it still fails: Try a different USB drive (flash drives do fail over time) and repeat the transfer.
• Q: How do Baby Lock embroidery machines trigger a “Hoop Size” error when loading a .PES design from USB?
  A: A “Hoop Size” error usually means the selected .PES design is larger than the hoop size supported by the machine/hoop.
  • Check whether the design came from a size-labeled folder like 4x4, 5x7, or 8x12, and choose the hoop-matching size.
  • On smaller-screen single-needle Baby Lock models, copy only the hoop size you actually use to reduce selection mistakes.
  • Keep the instruction PDF/color chart on the computer desktop (not the USB) so the USB stays clean and simple.
  • Success check: The Baby Lock machine loads the design without warning and allows the hoop to be selected normally.
  • If it still fails: Use embroidery software to resize appropriately or switch to a hoop size that matches the design limits (follow the machine manual).
• Q: What is the safest way to eject a USB drive on a Mac to prevent Baby Lock embroidery machine freezes and file corruption?
  A: Always eject the USB in macOS and wait for the icon to disappear completely before unplugging.
  • Right-click the USB icon on the Mac desktop and choose “Eject.”
  • Wait until the USB icon disappears (do not remove the drive while it is still visible).
  • Only then remove the USB and insert it into the Baby Lock embroidery machine.
  • Success check: The USB icon is gone before removal, and the Baby Lock machine reads the files without freezing.
  • If it still fails: Reformat the USB to FAT32 and repeat with a smaller, dedicated embroidery-only USB drive.
• Q: How do magnetic hoops reduce hoop burn and wrist strain on Baby Lock embroidery machines, and what safety precautions apply?
  A: Magnetic hoops often reduce hoop burn and physical strain by holding fabric with magnetic force instead of screw-tightened friction, but they must be handled carefully.
  • Use magnetic hoops when hoop burn ring marks or hand/wrist fatigue happen during repeated hooping.
  • Keep strong magnets away from pacemakers and medical devices.
  • Keep fingers clear when closing the hoop—magnetic frames can snap together and pinch skin painfully.
  • Success check: Fabric holds securely with fewer ring marks, and hooping feels faster with less force required.
  • If it still fails: Recheck stabilizer and fabric handling methods (floating/adhesive stabilizer is often a low-cost alternative) and follow the hoop maker’s instructions for safe handling.
