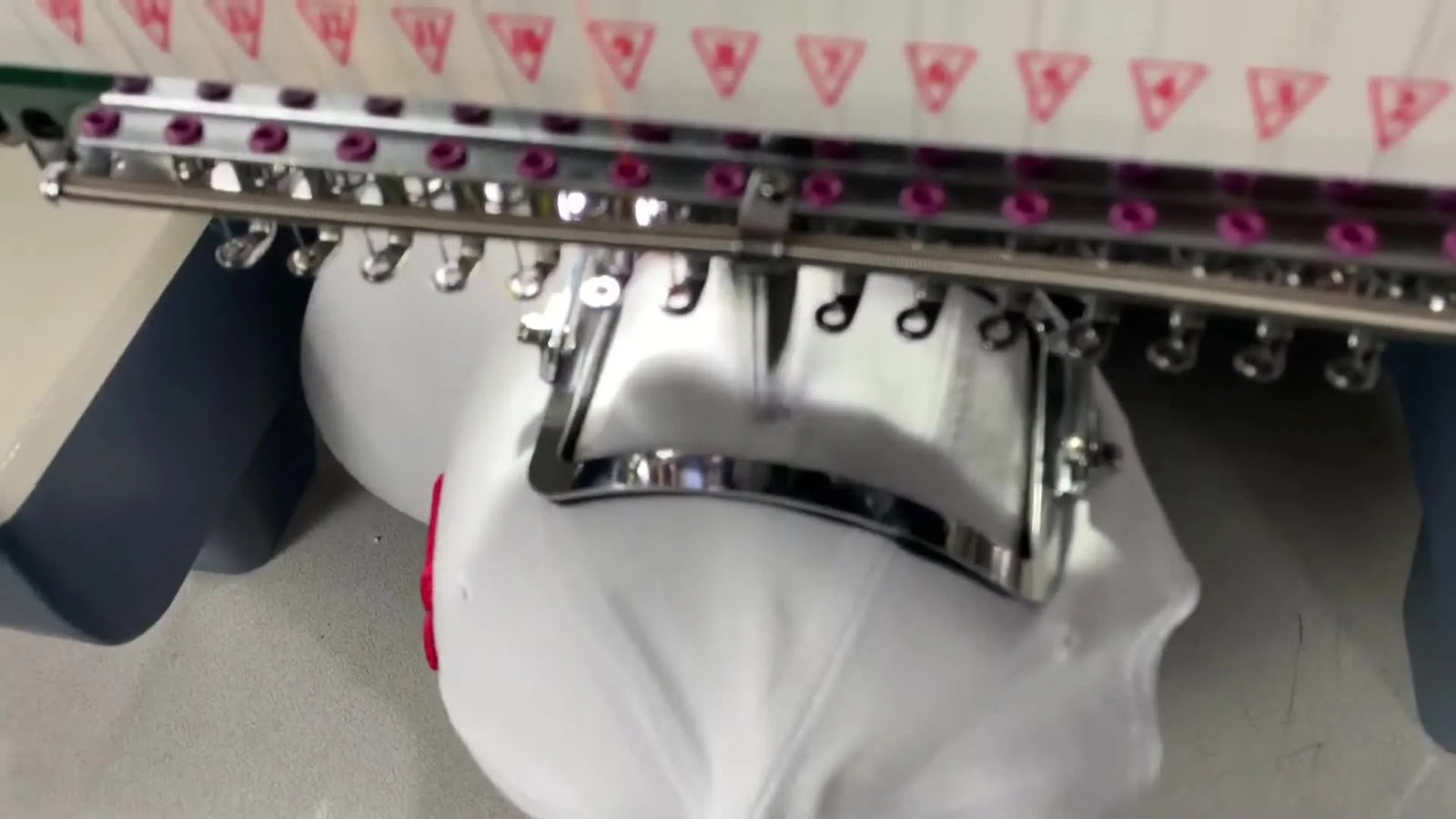

Cap Side Embroidery on a YunFu Machine: Make the Pocket/Cuff Device Behave (Without Wasting Caps)

Cap-side embroidery is one of those deceptively simple jobs. It looks like a quick win—until you ruin two hats in a row, break a needle on a seam, and start doubting your sanity. If you are operating a YunFu multi-needle machine with a Dahao control panel, using the Pocket/Cuff Device (often called a clamper) is the industry-standard method for the side or back panels of baseball caps. But here is the reality: this tool only works if you set it up like a production operator, not like a hobbyist guessing their way through.

This guide rebuilds the workflow from the ground up, adding the sensory details and safety checks that videos often skip. We will cover mounting, clamping physics, the critical P to F rotation on the Dahao panel, and the exact tracing sequence that prevents accidents.

The Pocket/Cuff Device Clamp: Your “Third Hand” for Cap Side Panels (and Why It’s Not a Normal Hoop)

The Pocket/Cuff Device is a specialty clamping frame. Unlike a standard tubular hoop that uses friction and inner/outer rings to hold fabric, this device uses a mechanical jaw to pinch the fabric flat behind a metal window.

Why does this distinction matter? Because a clamp does not provide the same 360-degree tension as a round hoop. You are essentially creating a "flat shelf" out of a curved cap panel. Furthermore, because this is an "open" frame without standard dimensions, your Dahao computer needs to be explicitly told to ignore standard hoop limits; otherwise, it will block your design or, worse, drift off the edge.

If you have ever searched for a pocket hoop for embroidery machine, you are likely looking for this exact type of rigid clamping solution. It is the only reliable way to stitch on pre-assembled goods where you cannot access the back of the material easily.

The “Hidden” Prep Before You Clamp a Cap: What Pros Check in 60 Seconds

Most misalignment issues are not caused by the machine; they are caused by poor preparation before the cap even touches the metal. A cap side panel is curved, structured, and fights against being flattened.

The "Consumables" You Need (Don't skip these):

• Backing: Use a medium-weight (2.0 - 2.5 oz) Tear-away backing. For unstructured "dad hats," consider two layers.
• Needles: Ensure you are using a sharp point (75/11) titanium needle. Ballpoints can struggle to penetrate the stiff buckram or thick seams of a cap.
• Adhesive: A light mist of temporary spray adhesive on the backing helps keep it from shifting while you load the clamp.

Prep Checklist (The "Safe-to-Load" Protocol):

• Clean the Jaws: Rub your finger along the inside of the clamp window. If you feel any adhesive residue or burrs, clean them immediately. These will snag your cap.
• Identify the "Sweet Spot": Flex the cap side panel. Find the area between the sweatband and the top button that flattens easiest. That is your target.
• Seam Awareness: Check if your design will land directly on a thick seam. If yes, consider moving it 5mm or increasing your stabilizer.
• Pre-Thread: Ensure your bobbin has at least 50% thread remaining. Changing a bobbin mid-clamp on a cap device is a nightmare.

Warning: Pinch Hazard. The lever mechanism on pocket devices uses high leverage. Keep fingers clear of the locking jaws and the lever path. A slipped finger here can result in severe bruising or crushing injuries.

Mount the Pocket Device on the Cap Station Rail: Start Square or Chase Alignment All Day

In the workflow, the first physical step is sliding the metal Pocket/Cuff Device onto the Cap Station (the heavy gauge/jig bolted to your table).

Do not rush this. The cap station is your "alignment truth." If the device allows even 1mm of wiggle on the rail, your embroidery will be crooked, no matter how much you adjust on the screen.

The Tactile Check:

1. Slide the device onto the rail.
2. Lock it in place.
3. Shake it. Grab the device and try to twist it left and right. It should feel solid, like it is welded to the table. If it wobbles, tighten the adjustment screws on the station driver before proceeding.


Clamp the Cap Side/Back Panel Flat: The Smooth-Then-Lock Habit That Prevents Wrinkles

The video demonstrates placing the side/back panel onto the device platform, smoothing the fabric, and engaging the red lever. This is the "make or break" moment.

The Physics of Clamping: You are forcing a 3D dome (the cap) into a 2D plane (the window). You are not pulling tight like a drum (which distorts the cap frame); you are pulling flat like a sheet of paper.

Mastering the "Two-Finger" Sweep:

1. Slide the backing and cap panel under the open window.
2. Use your index and middle fingers to sweep from the center of the window outwards.
3. While holding the fabric flat with one hand, slowly engage the lever with the other. Listen for the lock. You should feel a distinct "snap" or increasing resistance as it locks over the center.

Sensory Success Metrics:

• Visual: The fabric inside the window is smooth. No ripples near the corners.
• Tactile: Tap the fabric. It should not feel rock hard, but it should not have any "play" or bounce.
• Placement: The sweatband should be flipped out of the way (outside the embroidery area) so you don't stitch it to the cap.

Comparing this to a standard cap hoop for embroidery machine, the pocket device offers less inherent stability, so your manual smoothing technique is the only thing preventing "flagging" (fabric bouncing up and down).

Lock the Pocket Device onto the YunFu Cap Driver: “Rigid” Is the Only Acceptable Fit

Next, remove the loaded device from the station and slide it onto the machine’s Cap Driver (the moving arm).

The "Click" Audit:

1. Slide the device onto the driver.
2. Engage the clips or align the thumb screws.
3. The Wiggle Test: Grab the metal frame (not the cap) and try to wiggle it up and down.
   • Result A: It moves/clicks. STOP. Do not stitch. Tighten the mounting screws.
   • Result B: It moves the entire machine beam. PASS. It is rigid.

Any looseness here translates to "shaky" satin stitches and poor registration on small text.

Warning: Clearance Check. Look behind the cap. Ensure the back of the hat isn't bunched up where it could get caught on the needle bar or presser foot during rotation. Use clips to pin back excess fabric if necessary.

Dahao Frame Selection: Choose the Non-Standard/“No Frame” Icon So the Machine Stops Lying to You

On the Dahao control panel, navigate to the Frame Selection menu. You must select the Non-Standard / Specialty Frame option (usually the bottom-right icon, often depicted as a square with incomplete corners or a generic shape).

Why this is non-negotiable: Standard hoop settings (like 150mm round) have software "soft limits." If you select a standard hoop, the machine might refuse to stitch near the edge of your pocket clamp because it "thinks" a plastic hoops ring is there. By selecting "Non-Standard," you are telling the computer: "I am using a custom clamp. Trust me. I will handle the centering."

This is a critical part of standardized hooping stations workflows. Every operator must know that "Clamp = Non-Standard Frame" to avoid phantom limit errors.

Rotate the Design on Dahao (P → F): The One Tap That Saves a Whole Box of Caps

The video shows the design defaulting to orientation P (Normal/Portrait). Since you are stitching on the side of a cap that is mounted "ear-to-ear" on the driver, the design usually needs to be rotated 180 degrees relative to a standard flat stitch.

The "P vs. F" Rule:

1. Enter the Design Parameter/Edit menu.
2. Find Rotate/Direction.
3. Change P to F.
   • P = Standard (0 degrees).
   • F = Flipped (180 degrees).

Visual Verification: Look at your physical cap clamped on the machine. Visualize the top of the design. Now look at the screen. Does the top of the design on the screen point toward the brim of the hat or the crown? Match the screen orientation to physical reality.

Color/Needle Setup on Dahao: Keep It Boring, Keep It Predictable

On a multi-needle machine, never rely on the file colors matching your machine colors automatically unless you have a fully networked system.

The "Manual Mode" Safety Net: Select your color sequence manually on the screen.

• Example: If your design has Red, White, Blue, and your machine has Red on Needle 1, White on Needle 2, Blue on Needle 3 -> Program sequence: 1 - 2 - 3.

Expert Tip: If you are stitching small text on a cap side, slow the machine down for that specific needle. On the Dahao panel, you can often set specific speeds per needle bar. 600-700 SPM is the "Beginner Sweet Spot" for cap sides. High speeds (900+) often cause thread breaks due to the vibration of the clamp.

Consistent usage of a machine embroidery hooping station setup includes having a chart on the wall listing exactly which color is on which needle to prevent operator guessing layout.

Positioning with Arrow Keys + Border Trace: The Calm Way to Nail Placement on Cap Edges

The "Trace" is your Insurance Policy. Because we selected "Non-Standard Frame," the machine has no idea where the metal clamp jaws are. If you stitch into the metal jaw, you will shatter the needle, potentially break the reciprocating bar, and ruin the hook timing.

The Trace Protocol:

1. Use the Arrow Keys to center the needle over your fabric target.
2. Press Bord / Check Border / Trace.
3. Eyes on the Needle: Watch the needle (specifically the presser foot) as it travels the rectangular perimeter of the design.

The "Go/No-Go" Decision Tree

Use this logic flow during the trace:

• Is the presser foot hitting the metal clamp?
  • YES: STOP immediately. Move the design away from the edge using arrow keys.
  • NO: Proceed.
• Is the trace crossing a thick seam with a "thud"?
  • YES: Move the design slightly to avoid the thickest junction if possible, or note that you need to slow down there.
  • NO: Proceed.
• Is the design orientation correct? (Is it upside down?)
  • YES: Go back to Rotate (P -> F).
  • NO: Proceed.
• Pass: The foot stays on fabric, clears the metal by at least 5mm, and is right-side up.

This rigorous checking is key to a reliable hooping station for machine embroidery, converting a chaotic process into a predictable science.

Press Start and Watch the First 20 Seconds: The “Machine Health” Clues You Can Hear

Press all specific "Start" buttons (usually the green button). Do not walk away.

The 20-Second Audit:

• Listen: You want a rhythmic "purring." If you hear a sharp "CLACK-CLACK," your needle is hitting the needle plate or the cap structure is too rigid. Stop and check.
• Watch Tension: Look at the white bobbin thread on the back (if visible) or the top thread tightness.
• Watch for "Flagging": If the fabric is bouncing up and down aggressively with the needle, your clamping was too loose. Pause the machine. You cannot fix flagging while running; you must re-clamp.


Troubleshooting Cap Side Embroidery on YunFu + Dahao: Symptom → Cause → Fix

<table> <thead> <tr> <th>Symptom</th> <th>Likely Cause</th> <th>Immediate Fix</th> <th>Prevention</th> </tr> </thead> <tbody> <tr> <td><strong>Needle breaks immediately</strong></td> <td>Stitching into metal clamp or too close to edge.</td> <td>Replace needle; check hook for burrs.</td> <td><strong>Trace</strong> strictly with a 5mm buffer zone.</td> </tr> <tr> <td><strong>Design is crooked/slanted</strong></td> <td>Cap was clamped "off-square" in the device.</td> <td>None (cap is ruined).</td> <td>Ensure sweatband is parallel to clamp jaw during prep.</td> </tr> <tr> <td><strong>White bobbin thread showing on top</strong></td> <td>Top tension too tight OR cap bouncing (flagging).</td> <td>Loosen top tension knob (lefty-loosey) or re-clamp tighter.</td> <td>Use correct backing; ensure clamp is "drum tight."</td> </tr> <tr> <td><strong>Registration loss (gaps in outlines)</strong></td> <td>Device loose on driver or stabilizer shifting.</td> <td>Tighten driver screws immediately.</td> <td>Use spray adhesive on backing.</td> </tr> </tbody> </table>

The Finished Cap Reveal—and the Real Upgrade Path When You Start Doing This Weekly

Once the machine stops, remove the device, unlock the lever, and inspect. You should see crisp lettering and no puckering.

However, if you find yourself doing 50+ caps a week, you will quickly discover the limitations of mechanical clamps: they are slow to load, leave "hoop burn" (pressure marks), and tire your hands.

The Professional Upgrade Path

Level 1: Stability Upgrade If you struggle with movement, upgrade your Backing to a specialized 3oz Cap Cutaway and use temporary adhesive.

Level 2: Efficiency Upgrade (Magnetic Hoops) For side panels and flat items that are hard to clamp, many shops switch to a magnetic frame for embroidery machine system.

• Why: Magnets self-align and hold fabric firmly without the hand-strain of mechanical levers. They virtually eliminate "hoop burn."
• Adaptability: Look for magnetic embroidery hoops compatible with your specific YunFu/Dahao arm spacing.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch fingers severely. They are also dangerous for individuals with pacemakers or ICDs. Keep magnets at least 6 inches away from medical devices.

Level 3: Capacity Upgrade (SEWTECH Machines) If the bottleneck is the machine speed or color changes, upgrading to a dedicated SEWTECH multi-needle system designed for production loads allows you to preset multiple caps and run them with higher SPM (Stitches Per Minute) reliability.

Final Setup Checklist (The "Power Down"):

• Unload: Remove cap gently; trim threads.
• Inspect: Check for any "hoop burn" marks—steam them out if necessary.
• Reset: Return the frame setting to Standard if your next job is a flat T-shirt, or the next operator will be confused.
• Clean: Blow out the bobbin area; cap backing produces a lot of lint.

By treating the pocket device with respect—checking your mechanical connections, tracing religiously, and clamping with sensory awareness—you turn the "scary" job of cap sides into a routine, profitable service.

FAQ

• Q: Which Dahao frame setting should be selected for a YunFu multi-needle machine when using a Pocket/Cuff Device (cap clamper) for cap side embroidery?
  A: Select the Dahao “Non-Standard / Specialty (No Frame)” option so the control panel does not enforce standard hoop limits.
  • Open Frame Selection on the Dahao panel and choose the non-standard/specialty icon (often the bottom-right).
  • Re-center placement manually with arrow keys because the machine will no longer “protect” you from clamp edges.
  • Run Border Trace every time before stitching because the machine cannot detect the metal jaws.
  • Success check: The Dahao panel allows the design near the working area without “phantom” hoop-limit behavior, and the trace stays fully on fabric.
  • If it still fails: Re-check that the pocket device is mounted rigidly on the cap driver; looseness can mimic “limit” or placement problems.
