Cap Embroidery on the Baby Lock Venture: Hooping a Trucker Hat Without Losing Center (or Your Patience)

Cap embroidery is the ultimate test of a machine embroiderer’s patience. It looks simple—until your first logo lands 3mm off-center, or the sweatband gets stitched to the front panel, ruining a $15 hat instantly.

If you are using the standard mechanical cap frame and jig on a Baby Lock Venture (or similar multi-needle limits), you are entering a world where physics is your enemy. The cap is curved, the needle is straight, and the frame is fighting to flatten the fabric.

To master this, you don’t need luck; you need a military-grade protocol. This guide transforms the "guesswork" of cap driver installation and hooping into a repeatable science.

Calm First: The Baby Lock Venture Cap Frame Driver Is Fussy, Not Fragile

Cap embroidery feels high-stakes because mistakes are expensive and highly visible. However, the system is engineered for precision if you respect two mechanical realities:

1. Squareness: The driver must be perfectly parallel to the machine arm, or the frame will bind.
2. Tension: The cap must be stretched like a drum skin, or the logo will distort (flagging).

When setting up a cap hoop for embroidery machine, treat your first run as a calibration session. Do not rush. Your goal is to establish a "Zero Point" where the machine and driver agree on where "Center" is.

Warning: Cap drivers are heavy metal components with sharp locking teeth. Keep fingers clear of the pinch points when snapping the frame into the driver. Never force the frame; if it doesn't click in smooth, stop and check the alignment.

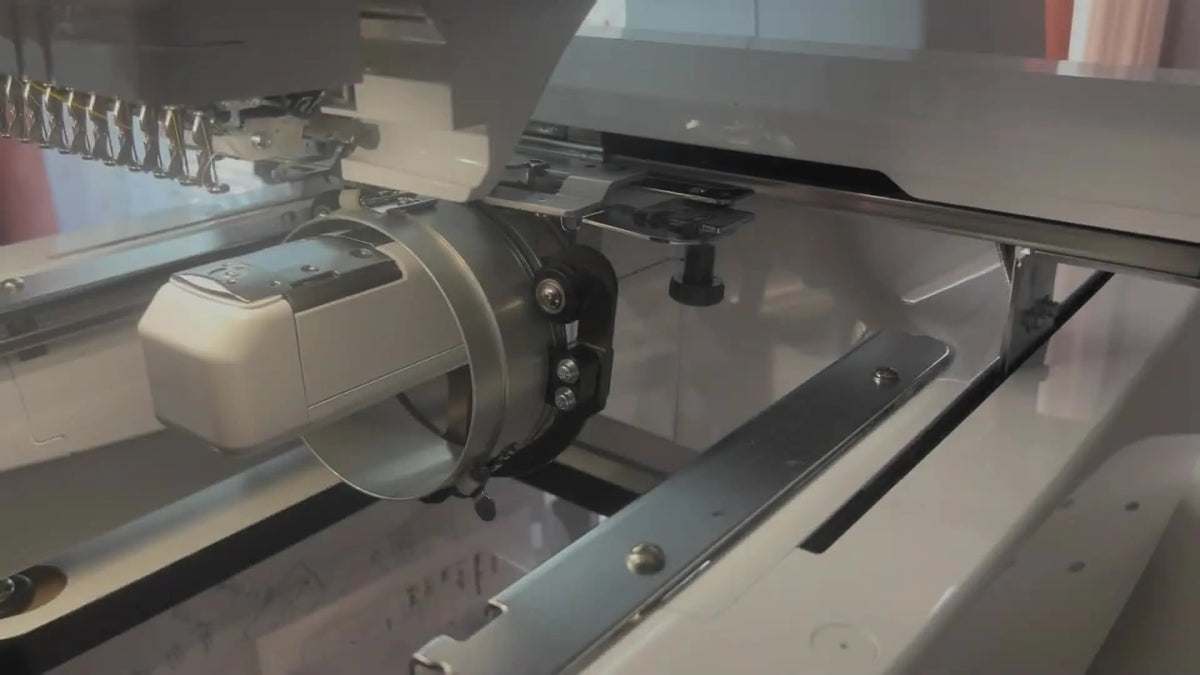

The “Don’t Overtighten Yet” Trick: Installing the Baby Lock Cap Frame Driver Without Fighting Alignment

Most alignment issues start here. If you tighten one screw 100% before the others, you introduce torque that skews the driver by a fraction of a millimeter. That’s enough to cause registration errors later.

The "torquing" sequence for perfect alignment:

1. Position the Driver: Slide the driver onto the machine arm. Align the holes visually.
2. Insert All 4 Screws: Two small thumbscrews (top) and two larger hex screws (bottom). Do not tighten them yet; just engage the threads.
3. Finger-Tighten Top Screws: Turn the small top screws until they just touch the metal.
4. Secure Bottom Screws: Tighten the large bottom screws firmly (wrist-tight, not body-weight tight).
5. Finalize Top Screws: Now, snug down the top screws.

Why this works: The bottom screws carry the weight and alignment. The top screws stabilize it. By following this order, you ensure the driver sits flat against the chassis.

Pro Tip: Create a "Part Parking Lot" on your bench. When removing the driver, put the screws back into the driver holes immediately so they aren't lost to the workshop floor gods.

The “Hidden” Prep That Saves Caps: Sweatband Control, Cap Choice, and What to Check Before You Hoop

Before you even look at the jig, you must "neutralize" the hat. A raw cap is full of variables: the sweatband wants to flip up, the buckram (stiffener) might be creased, and the mesh back is stretchy.

In this tutorial, we use a Port Authority trucker cap. This is an excellent "Learner's Cap" because the front panel is structured (stable), but the mesh back requires careful tensioning.

The Sweatband Protocol

The sweatband is the #1 cause of needle breakage. If it flips up during stitching, it’s game over.

• Action: Fold the sweatband back completely.
• Secure: Use T-pins (or quilting pins) to pin the sweatband to the foam backing of the cap, keeping it far away from the stitch field.




Pre-Flight Checklist (Do NOT skip)

• Structure Check: Is the front panel crushed? Steam it briefly if needed to restore the curve.
• Obstruction Check: Remove cardboard inserts, hang tags, and stickers now.
• Sweatband Check: Is it pinned back? Run your finger along the inside edge to feel for loose fabric.
• Center Seam: Locate the true center. On 6-panel caps, it's the seam. On 5-panel caps, you must mark it with a water-soluble pen.

Professional Context: If you find this prep time-consuming for an order of 50+ hats, this is the trigger point to consider workflow upgrades. Industrial shops often switch to specialized setups or magnetic hoops for babylock embroidery machines which can handle sweatbands and stability faster than standard mechanical clips.

The Jig Matters More Than Your Hands: Mounting the Cap Frame Jig So It Doesn’t Drift

The mounting jig is your workbench. If the workbench wobbles, you cannot build precision.

The Stability Rule: Clamp the jig to a table edge so tightly that if you bump it with your hip, the table moves, not the jig.

• Visual Check: Ensure you have overhead light casting a shadow directly down the center of the jig. Shadows can trick your eye into centering the cap incorrectly.

If you are setting up dedicated hooping stations, customize the height. The jig should be at elbow height so you can apply downward pressure using your shoulders, not just your wrists.

The Red Center Mark Doesn’t Forgive: Centering a Trucker Hat on the Standard Cap Frame Strap

This step requires "Hands-on Feel." You are marrying the chaotic curve of a hat to the rigid geometry of the machine.

The Centering Ritual

1. Loosen the Strap: Give yourself slack.
2. Align the Bill: Slide the cap onto the jig. The bill should sit squarely in the bill-holder.
3. The Red Line Logic: Look at the Red Center Mark on the frame strap. This must align perfectly with the cap’s center seam.
4. Smoothing: Smooth the front panel from the center outward to the sides. Pushing fabric toward the center causes "bubbling."


Troubleshooting: "My design stitched high/low!"

• Cause: You relied only on the physical hoop.
• Fix: Physical hooping gets you straight. The machine's camera (discussed later) handles the precise vertical placement. Do not try to force the cap lower on the jig than it naturally sits.

The “Click Test”: Locking the Jig and Seating the Cap Frame So It Can’t Creep on the Walk to the Machine

This is the moment of truth. You are locking potential energy into the frame.

The Action Sequence:

1. Engage the Strap: Pull the strap tight over the bill.
2. Sensory Check (Tactile & Auditory): Push the frame latch down. You must hear a definitive "CLICK."
3. The Drum Test: Tap the front of the cap. It should sound and feel like a drum. If it’s soft or spongy, the registration will slip.


Why "Creep" Happens: If the frame isn't locked down with that final "Click," the vibration of the machine (1000 stitches per minute) will slowly vibrate the latch open.

Warning: Do not slam the latch. Apply firm, consistent pressure. Slamming damages the jig teeth over time.

Binder Clips on Mesh Back Caps: When They Help, When They Hurt, and How to Place Them

The video shows using binder clips on the back mesh. This is controversial but useful if done symmetrically.

The Logic: Mesh back caps are floppy. When the frame tightens the front, the back gets loose.

• The Error: Placing one clip tighter than the other. This pulls the cap sideways, twisting the front panel off-center.
• The Fix: Place two binder clips at the exact same position on the left and right posts. They should hold the mesh taut, not stretched.

If you struggle with mesh distortion frequently, upgrades like specific hooping for embroidery machine accessories (like tensioning bands) can provide more consistent results than office supplies.

The Sideways Flip Move: Loading the Hooped Cap into the Baby Lock Venture Cap Driver Ring

Transporting the cap is dangerous—you can bump the hoop and knock it out of alignment.

Safe Loading Protocol:

1. Support: Carry the cap by the frame, not the bill.
2. The Flip: Turn the cap 90 degrees (bill pointing sideways) to slide it under the needle heads.
3. The Rotate: Once under the heads, rotate it back to face forward.
4. The Engage: Snap it into the driver ring.


Sensory Check: Wiggle the frame gently. It should feel fused to the machine. If there is "play" or "wobble," check your driver screws (from Step 2).

The Camera Is Your Insurance Policy: Centering and Lowering a Design on the Baby Lock Venture Screen

You hooped it straight. Now you must tell the machine exactly where the reality of the cap is.

The Digital Verification Process

1. Camera On: Activate the live camera feed.
2. Scan the Seam: Look at the screen. Is the vertical red grid line tracing the cap seam perfectly? If not, rotate the design slightly (1-2 degrees)—do not re-hoop for a 1-degree error.
3. Vertical Positioning: This solves the "too high" problem. Drag the design down until it sits in the "sweet spot" (usually 15-20mm above the bill connection).
4. Auto-Orientation: Remember, cap designs usually display upside down in the edit screen. This is normal.


Commercial Insight: Precise alignment takes time. If you do this professionally, high-end machines like the SEWTECH multi-needle series often offer larger screens or laser positioning systems to speed up this verification step.

Color Assignment and the 400 SPM Reality: Setting Expectations for Cap Stitching on Multi-Needles

Navigate to the color assignment screen. Ensure your needle numbers match your thread cones.

The Speed Check: When you attach a cap driver, modern machines (like the Venture) automatically govern their speed down to 400 - 600 SPM (Stitches Per Minute).

Do NOT Override This.

• Why? Centrifugal force. At 1000 SPM, a cap on a cantilevered frame vibrates violently. This causes "flagging" (fabric bouncing), leading to bird nesting or broken needles.
• The Sweet Spot: 600 SPM is the maximum safe speed for most structured caps. 400 SPM is recommended for sensitive designs or specific 3D puff foam work.

Stitch-Out Reality Check: What “Good” Looks Like in the First 30 Seconds

Do not walk away. The first 30 seconds tell you if the cap will survive.

Watch For:

1. Registration: Is the underlay stitching landing where you expected?
2. Sound: Listen for a rhythmic thump-thump. A sharp clack-clack usually means the needle is hitting the needle plate or the cap driver is loose.
3. Hoop Burn risk: Is the foot pressing too hard?

Operation Checklist (The "Save the Hat" List)

• Latch Check: Is the driver ring completely locked (all 3 clips engaging)?
• Clearance: Spin the needle bar by hand (hand wheel) for one rotation to ensure it doesn't hit the hoop.
• Trace: Run the "Trace" function. Watch carefully—does the foot come dangerously close to the bill or the metal frame?
• Start Speed: Start at 400 SPM. Ramp up only if stable.

The “Why It Shifts” Explanation: Hooping Physics on Curved Goods (and How to Prevent Hoop Burn)

Standard mechanical frames use aggressive friction to hold the cap. The teeth bite into the seam, and the strap crushes the bill.

The Problem: This pressure leaves "Hoop Burn"—shiny marks or crushed fibers that don't rub out. The Fixes:

• Steam: Steam the cap after un-hooping to lift the fibers.
• Tool Upgrade: This is why professional shops eventually upgrade to magnetic embroidery hoop systems. Magnets hold the cap with vertical force rather than pinching friction, virtually eliminating hoop burn and reducing wrist strain.

Warning: Magnetic Safety
Magnetic hoops use industrial-grade magnets. They can pinch skin severely (blood blister hazard). They are safe for the machine but keep them at least 12 inches away from pacemakers, credit cards, and hard drives.

A Simple Stabilizer Decision Tree for Caps: Choose Backing Based on Fabric Behavior (Not Habit)

Caps are not T-shirts. You typically need more stabilization because the item is curved and wants to distort.

Decision Tree: What goes inside the cap?

Hidden Consumable: Always keep a can of temporary adhesive spray (like KK100). A light mist on the stabilizer prevents it from sliding inside the cap during hooping.

When the Lights Go Out: Handling a Power Outage Mid-Cap Without Panicking

The video mentions a power outage recovery. If your machine dies mid-stitch:

1. Do NOT Un-hoop: The moment you un-hoop, you lose alignment forever.
2. Restart: Most modern machines generally have a "Resume" function.
3. Backtrack: Step back 10-20 stitches before the crash point to ensure the new thread locks over the old thread.

The Upgrade Path (Without the Hype): Where Time and Quality Are Actually Lost in Cap Embroidery

The standard mechanical jigs are capable of professional results, but they are slow.

If you are stitching 1-5 caps a week, mastered technique (as described above) is all you need. However, if you are scaling up to 50+ caps, your bottleneck will be hooping time and physical fatigue.

Consider these upgrades to solve specific pains:

• Pain: "I hate the marks left on the caps." -> Solution: Magnetic Frames.
• Pain: "I can't hoop straight consistent." -> Solution: embroidery hooping station or similar docking stations.
• Pain: "Changing threads for every new logo takes forever." -> Solution: Upgrading to a SEWTECH multi-needle machine (15+ needles) to keep standard colors loaded permanently.


Final Setup Checklist

• Cap Driver Top Screws = Snug, Bottom Screws = Tight.
• Sweatband pinned back.
• Stabilizer matched to cap structure.
• Frame locked with an audible CLICK.
• Machine Speed limited to 600 SPM max.

Master these steps, and cap embroidery changes from a fearful gamble into your shop’s most profitable service.

FAQ

• Q: How do I install the Baby Lock Venture cap frame driver without causing alignment drift from overtightening?
  A: Use a staged tightening sequence so the driver seats flat before you lock it down.
  • Position the cap frame driver on the machine arm and align the holes visually.
  • Insert all 4 screws first (two top thumbscrews and two bottom hex screws) and only engage threads.
  • Tighten bottom hex screws firmly (wrist-tight), then snug the top thumbscrews last.
  • Success check: the cap frame slides/snaps in smoothly with no binding, and the driver feels solid with no wobble when gently wiggled.
  • If it still fails: loosen all screws, reseat the driver flush to the chassis, and repeat the sequence—never force the frame to click in.
• Q: How do I stop a Baby Lock Venture cap embroidery job from stitching the sweatband and breaking needles?
  A: Fully fold the sweatband back and pin it away before hooping so it cannot flip into the stitch field.
  • Fold the sweatband back completely before the cap goes on the jig.
  • Pin the sweatband to the cap’s foam backing using T-pins or quilting pins, keeping pins well away from the needle path.
  • Run a finger along the inside edge to confirm no loose fabric can spring up.
  • Success check: the sweatband stays pinned flat during handling and does not appear anywhere in the trace/stitch area.
  • If it still fails: stop immediately, re-pin farther back, and re-run Trace before restarting.
• Q: How do I center a trucker hat on a standard mechanical cap frame strap using the red center mark so the logo does not land off-center?
  A: Match the cap’s true center seam to the strap’s red center mark, then smooth fabric outward—do not push fabric toward the center.
  • Locate the cap’s true center (6-panel seam; for 5-panel caps, mark center with a water-soluble pen).
  • Align the cap center to the red center mark on the frame strap while the bill sits square in the bill-holder.
  • Smooth the front panel from center outward to remove bubbles before tightening.
  • Success check: the center seam tracks straight under the red mark and the front panel looks smooth with no bubbling.
  • If it still fails: use the Baby Lock Venture camera to correct small rotation (about 1–2 degrees) instead of re-hooping.
• Q: What is the “Click Test” for a Baby Lock Venture cap frame latch, and how do I prevent cap creep while stitching?
  A: Lock the frame until an audible, definitive “CLICK,” then confirm drum-tight tension so vibration cannot walk the latch open.
  • Pull the strap tight over the bill and close the latch with firm, consistent pressure (do not slam).
  • Tap the front panel to confirm it is tight before carrying the cap to the machine.
  • After loading, verify the driver ring is fully locked with all clips engaged.
  • Success check: you hear the “CLICK,” and the cap front feels/sounds like a drum—not soft or spongy.
  • If it still fails: re-seat the frame into the driver ring and re-check driver screw tightness from the driver installation step.
• Q: When should I use binder clips on a mesh-back trucker cap for standard cap frame hooping, and how do I avoid twisting the front panel?
  A: Use binder clips only symmetrically to hold mesh taut (not stretched) so the cap does not pull sideways.
  • Place two binder clips at the same position on the left and right posts.
  • Adjust both clips to equal tension so the mesh is taut without distortion.
  • Re-check center alignment at the red center mark after clipping.
  • Success check: the mesh back looks evenly tensioned and the front panel centerline remains straight, not skewed.
  • If it still fails: remove clips and re-hoop focusing on front-panel smoothing and even strap tension.
• Q: What stabilizer should I use for cap embroidery based on cap structure, and how do I stop stabilizer from sliding inside the cap?
  A: Choose stabilizer by how stable the cap fabric is, and use a light mist of temporary adhesive spray to keep backing from shifting.
  • Use heavy tearaway (2.5oz) or medium cutaway for structured cotton fronts; use 3.0oz cutaway for unstructured “dad hats.”
  • Use fusible cutaway for performance/stretchy caps when shifting is a risk.
  • For dense designs or 3D puff, use cutaway plus adhesive spray to minimize movement.
  • Success check: backing stays aligned during hooping and the first underlay stitches land cleanly without the fabric bouncing.
  • If it still fails: increase stabilization (move from tearaway to cutaway) and slow the machine speed to the safer cap range.
• Q: Why does the Baby Lock Venture cap driver limit speed to 400–600 SPM, and what should I watch in the first 30 seconds to prevent bird nesting or needle strikes?
  A: Do not override the cap speed limit—caps on a cantilevered frame can vibrate, causing flagging, bird nesting, and needle problems.
  • Start at 400 SPM and only increase if the cap is stable; keep 600 SPM as a practical max for most structured caps.
  • Run Trace and hand-wheel one rotation to confirm clearance from the bill and metal frame before stitching.
  • Watch registration and listen: rhythmic “thump-thump” is normal; sharp “clack-clack” suggests contact or looseness.
  • Success check: underlay lands where expected, sound stays consistent, and no wobble/play is felt in the mounted frame.
  • If it still fails: stop, re-check driver ring latch engagement, re-check driver screw tightness, and verify the cap is drum-tight in the frame.
