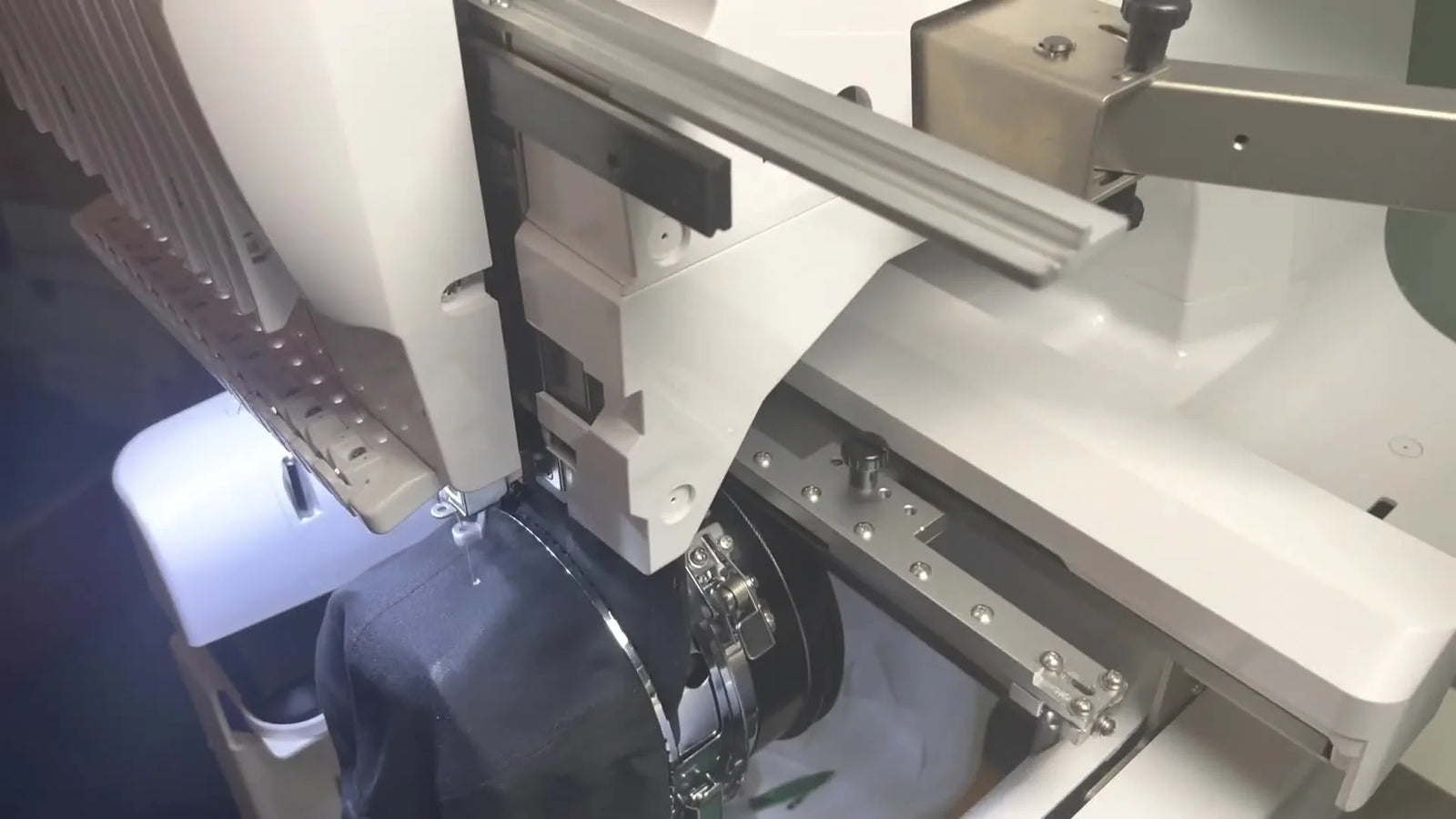

Cap Driver to Clean Stitching: A No-Panic ROMAKER Dad Hat Workflow (Plus the Fixes That Save Needles and Time)

Cap embroidery is one of those jobs that looks simple—until you snap a needle on the center seam, the design lands too close to the brim, or the hat comes out with a perfect logo… and a not-so-perfect ring mark that ruins the merchandise.

Rob’s video provides a solid “from cap hoop to embroidery” workflow on a ROMAKER multi-needle machine, utilizing a standard cap driver and mechanical cap frame. However, as an educator who has watched thousands of beginners struggle with this specific transition, I’m going to rebuild his demonstration into a “Shop-Standard” Protocol. We will move beyond just "getting it done" to "getting it done safely and profitably," adding the sensory checks and safety buffers that experienced operators use intuitively.

Calm the Panic: What the ROMAKER Cap Driver Is (and Why Caps Feel So Unforgiving)

If you’re here because your cap setup feels “off,” or you are terrified of the loud CRACK of a breaking needle, you are not alone. Caps are mechanically hostile environments. Unlike a flat T-shirt, a cap is curved, multi-layered, and often features a thick hardened center seam—meaning the needle is constantly being asked to punch through changing densities while the fabric is under extreme tension.

Two specific factors make caps the most frustrating task for beginners:

1. Flagging (The Bounce): Because the cap is suspended in mid-air on a cylinder, if it isn't hooped perfectly tight, the fabric bounces up and down with the needle. This causes bird nesting and broken needles.
2. The Center Seam Ridge: This is the "danger zone." As the needle moves from the thin panel to the thick folded seam, it can deflect (bend) and strike the metal throat plate.

If you’re switching from flats to caps, treat it like a different job type entirely. It requires more patience, slower speeds, and a tactile understanding of tension. That mindset alone prevents 90% of disasters.

The “Hidden” Prep Before You Touch the Screen: Cap Frame, Hat Fit, and a Tightness Reality Check

Rob starts with a hat that’s already hooped in a mechanical cap frame. He wisely mentions that hat hooping is its own discipline, but most failures are effectively "programmed" before the frame ever touches the machine.

Here is the Pre-Flight Inspection you must perform. Do not mount the cap until these conform:

• The "Drum Skin" Test: Press your finger against the front panel of the hooped cap. Does it deflect easily like a loose sheet? Or does it feel firm, like a drum? It needs to be firm. If the fabric is loose, the machine cannot form a stitch loop properly.
• The Dad Hat Variable: Rob uses an unstructured "dad hat." These are notoriously slippery. While Rob skips stabilizer in the video, my expert advice for beginners is to use a layer of tear-away stabilizer. It adds friction and prevents the cotton twill from shifting under the needle.
• The Hardware Check: Inspect your cap frame band. Is the metal jagged? Is the wire bent? Damaged hardware is the leading cause of "ghost" registration errors.

Rob also points out an optional white piece—the cap gauge. He says he doesn't use it on dad hats, but it exists to fill the void between the cap driver and the needle plate.

• Pro Tip: Use it. Especially when learning. It supports the cap from underneath, preventing the "flagging" issue mentioned earlier.

If you are accustomed to a standard hooping for embroidery machine workflow for flats, the single most important physical cue to relearn is this: Suspension. In flats, the table supports the fabric. In caps, you create the tension limits.

Prep Checklist (Do NOT Proceed Until Checked)

• Hardware Integrity: Cap frame ring, wire, and clips are intact; nothing is cracked or warped.
• Tension Check: The hat is hooped tightly; fabric does not "bubble" when pressed.
• Hidden Consumable: Fresh Needle installed (Titanium 75/11 Sharp is recommended for thick seams).
• Stabilizer: Backing is present inside the cap (highly recommended for beginners).
• Thread Path: Bobbin area is clean of lint (caps are sensitive to bobbin tension).
• Tools Ready: Micro-snips/scissors handy for jump stitches.


Seat the ROMAKER Cap Driver the Right Way: Align the Notches Before You Tighten Anything

Rob installs the cap driver by aligning two notches on the driver with the machine’s mounting rail (the pantograph). The key detail he repeats is critical: don’t tighten first—seat first.

If you tighten the screws before the driver is fully seated, you will install it crooked. A crooked driver means your design will be sewn diagonally, no matter how straight you hooped the hat.

The Precision Protocol:

1. Clear the Deck: Move the pantograph (the arm) all the way back so you have visual clearance.
2. Tactile Alignment: Slide the driver onto the bar. Feel for the "clunk" as the two notches drop into their varying slots.
3. The Wiggle Test: Before tightening, try to wiggle it left and right. It should essentially be locked by the notches alone.
4. Secure: Tighten the two thumbscrews firmly by hand. Do not use pliers (you will strip the threads), but get them as tight as your fingers allow.

Checkpoint: grasp the protruding cylinder bar. It should feel like a solid extension of the machine chassis—zero rocking.

Warning: Mechanical Safety
Keep your fingers clear of pinch points around the driver mount and needle area. The X-Y carriage moves with significant torque. Never attempt to adjust the driver screws while the machine is powered on or in a "Ready to Sew" state.

Load the Hooped Hat Without Smashing Needles: The Sideways-In, Rotate-90° Move That Saves You

Rob demonstrates a loading maneuver that must become muscle memory. This is non-negotiable for preserving your needle bar alignment.

The "Sideways-90" Maneuver:

1. Approach: hold the hooped hat with the bill facing 3 o'clock or 9 o'clock (sideways).
2. Insert: Slide the hat under the needle head. Because the bill is sideways, it clears the needle bar mechanism.
3. Rotate: Once the hat is under the needles, rotate it 90 degrees so the bill faces forward (12 o'clock).

Why? Caps sit high. If you try to shove a cap frame straight in (bill forward), the sweatband or bill will collide with your needles or presser feet, potentially bending the needle bar.

If you’re coming from a generic cap hoop for embroidery machine setup on a different brand, this spatial awareness is universal. The clearance is always tighter than it looks.

The Three-Click Lock Test: If You Don’t Hear It, Don’t Sew It

This is the most critical sensory check in the entire process. Rob is very specific: align the tab/slot, push firmly, and you must hear three distinct clicks.

The cap frame attaches to the driver at three points: two upper spring-loaded clips and one lower locking stabilizer.

The Auditory Standard:

1. Align: Match the center tab on the hoop with the slot on the driver.
2. Thrust: Push the frame toward the machine body with even pressure on both sides.
3. Listen: Click (Left) ... Click (Right) ... CLUNK (Bottom).

It often happens fast (Snap-Snap-Snap), but you need to account for all three.

The "Pull-Back" Validation: Once you hear the clicks, grab the bill of the cap and give it a gentle tug away from the machine.

• Success: The frame pulls the entire machine carriage with it.
• Failure: The frame slips or wobbles slightly. If it wobbles, one clip missed. Eject and retry.


Close the Gap Near the Needle Plate: When the White Support Piece Matters

In the video, Rob discusses the white support gauge. While he suggests it's optional for the dad hat he is running, I strongly advise you to understand its physics.

The Physics of "Flagging": When the needle punches down, it pushes the fabric down. When the needle pulls up, friction pulls the fabric up. If there is a gap between the throat plate (the metal plate on the machine) and your hat, the hat fabric will "flutter" in that gap.

• Result: The loop of thread underneath doesn't form at the right time ($\to$ missed stitches) or the needle hits the plate ($\to$ explosion).

The White Gauge Rule:

• Use it if your cap feels spongy or if the gap between the cap ID (inner diameter) and the machine arm is greater than 3mm.
• Skip it ONLY if your cap is incredibly tight and riding perfectly flush against the arm (rare for beginners).


Make the ROMAKER Screen Work for You: Select “Cap Frame” So the Design Auto-Rotates Correctly

Rob moves to the touchscreen to configure the machine logic. This step prevents the embarrassing mistake of sewing a logo upside down.

The Digital Sequence:

1. Select design.
2. Navigate to Hoop Selection.
3. Choose the Cap Frame Icon.
4. Vital Step: Accept the warning “Frame may move: caution!” (Stand back when you press this; the machine will recalibrate the center point).

What Just Happened? The software did two things:

1. It limited the sewing field size (preventing you from hitting the metal frame).
2. It rotated the design 180 degrees. (When you look at a cap on the machine, the bill is "up" relative to the sewer, but "down" relative to the wearer. The machine knows this).

Advanced Context: If you are trying to standardize your workflow—perhaps integrating a mighty hoop for your flat garment runs—you might notice your machine allows custom hoop assignments. While Mighty Hoops are primarily for flats, knowing how to navigate the hoop database is essential. Consult your manual before adding custom definitions to avoid crashing the pantograph.

Stop Nudging Every Single Time: Position the Design Up from the Brim (and Build a Repeatable Habit)

A recurring frustration for operators is: "My machine centers the design, but that's too low on the cap!" The machine's mechanical "center" is often too close to the brim for a visually pleasing logo.

The "Bottom-Up" Technique: Rob manually moves the design up on the Y-axis (towards the crown).

• Why? You cannot sew through the metal strap of the cap frame (near the brim).
• How much? Move it up until the trace clearly clears the sweatband/frame line, then add another 10mm for visual balance.

The "Trace" is Mandatory: Never press 'Start' without running a Trace/Contour check. Watch the needle (needle #1 is safest for tracing) travel the perimeter of the design.

• Visual Check: Does the needle verify a safe distance from the metal brim clamp? Does it clear the top crown curves? If the needle shadow touches metal during the trace, the real needle will shatter.


Setup Checklist (Ready to Stitch?)

• Software Logic: "Cap Frame" is selected; design is rotated 180° automatically.
• Clearance: Design moved "Up" (Y-axis) approx 15-20mm from the brim line.
• Trace Confirmed: No collision with the metal frame or bill during the contour trace.
• Needle Selection: Proper needle selected (Rob uses #8) and threaded.
• Gap Check: No significant gap between the hat fabric and the needle plate.

The Needle-Break Insurance Policy: Slow the ROMAKER Down Before the Center Seam Bites You

Rob makes a crucial observation: he listens to the machine and decides to slow it down. This is the mark of a pro. He recommends caps at 500 RPM (SPM), warning against the default 1000 RPM.

The "Safe Zone" for Beginners: I recommend a strict speed limit of 500 - 600 SPM for your first 50 caps.

The Physics of Speed: At 1000 SPM, the needle is a high-velocity projectile. If it glances off the thick center seam of a dad hat, it doesn't just bend—it snaps. At 500 SPM, the needle has a better chance of sliding past the tough fibers rather than colliding with them.

Commercial Reality: You might think, "Slowing down hurts my profits!" False.

• Time to sew a 5,000 stitch logo at 1000 SPM: ~5 minutes.
• Time to sew at 600 SPM: ~8 minutes.
• Time to fix a broken needle, re-thread, and salvage a ruined cap: 15-20 minutes (plus cost of goods).

Slower is faster.

Warning: Needle Safety & Flying Debris
When testing cap speeds, always wear safety glasses. If a needle breaks on a cap seam rotating at 600+ RPM, the tip can become shrapnel. Never lean your face close to the needle bar to "see better" while the machine is running.

Stitch the Logo Like a Pro: Watch the “Feel” of the Cap, Not Just the Screen

Rob stitches a white logo on a black hat. During the run, he observes the cap tension.

Develop Your "Embroidery Ear" (Auditory Anchors):

• Good Sound: A rhythmic, dull thump-thump-thump. This means the needle is penetrating cleanly.
• Bad Sound: A sharp slap-slap or a metallic ting. This indicates the cap is flagging (slapping the plate) or the needle is grazing the metal hook guard.
• Danger Sound: A laboring grind or varying pitch. The motor is fighting resistance (likely the center seam).

Action: If the sound changes as the needle approaches the center seam, lower the speed instantly.

Unload Without Twisting the Frame: Release the Three Latches, Rotate Back, and Slide Out Clean

Just as you loaded carefully, you must unload carefully to preserve the driver's alignment.

The Exit Protocol:

1. Release: Pop the top two latches and the bottom stabilizer clip.
2. Pull Back: Slide the frame slightly toward you to disengage.
3. Rotate: Turn the hat 90 degrees (sideways) to clear the bill past the needles.
4. Remove: Slide it out.

Why this matters: Yanking the frame out without rotating forces the driver bar out of alignment over time. If your driver gets bent by 1mm, every future cap will be crooked.

Remove Hoop Burn the Safe Way: Water, Light Mist, Gentle Rub—Then Let Fibers Relax

Rob identifies "hoop burn"—the ring of compressed fabric left by the tight clamping. His fix is the classic industry trick:

1. Mist: Lightly spray fresh water on the mark.
2. Agitate: Rub gently with a fingernail or a scrap of same-colored fabric.
3. Time: Let it dry. The water swells the cotton fibers, causing them to spring back to shape.

While effective, this is a distinct "pain point" in production. It adds labor time to every single unit. (We will discuss how to eliminate this shortly).

Clean Up the Last Two Jump Stitches: Trim Smart So the Back Doesn’t Turn Into a Thread Nest

Rob uses small scissors to trim jump stitches. On multi-needle machines, managing trims is vital.

The "Bird's Nest" Risk: If your machine leaves long tails underneath the cap, they can tangle on the next run.

• Pro Tip: For the first cap of any batch, flip it inside out immediately after sewing. Inspect the bobbin work. If you see "loopies" or snarled thread, your top tension is likely too loose, or the cap wasn't hooped tightly enough.
• Tool Check: Keep Curved Precision Snips (specifically curved tips) at your station. The curve prevents you from accidentally snipping the fabric when cutting threads flush.


The Decision Tree: Stabilizer Support vs. Speed vs. Hoop System

Rob shows one way (No stabilizer, mechanical hoop). But is it the right way for you? Use this logic flow to decide.

Decision Tree: Operations & Tools

1. Are you stitching on unstructured hats (Dad Hats)?
   • Yes: YOU NEED STABILIZER. Use tear-away to prevent registration errors.
   • No (Structured/Trucker hats): You might get away without it, but stabilizer is always safer.
2. Does the design cross the Center Seam?
   • Yes: SLOW DOWN (Max 500 SPM). Use a Titanium Needle (75/11).
   • No (offset logo): Safe to run at 600-700 SPM.
3. Are you experiencing Hoop Burn regularly?
   • Yes: You are clamping too tight for the fabric type, OR you need to upgrade your hooping tech (see below).
   • No: Proceed with current mechanical frames.
4. Are you scaling production (50+ hats/week)?
   • Yes: Investigate magnetic systems to reduce wrist strain and burn marks.
   • No: Standard frames are sufficient.

If you are setting up a hooping station for embroidery that handles both flats and caps, ensure your cap driver is calibrated to the same "center" as your station to save setup time.

The Upgrade Path That Actually Makes Sense: When Magnetic Hoops and Better Consumables Pay You Back

Rob’s workflow is functional, but it highlights two specific commercial pain points: Hoop Burn and Wrist Fatigue.

If you are serious about embroidery as a business, you solve problems with tools, not just technique.

1. The Solution for Hoop Burn & Wrist Pain: Traditional mechanical frames require significant hand force to clamp, and they crush the fabric fibers (burn).

• The Upgrade: magnetic embroidery hoops.
• Why: They use magnetic force to hold the material without "crushing" it into a ring, virtually eliminating hoop burn. They also self-adjust to different fabric thicknesses, meaning you don't have to adjust screws when switching from a thin dad hat to a thick wool cap.

2. The Solution for Speed & Volume: If you find yourself waiting on the machine, or dreading the single-needle thread changes:

• The Upgrade: A dedicated multi-needle platform like SEWTECH.
• Why: Production machines like SEWTECH are built with heavier chassis to dampen the vibration of cap sewing, allowing for higher stable speeds and fewer thread breaks than converting a smaller machine.

Warning: Magnetic Field Safety
If you upgrade to magnetic systems (like the powerful magnetic hoop for brother embroidery machine variants or industrial equivalents), be aware they use Neodymium magnets.
1. Keep away from pacemakers.
2. Watch your fingers—they snap together with bone-crushing force.

Whether you are looking for a specialized hoop master embroidery hooping station to speed up your flats or a hat hoop for brother embroidery machine to diversify your existing gear, the principle remains: Stability is King.

Operation Checklist (The Final "Don't Ruin It" Pass)

• Lock Confirmed: Heard the "Three Clicks" when mounting the frame.
• Speed Limit: Set to ~550 SPM for the seam crossing.
• Auditory Monitor: Listened for the "thump-thump" rhythm during the first 100 stitches.
• Safe Unload: Rotated 90° before removing the frame; didn't pry it out.
• Quality Check: Hoop burn misted away; jump stitches trimmed flush.

FAQ

• Q: How do I prevent broken needles on the ROMAKER multi-needle machine when cap embroidery crosses the center seam on an unstructured dad hat?
  A: Cap embroidery across a center seam should be run slower (about 500–600 SPM) and approached like a high-density zone to avoid needle deflection and impact.
  • Set speed to 500–600 SPM before the design reaches the center seam area.
  • Install a fresh sharp needle (the blog’s recommendation is a Titanium 75/11 Sharp for thick seams).
  • Listen and react: reduce speed immediately if the sound changes approaching the seam.
  • Success check: the machine keeps a steady “thump-thump” rhythm with no metallic “ting,” and the needle completes the seam area without snapping.
  • If it still fails: re-check hoop tightness (flagging) and confirm the design trace clears all metal hardware before running again.
• Q: How do I confirm a ROMAKER mechanical cap frame is mounted correctly to the cap driver using the “three-click lock” test?
  A: Do not sew unless the ROMAKER cap frame locks with three distinct engagement points and passes a pull-back validation.
  • Align the center tab on the cap frame with the slot on the cap driver.
  • Push in evenly until the lock engages at three points (two top clips plus the bottom stabilizer).
  • Tug gently on the cap bill away from the machine to verify the frame is truly captured.
  • Success check: the frame pulls the whole carriage slightly when tugged, with zero wobble or slip.
  • If it still fails: eject the frame and re-seat it—one clip likely missed, and sewing will risk collisions and needle breaks.
• Q: How do I load a hooped cap into a ROMAKER cap driver without hitting the needle bar, presser feet, or smashing needles?
  A: Use the sideways-in, rotate-90° loading move so the cap bill clears the needle area before you face it forward.
  • Hold the hooped cap with the bill facing 3 o’clock or 9 o’clock (sideways).
  • Slide the cap under the needle head while the bill is sideways to maintain clearance.
  • Rotate the cap 90° only after the frame is fully under the needles so the bill faces forward.
  • Success check: the cap enters and exits without any contact marks or “bump” against needles/presser feet.
  • If it still fails: stop and re-check approach angle and clearance—forcing a straight-in load commonly bends or snaps needles.
• Q: When should the ROMAKER cap embroidery setup use the white cap gauge/support piece to reduce flagging and missed stitches?
  A: Use the white support piece when the cap feels spongy or there is a visible gap near the needle plate; it helps prevent fabric flutter (flagging).
  • Install the support piece if the gap between the cap inner area and the machine arm is greater than about 3 mm (as described).
  • Choose the support piece especially during learning or when sewing softer, unstructured caps.
  • Re-check fabric behavior after mounting—caps are suspended, so support matters more than on flats.
  • Success check: the cap rides more flush near the needle plate with less “slap” sound and fewer missed stitches.
  • If it still fails: revisit hoop tightness (“drum skin” feel) and add tear-away stabilizer for more friction/support.
• Q: What pre-flight checklist prevents bird nesting and registration problems on ROMAKER cap embroidery with a mechanical cap frame?
  A: Most cap failures are “programmed” before mounting—tight hooping, clean bobbin area, and basic hardware/consumable checks prevent nesting and drift.
  • Press-test the hooped front panel for a firm “drum skin” feel (not a loose deflection).
  • Add tear-away stabilizer inside unstructured dad hats to reduce shifting (recommended for beginners).
  • Clean lint from the bobbin area and confirm the thread path is correct before stitching.
  • Success check: the first stitches form cleanly with no looping underneath and no fabric bounce/flagging.
  • If it still fails: inspect cap frame band/wire/clips for damage or jagged edges that can cause “ghost” registration issues.
• Q: How do I prevent the ROMAKER multi-needle machine from sewing a cap design in the wrong orientation using the touchscreen “Cap Frame” setting?
  A: Select the “Cap Frame” hoop icon on the ROMAKER screen so the machine applies the correct cap logic, including the required 180° rotation.
  • Select the design, then open Hoop Selection and choose the Cap Frame icon.
  • Accept the “Frame may move: caution!” warning and stand clear while the machine recalibrates.
  • Run a trace/contour check before sewing to confirm safe travel.
  • Success check: the traced outline matches the expected cap orientation and stays clear of the metal frame/brim clamp.
  • If it still fails: stop and verify the correct hoop type is selected—do not compensate by guessing rotation without a trace.
• Q: How can cap hoop burn be removed after embroidery on a dad hat without damaging the stitched logo?
  A: Lightly mist the hoop burn ring with fresh water, rub gently, and let the fibers relax as they dry.
  • Mist the ring mark lightly (do not soak).
  • Rub gently with a fingernail or a scrap of same-colored fabric to lift compressed fibers.
  • Let the cap air dry so the cotton fibers can rebound.
  • Success check: the ring mark fades noticeably after drying, without distorting the stitched area.
  • If it still fails: reduce clamping pressure on future caps, and consider upgrading the hooping method (magnetic systems often reduce crush marks and wrist strain).
• Q: What magnetic hoop safety rules should be followed when using neodymium magnetic embroidery hoops for production?
  A: Treat magnetic embroidery hoops as pinch-and-medical-risk tools: keep them away from pacemakers and keep fingers out of the closing path.
  • Keep neodymium magnetic hoops away from pacemakers and similar medical devices.
  • Separate and join the hoop parts with controlled grip—do not let magnets “snap” together.
  • Train operators to keep fingertips out of the contact edge during loading.
  • Success check: the hoop halves come together under control with no sudden snap and no pinched skin.
  • If it still fails: pause production and revise handling technique—magnetic force is not forgiving, and safer hand placement is the fix.
