From Screen to Stitch: The Ultimate Guide to Digitizing & Production Quality

If you’ve ever digitized a design that looked crisp and perfect on your computer screen—only to stitch it out and find gaps, white slivers, or outlines that don’t line up—you are not alone. This is the "Expectation vs. Reality" gap that causes 90% of beginner frustration.

Embroidery is a physical medium. Unlike a printer that lays ink flat, your machine is pushing a needle through fabric 800 times a minute, creating tension, distortion, and displacement. A digital file is just a blueprint; the fabric, hoop, and stabilizer are the construction site.

This guide rebuilds the workflow from a popular tutorial into a "shop-floor ready" standard operating procedure (SOP). We will cover the software steps in Hatch, but more importantly, we will apply the physical laws of embroidery—tension, friction, and hoop stability—that ensure your design actually works on a real garment.

The Calm-Down Moment: Why Perfect Nodes Don’t Guarantee Perfect Stitches

Digitizing is 50% geometry and 50% material physics. Software like Hatch shows you an idealized view. It doesn’t show you that cotton shrinks when stitched heavily, or that polyester pulls inward.

When a design fails, it usually stems from three physical realities:

1. Push/Pull Compensation: Stitches pull the fabric in (shortening the object) and push it out (widening it).
2. Hoop drift: If your fabric isn't "drum tight," the registration (alignment) will shift by the time the machine gets to the black outline.
3. The "Lying" Hoop Size: A 5x7 hoop does not give you 7 inches of stitching room.

By following this embroidery digitizing tutorial, you are learning to compensate for these physical forces before you press start.

Phase 1: The Graphic Foundation (Canva)

We start with a graphic. In the example workflow, Taylor uses Canva to build a "Cow Print Flower" with a smiley face. The goal here is Contrast and Simplicity.

The "Production-Ready" Graphic Rules:

• Bold Shapes: Avoid spindly lines. If a line is thinner than 1mm, your machine will struggle to form a satin stitch.
• Clear Edges: High contrast between the flower and the background helps auto-digitizing tools detect boundaries accurately.
• Limited Palette: Plan your colors now. In this case: Yellow, Black, White.

Export Note: Save your design as a high-resolution PNG. This format supports transparency and preserves sharp edges better than a compressed JPEG, making the next step in Hatch much cleaner.

Prep Checklist: The Pre-Flight Safety Check

• Check Consumables: Do you have 75/11 Ballpoint needles (for knits) or Sharps (for wovens)? A dull needle causes 50% of "bad digitizing" issues.
• Clean the Machine: Remove the bobbin case. Look for lint. Blow it out. Even a tiny lint ball can wreck tension.
• Hoop Reality: Verify exactly which hoops you own. Don't digitize for a 5x7 if you only have the 4x4 loaded.
• Color Plan: Stage your thread cones in order. This prevents panic-changes mid-stitch.

Phase 2: Mastering Hatch (The "How" and The "Why")

Step 1: Control the Base with "Click-to-Fill"

Inside Hatch, create a new blank design. Import your PNG. Most beginners jump straight to "Auto-Digitize Everything." Don't do this.

Instead, use the Click-to-Fill tool (Apple icon) to manually control the foundation layers.

• The Logic: You want to lay down the "carpet" (base fill) before you put down the "furniture" (details).
• Sequence: Select the White base layer first, then Yellow. Save Black for last because outlines must always sit on top of fills to look crisp.


Step 2: The "No-Gap" Fill Strategy

When filling the yellow layer, select “Click to fill without holes.”

• The Physics: If you leave a hole in the yellow layer for the black spots to fit into, you are relying on perfect alignment. In the real world, fabric shifts. By filling without holes, you create a solid yellow foundation. The black spots will stitch over the yellow, eliminating any chance of fabric peeking through.
• Sensory Check: When this stitches out, efficient movement sounds like a rhythmic hum. If the machine is constantly trimming and jumping between tiny holes, you'll hear erratic clunk-zip-clunk noises.

Warning: Safety First! When observing a stitch-out, never put your fingers inside the moving hoop area to trim a thread tail while the machine is running. A 900 SPM needle moves faster than your reflex. Always hit STOP before reaching in.

Step 3: Controlled Auto-Digitizing

Now, use the Auto-Digitize Embroidery tool (Flower icon)—but choose the second option (specific selection).

• Omit the layers you already built manually (Yellow, White).
• Keep the Black layer as "Details."

This hybrid method gives you the best of both worlds: human logic for the structure, computer speed for the complex details. This workflow is a staple in professional Hatch embroidery software training.

Step 4: Stitch Types—Satin vs. Tatami

This is a critical decision for texture and wearability.

• Satin Stitches: Long, lustrous threads. Best for narrow columns (borders, text) and small details (eyes).
  • Limit: Do not use Satin for areas wider than 7mm-10mm. The loops will snag in the wash.
• Tatami (Fill) Stitches: A flat, woven texture. Best for large areas (the flower petals).
  • Decision: Taylor switches the large flower fills to Tatami. This creates a stable "mat" that won't snag.


Phase 3: The "Underlap" Secret (Physics of Pull)

This is the most important step in the entire article.

In embroidery, adjacent colors pull away from each other. If you place a black circle right next to a white circle, a gap will open up between them on the fabric.

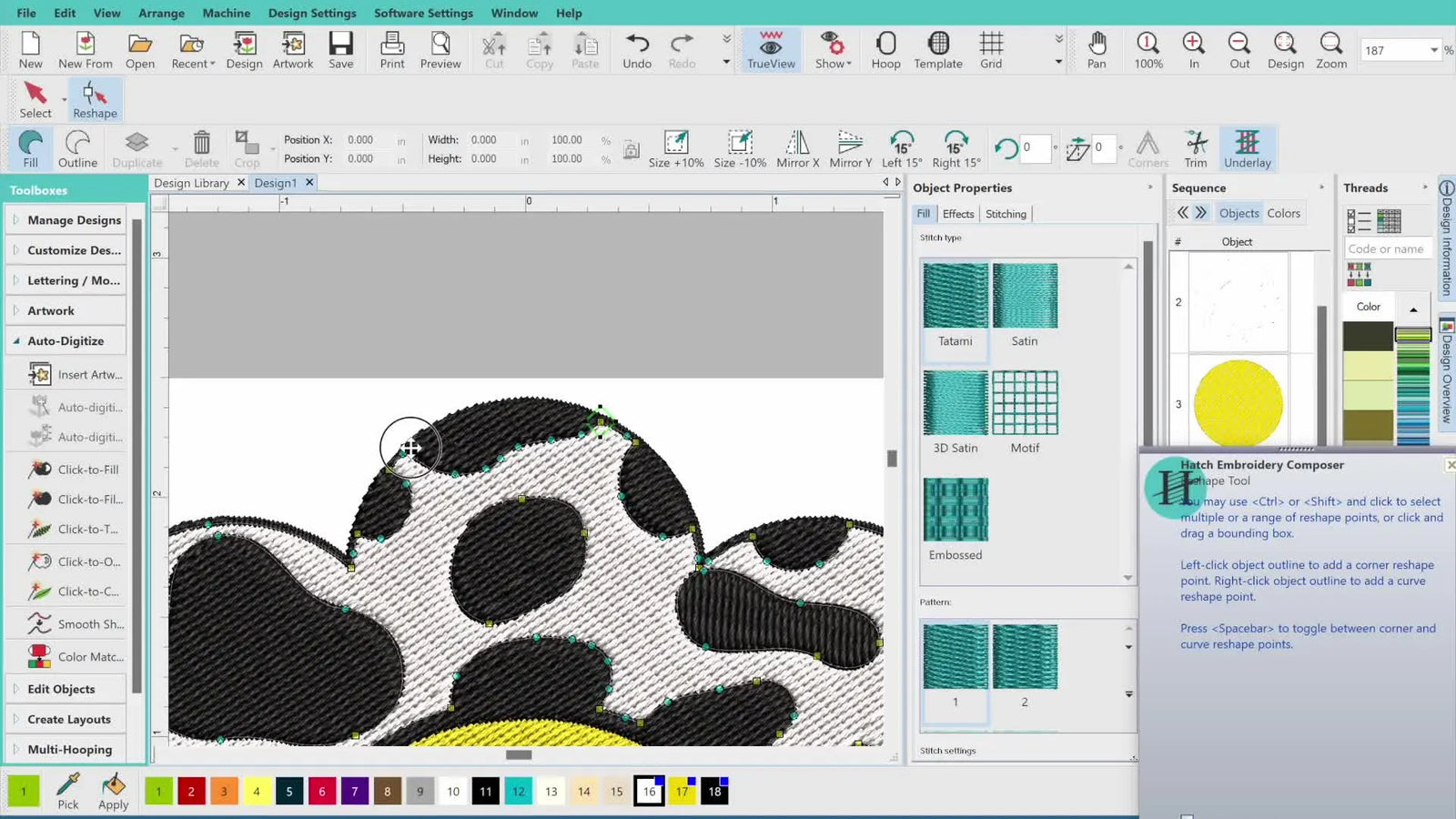

The Fix: Manual Underlap.

1. Zoom in on the nodes.
2. Select the bottom object (e.g., the white fill).
3. Drag the edge nodes to extend underneath the top object (the black spot).
4. Aim for at least 1.5mm to 2mm of overlap.

Visual Anchor: Think of shingles on a roof. They don't just touch edges; they overlap. This ensures that even if the roof expands or contracts with heat, no water gets in. Similarly, overlap ensures no garment fabric shows through your design.

Step 5: The "Indestructible" Border

A thin "Single Run" outline will get buried in the textured fabric of a towel or hoodie. For a border that pops:

1. Create a solid shape of the entire flower.
2. Convert it to an Outline.
3. Change the type to Satin.
4. Set width to 2.5mm - 3.5mm.

A Satin border acts like a frame, hiding any minor rough edges of the Tatami fill underneath.

Phase 4: The Reality of Hoops (Sizing for Safety)

Beginners often think a 5x7 hoop means they can design a 5x7 inch square. They are wrong. The machine needs clearance for the presser foot.

The 5x7 Safety Zone

• Nominal Size: 5" x 7"
• Actual Safe Field: Approx 4.85" x 6.85"
• The Rule: Keep your design width under 4.9 inches.

If you are designing for a brother 5x7 hoop, pushing the limit to 5.0" will result in the dreaded "Design Too Large" error message on your screen, forcing you to shrink it on the machine—which ruins your density calculations.

The 4x4 Safety Zone

• Nominal Size: 4" x 4"
• Actual Safe Field: 3.85" x 3.85"
• The Rule: Cap your design at 3.80" or 3.85".

For users of the brother 4x4 hoop, this margin is non-negotiable. It is better to have a slightly smaller design that loads instantly than to struggle with resizing errors.

Setup Checklist: The Export Protocol

• Save Native: Always save as .EMB (Hatch) first. This is your editable source code.
• Export Stitch File: Save as .PES (or your machine format) after resizing for the specific hoop.
• Naming Convention: File names should be explicit. Flower_Cow_5x7.pes and Flower_Cow_4x4.pes.
• Jumps: Did you turn on "Auto-Trim" for jumps longer than 2mm? Check this now to save manual trimming time later.

Phase 5: Batch Conversion & File Management

Taylor demonstrates using the Hatch Design Library to batch convert files. This is essential if you are selling designs or running a shop with mixed machine brands (e.g., utilizing convert embroidery files from PES to DST or EXP).

Pro Tip: Avoid zipping files with passwords. It creates friction for customers and leads to endless support emails.

Phase 6: The "Physical" Upgrade Path (Hooping & Stabilization)

You have a perfect file. Now, meet the enemy of perfection: Friction & Fatigue.

The video mentions using 505 Spray to keep fabric stuck to the stabilizer. This is a "Level 1" fix for fabric shifting. However, if you are doing production runs or fighting with thick garments, spray isn't enough.

The "Hoop Burn" & Alignment Crisis

Traditional hoops work by friction—jamming an inner ring into an outer ring.

• The Pain: This leaves "hoop burn" (shiny crushed rings) on delicate fabrics like velvet or performance wear.
• The Struggle: Hooping a thick hoodie or a pocket area on a 4x4 hoop is physically exhausting and often results in crooked embroidery.

The Solution Hierarchy: From Beginner to Pro

When you hit a wall, diagnosis is key. Do you need more practice, or do you need better tools?

1. Level 1: Stability (Consumables)
   • Problem: Fabric puckering within the hoop.
   • Fix: Use the correct stabilizer (Cutaway for knits, Tearaway for woven). Use temporary spray adhesive.
2. Level 2: Efficiency (Hooping)
   • Problem: Hoop burn, wrist pain, or slow output on single-needle machines.
   • Fix: Upgrade to Magnetic Hoops. A brother 4x4 magnetic hoop or the larger 5x7 equivalent uses powerful magnets to clamp the fabric flat without forcing rings together. This eliminates hoop burn and makes re-hooping 5x faster.
3. Level 3: Capacity (Machine)
   • Problem: You are turning away orders because you can't change threads fast enough (Single needle bottleneck).
   • Fix: This is when you graduate to a multi-needle machine (like the SEWTECH 10-needle or 15-needle models). Combine this with industrial magnetic embroidery hoop systems, and your daily output can triple.

Warning: Magnet Safety. Magnetic hoops (especially industrial ones) use strong Neodymium magnets. They can pinch fingers severely if they snap together unexpectedly. Keep them away from pacemakers, as the magnetic field can interfere with medical devices.

Decision Tree: The "Perfect Setup" Finder

Use this logic flow to determine the right combination for your project.

Start: What is your fabric?

1. T-Shirt / Stretchy Knit
   • Stabilizer: Fusible Poly-Mesh (No-Show Mesh) or Cutaway.
   • Hoop: Magnetic Hoop preferred (avoids stretching the fabric while hooping).
   • Needle: Ballpoint 75/11.
2. Towel / Fleece (High Pile)
   • Stabilizer: Tearaway (Back) + Water Soluble Topping (Top).
   • Note: The topping prevents stitches from sinking into the fluff.
   • Hoop: Magnetic Hoop is essential here. Traditional hoops crush the pile and leave permanent marks.
3. Denim / Canvas (Stable Woven)
   • Stabilizer: Tearaway.
   • Hoop: Standard or Magnetic (both work well).
   • Needle: Sharp 80/12 or 90/14.

Troubleshooting: The "Why is this happening?" Matrix

Before you panic, check these likely culprits in order of cost and complexity.

Operation Checklist: The Final Go/No-Go

• Test Stitch: Run the design on a scrap of similar fabric first. Never stitch the first run on the customer's expensive jacket.
• Stabilizer Match: Is the stabilizer tight? It should sound like a drum when tapped.
• Top Topping: If the fabric has texture (pique polo, towel), did you add the water-soluble topping?
• Hoop Clearance: Manually trace the design area (using the machine's "Trace" button) to ensure the needle won't hit the plastic frame.
• Watch the First layer: Watch the underlay stitch out. If it looks loose or puckered, STOP immediately. It's easier to rip out 100 stitches than 10,000.

By combining careful digital prep in Hatch with the right physical tools—like correct stabilizers and ergonomic hoops—you move from "hoping it works" to "knowing it will."

FAQ

• Q: How do I prevent gaps and “white slivers” when digitizing adjacent colors in Hatch Embroidery Software?
  A: Add manual underlap so the lower color extends under the top color by about 1.5–2.0 mm.
  • Zoom in and select the bottom object (for example, the white or yellow fill).
  • Drag edge nodes outward so the shape overlaps underneath the next color object.
  • Keep outlines stitching last so borders sit on top of the fills.
  • Success check: After stitch-out, no garment fabric shows between color edges even if the fabric shifts slightly.
  • If it still fails: Increase overlap slightly (often 0.5 mm more) and improve hoop stability to reduce hoop drift.
• Q: In Hatch Embroidery Software, why should “Click-to-Fill without holes” be used for the base fill instead of leaving holes for details?
  A: Use “fill without holes” to create a solid foundation so small alignment shifts do not reveal fabric between layers.
  • Build the base fills first (for example, white base layer, then yellow), and stitch black details on top.
  • Avoid designs that force constant trims and tiny jumps between holes.
  • Success check: The stitch-out looks solid with no peek-through, and the machine sounds like a steady rhythmic hum (not constant clunk-zip-clunk).
  • If it still fails: Reduce jumpy details by simplifying the detail layer or re-check the stitch sequence so details truly run last.
• Q: How can Brother 5x7 hoop users avoid the “Design Too Large” error when exporting PES files?
  A: Keep the design width under about 4.9 inches because the usable stitch field is smaller than the hoop’s nominal size.
  • Resize for the specific hoop before export, then save the editable source file first.
  • Save the native file (for example, Hatch .EMB), then export the stitch file (.PES) after final sizing.
  • Name files by hoop size (for example, Flower_Cow_5x7.pes) to prevent loading the wrong version.
  • Success check: The design loads without forcing on-machine shrinking, and the machine trace clears the hoop frame.
  • If it still fails: Re-check the actual safe field on the machine screen and reduce the design slightly rather than forcing a “fit.”
• Q: How can Brother 4x4 hoop users avoid sizing and loading problems when digitizing for a 4x4 field?
  A: Cap the design at about 3.80–3.85 inches so the file fits the real safe sewing area.
  • Digitize and finalize density at the target size instead of shrinking on the machine.
  • Use the machine “Trace” function before stitching to confirm the needle path will not hit the hoop.
  • Keep separate files for 4x4 vs larger hoops to avoid accidental oversize loads.
  • Success check: The design traces inside the frame with clearance and starts stitching without a size warning.
  • If it still fails: Reduce the design slightly and re-export rather than relying on the machine to auto-resize.
• Q: What is the safest way to trim thread tails or check stitches during a high-speed embroidery stitch-out (800–900 SPM needle area)?
  A: Stop the machine completely before putting hands near the moving hoop or needle area.
  • Hit STOP first, then trim or remove thread tails with the hoop fully stationary.
  • Observe the first layer (especially underlay) from outside the hoop area without reaching in.
  • Keep focus on clearance and movement; do not “sneak in” fingers while it runs.
  • Success check: No near-misses occur, and thread tails are removed only while the machine is motionless.
  • If it still fails: Slow down the process by planning trims between color changes and enabling auto-trim for longer jumps where available.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops with Neodymium magnets?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers and sensitive medical devices.
  • Separate and reconnect magnets slowly to prevent snapping together unexpectedly.
  • Keep fingers out of the clamp line when closing the magnetic frame.
  • Store magnets controlled so they cannot slam together on a metal surface.
  • Success check: The hoop closes without a snap-impact, and no pinching occurs during clamping.
  • If it still fails: Switch to a calmer handling routine (two-hand placement, controlled lowering) and keep the workspace clear to prevent sudden magnet attraction.
• Q: How do I diagnose hoop burn, crooked embroidery, and slow re-hooping on a Brother single-needle embroidery machine, and when should I switch to a magnetic hoop or a multi-needle machine?
  A: Start with stabilizer and setup, then upgrade hooping tools if marks/pain persist, and upgrade machine capacity only when thread-change bottlenecks limit orders.
  • Level 1 (stability): Match stabilizer to fabric (cutaway for knits, tearaway for wovens) and use temporary spray adhesive if shifting occurs.
  • Level 2 (efficiency): Switch to a magnetic hoop when hoop burn, wrist pain, or repeated crooked hooping slows output.
  • Level 3 (capacity): Move to a multi-needle machine when frequent thread changes on a single-needle machine cause missed deadlines or turned-away orders.
  • Success check: Fabric stays clamped flat without shiny rings, alignment stays consistent through the outline stage, and re-hooping time drops significantly.
  • If it still fails: Re-check hoop tightness (“drum tight” feel), confirm hoop size reality (safe field), and run a test stitch on scrap before production.
