Candy-Cane Striped Letters in Embrilliance Enthusiast: Split, Re-Color, Fix Jumps, and Stitch in a Smarter Order

If you’ve ever watched a stitch-editing tutorial and thought, “I get it… until the jump stitches won’t behave,” you’re not alone. Stitch editing feels magical right up to the moment a connector line refuses to change, or your rectangle selection grabs half the next letter.

In this post, I’m going to rebuild a classic Embrilliance workflow into a clean, repeatable process you can follow without rewinding 20 times. We’ll create candy-cane striped lettering from a standard built-in font, split it into three stitch objects, recolor it, and then execute the two “grown-up” fixes that separate hobby results from production-ready files:

1. Converting long connectors into proper jumps with tie-offs.
2. Re-sequencing stitch order to minimize travel and thread trims.

I will also layer in the physical realities of embroidery—because a file that looks perfect on screen can still break needles if you don't understand the physics of what happens when the start button is pressed.

The Calm-Down Moment: “It’s Not Letters Anymore—It’s Stitches” (Embrilliance Enthusiast Stitch Editing)

The biggest mental shift—especially if you’re new to Enthusiast—is this: once you convert a lettering object, you’re no longer editing text. You’re editing a stitch file.

Think of it like baking a cake. The "Lettering Object" is the batter—you can still change the flavor (font) or the shape (size). Once you "Convert to Stitches," the cake is baked. You can slice it (split) or frost it (recolor), but you can't turn it back into batter.

This is why you have to click on specific stitch points rather than typing a new letter. There is no longer a protected “H” or “o” object with typography rules. There are only stitch segments—coordinates of X and Y movements—and each segment can behave differently depending on how it was split.

One more reassurance: if your jump stitches seem to “not come off,” you’re usually not failing—you’re just discovering there are more connector stitches than you expected, or you selected the wrong stitch in a back-and-forth travel area. We’ll address that directly in the troubleshooting section.

The “Hidden” Prep Pros Do First: Page Setup, Built-In Fonts, and a Save-Before-You-Break Habit

Lisa starts from scratch by creating a new design page, then building the word “Holiday” using the Lettering Tool in Embrilliance Essentials, choosing the built-in University font.

Why that matters: Built-in fonts keep lettering properties and allow resizing with automatic stitch recalculation (density adjustment). This is crucial. If you resize a stitch file (DST/PES) by more than 20%, you risk altering the density to dangerous levels—either too sparse (gaps) or too dense (needle breaks).

She sets the hoop size to 130mm x 180mm.

Pro Tip on Physics: Before you edit, visualize your final material. If you are stitching this on a stretchy performance tee, you will need a Cutaway stabilizer. No exceptions. The "Drum Skin" rule applies here: when hooped, the fabric should be taut but not stretched. Tap it—it should sound like a dull thud, not a high-pitched ping.

Prep Checklist (The "Pre-Flight" Safety Check):

• Asset Protection: Save a "Master_Lettering_Editable.BE" file before converting. Once you convert, you cannot fix a typo.
• Hoop Reality: Confirm the hoop size in software matches the physical hoop you own (e.g., 130mm x 180mm).
• Zoom Discipline: Turn on a comfortable zoom level (200%+) so individual stitch paths are visible.
• Consumables Check: Do you have the right needle? For standard lettering on cotton, a 75/11 Sharp is standard. For knits, use a 75/11 Ballpoint.
• Plan the Split: mentalize your stripe plan (top/middle/bottom) so your split lines are intentional.


The Point of No Return: Using “Convert to Stitches” on an Embrilliance Lettering Object

With the lettering object selected, Lisa right-clicks and chooses Convert to Stitches.

What you should expect to see (this is your checkpoint): In the Object Pane, the item changes from a lettering object (often an 'A' icon or no disclosure triangle) to a stitch design object with a disclosure triangle expanding to show color blocks.

Expected outcome: You can now do stitch-level selection, splitting, and multi-color assignment.

Warning (Destructive Action): “Convert to Stitches” removes lettering properties permanently in that file. You cannot change the spelling or font after this click. If you haven't saved a backup yet, stop and do it now.

The Clean Split Trick: Rectangle Select + Red Line Split for a 3-Stripe Candy Cane Layout

Now we enter Stitch Editing (Enthusiast module). Lisa uses Rectangle Select, which is cleaner than the freehand lasso for geometric splits like stripes.

Split #1: Create the bottom stripe

• Go to Stitch Editing.
• Use Rectangle Select and draw a box around the lower portion of the word.
• Visual Anchor: She aligns the top of the selection rectangle with the bottom of the letter “y” loops. This ensures the cut doesn't look like a mistake.
• Click the Red Line Split button (“Split the stitches into a new design”).

Checkpoint: You should now have two objects in the right panel: a top portion and a bottom portion.

Split #2: Create the middle stripe

• Use Rectangle Select again to isolate the middle section.
• Visual Anchor: Pay close attention to the crossbar area of the “H”. You want the split to happen in the vertical legs, leaving the crossbar fully inside one color zone if possible to avoid tiny, unstable stitches.
• Split again.

Checkpoint: Your Object Pane should show three distinct objects (top, middle, bottom).

Why split placement matters (The "Digitizer Brain" explanation)

When you split stitches, you aren't just cutting color; you are cutting the "travel path." If your split line crosses an area where the original stitch path travels back and forth (underlay), you can create multiple connector segments that look like one single jump but are actually three or four overlapping stitches. This is why "Jump and Ensure Ties" sometimes fails on the first click—you fixed one layer, but three more are underneath.

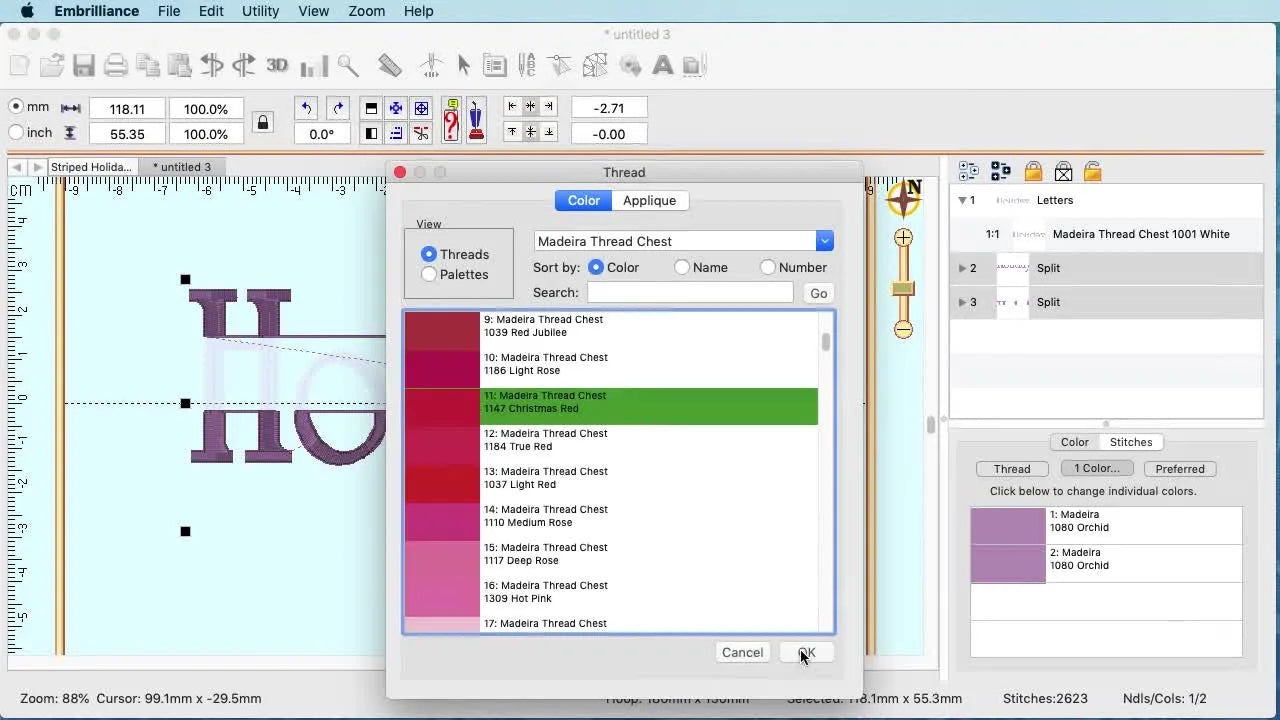

Color Like a Pro: Assign White to the Middle, Madeira Xmas Red to Top + Bottom

Lisa’s color assignment:

• Select the middle object -> White.
• Multi-select the top and bottom objects (Shift-click) -> Madeira Xmas Red Thread.

Expected outcome: The word becomes a red-white-red striped “candy cane” look.

A practical note on production files

If you are stitching this on a single-needle machine, this design requires two manual thread changes.

• Section 1: Red (Top)
• Section 2: White (Middle)
• Section 3: Red (Bottom)
• Total: 2 stops.

If you are using a SEWTECH Multi-Needle Machine, you assign Needle 1 to Red and Needle 2 to White. The machine will stitch Red -> White -> Red automatically without stopping. This is the "Productivity Gap": a multi-needle machine turns this job from a 15-minute "babysitting" task into a 5-minute "walk away" task.

The Fix Everyone Gets Stuck On: Turning Long Connectors into “Jump and Ensure Ties”

After splitting, Lisa points out a critical reality: splitting does not automatically insert jump stitches or tie-offs.

You will see long straight lines connecting the disjointed parts (e.g., from the top of the 'H' to the top of the 'o'). If you stitch this as-is, the machine will drag the needle across your fabric, leaving a long thread you have to trim by hand. Worse, without tie-offs (lock stitches), the embroidery will unravel after the first wash.

Make the workspace readable: hide the white layer

• Select the white layer.
• Click the Lock and Hide icon (padlock/eye) in the Object Pane.
• Why: This prevents you from accidentally grabbing stitches on the wrong layer.


Convert a connector to a jump (The Exact Protocol)

1. In Stitch Editing mode, zoom in until you can see the individual needle points (small dots).
2. Hover over the long connector thread.
3. Left-click the long thread. It should change color or highlight to show it is selected.
4. Right-click on that same selected stitch.
5. Choose Jump and Ensure Ties.

Expected outcome: The solid connector line changes appearance (often becoming dashed or disappearing depending on view settings), indicating it is now a non-stitching movement.

Warning (Physical Safety): A connector you think is a jump may still be a "travel stitch" that crosses dense satin. If your machine runs a travel stitch through a dense area at 800 stitches per minute (SPM), needle deflection can occur. This leads to broken needles which can fly towards your eyes. Always run the Stitch Simulator to verify the path is clear.

The “Why Would I Grab Each Section?” Answer: Sequencing with Cut/Paste to Control Stitch Order

A couple of commenters asked: What’s wrong with letting it stitch out as-is?

If you don't re-sequence, the machine looks at the "Red Top" object and stitches it left-to-right. Then it jumps to "Red Bottom" and stitches left-to-right again. This creates long hops across the design.

Lisa demonstrates Cut/Paste Sequencing to make the letter "H" stitch fully (top and bottom parts) before moving to the "o".

The Method

1. Zoom in closely. Accuracy is non-negotiable here.
2. Use Rectangle Select to isolate a specific segment (e.g., the bottom leg of the H).
3. Cut (Cmd+X / Ctrl+X).
4. Paste (Cmd+V / Ctrl+V).

Expected outcome: The pasted segment becomes a new object at the end of the sequence list. You are manually telling the machine: "Stitch this last."

Comment-based “Pro tip” (Selection Accuracy)

Rectangle selection can accidentally grab stitches from adjacent letters. The fix: Zoom in. If you are struggling with mouse precision, it is similar to the physical struggle of alignment. If you master the art of hooping for embroidery machine placement, you understand that a millimeter off in setup equals a crooked design. Treat your mouse cursor with the same respect you treat your hoop placement.

Setup Checklist (The "Sequence" Logic Check):

• Visibility: Hide the stripe layer you’re not actively editing.
• Magnification: Zoom until you see individual stitch points.
• Tool Check: Confirm you are in Stitch Editing mode + Rectangle Select.
• Object Verification: After each Cut/Paste, look at the Object Pane. Did a new object appear? If not, the paste failed.

Merging the Holly Element: Import, Place, Then “Move First” for Cleaner Color Management

To finish the design:

• Merge Stitch File (Import the Holly).
• Position it over the "i".
• Right-click and Move First.

Why First? By stitching the Green/Red holly first, the machine handles those colors, then moves to the text. This is basic logical sequencing to prevent the presser foot from snagging on existing 3D satin stitches.

Troubleshooting the “Scary” Moments: What Your Symptom Really Means

Here is a structured diagnosis table for the most common issues beginners face during this process.

A Decision Tree You’ll Actually Use: When to Stay in Software vs. When to Upgrade Your Physical Workflow

We have spent a lot of time in software, but 50% of embroidery failures happen outside the computer. Here is when you need to stop editing and start fixing your physical setup.

Decision Tree: What is your actual bottleneck?

1. Problem: Design looks perfect on screen, but stitches out puckered or gaps appear between stripes.
   • Diagnosis: Poor Stabilization or Hooping.
   • Solution: Use a heavier Cutaway stabilizer. If you are dragging/pulling fabric to fit the hoop, you are over-stretching. Consider magnetic embroidery hoops which clamp down without the "tug-and-screw" distortion of traditional hoops.
2. Problem: You dread doing this design because alignment on the shirt takes 10 minutes per item.
   • Diagnosis: Workflow Efficiency issue.
   • Solution: You need a mechanical aid. A hooping station for embroidery allows you to slide the shirt on and clamp it in the exact same spot every time, cutting setup time by 70%.
3. Problem: The design runs great, but changing threads 4 times for one word is boring.
   • Diagnosis: Capacity Constraint.
   • Solution: This is the sign you are ready for a multi-needle machine (like SEWTECH models). Production logic dictates that if thread changes take longer than the stitch time, you are losing money.

The Upgrade Path (Without the Hard Sell): Eliminate Friction

Once you master software splitting, your equipment becomes the limit. Here is the professional progression:

• Level 1: The Hobbyist. You use standard hoops. You fight hoop burn (the ring mark left on fabric).
  • Upgrade: Search for terms like magnetic embroidery hoop to find frames that hold delicate fabric firmly without crushing the fibers. This eliminates the need to steam out ring marks later.
• Level 2: The Side Hustle. You have orders. Consistency is key.
  • Upgrade: A embroidery hooping station ensures your "Holiday" text is straight across the chest every single time. Re-doing a crooked shirt costs you the shirt + 30 minutes. The station pays for itself in saved inventory.
• Level 3: The Pro. You need speed.
  • Upgrade: Standardization. Using consistent machine embroidery hoops across all your machines allows you to hoop a backlog of garments while the machine is running, creating a continuous flow.

Warning (Hardware Safety): Magnetic frames contain industrial-grade magnets. They are incredibly strong. Keep fingers clear of the snapping zone to avoid severe pinching. Do not place them on pacemakers or near magnetic storage media.

Operation Checklist: The “Run It Like a Shop” Final Pass Before You Export

Before you save that .PES or .DST file, run this final quality check.

Operation Checklist (Final Pass):

• The Simulator Test: Watch the virtual needle in the software. Does it jump where it should? Does it travel efficiently?
• Tie-Off Verification: Click the start and end of your split segments. DO you see the small "lock node"? Without this, your stripes will unravel.
• Stitch Count Check: If a segment has fewer than 10 stitches (tiny specks), delete it. It’s just "thread confetti" that clutters the design.
• Center Alignment: Ensure the whole design is centered in the hoop (X=0, Y=0).
• Consumables Ready: Do you have your stabilizer (Cutaway for knits, Tearaway for towels), your Spray Adhesive (to fix the fabric to the stabilizer), and your Thread Snips ready?

Embroidery is a mix of digital precision and physical craft. Master the split in Embrilliance, but respect the physics of the hoop. Happy stitching!

FAQ

• Q: In Embrilliance Enthusiast, why does “Jump and Ensure Ties” not remove all long connector stitches after a Red Line Split?
  A: This is common—there are often multiple stacked connector/travel stitches, so one click fixes only one layer.
  • Hide and lock the non-active color object in the Object Pane to avoid selecting the wrong layer.
  • Zoom in until individual stitch points (dots) are clearly visible, then click the connector line to highlight it.
  • Right-click the highlighted connector and choose Jump and Ensure Ties again on the next visible connector.
  • Success check: the solid connector changes to a non-sewing movement (often dashed or disappears in the current view).
  • If it still fails: run the Stitch Simulator to locate any remaining travel path crossing dense areas.
• Q: In Embrilliance Enthusiast Stitch Editing, why does the right-click menu show “Ensure ties” but NOT “Jump” when selecting a connector line?
  A: The connector line was not actually selected—Embrilliance is seeing a nearby stitch point or empty space, not the line.
  • Zoom closer and hover directly over the long connector until the correct element highlights.
  • Left-click the connector line first (confirm it changes color/appearance), then right-click on that same highlighted line.
  • Repeat on a different segment if the connector is made of several tiny sections after splitting.
  • Success check: the menu includes Jump and Ensure Ties, and the connector no longer shows as a normal stitch line.
  • If it still fails: temporarily hide other objects (Lock/Hide) so only the target layer is selectable.
• Q: In Embrilliance Enthusiast, how can Rectangle Select be stopped from grabbing stitches from the next letter during a stripe split?
  A: Work much more zoomed-in and redraw a tighter selection—this is a precision issue, not a skill failure.
  • Increase zoom (a safe working level is extremely close—many users go to 600% for tight lettering areas).
  • Hide and lock nearby stripe layers so Rectangle Select cannot accidentally include them.
  • Redraw the rectangle smaller and align the split using a clear visual anchor (example: the lower loops of a “y”).
  • Success check: only the intended letter section highlights before using Red Line Split.
  • If it still fails: split in smaller chunks instead of trying to grab a large area in one pass.
• Q: In Embrilliance Essentials/Enthusiast, what is the safest workflow before clicking Convert to Stitches on a lettering object (built-in font like University)?
  A: Save an editable master file first, because Convert to Stitches permanently removes lettering editability in that file.
  • Save a backup file (example naming: “Master_Lettering_Editable”) before converting.
  • Confirm the design page hoop size matches the physical hoop (example used: 130 mm × 180 mm).
  • Avoid resizing a stitch file format (DST/PES) more than about 20% without expecting density risk; built-in fonts are safer because they recalculate stitches.
  • Success check: after converting, the Object Pane shows a stitch design object with a disclosure triangle and color blocks.
  • If it still fails: close without saving and reopen the pre-conversion master file to correct spelling/font.
• Q: What is the correct hooping “success standard” (the Drum Skin rule) for machine embroidery to prevent puckering when stitching split striped lettering?
  A: Hoop the fabric taut but not stretched—aim for a dull “thud,” not a tight “ping.”
  • Tap the hooped fabric and listen: dull thud = correct; high-pitched ping = over-stretched.
  • Match stabilizer to fabric behavior (knits generally need cutaway; towels often use tearaway as a common approach).
  • Keep the fabric flat and supported—do not pull fabric to “make it fit” the hoop.
  • Success check: after stitching, stripes stay aligned without gaps and the fabric relaxes flat when unhooped.
  • If it still fails: upgrade stabilization (heavier cutaway) before changing the design.
• Q: What needle should be used as a safe starting point for Embrilliance lettering stitch-outs, and how does needle choice change for knits?
  A: A safe starting point is 75/11 Sharp for standard cotton lettering, and 75/11 Ballpoint for knits to reduce fabric damage.
  • Install the needle type that matches the fabric (Sharp for woven cotton; Ballpoint for knit).
  • Re-hoop using the Drum Skin rule so needle choice isn’t forced to compensate for bad hooping.
  • Test stitch a small sample of the same fabric/stabilizer stack before running the full design.
  • Success check: clean satin edges with no fabric runs on knits and no frequent thread breaks.
  • If it still fails: slow down and verify the stitch path in the simulator for travel stitches through dense satin.
• Q: How can needle-break risk be reduced when Embrilliance Enthusiast creates a connector that accidentally travels through dense satin at high stitch speed?
  A: Don’t trust the screen—verify the path with the Stitch Simulator and convert risky connectors into proper jumps with tie-offs.
  • Run the Stitch Simulator and watch for travel stitches crossing dense areas instead of jumping.
  • Select the specific connector segment and apply Jump and Ensure Ties so the machine does not stitch through the dense fill/satin.
  • Hide/lock other layers to prevent selecting the wrong stitch segment during edits.
  • Success check: the simulator shows a non-sewing move where the connector used to stitch, and the needle path avoids dense satin crossings.
  • If it still fails: re-check for stacked connector stitches created by the split and convert each one.
• Q: When should an embroidery workflow move from software fixes to upgrading physical workflow tools like magnetic embroidery hoops, a hooping station, or a SEWTECH multi-needle machine for multi-color split lettering?
  A: Use a tiered approach: fix technique first, upgrade tools when the bottleneck is physical distortion, slow setup, or excessive thread-change downtime.
  • Level 1 (Technique): improve stabilization/hooping if the design looks good on screen but puckers or gaps during stitch-out.
  • Level 2 (Tooling): use magnetic embroidery hoops or a hooping station when hoop burn, fabric distortion, or slow alignment becomes the main time sink.
  • Level 3 (Capacity): move to a SEWTECH multi-needle machine when thread changes take longer than stitching (example workflow: Red → White → Red causes stops on single-needle).
  • Success check: setup time drops and repeatability improves (straight placement, fewer re-hoops, fewer rejects).
  • If it still fails: audit the whole run with a checklist (simulator path, tie-offs present, hoop size match, correct stabilizer) before buying more capacity.
