Can You Really Convert a PES File Back to SVG? The Honest Workflow (and the Time Traps) from Inkscape + Silhouette Studio

The Anatomy of a Stitch File: Why Converting PES to SVG Is Harder Than You Think (And How to Do It Right)

If you have ever been handed a client’s .PES file and thought, "I’ll just convert it back to SVG to tweak the shape," you are not alone. It is the single most common misconception among graphic designers transitioning into machine embroidery.

But here is the hard truth after two decades on the production floor: A PES file is a stitch map (.DST, .EXP, .JEF are the same), not a shape file.

Think of an SVG as a blueprint—it tells you where the walls go using mathematical lines. A PES file is the pile of bricks—it is thousands of individual commands telling the needle exactly where to stab the fabric. You can force those bricks back into a blueprint, but it is messy, time-consuming, and often dangerous for your machine if done poorly.

This guide rebuilds the workflow discussed in the video (using Inkscape + Ink/Stitch + Silhouette Studio Business Edition), but I have added the necessary safety barriers and sensory checks that keep you from breaking needles or ruining garments.

The Core Problem: Mathematical Curves vs. Physical Needle Punctures

To understand why "conversion" is ugly, we need to look at the DNA of the files.

An SVG (Scalable Vector Graphic) uses nodes (anchor points) to define smooth curves. In the image below, notice how clean the lines are—just a few dots creating a perfect swoosh.

A PES (Embroidery File) is the opposite. It is composed of stitch points—literal holes in the fabric. When you open a PES in software and look at the nodes, you aren't seeing shapes; you are seeing a constellation of thousands of needle penetrations.

The Physical Reality:

• SVG: Infinite scalability.
• PES: Fixed density. If you scale a PES up by 20% without recalculating, the density drops, and you see fabric showing through. If you scale down 20%, the stitches clump together, creating a hard "bulletproof" patch that snaps needles.

If your goal is a major redesign (changing the silhouette, proportions, or logo structure), stop now. You will be faster redrawing the artwork from scratch and re-digitizing it. Attempting to "fix" thousands of stitch points is the digital equivalent of trying to knit a sweater by gluing cut pieces of yarn together.

Phase 1: The "Don't Touch Yet" Prep

Before you drag a single node in Inkscape, you must run a "Pre-Flight Check." Skipping this is why beginners end up with birdnesting (that giant knot of thread under the needle plate).

1. Identify the "Mission Profile"

• Micro-Fix: A small gap needs closing (1-2mm) or a stray stitch needs moving. Action: Safe to edit.
• The Add-On: You need to put a name or number on a finished logo. Action: Safe layer addition.
• The Rebuild: You want to change a circle to a square. Action: Abort. Redraw and re-digitize.

2. The Hoop Boundary Check

One commenter noted a classic frustration: the design looks fine on the screen, but becomes "cut off" when sent to the machine. This is usually a physical conflict, not a digital one.

If you are working with a constrained field, such as the standard brother 4x4 embroidery hoop, you must treat that 100mm x 100mm limit like a brick wall. A design that is 101mm will often generate a deceptively quiet error or simply refuse to stitch the edge.

Hidden Consumables Strategy: Before starting any file edit, have your stabilizer strategy ready. If you are editing a file for a stretchy knit, assume you need a Cutaway stabilizer. No amount of software editing will fix distortion caused by using Tearaway on a T-shirt.

Prep Checklist (Complete before opening software):

• Scope: Is this a micro-fix (safe) or a structural change (unsafe)?
• Density Inspection: Open the PES. Does it look like a solid cloud of points? If yes, do not manually edit.
• Hoop Math: accurate dimensions of your target hoop (e.g., 4x4" vs 5x7").
• Backup: Save a copy as Filename_ORIGINAL.PES before touching it.

Method 1: The Micro-Fix (Inkscape Node Dragging)

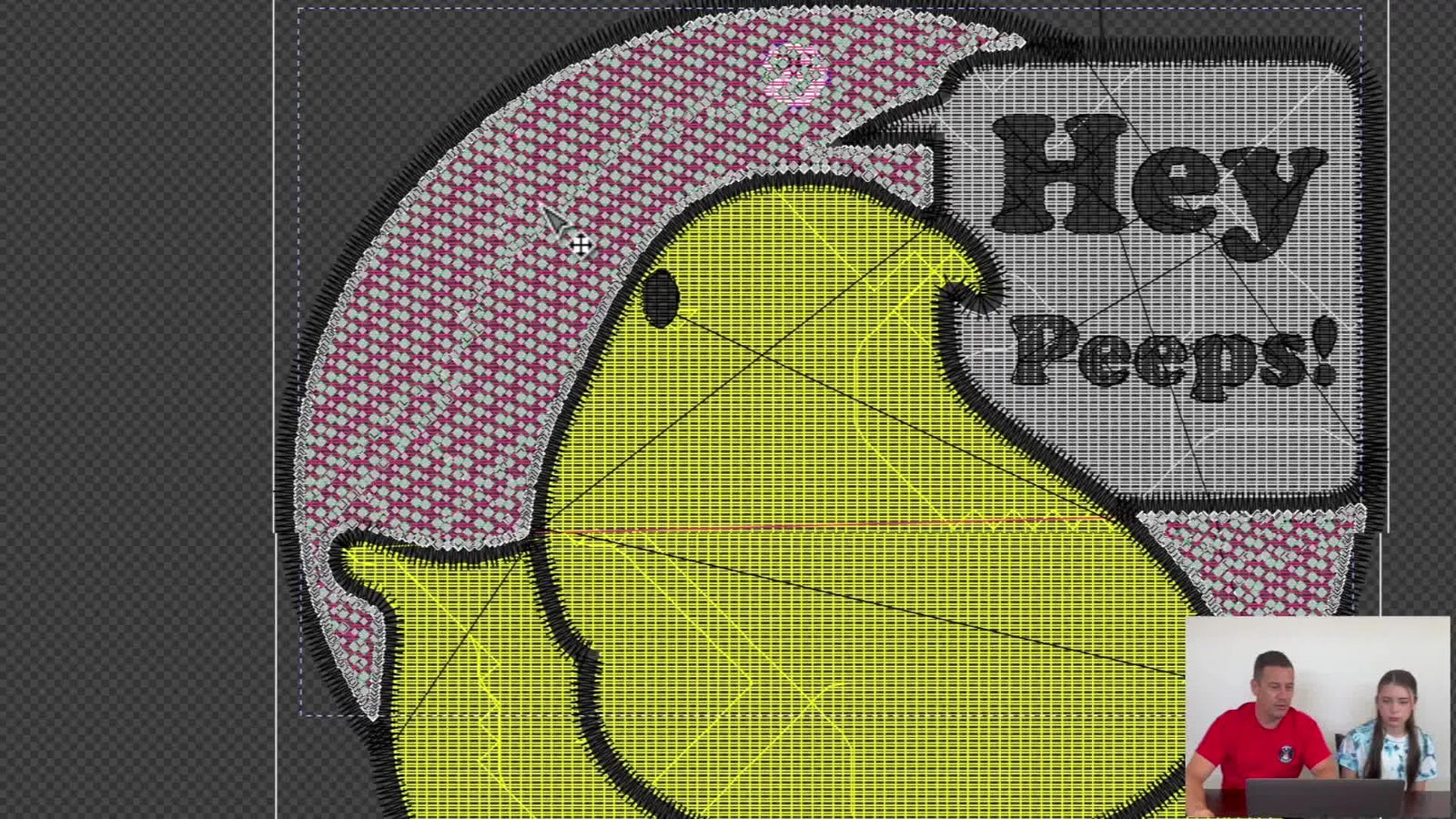

The video demonstrates opening the PES in Inkscape, switching to the "Edit Paths by Nodes" tool (F2), and manually dragging points to cover a gap.

The Sensory Anchor: When stitching a file edited this way, listen to your machine.

• Good Sound: A rhythmic, steady chug-chug-chug.
• Bad Sound: A sharp thump-thump or a grinding noise. This means you have dragged nodes too close together, creating a "density pileup" where the needle is striking the same spot repeatedly.

My Production Rule: If you have to move more than 5 nodes, you are doing it wrong. This method is strictly for closing tiny gaps where the fabric might show through.

Warning: Mechanical Hazard. Editing dense stitch nodes manually can inadvertently create "Long Jump Stitches" (trimmer catchers) or "Zero-Length Stitches" (needle breakers). Keep your hands clear of the needle area during the test stitch-out, and wear eye protection if you are testing a file with unknown density modifications.

Method 2: The Add-On (Adding Text in Ink/Stitch)

This is the most commercially viable workflow: taking a generic design and personalizing it.

The process:

1. Extensions > Ink/Stitch > Lettering.
2. Type the text (e.g., "TEAM CAPTAIN").
3. Position it over or under the imported PES design.


The "False Positive" Error

In the video, the user encounters an error when running "Params" on the combined design. Don't Panic. Ink/Stitch often struggles to calculate parameters for imported raw stitch data mixed with new vector data.

The Fix: Rely on the Visual Simulator (Simulator/Realistic Preview). If the simulation shows the needle traveling correctly, the file is usually safe.

Constraint Check: If you are adding text using a machine with a small maximum sewing area, such as the brother se600 hoop, you must leave a safety margin. Text that runs right to the edge of the digital canvas often hits the plastic frame of the physical hoop, causing layer shifting.

Setup Checklist (Before Saving):

• Layer Order: Text is a separate object, not merged into the original stitch cloud.
• Simulation: Watch the virtual needle. Does it jump wildly?
• Safety Margin: 5-10mm buffer from the hoop edge.
• Format: Export as a new file name.

Method 3: The Trace (Silhouette Studio to SVG)

This method is a "Hack" to get vector shapes from stitches.

1. Open PES in Silhouette Studio Business Edition.
2. Open the Trace Panel -> Select Trace Area.
3. Adjust "Threshold" until the stitch block is yellow.




The Result: You get a vector, but it is "Jagged." Imagine trying to draw a circle using an Etch-A-Sketch. That is what a wide Satin Stitch looks like to a tracing program—a zigzag line, not a smooth curve.

Handling Artifacts

You will see "Ghost Holes" and odd cutouts.

The Cleanup: When you export this trace as an SVG (File > Save Selection > SVG) and bring it back into Inkscape, you must clean it up.

In Inkscape, use Path > Object to Path.

Expert Advice: Do not use these traced shapes for final output without simplifying them.

• If for reference: Use Path > Simplify (Ctrl+L) to reduce the node count drastically.
• If for re-digitizing: Trace over this mess with the Bezier pen tool manually. Do not trust the auto-trace for final stitch generation, or your edges will look like a saw blade.

The "Cut Off" & Hooping Frustration (Troubleshooting)

A viewer commented that their design keeps getting cut off when they put the hoop on the machine, even though the preview looks fine.

This is rarely a software bug; it is usually an Alignment or Template Mismatch.

The Diagnostic Logic (Low Cost -> High Cost)

1. Check Physical Hoop Size: Are you trying to stitch a 4x4" design in a hoop that registers as 3.5" due to grid settings?
2. Check Center Alignment: Is your design centered in the software? If it is 1mm off-center, and the design is maxed out, it will clip.
3. Check the Hoop Type: Are you using a brother repositional hoop? These have multiple installation positions. If you tell the machine you are in Position 1 but lock the hoop in Position 2, the design will stitch into the air or hit the frame.

The Commercial Bridge: When to Stop Editing and Upgrade

We have spent 1500 words talking about fixing files. But often, the problem isn't the file—it's the friction of the process.

If you are spending 45 minutes fixing a PES file and re-aligning it because you can't get the garment straight in the hoop, your bottleneck is Hooping, not Digitizing.

The "Is It Worth It?" Decision Matrix:

• Scenario A: One-off personal gift.
  • Solution: Use the software hacks above. It’s free and fine.
• Scenario B: Production run of 20 shirts with custom names.
  • Friction: Traditional hoop screws hurt your wrists; alignment takes 5 minutes per shirt; "Hoop Burn" (ring marks) requires ironing.
  • Solution: This is where efficient shops switch to magnetic embroidery hoops for brother or similar machines. Magnetic frames allow you to "slap and snap" the garment without tightening screws or forcing inner rings, reducing hooping time from 5 minutes to 30 seconds.

Process Standardization: High-volume shops don't just guess alignment. They use a system. While many search for the industry-standard hoop master embroidery hooping station or the hoopmaster hooping station as a benchmark for repeatability, the concept is what matters: Mechanical consistency. Using a hooping station paired with magnetic frames ensures that "Center Chest" is in the exact same spot on Shirt #1 and Shirt #50, eliminating the need to edit files just to fix placement errors.

Warning: Magnetic Safety. Professional magnetic hoops use N52 industrial magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Device Safety: Keep magnets at least 6 inches away from pacemakers or insulin pumps.

Decision Tree: The Workflow Selector

Use this logic to decide your next move instantly.

1. Do you need to fix a <2mm gap?
   • YES -> Method 1: Inkscape Node Drag (Careful!).
   • NO -> Go to step 2.
2. Are you adding a Name/Number?
   • YES -> Method 2: Ink/Stitch Lettering Module.
   • NO -> Go to step 3.
3. Do you need a rough shape reference to start a new design?
   • YES -> Method 3: Silhouette Trace -> Export SVG -> Clean in Inkscape.
   • NO -> Go to step 4.
4. Do you need a clean, scalable Logo for a banner?
   • YES -> Abort: Redraw manually with Bezier tool. Do not convert.

Operation Checklist: Final Safety Pass

Before you press the green button:

• Sensory Check: Run the simulator. Are there 1000 stitches in one spot? (Risk: Needle break).
• Hoop Check: Is the design size at least 5mm smaller than the max field?
• Physical Obstruction: Rotate the handwheel manually for one full rotation to ensure the needle bar doesn't hit the hoop frame.
• Stabilizer: Match stabilizer to fabric (e.g., Cutaway for knits, Tearaway for towels).

Merging vector editing with embroidery files is a powerful skill, but it requires respecting the physics of the needle. Use the software for minor fixes, but rely on better production tools—like magnetic hoops and proper stabilizers—to solve the physical problems.

FAQ

• Q: Why is converting a Brother PES embroidery file to an SVG in Inkscape often jagged and inaccurate for logo editing?
  A: A Brother PES file is stitch points (needle penetrations), not clean vector curves, so any PES-to-SVG result is usually a rough trace rather than a true redraw.
  • Decide the goal: Use conversion only for a micro-fix (<2 mm) or for rough reference, not for a clean scalable logo.
  • Avoid “structural changes”: If the task is changing the silhouette/proportions, redraw the art and re-digitize instead of editing stitch points.
  • Use tracing carefully: If using a trace workflow, simplify nodes for reference or manually re-trace with a Bezier tool for a clean shape.
  • Success check: The resulting SVG has smooth curves with a low node count (not thousands of jagged points).
  • If it still fails… stop “converting” and rebuild the artwork manually, then digitize cleanly.
• Q: How can Inkscape node dragging on an imported Brother PES file create needle-breaking density pileups during stitch-out?
  A: Manual node dragging can accidentally stack stitches too close together, creating extreme density, zero-length stitches, or unsafe jump behavior.
  • Limit the edit: Move only a tiny number of points (a safe rule is “if more than 5 nodes need moving, don’t do it this way”).
  • Test cautiously: Run a slow test stitch-out and keep hands clear of the needle area; wear eye protection when testing unknown density edits.
  • Listen for warning sounds: Stop if the machine sound changes from steady rhythmic stitching to sharp thumping or grinding.
  • Success check: The machine runs with a steady, even stitch rhythm and the edited area fills without hard clumping.
  • If it still fails… undo the edit and re-digitize that section rather than forcing dense stitch nodes to behave.
• Q: Why does Ink/Stitch sometimes show a “Params” error when adding lettering to an imported PES embroidery design in Inkscape?
  A: This is common—Ink/Stitch may struggle calculating parameters when imported raw stitch data is mixed with new vector lettering, but the design can still be stitchable.
  • Keep objects separate: Add the text as its own object/layer instead of merging into the original stitch “cloud.”
  • Trust simulation first: Use the Ink/Stitch visual simulator/realistic preview to verify the needle path.
  • Save safely: Export under a new filename so the original PES remains untouched.
  • Success check: The simulator shows logical travel and stitch order without wild jumps across the hoop area.
  • If it still fails… simplify the plan: stitch the original design and the added text as separate files/steps (instead of forcing a single combined param run).
• Q: How do I stop a Brother embroidery design from getting “cut off” at the edge when the on-screen preview looks fine?
  A: “Cut off” stitching is usually a hoop boundary or alignment/template mismatch, not a software bug.
  • Verify physical hoop size: Confirm the actual max sewing field you are using (for example a true 4x4" / 100 mm field) and match it in software.
  • Re-center the design: Center the design precisely; even ~1 mm offset can clip a maxed-out design.
  • Leave a margin: Keep a 5–10 mm buffer from the hoop edge, especially when adding text.
  • Success check: The design boundary is visibly inside the hoop field with a clear safety margin on all sides.
  • If it still fails… check hoop type/positioning: multi-position or repositionable hoops must be mounted in the same position the machine expects, or the stitch area will shift.
• Q: What stabilizer choice should be used when editing or reworking a PES design for a stretchy knit T-shirt to avoid distortion?
  A: Use a cutaway stabilizer for knits; software edits will not fix distortion caused by using the wrong stabilizer.
  • Identify fabric behavior: Treat stretchy knits as distortion-prone before making any file decisions.
  • Commit stabilizer first: Plan cutaway stabilizer from the start if the garment is a T-shirt/knit.
  • Re-test after edits: Any change to density or lettering can increase pull, so re-stitch a test sample if possible.
  • Success check: The stitched design stays square/true with no rippling, shifting, or stretched lettering.
  • If it still fails… reduce the scope of file editing and focus on physical setup (stabilizer and hooping consistency) before touching stitch nodes again.
• Q: What is a safe final operation checklist before stitching an edited Brother PES file to reduce needle strikes and hoop collisions?
  A: Do a final safety pass: simulate, confirm hoop clearance, and physically hand-check for frame strikes before pressing start.
  • Run simulation: Look for extreme density (e.g., many stitches stacking in one spot) that can snap needles.
  • Confirm hoop clearance: Keep the design at least 5 mm smaller than the maximum stitch field.
  • Handwheel test: Rotate the handwheel manually for one full rotation to ensure the needle bar will not hit the hoop frame.
  • Success check: The needle path looks smooth in simulation and the handwheel rotation completes with no contact or binding.
  • If it still fails… stop and revert to the original file copy, then re-digitize the risky area instead of forcing a dangerous stitch map.
• Q: What magnetic hoop safety rules should be followed when using industrial N52 magnetic embroidery hoops for faster hooping?
  A: Treat N52 magnetic hoops as pinch-hazard tools and keep them away from medical devices—speed gains are real, but safety comes first.
  • Keep fingers clear: Hold fabric edges, not the snapping zone, when closing the magnetic frame.
  • Control the snap: Lower the top frame deliberately instead of letting magnets slam shut.
  • Respect medical guidance: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Success check: The hoop closes cleanly without finger pinches and the fabric is held evenly without forced stretching.
  • If it still fails… switch to slower, controlled hooping and confirm the garment thickness is appropriate for the frame’s grip before attempting production speed.
