C2S vs DST in Floriani Digitizing Pro: The One File Habit That Saves Your Designs (and Your Sanity)

When a customer calls and says, “Can you change one letter?” you don’t want that sinking feeling in your stomach.

In Floriani Digitizing Pro, the difference between a C2S file and a stitch file (like Tajima DST) is the difference between editing in minutes and rebuilding from scratch. The video uses a simple ribbon design to make the point crystal clear: C2S stores shapes (objects), DST stores stitches (needle penetrations).

Calm the Panic: Why a Floriani C2S File Isn’t “Broken”—It’s Your Editable Master

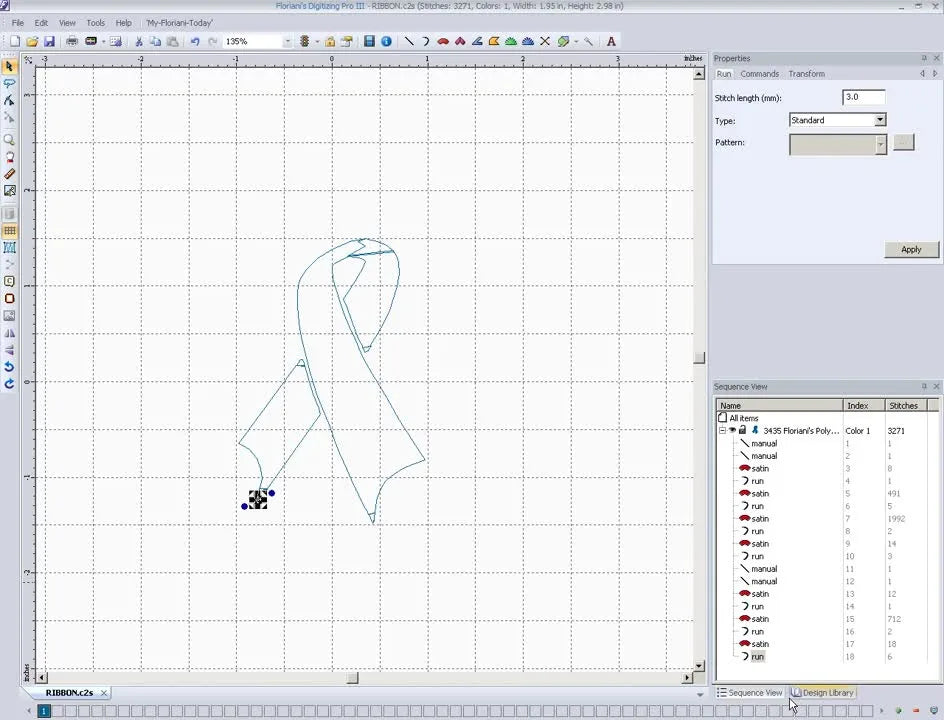

In the opening screen, the ribbon looks clean and simple because you’re seeing outline shapes, not stitches. That’s the whole point of a C2S file: it’s an object-based design file that preserves the “recipe” of the design—what the shapes are, how they’re defined, and how the software should generate stitches later.

Here’s the grounding truth that saves a lot of beginners from confusion: no embroidery machine can read a C2S file directly because the machine needs stitch-by-stitch movement instructions, not vector-like shapes. The machine is essentially a blind robot; it doesn’t know what a “ribbon” is—it only knows X and Y coordinates.

If you’re digitizing for production, treat C2S like your “source code.” You export stitch files for the machine, but you keep the C2S so you can revise without pain.

One practical habit I recommend to every shop: keep a dedicated “MASTER” folder where only editable originals live, and never overwrite them with exports.

The “Hidden” Prep Pros Do First: File Naming, Versioning, and a Clean Export Plan

Before you click Save As, decide what you’re protecting:

• The ability to move shapes without manually editing stitches
• The ability to correct text (spelling, font, placement)
• The ability to keep underlay as a property of an object (instead of a pile of separate stitch runs)

This is where a lot of shops lose money—because they export too early, then throw away the only file that can be edited cleanly.

If you’re running customer work, I strongly suggest a simple naming system:

• Customer_DesignName_MASTER.c2s
• Customer_DesignName_v1.dst
• Customer_DesignName_v2_textfix.dst

That way, when the inevitable “tiny change” request comes in, you can go straight back to the master.

Prep Checklist (do this before you export anything):

• Verify Source: Confirm you are in the .c2s environment. Sensory Check: Click on a design element—do you see "nodes" (little squares) around the shape? If yes, you are safe.
• Reference Save: Save a fresh copy with _MASTER in the filename.
• Format Target: Identify your target machine. (e.g., Brother requires PES, while commercial machines usually need DST).
• Consumables check: Have a USB drive formatted to FAT32 ready (most common for machine transfer).
• Physical Specs: Write down the requested hoop size on a sticky note. Sensory Check: Physically hold the hoop against the garment to ensure your design dimensions on screen actually fit the printable area.

Export Without Regret: Saving a Tajima (DST) Stitch File the Right Way

The video shows the exact workflow: go to File > Save As, then choose Tajima (DST) in the file type dropdown.

This is the moment where Floriani converts your object-based shapes into machine instructions.

A stitch file is essentially a sequential list of movements: it stores XY coordinates for where the needle penetrates, plus commands like stops (for color changes) and jumps (movements without stitching). Some formats may include color information, but the core is always the same: coordinates and commands.

If you’re digitizing for a tajima embroidery machine, DST is the industry gold standard delivery format because it’s widely supported and predictable in production. It strips away the "art" and leaves only the "engineering."

Warning: Exporting to DST is a one-way door for editability. Once you overwrite or lose your C2S, fixing text or reshaping elements often means deleting stitches and rebuilding—slow, error-prone, and expensive. Always "Save As" a copy, never just "Save."

What a Stitch File Really Looks Like: Dense Blue Lines, Needle Points, and Zero “Objects”

After exporting, the video toggles to show the stitch data. The ribbon becomes a dense field of blue lines—because now you’re looking at the actual stitch path.

Zooming in makes it even clearer: you can see individual satin zigzags and needle penetrations.

This is the key mental model:

• C2S = shapes + properties (object logic) - Like an architectural blueprint.
• DST = stitches only (needle logic) - Like a pile of bricks.

That’s why stitch files are perfect for running on a machine, but terrible for making clean edits. When you look at a DST file, you aren't seeing a "circle"; you are seeing 500 individual commands to move left, right, up, and down to form a circle.

The “Move One Piece, Recalculate Everything” Magic: Editing Ribbon Shapes in C2S Mode

Back in the C2S file, the instructor selects the tail of the ribbon and drags it to a new position.

This is where object-based digitizing earns its keep: you’re not moving hundreds of stitches one by one. You’re moving the shape, and the software recalculates where stitches would go.

In real shop terms, this is how you keep turnaround fast when a customer says:

• “Can you shift that element left?”
• “Can you make the tail longer?”
• “Can you resize it slightly for a different hoop?”

If you only have a stitch file, those requests become manual stitch surgery. You would have to lasso thousands of points, risking gaps in your stitching or destroying the density setting.

Adding Text in Floriani: Why “test” Is Easy Now—and Painful Later

The video then adds text: the instructor selects the Text tool, clicks the workspace, and types “test” in the properties panel.

The text appears as outlined letters above the ribbon.

At this stage, the text is still a true text object inside the C2S environment—meaning it has editable properties. You can change the font from Block to Script in one click. You can change the height from 10mm to 12mm, and the software will automatically add the necessary satin columns to maintain density.

This is also where I see many beginners accidentally create future problems: they export immediately, then delete the master because “it stitched fine once.” That’s not a workflow; that’s gambling.

The Trap That Gets Everyone Once: Reopening RIBBON.dst and Discovering Text Is Gone

Next, the video opens the DST file and shows metadata like design dimensions (2.23 x 3.96 in) and stitch count (4201).

Visually, the DST looks similar on screen.

But structurally, it’s a different world. When the instructor clicks the text in the DST, it’s no longer a text object—it’s just stitches.

This is why you “can’t edit text in a DST.” You can select stitches, but you can’t change spelling or font the way you can in C2S. The software no longer knows that's an "A"—it just knows it's a collection of 150 needle drops.

The video also points out a detail that matters in real production: underlay behavior changes when you reopen a stitch file. Underlay that used to be a property of the object (calculating itself based on width) can appear as separate manual stitch runs.

That’s not Floriani being difficult—that’s the nature of stitch files. They don’t store object relationships; they store stitch sequences.

The Fast Fix That Feels Like Cheating: Correcting “test” to “text” in the Original C2S

The instructor returns to the original C2S file, selects the text object, and simply changes the word from “test” to “text.” The lettering regenerates instantly.

And the corrected result appears cleanly.

That’s the entire lesson in one moment: edit in C2S, export to DST.

If you’re doing customer work, this habit is the difference between:

• “Sure, I can fix that today.” (5 minutes billable time)
• “I have to rebuild it, and it’ll cost extra.” (2 hours unpaid friction)

The Extra Flex You Only Get in C2S: Shaping and Arching Text Without Rebuilding

The video finishes by showing additional C2S control—manipulating the text to arch it using C2S controls.

This is exactly the kind of “small change” customers request after seeing a proof:

• “Can you curve it around the logo?”
• “Can you raise it a little?”
• “Can you make the font bolder?”

If you keep only the stitch file, you’re stuck recreating text and trying to remember what font, density, and pull compensation settings you used originally. In C2S, those settings are saved in the object properties panel.

The Why Behind the Pain: Object-Based vs Stitch-Based Data (and How It Affects Quality)

Let’s translate the video’s concept into shop-floor consequences.

1) Underlay is a relationship in C2S, but just stitches in DST

In C2S, underlay is tied to the object. If you widen a satin column, the underlay widens with it automatically.

In DST, underlay is just another set of stitches in the sequence. If you stretch a DST file, the underlay stitches stretch too, effectively ruining the structural support. This leads to gaps in the final sew-out.

2) Text is a font object in C2S, but a stitched drawing in DST

In C2S, “text” is stored as text. In DST, it’s stored as needle penetrations that happen to look like letters.

That’s why changing one letter in DST isn’t “editing”—it’s reconstructing. You are essentially trying to untie a knot rather than re-tying the shoe.

3) Clean edits protect stitch integrity

When you edit objects, the software can recalculate stitch flow more cleanly than a human dragging individual stitch points around. That often means fewer weird gaps, fewer awkward overlaps, and fewer surprises.

Generally speaking, cleaner digitizing edits can reduce production headaches like thread breaks (check for tension around 100g-120g for top thread) and ugly pull distortion—but always confirm with your machine manual and test sew-outs, because every machine and material behaves a little differently.

Decision Tree: Which File Should You Save, Send, and Archive?

Use this quick decision tree to avoid the most common “I can’t edit it anymore” disaster.

Start here: What are you trying to do?

1. Run the design on an embroidery machine:
   • Action: Export a stitch file (like DST).
   • Context: This file goes to the USB drive. It is final.
2. Revise anything (text, size, layout, arching, density):
   • Action: Open the C2S Master.
   • Context: Make changes here, then re-export a V2 stitch file.
3. Archive for a Repeat Client:
   • Action: Save BOTH.
   • Context: C2S is your insurance policy; DST is your production asset.

If you’re building a production workflow around a tajima embroidery hoop setup, this file discipline matters because physical hooping takes time. If you hoop a garment perfectly but load a bad file (that you couldn't edit properly), you waste both the garment and the labor time.

Setup Checklist: A Simple “Master + Export” Workflow That Prevents Rework

This is the workflow I’d put into any small studio on day one:

• Keep a “MASTER (Editable)” folder for C2S only.
• Keep an “EXPORT (Machine Files)” folder for DST (and other machine formats).
• Never rename the master to match the export; version the export instead.
• When a customer requests a change, open the C2S master, revise, then export a new DST.
• Store customer notes (size, spelling, placement) alongside the master.

Setup Checklist (before you deliver files to production):

• Master Check: Is the C2S saved safely?
• Format Check: Is the machine format correct (DST in the video)?
• Visual Validation: Reopen the exported stitch file once to verify it loads. Sensory Check: Does the stitch count look roughly the same? If it went from 5,000 to 500, something corrupted.
• Spelling: If text is involved, triple-check spelling.
• Comparison: Keep the C2S open while checking the DST to compare structure.

Troubleshooting the Two Most Common “Why Can’t I Edit This?” Moments

Even though the video is short, it hits the two issues that generate the most panic.

Warning: Mechanical Safety. If you try to “force” edits inside a stitch file by dragging stitch points, you can create sharp angles or stack stitches on top of each other. If stitch density exceeds safety limits (e.g., more than 4-5 layers), you risk breaking needles which can send metal shards flying. Always wear eye protection and trust the software's auto-calculations in C2S over manual hacking in DST.

The Upgrade Path (When You’re Ready): Faster Production Starts After the File Is Right

This video is about software, but the business lesson is production: your file workflow determines whether you can scale.

Once your C2S/DST discipline is solid, you will stop wasting hours fixing files. The next bottleneck you will face is physical: hooping time and operator fatigue.

If you are doing volume work on a tajima embroidery machine, upgrading your hooping workflow matters as much as your software habits. Many shops effectively move from standard machine embroidery hoops—which require screw tightening and hand strength—to tajima magnetic hoops. These use magnets to hold the fabric, drastically reducing the "hooping pain" in your wrists and ensuring consistent tension without "hoop burn" marks on sensitive fabrics.

For operators doing repeat runs, a hooping station for embroidery works in tandem with these tools to ensure alignment is perfect every time. If your file is perfect (thanks to C2S) but your hoop is crooked, you still lose the shirt.

Consider magnetic embroidery hoops as your next logical step once your software workflow is smooth—they allow you to load garments with the speed and precision that matches your newly efficient digitizing process.

Warning: Magnetic Hazard. Powerful magnetic hoops can pinch fingers severely. Handlers with pacemakers should maintain a safe distance (usually 6 inches or more) as specified by the manufacturer. Always slide magnets apart; do not try to pull them directly apart.

Operation Checklist: The “Never Lose Editability Again” Routine

Print this and tape it near your computer:

• Step 1: Digitize and edit in C2S until the design is approved.
• Step 2: Save the final editable master as .c2s (do not overwrite it with exports).
• Step 3: Export .dst (or your machine format) for the drive.
• Step 4: Reopen the DST momentarily to confirm it loads visually.
• Step 5 (The Golden Rule): If a customer requests changes, reopen the C2S master—never try to rebuild text edits inside DST.
• Step 6: Archive both files together in a client folder.

If you adopt only one habit from this tutorial, make it this: C2S is your master, DST is your delivery. That single discipline prevents the most expensive “simple change” you’ll ever get asked to do.

FAQ

• Q: Why can’t Floriani Digitizing Pro edit lettering when the design file is Tajima DST (for example, RIBBON.dst from a Tajima embroidery machine workflow)?
  A: A Tajima DST file is stitch-only, so Floriani Digitizing Pro cannot treat the lettering as a true text object—go back to the C2S master to change spelling, font, or size.
  • Open the original _MASTER.c2s file (not the exported DST).
  • Edit the text object (spelling/font/height) in C2S so the software regenerates stitches cleanly.
  • Export a new version (e.g., _v2_textfix.dst) using File > Save As and selecting Tajima (DST).
  • Success check: Click the lettering—if you see editable text/object properties (not just stitch points), the file is the correct master.
  • If it still fails: Stop trying to “surgery-edit” stitches; locate the last known C2S master copy (MASTER folder) or you may need to rebuild the lettering.
• Q: What is the safest Floriani Digitizing Pro workflow to export Tajima DST without losing the editable C2S master file?
  A: Use “Save As” to export DST and never overwrite the C2S master—C2S stays editable, DST is delivery-only.
  • Save a protected reference copy named like Customer_DesignName_MASTER.c2s.
  • Export with File > Save As > Tajima (DST) into a separate EXPORT/Machine Files folder.
  • Reopen the exported DST once to confirm it loads before sending to production/USB.
  • Success check: The reopened DST shows a reasonable stitch count (not wildly different from what you expect) and displays as stitches (dense stitch paths).
  • If it still fails: Verify you did not accidentally “Save” over the master, then repeat export to a new filename/version.
• Q: How can embroidery operators confirm a design is still in Floriani C2S object mode before making changes like moving a ribbon tail or resizing for a hoop?
  A: Click an element and look for object “nodes” around the shape—nodes mean C2S object mode and safe editing.
  • Click the design element you want to edit (ribbon tail, text, etc.).
  • Confirm small square nodes appear around the outline/shape (object selection), not just stitch points.
  • Make the change in C2S (move/resize/reshape), then export a new stitch file for the machine.
  • Success check: The software lets the shape move while the stitch preview recalculates, instead of forcing you to drag many individual stitches.
  • If it still fails: You likely opened a stitch file (DST/PES); close it and open the _MASTER.c2s version.
• Q: Why does underlay look “weird” or separated after reopening a Tajima DST file in Floriani Digitizing Pro, and what should embroidery shops do next?
  A: This is common—DST stores underlay as separate stitch runs, not as an object property, so it can look different even if it still sews fine.
  • Avoid judging underlay quality only by how the DST looks on screen; focus on whether the sew-out is stable.
  • If an edit is required (width, density, layout), return to the C2S master so underlay stays tied to the object.
  • Avoid significant resizing of DST; resize in C2S so the software recalculates support stitches correctly.
  • Success check: In C2S, widening a satin area also updates underlay behavior automatically (you do not see “orphan” underlay pieces).
  • If it still fails: Create a new C2S-based export rather than trying to restructure underlay inside DST.
• Q: What should embroidery shops do when a design has gaps after someone resized a Tajima DST stitch file instead of resizing the Floriani C2S master?
  A: Re-digitize the size change in the C2S master and re-export—resizing DST can damage density and structure.
  • Open the _MASTER.c2s file and apply the size change there.
  • Let Floriani recalculate stitch density/underlay based on the new size.
  • Export a fresh DST version and test sew before running production.
  • Success check: The new sew-out closes gaps without you needing to manually drag stitch points to “fill” areas.
  • If it still fails: Review object properties (especially density/underlay behavior) in C2S and test again, because every fabric behaves differently.
• Q: What are the key “pre-export” checks for a USB workflow when delivering a Tajima DST stitch file from Floriani Digitizing Pro to an embroidery machine?
  A: Confirm the file type, the USB format, and the physical hoop fit before you ever stitch—this prevents expensive rehooping and wrong-format surprises.
  • Identify the target machine format (commercial workflows commonly use DST; some home machines require other formats).
  • Use a USB drive formatted to FAT32 for the most common machine transfer compatibility.
  • Write down the requested hoop size and physically compare the hoop to the garment before committing to production.
  • Success check: The design dimensions on screen make sense versus the hoop’s stitchable area when you physically hold the hoop to the garment.
  • If it still fails: Re-check you exported the correct format for the specific machine and re-open the exported file to validate it loads properly.
• Q: What mechanical safety risk can happen if operators force manual stitch edits inside a Tajima DST file in Floriani Digitizing Pro, and what is the safer alternative?
  A: Forcing stitch-point edits can create sharp angles or stacked density that may break needles—use C2S object edits so the software recalculates cleanly.
  • Avoid dragging large groups of stitches to “fix” shapes or lettering inside DST.
  • Return to the C2S master, edit the object (shape/text), and re-export a new DST.
  • Wear eye protection if testing a questionable file, because needle breaks can throw fragments.
  • Success check: After the C2S-based edit, stitch flow looks smooth (no extreme corners or heavy stacked areas) and the machine runs without repeated needle strikes.
  • If it still fails: Stop the test run and review density/structure in C2S before attempting another sew-out.
