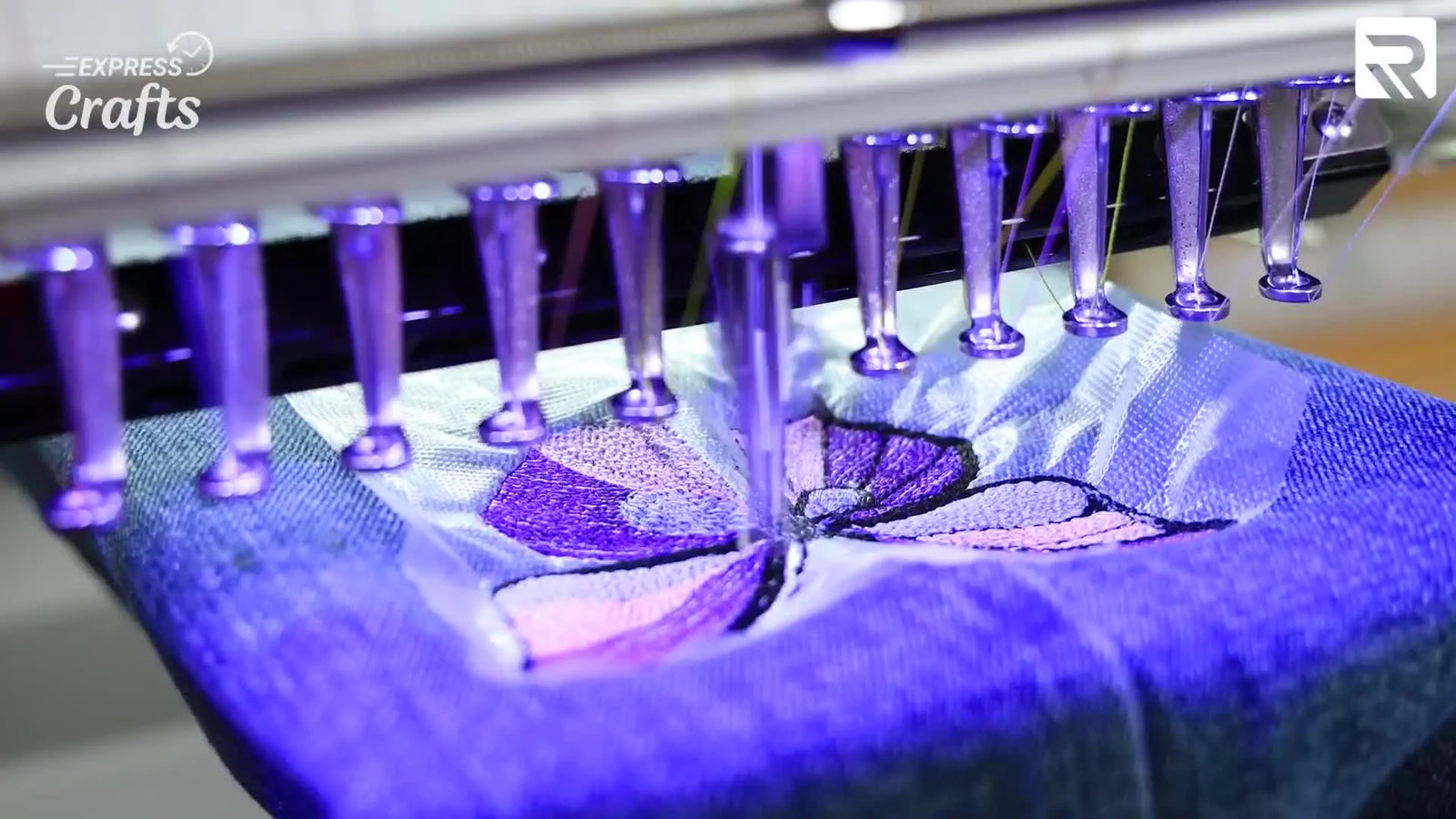

Butterflies Up a Jeans Leg Without Sewing the Pant Shut: A Real-World Ricoma 8-in-1 Hoop Workflow

Denim leg embroidery is the "final boss" for many decorators. It combines everything you hate: tubular restrictions, thick seams that deflect needles, and the terrifying possibility of sewing a pant leg shut.

In this guide, I am deconstructing a popular workflow using a Ricoma multi-needle machine and the 8-in-1 pants leg hoop. However, I’m going beyond the video to add the "Safety Margins" and "Sensory Checks" that 20 years of floor experience have taught me—guaranteeing your first attempt doesn't end in a snapped needle or a ruined pair of jeans.

1. Mindset: The "Awkward Phase" is Real

If you are new to tubular garments, let me validate your frustration: The 8-in-1 assembly feels clumsy because it is. You are shoving a rigid metal frame inside a narrow, non-stretch tube.

The video proves that success isn't about dexterity; it's about sequence. If you panic and force the frame, the fabric twists. If you follow the physics of the fabric, the jeans leg becomes a repeatable, profitable canvas.

2. Prep: Building the "Sticky Sandwich"

The 8-in-1 hoop has no outer ring to clamp fabric. It relies entirely on adhesive friction. If your prep is weak, the denim will shift under the needle, causing outline misalignment.

The "Video + Expert" Method

The video suggests a specific layering technique. Here is how to execute it with sensory confirmation:

1. Cut & Wrap: Cut a piece of sticky tear-away stabilizer significantly larger than the metal frame.
2. Apply to Bottom: Adhere the sticky side to the underside of the frame.
3. The Drum Check: Wrap the excess stabilizer tightly around to the top.
   • Sensory Check: Tap the stabilizer in the center of the frame. It should sound tight, like a small drum. If it sags, peel it off and re-tighten. Loose stabilizer = Registration errors.
4. Reinforce: Add a layer of standard tear-away to the bottom (non-sticky side) to add density for the heavy denim stitches.
5. Tape the Corners: Use painter’s tape or masking tape on the corners. This prevents the "sandwich" from peeling apart as you shove it into the jeans.
6. Mark Center: Use the notches on the frame.

This method turns your ricoma 8 in 1 device into a solid, sticky platform capable of traveling inside a tube without buckling.

Why this matters (The Physics)

Denim is heavy. As the pant leg moves on the X/Y axis, gravity pulls it. The sticky stabilizer provides the grip, but the taping prevents the stabilizer itself from delaminating from the frame during friction-heavy movement.

Warning: The Finger Trap. Keep fingers clear of the needle bar area when mounting hoops. Multi-needle heads can drift unexpectedly during centered checks.

Prep Checklist (Do not skip)

• Sticky stabilizer applied to the back, wrapped tight to the front.
• Sensory Check: Stabilizer sounds like a drum when tapped.
• Extra tear-away added for stitch density support.
• Corners taped down (no loose sticky edges).
• Center marks visible.

3. Hooping strategy: Respect the Seam

Sliding the frame into the leg is the moment of truth.

The Problem: Seam Deflection

Jeans have two seams: the Flat-Felled Seam (thick, multi-layer, usually inner leg) and the Open Seam (thinner, usually outer leg).

• The Danger Zone: The flat-felled seam acts like a speed bump. If a needle hits the edge of this thick ridge at 800 stitches per minute (SPM), it will deflect (bend) and strike the throat plate.
• The Fix: As shown in the video, position your hoop to align with the Open Seam.




Action Step

Slide the frame in. Press the denim firmly onto the sticky stabilizer.

• Sensory Check: Run your palm over the hooped area. It should feel completely flat. If you feel a "bubble" or ripple, lift the denim and re-stick. Wrinkles here become permanent creases later.

4. Mounting: The "Open Tube" Policy

This is where 80% of beginners fail. They mount the hoop but leave the rest of the pant leg bunching up under the needle area.

The Procedure

1. Attach the driver bracket to the X-carriage.
2. Slide the hooped leg onto the arm.
3. Critical Step: Route the rest of the pant leg underneath the machine arm.
4. Tighten the customized thumbscrew.

If you are struggling to keep the garment straight while tightening screws, this is often the "trigger moment" where shops invest in a hooping station for embroidery machine. A station holds the garment level, leaving both hands free to manage the stabilizer stack.

5. The "Trace & Nudge" Routine

Never trust your eyeballs. On a tubular item, your viewing angle is restricted.

The Protocol (Safety First)

1. Unlock & Select: On the panel, ensure you have selected the correct hoop definition (often labeled "8-in-1 PANT" or similar). This limits the pantograph movement so it doesn't slam into the frame.
2. Trace 1: Run a standard trace. Watch the needle bar relative to the Open Seam.
3. The Nudge: If the laser/needle gets within 10mm of the seam, stop. Use the arrows to nudge the design away.
4. Trace 2: Verify again.

Many users searching for 8 in 1 hoop ricoma tutorials are doing so because they skipped this step and hit a frame. Trace is your cheapest insurance.

6. Topping: The "Denim Bridge"

Denim has a diagonal twill weave. Without support, stitches will sink into the valleys of the weave, making edges look jagged.

Applying Solvy

Lay a sheet of water-soluble topping (Solvy) over the area after the trace is complete.

• Why: It creates a smooth bridge for the thread to sit on.
• Result: Crisper satin edges and vibrant colors, even on dark denim.


7. Operation: Speed Limits & Real Data

The video shows a confident run. Let’s look at the numbers, then apply a "Beginner Safety Filter."

Screen Data

• Design: 31,000+ stitches (Heavy density)
• Video Speed: ~726 SPM
• Needle: 75/11 Ballpoint or Sharp (Jeans prefer Sharp points for penetration, but Ballpoint is safer if you fear cutting fibers).




The "Sweet Spot" for Beginners

While the pro in the video runs at 700+, I recommend starting at 600 SPM for your first denim leg.

• Why: At 600 SPM, you have more reaction time if you hear the dreaded "thump-thump" of a needle hitting a seam.
• Note: If you see "flagging" (fabric bouncing up and down with the needle), your sticky stabilizer bond has failed. Pause and apply tape to the edges of the denim/frame.

Operation Checklist

• Hoop selected on screen matches physical hoop.
• Free pant leg checked (not bunched under needle).
• Topping applied.
• Auditory Check: Machine running smoothly? A clicking noise usually means the hoop is vibrating against the arm—check tightness.

These nuances are why people rely on ricoma embroidery hoops guides—the hardware is capable, but the settings need to match the fabric weight.

8. Removal & Cleanup

1. Tear away the Solvy topping.
2. Loosen the thumbscrew (do not remove it fully, just enough to release).
3. Slide the leg off.
4. Peel the stabilizer from the inside.






9. Decision Tree: Should You Upgrade?

The 8-in-1 system is effective, but it is slow. It requires tape, sticky stabilizer, and manual alignment.

The "Pain Point" Trigger: If you are doing one pair of custom jeans, use the steps above. If you are doing 50 pairs for a team, your wrists will hurt, and your profit margin will vanish into setup time.

The Solution Hierarchy:

1. Level 1 (Technique): Use the sticky method above.
2. Level 2 (Tool Upgrade): Switch to Magnetic Hoops (like Mighty Loops or SEWTECH Magnetic Frames).
   • Benefit: They clamp automatically. No sticky backing required (just float backing). No thumbscrews.
   • Result: Hooping time drops from 3 minutes to 30 seconds.
3. Level 3 (Machine Upgrade): Scale to a multi-head machine.

Warning: High Magnetic Force. Magnetic hoops are incredibly strong. Keep them away from pacemakers. Never place your fingers between the magnets.

Top shops eventually migrate to systems like the mighty hoop or the cost-effective SEWTECH Magnetic Series because they eliminate "Hoop Burn" (the shiny ring left by tight plastic frames) and handle thick seams without popping open.

10. Troubleshooting: The "Emergency Room"

11. Final Thoughts & Next Steps

Mastering the denim leg opens up high-value real estate on garments. The "Pants Leg" frame is versatile—it’s actually what many pros use as a makeshift pocket hoop for embroidery machine for tote bags and shirt pockets because of its narrow profile.

Your Path to Mastery:

1. Practice: Do one leg on an old pair of Goodwill jeans using the sticky method.
2. Evaluate: Did it take you 20 minutes to hoop?
3. Upgrade: If production speed is your goal, look into magnetic hoop solutions compatible with your Ricoma or tubular machine to cut that time in half.

Stitch safe, and watch your fingers.

FAQ

• Q: How do I prepare a Ricoma 8-in-1 pants leg hoop stabilizer “sticky sandwich” so denim does not shift during stitching?
  A: Build a tight, taped stabilizer wrap on the metal frame so the denim bonds flat and cannot creep.
  • Cut & wrap: Apply sticky tear-away to the underside of the frame and wrap excess tightly to the top.
  • Reinforce: Add a layer of standard tear-away to the bottom (non-sticky side) for heavy stitch density.
  • Tape: Tape the corners so the layers cannot peel apart while sliding into the pant leg.
  • Success check: Tap the stabilizer— it should sound tight like a small drum (no sag).
  • If it still fails: Replace old sticky stabilizer and re-wrap tighter before hooping the jeans.
• Q: How do I avoid needle breaks from seam deflection when embroidering a denim pant leg on a Ricoma multi-needle machine with an 8-in-1 pants leg hoop?
  A: Keep the design and trace path away from the thick flat-felled seam and run a slower seam-safe speed.
  • Position: Align hooped placement with the thinner open seam, not the flat-felled seam ridge.
  • Nudge: If the needle/laser trace gets within 10 mm of a seam, stop and nudge the design away.
  • Slow down: Reduce speed (a safe response is 500 SPM when crossing near seams).
  • Success check: The machine runs without the “thump-thump” impact sound near the seam area.
  • If it still fails: Move the design farther from the seam and consider a stiffer needle size (80/12) for better penetration control.
• Q: What is the correct Ricoma “Trace & Nudge” routine for an 8-in-1 pants leg hoop so the pantograph does not hit the frame?
  A: Select the correct hoop definition on the panel and trace twice, nudging whenever clearance looks tight.
  • Select: Confirm the hoop definition on-screen matches the physical 8-in-1 pants hoop so travel limits are correct.
  • Trace 1: Run a trace and watch the needle bar path relative to the open seam and hoop edges.
  • Nudge: Stop if clearance is tight (about 10 mm from the seam) and use arrow keys to reposition.
  • Success check: Trace completes without any near-contact scares and the needle path stays safely inside the hoop window.
  • If it still fails: Recheck hoop selection again and remount the hoop square before tracing.
• Q: How do I prevent sewing a jeans pant leg shut when mounting a Ricoma 8-in-1 pants leg hoop on a tubular arm?
  A: Follow an “open tube” mounting policy so the free pant leg is routed away from the needle area.
  • Route: Feed the rest of the pant leg underneath the machine arm so nothing bunches under the needle zone.
  • Tighten: Secure the thumbscrew after the garment is straight and the hoop is seated.
  • Clear: Keep hands/fingers away from the needle bar area during centered checks because the head can drift.
  • Success check: Visually confirm the pant leg hangs freely and nothing is trapped under the needle path.
  • If it still fails: Stop immediately, unmount, and re-route the leg—do not “try to stitch through it.”
• Q: When embroidering denim on a Ricoma multi-needle machine, what speed should a beginner use for a 31,000+ stitch pants-leg design?
  A: Start around 600 SPM for denim pant legs to gain reaction time, even if experienced operators run faster.
  • Set: Begin at 600 SPM for the first run on a new jeans leg workflow.
  • Listen: Pause if you hear abnormal clicking or impact sounds and re-check hoop tightness and seam clearance.
  • Watch: If fabric “flagging” appears, stop and stabilize the denim edges to the frame with tape.
  • Success check: Stitching sounds smooth and consistent without vibration, clicking, or fabric bounce.
  • If it still fails: Reduce speed further and rebuild the stabilizer sandwich with tighter wrap and extra tear-away.
• Q: Why does white bobbin thread show on denim embroidery when using a Ricoma machine and an 8-in-1 pants leg hoop, and what is the fastest fix?
  A: Treat it as a tension-path check first, then fix fabric flagging by stiffening the stabilizer stack.
  • Re-thread: Verify the thread path is correct before changing settings.
  • Stabilize: Add another layer of tear-away to increase rigidity if the denim is bouncing.
  • Secure: Tape denim edges to the frame if the sticky bond is weakening mid-run.
  • Success check: The top thread coverage improves and the bobbin no longer peeks through during satin/filled areas.
  • If it still fails: Stop and re-hoop with fresh sticky stabilizer—slip/flagging will keep causing exposure.
• Q: When should a shop switch from a Ricoma 8-in-1 pants leg hoop workflow to magnetic hoops or higher-capacity embroidery equipment for denim leg production?
  A: Upgrade when setup time and physical handling become the bottleneck—use technique first, then tools, then capacity.
  • Level 1 (Technique): Use the taped sticky-sandwich method and strict trace/nudge checks for one-offs or low volume.
  • Level 2 (Tool): Move to magnetic hoops/frames to reduce hooping time and avoid tight-frame marks on fabric.
  • Level 3 (Capacity): Consider multi-head equipment when volume (e.g., dozens of pairs) makes manual setup unprofitable.
  • Success check: Hooping time drops significantly and placement consistency improves without rework.
  • If it still fails: Track where time is lost (hooping vs. tracing vs. re-hooping) to choose the right upgrade step.
