Build a Real .ESA Font in Wilcom Embroidery Studio e4: The Create Letter Workflow That Stops “Jagged Script” From Stitching Ugly

In the world of professional machine embroidery, there is a stark difference between "making letters" and engineering a font.

If you’ve ever converted a pretty TrueType script and watched your machine stitch it like a nervous seismograph—wobbly edges, awkward joins, and a density that shreds your thread—you know the pain. You tweak the settings, but the spacing looks "off," and the underlay pokes through the satin. This isn't just an aesthetic failure; it is a breakdown of textile physics.

In this deep dive into the Wilcom Embroidery Studio e4 workflow, we aren't just clicking buttons. We are building a production-grade system. We are creating a reusable asset with consistent height, dependable baselines, and stitch sequences designed to hide joins rather than advertise them.

Stop Trusting TrueType Conversion: Why Column A Satin Wins for Script Fonts

As someone who has reviewed thousands of digitized files, I will be blunt: Auto-digitizing is the enemy of script fonts.

Script styles rely on flow. TrueType fonts often have "intentional irregularities"—jagged edges or hand-drawn quirks—that look charming on paper but translate into chaotic needle penetrations on fabric. When software auto-traces these, it creates hundreds of unnecessary needle points, causing thread breakage and stiff embroidery.

When you manually digitize using the Column A (Satin) tool, you are taking control of the machine’s behavior:

• Turning Angles: You decide how light reflects off the thread. You ensure the stitch angle flows around the curve, not across it like a segmented noodle.
• Stitch Density: You control the spacing so standard 40wt thread covers the fabric without creating a bulletproof vest.
• Stroke Endings: You decide exactly where a stroke finishes so it can be buried under the next one.

The Business Case: A clean custom font reduces thread breaks. If a bad font causes two thread breaks per shirt on a 50-shirt order, you lose over an hour of production time. Building it right is an investment in profit.

The “Hidden” Prep: Master Size and Artwork Setup

Before you ever click "Create Letter," you must establish your "Reference Height." The video tutorial uses 10.00 mm, and this is a solid industry standard for a few reasons.

1. The Physics of the Master Size

If you digitize your master font at 100mm height but try to shrink it to 10mm for a left-chest logo, the stitch density will collapse, and the column widths will become too thin for the needle to penetrate cleanly.

• The Sweet Spot: Digitize your font at the size you intend to use most often. For general left-chest text, 10mm to 12mm is the "Goldilocks" zone.
• Consistency: If you digitize the letter "A" at 10mm and the letter "B" at 15mm, your font will be unusable. You must size your artwork (the background image) so that all capital letters align with two horizontal guides exactly 10mm apart.

2. Choose Your Tool and Commit

The tutorial rightly selects Column A. Do not mix tools. Do not use a Tatami fill for the letter "M" and a Satin stitch for "N" unless you want your customer to ask why the logo looks "weird." Consistency is quality.

3. The Keyboard Mapping Strategy

A common stumbling block for beginners is differentiating uppercase and lowercase shapes.

• The Logic: Wilcom asks you to type a Letter Key.
• The Action: When you digitize the shape of a capital "S", you type "S" in the box. When you digitize the small "s", you type "s". The software maps the embroidery object to your keystroke.


Prep Checklist: The "Pre-Flight" Safety Check

• Artwork Scaling: Is your background image resized so Capitals = 10mm (or your chosen master height)?
• Tool Selection: Have you committed to Column A (Satin) for all main strokes?
• Naming Convention: Have you named the font set something scalable (e.g., "Company_Script_v1")?
• Mapping Plan: Do you know which keyboard keys correspond to special characters or alternates?


Digitize Each Letter: Engineering the Satin Stroke

The video demonstrates starting with the word "Script." This is the correct mindset: focus on the shape first.

When using Column A, follow these sensory guidelines:

1. Visual Flow: Place your "Input A" and "Input B" points (left and right clicks) parallel to each other. Imagine railway tracks banking around a turn—keep the rails parallel.
2. Pull Compensation (The Invisible Variable): Thread pulls fabric inward. If you digitize exactly to the line, your column will be too narrow. Rule of Thumb: Digitizing roughly 0.2mm to 0.4mm outside the artwork line usually compensates for this contraction on standard piqué cotton.
3. Density Awareness: For a standard 10mm font, a density of 0.40mm to 0.45mm is safe. Going denser (e.g., 0.30mm) risks thread nesting and needle breaks.


The Create Letter Dialog: The Translation Layer

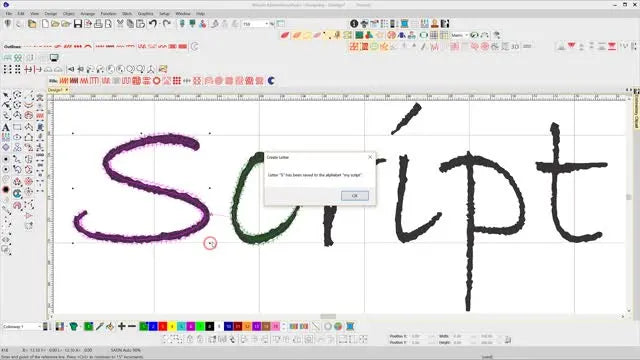

Once a letter is digitized, you select it and go to Object > Create Letter.

Critical Settings Breakdown

• Alphabet Name: Keep this short.
• Default Join Type: The example uses Bottom Join. This is standard for script, as most letters connect at the baseline.
• Letter Key: This is where you type the specific character (e.g., "S").
• Reference Height: You must enter 10.00 mm (or whatever your artwork scaling was). If you type 50mm here but your art was 10mm, the software will scale everything incorrectly when you use it.

Troubleshooting Missing Menus

"I don't see Object > Create Letter!" This is a frequent point of panic. This feature is often part of the "Alphabet Creator" Element (add-on). If you are running a basic version of Wilcom, you might not have access. Verify your dongle license before tearing your hair out.

Setup Checklist: Before You Click OK

• Check License: confirm the Alphabet Creator element is active.
• Verify Key: Did you type "S" or "s"?
• Verify Height: Does the number here match your artwork height exactly?

The Baseline Clicks: Defining the Rhythm of the Type

The tutorial identifies this as "the most important step," and physically, it determines whether your text looks professional or drunk.

After confirming the dialog, Wilcom waits for two clicks:

1. Click 1 (Start/Baseline): Defines the vertical floor on the left.
2. Click 2 (Width/End): Defines the right-side boundary.


Why this matters physically: If you place Click 2 too far right, every time you type this letter, there will be a massive gap before the next one. If you place it too close, the letters will crash into each other.

• The Grip: Hold your mouse steady. Use Wilcom's grid (press 'G') to ensure your baseline clicks are on the exact same horizontal mathematical line for every single letter.


Warning: Physical Safety
When testing your new fonts on the machine, keep your hands clear of the needle bar. Custom fonts can sometimes have erratic jumps if not digitized correctly. Always do a "Trace" on the machine screen before hitting start to ensure the needle won't hit the hoop frame.

The Lowercase “r” Trick: Hiding the Seams

Script fonts are an illusion of one continuous line. The machine breaks this illusion every time it trims or stops.

The tutorial uses the lowercase "r" to demonstrate Sequencing Strategy.

• Bad Sequencing: Digitizing left-to-right blindly. The join sits on top, visible to the naked eye.
• Pro Sequencing: Digitize the right-hand curve first. Then, digitize the left-hand vertical stroke.

Why? Because the left stroke will stitch over the start of the right curve, burying the messy start point underneath a clean satin column. Ideally, you want to mimic the logic of a calligraphy pen, but cheat the layering to hide the "lifts."

Calibration: Testing in Object Properties

Once the alphabet is built, you must audit it using the Object Properties panel.

• Test: Type a phrase like "Script" and apply the font.
• Curve Check: Apply the Circle CW (Clockwise) baseline.






Visual Success Metrics:

• Does the text hug the curve smoothly?
• Do the letters "break" apart or overlap too much when arched?
• Kerning: Look at the gap between specific pairs (like "To" or "Av"). You can adjust these permanently in the Lettering creation tab.

Operation Checklist: The Final Audit

• Curve Test: Text follows a Circle CW baseline without distortion.
• Density Check: No satin columns are narrower than 1mm (needle danger zone) or wider than 7mm (snag danger zone).
• Flow: The eye follows the text without snagging on visible joins.

Troubleshooting: When Good Fonts Go Bad

Even with a perfect .ESA file, things go wrong. Use this logic tree to fix issues efficiently.

The Production Reality: Software is Only Half the Battle

You have engineered a perfect font. It looks crisp on the screen. But embroidery happens in the physical world, and that is where the second set of variables attacks your quality.

If you are customizing fonts to build a brand or a business, you will eventually hit the "Production Wall." This is when your digitizing is perfect, but your results vary because of physical handling.

1. The Hoop Burn Problem

Script fonts are delicate. If you use standard plastic hoops and screw them tight enough to hold a slippery performance shirt, you often leave a permanent ring ("hoop burn") that ruins the garment.

• The Fix: Many professionals transition to magnetic embroidery hoops. By using magnetic force rather than friction, you secure the fabric firmly without crushing the fibers. This allows your custom script font to float on the fabric without distortion.

Warning: Magnet Safety
magnetic embroidery hoops use powerful industrial magnets. They can pinch fingers severely. Keep them away from pacemakers and credit cards. Never leave them where they can snap together uncontrolled.

2. The Alignment Bottleneck

You spent hours digitizing a font to have perfect baselines. Don't waste that precision by eyeballing the hoop placement.

• The Fix: If you are doing run of 20+ shirts, manual hooping is slow and inaccurate. A hooping station for machine embroidery ensures that your perfectly digitized logo lands in the exact same spot on every single shirt.

3. Scaling Up

If you find yourself spending more time changing thread colors than digitizing new fonts, your single-needle machine has become the bottleneck. This is the natural trigger to look at multi-needle solutions (like SEWTECH’s industrial-grade options), which allow you to keep your custom fonts loaded with 10-15 colors ready to go.

Final Decision Tree: Optimize or Upgrade?

• Scenario A: Text looks bad only on specific letters.
  • Action: Re-digitize those specific letters using the "r" overlap trick.
• Scenario B: Text looks good on screen, but puckers on fabric.
  • Action: Increase Pull Compensation or use a stronger Cutaway stabilizer.
• Scenario C: Text is perfect, but placement is inconsistent/crooked.
  • Action: Adopt a hooping station for embroidery.
• Scenario D: Delicate fabrics are getting marked by hoops.
  • Action: Switch to magnetic embroidery hoops.

By combining professional software discipline (Manual Column A) with the right physical tools, you stop "hoping" for good results and start manufacturing them.

FAQ

• Q: In Wilcom Embroidery Studio e4, why is “Object > Create Letter” missing when building a custom embroidery font?
  A: The “Create Letter” feature is commonly unavailable because the Alphabet Creator element (add-on) is not active in the current Wilcom Embroidery Studio e4 license.
  • Check: Open File > About and verify the license/dongle options show the Alphabet Creator element.
  • Confirm: Restart Wilcom after any license change so menus reload correctly.
  • Use: If the element is not present, use a version/element upgrade path rather than hunting for hidden menus.
  • Success check: “Object > Create Letter” appears and opens the Create Letter dialog for a selected object.
  • If it still fails: Confirm the selected object is a valid embroidery object (not just artwork) and re-check the installed Wilcom edition.
• Q: In Wilcom Embroidery Studio e4 Alphabet Creator, why do embroidered letters come out the wrong character (typing “S” produces “A”)?
  A: The letters are usually mapped to the wrong keyboard “Letter Key” during Create Letter, so Wilcom assigns the wrong stitch object to the typed character.
  • Re-open: Select the problem letter and re-run Object > Create Letter.
  • Re-type: Enter the exact intended character in “Letter Key” (uppercase “S” vs lowercase “s” matters).
  • Standardize: Keep a simple mapping plan for special characters/alternates so they don’t get reused by accident.
  • Success check: Typing the character in lettering applies the correct embroidered shape every time.
  • If it still fails: Audit multiple letters—mapping errors often happen in batches when uppercase/lowercase were mixed.
• Q: In Wilcom Embroidery Studio e4, why does a script satin font look “off” with gaps or bad joins even though the letter shapes look correct?
  A: Script join problems usually come from baseline width clicks placed inconsistently, which changes spacing and how letters connect.
  • Rebuild: Re-do the two baseline clicks consistently for each letter (Click 1 = baseline start; Click 2 = right boundary/width).
  • Align: Turn on Wilcom’s grid (press G) and keep baseline clicks on the same horizontal line for every letter.
  • Compare: Test common join pairs (like the word “Script”) to spot which letter has the wrong width boundary.
  • Success check: Letters connect without a visible gap or crash, and spacing stays consistent across repeated typing.
  • If it still fails: Add/adjust overlaps in the digitizing (sequencing) so one stroke intentionally covers the join.
• Q: In Wilcom Embroidery Studio e4 script fonts, how can the lowercase “r” be digitized to hide a visible seam at the join?
  A: Use sequencing to bury the start point by digitizing the right-hand curve first, then stitching the left vertical stroke over it.
  • Digitize: Create the right-hand curve section first using Column A (Satin).
  • Digitize: Add the left vertical stroke second so it stitches over and covers the curve’s start area.
  • Inspect: Look closely at the join in TrueView/preview and adjust overlaps so the cover-up is deliberate.
  • Success check: The join reads as one continuous calligraphy stroke, with no obvious “start dot” or seam.
  • If it still fails: Re-check stitch direction and make sure the second stroke truly overlaps the first at the seam area.
• Q: In Wilcom Embroidery Studio e4, why does a custom font scale badly when used (density collapses or columns get too thin) after setting a 10.00 mm reference height?
  A: Scaling issues usually happen when the Create Letter “Reference Height” does not exactly match the artwork’s master height used during digitizing.
  • Verify: Confirm the background artwork was scaled so capital letters are exactly 10.00 mm (or your chosen master height) before digitizing.
  • Match: Enter the same number in “Reference Height” during Create Letter (don’t digitize at one size and declare another).
  • Standardize: Keep one master size for the whole alphabet so letters remain consistent and usable as a set.
  • Success check: Applying the font at the intended size produces stable satin coverage without thin, fragile columns.
  • If it still fails: Re-digitize the master at the size you actually use most often (generally 10–12 mm for left-chest text is a safe starting point).
• Q: During machine testing of a new Wilcom embroidery font, what needle-area safety steps should be followed before pressing Start?
  A: Treat first-run fonts as unpredictable and always trace the design path on the machine while keeping hands clear of the needle bar.
  • Trace: Run the machine’s “Trace” (or equivalent) to confirm the needle path stays inside the hoop/frame.
  • Clear: Keep fingers and tools away from the needle bar area during trace and stitch-out.
  • Watch: Stop immediately if the design makes an unexpected jump that could strike the hoop.
  • Success check: The trace completes cleanly with safe clearance from the hoop/frame all the way around.
  • If it still fails: Re-check the digitized objects for erratic travel/sequencing and test again at a slower, supervised run.
• Q: When hoop burn marks keep happening on delicate garments during script lettering embroidery, what is the practical upgrade path from process fixes to magnetic hoops to higher production capacity?
  A: Start with technique checks, then reduce hoop pressure with magnetic hoops, and only then consider multi-needle capacity if throughput is the bottleneck.
  • Level 1 (Technique): Reduce excessive hoop tightening and stabilize appropriately so the fabric doesn’t require crushing pressure to hold.
  • Level 2 (Tool): Switch to magnetic embroidery hoops to secure fabric with magnetic force instead of friction pressure that can mark fibers.
  • Level 3 (Capacity): If color changes and handling time dominate, evaluate a multi-needle setup to keep multiple colors loaded and reduce downtime.
  • Success check: The garment shows no permanent ring marks after embroidery, and the script baseline stays consistent without distortion.
  • If it still fails: Confirm placement accuracy with a hooping station so alignment is repeatable without over-tightening to “force” control.
