Brother VR Suddenly Got Loud? The Nylon Cam Failure That Turns Into a Full Top-Shaft Replacement

If your Brother VR suddenly gets loud—not just “busy,” but a guttural, grinding loud—your stomach drops for a reason. In the embroidery world, a “new noise” is rarely cosmetic. It is almost always the sound of friction, impact damage, or a critical component that has stopped separating metal from metal.

This post rebuilds a specific, real-world workshop diagnosis from a service vlog. We will walk through how technicians strip a Brother VR, identify suspicious black residue around the nylon profile cam, rotate the shaft to reveal missing chunks of material, and confirm the follower is contacting bare steel. The outcome is blunt: the machine requires a full top shaft replacement.

But beyond the repair, we will uncover why this happens—usually a combination of “bone dry” maintenance and a traumatic needle strike—and how you can prevent it.

The calm-first reality check for a noisy Brother VR single-needle embroidery machine

A sudden loud noise is fundamentally different from the rhythmic “thump-thump” of a machine working hard on a dense satin stitch. When a user reports that a machine became noisy instantly, I treat it as a mechanical trauma event, not a tuning drift.

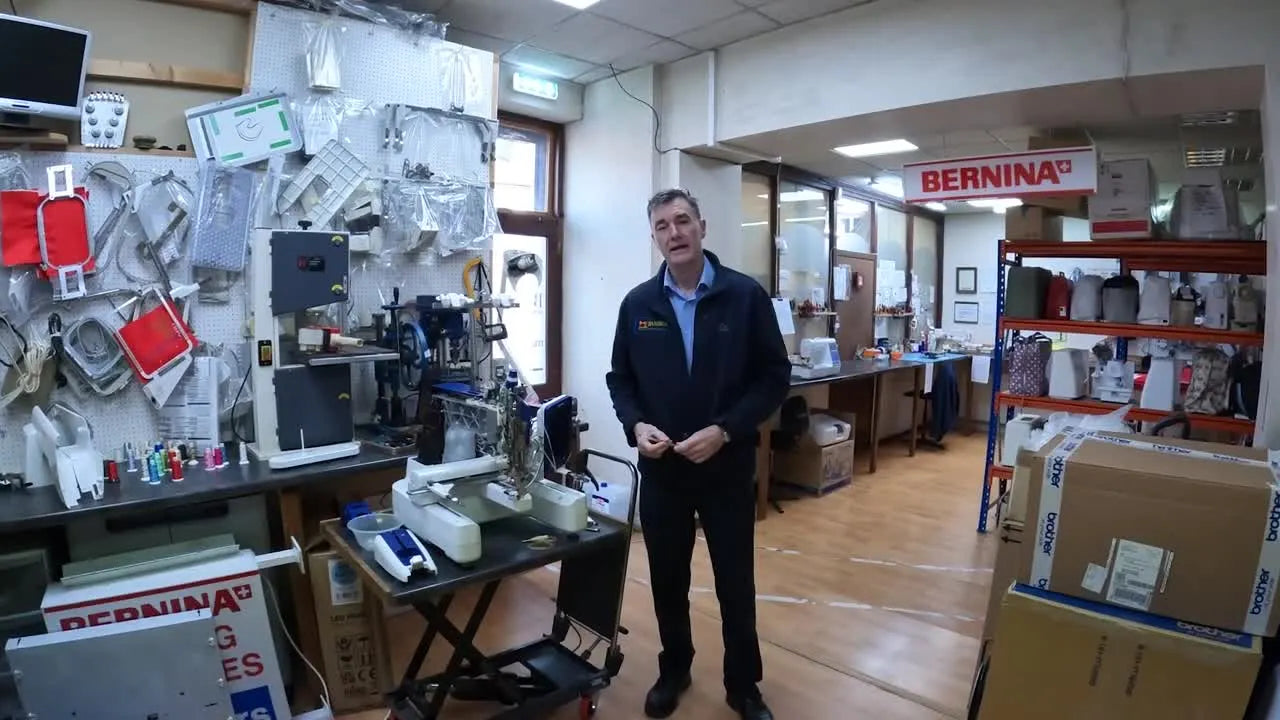

In the workshop segment, the machine is already on the bench. The technicians are removing covers because specific symptoms demand internal eyes.

Here is the “Stop-Loss” Mindset that distinguishes a pro from a gambler:

• Zero Tolerance for “Testing”: If a nylon cam is failing, every rotation is actively grinding away the remaining material. Do not run a test design to “hear it again.”
• The “Shrapnel” Assumption: If the noise followed a needle break, assume the tip is still inside. A 2mm piece of hardened steel acting as a wedge in your rotary hook or cam follower will destroy a $500 assembly in seconds.
• Inspection over Adjustment: You cannot fix a shattered cam by tightening the tension knob.

Sensory Anchor: Listen closely. A healthy machine sounds like a sewing machine—a rhythmic clicking and whirring. A damaged cam sounds like a coffee grinder or a rhythmic clack-CLACK-clack that vibrates through the table. If you feel that vibration in your fingertips touching the machine body, shut it down.

The 1500-hour “Preventative Maintenance Required” message on Brother PR/VR machines—what it really means in the shop

The video mentions a preventative maintenance interval at 1500 hours, tied to the on-screen “Preventative Maintenance Required” message.

In a busy shop, it is easy to dismiss this pop-up. However, this is not a suggestion; it is a calculation based on the fatigue life of the grease and the nylon components. At 1500 hours, factory lubrication has often degraded from a smooth gel into a waxy, sticky residue—or worse, evaporated entirely.

The Economics of Maintenance: Running past this interval makes you feel productive until the moment the cam shears. If you are running a fleet—perhaps a mix of single needles and multi-needle workhorses like the brother pr 680w—downtime is your most expensive consumable.

Expert Data Point: While these machines can run at 1000 stitches per minute (SPM), running strictly at 700-800 SPM (the "Sweet Spot") can significantly extend the life of these nylon components by reducing heat friction and impact force during direction changes.

The “hidden” prep before you open a Brother VR cover: what experienced techs check first

Before you touch a screw, you need a clean ecosystem. The technicians in the video dive straight into disassembly, but in a home studio or production floor, you need a pre-flight protocol to prevent losing screws or causing electrical shorts.

Prep Checklist (Do this BEFORE touching a screwdriver)

1. Energy Dump: Unplug the machine. Wait 60 seconds. Modern boards hold capacitor charges that can surprise you.
2. Clear the Deck: Remove the hoop, bobbin case, and top thread.
3. Visual Documentation: Photograph the screw locations before removal. Brother machines often use 3 different screw lengths in a single casing panel.
4. Tool Safety: Use the correct JIS (Japanese Industrial Standard) screwdriver if possible, or a high-quality Phillips #2. A stripped screw head adds hours to your repair.
5. Debris Hunt: If a needle broke recently, find all pieces. Use a magnet or high-power flashlight. If you haven't found the tip, it is still in there.

Warning: Needle fragments are razor-sharp and can be spring-loaded under tension springs or hidden in grease. Always wear eye protection when using compressed air or probing tight spaces. Never rotate the handwheel with your fingers near gears.

This inspection phase is the line in the sand. If you are uncomfortable removing casings, this is the moment to call a certified tech.

The workshop teardown: removing Brother VR outer casings to expose the top shaft mechanism

In the core repair segment, the technicians perform the initial teardown to expose the machine’s skeleton. The goal is Line-of-Sight Diagnosis.

You are trying to visualize the top shaft—the horizontal spinal cord of the machine. This shaft drives the needle bar up and down and coordinates with the take-up lever.

Success Criteria:

• You have removed the rear and side covers.
• You can clearly see the white nylon cams on the main metal shaft.
• You have not forced any plastic tabs (listen for the crack—bad sound).


The black “soot” clue: spotting nylon cam dust on the Brother VR top shaft profile cam

The technicians point out a specific, damning visual cue: black residue/dust gathering around the white nylon profile cam.

In forensics, this is called “material transfer.” Nylon doesn't rust. It doesn't bleed. If you see black powder around a white nylon part, that powder is the part.

The diagnostic logic:

1. Friction generates heat.
2. Heat softens nylon.
3. Friction grinds the soft nylon into dust.
4. The dust mixes with old oil to form a black, gritty paste ("soot").

Beginner Trap: Do not mistake this for "dirty grease" and just wipe it off. If you wipe it away and add oil, you are lubricating a broken part. The presence of the soot is the symptom of failure.

The rotation test that reveals the truth: rolling the Brother VR shaft to find missing chunks in the cam

Static inspection isn't enough. The failure might be hiding on the underside of the cam. The technicians manually rotate the top shaft using the handwheel (or the main pulley) to inspect the cam's full 360-degree perimeter.

Sensory Anchor: As you rotate the handwheel, feel for mechanical resistance.

• Smooth: Good.
• Gritty: Bad (bearing or debris).
• "Lumpy" or "Catching": Critical cam failure.

In the video, the rotation reveals the smoking gun: jagged, missing chunks of nylon. This isn't just wear; it is impact damage. A section of the cam has snapped off, likely due to a shock load (like a high-speed needle strike into a hoop or metal plate).

Expert Verdict: When material is missing, the part is dead. There is no glue, no filler, and no sanding that can fix a profile cam. It is a precision timing component.

The follower-to-steel contact moment: why the Brother VR gets loud when nylon wears flush

Why the noise? The technicians demonstrate the mechanics: The "follower" (a metal arm that rides the cam) is now crashing into the steel crank assembly.

The nylon cam is designed to be a sacrificial buffer. It stands slightly "proud" (taller) than the steel to ensure the follower only touches soft nylon.

• Healthy State: Follower glides on Quiet Nylon.
• Failed State: Nylon wears down or breaks → Follower hits Hard Steel.

The Sound: That metal-on-metal impact creates the clanking noise. It acts like a hammer hitting an anvil 1000 times a minute. This vibration will rapidly destroy other bearings and sensors if the machine keeps running.

The root cause combo: “bone dry” lubrication plus a likely needle-tip strike inside the Brother VR

The technicians identify a "Root Cause Combo" that is all too common in service centers:

1. "Bone Dry" Lubrication: The area was devoid of grease, increasing friction and making the nylon brittle.
2. Needle Strike: The "missing chunks" suggest the needle hit something immovable (like a hoop), sending a shockwave up the needle bar that shattered the dry, brittle cam.

The Lesson: Lubrication is your thermal management system. Without it, the nylon cannot handle the shock of a needle break.

Commercial Reality Check: If you rely on your brother vr embroidery machine for income, "waiting until it sounds dry" is a failed strategy. You must have a schedule.

The fix that nobody wants to hear: replacing the entire Brother VR top shaft assembly

The conclusion is expensive but necessary: Replace the entire top shaft assembly.

You generally cannot simply "pop on" a new cam. These components are often heat-pressed or bonded to the shaft for precision alignment. Even if bought separately, calibrating them requires specific jigs and timing tools that most users do not possess.

Decision Checklist: DIY vs. Pro Service

• Symptom: Sudden noise + Black Soot + Missing Nylon Chunks.
• Action: Do not attempt to patch this.
• Skill Check: Can you re-time a rotary hook? Do you have a service manual? Do you have torque drivers?
  • If NO: Send it to a certified repair shop. A DIY top shaft replacement has a high failure rate due to timing complexity.


How to keep this from happening again: lubrication habits, sensory checks, and production-minded workflow

The machine in the video died a preventable death. Here is how you keep yours alive.

1. The Sensory Pre-Check (Every Morning)

• Sound: Run the machine slow. Listen for clicks. A happy machine hums; a sad machine clicks or whines.
• Touch: Touch the motor housing after 30 minutes. Warm is okay; hot is not.

2. The Hooping Variable (The Secret Killer)

Most users don't realize that bad hooping causes cam failure.

• The Physics: If fabric is loose ("flagging"), the needle cannot penetrate cleanly. It deflects.
• The Impact: The deflected needle hits the needle plate. Bang. That shockwave travels up and shatters the nylon cam we just looked at.

The Solution: You need "drum-tight" tension without distortion. This is where tools matter. Traditional screw hoops rely on wrist strength and often invite user error.

Trigger for Upgrade: If you are struggling with thick items (towels, jackets) or getting "hoop burn" on delicate items, your hooping method is a liability. The Fix: Professionals often switch to magnetic embroidery hoops for brother machines.

• Why? They clamp automatically to the correct pressure. The fabric doesn't slip.
• Result: The needle enters straight every time. No deflection = No shockwave = Safe Cam.

Warning: Magnet Safety
Professional magnetic hoops use N52 industrial magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the mating surfaces. They snap shut with force.
* Medical: Users with pacemakers should consult their doctor before using strong magnetic fields.

3. Stabilizer Decision Tree

Using the wrong stabilizer forces the machine to work harder, stressing the drive train.

• Stretchy Fabric (Knits/Polos): MUST use Cut-Away. Tear-away will result in bullet-hole distortions and needle drag.
• Stable Fabric (Woven/Denim): Tear-Away is acceptable.
• Napped Fabric (Towels): Water Soluble Topping prevents the foot from snagging loops (which causes crashes).


The upgrade path that saves time (and wrists): magnetic frames, hooping stations, and when to move beyond hobby workflow

The repair in this video costs hundreds of dollars and weeks of downtime. The irony is that the damage likely started with a frustration we all know: trying to force a thick bag into a standard hoop, bending a needle, and "hoping it works."

When to upgrade your toolkit:

1. Level 1: Efficiency (Magnetic Hoops)
   If you are fighting with screws and causing hoop burn, terms like magnetic embroidery hoops for brother (specifically the Magnet Frame "S" or similar reliable brands) become your best friend. They reduce hooping time from 2 minutes to 10 seconds.
2. Level 2: Consistency (Hooping Stations)
   If you are misaligning logos, look into hooping stations. Systems like the hoop master embroidery hooping station allow you to pre-measure and hoop consistently off the machine, protecting the machine's pantograph from your heavy-handed force.
3. Level 3: Capacity (Multi-Needle Machines)
   If you are running a business on a single-needle VR and find yourself constantly changing thread colors or fearing downtime, the math suggests a shift. A dedicated multi-needle machine (like the SEWTECH series or scaling up to a Brother PR) is designed for the heat and duration of production runs that might kill a smaller unit.

Operation Checklist: The "Save My Machine" Summary

• Stop Instantly at the sound of a grind or loud click.
• Find the Tip of every broken needle.
• Lubricate on a schedule (drop of oil on the hook race every day if running 8 hours).
• Reduce Speed to 700-800 SPM for peace of mind.
• Optimize Hooping to prevent needle deflection—consider magnetic hoops if wrist fatigue or fabric thickness is an issue.

The Brother VR is a beast of a machine, but even beasts have soft spots. Keep your nylon wet, your needles straight, and your hooping tight.

Quick recap (what the video diagnosis proves)

• The Brother VR became suddenly noisy due to mechanical failure.
• With covers removed, black residue (nylon dust) was visible around the top shaft cam.
• Rotating the shaft revealed missing chunks of nylon caused by impact/dry running.
• The noise was caused by the metal follower hitting the steel crank (metal-on-metal).
• Prevention: Proper lubrication, finding broken needle tips, and using better hooping tools (magnetic frames) to prevent needle deflection shocks.

FAQ

• Q: What should Brother VR owners do immediately after a sudden loud grinding or clacking noise starts during embroidery?
  A: Stop the Brother VR immediately and do not “test stitch” again, because each rotation can grind away a failing nylon cam.
  • Power down and unplug the Brother VR, then wait 60 seconds before touching anything.
  • Remove the hoop, remove top thread, and take out the bobbin case to prevent additional snags.
  • Search for all broken needle pieces (use a magnet/flashlight); assume the needle tip is still inside if it is not found.
  • Success check: No further handwheel rotation is done until needle fragments are found and a clear visual inspection plan is set.
  • If it still fails: If the noise was sudden and severe, plan for cover removal inspection or stop and book a certified technician.
• Q: How can Brother VR users safely prepare the workspace before opening Brother VR covers for inspection?
  A: Create a “clean ecosystem” first to avoid lost screws, shorts, and accidental injury during Brother VR disassembly.
  • Unplug the Brother VR and wait 60 seconds (capacitors can hold charge).
  • Photograph screw locations before removal because different screw lengths may be used in one panel.
  • Use the correct JIS screwdriver (or a high-quality Phillips #2) to avoid stripping screw heads.
  • Success check: All removed parts and screws are organized, and nothing metallic can fall onto the control boards.
  • If it still fails: If casing removal feels forced (tabs resisting) or you cannot confirm needle fragments are cleared, stop and call a certified repair shop.
• Q: What does black residue or “soot” around the Brother VR white nylon profile cam usually indicate?
  A: Black “soot” around the Brother VR nylon profile cam usually means nylon cam material is being ground away, not “normal dirty grease.”
  • Inspect the white nylon cam area for black dust/paste buildup around the cam edges.
  • Do not wipe and re-oil as a “fix”; treat the residue as evidence of active wear or failure.
  • Plan a full inspection of the cam surface around the entire perimeter.
  • Success check: You can clearly identify whether the cam surface is intact and clean, or worn/contaminated with fresh black nylon dust.
  • If it still fails: If black residue is paired with sudden loud noise, proceed to a rotation inspection and consider professional service for timing components.
• Q: How do Brother VR technicians use a handwheel rotation test to confirm a failing Brother VR top shaft cam?
  A: Rotate the Brother VR handwheel slowly to inspect the cam through 360° and feel for resistance that signals cam damage.
  • Rotate by hand and feel: smooth is good; gritty is bad; lumpy/catching is critical.
  • Visually check the cam as it turns to find jagged edges or missing chunks.
  • Stop immediately if the rotation “catches,” because continued turning can worsen damage.
  • Success check: The handwheel rotation feels consistently smooth and the nylon cam shows no missing material anywhere around the shaft.
  • If it still fails: If missing chunks appear, treat the cam as failed and avoid running the machine until repair is arranged.
• Q: Why does a Brother VR get extremely loud when the nylon profile cam wears down, and what component is hitting what?
  A: The Brother VR gets loud because the metal follower starts contacting bare steel when the nylon cam no longer stands proud as a buffer.
  • Recognize the sound: metal-on-metal clanking can transmit vibration through the table and machine body.
  • Shut down to prevent secondary damage to bearings/sensors from repeated impact.
  • Inspect for cam wear and evidence of follower-to-steel contact before any further operation.
  • Success check: A healthy Brother VR produces rhythmic sewing-machine sounds without harsh clack-CLACK impacts or strong vibration felt through fingertips.
  • If it still fails: If the sound resembles a grinder or hammering, do not run designs—move directly to internal inspection or professional diagnosis.
• Q: When does a Brother VR nylon cam failure typically happen, and how do “bone dry” lubrication and needle strikes combine to cause it?
  A: Brother VR nylon cam failures often follow a combo of dry running plus a needle strike shock event that snaps brittle nylon.
  • Check lubrication habits: do not wait until the machine “sounds dry”; follow a schedule (use the machine manual as the authority).
  • Treat every needle break as a serious event: find the tip, and assume a fragment may still be inside until proven otherwise.
  • Reduce operating speed to the 700–800 SPM range for a safer daily baseline when possible.
  • Success check: The machine runs without new clicking/whining, and there are no repeat needle strikes or unexplained vibration after maintenance and cautious speed settings.
  • If it still fails: If sudden noise started right after a needle break or hoop strike, stop and inspect for cam damage rather than adjusting tension.
• Q: What magnetic hoop safety rules should Brother VR users follow when switching to strong magnetic embroidery hoops?
  A: Use magnetic embroidery hoops with strict pinch and medical safety habits because industrial magnets can snap shut with high force.
  • Keep fingers clear of hoop mating surfaces; close the magnetic hoop deliberately and slowly.
  • Keep magnetic hoops away from sensitive medical devices; users with pacemakers should consult a doctor before exposure to strong magnets.
  • Use magnetic hoops to improve clamp consistency and reduce fabric slippage that can lead to needle deflection and strikes.
  • Success check: Fabric stays clamped without slipping, and stitching starts cleanly without needle deflection-related impacts.
  • If it still fails: If thick items still shift or the needle still deflects, revisit hooping technique and stabilizer choice before increasing speed.
