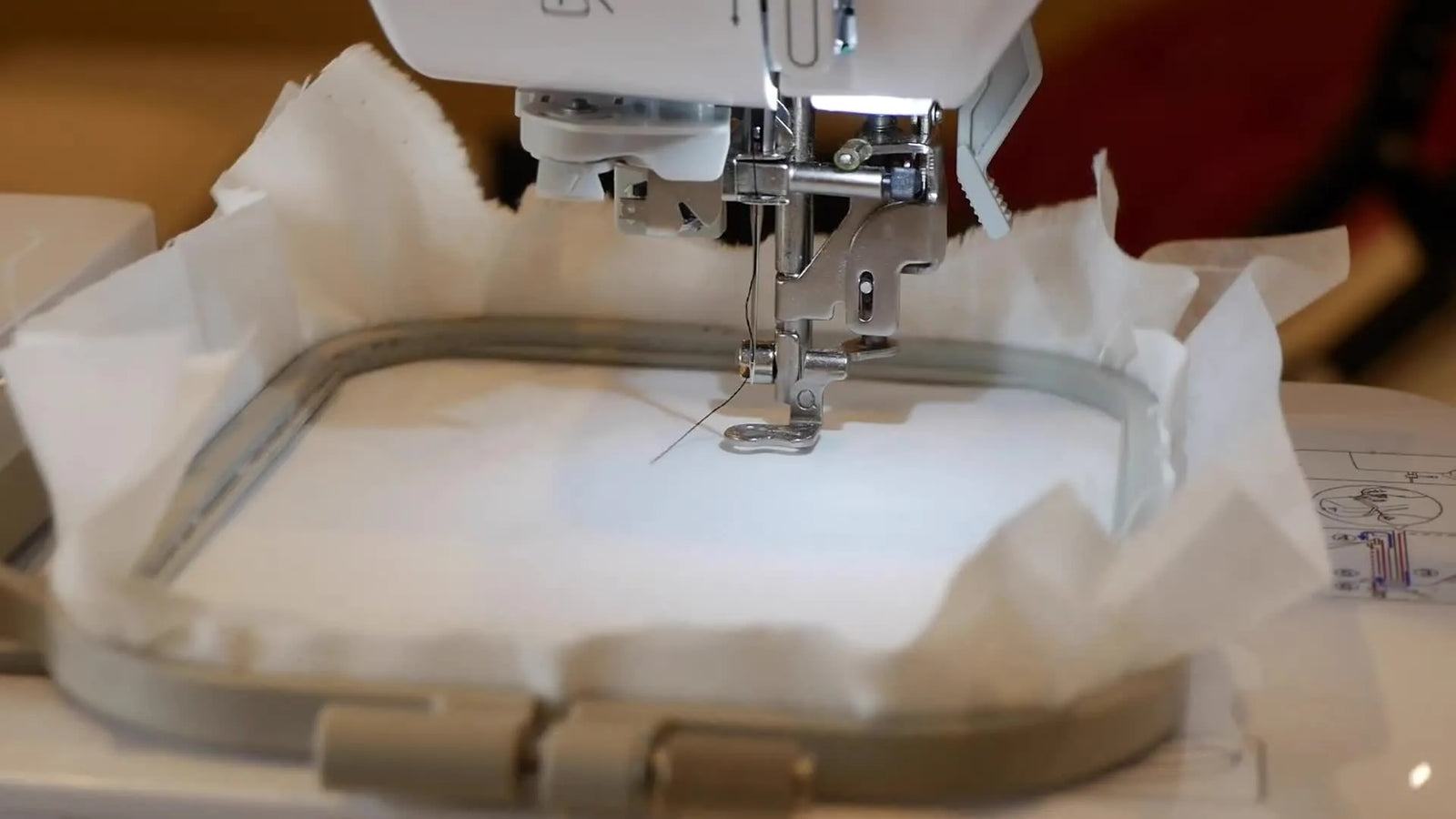

Brother SE600 “Slam Can” Stitch-Out: Clean Hooping, Calm Bobbin Changes, and a Pro Finish on a 14,626-Stitch File

The 37-Minute Stress Test: Mastering Long Stitch-Outs on the Brother SE600

If you have ever watched a long stitch-out on a single-needle home machine like the Brother SE600 and felt a knot in your stomach—What if it shifts? What if the bobbin runs out? What if it jams at 90%?—you are validating a universal truth: Machine embroidery is 20% art and 80% engineering.

In the reference video, Alan Wade runs a custom "Slam Can" design: one color, 14,626 stitches, and an estimated 37-minute runtime. On a commercial multi-needle machine, this is a coffee break. On a lightweight home machine, it involves 37 minutes of potential vibration, heat buildup, and tension variance.

I have spent two years on factory floors and decades teaching new operators. I can tell you that the difference between a ruined garment and a "factory-grade" finish usually isn't the machine itself—it's the discipline of the operator. This guide rebuilds the workflow to give you absolute safety and predictable results.

The Reality Check: Respecting the Physics of a 37-Minute Run

The Brother SE600 is capable of stunning work, but unlike an industrial Ricoma or a SEWTECH multi-needle beast, it relies on a lightweight friction-hoop system.

A 14,000-stitch design punches the fabric 14,000 times. Each needle penetration creates a microscopic "push" and "pull" on the fabric grain. Over 30 minutes, these micro-movements accumulate. If your setup is loose, your outline won't match your fill (registration error). If your stabilization is weak, the fabric will pucker.

We aren't just "running a file"; we are managing physical forces.

The "Hidden" Prep: Decisions Before Touching the Screen

Before you even look at the LCD screen, you must secure your foundation. Most beginners skip this and blame the machine later.

1. The Hoop Strategy

You must create a "drum skin" tension—taut, but not stretched.

• Tactile Check: Run your finger across the hooped fabric. It should not ripple, but you shouldn't have to strain your wrists to tighten the screw.
• The "Hoop Burn" Problem: Traditional plastic hoops rely on friction. To hold a heavy design, you often have to overtighten, which leaves permanent whitespace or "burn" marks on delicate fabrics.
• The Pro Fix: This is exactly why professionals switch to magnetic frames. Learning hooping for embroidery machine technique is vital, but using tools that clamp vertically (like magnetic hoops) rather than horizontally can eliminate hoop burn instantly.

2. Hidden Consumables

You need three things that aren't in the box:

• Temporary Spray Adhesive (e.g., Odif 505): Essential for "floating" stabilizer or keeping fabric fused to the backing.
• Fresh Needle (Size 75/11): If you can't remember when you changed it, change it now. A burred needle destroys satin stitches.
• Curved Snips: For precision trimming without gouging the fabric.

PRE-FLIGHT CHECKLIST (Do Not Skip)

• Hoop Check: Inner ring extends slightly past the outer ring (on standard hoops) or magnets are fully seated.
• Needle: Installed flat-side back, screw tightened firmly.
• Bobbin: Pre-wound bobbin is full. (For a 14k stitch design, start fresh. Don't risk it.)
• Workspace: The embroidery arm has 12 inches of clearance on all sides.

WARNING: Pinch Zone Identity. The area between the embroidery arm and the machine body is dangerous. When the machine moves, it moves without mercy. Keep hands clear, and never rest tools on the machine bed.

USB Loading: The "Clean" Import Sequence

Alan navigates the touchscreen to load the specific file.

• The logic: Select Folder → Select File → "Set" → "Embroider".
• The friction: The SE600 screen is resistive, not capacitive (like an iPhone). Use a stylus or the tip of your fingernail for accuracy.
• Safety: Once you press "Embroider," the carriage will move to center itself. Ensure your hoop is clear of the needle before this step.


Decoding the Data: 14,626 Stitches / 37 Minutes

The screen tells you the "price" of the design in time and materials.

• 14,626 Stitches: This is a dense design for a 4x4 area.
• 37 Minutes: This is calculated at variable speeds.
• 1 Color: You save time on thread changes, but you lose the "break" time involved in stopping. The needle bar will be hammering for 30+ minutes straight.

Empirical Tip: Check the machine casing near the motor after 20 minutes. If it's hot to the touch, pause the machine for 5 minutes. Home machines enjoy cooling breaks; industrial machines don't need them.

Threading: The "Dental Floss" Test

Threading is where 90% of "tension issues" actually happen. It is almost never the tension dial; it is the path.

1. Presser Foot UP: This opens the tension discs. If you thread with the foot down, the thread floats on top of the tension discs rather than sitting inside them.
2. Follow the Numbers: 1 through 7.
3. The Check: Before threading the needle eye, pull the thread gently.
   • Sensory Anchor: It should feel like pulling dental floss—smooth, consistent resistance. If it pulls freely like loose string, you missed the tension disc. Re-thread.


The Start: The 30-Second Rule

Do not press Start and walk away.

• The "Bird's Nest" Window: If a catastrophic tangle happens, it happens in the first 15 stitches.
• Watch for: The top thread being pulled down too fast (pop out), or the hoop vibrating violently.

If you are using the standard hoop and struggle to get it locked into the carriage smoothly, you aren't alone. The friction-fit mechanism can be stiff. Searching for a brother se600 hoop upgrade usually leads users to standard replacements, but look for ones with better adjustment screws or magnetic assists if you have weak hand strength.

SETUP CHECKLIST (Final Go/No-Go)

• Foot Down: The light is green.
• Thread Tail: Held lightly in your hand for the first 3 stitches to prevent it being sucked under.
• Clearance: Nothing behind the machine (wall, coffee cup) that the hoop could hit.


Monitoring: The Sound of Success

As the design runs, use your ears more than your eyes.

• Good Sound: A rhythmic, machine-gun chug-chug-chug.
• Bad Sound: A sharp clack-clack (needle hitting throat plate) or a labored thump-thump (needle struggling to penetrate density).
• The Fix: If it thumps, your stabilizer is too thick or your needle is dull.

For those looking to speed up production, a hooping station for embroidery serves a dual purpose: it holds the hoop and garment perfectly steady while you hoop, ensuring consistent tension that results in quieter, smoother machine operation.

The Midway Crisis: "Bobbin Thread is Almost Empty"

For a standard SE600 operator, this message induces panic. The fear is that the machine will lose its place. It won't—IF you follow the protocol strictly.

The Safe Cycle:

1. Acknowledge the specific warning on screen.
2. Trim the top thread.
3. Lift the presser foot.
4. Remove the hoop carefully. Do not tug it; release the lever fully.
5. Swap the bobbin.


The Bobbin Swap: Direction Matters

Refilling the bobbin is a mechanical precision task.

• The "P" Rule: Hold the bobbin so the thread hangs down to the left, forming the letter "P".
• The Cutter Check: When you slide the thread through the raceway, listen for a tiny click or verify it passes under the tension spring blade. If you miss this spring, you will get massive loops on the back of your design.

Pro Insight: Pre-wound bobbins (filament polyester, usually 60wt or 90wt) hold more thread than self-wound cotton bobbins. For long runs, use pre-wounds.

The Resume: Zero-Play Re-Attachment

When you slide the hoop back onto the carriage:

• Tactile Check: Give the hoop a tiny wiggle. There should be zero play. It needs to feel like a solid part of the machine.
• The Upgrade Trigger: If you find yourself fighting the hoop attachment constantly, or if the fabric slips during this removal/re-insertion process, you have hit the limit of friction hoops. magnetic embroidery hoops are the industrial solution to this handling problem—they don't lose tension when removed because the magnets clamp the fabric independently of the machine attachment.

MAGNET WARNING: Magnetic hoops are incredibly powerful. They can pinch fingers severely. Do not use if you have a pacemaker. Keep away from credit cards, hard drives, and computerized sewing cards.

Finishing: The "Sellable" Clean Up

Once the machine finishes, your job isn't done.

• Jump Stitches: The SE600 (unlike high-end SEWTECH or Ricoma models) does not automatically trim every jump stitch perfectly. You must do it by hand.
• Technique: Pull the jump thread perpendicular to the fabric, slide your curved snips under the knot, and snip.
• Why Curved? Straight scissors will inevitably poke a hole in your shirt.


Decision Tree: Fabric vs. Stabilizer

The video shows a successful run, but doesn't explain why it worked. It worked because the stabilizer matched the stitch density.

The "Slam Can" Decision Matrix (14,000+ Stitches):

• Is the fabric stretchy (T-Shirt/Polo)?
  • YES: Cutaway Stabilizer (Must use. Tearaway will explode under 14k stitches).
  • NO (Denim/Canvas): Tearaway is acceptable (2 layers) OR Cutaway (1 layer).
• Is the design dense (Solid fills)?
  • YES: Use Cutaway. Density creates a "cookie cutter" effect that perforates Tearaway, causing the design to fall out or shift.

If you struggle with hooping thick stabilizers and fabric layers together, a magnetic hoop for brother allows you to "sandwich" these layers without forcing them into a plastic groove, reducing physical strain and setup time.

The Result: Why One Color Works

A single-color design forces the eye to focus on texture.

• Quality Indicator: Look at the edges. Are they crisp? (Good tension). Are they fuzzy? (Stabilizer shifted).
• The Value: Simple designs run faster and fail less often. They are the backbone of a profitable embroidery catalog.


The Business Pivot: When to Upgrade?

We have walked through the workflow. Now, let's diagnose your pain points. If you are doing this for fun, the SE600 is enough. If you are doing this for profit, look at your bottlenecks.

Scenario A: "My wrists hurt and I hate hooping."

• Diagnosis: Friction hoops are slow and ergonomically poor for production.
• Solution Level 1: Buy a Hooping Station.
• Solution Level 2: Upgrade to Magnetic Hoops. They snap on instantly, hold thick items (towels, jackets) easily, and minimize hoop burn.

Scenario B: "I can't take 37-minute breaks for one item."

• Diagnosis: You are single-needle limited. You cannot scale volume on a linear machine.
• Solution: You need a multi-needle machine (like the SEWTECH series).
  • Benefit: 15 needles mean no thread changes.
  • Benefit: Faster motors (1000+ SPM) reduce a 37-minute run to ~20 minutes.
  • Benefit: Tubular arms allow you to embroider ready-made caps and bags, which the SE600 cannot do.

While people often search for ricoma embroidery machines due to aggressive marketing, savvy business owners compare the Return on Investment (ROI). A SEWTECH offers the same industrial capacity—often with better magnetic hoop compatibility—at a price point that lets you break even months sooner.

Compatibility is key. When searching for embroidery hoops for brother machines, always verify your specific model (e.g., SE600 vs. PE800) because the attachment clips vary significantly.

OPERATION CHECKLIST (Post-Assessment)

• Inspect: Check the back of the embroidery. Is the bobbin thread visible 1/3 in the center of satin columns? (Perfect tension).
• Trim: Remove jump stitches and tear away/cut away backing excess.
• Clean: Use a lint brush on the bobbin case. 14,000 stitches create a lot of fuzz.
• Rest: Turn off the machine if you aren't starting the next run immediately.

Embroidery is a discipline. Respect the setup, and the machine will respect your design.

FAQ

• Q: What hidden consumables should be prepared before running a 14,000+ stitch design on a Brother SE600 embroidery machine?
  A: Prepare the missing basics first—spray adhesive, a fresh 75/11 needle, and curved snips—because long runs expose weak setup fast.
  • Use temporary spray adhesive to keep fabric and stabilizer bonded (especially if floating stabilizer).
  • Change to a fresh size 75/11 needle if needle age is unknown.
  • Keep curved snips ready for safe trimming during and after the run.
  • Success check: the first stitches form cleanly with no thread shredding and no fabric shifting.
  • If it still fails, re-check hoop tension and re-thread with the presser foot up.
• Q: How tight should fabric be hooped on a Brother SE600 standard plastic embroidery hoop to prevent shifting during a 37-minute stitch-out?
  A: Hoop to “drum skin” tension—taut but not stretched—so the fabric stays stable without damage.
  • Tighten until the fabric surface does not ripple when you run a finger across it.
  • Avoid over-tightening the screw to “force” stability, which can cause hoop burn on delicate fabric.
  • Confirm the hoop is fully seated/locked into the carriage before starting.
  • Success check: the hoop feels secure with no visible fabric slack and no violent hoop vibration at startup.
  • If it still fails, upgrade stabilization (match fabric to cutaway/tearaway choice) or consider a magnetic hoop to reduce slip and hoop burn.
• Q: How can Brother SE600 embroidery machine threading be checked using the “dental floss” test to prevent tension problems?
  A: Re-thread with the presser foot UP and confirm smooth, consistent resistance before the needle—most “tension” issues are actually mis-threading.
  • Raise the presser foot before threading so the tension discs open properly.
  • Follow the numbered threading path exactly.
  • Pull the thread gently before threading the needle; it should feel like dental floss resistance, not free-floating.
  • Success check: the machine runs without sudden looping and the stitch sound stays steady instead of erratic.
  • If it still fails, fully re-thread again (don’t “patch” the path) and confirm the bobbin thread is correctly under the bobbin tension spring.
• Q: What should be done during the Brother SE600 first 30 seconds of embroidery to prevent a bird’s nest thread jam?
  A: Stay with the machine and control the thread tail—most catastrophic tangles happen in the first 15 stitches.
  • Hold the top thread tail lightly for the first 3 stitches so it doesn’t get sucked under.
  • Watch for violent hoop vibration or the top thread pulling down too fast.
  • Stop immediately if thread starts piling under the fabric and re-thread from the start.
  • Success check: the first outline stitches lay flat with no bunching on the underside.
  • If it still fails, check that the hoop is locked with zero play and confirm the bobbin is seated and threaded correctly.
• Q: How do you safely replace the bobbin after the Brother SE600 shows “Bobbin thread is almost empty” without losing design placement?
  A: Follow the exact safe cycle—acknowledge, trim, foot up, remove hoop carefully, swap bobbin—so the machine keeps its place.
  • Acknowledge the warning on-screen and trim the top thread.
  • Lift the presser foot before removing anything.
  • Remove the hoop by fully releasing the lever; do not tug the hoop.
  • Insert the bobbin in the correct “P” direction and ensure the thread passes under the tension spring (verify by the cutter/tension engagement).
  • Success check: after resuming, stitches land exactly on the previous path with no offset.
  • If it still fails, re-attach the hoop and confirm there is zero play; if consistent shifting happens, a magnetic hoop can reduce loss of tension during removal/reinsertion.
• Q: What does “zero play” mean when re-attaching a Brother SE600 embroidery hoop, and how do you check it after a bobbin change?
  A: “Zero play” means the hoop becomes a solid part of the carriage—any wiggle can turn into registration error during a long run.
  • Slide the hoop into the carriage until it fully seats.
  • Wiggle the hoop gently; there should be no looseness or clicking movement.
  • Reconfirm clearance around the embroidery arm before pressing Start.
  • Success check: the design resumes with clean alignment (outline and fill match without drifting).
  • If it still fails, stop fighting a loose friction system—consider a magnetic hoop that clamps the fabric independently and holds tension better during handling.
• Q: What are the safety risks of magnetic embroidery hoops and how should magnetic hoops be handled around a Brother SE600 workflow?
  A: Treat magnetic hoops as pinch hazards and avoid them with pacemakers—handle magnets deliberately and keep them away from sensitive items.
  • Keep fingers out of the closing area; magnets can pinch severely.
  • Do not use magnetic hoops if the operator has a pacemaker.
  • Keep magnetic hoops away from credit cards, hard drives, and computerized sewing cards.
  • Success check: magnets seat flat without gaps and fabric is clamped evenly without sudden snapping onto fingers.
  • If it still fails, slow down the hooping process and consider using a hooping station to control alignment and hand placement.
