Brother SE600 Sarcastic Emoji Patch: Clean Cutouts, a No-Panic Bobbin Swap, and Fray Check Edges That Don’t Fray Out

If you’ve ever watched your Brother SE600 happily stitching away, only to feel your stomach drop when a warning pops up mid-design, you are not alone. Machine embroidery is an art of variables—tension, thread, fabric, and physics. Patch-style designs, especially those with bold, dense fills like emojis, look deceptively "simple." In reality, they are stress tests for your machine's calibration.

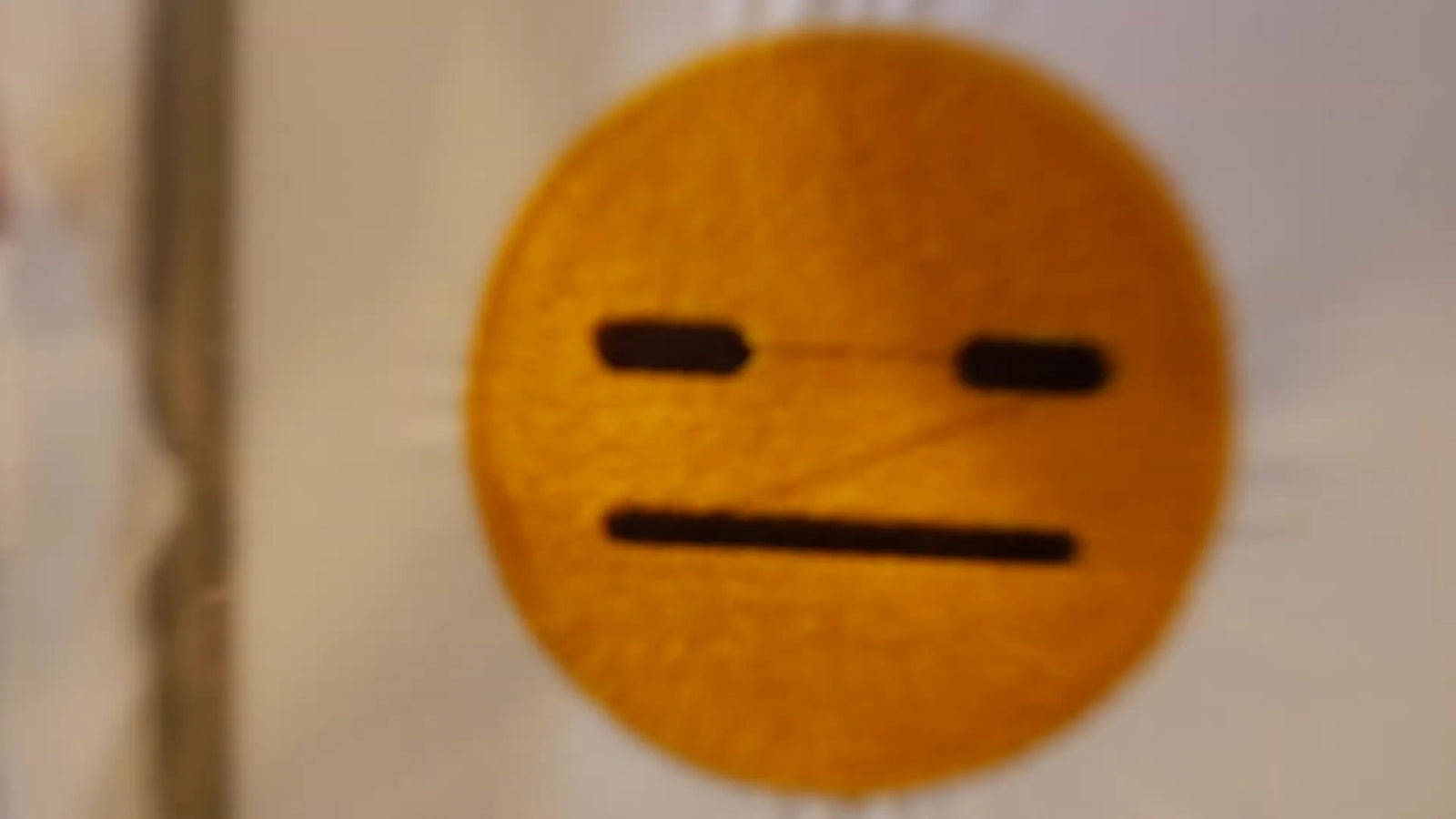

In this project, we are stitching a sarcastic face emoji patch in a two-color sequence (Deep Gold base, Dark Brown details) on white twill cloth using tearaway stabilizer. But beyond the pattern, we are going to unlock the two "pro-level" skills that separate a hobbyist from a producer: (1) understanding how digitizing prevents "birdnesting," and (2) performing a surgical recovery when your bobbin runs out, so no one ever knows you stopped.

Calm the Panic: What the Brother SE600 Patch Stitch-Out Is Really Doing (and Why It Stops)

The LCD screen on your Brother SE600 tells you a story if you learn to read it like a technician rather than a nervous observer. In this scenario, the machine estimates 10,976 stitches and roughly 28 minutes total run time.

However, look at the split: 25 minutes for Color 1 and 3 minutes for Color 2.

This simple data point reveals a massive physical stress factor: The Gold layer is doing the "heavy lifting." It is laying down a dense fill that will heat up your needle and test your stabilizer's endurance.

The "Sweet Spot" Speed Setting: While your machine might boast 710 stitches per minute (SPM), running a dense fill at max speed is a recipe for friction and thread breaks.

• Recommendation: For dense patch fills, throttle your speed down to the 400–600 SPM range.
• Why: Lower speed reduces heat buildup on the needle (which melts polyester thread) and allows the fabric to recover slightly between needle penetrations.


Pro tip from the shop floor: When a design is "mostly one color," do not treat it as easy. Long, single-color runs are exactly when you will experience "tension drift"—where the vibration of the machine slowly vibrates the tension knobs or unspools the thread too fast. Monitor your top thread tension closely during the first 500 stitches.

The “Hidden” Prep Before You Hit Start: Brother SE600 4x4 Hoop + Stabilizer Choices That Prevent Ripples

The video utilizes tearaway stabilizer with a standard cloth material in a 4x4 hoop. This is a solid baseline for patches, but the "secret sauce" is in the Hooping Mechanics.

Hooping is simply controlled tension. Most beginners err on the side of "too loose" (causing registration errors) or "distorted tight" (causing puckering).

The "Drum Skin" Sensory Test: If you are working with a standard plastic brother se600 hoop, follow this sensory guide:

1. Tactile: Tighten the screw until the fabric is taut.
2. Auditory: Tap the fabric lightly with your fingernail. You should hear a dull, rhythmic thump-thump sound, like a drum.
3. Visual: Look at the weave of your fabric. The vertical and horizontal threads must remain square. If they look curved or bowed, you have pulled too tight—this will result in an oval patch instead of a circle once unhooped.

The Hidden Consumable: I highly recommend using a light mist of Temporary Spray Adhesive (like 505 Spray) to bond your fabric to the stabilizer. This prevents the fabric from creeping inward as the stitches pull it toward the center.

Prep Checklist (do this before threading the first color)

• Frame Check: Confirm the inner hoop ring protrudes slightly from the bottom of the outer ring (preventing "pop-out").
• Clearance: Check that the machine arm can move freely without hitting walls or clutter.
• Bobbin Status: Ensure you are starting with a full bobbin. A 10,000-stitch design will consume a significant amount of bobbin thread.
• Needle Freshness: If you don't remember when you last changed your needle, change it now. A 75/11 Embroidery Needle is your standard workhorse here.
• Tool Prep: Keep curved scissors and tweezers within arm's reach.

Warning: Embroidery machines are industrial tools. Keep fingers, loose sleeves, jewelry, and long hair away from the needle and moving arm area while the machine is running. Never attempt to remove lint near the needle while the machine is in "ready" mode.

Let the Gold Layer Work: The Cutout Digitizing Trick That Stops Birdnesting Before It Starts

The video’s most important lesson is hidden in the digitizing logic: the gold base layer is stitched with deliberate "holes" (cutouts) for the eyes and mouth.

Why does this matter? It comes down to Physics and Penetration. If you stitch a solid gold block and then stitch brown eyes on top, you are forcing the needle to punch through fabric, stabilizer, and a dense layer of thread.

1. Friction: This creates massive friction.
2. Deflection: The needle may bend slightly, hitting the needle plate.
3. Birdnesting: The top thread cannot pass through smoothly, causing a tangle of loops underneath (a "bird's nest").

By leaving cutouts, the brown thread stitches directly into the stabilized fabric, ensuring a flush, clean finish.

Watch out (The "Stacking" Pitfall): Beginners often mistakenly think more stitches equal better quality. On dense layered designs, excess thickness is the enemy. It causes thread breaks and bobbin thread to be pulled to the top surface.

Setup on the Brother SE600 Screen: Confirm the Two-Color Plan Before You Waste 25 Minutes

Before pressing the green button, the video pauses on the LCD screen. This is your "Pilot's Pre-Flight Check."

You are confirming:

1. Color 1: Deep Gold (The Fill).
2. Color 2: Dark Brown (The Detail).
3. Orientation: Is the face right-side up?

If you are using a standard brother embroidery hoop 4x4, this is also the moment to confirm the design isn’t too close to the plastic edge. The presser foot needs clearance.

The "Trace" Function: Use the machine’s "Trace" or "Check Size" button. Watch the foot move around the perimeter.

• Visual Logic: Does the foot hit the plastic frame? If yes, re-center immediately.

Setup Checklist (right before pressing Start)

• Trace Test: Run the trace function to ensure frame clearance.
• Thread Path: Pull a few inches of thread through the needle. Does it flow smoothly? If it jerks, check the spool cap.
• Foot Height: Ensure the presser foot is down. (The machine usually warns you, but not always).
• Screen Match: Does the screen orientation match your physical hoop orientation?

The No-Gap Recovery: Fixing “Bobbin Thread Almost Empty” on Brother SE600 Without Losing Your Place

It is the dreaded moment: Mid-stitch, the SE600 displays “The bobbin thread is almost empty.” The machine stops.

Do not panic. Do not pull the hoop off.

The video demonstrates a surgical recovery method:

1. Stop: Acknowledge the alert.
2. Trimming: Cut the thread.
3. The Secret Step: Use the touchscreen stitch position controls (usually a +/- button) to rewind about 10 to 20 stitches.
4. Refill: Change the bobbin.
5. Resume: Start stitching.

Why rewind? The machine takes a few stitches to build up tension again. If you start exactly where you stopped, you will leave a weak spot or a visible gap. By backing up, the new stitches overlap the old ones, locking them in and hiding the transition seamlessly.

Pro tip (Audio-Visual Check): When you resume stitching, listen for the first few stitches. They should sound solid. If you hear a "slapping" sound, stop immediately—you likely missed the tension spring on the bobbin case.

The trim-button lesson (don’t learn it the hard way)

In the video, the operator forgot to press the automatic trim button before changing the bobbin.

• Best Practice: Always use the automatic thread cutter (scissors button) before removing the hoop or changing threads. This locks the final stitch and prevents the thread from unraveling.

Thread Change to Dark Brown: The Take-Up Lever Check That Prevents Instant Breaks

After the gold marathon finishes, you switch to dark brown. The video shows threading through guides 1–7.

Crucial Checkpoint: The Take-Up Lever (The silver arm that moves up and down). This is the #1 cause of "my machine won't sew" complaints. If the thread slips out of the take-up lever "eye," the machine cannot pull the stitch tight. You will get immediate looping on the bottom.

Sensory Check:

• Visual: Look specifically at the metal lever at the top of the machine. The thread must be inside the eyelet.
• Tactile: Hold the thread near the spool and pull gently near the needle. You should feel resistance—like pulling dental floss. If it pulls through with zero resistance, your top tension discs are not engaged (raise and lower the presser foot to reset).


If you are running a production batch of patches, this constant re-threading and re-hooping causes significant hand fatigue. This mechanical repetition is often the trigger for users to explore different embroidery machine hoops that clamp faster than traditional screw systems.

Brown Details That Don’t Leave White Gaps: Overlap + Pull Compensation in Real Life

The second color fills the eyes and mouth. You might notice the machine stitching over the edge of the gold slightly.

This is Pull Compensation.

• The Physics: Stitches pull fabric inward. A 10mm wide column might shrink to 9mm once stitched on fabric.
• The Solution: The digitizer makes the object slightly wider than the hole it fills.
• The Result: When the fabric shrinks, the edges meet perfectly.

If you see a white gap (a "halo") between the brown eye and the gold face, it means your fabric was not stabilized enough, or the hoop tension was too loose.

Clean Patch Finishing Without a Serger: Curved Scissors + Fray Check Edge Sealing

Once the stitch-out is complete (listen for the happy finishing chime!), the work isn't done.

The "Home Patch" method involves:

1. Trim: Use distinct, sharp curved scissors to snip jump stitches.
2. Seal: Apply a liquid sealant (like Fray Check) to the outer satin edge.
3. Wait: Allow it to dry.
4. Cut: Scissor-cut the patch out.










The "Touch" Warning: Do not touch the Fray Check while wet; it is sticky and transfers easily to the patch face. Consumable Note: Ensure your Fray Check is fresh. Old liquid gets thick and yellow.

Operation Checklist (finishing the job right)

• Jump Stitch Audit: Hold the patch up to the light. Clip any long connecting threads closer to the surface.
• Sealing: Apply sealant only to the edge. Capillary action will soak it in. Do not soak the middle of the patch.
• Drying: Wait at least 15-30 minutes. If you cut wet fabric, the edges will fray because the glue hasn't cured.
• Final Cut: Angle your scissors slightly away from the threads to avoid accidentally snipping the satin border.

A Quick Decision Tree: Stabilizer + Hooping Choices for Patch Cloth vs Stretchy Fabric

The video uses tearaway stabilizer on standard cloth. But what if you change fabrics?

Decision Matrix: Fabric vs. Stabilizer

• Rule of Thumb: If the fabric stretches, the stabilizer must not. Use Cutaway for anything you wear that stretches.

The Upgrade Path When You Start Making Patches to Sell: Speed, Consistency, and Less Hand Fatigue

The video frames this as a side hustle. To turn this into a business, you must solve the "Bottleneck of Hooping."

Most home users fail at production not because of the stitching, but because hooping takes too long and causes "Hoop Burn" (permanent rings on the fabric).

If you are doing production runs of 10+ items, improving your hooping for embroidery machine process is the highest ROI upgrade you can make.

Tool Upgrade Logic (The "Pain-to-Solution" path)

1. Pain Point: Uneven Alignment.
   • Symptom: Patches are crooked.
   • Solution: A hooping station for embroidery. This gives you a grid and physical jig to ensure every patch lands in the exact same spot.
2. Pain Point: Wrist Pain & Hoop Burn.
   • Symptom: Your hands hurt from tightening screws; delicate fabrics are marked by the rings.
   • Solution: magnetic embroidery hoops. These use powerful magnets to clamp fabric instantly without the "friction twist" of screws. This eliminates hoop burn and reduces hooping time by 50%.
3. Pain Point: Compatibility.
   • Symptom: Unsure if advanced tools fit a home machine.
   • Solution: Many third-party embroidery hoops magnetic are now compatible with single-needle machines like the Brother SE600, offering a bridge to professional workflows.

Warning: Magnetic Safety
Magnetic hoops use industrial strength magnets. They serve a vital purpose but require respect.
* Pinch Hazard: They snap together instantly. Keep fingers clear.
* Medical Devices: Maintain a safe distance from pacemakers.
* Electronics: Keep away from credit cards and screens.

The Real “Make Money” Math (Without Guessing): Where Your Time Actually Goes

A 28-minute stitch-out is manageable for one patch. But if you have an order for 50?

• 28 mins x 50 patches = 23+ hours of machine running time.
• Add 5 minutes per patch for hooping/thread changes = +4 hours.

The Commercial Tipping Point: When you consistently have orders requiring more than 4 hours of stitching per day, a single-needle machine becomes a liability. This is the moment to consider SEWTECH multi-needle embroidery machines.

• Efficiency: They hold 10-15 colors at once (no manual thread changes).
• Speed: They stitch at true 1000 SPM.
• Capacity: You can prep the next hoop while the machine stitches the current one.

Final Reality Check: What “Good” Looks Like on This Emoji Patch

When the dust settles and the Fray Check dries, examine your work. A professional patch requires:

1. Density: Solid gold fill with no fabric showing through.
2. Registration: Brown eyes are perfectly centered with no white gaps.
3. Edge: A smooth satin border with no loose "eyelash" threads.
4. Feel: The patch should be stiff enough to hold shape but flexible enough to sew onto a jacket.

If you hit these four marks, you haven't just made an emoji—you've mastered the fundamentals of machine embroidery digitizing and production. Now, go load that next bobbin.

FAQ

• Q: What is the safest stitch speed range on a Brother SE600 for dense patch fill designs to reduce thread breaks and heat?
  A: Set the Brother SE600 to a slower 400–600 SPM range for dense patch fills instead of max speed.
  • Reduce speed before starting long, single-color fills to limit needle heat and friction.
  • Monitor top thread tension closely during the first ~500 stitches because tension can drift during long runs.
  • Success check: Stitching sounds steady (not “snapping”), and the thread runs without repeated breaks during the fill.
  • If it still fails… Change to a fresh 75/11 embroidery needle and re-check threading through the guides and take-up lever.
• Q: How tight should fabric be hooped in the Brother SE600 4x4 embroidery hoop to prevent puckering and distortion?
  A: Hoop the fabric to a “drum skin” tightness—taut but not stretched out of shape.
  • Tighten the hoop screw until the fabric is firm, then tap the surface lightly.
  • Watch the fabric weave: keep the vertical/horizontal threads square (not bowed or curved).
  • Success check: The fabric gives a dull “thump-thump” sound when tapped, and the design stitches without ripples.
  • If it still fails… Add temporary spray adhesive to bond fabric to stabilizer so the fabric cannot creep inward during stitching.
• Q: Why does a Brother SE600 get birdnesting when stitching layered patch designs, and how do digitized cutouts prevent it?
  A: Avoid stacking dense stitches; digitized cutouts let detail stitches land on stabilized fabric instead of punching through a thick thread base.
  • Use a base fill that leaves holes where eyes/mouth/details will stitch, instead of filling solid and stitching details on top.
  • Stop thinking “more stitches = better” on layered areas; excess thickness increases friction and tangling underneath.
  • Success check: Detail stitching sits cleanly without underside loops and without the needle struggling through the base.
  • If it still fails… Slow down and re-check stabilizer/hooping firmness, because instability can amplify thread looping.
• Q: How can a Brother SE600 resume embroidery after the “bobbin thread is almost empty” message without leaving a visible gap?
  A: Do not remove the hoop; rewind 10–20 stitches before restarting so the new bobbin overlaps and locks the stitch-out.
  • Acknowledge the alert and cut thread before changing the bobbin.
  • Use the on-screen stitch position controls to back up about 10–20 stitches.
  • Replace the bobbin, then resume stitching.
  • Success check: The restart area shows no gap or weak spot, and the first stitches sound solid (not “slapping”).
  • If it still fails… Stop and re-seat the bobbin correctly; a “slapping” sound often means the bobbin tension path was missed.
• Q: What should be checked on the Brother SE600 take-up lever to prevent immediate looping or “won’t sew” after a thread change?
  A: Confirm the upper thread is inside the take-up lever eye; missing the take-up lever is a top cause of instant looping.
  • Re-thread carefully through all guides and visually confirm the thread is captured by the moving silver take-up lever.
  • Pull the thread near the needle while holding near the spool to feel normal resistance.
  • Raise and lower the presser foot to re-engage tension if the thread pulls with zero resistance.
  • Success check: The stitch forms normally (no big loops on the underside) within the first few stitches.
  • If it still fails… Re-check the spool cap/spool feeding for jerking, and re-thread again slowly.
• Q: What safety rules should be followed around the needle and moving arm area on a Brother SE600 during embroidery?
  A: Treat the Brother SE600 like an industrial tool: keep hands, hair, sleeves, and jewelry away from the needle and moving arm.
  • Keep fingers out of the needle zone while the machine is running.
  • Never remove lint near the needle while the machine is in “ready” mode.
  • Clear the area so the embroidery arm cannot strike walls or clutter during movement.
  • Success check: The hoop and arm move freely through the full trace/perimeter path without any contact risk.
  • If it still fails… Stop the machine, power down if needed, and re-position the setup for full clearance before restarting.
• Q: When producing 10+ patches, what is the step-by-step upgrade path to reduce Brother SE600 hooping time, hoop burn, and alignment issues?
  A: Upgrade in levels: improve technique first, then add faster clamping tools (often magnetic hoops), and only then consider a multi-needle machine for daily volume.
  • Level 1 (Technique): Use the trace/check-size function every time and add temporary spray adhesive to prevent fabric creep.
  • Level 2 (Tooling): Use a hooping station for repeatable placement; consider magnetic hoops to clamp faster and reduce screw-tightening fatigue and hoop burn.
  • Level 3 (Capacity): If orders push beyond ~4 hours of stitching per day, a multi-needle machine becomes the practical step for speed and fewer manual thread changes.
  • Success check: Hooping becomes consistent and fast, and patches come out straight without ring marks or repeated re-hooping.
  • If it still fails… Re-evaluate stabilizer choice and hoop tension first, because inconsistent foundations make any upgrade feel “ineffective.”
