Brother SE400 Unboxing, Without the Overwhelm: What’s in the Box, What Matters First, and What to Upgrade Later

If you just unboxed a Brother SE400 and your brain is already spinning—stop. That feeling isn’t incompetence; it’s just the lack of a system.

I have spent twenty years teaching operator mechanics, and I’ve watched hundreds of beginners move from “I’m terrified to press start” to running profitable micro-production runs. The difference is rarely talent. It is organization.

This post turns your chaotic unboxing into a precise, “military-grade” deployment workflow. We will cover the inventory, the critical physics of setup, and the sensory habits that prevent the three horsemen of embroidery failure: thread nests, puckering, and broken needles.

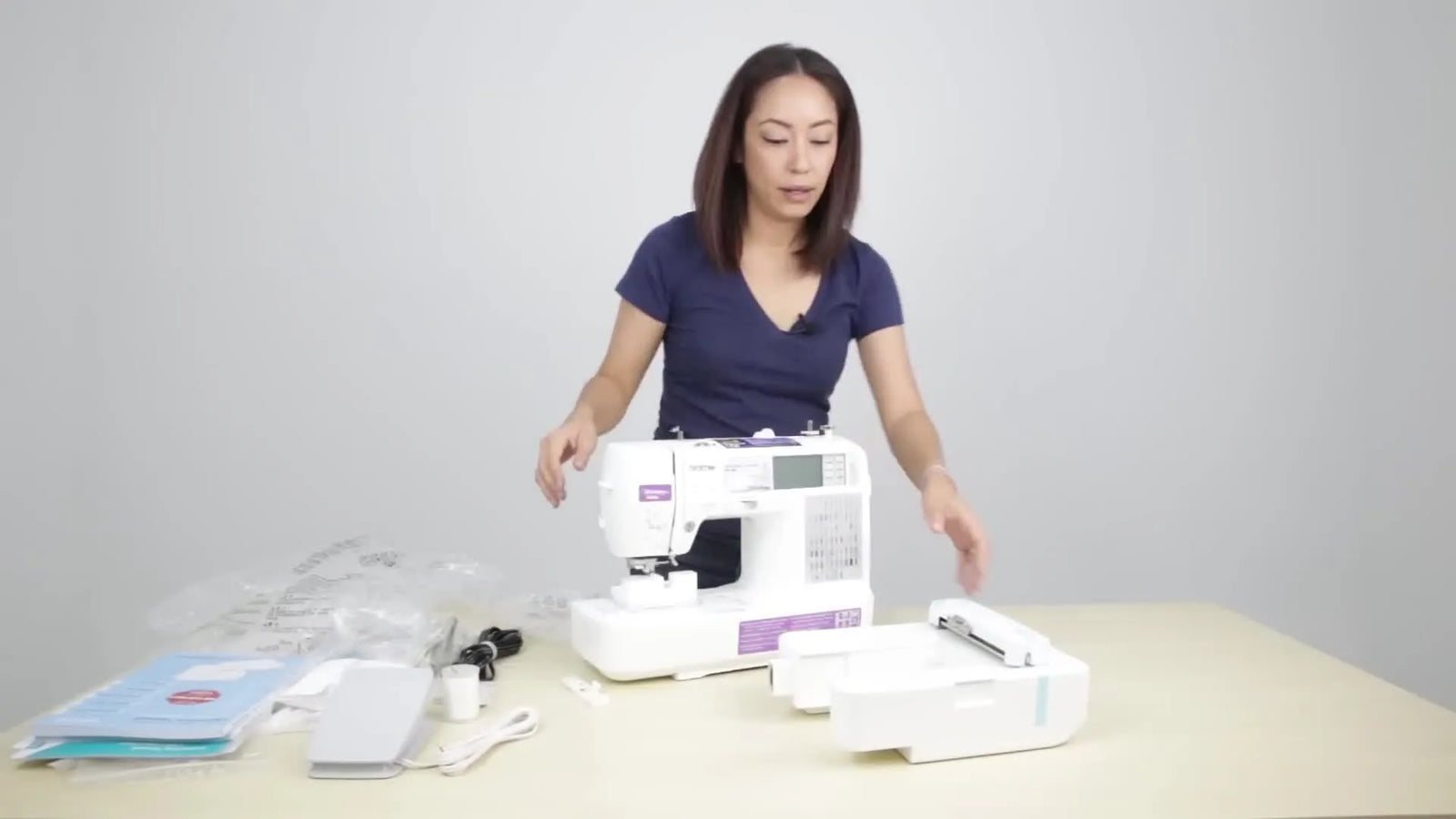

Meet the Brother SE400 Computerized Embroidery & Sewing Machine—And Breathe First

The Brother SE400 is a "hybrid tactical unit": it sews, and it embroiders. It is designed to lower the barrier to entry, but do not mistake "beginner-friendly" for "foolproof." This machine relies on you to be the engineer.

Here is the mindset shift that saves you hours of frustration: Respect the physics. Embroidery is simply pushing and pulling thread through fabric at high speed. If your setup is loose, the results will be sloppy.

One detail that matters immediately: the included hoop is a brother 4x4 embroidery hoop. This defines your "physical sandbox."

• The constraint: You cannot stitch a design larger than 3.93" x 3.93" (100mm x 100mm).
• The strategy: Do not view this as a flaw. View it as a training boundary. Master the 4x4 field before you even think about expansion.


The “Nothing Missing” Inventory Pass: Brother SE400 Accessories You Should Confirm Before You Toss the Foam

Do not just rip the box open. Treat this phase like a surgical audit. Small, critical components are often taped into the Styrofoam divots or tucked inside the "free arm" storage compartment of the machine.

In the video, the presenter methodically pulls items from the slots. You must do the same. Missing a spool cap isn’t an inconvenience; it is a machine stopper. Without the correct cap, thread snags, tension spikes, and needles break.

The "Must-Have" Audit List:

• Embroidery Bobbin Thread (60wt or 90wt white): This is thinner than sewing thread. Do not mix them up.
• The 4x4 Hoop: Inspect the screw mechanism. It should turn smoothly.
• Power & USB Cables: Verify the USB connector isn’t bent.
• Spool Caps: You typically get Small, Medium, and Large. Crucial: The cap must be slightly larger than the spool diameter but not so huge it creates drag.
• Needle Set: Look for the "75/11" stamp—the embroidery standard.
• Tools: Seam ripper (your eraser), screwdriver (coin-shaped), cleaning brush (keep this close).
• Presser Feet: Identify the "Q" foot (Embroidery). It looks different than the "J" foot (Zigzag/Sewing).


Pro tip from the comments (translated into shop reality)

One viewer noted the machine “threads itself” and felt like magic. That is the Automatic Needle Threader.

• Reality Check: It is a mechanical hook, not magic. It works only when the needle is in the highest position (turn the handwheel toward you until the line marks align). If you force it, you will bend the internal hook, and your "magic" feature is gone forever.


Prep Checklist (Do this BEFORE you plug it in)

• Zone Check: Clear a workspace where the machine creates a "vibration-free" footprint. A wobbly table equals wobbly stitches.
• Accessory Hunt: Open the free-arm storage. Locate the spool caps. If you lose the spool cap, you cannot sew. Period.
• Trash Discipline: Do not throw away the box or foam yet. Keep it for 30 days in case of warranty defects.
• Consumable Check: Do you have Fabric Spray Adhesive (TEMPORARY bond) and Curved Appliqué Scissors? These are rarely in the box but are essential for clean cuts.
• Tool Separation: Get two small bins/cups. Label one "SEWING" (Feet J, A, G, M) and one "EMBROIDERY" (Foot Q, USB cable). Never mix them.


Warning: Sharps Hazard & Disposal
The included seam ripper and needles are surgical-grade sharp.
1. Never reach blindly into the accessory bag.
2. Dedicate a small "Sharps Jar" (an old pill bottle) for broken needles immediately. Never throw a loose needle into a trash can; it will find its way into a foot or a pet's paw.

The 4x4 Reality Check: Brother SE400 Hoop Size Limits, and the Smart Upgrade Path

The video highlights the 4x4 hoop. Beginners often immediately ask, "Can I buy a bigger hoop?"

The Physics of the Answer: You can buy a "multi-position" hoop that is physically larger, but the machine's arm can still only reach 4x4 inches at a time. You have to split the design and re-attach the hoop. This is advanced and prone to alignment errors.

The "Hoop Burn" Problem: Standard plastic hoops require you to tighten a screw and jam an inner ring into an outer ring.

• The friction: This crushes delicate fibers (velvet, performance wear) leaving a permanent ring called "hoop burn."
• The struggle: It requires significant wrist strength to get it drum-tight without warping the fabric grain.

The Solution Ladder:

1. Level 1 (Standard): Use the included hoop. Wrap the inner ring with bias tape to increase grip and reduce burn.
2. Level 2 (Ergonomic Upgrade): Switch to magnetic embroidery hoops. These use powerful magnets to sandwich the fabric rather than friction-jamming it.
   • Why? They eliminate "hoop burn" almost entirely.
   • Speed: You can hoop a shirt in 10 seconds versus 60 seconds.
   • Profit: If you start doing orders of 20+ shirts, the time saved pays for the hoop in one afternoon.

If you decide to upgrade, ensure you search for specific magnetic embroidery hoops for brother SE400 (or SE600/SE625) compatible frames. The attachment connector must match your specific machine arm width.

The “Plug It Right In” Moment: Attaching the Brother SE400 Embroidery Unit Without Fighting It

The presenter shows the embroidery unit (the robotic arm) sliding onto the machine. This is the Data Link.

How to do it safely (The "Click" Test):

1. Power OFF. Never attach the unit with power on; you risk shorting the sensor board.
2. Slide: Push the unit firmly to the left until it mates with the machine body.
3. Auditory Check: You should feel a solid thud or click of engagement.
4. Tactile Check: Try to gently wiggle it. If it moves independently of the machine, it is not seated.


The hidden prep most beginners skip (The "Kill Zone")

The embroidery arm moves rapidly left, right, front, and back.

• The Check: clear a 10-inch radius around the machine. Move coffee mugs, scissor packs, and thread stands.
• The Consequence: If the arm hits a coffee mug mid-stitch, it will knock the motors out of alignment. That is a $150 repair bill.


The First-Look Machine Tour: Thread Cutter, Needle Up/Down, Start/Stop, Speed Slider, and Auto Tension (What They’re Really For)

Let's decode the buttons. These aren't just "features"; they are your control variables for quality.

Speed Control Slider: The "Sweet Spot"

The machine can go fast, but speed creates vibration, and vibration kills accuracy.

• The Beginner Sweet Spot: Set the slider to 50-70% max speed.
• Why? At lower speeds, the thread has more time to relax into the fabric, reducing breakage and shredding. Only go to 100% when you are confident your stabilization is bulletproof.

Automatic Thread Cutter

This snips the thread after a color finishes.

• Maintenance Note: This blade can get dull or clogged with lint. If you hear a "crunch" instead of a "snip," it needs cleaning.

Needle Up/Down Feature

Crucial for pivoting. In embroidery mode, the machine handles this, but in sewing mode, always set it to end in the "DOWN" position so you don't lose your spot when you stop to adjust fabric.

Automatic Tension

The SE400 tries to adjust tension for you. However, "Auto" is an average, not a guarantee.

• The "H" Test: Sew a satin column (a wide zigzag). Look at the back. You should see 1/3 top thread (color), 1/3 bobbin thread (white), and 1/3 top thread (color).
• Adjustment: If you see white bobbin thread on top, the top tension is too tight (lower the number). If you see loops on the bottom, the top tension is too loose (raise the number).

Terms like embroidery machine for beginners appeal to the SE400 market because of these automations, but a pro verifies "Auto" results with their own eyes every time.

Setup Checklist (The "Flight Check" Routine)

• Needle Check: Is the flat side of the needle facing BACK? (Critical: A backward needle causes 100% failure).
• Thread Path: Raise the presser foot before threading. (If the foot is down, the tension discs are closed, and the thread won't sit inside them).
• Bobbin Case: Drop the bobbin in. Follow the arrow. Listen for the thread to click into the tension spring. No click = No tension = Bird's nest.
• Clearance: Is the embroidery arm free to move?

“Set It and Forget It” Is a Trap: How to Monitor Embroidery on the Brother SE400 Without Hovering

In the video, the user implies you can walk away. Do not do this.

Embroidery is dynamic. Threads fray. Bobbins run out. Needles hit hard spots.

• The 30-Second Rule: Watch the first 30 seconds of every color change like a hawk. This is when the "wiper" pulls the tail and when nests usually form.
• Sound Anchors: Learn the sound of your machine.
  • Rhythmic Chugging/Humming: Good.
  • Sharp "Clack-Clack": Bad. Stop immediately. It usually means a needle is hitting the hoop or the metal throat plate.
  • Low Grinding: Bad. Usually a giant "bird's nest" of thread forming under the throat plate.

Production Tip: If you ever scale up to selling items, "baby-sitting" a single-needle machine kills your profit margin. That is when people look for hooping stations and multi-needle machines to regain their time. But for now, you are the monitor.

The Stabilizer Decision Tree Beginners Wish They Had (Fabric → Backing → Better Results)

The video skips the most important variable: Stabilizer (Backing). Physics: Fabric creates drag; stabilizer creates a foundation. If you put a heavy design on a T-shirt with no support, the fabric will pucker (wrinkle) because the stitches pull it inward.

The Golden Rule: Stabilizer goes UNDER the hoop, not just under the fabric.

Decision Tree: What do I use?

1. Is the fabric stretchy? (T-shirt, Hoodie, Knit)
   • YES: Use Cut-Away Stabilizer. (Tear-away will shatter during stitching and ruin the shirt).
   • NO: Go to next.
2. Is the fabric unstable/sheer? (Silk, loose weave)
   • YES: Use No-Show Mesh (Cut-Away).
3. Is the fabric stable? (Denim, Canvas, Towel)
   • YES: Use Tear-Away Stabilizer.
4. Does the fabric have "fluff"? (Towel, Velvet, Fleece)
   • YES: Use Tear-Away on the bottom + Water Soluble Topper on the top (prevents stitches from sinking).

The “Why” Behind Better Hooping: Tension, Fabric Distortion, and How Magnetic Frames Help

You will hear "Drum Tight" as advice. This is dangerous advice.

• The Error: If you stretch a T-shirt "drum tight" in the hoop, you are stretching the fibers open. You stitch perfectly. Then you unhoop, the fibers snap back, and your design looks like a raisin.
• The Goal: "Neutral Tautness." The fabric should be flat and unwrinkled, but not stretched beyond its resting state.

The Commercial Solution: If you struggle with hand strength or alignment, investigate embroidery hoops for brother machines that use magnetic closure.

• Magnetic Advantage: They allow you to "float" the stabilizer and fabric without distorting the grain.
• Workflow: You lay the bottom frame, lay stabilizer, lay fabric, and snap the top frame. No screws. No "hoop burn" marks to steam out later.

Warning: Magnet Safety
magnetic embroidery hoops use industrial Neodymium magnets.
* Pinch Hazard: They snap together with enough force to pinch skin bloodily. Handle with respect.
* Pacemakers: Keep strong magnets at least 6 inches away from medical implants.
* Electronics: Do not lay your phone or credit cards directly on the magnets.

The Comment Questions You’ll Get Too: Computer, Software, and “Where Do I Buy It?”

Computers: You do not need a gaming PC. Any Windows laptop from the last 5 years is fine. The SE400 connects via USB strictly to transfer files (like a flash drive). It does not "run" from the computer.

Software: The machine has built-in fonts, but they are blocky and limited.

• Level 1 (Free/Cheap): Inkscape with InkStitch (Free) or SewWhat-Pro (Cheap editor). Good for resizing and merging.
• Level 2 (Pro): Hatch or Wilcom. This is for digitizing (creating designs from scratch).

Files: The SE400 speaks .PES files. Do not try to load .DST or .EXP; it will not see them.

The Upgrade Conversation Nobody Wants on Day One (But You’ll Thank Yourself Later)

The Brother SE400 is a gateway. If you fall in love with the craft, you will hit three bottlenecks:

1. Trimming Jump Stitches: The SE400 leaves little threads between letters you must cut by hand.
2. Color Changes: You have to stop and re-thread the needle for every single color. A 5-color logo takes 20 minutes of labor.
3. Hoop Size: That 4x4 limit becomes frustrating for adult hoodies or jacket backs.

The Growth Strategy:

• Step 1 (Optimization): Maximize the SE400 with high-quality brother embroidery hoops sizes appropriate for small logos and patches.
• Step 2 (Efficiency): Buy a Magnetic Hoop to save your wrists and reduce hoop burn.
• Step 3 (Scale): When you have orders for 10+ items, the single-needle changes kill your profit. That is the "Trigger Criteria" to look at a SEWTECH multi-needle machine. It holds 10-15 colors at once and stitches automatically while you do other work.

Operation Checklist (Your First "Safe Success" Run)

Before you press the green button:

1. Top Thread Check: Pull the thread near the needle. Does it feel like there is slight resistance (like flossing teeth)? Yes = Good Tension. No resistance = Missed the tension disc → Rethread.
2. Bobbin Check: Is the bobbin full? Running out mid-design is a pain.
3. Hoop Check: Is the fabric flat? Is the hoop locked into the arm securely?
4. Clearance Check: Nothing behind the machine?
5. Presser Foot: Is it DOWN? (The machine will yell at you if it's not, but it's a good habit).
6. Speed Slider: Set to 60%.

Final Advice: Do not use your favorite hoodie for the first stitch. Use an old pillowcase or a scrap of denim. Make your mistakes on trash, so you can execute perfection on the final product.

Welcome to the trade. Keep it organized, keep it clean, and respect the physics.

FAQ

• Q: What Brother SE400 accessories must be confirmed during unboxing to avoid thread snags and needle breaks?
  A: Confirm the spool caps, embroidery bobbin thread, and the 4x4 hoop before discarding any packaging, because a missing or wrong spool cap can stop stitching immediately.
  • Check: Find Small/Medium/Large spool caps (often hidden in foam slots or the free-arm storage) and match a cap slightly larger than the spool diameter.
  • Verify: Confirm embroidery bobbin thread (60wt or 90wt) is included and not confused with regular sewing thread.
  • Inspect: Test the 4x4 hoop screw—turn should be smooth, not gritty or seized.
  • Success check: Thread feeds off the spool smoothly with no jerks, and the hoop tightens evenly without skipping.
  • If it still fails: Re-check the free-arm storage compartment and all foam cutouts before assuming parts are missing.
• Q: How do Brother SE400 users confirm correct threading and bobbin tension to prevent bird’s nests under the throat plate?
  A: Rethread with the presser foot UP and make sure the bobbin thread clicks into the bobbin tension spring, because a missed tension path is a primary cause of nesting.
  • Raise: Lift the presser foot before threading so the thread can seat into the tension discs.
  • Listen: Drop in the bobbin following the arrow path and listen/feel for the thread to “click” into the tension spring.
  • Test: Gently pull top thread near the needle—feel slight resistance (not free-spinning, not locked).
  • Success check: Machine sound stays rhythmic (not grinding), and the underside shows clean stitches without a wad of loops forming.
  • If it still fails: Stop immediately, remove the hoop, clear thread from under the throat plate area, then fully rethread both top and bobbin paths.
• Q: What is the correct success standard for Brother SE400 “Automatic Tension” using the satin column “H” test?
  A: Use a satin column test and aim for an even balance on the back: about 1/3 top thread, 1/3 bobbin thread, 1/3 top thread.
  • Stitch: Sew a satin column (wide zigzag) and flip the fabric to inspect the back.
  • Adjust: Lower the top tension number if white bobbin thread appears on the top.
  • Adjust: Raise the top tension number if loops appear on the bottom.
  • Success check: Back of the satin column shows a balanced “ladder” with bobbin thread centered rather than dominating either side.
  • If it still fails: Rethread with presser foot up and confirm the bobbin is seated correctly before changing more settings.
• Q: Why does Brother SE400 embroidery leave permanent hoop marks (hoop burn), and what is the fastest fix before upgrading to magnetic hoops?
  A: Plastic screw hoops can crush fibers and leave hoop burn, so reduce friction and pressure first by wrapping the inner ring with bias tape.
  • Wrap: Apply bias tape around the inner ring to increase grip and reduce the need to over-tighten.
  • Hoop: Aim for “neutral tautness” (flat, unwrinkled, not stretched beyond rest), especially on knits.
  • Stabilize: Place stabilizer under the hoop, not only under the fabric, to reduce distortion and pull.
  • Success check: After unhooping, fabric recovers without a hard ring imprint and the design does not “raisin” or pucker.
  • If it still fails: Consider a magnetic hoop setup to reduce crushing pressure and speed up consistent hooping.
• Q: What stabilizer should Brother SE400 beginners choose to stop puckering on T-shirts, towels, and fluffy fabrics?
  A: Match stabilizer to fabric behavior: cut-away for stretchy knits, tear-away for stable fabrics, and add water-soluble topper for high-pile surfaces.
  • Choose: Use cut-away stabilizer for T-shirts/hoodies/knits (tear-away may shatter during stitching on stretch).
  • Choose: Use tear-away stabilizer for stable fabrics like denim/canvas/towels.
  • Add: Use tear-away underneath plus water-soluble topper on top for towels, velvet, fleece to prevent stitch sink.
  • Success check: After stitching, the fabric lies flat with minimal rippling, and the stitches sit on top instead of disappearing into pile.
  • If it still fails: Re-evaluate hooping tension (avoid “drum tight” on knits) and increase foundation support before changing the design.
• Q: How do Brother SE400 users attach the embroidery unit correctly to avoid sensor/motor problems?
  A: Attach the Brother SE400 embroidery unit only with power OFF and confirm a firm click and zero wiggle before turning the machine on.
  • Power: Turn the machine OFF before sliding the embroidery unit into place.
  • Slide: Push firmly until a solid thud/click is felt.
  • Check: Gently wiggle—if the unit moves independently, reseat it.
  • Success check: Unit feels like one solid body with the machine and the arm moves freely without obstruction during startup.
  • If it still fails: Clear a 10-inch radius “kill zone” so the arm cannot hit objects that could knock alignment.
• Q: What safety rules should Brother SE400 owners follow for needles, seam rippers, and magnetic embroidery hoops?
  A: Treat needles and magnets as industrial hazards: control sharps immediately, and handle magnetic hoops slowly to prevent pinch injuries and device risks.
  • Store: Put broken needles in a dedicated “sharps jar” (like a pill bottle); never loose in trash.
  • Handle: Never reach blindly into accessory bags—seam rippers and needles are extremely sharp.
  • Protect: When using magnetic hoops, keep fingers clear when magnets snap together; strong pinch force is common.
  • Success check: No loose sharps on the table, and magnets can be opened/closed without skin getting caught.
  • If it still fails: Pause work and reset the workspace—safe handling requires a clean, uncluttered staging area.
• Q: When should a Brother SE400 owner upgrade from standard hoops to magnetic hoops, or consider a multi-needle machine for small-business orders?
  A: Upgrade in layers: optimize technique first, add magnetic hoops when hooping time/hoop burn becomes the bottleneck, and consider multi-needle only when frequent color changes and babysitting destroy throughput.
  • Level 1: Stabilize and hoop correctly (neutral tautness, correct backing choice) to reduce nests, puckering, and rework.
  • Level 2: Use magnetic hoops when hoop burn, wrist strain, or slow hooping is limiting repeatable results—especially for batches (often 20+ shirts).
  • Level 3: Move to a multi-needle machine when orders reach roughly 10+ items and constant rethreading per color becomes the main time loss.
  • Success check: Production time per item drops without an increase in rejects (less trimming, fewer restarts, fewer hooping marks).
  • If it still fails: Track where time is actually going (hooping vs. trimming vs. color changes) before spending—fix the biggest bottleneck first.
