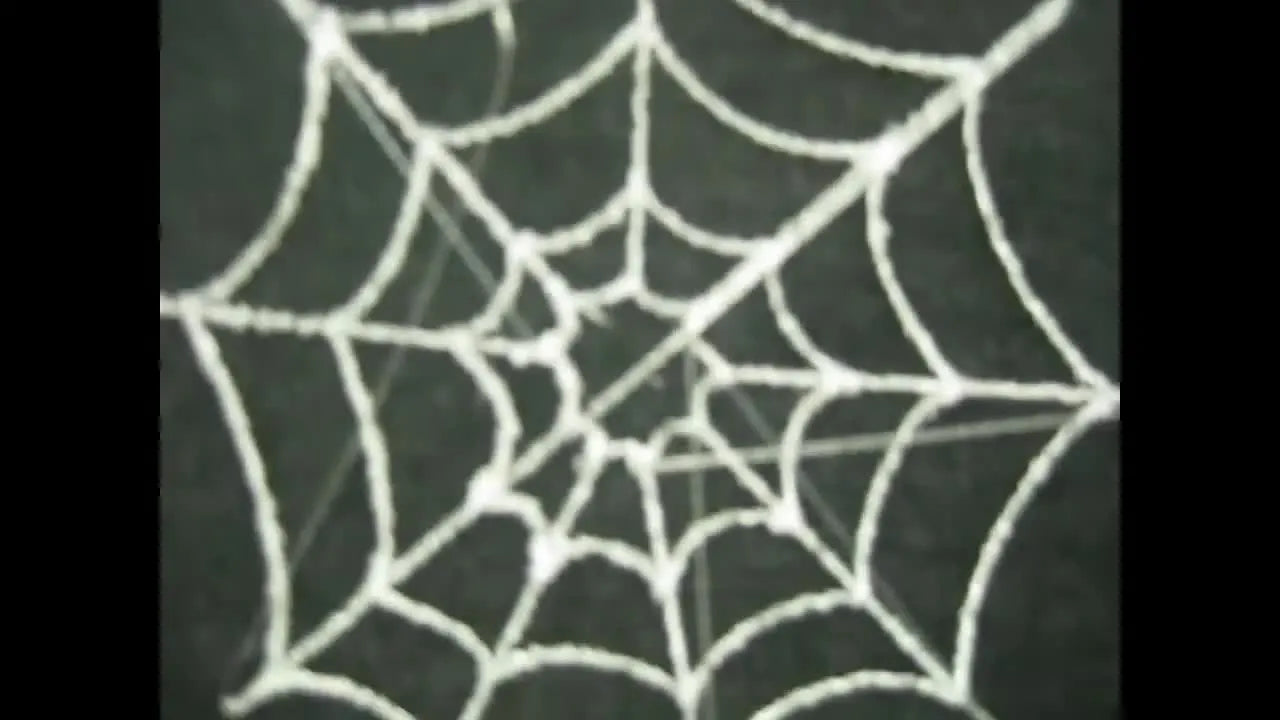

Brother SE400 Spider Web Stitch-Out: Clean Jump-Stitch Trims, DST File Choices, and a Hooping Setup That Won’t Fight You

Machine embroidery is an "experience science." When you hit "Start" on a Brother SE400, you are orchestrating a physics experiment involving tension, friction, and material behaviors. For beginners, that moment is often accompanied by the fear of the "bird's nest"—that grinding sound of thread jamming under the plate—or the frustration of a needle snapping on a hard hoop.

Take a breath. A simple spider web stitch-out is one of the best "calibration protocols" you can run. It is a high-contrast stress test: it consists of long satin columns and running stitches that reveal hooping errors immediately, yet it’s forgiving enough to teach you how to manage jump stitches without ruining the garment.

This guide reconstructs a real Brother SE400 workflow, elevated with 20 years of production floor insight. We will move beyond the basic manual to the "tactile reality" of embroidery—how things should sound, feel, and look before you commit to the stitch.

The Cognitive Check: Screen Data vs. Physical Reality

The first source of anxiety for a novice is the mismatch between the digital display and the physical setup. In this stitch-out, the Brother SE400 LCD reports a thread color ("Prussian Blue") while the user intends to stitch white thread on black fabric.

This is not an error; it is a limitation of the file format. DST files (industry standard) contain coordinate data and "stop" commands, but they do not store RGB color palettes. The machine guesses a default color.

Your Action Plan: Ignore the screen colors. Trust your thread rack. Before proceeding, verify the Logical Triad:

1. Geometry: Does the icon shape match your design?
2. Stitch Count: Is the stitch count roughly what you expect (e.g., 2,000–5,000 for a simple patch)?
3. Field Check: Is the machine set to the 100x100mm (4x4) field?

If you are operating a brother embroidery machine, treat the LCD as a rough map, not the terrain. Your quality control comes from physical prep, not digital reliance.

The "Hidden" Prep: Stabilizers, Needles, and Consumables

A spider web design is distinct because it relies on long, connecting spokes. The physics problem here is "Draw-in"—as stitches form, they pull the fabric toward the center. If your stabilization is weak, the web will warp, and the outer rings will not align with the spokes.

The "Invisible" Consumables List

Beginners often miss the support tools. Ensure you have these ready:

• 75/11 Ballpoint Needle: For knits; or 75/11 Sharp for woven patches.
• 60wt or 90wt Bobbin Thread: Thinner than your top thread to prevent bulk.
• Curved Tip Tweezers: Essential for grabbing thread tails safely.
• Spray Adhesive (Temporary): To bond fabric to stabilizer (prevents shifting).

Prep Checklist: The Pre-Flight Routine

Execute this strictly to eliminate 90% of common failures.

• Audit the Needle: Run your fingernail down the needle shaft. If you feel a "click" or snag, replace it immediately. A burred needle shreds thread.
• Reset Top Tension: Thread with the presser foot UP. This opens the tension discs. If you thread with the foot down, the thread floats on top of the discs, causing zero tension and instant birds-nests.
• Check the Bobbin: Ensure the bobbin unspools Counter-Clockwise (looking like the letter 'P').
• Clear the Path: Remove the hoop and inspect the bobbin case area for lint buildup using a small brush.


Hooping Physics: Eliminating "Hoop Burn" and Slippage

The standard plastic hoop works by friction and interlocking ridges. The goal is "Drum Tight, Not Stretched."

The Tactile Test:

1. Hoop your fabric and stabilizer.
2. Tighten the screw.
3. Gently tap the fabric center. You should hear a dull, taut thud.
4. Critical Check: Look at the weave of the fabric. If the vertical/horizontal lines act like a smile (curved), you have over-stretched it. This causes the fabric to pucker back to its original shape once removed from the hoop.

The Friction Point: "Hoop Burn"

Standard hoops require significant pressure to hold slick fabrics. This often leaves a permanent containment ring, known as "hoop burn," which can ruin delicate items like velvet or performance polos. Furthermore, the repetitive twisting of the tightening screw is a leading cause of wrist fatigue (RSI) for home embroiderers.

The Production Upgrade Path: If you find yourself battling hoop marks or struggling to hoop varying thicknesses (like thick towels vs. thin tees), the industry solution is a magnetic hoop for brother.

• Why Upgrade? Magnetic frames use varying magnetic force to hold fabric without forcing it into a ridge. This eliminates hoop burn and drastically reduces hooping time.
• When to Upgrade? If you move from doing 1-2 hobby items to a batch of 10+ shirts, the time saved by magnetic framing pays for the tool.

Warning: Magnetic Hazard. Old-school clamping is mechanical, but commercial-grade magnetic hoops are powerful. They can pinch fingers severely. Never place them near pacemakers, hard drives, or credit cards. Always slide the magnets apart; do not try to pry them open directly.

File Intelligence: DST vs. PES and The "TrueSizer" Logic

In the reference stitch-out, the user exports a .DST file from SophieSew because the software lacks direct .PES export.

The Confusion: "Why doesn't my Brother machine read the file?" The Reality: Brother machines generally read .PES (native) and .DST (commercial). However, .DST files are "dumb"—they don't know when to trim (unless specifically programmed) and don't know colors.

Workflow Recommendation:

1. Design: Create in your software (SophieSew, Inkstitch, Hatch).
2. Convert: If your machine struggles with a specific DST, use a free tool like Wilcom TrueSizer to convert it to a native .PES format. This often cleans up header data.
3. Import: Transfer via USB.

If you are importing externally digitized files (like JPEGs mentioned in user questions), remember: A JPEG is a picture; it must be digitized (traced and assigned stitch paths) to become an embroidery file. You cannot just "save as" a picture into a stitch file without autodigitizing software.

The Start Sequence: Auditory & Visual Monitoring

The first 100 stitches are the "Danger Zone."

1. Lock the Hoop: Listen for the solid click of the carriage attachment.
2. Lower the Foot: The machine will not start otherwise (LED turns green).
3. Start Slow: If your machine allows speed control, start at a lower SPM (Stitches Per Minute) for the first layer to ensure adhesion.

Sensory Check:

• Sound: You want a rhythmic, sewing-machine hum. A loud clack-clack-clack indicates the needle is hitting the needle plate or the hoop. STOP IMMEDIATELY.
• Sight: Watch the thread tail. Hold the top thread tail gently for the first 3-4 stitches, then snip it. This prevents the tail from being pulled down into the bobbin case.

Warning: Mechanical Safety. Keep hands clear of the moving carriage. An embroidery arm moves with surprising force and speed. Do not attempt to re-thread a needle while the machine is in "Ready" mode—always press the Lock/Safety button on the screen first.

Jump Stitches: The "Lift and Snip" Technique

A spider web design is full of "Jump Stitches"—locations where the needle travels from one spoke to another without stitching.

The Problem: If you don't trim these as you go, the needle will eventually sew over a jump thread, trapping it permanently. This looks messy and amateur.

The "Micro-Surgery" Technique:

1. Pause: Stop the machine after a section completes and the hoop travels.
2. Lift: Use a stylus, seam ripper tip, or tweezers to hook the long jump thread.Lift it roughly 0.5cm off the fabric.
3. Snip: Slide your curved snips parallel to the fabric surface. Snip close to the stitch entry point.
4. Verification: Ensure you cut the jump thread (the bridge), not the lock stitch (the anchor). The "Lift" step creates the tension needed to identify which is which.


Speed & Density: What Fast Motion Reveals

Even at high speeds (up to 400 SPM on the SE400, or 1000 SPM on pro machines), the laws of physics apply.

• Push-Pull Effect: Stitches running horizontally will pull the fabric in, making the shape slightly narrower. A good digitizer adds "Pull Compensation" to widen the design slightly to counteract this.
• Calibration: If your spider web rings don't meet the spokes perfectly, your stabilizer is too loose or your hoop isn't tight enough.

For those running a standard brother 4x4 embroidery hoop, you cannot stitch faster than the machine's hardware limit. However, if you upgrade to a dedicated embroidery machine later, remember: Speed kills quality on delicate designs. Slowing a machine down to 600-700 SPM often produces sharper text and cleaner crisp lines than running at max capacity.

Scaling Risks: The "Density Disaster"

The reference material warns against scaling DST files. This is a critical lesson in "Stitch processors."

The 5% Rule: Do not resize a stitch file (DST/PES) on your machine screen by more than ±5-10%.

• Why? A stitch file is a list of coordinate points. If it has 5,000 stitches in a 4" circle, and you shrink it to 2", it still puts 5,000 stitches in that 2" space. The result is a bulletproof, hard knot of thread that will break needles.
• The Correct Way: Resize in your digitizing software (SophieSew/Wilcom) and re-process the stitches. This recalculates the density, ensuring stitches are removed when the design shrinks.


Setup Checklist: The "No-Surprises" Routine

Before you trust the machine to run the main fill pattern, execute this sequence:

• Hoop Clearance: Rotate the handwheel manually (one full rotation) to ensure the needle doesn't hit the plastic hoop edge.
• Fabric/Foot Clearance: Ensure the presser foot isn't dragging fabric from outside the hoop into the embroidery field.
• Thread Path: Verify the thread is not caught on the spool cap (a common cause of sudden tension spikes).
• Toolkit: Place your snips and stylus within arm's reach.
• Centering: Use the machine's "Trace" or "Trial" button to see the outer perimeter of the design before stitching.

Consistency here is key. If you are managing multiple brother embroidery hoops, mark the "center top" of your hoops with a permanent marker to aid in visual alignment.

Troubleshooting: Diagnostic Logic

When things go wrong, use this hierarchy (Least Invasive to Most Invasive).

Regarding Software: If you cannot export PES from your free software, exporting DST is the standard workaround. Do not buy expensive software until you have mastered the physical craft.

Decision Tree: Stabilizer Selection Strategy

"What stabilizer do I use?" is the most common question. Use this logic flow for line-heavy designs like a spider web.

Input: What is your Base Fabric?

• 1. Stretchy? (T-Shirt, Polo, Performance Wear)
  • MUST USE: Cutaway Stabilizer (Medium Weight, 2.5oz).
  • Why: Knits stretch. Tearaway will shatter, and the fabric will distort, ruining the circle geometry.
  • Adhesion: Use temporary spray adhesive to stick fabric to stabilizer.
• 2. Stable/Woven? (Denim, Twill Patch, Canvas)
  • OPTION A: Tearaway (Firm). Good for clean backsides on sturdy items.
  • OPTION B: Cutaway. Overkill, but safer if the design is very dense.
• 3. High Pile? (Towel, Fleece, Velvet)
  • Backing: Cutaway (Essential).
  • Topping: Water Soluble Topping (Solvy).
  • Why: Prevents the stitches from sinking into the fluff and disappearing.


Final Inspection: The Technician's Eye

Before unhooping, perform a "Tactile Scan."

1. Light Brush: Run your fingers over the design. Is it rough? (Thread breaks or loops). Is it too hard? (Density too high).
2. Back Check: Peek under the hoop. A correct tension looks like 1/3 top thread showing on the bobbin side (white center, colored edges). If the back is ALL top color, your top tension is too loose. If you see white bobbin thread on the top of the fabric, top tension is too tight.
3. Jump Check: Are there any trapped threads? Trim them now while the fabric is held taut.


The Commercial Bridge: From Hobby to Production

The workflow described creates a beautiful single patch. But what if you get an order for 50? The bottlenecks in the SE400 workflow are:

1. Hooping Time: Screwing/unscrewing frames takes 2-3 minutes per shirt.
2. Hoop Marks: Ironing out hoop burn takes time.
3. Thread Changes: Single-needle machines require manual intervention for every color.

The Level-Up Solution:

• Level 1 (Tool Upgrade): Introduce magnetic embroidery hoops. They snap on instantly, hold tighter than manual frames, and eliminate hoop burn. This makes the SE400 significantly more efficient for small batches.
• Level 2 (Workflow): Use a hooping station for brother embroidery machine. This ensures every graphic sits in the exact same spot on every shirt (e.g., 4 inches down from the collar), crucial for looking professional.
• Level 3 (Machine Upgrade): When you are turning away orders because you can't stitch fast enough, look at SEWTECH-supported Multi-Needle machines. These auto-change colors and run at higher speeds for hours, turning embroidery from a craft into a revenue stream.


Operation Checklist: Run It Like a Pro

Adopt these habits to protect your machine and your sanity.

• Stop/Trim/Go: consistently trim jump stitches after color blocks.
• Listen to the Rhythm: Learn the sound of a happy machine. Any change in pitch usually signals a dry bobbin or a fraying thread.
• Avoid "Force": Never pull the fabric while the needle is in it.
• Clean Up: Dust the bobbin case every time you change the bobbin.
• Digitizing Discipline: If the file creates erratic jumps, fix it in the software, not on the machine.


Final Thought

The spider web is a perfect teacher because it is unforgiving of alignment errors but simple enough to finish quickly. Master this on your SE400, and you will have the tactile understanding to handle complex logos, multi-layer appliques, and eventually, high-volume production runs. Embroidery is 20% art and 80% preparation. Respect the prep.

FAQ

• Q: Why does the Brother SE400 LCD show the wrong thread color (example: “Prussian Blue”) when stitching white thread on black fabric?
  A: This is normal for DST-based designs; Brother SE400 screen colors are often just defaults and do not reflect the actual thread you loaded.
  • Ignore screen color names and confirm the design by shape/preview icon instead.
  • Verify stitch count is in the expected range for the design (example given: ~2,000–5,000 for a simple patch).
  • Confirm the machine is set to the correct embroidery field size (100×100 mm / 4×4).
  • Success check: The on-screen design geometry and stitch count match what you intended, even if the color name does not.
  • If it still fails… convert the DST to PES using Wilcom TrueSizer and re-import via USB.
• Q: How can Brother SE400 users stop instant bird’s nests under the needle plate caused by incorrect top threading?
  A: Rethread the Brother SE400 with the presser foot UP so the thread seats into the tension discs correctly.
  • Raise the presser foot before threading (this opens the tension discs).
  • Rethread and confirm the thread passes through the take-up lever eye (a missed take-up lever is a common nest trigger).
  • Check the bobbin orientation so it unwinds counter-clockwise (looks like the letter “P” when viewed).
  • Success check: The first stitches sound like a smooth, rhythmic hum and the underside does not form a tangled lump.
  • If it still fails… remove the hoop and clean lint from the bobbin case area, then inspect for burrs around the plate/bobbin area.
• Q: How can Brother SE400 users prevent hoop burn and hoop slippage when using a standard plastic embroidery hoop on delicate fabric?
  A: Aim for “drum tight, not stretched,” and avoid over-tightening that forces ridge marks into the fabric.
  • Hoop fabric + stabilizer, tighten the screw, then tap the center to confirm a dull, taut “thud.”
  • Check the fabric weave lines; if the lines curve like a smile, the fabric is over-stretched—rehoop with less pull.
  • Use temporary spray adhesive to bond fabric to stabilizer to reduce shifting.
  • Success check: The fabric stays taut without distorted weave lines, and the finished piece releases without a permanent ring.
  • If it still fails… consider switching to a magnetic embroidery hoop to reduce pressure marks and speed up hooping on mixed fabric thicknesses.
• Q: What stabilizer should Brother SE400 users choose for a spider web design on T-shirts, denim patches, or towels?
  A: Match stabilizer to fabric behavior: cutaway for stretch, tearaway for stable woven, and topping for high pile.
  • Use medium-weight cutaway for stretchy knits (T-shirt/polo/performance wear); add temporary spray adhesive for hold.
  • Use firm tearaway for stable woven fabrics (denim/twill/canvas) when a clean back matters; choose cutaway if the design is dense and you want extra safety.
  • Use cutaway backing plus water-soluble topping for towels/fleece/velvet to prevent stitches sinking into the pile.
  • Success check: Circles and spokes align cleanly with minimal warping (good stabilization resists draw-in).
  • If it still fails… recheck hoop tightness and confirm the fabric is not shifting inside the hoop during the first 100 stitches.
• Q: How can Brother SE400 users trim jump stitches cleanly on a spider web design without cutting the lock stitches?
  A: Use the “lift and snip” method so the jump thread is clearly separated from the anchor stitches.
  • Pause after a section completes and the hoop travels to the next area.
  • Lift the long jump thread about 0.5 cm using tweezers or a stylus to identify the bridge thread.
  • Snip with curved-tip snips held parallel to the fabric surface, cutting close to the entry point.
  • Success check: No long bridges remain, and the stitched anchors stay intact without unraveling.
  • If it still fails… stop trimming mid-run and inspect whether the design is sewing over untrimmed jumps; trim earlier before the needle can trap them permanently.
• Q: What safety steps should Brother SE400 users follow if the machine makes loud “clack-clack” sounds or risks hitting the hoop?
  A: Stop immediately and verify clearance before continuing—needle/hoop strikes can break needles and damage parts.
  • Press stop/lock, keep hands clear of the moving carriage, and do not re-thread while the machine is “Ready.”
  • Remove the hoop and manually rotate the handwheel one full rotation to confirm the needle clears the hoop edge.
  • Reattach the hoop and listen for a solid “click” when the carriage locks in.
  • Success check: The machine returns to a steady sewing hum with no sharp clacking, and the needle path clears the hoop during a manual rotation.
  • If it still fails… re-check design placement with the machine’s trace/trial function to ensure the perimeter does not intersect the hoop boundary.
• Q: When should Brother SE400 users upgrade from standard hoops to magnetic embroidery hoops or upgrade to a multi-needle embroidery machine for batch orders?
  A: Upgrade based on the bottleneck: time lost to hooping/hoop marks first, then thread-change downtime and speed limits.
  • Level 1: Optimize basics (correct stabilizer, proper hooping tension, trim jumps consistently) before buying anything.
  • Level 2: Move to magnetic embroidery hoops if hoop burn, mixed fabric thickness, or 2–3 minutes of screw-hooping per item is slowing production.
  • Level 3: Move to a multi-needle machine when manual thread changes and single-needle speed prevent completing larger runs (example scenario discussed: ~50 pieces).
  • Success check: Hooping becomes faster with fewer marks, and batch consistency improves without rework.
  • If it still fails… add a hooping station to control placement repeatability before investing in faster stitching.
