Brother SE400 Lettering on a Shirt Pocket: Clean Fonts, Perfect Placement, and Zero Fabric Snags

If you’ve ever stared at your Brother SE400 screen thinking, “Why does this look centered digitally… but stitch crookedly on the physical shirt?”—you are not alone. Lettering on finished garments is the "final boss" for beginners. It combines the fear of ruining a wearable item with the technical challenge of precise placement.

Tiny placement errors that look negligible on a screen look massive once stitched onto a pocket. A 2mm tilt screams "amateur" to the human eye.

This guide rebuilds the exact workflow from the source material (fonts → layout → Trial trace → test stitch → resize → hoop → manage bulk → clean up), but we are going to inject the "Old Hand" habits. These are the sensory checks and safety protocols that professional shops use to prevent disasters when the name is long, the fabric is slippery, or the standard hoop threatens to leave permanent "burn" marks.

Make the Brother SE400 built-in fonts behave: font selection, case toggle, and the A–N / O–Z screen trick

On the Brother SE400 (and similar single-needle machines like the SE600/SE1900), you can stitch words without touching external software by utilizing the machine’s internal character firmware. In the demonstration, the operator selects a serif font (Font Style 3) and types the name “Tim,” toggling between uppercase and lowercase.

Here is the clean, repeatable workflow to ensure you don’t get lost in the menus:

1. Select Character Pattern on the SE400 touch panel.
2. Choose your font carefully. PRO TIP: Avoid complex script fonts for pockets unless you are using a very stable fabric; serifs or block fonts are more forgiving on texture.
3. Tap the Check button to preview the full alphabet.
4. Navigate via Arrow Controls: The machine splits the alphabet. Use the arrows to toggle between the A–N screen and the O–Z screen.
5. Toggle Case: Use the Uppercase / Lowercase button to capitalize the first letter.

The "Kerning" Reality Check: built-in fonts are reliable, but they are technically "dumb." They do not possess "optical kerning" (automatic adjustment of space between specific letter pairs like 'A' and 'V').

• Visual Check: Look closely at the screen. If the gap between two letters looks too wide, it will look even wider on fabric. You may need to treat letters as separate objects to nudge them closer manually.


The Brother SE400 “Adjust → Layout” habit that saves shirts: move the carriage with confidence (big jumps vs micro nudges)

Once your text is typed, the video workflow moves into Adjust → Layout. This unlocks the ability to reposition the embroidery arm (carriage) using the on-screen directional arrows.

Understand the Velocity Logic of your machine's interface:

• Tap the arrow: Moves the hoop in micro-increments (0.1mm - 0.5mm). Use this for final precision.
• Hold the arrow: Accelerates the hoop for gross movement.

Why this matters physically: When you hold the button, the hoop moves fast. If you are near the limit of the hoop frame, a fast move can cause the carriage to hit the limit sensor hard, potentially skipping a gear tooth or jarring the stepper motor.

• The Habit: Use "Hold" to get close, but always use "Tap" for the final 5mm of adjustment.

The "Danger Zone" Concept: When embroidering on a finished pocket, your layout adjustment is a safety protocol. You are ensuring the needle path stays clear of:

1. Top Pocket Hems: Thick folded fabric that breaks needles.
2. Side Seams: Where the fabric bulk creates uneven tension.
3. Hidden Folds: The back of the pocket or the shirt body itself.

If you find yourself constantly fighting alignment—where you hoop the shirt, check the screen, realize it's crooked, un-hoop, and retry—this is the primary trigger for tool fatigue. Many professionals eventually switch to a dedicated hooping station for machine embroidery because it decouples the alignment process from the machine, allowing you to square the garment consistently before you even approach the screen.

The Brother SE400 Trial Key (trace function): confirm the design boundary before you commit thread to fabric

The video demonstrates the Trial key—the icon (usually looked like a box with an arrow) that forces the machine to physically trace the rectangular perimeter of the design without stitching.

This is your "Ghost Pass." Never skip it.

Sensory Focus during the Trial: Don't look at the screen. Look at the Needle Bar and the Presser Foot.

1. Visual: Watch the foot travel along the top edge of the pocket. Does it stay parallel to the hem?
2. Auditory: Listen for any plastic-on-plastic rubbing (hoop hitting the carriage limit).
3. Clearance: Does the foot come dangerously close (within 2mm) of the thick top hem? If so, nudge the design down.

The 4x4 Constraint: If you strictly use the standard brother 4x4 embroidery hoop, the Trial trace is your best insurance policy. The 4x4 (100mm x 100mm) field fills up deceptively fast. A "Large" name might fit horizontally but hit the side clamps. The Trial run proves physics before you waste consumables.

The test stitch reality check: why “Medium” letters can look fine on screen but stitch too small in real life

In the video, the host starts with Medium (M) size, stitches it on scrap fabric, and immediately realizes it lacks impact. The letters are too small for the pocket scale.

The "Screen vs. Fabric" Lie: Embroidery software and screens are flat pixels. Thread is 3D fiber.

• Pull Compensation: Thread tension pulls fabric inward. A 5mm wide column on screen might stitch out as 4.5mm wide.
• Texture Absorption: on a pique polo or textured cotton, small letters (under 6mm tall) often sink into the weave and disappear.

The Test-Stitch Protocol:

1. Use the same fabric: Don't test on stiff felt if the final project is a soft cotton shirt.
2. Use the same stabilizer: Results vary wildly between tear-away and cutaway.
3. Viewing Distance: Hold the test hoop at arm's length (the distance someone reads a name tag). If you have to squint, it's too small.


Resizing text on the Brother SE400: switch M → L, delete, retype, and avoid a second re-hoop

The source video shows a specific, somewhat clunky correction workflow required by the machine's interface:

1. Go back to the text edit screen.
2. Switch size from M to L (Large).
3. Delete the old text (you cannot just scale the existing text up without potential density issues on some older firmware).
4. Re-type the name.

The "Lazy" Efficiency Hack: Instead of un-hooping the test fabric, the host uses layout controls to move the needle to a clean spot on the same piece of fabric.

• Why this is smart: You preserve your hoop tension. Every time you re-hoop, you risk changing the fabric tension. By keeping the fabric locked in, your comparison between Size M and Size L is scientifically valid because the variable of "hooping tension" remained constant.


The “hidden” prep before hooping a finished shirt pocket: iron, stabilizer placement, and what to check first

Hooping a finished garment is physically harder than hooping a flat piece of cloth because gravity works against you. The rest of the shirt weighs down the work area.

The "Pre-Flight" Prep:

1. Iron the Pocket: Remove all humidity and wrinkles. Sensory Check: The fabric should feel warm and dry. Moisture in fabric causes puckering as the drying occurs after stitching.
2. Stabilizer Math: The video uses tear-away. This is generally acceptable for stable wovens (like dress shirts). If you are stitching on a knit polo, you must use cutaway stabilizer, or the letters will distort into a fun-house mirror effect.
3. The Hidden Consumable: Use a temporary spray adhesive (like Odif 505) or a fusible stabilizer to lightly bond the backing to the fabric before hooping. This prevents the "stabilizer slide" that happens when you try to sandwich the shirt in the hoop.

If you struggle with "Hoop Burn" (the shiny ring left by tight plastic hoops), or if you find the physical force required to snap the inner ring in is painful for your wrists, this is the trigger point to investigate magnetic embroidery hoops. These tools use vertical magnetic force rather than friction to hold fabric, significantly reducing the "burn" marks on delicate shirt fibers.

Prep Checklist (Complete BEFORE hooping):

• Iron: Pocket area is pressed, dry, and flat.
• Backing: Stabilizer is cut 1 inch larger than the hoop on all sides.
• Bond: Stabilizer is lightly adhered to the inside of the shirt (spray or fuse).
• Clearance: Check that the pocket is not sewn shut (common manufacturing error).
• Tools: Sharp appliqué scissors and tweezers are within reach.

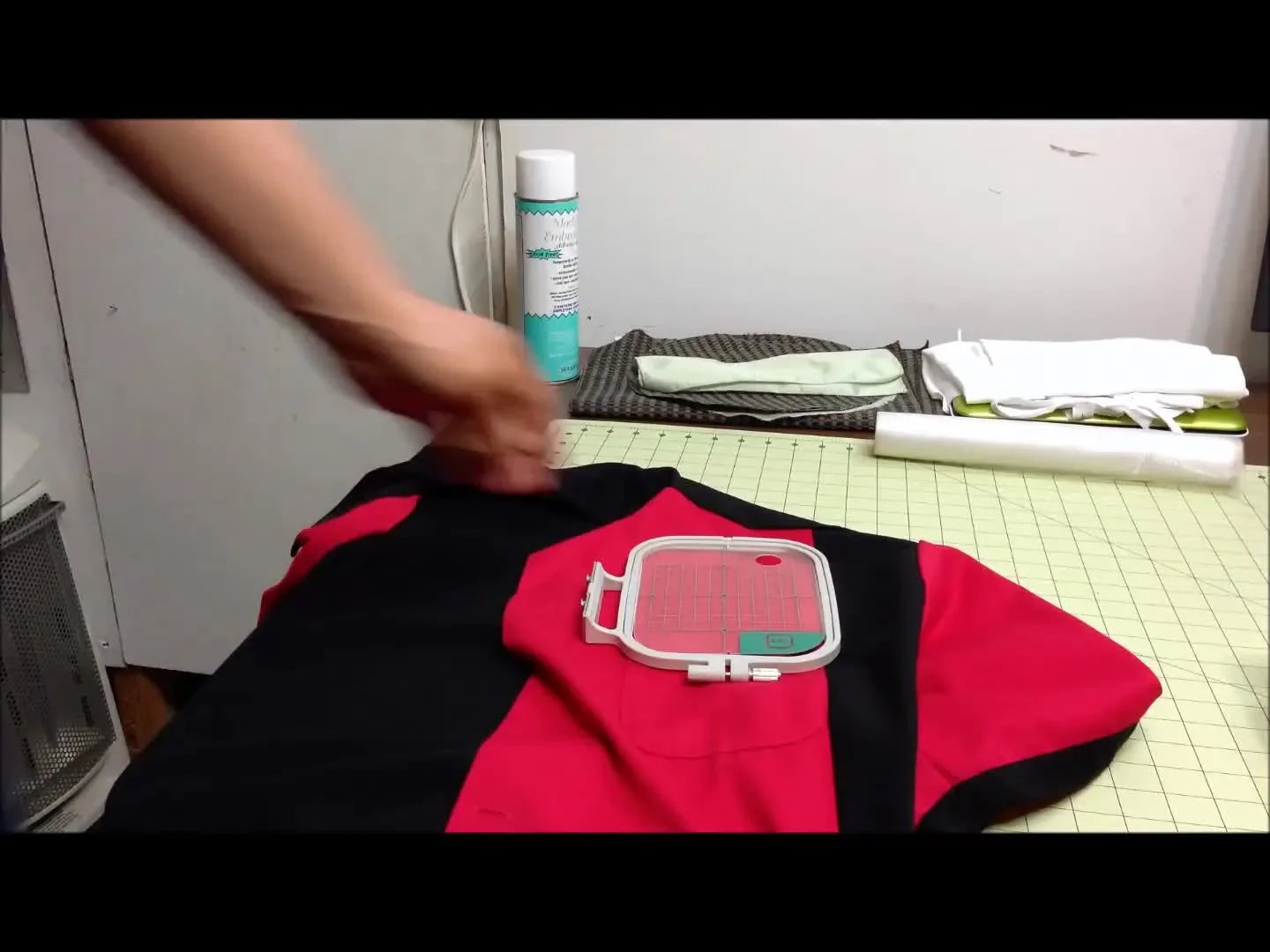

Hooping a shirt pocket with the Brother SE400 plastic grid template: align to the pocket edge, not your eyeballs

The video demonstrates using the clear plastic grid template included with the machine. This sheet has crosshairs that match the machine's center.

The "Trust the Seam" Rule: Do not align your template to the shirt. Align it to the pocket.

• Why: Garments are rarely sewn perfectly symmetrical. If you align the name to the shirt collar, but the pocket is sewn crooked, the name will look crooked relative to the pocket (which is the closest visual reference line).
• Action: Align the horizontal grid line of the template exactly parallel with the top hem of the pocket.

For those doing bulk orders, relying on the plastic template for every single shirt is slow. This is where a dedicated hooping station for machine embroidery or a grid-board system pays for itself by mechanically forcing the hoop and garment into alignment without the visual guesswork of the plastic sheet.

The moment of truth: seating the 4x4 hoop on a finished garment without wrinkles, drift, or hoop burn

The host presses the outer hoop down over the shirt/inner-ring sandwich. This is the moment where 90% of failures occur.

The Sensory Hooping Profile:

1. Tactile: The fabric should be taut, but not stretched. It should feel like a "Drum Skin." If you tap it, it should have a slight bounce.
2. Visual: Look at the grain of the fabric. If the vertical threads look curved or waved near the hoop ring, you have over-stretched it. This will cause puckering when released.
3. The Screw: Tighten the thumb screw, but do not use a screwdriver unless you have weak grip strength. Over-tightening warps the plastic hoop inner ring into an oval, actually reducing grip on the sides.

The Magnetic Option: This specific step—forcing an inner ring into an outer ring through thick seams—is difficult on the hands. magnetic embroidery hoops for brother machines alleviate this by clamping instantly. They are safer for finished goods because they don't require you to distort the fabric to get it into the ring.

Warning: Pinch Hazard & Needle Safety. When pressing the hoop down, keep fingers entirely clear of the snap-zone. Also, ensure your machine has a new needle installed. A dull needle on a pocket (which has multiple layers) will cause a loud "thud-thud" sound and may bend, destroying your hook timing.

Loading the Brother SE400 hoop and managing shirt bulk: roll it right, keep the throat clear, and prevent a fabric snag disaster

The machine arm (pantograph) moves. The shirt does not. If the shirt drags, the alignment dies.

The "Roll and Tuck" Protocol:

1. Slide and Lock: Attach the hoop to the carriage. Listen for the distinct "Click" of the lock mechanism. Give the hoop a gentle wiggle to ensure it is seated.
2. The Bulk: Roll the excess shirt material neatly to the Right Side of the needle.
3. The Tunnel: Use clips or simply tuck the rolled fabric so it creates a clear tunnel.
4. The "Under-Bottom" Check: Slide your hand under the hoop one last time. Feel for the back of the shirt. You must ensure you are not about to stitch the front of the pocket to the back of the shirt.

Production Note: If you are running 50 shirts, managing this bulk every time is exhausting. A repositionable embroidery hoop or a specialized clamping frame system can sometimes offer better clearance, but on a single-needle machine, your "fabric management" skills are the most critical factor.

Final on-screen micro-adjustments: “nudge it up” to clear the pocket hem before stitching starts

In the video, after loading the bulky shirt, the host does one final layout check and nudges the design up slightly.

Why this is necessary: Gravity acts on the hoop when you load a heavy shirt. The weight might pull the hoop down a fraction of a millimeter.

• Action: Run the "Trial" trace one last time with the shirt loaded.
• Visual: Ensure the needle bar (not just the foot, but the needle tip) clears the thick top hem. Hitting that hem will break a needle instantly.

Setup Checklist (The "Go/No-Go" Decision):

• Hoop Lock: Audible click heard; hoop is rigid on carriage.
• Throat Plate: Clear of any excess fabric layers (slide hand under to verify).
• Bulk: Rolled tight to the right; nothing impeding the carriage arm movement.
• Top Thread: Thread path is clear, foot is DOWN.
• Bobbin: Full enough to complete the job (don't start a name with 5% bobbin left).


Clean lettering isn’t luck: trim thread tails early, manage jump stitches, and keep the stitch path tidy

The machine starts. The first few stitches form. Stop!

The "Start-Stop-Trim" Technique:

1. Allow the machine to stitch 3-5 lock stitches.
2. PAUSE the machine.
3. Trim the starting thread tail close to the fabric.
   • Why: If you leave this tail, the foot will drag it into later letters, stitching over it and creating an ugly, irremovable tangle.

Jump Stitch Management: On machines without automatic jump-stitch trimming (like the base SE400), the machine will drag a long thread between specific letters (e.g., between the dot of an 'i' and the next letter).

• Decision: If the jump is long (>10mm), pause and trim it. If it is short, wait until the end.
• Tool: Use curved micro-tip embroidery scissors (often called "snips") to get under the thread without poking the shirt.


Removing tear-away stabilizer on the inside of a shirt: why it sometimes feels scary (and how to do it cleanly)

The job is done. The host flips the shirt inside out.

Stabilizer Removal Technique:

1. Rough Tear: Tear away the large excess chunks first.
2. Support Stitches: When tearing stabilizer near the lettering, place your thumb on top of the embroidery stitches to hold them down. Pull the stabilizer away from your thumb.
   • Why: If you just rip the stabilizer violently, you can distort the stitches you just created, causing the letters to look warped.
3. Tweezers: Use tweezers to pick out the tiny islands of paper inside letters like 'O', 'A', or 'P'.


Decision tree: pick stabilizer for lettering based on fabric behavior (and avoid puckering on pockets)

The video uses tear-away, which is correct for a stiff cotton shirt. However, beginners often fail because they apply this logic to the wrong fabrics.

The Stabilizer Decision Matrix:

1. Is the fabric stretchy? (T-shirt, Polo, Knit)
   • YES: STOP. You must use Cutaway stabilizer. Tear-away will lead to broken stitches and gaps as the shirt stretches during wear.
   • NO: Go to step 2.
2. Is color show-through a concern? (White shirt, dark stabilizer)
   • YES: Use a "No-Show Mesh" (specialty cutaway) or clean-tear tear-away.
   • NO: Standard medium-weight backing is fine.
3. Is the item sensitive to hoop marks? (Performance wear, Velvet)
   • YES: Float the fabric (don't hoop it, hoop the stabilizer and stick fabric to it) OR use magnetic embroidery hoops to clamp without friction burn.

Comment-section fixes, answered like a shop tech: longer names, spaces, numbers, and “why won’t it fit?”

The comments section of the source video highlights the universal pain points of the 4x4 interface. Here is the expert diagnosis for each.

Symptom: "My name has 7 letters and won't fit in Large!"

• Diagnosis: The 4x4 Hoop limit (100mm) is physical. A 7-letter name in Large font often exceeds 110mm.
• Solution Level 1 (Software): Reduce sizing to 90% or switch to Medium.
• Solution Level 2 (Technique): Rotate the design 45 degrees (diagonal) to gain corner-to-corner length (approx 140mm space).
• Solution Level 3 (Hardware): This is the hard ceiling of the SE400. If you regularly minimize names to fit, you are a candidate for a multi-needle machine with a wider field.

Symptom: "The machine beeps and says the design is too big, but it looks like it fits."

• Diagnosis: The machine calculates the entire boundary box, including potential jumps.
• Solution: Check if you have centered the carriage. If the carriage is nudged 5mm to the right, you lost 5mm of valid stitching space on the right side. Center the carriage (Reset position) and try again.

Symptom: "Bobbin thread is showing on top (White specks in the black text)."

• Diagnosis: Tension imbalance or debris.
• Solution A: Re-thread the top thread. 90% of tension issues are actually threading errors. Ensure the thread is deep in the tension discs (floss it in!).
• Solution B: Change the needle. A dull needle punches a jagged hole that allows bobbin thread to be pulled up. Use a 75/11 Embroidery needle for standard work.

The upgrade path that actually makes sense: when to stick with the standard hoop, and when to go magnetic

The standard plastic hoop is capable, but labor-intensive. Here is the commercial logic on when to upgrade your toolkit:

• The Hobbyist: If you embroider 1-2 shirts a month, stick with the included hoop and master the "Plastic Grid" technique shown above.
• The Side Hustle: If you are doing batches of 10+ shirts, the physical strain of snapping hoops and the risk of "hoop burn" returns becomes a liability. magnetic embroidery hoops convert this step from a physical struggle into a 2-second magnetic snap.
• The Producer: If you are fighting the 4x4 limit daily, consider the embroidery hooping system that aligns garments off-machine. Eventually, look toward the SEWTECH multi-needle embroidery machine line to gain the ability to hoop once and stitch multiple colors without re-threading—this is where hobby becomes business.

Warning: Magnet Safety. Magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
1. Keep away from pacemakers.
2. Pinch Hazard: Do not place fingers between the magnets; they snap together with bone-crushing force.
3. Storage: Store them with the provided spacers to prevent them from locking together permanently.

Operation Checklist (Post-Stitch Quality Control):

• Jump Stitches: All connecting threads trimmed flush.
• Stabilizer: Removed cleanly without distorting the font.
• Hoop Marks: If burn marks exist, steam them gently (do not iron directly on thread) or wash the garment.
• Backing Check: Ensure no stabilizer residue is scratchy (consider fusing a "Comfort Cover" over the back for kids' clothes).

Mastering the SE400 pocket embroidery is a rite of passage. If you follow the "Old Hand" safety checks—Trace twice, stitch once—you will move from fear of ruining shirts to the confidence of a customizer.

FAQ

• Q: How do Brother SE400 built-in fonts cause uneven spacing (kerning) in pocket names, and how can Brother SE400 users fix it before stitching?
  A: Brother SE400 built-in fonts do not auto-correct kerning, so spacing that looks “OK” on-screen can stitch out looking wider on fabric.
  • Zoom your eyes in and visually inspect gaps between letter pairs before confirming the text.
  • Treat letters as separate objects and nudge placement manually when a gap looks too open.
  • Run a Trial trace after any spacing change to confirm the boundary still clears the pocket hem and seams.
  • Success check: Letter gaps look even on the screen and the Trial trace rectangle stays parallel to the pocket top hem without drifting into seams.
  • If it still fails: Switch to a simpler block/serif font and re-test stitch on the same fabric + stabilizer combination.
• Q: How should Brother SE400 users use Adjust → Layout arrows without crashing the carriage when positioning text on a finished shirt pocket?
  A: Use “Hold” only for rough positioning and “Tap” for the final adjustments to avoid fast moves near hoop limits.
  • Hold the directional arrow to get close to the target area, then switch to tapping for the last ~5 mm of positioning.
  • Keep the stitch area away from thick zones: pocket top hem, side seams, and hidden folds behind the pocket.
  • Avoid rapid moves when the design is near the hoop frame edges to reduce the chance of hitting limit sensors.
  • Success check: The hoop moves smoothly with no harsh stop, no rubbing sounds, and the design boundary stays clear of hems/seams.
  • If it still fails: Re-center/reset the carriage position and repeat layout positioning more conservatively.
• Q: How does the Brother SE400 Trial (trace) function prevent needle strikes on pocket hems and hoop collisions on 4x4 embroidery jobs?
  A: Run the Brother SE400 Trial trace every time to verify the design boundary clears pocket hems, seams, and hoop/frame limits before stitching.
  • Press the Trial key and watch the needle bar and presser foot movement (not the screen) during the “ghost pass.”
  • Listen for plastic-on-plastic rubbing that indicates the hoop is contacting a limit area.
  • Nudge the layout if the foot comes within about 2 mm of the thick pocket top hem.
  • Success check: The trace completes with no rubbing sounds and the foot path stays safely away from the pocket top hem across the full rectangle.
  • If it still fails: Reduce the text size or reposition the design toward the center of the 4x4 field and trace again.
• Q: Why do “Medium” letters on a Brother SE400 look fine on the screen but stitch too small or disappear on textured pockets, and what is the correct test-stitch method?
  A: Screens lie—thread and fabric texture shrink and absorb detail, so always test stitch on matching fabric and stabilizer before committing to a garment.
  • Stitch the name on the same type of fabric (not felt if the final is soft cotton or knit).
  • Use the same stabilizer type you plan to use on the shirt (tear-away vs cutaway changes results).
  • Evaluate readability at arm’s length (real-world viewing distance), not inches from your face.
  • Success check: At arm’s length, the lettering reads clearly without squinting and columns look full (not skinny from pull-in).
  • If it still fails: Retype in Large size and test again, or choose a simpler font that holds detail better.
• Q: How can Brother SE400 users resize text from Medium to Large without re-hooping, and why does deleting/retyping matter on older interfaces?
  A: On Brother SE400 workflows, changing M → L often works best by switching size, deleting the old text, and retyping—then stitch the new test in a clean area without un-hooping.
  • Return to the text edit screen, change size from Medium to Large, delete the prior word, and retype it.
  • Use Adjust → Layout to move the needle to a fresh spot on the same hooped test fabric for an apples-to-apples comparison.
  • Keep the fabric hooped to preserve tension consistency between tests.
  • Success check: Large lettering looks proportionally bigger on fabric while the stitch quality stays consistent because hoop tension did not change.
  • If it still fails: Reduce the name length (or rotate diagonally if needed) and re-run Trial to confirm it fits the 4x4 boundary.
• Q: What is the correct Brother SE400 pocket prep checklist to reduce puckering and stabilizer shifting before hooping a finished shirt?
  A: Press the pocket area dry/flat, secure the stabilizer to prevent sliding, and confirm tools/clearance before you ever snap the hoop.
  • Iron the pocket area until it feels warm and dry to the touch (moisture later drying can contribute to puckering).
  • Cut stabilizer at least 1 inch larger than the hoop on all sides and lightly bond it to the shirt interior with temporary spray adhesive or fusible stabilizer.
  • Check the pocket is not sewn shut and stage snips/tweezers so you are not scrambling mid-stitch.
  • Success check: Stabilizer does not creep when positioning the hoop, and the fabric lays flat with no ripples before tightening the screw.
  • If it still fails: Consider floating the fabric (hoop stabilizer, adhere fabric) or switch to a clamping-style hoop to reduce friction/hoop-mark issues.
• Q: What safety steps should Brother SE400 users follow to avoid finger pinches, needle breaks on thick pocket hems, and magnetic hoop hazards?
  A: Keep fingers out of pinch zones, trace to avoid thick hems, use a fresh needle, and treat magnetic hoops as industrial-strength tools.
  • Keep fingers fully clear when pressing hoop rings together; the snap zone can pinch hard.
  • Install a new needle before pocket work; thick hems and multiple layers can cause loud “thud” impacts and bent/broken needles.
  • Run Trial trace to ensure the needle path does not cross the pocket top hem or side seams before starting.
  • If using magnetic hoops, keep magnets away from pacemakers and never place fingers between magnets when closing.
  • Success check: The machine runs without needle “thud” impacts, no needle strike events, and hands never enter the hoop-closing danger area.
  • If it still fails: Stop immediately, re-check clearance with Trial, replace the needle again, and reposition the design away from bulky seams/hems.
