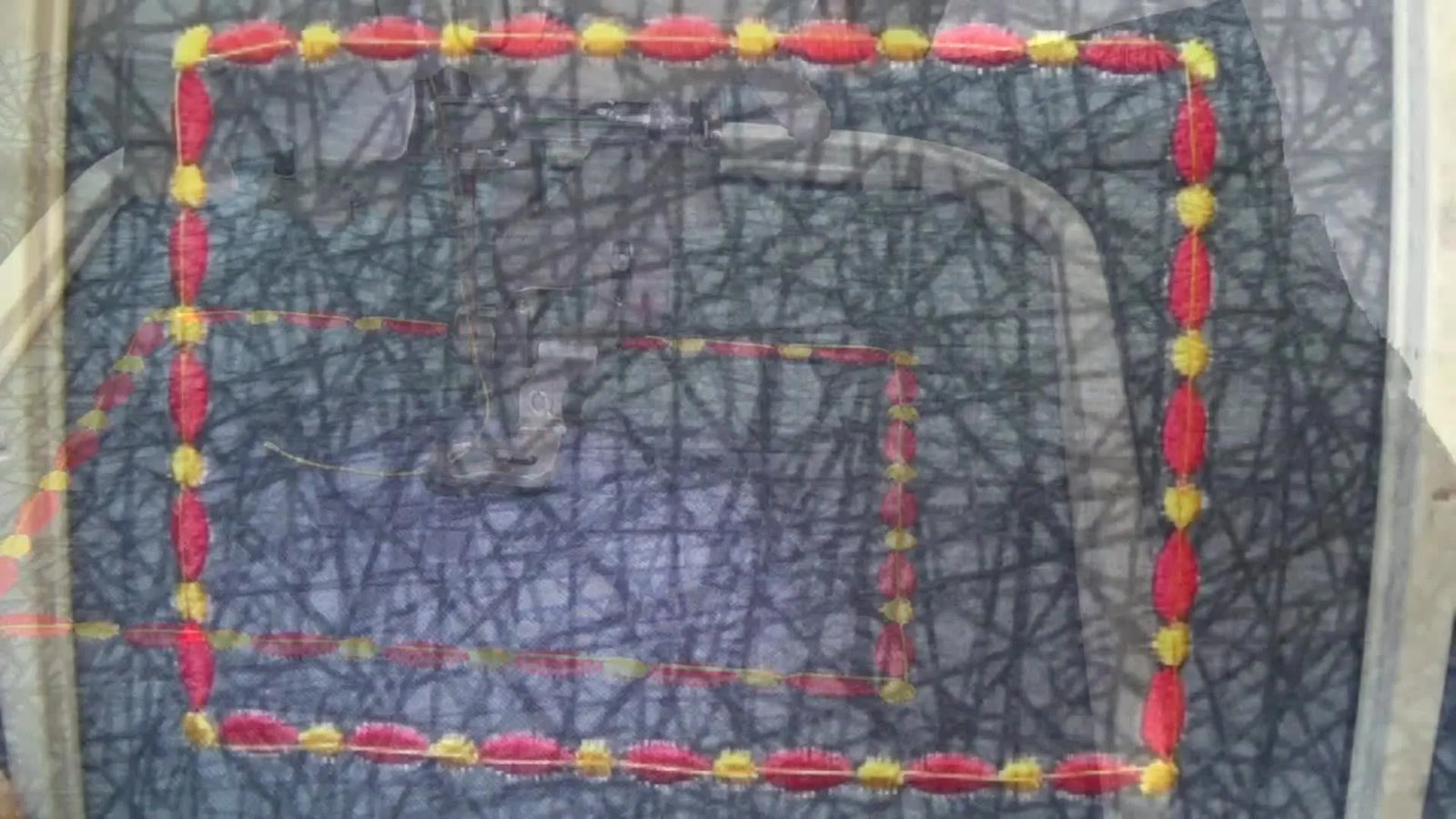

Brother SE400 Built-In Frame Patterns: Stitch a Clean Rectangle Border (Without the Jump-Stitch Mess)

Mastering Built-In Frames: How to Turn "Basic" Borders into Professional Finishes

If you have ever stared at your embroidery machine screen thinking, "Why does this simple border suddenly feel complicated?"—you are not alone. Frames are the "Lie Detector" of machine embroidery. They are the fastest way to make a project look finished and intentional, but they are also ruthless. They expose every small setup mistake: crooked hooping, incorrect tension, and those annoying connecting threads that scream "homemade."

In this white-paper-style walkthrough, we will scientifically reconstruct the workflow of stitches—specifically the built-in frames on typical home machines like the Brother SE400/SE1900 series. We will cover selecting a rectangle frame, resizing it safely, and executing a dual-color stitch-out.

But more importantly, we are going to fix the variable that ruins 90% of beginner projects: Mechanical Stability.

The Physics of a Border: Why Simply Pressing "Start" Fails

A frame is, geometrically speaking, a closed loop of stitches placed along the absolute perimeter of your embroidery field. Unlike a central floral design, a border has nowhere to hide.

When you see a border that looks "wavy," "trapezoidal," or incorrectly connected, it is rarely a software glitch. It is a Physical Displacement Event. The frame is just stitches placed along a path—so if the fabric shifts by even 1mm, the hoop isn’t stable, or the design is rotated relative to the grain of the fabric, the border will look wrong even when the machine is doing exactly what it was told.

The good news: The built-in frames are an excellent training ground. You aren’t fighting digitization errors. If you control three variables, you will get a sharp, commercial-grade result:

1. Orientation: Matching the digital rectangle to the physical grain.
2. Stabilization Physics: Preventing the "drum head" effect from distorting the fabric.
3. Jump-Stitch Hygiene: The manual cleanup that separates pros from hobbyists.


Phase 1: The "Hidden" Prep (Sensory Checks & Consumables)

The video guides us through stitching a frame on a playmat material. Use this as our case study. That kind of surface is stable but slick—meaning it creates a "micro-shift" if the hoop tension is uneven.

If you are new to this, treat frames like satin stitches: they reward over-preparation and punish shortcuts. Before you even touch the screen, you need to gather your "Hidden Consumables." Beginners often miss these, but professionals always have them:

• Curved Tip Snips: For surgical trimmings close to the fabric.
• Fabric Pen (Air/Water Soluble): To mark the center point physically.
• Painters Tape or Spray Adhesive: To float material if it's too thick to hoop traditionally.

The Sensory Hooping Test: When you hoop your fabric, do not just rely on sight. Use your hands.

• The Tap Test: Tap the fabric. It should sound like a dull thud, not a high-pitched ping. If it sounds like a snare drum, you have over-stretched it, and the fabric will shrink back (pucker) once removed.
• The Pull Test: Gently tug the edges. If the fabric slips out of the hoop, your inner ring screw is too loose.

This is classic hooping for embroidery machine territory—your results correlate 80% to your physical prep and 20% to your machine settings.

Prep Checklist (Pre-Flight):

• Hoop Integrity: Check that your hoop screw creates a tight grip. If using a standard plastic hoop, ensure the inner ring isn't cracked.
• Thread Path: Re-thread the top thread entirely. Ensure the presser foot is UP when threading to engage tension discs.
• Bobbin Check: Use a full bobbin. Running out of bobbin thread on a thin border is a nightmare to fix invisibly.
• Tool Readiness: Place curved snips next to the machine. You cannot hunt for them mid-stitch.
• Directionality: Mark the "TOP" of your fabric with a piece of tape.


Phase 2: Design Selection & Navigation

On the main embroidery screen, locate the frame icon—typically a square with a dashed border—located at the top right of standard interfaces (like the Brother SE400 or SE1900). This unlocks the built-in vector menu with 10+ shapes (circles, ovals, squares, shields).

Pro Tip: Beginners overlook this menu because the icons look "basic." However, these are native vector shapes, meaning they resize cleaner than imported stitch files. They are your best friends for patches and quilt labels.

Phase 3: Selection Strategy (Rectangle #5 & Stitch #6)

In the menu, we select Rectangle (No. 5). Then, we browse the stitch styles and choose Stitch Pattern No. 6, which is a two-stop (two-color) decorative frame.

Cognitive Load Warning: Why does the stitch pattern matter?

• Single-Pass (Running Stitch): Fast, low density, forgiving.
• Triple-Pass/Bean Stitch: Bold, but high friction.
• Decorative/Layered (Pattern #6): High stress. It lays a base track (red) and an accent track (yellow).

When you choose a layered stitch, you are doubling the risk of alignment errors. If the hoop shifts during the first pass, the second pass will not land on top.

Commercial Considerations: If you plan to sell your work later, ensure you are investing in the correct embroidery hoops for brother machines. Generic or "almost fits" hoops often lack the precise locking mechanism of OEM or high-end aftermarket brands, leading to subtle shifting that is invisible on T-shirts but obvious on geometric borders.

Phase 4: Calculating the Safe Zone (Resizing Logic)

The default size usually reads small (e.g., 2.30 x 3.16 inches). To make a border, we need to maximize this. Tap Size and incrementally hit the increase arrow until the numbers stop moving. The machine prevents you from exceeding the physical limit of the arm.

On a standard 4x4 machine, the resized maximum hits around 3.93 inches.

The "Safety Buffer" Rule: Just because the machine can stick to the edge doesn't mean it should.

• The Danger Zone: The 5mm perimeter near the plastic hoop edge is unstable. The foot can hit the plastic, or the fabric tension is uneven there.
• Speed Adjustment: When stitching at the max limit, reduce your speed. If your machine runs at 700 SPM (Stitches Per Minute), dial it down to 400-500 SPM. This reduces the centrifugal force that causes hoop vibration.

This is where the brother 4x4 embroidery hoop shows its limitation. It is a "hard boundary." If you need larger borders for towel text or jacket backs, you physically cannot trick the machine.

Phase 5: The Mental Rotation (Orientation)

The screen is vertical. The hoop attaches horizontally (on most models). This spatial disconnect causes the "Sideways Stitch Disaster."

The Orientation Algorithm:

1. Look at the preview on the screen. Is the long side vertical?
2. Look at your attached hoop. Is the arm attachment on the left?
3. Visualization: Project the image onto the hoop.

Does your design dictate a specific "Up"? For a geometric square, it doesn't matter. But if you have a label that needs to be read, orientation is critical.

Setup Checklist (Right Before Green Button):

• Clearance: Ensure the hoop arm has full range of motion (move coffee mugs/scissors away).
• Needle Check: Is the needle straight? A dull needle creates a "thumping" sound and deflects, causing wavy lines.
• Thread Color: Verify Color 1 (Base) is loaded.
• Presser Foot: Lower it. (Beginners forget this constantly).


Phase 6: The Base Pass (Stitching Color 1)

The machine begins the first pass in red. This forms the decorative foundation.

Sensory Monitoring:

• Listen: You want a rhythmic, purring sound.
• Watch: Observe the fabric near the needle. is it "flagging" (bouncing up and down with the needle)? If yes, your hooping is too loose, or you need a topping stabilizer. Flagging ruins registration.

If you hear a sharp "click" or a grinding noise, STOP immediately. This usually means the needle is hitting the needle plate or the hoop edge.

Phase 7: The 30-Second Surgery (Trimming Jump Stitches)

The machine fills the screen with a message to change thread. Do not just swap threads. You will see long "jump stitches" connecting the decorative elements.

The Golden Rule of Layering: You must trim these jump stitches before the second color starts.

Why? If you don't, the second layer (yellow) will stitch over these loose red threads, trapping them permanently. It looks messy and amateur.

Action:

1. Take your curved snips.
2. Clip the jump stitch close to the fabric (be careful not to knick the knot).
3. Remove the tail.

Warning: Safety First. Keep fingers clear of the needle area. Ideally, lock the machine screen or ensure your foot is off the pedal (if applicable) while your hands are inside the threading zone. A surprising number of injuries occur during thread changes.

For those looking to streamline this process, using a dedicated hooping station for embroidery can ensure that your fabric is squared up perfectly before it ever reaches the machine, reducing the need for mid-stitch panic adjustments.

Phase 8: The Accent Pass (Stitching Color 2)

Load your second color (yellow). The machine stitches knot details on top of the red.

Visual Alignment Check: Watch the first few stitches. Are they landing exactly in the center of the red pattern?

• Yes: Your stabilization is good.
• No (It's off to the left/right): Your fabric shifted. Do not stop now—finish it—but know that for the next one, you need a stronger stabilizer (e.g., Cutaway instead of Tearaway).

Operation Checklist (Post-Stitch):

• Final Trim: Snip the yellow jump stitches.
• Back Check: Flip the hoop. Is the bobbin thread a bird's nest? (Sign of top tension failure).
• Un-Hooping: Remove the hoop from the machine before popping the fabric out.


Phase 9: The Re-Hooping Friction Point

The video concludes by adding text ("Library") beneath the rectangle. The host admits this required re-hooping.

The Truth About Re-Hooping: Re-hooping is the number one cause of frustration. Trying to align a new hoop exactly 1 inch below a previous stitch line is difficult without laser alignment tools. Furthermore, standard plastic hoops require significant hand strength to close tightly without moving the fabric. This leads to "Hoop Burn" (permanent ring marks on delicate fabrics like velvet or performance wear).

The Solution: This is the specific scenario where many users transition to magnetic embroidery hoops. Unlike the friction-fit of plastic rings, magnetic hoops clamp down vertically.

• Project Safety: No friction burn on delicate fabrics.
• Ergonomics: No wrist strain from tightening screws.
• Speed: You can adjust the fabric without "popping" the whole mechanism apart.

For Brother single-needle users, finding a compatible magnetic hoop for brother machines can effectively eliminate the "I can't get it straight" anxiety.

Warning: Magnet Safety. Magnetic hoops use high-powered industrial magnets. They can pinch fingers severely. Crucially: Keep them away from pacemakers, insulin pumps, and magnetic storage media (credit cards).

The "White Paper" Core: Physics & Material Science

The video shows the "how," but here is the "why" regarding materials. The most common question is: "What stabilizer do I use?"

There is no single answer, but there is a logic. Use this decision tree.

Decision Tree: Fabric Behavior → Stabilizer Choice

The Stabilizer Rule: " If the fabric stretches, the stabilizer must hold it." You cannot use Tearaway on a stretchy T-shirt because once you tear it, the stitches have no support and will distort in the wash.

Tension & Needle Science

Users often ask: "Can I use my sewing needle?" The Data: No.

• Sewing Needles: Sharp point, small eye. High friction at 600 SPM.
• Embroidery Needles: Designated often as 75/11 or 90/14. They have a larger eye (reduces thread shredding) and a special scarf (prevents skipped stitches).

Thread Tension Heuristic: Beginners fear the tension dial. Do not fear it; test it. Look at the back of your satin column.

• Perfect: You see 1/3 bobbin thread (white) in the center, and 1/3 top color on each side.
• Top Too Loose: The back is all top color; front feels loop-y.
• Top Too Tight: You see bobbin thread on the front of the design.

Quick Troubleshooting: The Symptom-Fix Matrix

The Upgrade Path: From Hobbyist to Production

If you are stitching one label for a nephew, the standard plastic hoop and careful manual trimming are sufficient. The time cost is irrelevant.

However, if you find yourself stitching 20 patches for a local club, or logos on company polo shirts, the bottlenecks discussed above—hooping time, alignment fatigue, and jump-stitch trimming—become profit killers.

This is the threshold where the toolset must evolve:

1. Level 1 (Stability): Upgrading consumables (better thread, correct Cutaway stabilizer).
2. Level 2 (Efficiency): Investing in Magnetic Hoops to reduce hooping time from 3 minutes to 30 seconds per garment, while saving your wrists.
3. Level 3 (Scale): If the single-needle color changes are slowing you down, this is the trigger point to investigate multi-needle machines (like SEWTECH solutions), which handle color swaps automatically.

Frames are the ultimate test of your embroidery fundamentals. If you can stitch a perfect, square 4x4 border on a stretchy fabric, you have mastered tension, stabilization, and hooping. From there, everything else is just decoration.

FAQ

• Q: How do I stop Brother SE400/SE1900 built-in rectangle frames from stitching wavy or trapezoid-shaped borders?
  A: Wavy rectangle frames on Brother SE400/SE1900 machines are almost always caused by fabric movement, so fix hoop stability before changing any design settings.
  • Re-hoop using the tap test (aim for a dull thud, not a high-pitched “snare drum” ping) and do the pull test (fabric should not slip at the edges).
  • Bond fabric to stabilizer (spray adhesive or painters tape) when the material is slick or spongy (playmat/neoprene-type surfaces).
  • Slow the machine down when the frame is near maximum size (a safe starting point is reducing speed to the 400–500 SPM range if the machine is capable).
  • Success check: watch the fabric near the needle—if the fabric is “flagging” (bouncing), the border will not stay square.
  • If it still fails: switch to a stronger stabilizer choice for the fabric (for knits, cutaway is the reliable option).
• Q: What is the safest maximum size for a built-in rectangle frame on a Brother 4x4 embroidery hoop without hitting the hoop edge?
  A: Do not stitch right on the hoop edge on a Brother 4x4 field; keep a buffer because the perimeter is mechanically unstable and can cause foot strikes or distortion.
  • Increase the built-in frame size until the machine stops you, then back off to keep a safety margin (the outer ~5 mm near the hoop edge is the danger zone).
  • Reduce speed when running close to the maximum boundary to minimize hoop vibration.
  • Clear the entire hoop travel area before starting so the hoop cannot snag tools or objects.
  • Success check: no “clicking/grinding” sounds and no visible needle path drifting as the frame approaches corners.
  • If it still fails: choose a smaller frame size or re-hoop to improve stability rather than forcing the design to the edge.
• Q: How do I correctly thread the top thread on a Brother SE400/SE1900 to prevent bird’s nest on the bottom during built-in frame stitching?
  A: Re-thread the Brother SE400/SE1900 top thread completely with the presser foot UP, because bird’s nesting is commonly caused by the thread not entering the tension discs.
  • Lift the presser foot fully before threading to open the tension discs.
  • Re-thread the entire path from spool to needle (do not “patch” one guide).
  • Start with a full bobbin so a thin border does not fail mid-run.
  • Success check: after a few seconds of stitching, the underside shows controlled bobbin presence rather than a loose “cotton ball” of top thread.
  • If it still fails: stop and inspect for top thread misrouting or snagging, then test again before touching bobbin tension.
• Q: When stitching a two-color built-in decorative frame (layered border) on a Brother SE1900, when should jump stitches be trimmed?
  A: Trim jump stitches immediately after Color 1 finishes and before starting Color 2, or the second layer will stitch over and permanently trap the loose threads.
  • Stop at the color-change prompt and keep hands clear of the needle area while the machine is paused.
  • Use curved-tip snips to clip jump threads close to the fabric without cutting the stitches.
  • Remove the trimmed tails before loading the next color.
  • Success check: the second color lands cleanly without visible red threads trapped under the yellow accents.
  • If it still fails: trim more aggressively between layers and confirm the machine is not auto-creating long connectors due to the selected frame pattern.
• Q: How can I tell if embroidery thread tension is correct on a Brother SE400/SE1900 when stitching satin-style frame borders?
  A: Use the underside balance rule: correct tension typically shows about 1/3 bobbin thread centered with top thread on both sides, not all top thread or bobbin showing on the front.
  • Stitch a short section of the frame and flip the hoop to inspect the back before committing to a full run.
  • If the back is mostly top color and feels loopy, re-thread the top with presser foot UP (top tension often isn’t engaged).
  • If bobbin thread is showing on the front, reduce top tension slightly (a safe starting point is small adjustments and re-test).
  • Success check: the frame edge looks crisp on the front and the back shows a stable, narrow bobbin line rather than messy loops.
  • If it still fails: replace the needle (dull/deflecting needles can mimic tension problems) and re-test.
• Q: What should I do if a Brother SE400/SE1900 makes clicking or grinding noises while stitching a built-in border frame?
  A: Stop immediately—clicking or grinding during a Brother SE400/SE1900 frame stitch commonly indicates the needle is contacting the hoop edge or needle plate.
  • Press stop and do not restart until the cause is identified.
  • Re-check design placement and keep the frame away from the unstable perimeter near the hoop edge.
  • Verify needle condition (bent/dull needles can deflect) and replace if questionable.
  • Success check: after restarting, the machine returns to a smooth, rhythmic sound without sharp ticks, especially near corners.
  • If it still fails: reduce design size and speed, then re-hoop to improve fabric stability before attempting again.
• Q: Are magnetic embroidery hoops safer for re-hooping alignment and hoop-burn prevention, and what magnet safety rules must be followed?
  A: Magnetic embroidery hoops often reduce hoop burn and make re-hooping alignment less stressful, but the magnets are powerful and require strict handling safety.
  • Clamp vertically and keep fingers out of pinch points while closing the magnetic frame.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and magnetic storage media (credit cards).
  • Re-position fabric in small moves rather than repeatedly forcing a tight plastic ring on delicate materials.
  • Success check: the fabric is held securely without ring marks and the re-hooped placement is visually straighter with less handling distortion.
  • If it still fails: use physical marking (center marks/top direction tape) and consider a hooping station approach for more repeatable alignment.
