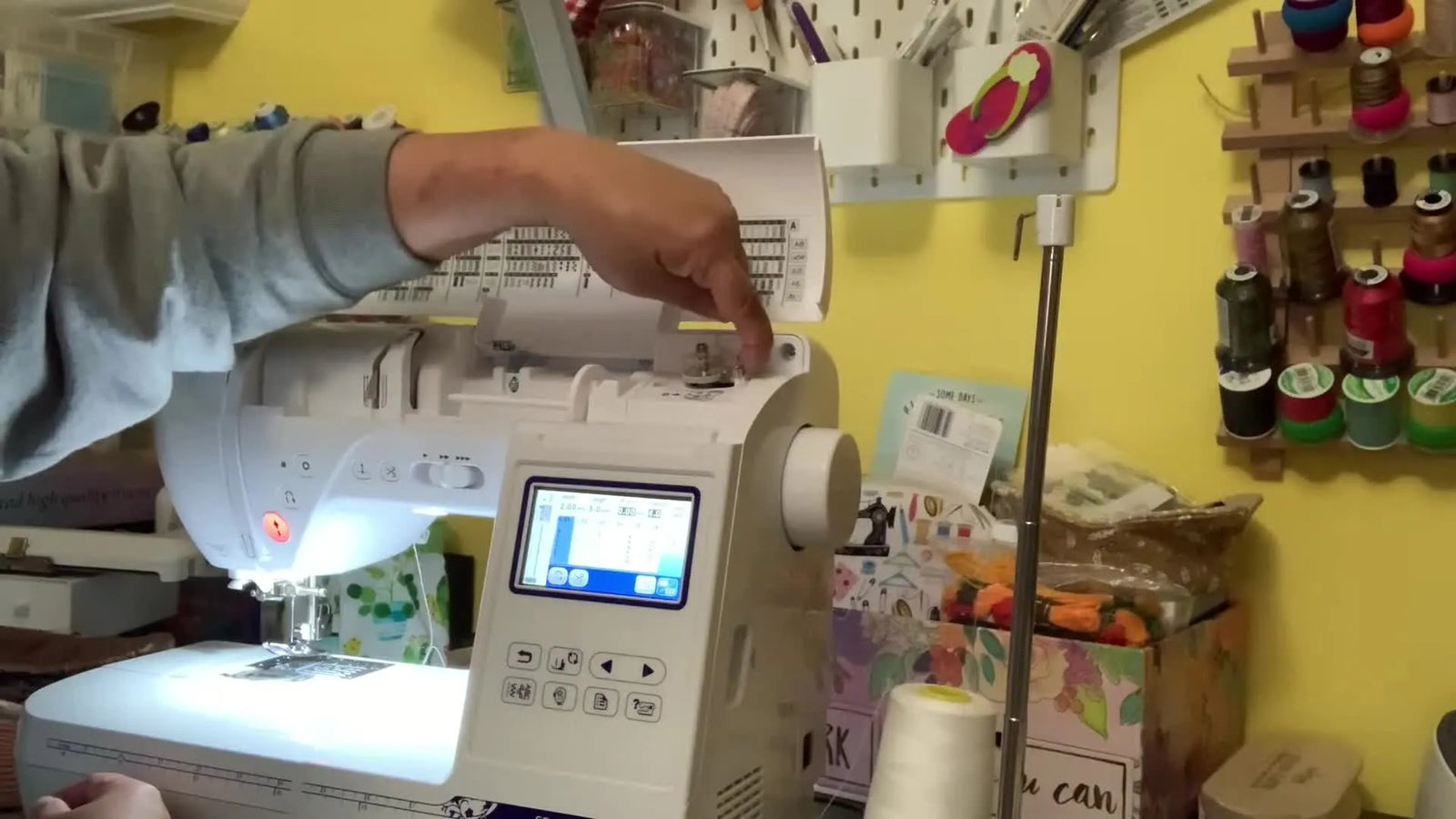

Brother SE1900/SC1900 Bobbin Winding Without the Panic: The Exact Thread Path, the Orange Light, and the Foot-Controller “Error” That Traps Beginners

The Definitive Guide to Winding Bobbins on the Brother SE1900/SC1900: Zero Frustration, Perfect Tension

If you’ve ever stared at your Brother SE1900 screen—or its twin, the SC1900/SE1950—thinking, “Why is this machine ignoring me?” you are not alone. In my 20 years of embroidery education, I have watched countless beginners lose hours of production time to a single, cryptic error message.

The machine isn’t broken. It’s usually just trying to protect you from a safety hazard you didn’t know existed. The confusion often stems from one tiny misunderstanding: when the screen mentions the "foot controller," it is talking about the pedal on the floor, not the presser foot at the needle.

This guide is your "White Paper" for bobbin mastery. We aren't just going to follow the manual; we are going to rebuild your winding routine with the sensory checks, safety margins, and "old hand" secrets that guarantee a smooth feed. A perfectly wound bobbin is the foundation of every professional stitch—without it, even the most expensive brother sewing and embroidery machine will struggle to produce clean satin stitches.

The "Freeze" Moment: Why Your Start/Stop Button Won't Work

The most common panic point for new owners occurs right at the start. You set everything up, press the "Start/Stop" button to wind the bobbin, and… nothing happens. Or worse, you get a pop-up message:

“The Start/Stop button does not operate with the foot controller attached.”

This is a safety interlock. The machine logic assumes that if the foot pedal is plugged in, you intend to use your foot to control speed. It disables the hand button to prevent accidental activation.

You have two options to proceed:

1. The "Purist" Method: Unplug the foot controller jack from the side of the machine. Now, the Start/Stop button works for winding.
2. The "Pro" Method (Recommended): Keep the foot controller plugged in. Simply press the pedal to control the winding speed. This gives you analog control over the velocity, which is safer for beginners.


Phase 1: The Pilot's Pre-Flight (Prep & Consumables)

Before thread touches the machine, we need to talk about consumables. In embroidery, 80% of failures happen before you press start.

The "Hidden" Consumables List

Beginners often miss these essentials. Ensure you have:

• Class 15 (SA156) Clear Plastic Bobbins: Do not use metal bobbins or the taller Class 15J. They will rattle and ruin your timing.
• High-Quality Thread: For embroidery, use 60wt or 90wt bobbin thread. For sewing (as shown in many tutorials), standard 40wt/50wt polyester is fine.
• Thread Stand (Optional but Recommended): An external stand helps thread unspool without twisting, reducing tension spikes.

The "Clean Slate" Rule: Using a pre-wound bobbin? Great. Winding your own? Make sure the bobbin is pristine. Even a microscopic nick on the plastic rim can snag thread every few rotations, causing "hiccups" in your embroidery that look like loopies on top of the fabric.

PREP CHECKLIST: Do This Before You Thread

• Bobbin Type: Confirm you are holding a plastic Class 15 (SA156) bobbin (approx 11.5mm tall).
• Bobbin Integrity: Run your fingernail around the rim; if you feel a scratch or catch, throw it away.
• Source Thread: Pull off 12 inches of slack to ensure the spool isn't caught on a sticker or nick.
• Control Method: Decide now—unplug the pedal for button use, or keep it plugged in for foot control.

Warning: Rotation Hazard. Keep long hair tied back, and ensure jewelry, loose sleeves, or headphone cords are clear of the bobbin winder shaft. It spins at high RPMs and can snag materials instantly.

Phase 2: The Thread Path (Where Everyone Goes Wrong)

This is the single biggest cause of "spongy" bobbins. Most users instinctively follow the threading path they use for the needle (down the left channel). Stop.

The Bobbin Path Rule:

• Sewing/Embroidery: Goes LEFT after guide #1.
• Bobbin Winding: Goes RIGHT after guide #1.

You must route the thread around the Tension Button (Pretension Disc). This is a small silver stud on the top right of the machine.

The Sensory Check (The "Flossing" Tech)

How do you know if you did it right? You need to feel it.

• Visual: The thread should slip under the little metal tab on the disc.
• Tactile: Hold the thread before and after the disc and pull gently back and forth, like flossing teeth. You should feel a distinct, firm resistance.
  • Too Loose? The thread is just resting on top. The bobbin will wind soft and collapse.
  • Too Tight? You might be snagged.
  • Just Right: It feels like pulling a zipper—smooth but resistant.

Phase 3: The Anchor & The Click

Once your tension is verified, bring the thread to the bobbin winder shaft.

1. Seat the Bobbin: Place the empty bobbin on the shaft. Rotate it slightly until the little notch on the bobbin aligns with the spring on the shaft. It should cycle down and seat firmly.
2. The Anchor: Wrap the thread around the bobbin itself Clockwise 4 to 5 times.
   • Why? If you don't wrap enough, the thread tail will slip when the motor starts, creating a "bird's nest" of tangled thread under the bobbin.
3. The Cutter: Pass the thread through the slit in the winder base to cut the excess tail.


Engaging "Winding Mode"

Slide the bobbin winder shaft to the RIGHT.

• Auditory Check: Listen for a sharp "Click."
• Visual Check: The Start/Stop button light will turn ORANGE.

If the light remains Red or Green, you have not pushed the shaft far enough right.

SETUP CHECKLIST: Ready to Launch

• Tension Check: Thread is securely under the pretension disc tab (the "flossing" check passed).
• Anchor: Thread is wrapped clockwise 4+ times around the bobbin core.
• Tail: Excess thread tail is cut short so it doesn't whip around.
• Mode: Winder shaft is clicked to the RIGHT; light is ORANGE.

Phase 4: The Wind (Velocity & Volume)

Now, press the pedal (or Start/Stop button if you unplugged the pedal).

The "Speed Trap"

Beginners often floor the pedal. Don't.

• The Sweet Spot: Run the machine at about 75% speed.
• Why? Winding at max RPM can stretch the thread slightly. When the thread relaxes later, it contracts, crushing the plastic bobbin or distorting the wind. Consistently wound bobbins create consistent embroidery.

Determining "Full"

The machine has a stopper that should stop the wind automatically. However, volume varies by thread weight.

• The Safety Margin: Stop when the thread is about 90% full—approx. 1mm from the outer rim.
• The Risk: An overfilled bobbin will rub against the bobbin case creates friction. This friction acts like "extra tension," dragging on the thread and causing your top thread to pull loopies on the bottom.

Phase 5: The Dismount

1. Stop the machine.
2. Slide the shaft LEFT.
3. Remove the bobbin.
4. Cut the thread using the cutter on the side of the machine.






OPERATION CHECKLIST: Quality Control

• Firmness: Squeeze the bobbin with your thumb and finger. It should feel firm, like a ripe orange, not squishy like a marshmallow.
• Level: Look at the bobbin from the side. Is the thread level? (If it's cone-shaped, you missed the pretension disc).
• Clearance: Ensure the thread is not protruding past the plastic rims.

Troubleshooting: The "Why is this happening?" Matrix

If things go wrong, use this low-cost-to-high-cost diagnostic path.

Pre-Wound vs. Self-Wound: The "Build vs. Buy" Decision

One of the most common debates for brother embroidery machine owners is whether to wind their own or buy pre-wound bobbins.

The Expert Consensus: For general embroidery, Pre-wound (60wt/90wt) is superior. They are factory-wound at perfect tension, hold 30% more thread, and save you time. However, self-winding is a necessary skill for custom colors.

Decision Tree: Which Bobbin Do I Use?

1. Is this a standard project (towels, logos, unseen back)?
   • YES -> Use Pre-wound White/Black. (Efficiency Choice).
   • NO -> Go to step 2.
2. Is the back of the embroidery visible (e.g., lace, scarf, sheer fabric)?
   • YES -> Self-Wind a matching color bobbin using the same thread as your top thread.
   • NO -> Use Pre-wound.
3. Are you troubleshooting tension issues?
   • YES -> Use a Pre-wound. It removes one variable (bad winding) from the equation so you can focus on the needle tension.

Upgrading Your Workflow: When "Good Enough" Isn't Enough

Mastering the bobbin is Level 1. Once you solve the thread issues, you will likely hit the next bottleneck in your production: Hooping.

As you move from hobby projects to small orders, the physical strain of hooping and the frustration of "hoop burn" (those ring marks on fabric) become the new enemy. This is the "Trigger Moment" for a tool upgrade.

Level 2 Upgrade: Magnetic Hoops

When you are wrestling with thick towels or trying to avoid hoop burn on delicate knits, standard hoops fail. This is why professionals switch to the magnetic hoop for brother se1900.

• The Logic: Instead of forcing an inner ring into an outer ring (friction), you use magnets to sandwich the fabric.
• The Gain: Zero hand strain, no hoop burn, and faster re-hooping.
• Many users searching for terms like brother se1900 hoops or hooping for embroidery machine technique are actually looking for this hardware solution to solve a physics problem.

Warning: Magnetic Field Hazard. Magnetic hoops use industrial-strength magnets (neodymium). They can carry a pinch force of 5-10lbs.
* Do not place near pacemakers or ICDs.
* Keep fingers clear when snapping the magnets together—they will jump.
* Electronic Safety: Do not place floppy disks or credit cards directly on the magnets (though SD cards and USB drives are generally safe, distance is best).

Level 3 Upgrade: Multi-Needle Machines

If you find yourself winding bobbins 10 times a day or spending more time changing thread colors than actually stitching, you have outgrown the single-needle platform.

• The Trigger: When you refuse orders because you "don't have time."
• The Solution: A multi-needle machine (like SEWTECH or similar commercial platforms) allows you to set 10-15 colors at once and sew 30% faster. It’s not just a faster machine; it’s a business scaler.

The 60-Second Recap

1. Check: Plastic Class 15 bobbin only.
2. Route: Go RIGHT at guide #1. Floss the pretension disc.
3. Anchor: Wrap 4x Clockwise.
4. Engage: Click shaft right. Light turns Orange.
5. Drive: Use the pedal if plugged in.
6. QC: Firm, level, not overfilled.

By respecting the physics of the machine and following these sensory checks, you turn a frustrating chore into a mindless 30-second habit. Happy stitching.

FAQ

• Q: Why does the Brother SE1900/SC1900 bobbin winding Start/Stop button not work when the foot controller is attached?
  A: This is a normal safety lockout—use the foot pedal to wind, or unplug the foot controller to re-enable the Start/Stop button.
  • Keep the foot controller plugged in and press the pedal to control winding speed (recommended for better control).
  • Or unplug the foot controller from the machine, then use the Start/Stop button for bobbin winding.
  • Success check: the machine responds immediately when the pedal is pressed (or Start/Stop works after unplugging).
  • If it still fails: confirm the bobbin winder shaft is slid fully to the RIGHT and clicked into winding mode (orange light).
• Q: How do I thread the Brother SE1900/SC1900 correctly for bobbin winding if the bobbin keeps coming out spongy or messy?
  A: Re-thread using the bobbin-winding path and make sure the thread goes around the pretension disc on the top right (not the needle threading path).
  • Route the thread so it goes RIGHT after the first guide, then under the pretension disc tab.
  • Do the “flossing” test by pulling the thread back and forth across the disc to confirm real resistance.
  • Success check: the thread feels smooth-but-firm (like a zipper) and the wound bobbin feels firm instead of squishy.
  • If it still fails: unwind and re-route again—missing the pretension disc is the most common cause of soft, uneven winds.
• Q: Why does thread wind underneath the bobbin on a Brother SE1900/SC1900 bobbin winder and create a bird’s nest?
  A: The thread tail usually wasn’t anchored—wrap the thread 4–5 times clockwise on the bobbin before starting, then cut the tail.
  • Seat the empty bobbin fully on the winder shaft before wrapping.
  • Wrap the thread clockwise around the bobbin core 4–5 times to lock the tail.
  • Cut the excess tail using the cutter slit at the winder base before running the motor.
  • Success check: the first 5–10 seconds wind cleanly on top of the bobbin with no looping underneath.
  • If it still fails: stop immediately, remove tangles, and restart only after the tail is anchored and shortened.
• Q: Why is the Brother SE1900/SC1900 bobbin cone-shaped after winding?
  A: A cone-shaped bobbin usually means the thread is not seated correctly in the pretension disc—re-thread and pass the “flossing” resistance check.
  • Remove the bobbin and unwind any bad wind (don’t try to “fix” a cone by topping it off).
  • Re-route the winding thread path to the pretension disc and ensure it slips under the metal tab.
  • Pull the thread back and forth to feel firm, consistent resistance before winding again.
  • Success check: the bobbin looks level from the side (not tapered) and feels evenly packed.
  • If it still fails: inspect the bobbin rim for tiny nicks that can snag and disrupt even winding.
• Q: What does it mean when the Brother SE1900/SC1900 bobbin winder light stays red or green instead of turning orange?
  A: The bobbin winder shaft is not fully engaged—push the shaft firmly to the RIGHT until it clicks and the light turns orange.
  • Slide the bobbin winder shaft to the RIGHT with a deliberate push.
  • Listen for the sharp “click” that indicates winding mode is engaged.
  • Success check: the Start/Stop button light is ORANGE (winding mode).
  • If it still fails: remove and reseat the bobbin on the shaft, then try engaging the shaft again.
• Q: How full should a bobbin be on the Brother SE1900/SC1900 to avoid tension problems and thread drag?
  A: Stop at about 90% full—leave roughly 1 mm of clearance from the bobbin rim to prevent rubbing and extra friction.
  • Run the winding speed at about 75% instead of max to avoid stretching/distorting thread.
  • Stop the wind early if the thread approaches the rim, even if auto-stop hasn’t triggered yet.
  • Success check: the thread does not protrude past the plastic rims, and the bobbin turns freely without rubbing.
  • If it still fails: re-wind a fresh bobbin—an overfilled bobbin can create drag that looks like tension trouble during stitching.
• Q: What are the key safety risks when winding bobbins on the Brother SE1900/SC1900, and how do I reduce them?
  A: Treat bobbin winding like a high-RPM rotating tool—keep hair, cords, jewelry, and loose sleeves away from the spinning winder shaft.
  • Tie back long hair and remove/secure necklaces, bracelets, and hoodie strings before starting.
  • Keep fingers clear of the spinning bobbin and do not hold the thread tail near the shaft once winding begins.
  • Success check: nothing dangles near the winder shaft area, and the winding runs without any snagging incidents.
  • If it still fails: stop the machine immediately and reset the setup—do not try to “catch” a snag while the shaft is spinning.
