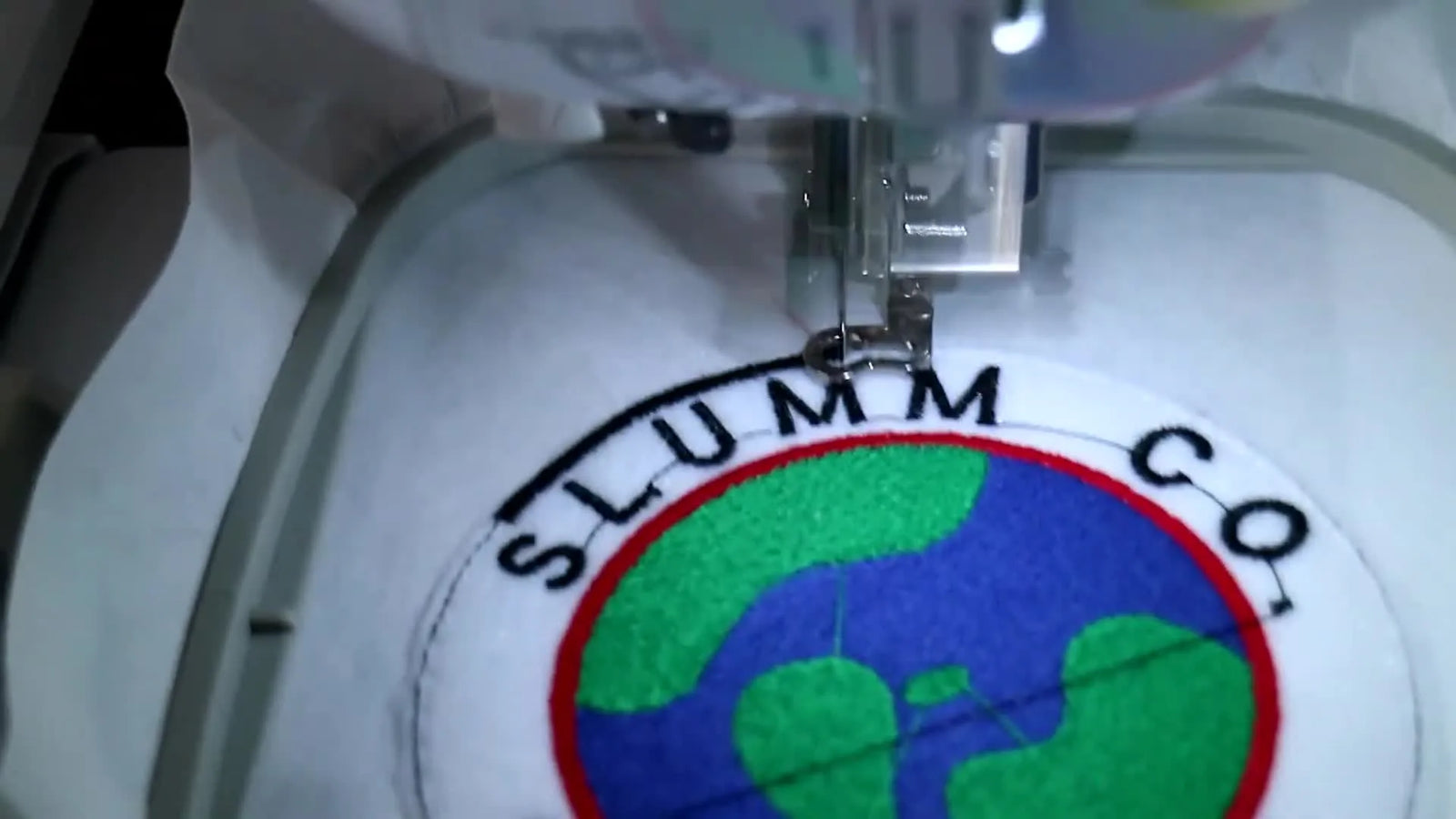

Brother SE1900 Patch Workflow That Actually Stitches Clean: Appliqué Trimming, Smart Thread Choices, and No-Panic Fixes

If you’ve ever watched a clean patch stitch-out online and thought, “Mine would’ve bird-nested by minute three,” you’re not alone. Dense patch designs are unforgiving: one sloppy hoop, one weak stabilizer choice, or one rushed trim, and the whole thing shifts, puckers, or frays.

In this workflow, we analyze the process of stitching a circular custom patch on a Brother SE1900 using a 4-inch hoop. The design features appliqué-style trimming, dense fills (blue water + green continents), a thin red ring, shiny black lettering, and a matte black border. The machine throws the usual warnings (bobbin nearly empty, upper thread ran out), but with the right protocol, these are minor hiccups rather than project-killers.

Below is that process rebuilt into a studio-ready routine you can repeat—plus the “why” behind the choices so you can avoid common patch traps.

Calm the Panic: What a Brother SE1900 Patch Stitch-Out Is *Supposed* to Feel Like

A patch run on a single-needle machine like the Brother SE1900 feels more intense than a light t-shirt design. It is dense, layered, and border-heavy. In this stitch-out, you will hear a rhythmic, heavy "thump-thump" sound. You may even hear a slight “pop” or "click" during overlap areas (like where green meets blue).

Do not panic. This audial feedback is normal when the needle is punching through stacked stitches and stabilizer.

The goal isn’t “silent sewing.” The goal is stable fabric, consistent feeding, and clean coverage.

Two quick mindset shifts that save beginners wasted material:

• A patch is a controlled sandwich. Fabric + stabilizer + dense stitches must behave like a single, rigid unit (like cardboard).
• Registration is everything. If you keep the project hooped and avoid tugging, you can handle thread breaks and bobbin swaps without losing alignment.


The Prep Most People Skip: Stabilizer, Hoop Tension, and a 30-Second Design Reality Check on the SE1900 Screen

The operator starts with patch material (likely unauthorized twill or canvas) and a 4-inch hoop already prepped. He confirms the design on-screen before stitching.

He is working inside a 4-inch hoop with a design size shown as 3.87" x 3.87". The machine displays 21,619 stitches and an estimated run time of 39 minutes.

Here is the veteran move: treat that screen as a risk report.

• Density Alert: 21,000+ stitches in a 4-inch circle is heavy. If your stabilizer is weak, the design will curl like a potato chip.
• Space Alert: 3.87" inside a 4.00" hoop leaves strictly zero room for error.

If you are setting up a standard brother 4x4 embroidery hoop, you must center the patch perfectly. If you are off by even 2mm, the presser foot may strike the plastic hoop frame during the border stitch, breaking the needle.

Prep Checklist (Do this before the first stitch)

• Needle Check: Install a fresh 75/11 or 90/14 embroidery needle. A dull needle will hammer the patch rather than pierce it.
• Hoop Tension: Hoop the stabilizer so it sounds like a drum skin when tapped.
• Float vs. Hoop: For patches, fully hooping the stabilizer is non-negotiable.
• Thread Audit: Verify you have all colors (White/Black for tack-down, Blue, Green, Red, Black).
• Hidden Consumable: Ensure you have curved appliqué scissors and temporary spray adhesive (if floating fabric).
• Bobbin: Start with a full, pre-wound bobbin (specifically 60wt or 90wt bobbin thread, not sewing thread).

Warning: Keep fingers well away from the needle area. When trimming jump stitches or checking the stitch-out, pause the machine. A moving needle moving at 400-600 SPM can cause serious injury. Never put your hands inside the hoop area while the green "Start" button is lit.

Hooping for Embroidery Machine Patches: How to Get “Drum Tight” Without Distorting the Fabric

The video shows a standard plastic 4-inch hoop. The fabric remains hooped even when removed from the machine for trimming.

That is the golden rule: Once you have registration, protect it.

However, traditional plastic hoops have a flaw: to get them tight enough for high-density patches, you have to tighten the screw aggressively. This often causes "hoop burn" (permanent crush marks on the fabric) or wrist strain for the operator.

The Professional Upgrade: If you find yourself fighting the screw or ruining fabric with hoop rings, this is where experienced embroiderers upgrade their tools. A magnetic hoop for brother se1900 clamps the fabric automatically with strong magnets. It eliminates hoop burn and significantly speeds up the process, which is critical if you plan to make more than one patch at a time.

Placement & Tack Down on Brother SE1900: The Circle That Saves Your Alignment

The first step is a placement/tack-down circle.

• The machine screen calls for black, but the operator keeps white thread loaded.
• This is acceptable practice because this stitch line will be completely covered by the satin border later.


The Sensory Check: Watch the fabric as this circle stitches. Does the fabric ripple or bubble ("flagging") as the needle lifts? If yes, your hooping is too loose. Stop immediately and re-hoop.

Expected Outcome: A perfectly round, single outline that defines where the patch edges will be.

The Bobbin Thread Is Almost Empty: What to Do When the SE1900 Warns Mid-Run

Right after starting, the machine pauses with the message: “The bobbin thread is almost empty.”

Panic Management:

1. Do NOT unhoop the fabric.
2. Slide the plastic latch to release the hoop from the embroidery arm carriage.
3. Change the bobbin.
4. Slide the hoop back onto the carriage until you hear a sharp mechanical "click."

A viewer asked: “Do you have to change the bobbin with each color change?” Answer: No. The bobbin is your "fuel tank." You only change it when empty. However, if you are building a patch routine using brother se1900 hoops, always check your bobbin level before starting the final satin border. Running out of bobbin thread on a satin stitch leaves a visible seam that is hard to hide.

Appliqué Trimming with Curved Scissors: Cut Clean Without Nicking the Tack Line

After the tack-down circle, the operator removes the hoop from the machine (fabric stays in the hoop) and trims the excess fabric around the stitched circle.

The Technique: Use curved appliqué scissors (often called "duckbill" scissors). Rest the flat "bill" of the scissors against the stabilizer and glide it.

• Too Far: If you leave 3mm of fabric, it will poke out like whiskers ("eyelashes") after the border is done.
• Too Close: If you cut the tack-down thread, the patch will peel off.
• Just Right: Trim to about 1mm-1.5mm from the stitch line.

Expected Outcome: A neat circular patch shape sitting on the stabilizer, ready for the dense fills.

The Color-Plan Check: Use the Brother SE1900 Color List to Predict Density and Thread Risk

The machine's color breakdown list shows the sequence: Blue, Green, Red, Black.

This screen is your roadmap for tension management.

• Blue/Green (Fills): High stitch count. High friction. Watch for thread shredding here.
• Black (Border): The final seal.

If you are using generic embroidery hoops for brother machines, ensure the screw is tightened as much as your fingers allow. The density of the upcoming blue fill will try to pull the fabric inward ("pull compensation"). If the hoop is loose, the circle will become an oval.

Stitching the Blue Background Fill: “Punching Holes” to Save Thread Without Losing Coverage

The operator stitches the blue water background. Notice that the digitizer left unstitched “holes” for the continents.

The Logic: This isn't just to save thread. It is to prevent "bulletproof scaling." If layers of blue were stitched under layers of green, the patch would become too thick and rigid, causing needle deflection (broken needles).

Expected Outcome: Blue fill covers the ocean areas, leaving negative space for land.

Upper Thread Ran Out on the Blue Fill: How to Resume Without a Visible “Restart Scar”

The machine pauses mid-ocean. Setup allows the user to re-thread and resume.

Crucial Step: When the SE1900 resumes, it often backs up a few stitches. Ensure you pull the thread tail tight when it restarts to avoid a "bird's nest" loop on the back.

Pro-Tip: If you are mastering hooping for embroidery machine technique, learn to change thread without leaning your weight on the hoop or carriage arm. The embroidery arm gears are plastic; heavy pressure can misalign them.

Stitching Green Continents with Overlap: Why That “Pop” Sound Isn’t Automatically a Problem

Next, the green continents are stitched. The design includes a deliberate "overlap" where green stitches stitch on top of the blue edges.

The Physics of the "Pop": The popping sound is the needle penetrating the dense blue thread, stabilizer, and fabric simultaneously.

• Consistent Pop: Normal for dense overlaps.
• Grinding Noise: Not normal. Change needle immediately.
• Thudding: Your hoop is bouncing.

Expected Outcome: Solid green shapes with no white gaps between the land and water.

Stitching the Red Inner Ring: Keep It Simple, Keep It Flat

After the green, the operator switches to red thread for the thin inner ring.

This ring is a "truth teller." If your stabilizer has slipped, this ring will be off-center (concentricity error). If it looks centered, your setup is solid.

Regular Thread vs Embroidery Thread on Lettering: Matte for the Art, Shine for the Words

The operator makes a distinct styling choice:

• Matte Thread: Used for background elements.
• Shiny Embroidery Thread: Used for the black lettering to make it "pop."




The Visual Impact: Using shiny thread (Rayon or Trilobal Polyester) for text increases legibility because it catches the light.

Note: The operator loads the thread on the horizontal pin. For thread prone to twisting (like metallic or cheap poly), using a vertical thread stand placed behind the machine often results in smoother feeding.

The Final Border Stitch on the Brother SE1900: Where Clean Patches Are Won or Lost

The final step is the satin border. This is the highest density part of the entire patch.

The Risk Zone: The repetitive needle penetration in the exact same spot acts like a saw blade—it can cut the stabilizer ("cookie cutter effect").

If you are using a standard brother embroidery hoop, watch the edges. If the border starts to separate from the patch, your stabilizer choice was likely too light.

Setup Checklist (Right before running the final border)

• Bobbin Check: Do you have at least 30% bobbin left? If not, change it now.
• Speed Reduction: If your machine allows, lower the speed to 400 stitches per minute (SPM). Slower speed equals higher precision on satin edges.
• Clearance: Ensure the hoop path is clear. A patch jamming against a wall or coffee mug instantly ruins the alignment.

Warning: If you upgrade to magnetic hoops for speed, treat magnets with extreme respect. These are industrial neodymium magnets. They can pinch skin severely. Keep them away from pacemakers, credit cards, and specialized electronics. Never leave them attached to the machine when not in use.

Stabilizer Decision Tree for Patches: Pick the Backing Like a Production Shop

The video shows stabilizer use but doesn't specify the grade. For high-density patches, "Tear Away" is often a fail point. Use this logic tree:

Decision Tree: What Goes Under the Patch?

1. Is the patch fully stitched (100% thread coverage like this example)?
   • Yes $\rightarrow$ Use 2.5oz or 3.0oz Cutaway Stabilizer. (Required to support the stitch density).
   • No $\rightarrow$ Go to Step 2.
2. Is the patch fabric sturdy (Twill/Canvas) with light stitching?
   • Yes $\rightarrow$ Heavy Tearaway is acceptable.
   • No $\rightarrow$ Use Cutaway.
3. Does the fabric stretch (Jersey/T-shirt material)?
   • Yes $\rightarrow$ Fusible Cutaway (Mesh) + Floated Tearaway.
   • No $\rightarrow$ Standard Cutaway.

If you struggle with hooping thick stabilizers, a machine embroidery hooping station can help align the layers, though a magnetic hoop remains the fastest physical fix for thick sandwiches.

Troubleshooting the “Scary” Moments: Symptoms → Likely Cause → Fix

Finishing Like a Seller: Clip Jump Stitches, Check the Back, and Package Clean

After the machine finishes, clip the jump stitches and inspect the back.

The Seal of Quality: Using a lighter or heat gun very quickly over the patch edges can singe away fuzzy stray threads (only for polyester thread—do not do this with cotton!).

Expected Outcome:

• Front: Crisp edges, readable text, no fabric whiskers.
• Back: Relatively flat. No massive thread clumps.
• Feel: Stiff but flexible, not bulletproof-hard.

The Upgrade Path: When to Move Beyond the Brother SE1900

The workflow above is perfect for hobbyists or small Etsy shops. However, if you start getting orders for 50 patches a week, the bottlenecks of a single-needle machine (manual thread changes, trimming time, slower speed) will become painful.

The "Tool Logic" for Growth:

1. Level 1 (Optimization): Use high-quality embroidery thread and correct stabilizers (Cutaway) to reduce thread breaks.
2. Level 2 (Speed): Upgrade to SEWTECH Magnetic Hoops. This solves the #1 time-waster: hooping difficulty. It allows continuous production without wrist strain.
3. Level 3 (Scale): When you need to stitch 6 colors without stopping, it is time to look at Multi-Needle Machines. These machines automatically swap colors and hold industrial-sized cones, turning a 40-minute job into a "set it and forget it" task.

The right upgrade isn’t about just buying gear—it’s about removing the friction that stops you from creating. Start by mastering your current hoop, and when the friction gets too high, you'll know it's time to evolve.

FAQ

• Q: What should a dense circular patch stitch-out sound like on a Brother SE1900, and when is the noise a warning sign?
  A: A rhythmic heavy “thump-thump” and occasional “pop” on overlap areas is normal for dense patch stitching on a Brother SE1900.
  • Keep stitching if the sound is consistent and the fabric is not bouncing in the hoop.
  • Stop and change the needle if the sound turns into grinding, or if the machine suddenly feels like it is hammering.
  • Reduce speed (if available) during the final satin border to increase control.
  • Success check: the hoop stays steady, stitches remain even, and the patch circle stays round (not turning oval).
  • If it still fails, re-hoop for tighter tension and reassess stabilizer choice (dense patches often need cutaway).
• Q: How can a Brother SE1900 user hoop a 3.87" circular patch inside a 4" hoop without the presser foot hitting the hoop frame?
  A: Center the patch perfectly and keep the stabilizer hooped drum-tight, because a 3.87" design inside a 4.00" hoop leaves almost no margin.
  • Confirm the on-screen design size before the first stitch and re-center if anything looks off.
  • Tap the hooped stabilizer; tighten until it feels like a drum skin (not soft or wavy).
  • Run the first placement/tack-down circle and stop immediately if the fabric ripples or “flags.”
  • Success check: the placement circle is perfectly round and the fabric stays flat with no bubbling as the needle lifts.
  • If it still fails, re-hoop (do not “push through”) and consider a magnetic hoop to clamp securely without over-tightening a screw.
• Q: What should a Brother SE1900 user do when the machine shows “The bobbin thread is almost empty” during a patch stitch-out?
  A: Change the bobbin without unhooping the project to protect registration.
  • Do NOT remove fabric from the hoop; release the hoop from the embroidery arm carriage using the latch.
  • Replace with a full, pre-wound bobbin (bobbin thread, not regular sewing thread).
  • Reattach the hoop until a sharp mechanical “click” confirms it is fully seated.
  • Success check: the next stitches land exactly on the previous stitch path with no shift or offset.
  • If it still fails, remove and re-seat the hoop again; a partial “click” can cause misalignment.
• Q: How do you prevent a visible restart scar after “upper thread ran out” on a Brother SE1900 during a dense blue fill?
  A: Re-thread and restart while controlling the thread tail, because the Brother SE1900 may back up a few stitches on resume.
  • Re-thread the upper path carefully and hold/pull the thread tail snug as the machine restarts.
  • Avoid leaning on the hoop or embroidery arm while re-threading to prevent carriage/registration stress.
  • Watch the first few resumed stitches closely and stop immediately if looping begins underneath.
  • Success check: the re-start area blends into the fill with no obvious gap, lump, or line change.
  • If it still fails, stop and fully re-thread again (a missed take-up path often causes instant nesting).
• Q: What is the safest way to trim appliqué-style patch fabric after the tack-down circle on a Brother SE1900 without cutting the tack line?
  A: Trim with curved appliqué (duckbill) scissors and leave about 1–1.5 mm outside the tack-down stitching.
  • Remove the hoop from the machine but keep the fabric locked in the hoop to preserve alignment.
  • Glide the flat “bill” of the scissors against the stabilizer and cut slowly around the circle.
  • Avoid leaving a wide fringe (it can show as “whiskers”) and avoid cutting into the stitch line (it can peel later).
  • Success check: the circle edge looks clean and even, with no loose fabric hairs sticking past the stitch line.
  • If it still fails, slow down and re-check lighting/angle; most accidental nicks happen when rushing tight curves.
• Q: How do you stop bird’s nest thread knots under the needle plate on a Brother SE1900 during dense patch embroidery?
  A: Stop immediately, cut away the knot, and completely re-thread the upper thread path with the presser foot UP.
  • Pause the machine as soon as nesting starts; continuing will pack thread tighter under the plate.
  • Cut and remove the tangled thread mass, then re-thread from spool to needle (do not “patch” the path).
  • Resume and watch the first few stitches before walking away.
  • Success check: the back of the patch shows a clean, controlled bobbin line (not a clumped wad).
  • If it still fails, suspect the upper thread jumped out of the take-up lever and re-thread again carefully.
• Q: What safety rules should Brother SE1900 users follow when trimming jump stitches and when using magnetic hoops for patch production?
  A: Pause before putting hands near the needle, and treat magnetic hoops as pinch hazards that must be kept away from sensitive devices.
  • Press pause/stop before trimming or checking stitches; never reach into the hoop area while the Start button is lit.
  • Keep fingers away from the needle path—single-needle machines run fast enough to cause serious injury.
  • Handle magnetic hoops with controlled, two-hand placement to prevent sudden snap-together pinches.
  • Success check: hands never enter the hoop area during motion, and magnets are stored separated/not attached to the machine when idle.
  • If it still fails, slow the work down and build a repeatable “pause-then-trim” habit before attempting higher-speed production.
