Brother SE1900 Mardi Gras Mask Stitch-Out: Clean 3-Color Results in a 5x7 Hoop (Without the Backside Mess)

The "No-Panic" Guide to Multi-Color Stitch-Outs: From Fear to Factory-Level Finish

If you’ve ever watched a 30-second stitch-out video and thought, “That looks easy… until my thread nests into a bird’s nest on the back,” you are not alone. Embroidery is an art of variables.

A 3-color design like this Mardi Gras mask on the Brother SE1900 is the perfect "Check Engine Light" for your skills. It teaches the real workflow: hooping (engineering), running layers (monitoring), and transitions (finishing).

In this deep dive, we break down a 4x4 inch Mardi Gras mask (Gold → Green → Purple) run inside a 5x7 hoop. We will move beyond "hope it works" to "knowing it will work."

Don’t Panic: A Brother SE1900 Stitch-Out Is Supposed to Stop

Novices see a machine stop and think "Error." Pros see a machine stop and think "Transition."

Multi-color embroidery is a series of controlled pauses. Your machine stops to protect quality, giving you time to trim, swap, and inspect.

The Psychology of the "Panic Moment": If you are new, your heart rate likely spikes at these three points:

1. The First Jump Stitch: You see loose tails after the Gold layer and think the machine failed.
2. The Registration Check: When the Green layer starts, you hold your breath hoping it outlines the Gold perfectly.
3. The Flip: Turning the hoop over to check the bobbin side.

Expert Reality Check: Clean embroidery is 80% prep (hooping/stabilizer) and 20% machine operation. If you nail the prep, the machine simply does what it's told.

The "Hidden" Prep: Hooping and Physics

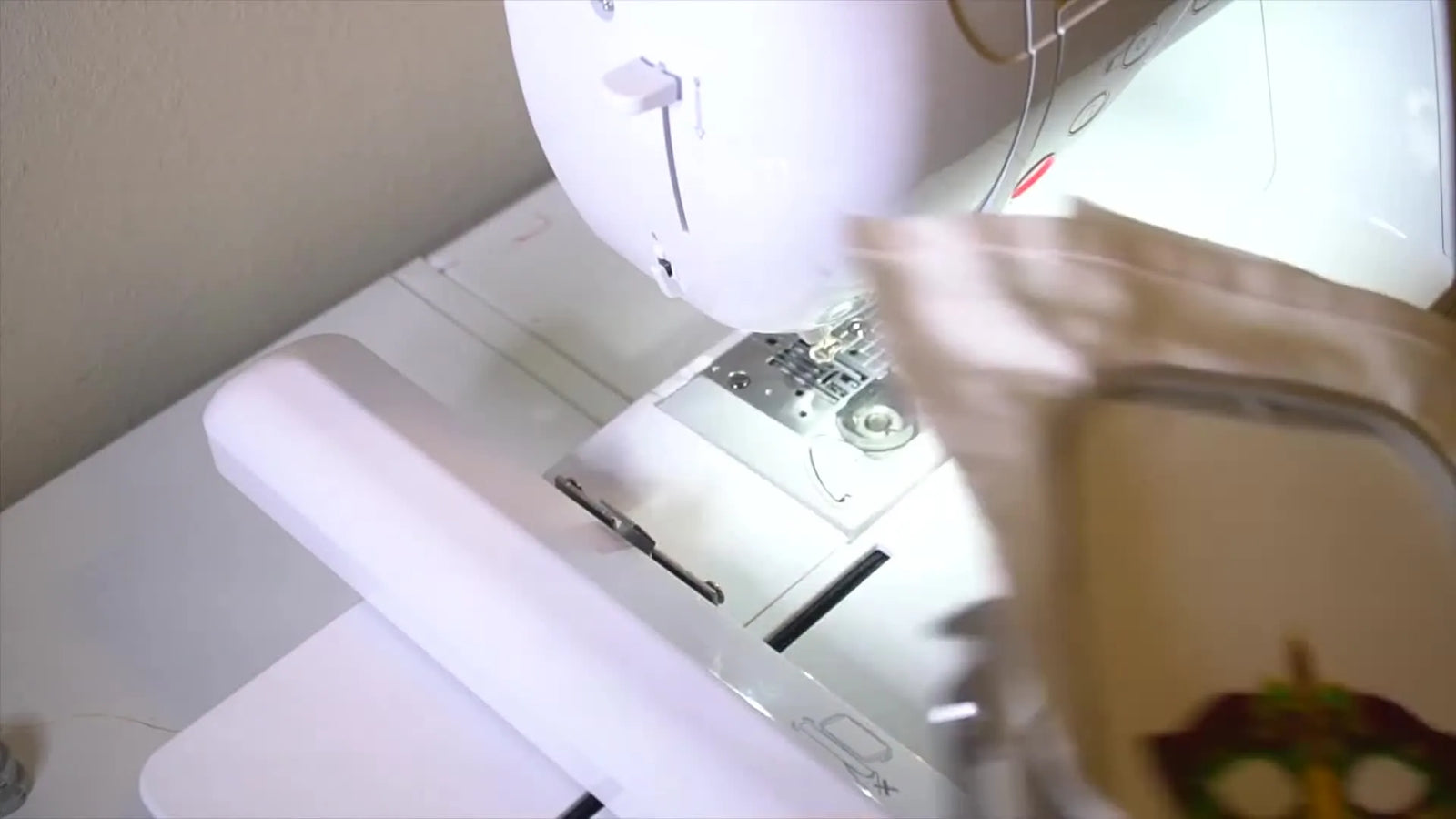

The video shows white woven fabric secured in a standard plastic 5x7 hoop with a screw mechanism. This is where the battle is won or lost.

Why Hooping Matters (The Physics): As the needle penetrates the fabric thousands of times, it creates "push and pull." If the fabric is loose, it flags (bounces). This causes:

• Birdnesting: The top thread forms loops on the bottom.
• Registration Loss: The Green outline lands next to the Gold fill, not around it.

Many beginners frantically search for hooping for embroidery machine tutorials after ruining a garment. The secret is "drum tightness" without "distortion."

Sensory Check: The "Thump" Test

• Touch: Run your finger over the hooped fabric. It should offer resistance, like a tight bedsheet.
• Sound: Tap it lightly. You should hear a dull, rhythmic "thump-thump," not a loose rustle.
• Sight: Look at the weave of the fabric (the grain). The vertical and horizontal threads must be straight. If they look curved or bowed (like a smile), you have pulled too tight and distorted the fabric.


Prep Checklist: The "Pre-Flight" Inspection

• Needle Check: Is the needle straight and sharp? (Standard: 75/11 Embroidery Needle).
• Bobbin Check: Clean the bobbin area. Use canned air or a brush to remove lint.
• Hoop Tension: Fabric is taut (thump test) but grain is straight.
• Screw Check: The hoop screw is tight enough that the inner ring cannot pop out, but not stripped.
• Consumables: Have your curved scissors, stabilizer, and threads (Gold, Green, Purple) staged.

The Smart Layout: Running a 4x4 Design in a 5x7 Hoop

The creator uses a brother 5x7 hoop for a 4x4 design. This isn't just about fitting in; it's about efficiency.

The "Real Estate" Strategy: In a production shop, we hate re-hooping. It takes time and risks alignment errors. By using a 5x7 hoop for a smaller design, you gain:

1. Multiple Hooping: You can often fit two small designs in one hoop (top and bottom).
2. Easier Clamping: You have more fabric margin to grip, keeping hands away from the needle zone.

If you own a dedicated brother 4x4 embroidery hoop, use it for small items like onesies or cuffs. But for production speed, the larger hoop is king.

Decision Tree: Fabric vs. Stabilizer (The "Hold It Still" Logic)

Choosing the wrong stabilizer causes puckering. Use this shop-tested logic:

Phase 1: Gold Base & The Art of Observation

The machine starts with the Gold fill. Do not walk away to get coffee.

What to Listen For:

• Good Sound: A steady, rhythmic hum-chug-hum-chug.
• Bad Sound: A loud CLACK-CLACK (needle hitting the plate) or a laboring GRIND (thread stuck on spool cap).

Visual Check: Watch the thread coming off the spool. It should flow smoothly. If it jerks, your tension will be uneven.

Phase 2: The Clean Stop & Trim (Safety First)

The machine pauses. You must now trim the jump stitch.

The "Hooping Station" Concept: If you find yourself struggling to hold the hoop while trimming, or if your wrists hurt from wrestling hoops, explore using a hooping station for machine embroidery. These devices hold the hoop for you, ensuring perfect placement and saving your joints.

Warning: The Pinch Zone
Always keep fingers outside the hoop area when the machine is active.
When trimming with curved embroidery scissors, angle the tips up and away from the fabric. One slip can cut a hole in your project, ruining it instantly.

Phase 3: Green Layer & Registration (The Moment of Truth)

The Green layer outlines the Gold. This is where you see if your hooping was good.

Troubleshooting Gaps (White Space): If there is a gap between the Gold fill and Green outline:

1. Likely Cause: Fabric shifted. The stabilizer wasn't labeled correctly (using Tear-Away on a stretching knit), or the hoop was too loose.
2. Immediate Action: You cannot fix the current piece easily. For the next one, use a stronger stabilizer (Cut-Away) or use spray adhesive (like 505 Spray) to bond fabric to stabilizer.




Expert Note: Tension (Top vs. Bobbin)

A viewer asked about "thread hanging out on the back." This is a tension issue.

The "H" Test (or 1/3 Rule): Flip your design over. You should see:

• Satins: 1/3 top thread (Color), 1/3 bobbin thread (White), 1/3 top thread (Color).
• If you see ONLY Color: Top tension is too loose. Tighten it (higher number).
• If you see ONLY White: Top tension is too tight. Loosen it (lower number).

On the Brother SE1900, adjust tension via the touchscreen. Make small changes (0.2 - 0.4) and test on scrap first.

Phase 4: Purple Finish & Final Inspection

The final color seals the design. Don't rush. Ensure your thread path is clear.

The In-Hoop Inspection: Do Not Pop It Yet!

The creator inspects the design before removing it from the embroidery arm. This is a pro habit.

Why? If you missed a section or the thread broke and you didn't notice, you can still fix it as long as the hoop hasn't moved. Once you pop that hoop, alignment is lost forever.

Operation Checklist: The Quality Gate

• Top Check: Are there any uncut jump stitches? Trim them now.
• Registration: Did the outline align with the fill?
• Density: Are there gaps in the fill where fabric shows through?
• Back Check: Flip the hoop. Is there a "birdnest" (wad of thread)? If yes, your tension or threading needs adjustment for the next run.

Upgrading Your Workflow: From Hobby to Production

The creator mentions selling the file on Etsy and stitching on towels/hats. This transitions you from "fun" to "production."

If you stitch one mask a month, standard embroidery machine hoops are perfectly fine. But if you plan to stitch 20 masks for a local event, fatigue and quality consistency become enemies.

The Problem/Solution Hierarchy

1. The Problem: "Hoop Burn" and Wrist Pain

• Symptoms: Rings left on delicate velvet/performance wear; sore wrists from tightening screws.
• Solution: magnetic hoop for brother se1900.
• Why: Magnetic hoops use magnet force to clamp fabric, eliminating the need to shove an inner ring into an outer ring. This prevents "hoop burn" marks and is significantly faster.

2. The Problem: "I can't hoop thick items"

• Symptoms: Towels or Carhartt jackets pop out of the plastic hoop.
• Solution: magnetic embroidery hoops (Heavy Duty).
• Why: The magnets automatically adjust to any thickness, holding a thick towel as securely as a thin cotton sheet without adjusting screws.

3. The Problem: "I spend more time changing thread than stitching"

• Symptoms: You are doing 50 shirts and standard single-needle machines are too slow.
• Solution: Multi-Needle Machines (like SEWTECH).
• Why: These machines hold all colors at once. You press start, walk away, and it finishes the whole design.

Warning: Magnet Safety
Magnetic hoops are industrial tools with strong clamping force.
* Pinch Hazard: Keep fingers clear when snapping magnets together.
* Medical Safety: Keep magnets away from pacemakers and insulin pumps.
* Electronics: Do not place magnets on laptops or near credit cards.

Setup Checklist: Daily Best Practices

Consistent results come from consistent setups. Before you start your next project:

1. Fresh Needle: Change it every 8 hours of stitching time or if you hear a "popping" sound.
2. Thread Path: Floss the thread through the tension disks like you are flossing teeth. You should feel resistance.
3. Hoop Integrity: Check that your hoop isn't cracked and the magnets/screws are clean.
4. Test Stitch: Always run a ugly test on scrap fabric before ruining a $20 shirt.

Speed in embroidery doesn't come from running the machine faster; it comes from not making mistakes. Slow down your prep, and your production will speed up.

FAQ

• Q: Why does a Brother SE1900 embroidery machine stop between color changes during a multi-color stitch-out?
  A: A Brother SE1900 stop between colors is usually a normal transition pause for trimming and thread changes, not a failure.
  • Pause the machine and trim jump stitches before changing thread.
  • Inspect the top thread path and make sure the next color spool unwinds smoothly.
  • Check the hoop is still seated firmly before pressing Start again.
  • Success check: After restarting, the next color stitches cleanly without pulling previous stitches or shifting outlines.
  • If it still fails… Re-thread the upper thread completely and re-check hoop tightness and stabilizer choice before restarting on a new test piece.
• Q: How can Brother SE1900 users hoop fabric “drum tight” without distorting the fabric grain in a 5x7 hoop?
  A: Hoop the fabric tight enough to resist flagging, but stop before the fabric weave bows or curves.
  • Tighten the hoop until the fabric feels like a tight bedsheet, not a loose ripple.
  • Tap the hooped fabric and listen for a dull “thump,” not a rustly sound.
  • Look at the fabric grain; keep warp/weft lines straight (no “smile” curve).
  • Success check: The fabric surface stays flat during stitching and the design outlines land exactly around the fill.
  • If it still fails… Bond fabric to stabilizer (often with temporary spray adhesive) and re-hoop to reduce shifting.
• Q: What stabilizer should Brother SE1900 users choose to prevent puckering on woven cotton, knit T-shirts, towels/terry, and structured caps?
  A: Match stabilizer to fabric behavior: stable wovens usually tear-away, stretchy knits must be cut-away, towels need a topper, and caps need heavy support.
  • Use medium tear-away for woven cotton when the fabric is already stable.
  • Use cut-away for knits/tees to control stretch during stitching and wear.
  • Use tear-away on the back plus a water-soluble topper on the front for towels/terry to control loops.
  • Success check: The design lies flat after stitching with no ripples, and outlines remain registered to fills.
  • If it still fails… Upgrade stabilizer strength and verify the hoop is tight enough to prevent fabric bounce.
• Q: How do Brother SE1900 users fix gaps between a Gold fill and a Green outline (registration loss) in a 3-color design?
  A: Gaps between fill and outline usually mean the fabric shifted or the stabilizer was too weak for the fabric.
  • Identify the fabric type; if the fabric is stretchy, avoid tear-away and switch to cut-away next time.
  • Secure fabric to stabilizer so it cannot creep (spray adhesive is commonly used for this).
  • Re-check hoop tension using the thump test before starting the next run.
  • Success check: The Green outline stitches directly around the Gold fill with no visible “white space.”
  • If it still fails… Slow down and focus on prep; test the same design on scrap using the stronger stabilizer before stitching the real item.
• Q: How can Brother SE1900 users diagnose upper thread tension when colored thread shows on the back of the embroidery (the “H test / 1/3 rule”)?
  A: Use the 1/3 rule on the back of the design to decide whether to tighten or loosen upper tension, then adjust in small steps.
  • Flip the hoop and check the underside: a balanced look shows color/white/color in roughly thirds on satin areas.
  • If the back shows mostly the top color, increase upper tension slightly (small changes, then re-test).
  • If the back shows mostly bobbin white, decrease upper tension slightly (small changes, then re-test).
  • Success check: The underside shows the balanced “1/3” look and the top stitches look smooth without looping.
  • If it still fails… Re-thread the machine completely and test again on scrap before changing more settings.
• Q: What needle, bobbin-area cleaning, and “pre-flight” checks should Brother SE1900 users do before a multi-color stitch-out to prevent birdnesting?
  A: Most birdnesting prevention on a Brother SE1900 comes from a clean bobbin area, a good needle, and a controlled hoop setup before pressing Start.
  • Replace a questionable needle with a straight, sharp embroidery needle (the blog’s standard example is 75/11).
  • Clean lint from the bobbin area using a brush or canned air.
  • Stage tools and consumables (curved scissors, stabilizer, all thread colors) so stops are calm, not rushed.
  • Success check: The machine runs with a steady, rhythmic sound and the back of the design stays neat without wads of thread.
  • If it still fails… Re-check threading and tension, and confirm the hoop screw is secure so the inner ring cannot pop out.
• Q: What safety rules should Brother SE1900 users follow when trimming jump stitches with curved embroidery scissors and when using magnetic embroidery hoops?
  A: Keep hands out of the pinch/needle zones and control the cutting angle; magnetic hoops add a separate pinch hazard and medical/electronics precautions.
  • Stop the machine before trimming, and keep fingers outside the hoop area when the machine is active.
  • Angle curved scissor tips up and away from the fabric to avoid accidental holes.
  • Keep fingers clear when snapping magnetic hoop parts together; magnets clamp hard.
  • Success check: Jump stitches are trimmed cleanly with no fabric nicks, and the hoop stays stable without sudden snaps onto fingers.
  • If it still fails… If handling the hoop feels unsafe or unstable, use a hoop-holding station to stabilize trimming and placement, and keep magnets away from pacemakers/insulin pumps and sensitive electronics.
