Brother SE1900 Magnetic Hoop Reality Check: Faster Hooping, Cleaner Corners, and Fewer “Why Won’t This Fit?!” Moments

The “Hoop Burn” Cure: Mastering the Magnetic Hoop Workflow on Your Brother SE1900

If you’ve ever tried to hoop a napkin corner, a thick terry cloth towel, or anything that feels “too bulky for the throat space,” you already know the emotional rollercoaster. One minute you’re excited to stitch, and the next you’re wrestling with plastic outer rings, crushing the nap of your expensive fabric, and praying you don’t distort the placement while tightening the screw.

Traditional plastic hoops rely on friction and pressure. That pressure creates "hoop burn"—the crushed fibers that look like a ghost ring around your design. A flat magnetic hoop is a genuine quality-of-life upgrade for a home machine, but it requires a change in mindset. It’s not just a different clamp; it’s a different physics.

This guide rebuilds the workflow shown on a Brother SE1900 with a third-party 5x7 magnetic hoop, adding the shop-floor discipline required to do it safely and efficiently.

The Clearance Factor: Why “Flat” Matters in Embroidery

The presenter compares the OEM Brother 5x7 plastic hoop (with its raised inner lip) to a flat magnetic hoop. The difference is immediate: the magnetic frame sits significantly lower.

On a machine like the SE1900, the clearance under the presser foot is limited. When you use a traditional hoop, you often have to lift the foot manually to shove a bulky towel underneath. A flat magnetic hoop simply slides in.

Why this matters for your results:

• Reduced Drag: If your fabric rubs against the bottom of the embroidery foot during travel, it can distort the X/Y registration, leading to gaps in your design.
• Zero Distortion: Because you aren't forcing an inner ring into an outer ring, the fabric grain remains perfectly relaxed.

If you are currently shopping specifically for a magnetic hoop for brother se1900, look for "low profile" designs. The flatter the hoop, the smoother the travel.

The Protective Strip: Your Machine’s First Line of Defense

Before you lock anything in, flip the hoop over. You will see a protective strip (usually felt, velvet, or low-friction tape) on the underside of the metal frame.

Do not remove this. It is not packing material.

This strip is the buffer between a hard metal frame and your machine’s plastic bed. Without it, the metal creates friction, which strains the pantograph motor (the motor that moves the arm).

• Visual Check: Ensure the strip is smooth and fully adhered.
• Auditory Check: As you slide the empty hoop onto the machine, you should hear a soft swish, not a hard scrape.


Warning: The Magnet Safety Protocol
Magnetic hoops use neodymium magnets—they are deceptively strong.
* Pinch Hazard: Never let two magnets snap together with your skin in between. Slide them apart; don’t pull them.
* Medical Safety: Keep these magnets at least 6 inches away from pacemakers, insulin pumps, and other implanted medical devices.
* Electronics: Do not place magnets directly on your machine’s LCD screen or near your computer’s hard drive.

The “Hidden” Prep Pros Do First: Consumables and Tooling

In the demo, the creator uses sticky stabilizer applied directly to the bottom frame to "float" the napkin. This is the industry standard for hard-to-hoop items. However, relying on the hoop alone is a rookie mistake. You need the right support kit.

The Hidden Consumables List

Most tutorials skip this, but you need these within arm's reach:

1. Water Soluble Pen / Tailor’s Chalk: For marking center points on the stabilizer.
2. Painter’s Tape: To tape back excess fabric (e.g., the rest of the napkin) so it doesn't get stitched under the hoop.
3. Alcohol Wipes: To clean adhesive residue off the magnetic frame after the project.

A key variable is Magnet Count. The demo hoop comes with six magnets.

• Thin Fabric (Napkins/Cotton): 4-6 magnets are sufficient.
• Thick Fabric (Towels/Quilts): You may need 8+ magnets to effectively clamp the thickness.

If you are comparing this generic magnetic embroidery hoop to premium options, note that holding power is defined by the stabilizer choice just as much as the magnet strength.

Prep Checklist: The "Pre-Flight" Routine

• Underside Inspection: Confirm the protective strip is intact and clean of debris.
• Surface Degreasing: Wipe the top of the metal frame so the sticky stabilizer adheres instantly.
• Magnet Inventory: Locate all magnets and separate them safely on a side table—keep them away from the needle zone.
• Stabilizer Choice: Cut your sticky stabilizer 1 inch larger than the frame on all sides.

The Floating Technique: Sticky Stabilizer as the Anchor

The video demonstrates "Floating" (Hooping the stabilizer, not the fabric). She flips the bottom frame and adheres a sheet of sticky stabilizer directly to the back of the metal frame, with the paper side facing up through the window. Then she scores the paper to reveal the adhesive.

Why Float?

1. Texture Protection: You aren't crushing the napkin's hem or the towel's loops.
2. Ease of Alignment: It is infinitely easier to stick a napkin onto a rectangle than it is to trap it perfectly square in a dual-ring system.

If you are new to complex hooping for embroidery machine workflows, "floating" is the single fastest skill to learn to improve quality.

Measuring and Marking: Engineering Precision

Generic magnetic hoops often lack the notch marks found on OEM Brother hoops. You cannot guess where the center is.

The Fix:

1. Measure the inner working width (e.g., 6 inches).
2. Mark the exact center (3 inches) on the frame edge with a permanent marker or a piece of tape.
3. Do this for both the Vertical (Y) and Horizontal (X) axes.




Pro Tip: Do not trust the plastic grid templates provided with cheap aftermarket hoops blindly. They are often generic and may not align with your specific machine's center needle position. Always define center based on the frame itself.

The Napkin Corner Logic: The "2-Inch Rule"

For the napkin demo, she measures 2 inches up from the corner point to set the design center.

This creates visual consistency. When setting a table, the human eye detects variances as small as 2mm. By using a ruler to mark a crosshair on your napkin before placing it on the hoop, you guarantee uniformity across a set of 4 or 8 napkins.

Alignment and Smoothing: The "Drum Skin" sensation

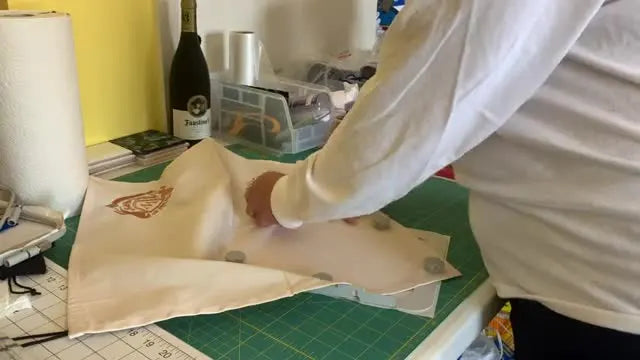

She aligns the napkin's crosshair to the center marks on the hoop, presses it onto the sticky stabilizer, and uses a scraper tool to smooth it.

The Sensory Check: When you smooth the fabric, do not stretch it.

• Bad: Pulling the fabric until it looks tight. This causes puckering later.
• Good: Pressing the fabric flat so it adheres to the sticky backing. It should feel stable, but the weave of the fabric should not be distorted.

The Magnet Strategy: Clamping Without Warping

The demo uses six cylindrical magnets: two on each vertical side, one top/bottom.

The "Star Pattern" Application: Don't just slap magnets on. Apply them like you tighten lug nuts on a tire—opposites first. This prevents pushing a wave of fabric toward one side.

1. Place Left Center.
2. Place Right Center.
3. Place Top/Bottom.
4. Smoothing check.

Warning: The Needle Strike Zone
Never place a magnet inside the embroidery field.
Before you stitch, look at your screen. If your design is 4x4 and your magnets are encroaching on that 4x4 area, the needle will hit the magnet.
Consequence: A shattered needle, a broken bobbin case, or a thrown timing belt. This is a $150+ repair.

If you are evaluating different magnets for embroidery hoops, prefer those with a rubberized handle or coating—they are easier to remove without pinching the fabric.

Installation: The "Quiet Snap"

Sliding a magnetic hoop into a Brother SE1900 can feel different than the OEM hoop. The hoop is flat, so it glides under the foot easily.

Align the connector pegs and push until it locks.

Troubleshooting Fit:

• Symptom: The hoop won't lock in.
• Fix: Ensure the carriage arm is level. Do not force it. Sometimes lifting the far end of the hoop slightly helps the pins engage.
• Reality Check: Some third-party hoops have tight tolerances. If you have to use excessive force, you risk cracking the carriage. Stop.

If you are shopping for brother se1900 hoops, always read recent reviews regarding "fit tightness." Mold injections vary by batch.

Setup Checklist: The "Go/No-Go" Decision

• Lock Check: Gently wiggle the hoop front-to-back. It should move the entire carriage arm, not rattle loose.
• Clearance Check: Lower the presser foot manually. Does it touch the fabric? If the fabric is too thick, raise the presser foot height in your machine settings (if available).
• Tail Management: Are the excess parts of the napkin folded back and secured?

The Trace Function: Your Safety Net

In the video, she selects a heart design and runs the Trace (design outline) function.

This is non-negotiable. Watch the needle bar (or the LED pointer) as it traces the perimeter. You are verifying two things:

1. Placement: Is the design centered on your mark?
2. Safety: Does the foot come dangerously close to any magnet? If it comes within 5mm, move the magnet.

Troubleshooting: Why Things Go Wrong

Below is a structured guide to the most common failures when switching to magnetic hoops.

Decision Tree: Which Stabilizer Method When?

One size does not fit all. Use this logic to choose your method.

• Scenario A: High Production / Repeatability (e.g., 20 Napkins)
  • Method: Sticky Stabilizer on bottom frame.
  • Reason: Speed. You peel off the old napkin, stick on the new one, and go.
• Scenario B: Thick bath towel
  • Method: Heavy Tear-Away floated under the hoop + Spray Adhesive + 8 Magnets.
  • Reason: Sticky stabilizer isn't strong enough for a heavy towel drag; you need the friction of spray + magnets.
• Scenario C: Stretchy T-Shirt
  • Method: Fusible Poly-mesh (Iron-on) on the shirt + Cut-away in the hoop + Magnets.
  • Reason: Magnetic hoops alone cannot stop jersey knit from stretching. You need fusible support.

When browsing magnetic frames for embroidery machine, understand that the frame is just a clamp—the stabilizer does the actual work of holding the fabric geometry.

The Upgrade Path: Solving the Bottleneck

Using a magnetic hoop on a single-needle machine like the SE1900 is a fantastic way to improve quality and reduce fabric damage. However, it highlights a production reality: machine embroidery is 90% prep and 10% stitching.

Diagnose your needs:

• The "Hobbyist" Pain Point: "I hate the marks left on my fabric."
  • The Fix: Upgrade to a Magnetic Hoop compatible with your current machine. This solves the texture crushing problem immediately.
• The "Side Hustle" Pain Point: "Changing colors takes forever, and re-hooping 50 shirts is killing my wrists."
  • The Fix: A magnetic hoop speeds up the hooping, but check your volume. If you are producing orders of 10+ items regularly, the bottleneck isn't the hoop—it's the single needle.
  • The Upgrade: This is where professionals transition to Multi-Needle Machines (like SEWTECH models). These machines allow you to set up 6-15 thread colors at once and use industrial-grade magnetic frames that snap on instantly, increasing output by 400%.

Operation Checklist: Post-Stitch Routine

• Remove Magnets Safely: Slide them specifically to the side or lift straight up. Do not let them snap together.
• Clean the Frame: Wipe away lint or adhesive buildup.
• Inspect the Needle: A slight deflection off a magnet can dull a needle tip. If the next stitch sounds loud (a thud-thud sound), change the needle.

By respecting the physics of the brother se1900 magnetic hoop, you turn a frustrating wrestling match into a precise, repeatable manufacturing process. Measure once, mark clearly, and always, always trace.

FAQ

• Q: How do I prevent hoop burn on a Brother SE1900 when using a 5x7 magnetic hoop on towels or napkin corners?
  A: Use the “float” method with sticky stabilizer so the fabric is not crushed by a ring or dragged by magnets.
  • Apply sticky stabilizer to the bottom metal frame (paper side up), then score and peel to expose adhesive.
  • Press the fabric onto the adhesive and smooth it flat without stretching the weave.
  • Lift magnets straight up when repositioning; do not drag magnets across delicate nap.
  • Success check: no “ghost ring” after unhooping, and the fabric surface looks uncrushed around the design area.
  • If it still fails: switch to a method from the stabilizer decision tree (e.g., heavy tear-away + spray adhesive + more magnets for thick towels).
• Q: What must be inspected on a Brother SE1900 magnetic hoop before stitching to avoid bed scraping and carriage strain?
  A: Confirm the underside protective strip is intact and glides smoothly, because it protects the machine bed from metal friction.
  • Flip the magnetic frame over and check the felt/velvet/low-friction tape is smooth and fully adhered.
  • Slide the empty hoop onto the Brother SE1900 bed gently before loading fabric.
  • Clean debris or residue so the strip stays smooth and low-friction.
  • Success check: the hoop makes a soft “swish” sound during travel, not a hard scrape.
  • If it still fails: stop using the hoop until the strip is re-secured or replaced, because continued scraping can stress the motion system.
• Q: How do I center a design accurately on a Brother SE1900 when a third-party 5x7 magnetic hoop has no alignment notches?
  A: Measure and mark the hoop’s true center on the frame edges, then align the fabric crosshair to those marks.
  • Measure the inner working width and mark the exact midpoint on the frame edge for both X and Y axes.
  • Mark a clear crosshair on the fabric (and/or stabilizer) before sticking it down.
  • Do not rely blindly on generic plastic grid templates that may not match the Brother SE1900 needle center.
  • Success check: the Trace/outline run shows the design perimeter centered over the marked crosshair.
  • If it still fails: re-define center based on the frame itself and re-stick the fabric; small hoop-to-machine tolerances vary by batch.
• Q: How do I place magnets on a Brother SE1900 magnetic embroidery hoop without warping fabric or shifting placement?
  A: Apply magnets in a “star pattern” (opposites first) and smooth between steps to avoid pushing a wave of fabric.
  • Place the left-center magnet first, then right-center, then top/bottom magnets.
  • Smooth the fabric after the first opposing pair before adding remaining magnets.
  • Keep magnets outside the embroidery field at all times.
  • Success check: the fabric lies flat with no ripples, and the crosshair stays aligned to the center marks after all magnets are installed.
  • If it still fails: add magnets for thick materials (the blog notes towels/quilts may need 8+), or change stabilizer method to improve holding.
• Q: How do I prevent a needle strike on magnets when running a Brother SE1900 magnetic hoop setup?
  A: Run the Brother SE1900 Trace (design outline) every time and move any magnet that comes close to the travel path.
  • Check the on-screen design boundary and confirm no magnet is inside or encroaching on the embroidery field.
  • Run Trace and watch the needle bar/LED pointer track the perimeter.
  • Reposition magnets if the foot/needle path comes within about 5 mm of a magnet.
  • Success check: Trace completes with clear clearance—no “near misses,” no contact sounds, and no magnet inside the stitched area.
  • If it still fails: stop immediately, remove the hoop, and re-clamp magnets farther out; continuing risks broken needles and bobbin-case damage.
• Q: Why does a Brother SE1900 magnetic hoop not lock in or feel overly tight, and what is the safe fix?
  A: Do not force the hoop; level the carriage and reseat the connector pins until the hoop clicks in securely.
  • Align the connector pegs carefully and push until a distinct “click” is felt/heard.
  • Lift the far end of the hoop slightly if needed to help the pins engage, then try again.
  • Stop if excessive force is required; some third-party hoops have tight tolerances and forcing can crack the carriage.
  • Success check: a gentle wiggle moves the whole carriage arm rather than rattling loose at the connection.
  • If it still fails: check for connector debris and consider switching to a better-fitting hoop model; fit tightness varies by batch.
• Q: If a Brother SE1900 user is embroidering 10+ items regularly, when should the workflow upgrade from technique changes to magnetic hoops to a multi-needle SEWTECH machine?
  A: Treat this as a bottleneck decision: optimize prep first, then add a magnetic hoop for faster, gentler clamping, and move to multi-needle only when the single-needle color-change workflow becomes the limiting factor.
  • Level 1 (technique): adopt floating + correct stabilizer method and always use Trace to prevent rework.
  • Level 2 (tooling): add a compatible magnetic hoop to reduce hoop burn and speed repetitive hooping/unhooping.
  • Level 3 (capacity): upgrade to a multi-needle SEWTECH machine when frequent multi-color jobs make manual color changes and repeated re-hooping the main time sink.
  • Success check: prep time and rework drop noticeably, and the machine spends more time stitching than being set up.
  • If it still fails: track where time is lost (marking/alignment, re-hooping, color changes); the largest recurring delay points to the correct upgrade level.
