Master the Screen: A Shop-Floor Guide to the Brother SE1900 Interface & Setup

If your Brother SE1900 just arrived and the LCD screen feels like an airplane cockpit, you’re not alone. I’ve watched hundreds of new owners freeze at the first pop-up, paralyzed by the fear of breaking their investment. It’s a common psychological hurdle: the machine warns that the carriage will move, screens flash red error messages, and suddenly, the fun of embroidery feels like a bomb defusal operation.

The good news? The SE1900 is incredibly forgiving once you understand its "operating logic." It’s not trying to stop you; it’s trying to protect itself from physics.

In this guide, we are going to move beyond the basic manual. I will walk you through the workflow shown in the video, but I will layer on 20 years of embroidery experience. We will cover the tactile "feels" of a good setup, the safety margins that prevent needle breaks, and the professional habits that separate a hobbyist from a producer.

1. Power-On the Brother SE1900 the Right Way (So the USB Actually Reads)

The first habit to build is simple, but it solves a huge percentage of "my USB isn’t working" panic. The machine needs to perform a "handshake" with the embroidery unit during its boot sequence. If you do this out of order, the brain doesn't talk to the arm.

The Correct Boot Sequence

1. Turn the machine OFF before attaching or detaching anything.
2. Slide the embroidery unit (bed) onto the machine base.
   • Sensory Check: Push firmly until you hear a distinct "Click" or "Thunk." It shouldn't wiggle. If it slides out easily, it’s not seated.
3. Only after the embroidery unit is attached, turn the power on.
4. The "Clear Zone" Ritual: When the LCD warns that the carriage will move, do not press OK immediately.
5. After the machine finishes its initialization movement ("Whirrr-Click"), insert your USB flash drive.


Warning: The embroidery carriage moves with significant torque during initialization. It does not have sensors to detect fingers or screwdrivers. Keep hands and tools at least 4 inches away from the arm before pressing OK.

Expert Habit: The 3-Second "Pre-Flight" Scan

In professional shops, most needle breaks and bent carriage arms happen during this 5-second window. Before you press OK, scan for:

• Scissors: Are they sitting on the embroidery bed? (A carriage hitting metal scissors can strip gears).
• Thread Tails: Is the top thread loose and dangling into the track?
• Hoop: Is the hoop attached? (Ideally, initialize without the hoop attached to prevent fabric drag, unless you are mid-project).

2. The “Hidden” Prep Before You Touch the LCD

Beginners often think the digital file is the hard part. In practice, the hard part is the physical ecosystem. You need a "clean room" environment for your machine.

A Note on the "Stylus"

The video demonstrates using a tool to tap the screen. Several viewers confuses this for a specialized stylus. The creator used a quilt stiletto tool—which is sharp metal.

• My Advice: Do NOT use metal tools on your LCD screen. The resistive touch screens on these machines can scratch or puncture. Use a plastic stylus, the eraser end of a pencil, or a gloved finger.

The "Hidden Consumables" Checklist

Before you even look at a design, ensure you have these three things that usually aren't in the box:

1. New Needle: Start every major project with a fresh needle. For standard cotton, a 75/11 Embroidery Needle is your sweet spot.
2. Bobbin Check: Look at your bobbin. Is the thread smooth? If it looks "hairy" or loose, throw it out. A bad bobbin causest 50% of tension issues.
3. Appliqué Scissors: You will need curved snips for cutting jump stitches later.

Prep Checklist (Do this before selecting a design)

• Embroidery unit seated firmly (Listen for the click).
• Fresh Needle installed (Flat side to the back).
• Bobbin area clear of lint (Blow it out or use a brush).
• USB Drive formatted and inserted (if using external files).
• Pointer Tool ready (Soft tip only).

3. Use the Hoop Icons to Avoid "Greyed-Out" Panic

The SE1900 gives you a visual "Yes/No" system that many owners overlook until they are frustrated.

What the Video Shows

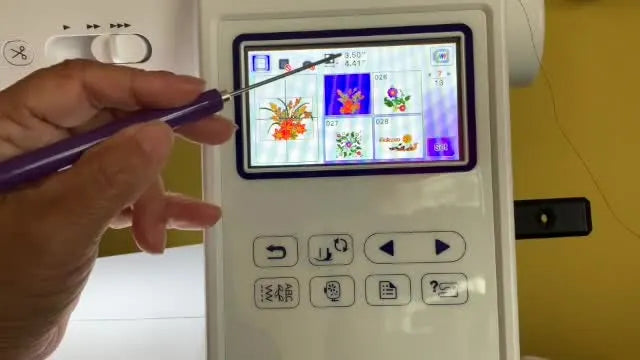

At the top of the design selection screen, you can tap hoop icons:

• 5x7 hoop
• 4x4 hoop
• oval hoop

When you select a hoop preference, designs that do not physically fit into that hoop will fade/grey out.

The Physics of "Why"

This isn't a glitch; it's a safety feature. If you try to force a 4.5-inch design into a 4x4 hoop, the needle would strike the plastic frame, shattering the needle and potentially timing out the machine.

Pro Tip: If you are planning to upgrade your workflow to reduce "hoop burn" (the ring marks left on fabric), you might be researching brother se1900 hoops. Note that third-party hoops must still match the stitching fields recognized by the machine (5x7 or smaller). The machine doesn't know you bought a larger hoop; it only knows its mechanical limits.

4. The "Contract": Preview, Zoom, and the Red Boundary Box

Once you select a design, the SE1900 displays the terms of your contract. You must obey the Red Box.

What the Screen Tells You

• Design Dimensions: (e.g., 3.50" x 4.41").
• Hoop Size: Which hoop the logic thinks you are using.
• The Red Boundary Box: This line represents the absolute "No Fly Zone" limits.


Expert Insight: The Red Box is Your Safety Net

If any part of your combined design (design + added text) crosses that red line, the machine will refuse to sew.

• Visual Logic: If your design looks cramped against the red line on screen, it will be cramped in reality.
• The "Rule of Thumb": I always recommend keeping your design at least 10mm smaller than the max hoop size. If you push it to the exact millimeter, fabric pull can cause the needle to drift and hit the frame.

5. Precise Placement: Moving Without Guessing

The tutorial demonstrates two ways to reposition a design: Dragging via touch, or using directional arrows.

Tactical "Feel": Tap vs. Hold

• Tap the arrow: Moves the design in micro-increments (0.1mm). Use this for fine-tuning.
• Hold the arrow: Accelerates the movement.

The Physics of Distortion

Reality Check: Fabric is not paper. It is fluid. It stretches. If you center a design perfectly on screen, but your fabric isn't hooped with "drum-skin" tension, the design will drift.

• Correction Plan: If you are embroidering on a unstable knit (like a t-shirt), move the design slightly up (towards the neck) rather than dead center. Gravity and wearing the garment make lower designs look like they are falling off the stomach.

6. Text Logic: Fixing the "Pattern Extends Outside Frame" Error

This is the moment that scares new owners—choosing text and getting shouted at by the LCD.

Only Three Sizes? (L / M / S)

1. Tap Add.
2. Type your letters (e.g., "BETTY").
3. If you see “Pattern extends to the outside of embroidery frame”, do not panic. The default font size is often "L" (Large).
4. Simply toggle to Medium (M) or Small (S).


Expert Insight: The "Invisible" Character

A common reason for this error, even when text looks small enough, is an accidental "space" at the end of the word. If you typed "BETTY " (with a space), the machine counts that empty space as part of the design width. Always backspace to the last letter.

Workflow Upgrade: If you are constantly fighting the size limits of the 4x4 field for names, this is usually the trigger point where users consider a brother 4x4 embroidery hoop for small items specifically, or realize they need to rotate the design 90 degrees to utilize the longer axis of the 5x7 field.

7. Advanced Formatting: Rotate, Curve, and Array

Once your text is on screen, you can manipulate it.

The Order of Operations Matters

1. Type Text.
2. Select Hoop Size.
3. Array/Curve.

If you curve the text before checking the hoop size, the curve might push the first and last letters outside the boundary.

• Rotate Tool: Use the 90° button to quickly flip orientations. Use the 1° button to match a slightly crooked hooping job (we've all been there).

8. Split Letters with the Knife Tool

The Knife Icon is your surgical scalpel. It turns one object ("BETTY") into five objects ("B", "E", "T", "T", "Y").

Commercial Application: The "College" Look

If you want to recreate that staggered, collegiate lettering look or arch text manually:

1. Type the word.
2. Use the Knife to cut between letters.
3. Select individual letters and move them up/down.

Production Note: If you are doing this for a team order (15 shirts), doing this on-screen every time is painful. This is where you might look into digitized alphabets or hooping stations to ensure physical alignment so you don't have to fiddle with digital alignment as much.

9. Color Management without Confusion

The video shows changing thread colors (e.g., turning a pink flower black).

Understanding the "Stop" Command

The machine doesn't see "Red" or "Blue." It sees "Stop." When the machine reaches a color change, it cuts the thread (if Trim is on) and stops.

• The Trap: If you change a color on screen, ensure you didn't accidentally merge two colors. If you make step 1 "Blue" and step 2 "Blue," the machine might skip the stop and keep sewing, ruining the definition between sections.

10. The Final Safety Check: Needle Drop & Trace

This is the most critical step in the entire process. Do not skip this. This dictates whether you succeed or break a needle.

The Trace Ritual

1. Go to the "Embroidery Ready" screen.
2. Tap the Trace button (Box with arrows).
3. Watch the NEEDLE, not the screen.




What to Look For (Sensory Check)

• As the hoop travels the perimeter, does the presser foot come dangerously close (within 2mm) of the plastic hoop wall?
• Does the fabric ripple or bubble as it moves? (If so, your hooping is too loose).
• The "Thump" Test: If you hear anything hit the plastic arm, STOP. You need to resize or move the design.

11. The Fabric-to-Stabilizer Decision Tree

The video covers the software, but embroidery fails because of the hardware underneath. Your stabilizer is the foundation of your house. If the foundation is weak, the house cracks.

Use this Decision Tree for flawless results:

Why Cutaway for T-shirts? Beginners love Tearaway because it's clean. But if you use Tearaway on a stretchy shirt, the stabilizer removes straight lines, but the fabric stretches around the stitches. The result? A puckered, distorted mess after the first wash. Cutaway acts as a permanent skeleton for the embroidery.

12. The Upgrade Path: Solving Hoop Burn & Speed

Once you master the screen, your bottleneck will become the hooping process.

• The Pain: Trying to hoop a thick hoodie or a delicate velvet without leaving "hoop burn" (crushed fibers) from the outer ring.
• The Pain: Wrangling buttons and zippers out of the way on a standard hoop creates wrist strain.

The Solution: Magnetic Hoops

This is the standard upgrade for anyone moving from "hobby" to "side hustle."

• For Speed: A brother 5x7 magnetic hoop allows you to "slap" the fabric in place without undialing a screw. It holds thick items flat without forcing the inner ring.
• For Quality: Because there is no inner ring friction, you eliminate hoop burn on sensitive fabrics like velvet or performance wear.
• Compatibility: You will see products labeled generally as magnetic embroidery hoops for brother. Ensure they are compatible with the specific slide-in attachment of the SE1900.

Warning: Magnet Safety
These are not refrigerator magnets. They are industrial-strength neodymium magnets.
* Pinch Hazard: They can snap together with enough force to bruise skin.
* Medical Device Safety: Keep magnetic embroidery frame away from pacemakers or insulin pumps.

When to Upgrade?

• Do you embroider 1-2 items a month? Stick to the included plastic hoops.
• Do you have an order for 20 wedding handkerchiefs or 50 logo shirts? The time saved by a magnetic hoop for brother se1900 (approx. 2 minutes per shirt) pays for the tool in one weekend.

13. Operation Checklist: The "No-Regrets" Sequence

Print this out and tape it near your machine. If you follow this flow, your success rate will jump to 99%.

1. Hardware Check: Unit attached -> Click heard -> Power On -> "Clear Zone" check.
2. Consumables: Fresh needle installed? Correct stabilizer for fabric?
3. Hoop Selection: Hoop Icon selected on screen? (Check against greyed-out files).
4. The "Contract": Design fits inside the Red Boundary Box?
5. Text Logic: Size reduced (L->M) if error appears? Letters split if needed?
6. Simulation: Trace function run? (Checked specifically for hoop collision).
7. Final Physical Check: Is the presser foot down? Is the bobbin thread caught in the hook?
8. GO: Press the Green Button.

Mastering the Brother SE1900 isn't about memorizing the manual; it's about respecting the physics of the machine and the fabric. Take your time, trust the "Trace," and don't be afraid to upgrade your tools when your skills outgrow existing hardware. Happy stitching!

FAQ

• Q: What is the correct power-on sequence for the Brother SE1900 so the embroidery unit initializes and the USB drive is recognized?
  A: Power on the Brother SE1900 only after the embroidery unit is fully attached, and insert the USB after initialization finishes.
  • Turn the machine OFF before attaching or detaching the embroidery unit.
  • Slide the embroidery unit onto the base and push firmly until it seats.
  • Power ON, wait for the initialization movement to complete, then insert the USB drive.
  • Success check: a distinct “click/thunk” when seating the unit, followed by the normal “whirrr-click” initialization without warnings.
  • If it still fails: remove the USB, power off, re-seat the embroidery unit again (no wiggle), then repeat the boot sequence.
• Q: How do Brother SE1900 owners avoid finger injuries or damage when the embroidery carriage moves during initialization?
  A: Treat Brother SE1900 initialization like a “clear zone” safety step and keep hands/tools well away before pressing OK.
  • Pause when the LCD warns the carriage will move and do a quick scan first.
  • Remove scissors or any metal tools from the embroidery bed.
  • Pull back loose thread tails so nothing can catch in the carriage track.
  • Success check: the carriage completes its travel smoothly with no bumping, snagging, or sudden stops.
  • If it still fails: power off immediately and re-check for anything resting on the bed or hanging into the track.
• Q: What pointer tool should be used on the Brother SE1900 LCD screen to avoid scratching or puncturing the touch surface?
  A: Use a soft-tip tool (plastic stylus, pencil eraser, or gloved finger) and avoid sharp metal tools on the Brother SE1900 LCD.
  • Stop using quilt stilettos, awls, or any sharp metal pointer on the screen.
  • Switch to a plastic stylus or the eraser end of a pencil for accurate taps.
  • Wipe the screen gently if debris is causing mis-taps.
  • Success check: taps register accurately without needing extra pressure, and the screen shows no new scratches.
  • If it still fails: reduce pressure and use a broader soft tip; follow the machine manual if the screen becomes unresponsive.
• Q: Why are designs greyed out on the Brother SE1900 design selection screen after choosing a hoop icon (4x4, 5x7, oval)?
  A: Brother SE1900 greys out designs that do not fit the selected hoop size as a built-in collision prevention feature.
  • Tap the correct hoop icon (4x4, 5x7, or oval) before choosing a design.
  • Select a design that remains fully visible (not faded) under that hoop filter.
  • Choose a smaller design or switch to the 5x7 hoop selection if the design is too large for 4x4.
  • Success check: the chosen design stays selectable and proceeds to the preview screen without size warnings.
  • If it still fails: verify the correct hoop icon is selected and pick a design with smaller displayed dimensions.
• Q: How do Brother SE1900 users fix the “Pattern extends to the outside of embroidery frame” error when adding text?
  A: Reduce the Brother SE1900 text size from Large (L) to Medium (M) or Small (S), and delete any trailing space after the last character.
  • Tap Add, type the word, then toggle L → M (or S) if the warning appears.
  • Backspace to remove any accidental space at the end of the word (an “invisible” extra width).
  • Re-check the preview boundary before confirming.
  • Success check: the warning disappears and the text fits inside the on-screen boundary limits.
  • If it still fails: shorten the text or adjust layout (for example, rotate to use the longer hoop axis) and confirm the selected hoop size matches your setup.
• Q: How can Brother SE1900 owners use the red boundary box and the Trace function to prevent hoop strikes and needle breaks?
  A: Keep the Brother SE1900 design comfortably inside the red boundary box and always run Trace while watching the needle travel.
  • Confirm the design (including added text) stays inside the red boundary box on the preview screen.
  • Leave a safety margin instead of pushing the design to the exact edge.
  • On the Embroidery Ready screen, tap Trace and watch the needle path—not the screen.
  • Success check: the hoop completes the Trace perimeter with the presser foot staying clear of the hoop wall and no “thump” sounds.
  • If it still fails: stop immediately, then resize or reposition the design and re-run Trace before stitching.
• Q: What stabilizer should Brother SE1900 users choose for T-shirts, towels, and performance mesh to prevent puckering and distortion?
  A: Match stabilizer to fabric behavior on the Brother SE1900—cutaway for knits, tearaway for stable wovens, and add water-soluble topping for high-pile fabrics.
  • Use cutaway stabilizer for T-shirts/knits as a requirement to prevent post-wash distortion.
  • Use tearaway stabilizer for stable cotton/wovens when stretch is not a factor.
  • Use tearaway on the bottom plus water-soluble topping on towels/fleece to control high pile.
  • Success check: fabric stays flat during stitching (no rippling/bubbling), and the finished embroidery remains smooth after unhooping.
  • If it still fails: re-check hooping tightness (aim for firm “drum-skin” feel) and confirm a fresh needle and clean bobbin area before trying again.
• Q: When should Brother SE1900 owners upgrade from standard hoops to a magnetic embroidery hoop for speed and less hoop burn, and what magnet safety rules matter?
  A: Upgrade to a magnetic hoop for the Brother SE1900 when hooping time and hoop burn become the bottleneck, and handle magnets as an industrial pinch hazard.
  • Start with technique: improve hooping consistency and stabilizer choice before buying new tools.
  • Upgrade the tool: use a magnetic hoop when frequent orders or thick/delicate fabrics make screw-hooping slow or leave ring marks.
  • Upgrade production (generally): if volume grows beyond comfortable single-machine throughput, consider a higher-capacity setup.
  • Follow magnet safety: keep fingers clear during closing and keep strong magnets away from pacemakers or insulin pumps.
  • Success check: fabric holds flat quickly without crushed-fiber hoop marks, and hooping time drops noticeably per item.
  • If it still fails: confirm the hoop style matches the machine’s attachment system and stay within the machine’s recognized stitching field limits.
