Mastering the Hat on a Flatbed: A Brother SE1900 Field Guide

If you have ever tried to embroider a baseball cap on a flatbed single-needle machine, you already know the emotional arc: confidence at the cutting table, panic at the embroidery arm, and a quiet prayer that the needle won’t smack the metal clamp.

Embroiders call this "The Flatbed Fight."

This project can stitch beautifully on a Brother SE1900—but only if you treat hooping, clearance, and stabilization like a precise engineering system, not a guessing game. Below is the full workflow, rebuilt from a 20-year production perspective into a shop-ready process. This is the "Whitepaper" version of the video tutorial, designed to keep your machine safe and your results wearable.

The Calm-Down Check: What a Brother SE1900 Hat Hoop Job Really Demands

A hat on a flatbed machine is not "hard" because the design is complicated—it is difficult because the cap is a 3D object that fights to stay curved, while your machine demands a 2D flat surface.

The Reality Check:

• The Machine: The SE1900 is a workhorse, but it allows very little vertical clearance under the presser foot.
• The Job: This is not a "press start and walk away" stitch-out. As the creator plainly demonstrates, this is a high-supervision task. You must "babysit" the machine to flatten the cap crown manually as it moves.

If you are currently shopping for accessories, this is where many users start searching for brother se1900 hat hoop solutions. They realize that the cap’s crown and brim create clearance physics that standard flat hooping simply cannot handle without modification.

The "Hidden" Prep Pros Do First: Specific Consumables and a Clearance Mindset

Before you touch the machine, you must stage your environment. In a professional shop, we don't improvise while a sharp needle is moving 800 times a minute inches from our fingers.

The Toolkit (Hidden Consumables)

Beyond the machine, you need these specific items to succeed:

• Needles: Do not use a standard 75/11. Caps have thick buckram (stiffener). Use a Titanium 90/14 Sharp or Topstitch needle to penetrate without deflecting.
• Stabilizer: Sticky Tearaway (Self-Adhesive). Cut this significantly larger than your hoop.
• Restraints: Wonder Clips or painter's tape to hold the cap body back.
• Clearance Tools: Tweezers and curved snips.

The Physics of the Hat

Caps are typically cotton/synthetic blends with a structured front. That structure fights you during mounting. Upon needle penetration, the hat wants to "flag" (bounce up and down). Your goal is Containment.

If you are building a repeatable workflow, think of this as hooping station for embroidery machine logic: everything is staged, checked, and within arm's reach before the machine is turned on.

Phase 1: Prep Checklist (The "No-Go" Criteria)

• Equipment Check: Ensure you have the outer ring of the Brother 5x7 hoop (the inner ring is removed for this method) and the metal hat insert.
• Needle Swap: Install a fresh 90/14 needle. A dull needle on a hat cap causes "birdnesting" instantly.
• Cap Prep: Unbuckle the back strap entirely. Fold the sweatband out (or flip it down as shown in the video) so it does not get stitched to the forehead of the cap.
• Mental Shift: Commit to lowering your machine speed. Do not run this at 850 SPM (Stitches Per Minute). Set your SE1900 to 400-600 SPM max for safety.


Locking the Hat Hoop Insert: The Friction Test

The video’s first mechanical step is simple but critical: the hat hoop insert must be clamped firmly inside the 5x7 outer ring. If this slips, your design will look like steps on a staircase.

The Action (Step-by-Step)

1. Remove the plastic inner ring from your standard 5x7 hoop.
2. Place the metal hat hoop insert into the outer ring.
3. Tighten the standard hoop screw.

Sensory Check: The "Immovable Object" Test

• Touch: Grab the metal insert and try to twist it. It should feel fused to the plastic outer ring.
• Sound: If you tap it, it should not rattle.
• Torque: If you can still turn the hoop screw with your thumb and index finger easily, it is not tight enough. Use a screwdriver (gently) to get that extra quarter-turn of security.

This is where many users get frustrated with brother 5x7 hoop setups—the insert relies entirely on friction. If you do this daily, checking this tightness becomes muscle memory.

The Scoring Trick for Sticky Stabilizer: Expose Adhesive Without Weakening the Foundation

Sticky stabilizer does two jobs here: it anchors the cap (Replacing the inner hoop) and handles the shear force of the needle.

The Technique

1. Adhere the sticky stabilizer sheet to the underside of the hat hoop frame.
2. Flip the hoop over.
3. Use a scoring tool (or a pin) to lightly cut the paper backing inside the embroidery window.
4. Peel away the paper to expose the adhesive.

Expert Nuance (The "Why")

Do not slice the stabilizer itself. The strength comes from the fiber structure. If you cut through the stabilizer, the heavy hat will tear that slice open during stitching, causing the design to distort.

Sensory Anchor: When scoring, you should hear the crisp "scratch" of paper tearing, not the dull "rip" of fabric separating.

If you are learning hooping for embroidery machine technique on difficult items, this "score the paper, not the backing" habit is the fastest way to reduce registration errors.

Clamping the Hat Brim: The Anchor Point

This method clamps the brim under a metal plate secured by wing nuts or thumbscrews.

The Action

1. Slide the bill/brim firmly under the clamp plate.
2. Visual Check: Ensure the center seam of the hat aligns perfectly with the center marker on the metal plate.
3. Tighten both wing nuts manually.

Sensory Check: The "Tug War"

• Action: Once tightened, grab the brim and give it a firm tug.
• Validation: It should not move at all. The brim clamp is your only true anchor. If it slips 2mm, your design looks crooked.

Physics Note

Hats are pre-shaped springs. When you force them flat, they store kinetic energy. If the brim isn't locked, that energy releases as movement during high-speed stitching.

Flattening the Cap with Wonder Clips: Managing Vertical Clearance

After clamping, the cap crown is still free—and the crown is the enemy. It wants to bubble up and hit the needle bar.

The Action

1. Fold the back of the hat down flat against the sticky stabilizer.
2. Action: Press the cap sides firmly onto the sticky backing. Rub them to activate the adhesive.
3. Restraint: Use Wonder Clips to pin the excess fabric at the sides/back to the frame edges. The video creator notes this was a game-changer.

Warning (Safety): Keep fingers strictly away from the needle area while holding the crown down during stitching. A needle going through a finger is a hospital trip, not a blooper reel.

Expert Diagnostic

If the cap crown lifts and rubs the presser foot, you will see specific symptoms:

• Scuffing: Shiny marks on the cap fabric.
• Flagging: The fabric bounces, causing skipped stitches or loops.
• Drifting: The design outline doesn't match the fill.


Mounting the Hat Hoop on the SE1900: The "Squish" Maneuver

This is the moment of highest anxiety. The hooped cap is bulky, and the SE1900 throat space is limited.

The Action

1. Slide the hoop assembly onto the unit.
2. Tactile Step: You must physically squash the hat crown down to clear the embroidery foot.
3. Lock the hoop lever.

Sensory Check: The Fit

• Feeling: It should feel tight but seated.
• Sound: Listen for a "click" when the hoop locks. If it feels "mushy," the hat material might be trapped under the hoop connector. Check and re-seat.

This is often the moment hobbyists start looking at brother se1900 hoops alternatives because the physical wrestling match required to mount the hoop feels risky.

The LCD Alignment: The "Save Your Machine" Step

Crucial: The center of the hoop is often too low for this setup. The needle will hit the metal clamp if you don't adjust it.

The Action

1. Use the LCD touch screen to move the design UP.
2. Trace Function: Run the trace (trial key). Watch the needle (or LED pointer).
3. Visual Gap: Ensure there is at least a 10mm (finger width) gap between the bottom of your design and the metal brim clamp.

Decision Tree: Hat & Stabilizer Strategy

Use this logic to verify your setup before stitching:

• Fabric: Rigid Structured Cap (Wool/Acrylic)
  • Risk: Needle deflection.
  • Solution: Use Titanium 90/14 needle + Slow Speed (400 SPM). Use sticky stabilizer to hold it flat.
• Fabric: Unstructured "Dad Hat" (Cotton)
  • Risk: Fabric puckering/shifting.
  • Solution: Use sticky stabilizer + floating a layer of tearaway under the hoop for extra stiffness.
• Design: Large Solid Fill?
  • Risk: High pull compensation needed.
  • Action: Probably too risky for this single-needle clamp method. Reduce size or stick to open designs (like text).

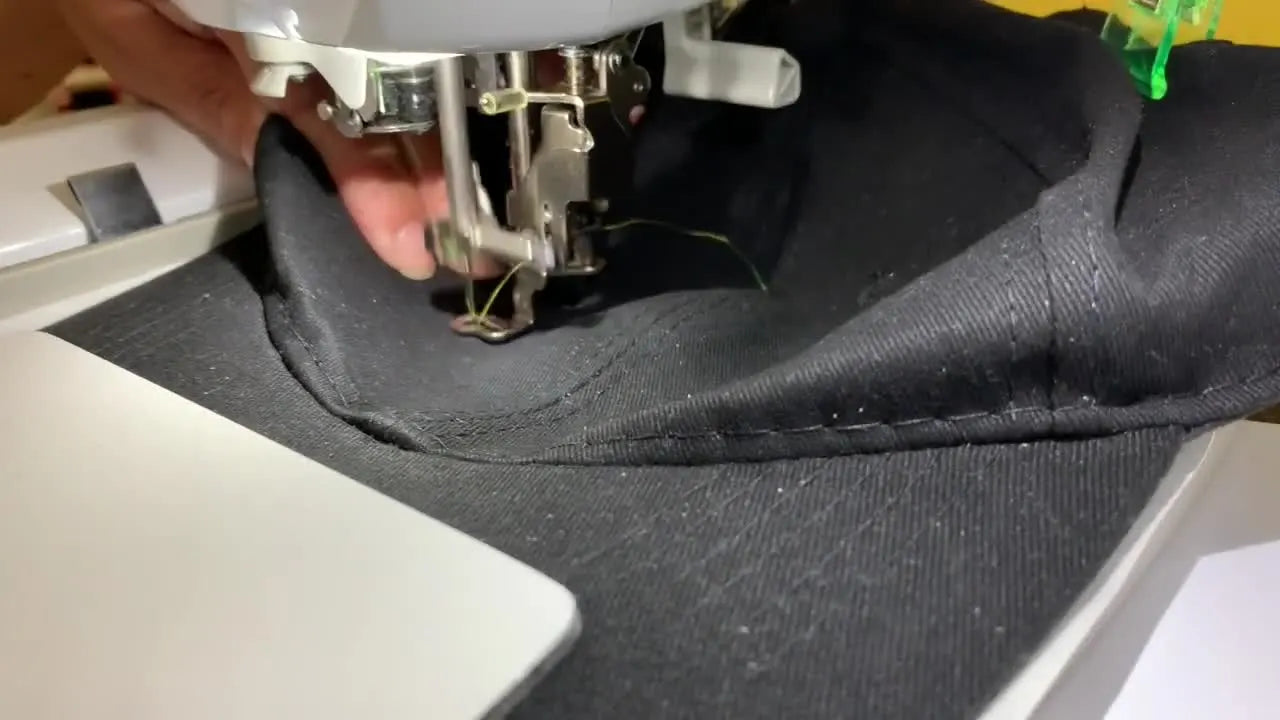

Stitching: How to Babysit Without Injury

The creator starts stitching and monitors closely. This is standard procedure for floating caps.

Specific Settings for Success

• Speed: 600 SPM max. (Slower if the machine sounds angry).
• Tension: 2.0 - 4.0 (Standard usually works, but lower tension to ~2.0 helps prevent puckering on caps).

Phase 3: Operation Checklist

• Clearance: Did you move the design up on the LCD screen?
• Speed: Is the machine slowed down?
• Hands: Are you ready to gently press the crown down (away from the needle) to stop it from bouncing?
• Sound Check: Listen. A rhythmic "chug-chug" is good. A sharp "thwack-thwack" means the foot is hitting the clamp or the brim. STOP IMMEDIATELY if you hear metal-on-metal.


The Thread Catch: A Common "Gremlin"

The video highlights a real issue: thread catching on the spool cap.

The Physics of Drag

On a fussy project like a hat, any extra drag on the top thread causes tension issues (white bobbin thread showing on top).

• Symptom: Thread shreds, breaks, or tension tightens suddenly.
• Likely Cause: The thread is snagging on a nick in the plastic spool cap.
• Fix: Use a spool stand (renders the horizontal pin issue moot) or ensure the spool cap is slightly smaller than the thread spool diameter.

Troubleshooting accessories like hat hoop for brother embroidery machine setups often reveals these minor machine issues because the margin for error is so small.

Cleanup: The "Jump Stitch" Protocol

Jump stitches are the threads connecting different letters.

The Technique

1. Remove hoop. Release wing nuts.
2. Technique: Do not pull the threads hard. Lift them gently with tweezers.
3. Cut: Snip flush with the fabric using curved scissors.

Pro shops trim jumpers as they go, but on a single-needle machine, it is safer to wait until the end to avoid bumping the carriage.

The Finish: Lint Rolling

Stabilizer dust is inevitable. A quick lint roll makes the product look retail-ready rather than "homemade."

Troubleshooting Guide: From Symptom to Cure

The Commercial Bridge: When to Upgrade Your Logic?

If you are making one hat for a friend, the method above is perfect. It is cost-effective and low-tech.

However, if you feel the "pain points"—sore wrists from tightening wing nuts, anxiety about the hoop popping, or hooping marks (hoop burn) on the fabric—your business is telling you to upgrade your tools.

Diagnostic: Do You Need an Upgrade?

1. The Pain Point: "My wrists hurt and hooping takes 10 minutes."

• The Issue: Mechanical screws and friction clamps are slow and physically demanding.
• The Solution: Magnetic Hoops.
• Many Brother users switch to magnetic hoop for brother systems specifically for this reason. The magnets self-align the fabric and clamp instantly without "unscrew-rescrew" fatigue. They also eliminate "hoop burn" (the shiny ring left by tight plastic hoops).

Warning (Magnetic Safety): High-quality magnetic hoops use industrial Neodymium magnets. They are powerful. Keep them away from pacemakers, and never place your fingers between the magnets when they snap together. They will pinch severely.

2. The Pain Point: "I need to do 20 hats for a Little League team."

• The Issue: A single-needle flatbed requires too much babysitting for batch work. You cannot charge enough to cover your labor time.
• The Solution: This is the trigger to look at Multi-Needle machines (like SEWTECH models). They have a "cylinder arm" that goes inside the hat, allowing it to spin naturally without being crushed flat.

3. The Pain Point: "My alignment is inconsistent."

• The Issue: Manual hooping varies every time you touch it.
• The Solution: magnetic embroidery hoop systems provide consistent, repeatable clamping pressure. If the magnet snaps shut, the tension is identical to the last hat.


Final Thoughts: The Sweet Spot

The finished hat in the video—rainbow text on black—looks professional because the creator followed the rules of clearance and stabilization.

Your success formula:

1. Prep: Titanium needles + Sticky Stabilizer.
2. Secure: Clamp the brim tight + Wonder Clips on the sides.
3. Operation: Slow the machine + Babysit the crown.

When you respect the physics of the flatbed, the machine will respect your hat. If you find yourself fighting the physics too often, remember that better toolsets (Magnetic hoops, Multi-needle rigs) exist to take the load off your hands.

FAQ

• Q: What needle and stabilizer should be used to embroider a baseball cap on a Brother SE1900 flatbed setup?
  A: Use a fresh Titanium 90/14 Sharp (or Topstitch) needle and sticky tearaway (self-adhesive) stabilizer to control deflection and cap “flagging.”
  • Install: Swap out any 75/11 and insert a new 90/14 before hooping.
  • Prep: Cut sticky tearaway larger than the hoop area and stage Wonder Clips/tape before turning the machine on.
  • Slow: Set the Brother SE1900 to 400–600 SPM for safer penetration and clearance control.
  • Success check: The needle penetrates the cap without “punching” sounds, skipping, or immediate thread tangles.
  • If it still fails: Reduce stitch density/design size and avoid large solid fills for this clamp-and-float cap method.
• Q: How tight should the Brother 5x7 hoop screw be when clamping a metal hat insert for a Brother SE1900 cap job?
  A: Tighten the Brother 5x7 outer hoop screw until the metal hat insert is immovable—hand-tight is often not enough.
  • Remove: Take out the plastic inner ring and use only the outer ring with the metal insert.
  • Tighten: Turn the screw firmly; use a screwdriver gently for the last extra quarter-turn if needed.
  • Test: Twist the metal insert by hand and tap it lightly.
  • Success check: The insert does not twist, rattle, or shift under force.
  • If it still fails: Re-seat the insert fully inside the outer ring and repeat the immovable-object test before stitching.
• Q: How do you score sticky stabilizer paper correctly for a Brother SE1900 hat hoop method without weakening the stabilizer?
  A: Score only the paper backing—not the stabilizer fibers—so the adhesive is exposed without creating a tear line.
  • Stick: Adhere the sticky stabilizer sheet to the underside of the hoop/frame first.
  • Score: Lightly cut the paper inside the embroidery window using a scoring tool or pin.
  • Peel: Remove only the paper layer to reveal adhesive.
  • Success check: The scoring makes a crisp “paper scratch” sound, and the stabilizer itself stays uncut and intact.
  • If it still fails: Replace the stabilizer sheet if it was sliced through, because the cap weight may open that cut during stitching and distort the design.
• Q: How do you prevent a Brother SE1900 needle from hitting the metal brim clamp when embroidering a hat on a flatbed setup?
  A: Move the design UP on the Brother SE1900 LCD and run Trace so the stitch field clears the metal clamp by at least 10 mm.
  • Reposition: Use the LCD to shift the design upward before starting.
  • Trace: Run the trace/trial key and watch the needle path near the clamp.
  • Verify: Keep a finger-width (about 10 mm) gap between the lowest stitch point and the metal clamp.
  • Success check: The trace completes with no near-misses, and stitching sounds like a steady “chug-chug,” not a sharp “thwack.”
  • If it still fails: Stop immediately and re-hoop/re-seat the cap; do not “try anyway” if metal-on-metal contact is possible.
• Q: What causes birdnesting (thread ball underneath) when embroidering a cap on a Brother SE1900, and how do you fix it?
  A: Birdnesting on a Brother SE1900 cap setup is commonly caused by cap flagging (bouncing) lifting the fabric off the needle plate—contain the crown and improve adhesion.
  • Replace: Use a fresh sticky stabilizer so the cap body can be pressed down and held flat.
  • Restrain: Press the cap sides onto the adhesive and secure excess fabric with Wonder Clips so the crown cannot lift.
  • Supervise: Babysit the stitch-out and gently control the crown away from the needle area.
  • Success check: The underside shows clean stitches instead of a growing thread wad, and the cap does not visibly bounce during needle strikes.
  • If it still fails: Stop, remove the tangle, recheck cap containment, and confirm the machine is running at 600 SPM max (slower if needed).
• Q: Why do Brother SE1900 needles break on hat embroidery, especially near the center seam, and what settings help?
  A: Broken needles on a Brother SE1900 hat job usually come from needle deflection on stiff buckram or the tough center seam—use a Titanium 90/14 and slow down under 600 SPM.
  • Switch: Install a fresh Titanium 90/14 Sharp (or Topstitch) needle before the run.
  • Slow: Keep speed in the 400–600 SPM range for control and safer clearance.
  • Monitor: Watch the crown height so the cap does not lift into the needle path.
  • Success check: The needle tracks straight through the seam area without a “snap,” and the stitch line stays consistent with no sudden impact sounds.
  • If it still fails: Reposition the design (avoid placing dense elements directly over the toughest seam/buckram zones) and re-run Trace to confirm clearance.
• Q: When should a Brother SE1900 cap workflow upgrade to magnetic hoops or a multi-needle machine instead of continuing the flatbed hat clamp method?
  A: Upgrade when the Brother SE1900 cap process consistently costs too much time, causes physical strain, or produces inconsistent alignment—start with technique, then tools, then capacity.
  • Level 1 (Technique): Reduce speed to 400–600 SPM, increase containment with sticky stabilizer + Wonder Clips, and always Trace for 10 mm clamp clearance.
  • Level 2 (Tooling): Consider magnetic hoops when hooping takes ~10 minutes, wrists hurt from screws, or hoop burn marks are a recurring problem.
  • Level 3 (Capacity): Consider a multi-needle cylinder-arm machine when you must produce batches (e.g., team orders) and constant babysitting makes the job unprofitable.
  • Success check: The chosen upgrade reduces re-hooping/rejects and makes placement repeatable from hat to hat.
  • If it still fails: Keep the current method for occasional one-offs, but avoid large solid-fill designs that are high-risk on the single-needle flatbed clamp setup.
