Brother SE-400 Setup That Actually Works: USB Imports, Auto-Cut, and Hooping Habits That Save Your Projects

You’ve just unboxed your Brother SE-400. You are likely feeling a mix of pure excitement and a quiet, gnawing anxiety—the fear that one wrong click will cause the machine to screech, jam, or chew up your expensive fabric.

Take a deep breath. This is normal.

As a machine embroidery educator, I tell my students: Machine embroidery is 20% art and 80% physics. The SE-400 is an incredibly capable entry-level machine, designed to be user-friendly. However, the difference between a frustrating "bird's nest" of thread and a professional satin stitch isn't luck—it’s process. Features only become results when you run them in a strict sequence.

This guide converts the standard feature tour into a "Safety-First" operational routine. We will cover everything from the USB connection and sensory-based tension checks to your first stitch-out at a safe 350 stitches per minute (SPM). I will also reveal the "invisible" prep work—stabilizers, needles, and hooping mechanics—that separates the hobbyist from the pro.

The Brother SE-400 “Don’t Panic” Primer: What This Combo Machine Is Really Good At

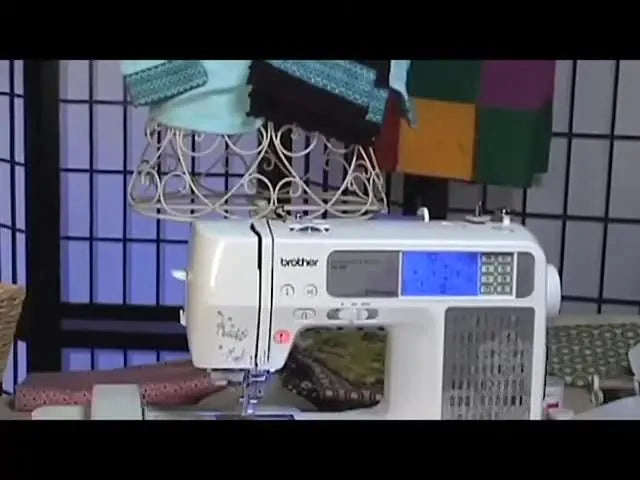

The Brother SE-400 is a "combo unit"—a hybrid that houses both sewing and embroidery mechanics in one chassis. For a beginner, this can feel like learning to fly a plane while driving a car.

Here is the cognitive shift you need to make: The machine does exactly what you tell it to do, even if you tell it to do the wrong thing. The SE-400 offers 70 built-in designs, 120 frame patterns, and 67 sewing stitches. It is an excellent platform for personalization (monograms on towels, patches) and small design testing.

However, you must respect its physics. A specific brother sewing and embroidery machine like this relies on precise friction and tension. Unlike heavy industrial machines that can power through errors, this unit requires you to be disciplined with your inputs. You can achieve boutique-quality results, but you cannot skip steps like stabilization or proper hooping.

The “Hidden” Prep Before You Touch the LCD: Accessories, Thread Choices, and a Hooping Reality Check

The manual shows the included toolkit, but it misses the consumables that actually prevent failure. Beginners often rush to the screen, only to fail because they lack the physical support materials.

The "Invisible" Consumables Inventory: Before powering up, ensure you have these three items often left out of the box:

1. Fresh Needles: An Embroidery 75/11 needle is your standard. If working on denim/towels, switch to a 90/14.
2. Proper Stabilizer: Do not use paper or interfacing. You need proper Tearaway (for stable woven fabrics) or Cutaway (for knits/stretchy fabrics).
3. 40wt Embroidery Thread: Use dedicated polyester or rayon embroidery thread. Standard sewing thread is too thick and will clog the tension discs.

Now, let's address the elephant in the room: Hooping. Most "machine problems"—like skipped stitches or broken needles—are actually movement problems. Use your brother embroidery hoops correctly. If the fabric slips even 1 millimeter, the design will distort.

Prep Checklist: The "Zero-Fail" Pre-Flight

• Needle Check: Run your fingernail down the needle tip. If it catches, throw the needle away. A burred needle destroys thread.
• Bobbin Area: Open the bobbin case. Is it clear of lint? A single fuzz ball can ruin tension.
• Work Clearance: Clear a 12-inch radius around the machine. The embroidery arm moves rapidly; if the hoop hits a coffee mug, your motor gears may strip.
• Component Match: Confirm you have the correct Top Thread, Bobbin Thread (usually 60wt or 90wt white), and the Embroidery Unit nearby.


LCD First-Run Setup on the Brother SE-400: Language Selection Without the Usual Button-Mashing

The LCD is your command center. Steps are simple: Select your language (English, Deutsch, Français, etc.) using the arrow keys.

Expert Sensory Advice: Treat the touchscreen like a smartphone, not a microwave.

1. The "Light Touch" Rule: Pressing harder does not register better. Use the pad of your finger or the included stylus. If the screen feels unresponsive, clean it with a microfiber cloth; oil from fingers can ghost-click buttons.
2. Navigational Safety: If you get lost in sub-menus, the SE-400 has built-in on-screen tutorials. These are not generic videos; they are specific to the machine state. Use them. It is faster than searching YouTube on your phone.


USB Connection on the Brother SE-400: Importing .PES Designs and Keeping Firmware Current

The USB port (Type B) connects your machine to a computer. This allows you to import .PES files (the native language of Brother machines) and update firmware.

The "Digital Hygiene" Protocol:

1. File Source: Stick to reputable digitizers or Brother’s iBroidery ecosystem initially. Free designs from forums are often poorly digitized, containing too many density jumps that can break needles.
2. The Formatting Rule: Ensure your USB stick is formatted cleanly (FAT32 is standard) and doesn't contain hundreds of files in the root folder, which can lag the machine.

When you invest in a brother embroidery machine with USB capability, you are buying the ability to grow. However, start small. Import a simple 2,000-stitch design first. Verify it loads. Stitch it on felt or denim. Do not start with a 20,000-stitch intricate logo on a stretchy T-shirt. Eliminate variables to build confidence.

Sewing Mode on the Brother SE-400: Speed Slider Control, Reverse Button, and a Clean Start

Before embroidering, understand the motor control in Sewing Mode. The speed slider (left = slow, right = fast) is actually a limiters.

The Beginner's Sweet Spot: Set the slider to 50% (Middle). Even if you floor the foot pedal, the machine won't exceed this speed. This allows your hands to learn the fabric feed rhythm without panic.

The Reverse Button (U-Turn): Learn the "Tactile Hold." Pressing the reverse button locks the stitch. This is critical for seam allowance integrity. Turning fabric manually distorts seams; using the reverse function keeps layers aligned.

Warning: The "Red Zone" Safety Rule.
When the start/stop button is green, the machine is live. Keep fingers, loose hair, drawstrings, and jewelry at least 4 inches away from the needle bar. A needle moves at 10+ times per second—it can stitch through a finger bone before you can react.

The Auto Thread Cutter Button (Scissors Icon): The Small Feature That Prevents Ugly Finishes

The Scissor Icon button triggers the automatic thread cutter. This isn't just a luxury; it's a quality control tool.

Why Manual Cutting Fails: When you cut threads with hand scissors, you often pull on the thread slightly, which can distort the tension of the last stitch or leave a "whisker" (a frayed tail). The mechanical cutter slices both top and bobbin threads precisely at the plate level.

Workflow Tip: Get into the habit of pressing this immediately after finishing a seam or an embroidery color block. It prevents you from accidentally snagging the thread tail on the presser foot when you remove the fabric.

Bobbin Winding on the Brother SE-400: The “Snap In, Slide Right” Habit That Saves Your Stitch Quality

The 60% Rule: 60% of stitch quality issues stem from the bobbin. If the bobbin is wound loosely or unevenly, the top thread will pull it to the surface, looking messy.

Sensory Check for Winding:

1. Snap: Place the bobbin on the winder shaft. You must hear a distinct click.
2. Slide: Push the shaft to the right.
3. Inspect: As it winds, watch the thread. It should move up and down in a smooth, even pillar. If it looks conical (fat at the bottom, thin at the top), stop immediately—your thread is not seated in the tension disc correctly.

A "spongy" bobbin releases thread unpredictably. The bobbin should feel rock-hard, like a solid piece of plastic.

Switching to Embroidery Mode: Attaching the Brother SE-400 Embroidery Unit Without Forcing Anything

This is the physical transformation of your machine.

1. Power Check: It is safest to turn the machine off before attaching the unit to prevent accidental motor engagement.
2. Remove Tray: Slide the sewing accessory tray to the left.
3. Engage Unit: Slide the embroidery unit onto the connector.

The "Audible Lock": You are waiting for a mechanical interaction. Push gently until you hear a solid SNAP. There should be zero wiggle room. If the unit wobbles, the machine will misalign the design, causing gaps between outlines and fills.

On-Screen Design Editing on the Brother SE-400: Reposition, Resize, Rotate Before You Stitch Regrets

The 4x4 inch (100mm x 100mm) field is standard for starters. The LCD allows you to move, rotate (by 1, 10, or 90 degrees), and resize (usually +/- 20%).

The "Safe Zone" Check: When you load a design, use the "Trace" or "Check Size" button (often a box with arrows icon). The hoop will physically move to outline the design's area.

• Visual Check: Watch the needle (which is up) relative to your fabric. Does it cross a button? A thick seam?
• Limit Check: If using a standard brother 4x4 embroidery hoop, ensure the design isn't hitting the plastic edges. If the needle strikes the plastic hoop, it will break the needle and potentially throw off the machine's timing.


Hooping for the Brother SE-400: Tension Physics That Prevent Puckering, Shifting, and Hoop Burn

This is the hardest skill to master. You can have a $10,000 machine, but if you hoop poorly, the result will be trash.

The Correct Tension Feeling: Forget "tight as a drum." That advice ruins T-shirts. You want the fabric to be "Taut but Neutral."

• Woven (Cotton/Denim): Should feel like a stiff piece of paper. No sag.
• Knits (T-shirts): Should lay flat without stretching the ribs of the fabric. If you stretch a T-shirt in the hoop, it will recoil when you unhoop it, creating deep wrinkles around the design.

The "Hoop Burn" Problem: Standard plastic hoops rely on friction ridge locking. If you muscle them too tight on delicate fabric, you get "hoop burn" (crushed fibers). We will discuss solutions for this later, but for now, use a layer of stabilizer larger than the hoop to act as a buffer.

Decision Tree: Fabric -> Stabilizer Strategy

• Scenario A: Stretchy? (T-Shirt, Polo, Hoodie)
  • Stabilizer: CUTAWAY. (Must support stitches permanently).
  • Hooping: Float method or magnetic hoop recommended to avoid stretch.
• Scenario B: Stable? (Quilting Cotton, Denim, Canvas)
  • Stabilizer: TEARAWAY. (Fabric supports itself).
• Scenario C: Fluffy? (Towel, Fleece)
  • Stabilizer: TEARAWAY on bottom + WATER SOLUBLE TOPPING on top.
  • Why? The topping prevents stitches from sinking into the pile.

You may encounter the term hooping for embroidery machine often in tutorials. It is the absolute foundation. If you struggle with wrist pain or alignment, professionals use a machine embroidery hooping station to ensure the design is straight every time.

First Stitch-Out on the Brother SE-400: What “350 Stitches Per Minute” Feels Like (and What to Watch)

The SE-400 is capable of 400 SPM, but for your first run, we want the "Sweet Spot" of 350 SPM. This speed allows the thread to settle and gives you reaction time.

The First Minute Sensory Audit: Press the Start button (Green). Do not walk away.

• Listen: You want a rhythmic thump-thump-thump. A high-pitched whine or grinding means stop immediately.
• Watch: Look at the thread feeding off the spool. Is it catching on a nick in the spool cap?
• Look: Check the fabric near the needle. Is it "flagging" (bouncing up and down)? If yes, your hoop tension is too loose.

Setup Checklist (The "Green Light" Protocol)

• Hoop Clearance: Nothing behind the machine to block the hoop movement.
• Presser Foot: MUST be down. (The machine will yell at you if it's up, but check anyway).
• Thread Path: Upper thread is threaded through the take-up lever (the metal hook that moves up and down). This is the #1 error spot.
• Stabilizer: Is present and correct for the fabric type.
• Body Position: Your hands are clear of the hoop.


“It Looked Fine…Then It Went Wrong”: Quick Fixes for Uneven Trims and Feature Confusion on the SE-400

Even experts face issues. Here is a logic map for the two most common deviations shown in standard tutorials.

Symptom 1: Messy Thread Tails / "Birds Nest" under the throat plate.

• Likely Cause: You missed the take-up lever (the metal arm) when threading, or the presser foot was down when you threaded the machine (this keeps tension discs closed, so thread floats on top).
• The Fix: Raise presser foot. Re-thread completely. Ensure thread sits deep in the tension discs.

Symptom 2: Uneven Thread Trims.

• Likely Cause: Manual cutting with dull scissors pulling the thread.
• The Fix: Rely on the Scissors Button on the dash. It is calibrated mechanically.

Pro Tip on "Feature Confusion": If the machine refuses to sew and beeps, look at the LCD. It usually displays a diagram of the error (e.g., "Presser Foot Up"). Don't guess; read the screen.

Magnetic Hoops on a Brother SE-400: When the Standard Hoop Is the Bottleneck (and How to Decide)

The included plastic hoop is functional, but it has flaws: it leaves "hoop burn," it struggles with thick items (like heavy towels), and the screw mechanism causes wrist strain over time.

This is where you apply a "Cost of Friction" analysis. If you spend 5 minutes fighting to hoop a towel, and the embroidery takes 10 minutes, your efficiency is terrible.

The Upgrade Path: Industry professionals and serious hobbyists often switch to Magnetic Hoops. Terms like magnetic embroidery hoops for brother refer to frames that use powerful magnets to clamp fabric rather than friction.

• Benefit 1: Zero "Crank Strain" on wrists.
• Benefit 2: No hoop burn marks on delicate velvet or suede.
• Benefit 3: Fast processing. You just lay the fabric and snap the magnets.

Decision Guide: Do you need a magnetic hoop for brother?

• Level 1 (Hobby): You embroider flat cotton once a month. -> Stick with the Standard Hoop.
• Level 2 (Enthusiast): You are doing towels, thick jackets, or delicate knits. -> Upgrade to Magnetic.
• Level 3 (Side Hustle): You are making 50 logo shirts. -> Upgrade to Magnetic immediately for speed.

Warning: Magnetic Field Hazard.
Magnetic hoops use industrial-strength magnets (neodymium). They can pinch fingers severely if they snap together unexpectedly. CRITICAL: Keep them away from pacemakers, insulin pumps, and magnetic storage media.

Turning “Home Hobby” Into “Small-Batch Production”: Where the SE-400 Ends and Smart Upgrades Begin

The SE-400 is a fantastic learning tool, but it is a "Single-Needle" machine. This means for a 4-color design, you must manually change the thread 4 times.

The "Scaling Wall": If you start selling your work (Etsy, local clubs), you will hit a wall.

• Time Cost: If a design has 10 color changes, you are tied to the machine for 45 minutes.
• Hooping Bottleneck: Managing single-hoop workflow is slow.

The Professional Solution:

1. Stage 1 Optimization: Use Magnetic Hoops on your SE-400 to cut hooping time by 50%.
2. Stage 2 Optimization: Pre-cut your stabilizer and buy bulk 5000m thread cones (use a thread stand).
3. Stage 3 Machine Upgrade: When you are turning away orders, look at Multi-Needle Machines (like SEWTECH or Brother PR series). These hold 6+ needles at once, changing colors automatically while you do other work.

Operation Checklist (During the Stitch-Out)

• Watch Layer 1: Watch the very first outlines (underlay). If they don't match up, stop. It won't get better.
• Trim Jump Stitches: If your machine doesn't auto-trim jumps, pause and trim them so the foot doesn't catch them.
• Color Logic: Line up your next thread color while the current on is stitching.
• Listen: Keep an ear out for sound changes. A "dry" clicking sound usually means you need a drop of oil or a new needle.

Embroidery is a journey of patience. Master the setup, respect the physics, and when the tools limit your creativity, upgrade the tools—not your frustration. Happy stitching!

FAQ

• Q: What “invisible consumables” are required before running embroidery on the Brother SE-400 to avoid thread nests and puckering?
  A: Use the correct needle, stabilizer, and 40wt embroidery thread before touching the Brother SE-400 LCD—most early failures come from missing one of these.
  • Install a fresh Embroidery 75/11 needle (switch to 90/14 for denim or towels).
  • Match stabilizer to fabric: tearaway for stable wovens, cutaway for knits/stretch, and add water-soluble topping for towels/fleece.
  • Use 40wt embroidery thread on top and lighter bobbin thread (often 60wt or 90wt); avoid standard sewing thread because it can clog tension.
  • Success check: the first outlines stitch cleanly without puckering, flagging, or looping on the underside.
  • If it still fails: re-check hooping neutrality and re-thread with the presser foot raised.
• Q: How can Brother SE-400 users prevent “bird’s nest” thread tangles under the needle plate during the first stitch-out?
  A: Re-thread the Brother SE-400 with the presser foot UP and make sure the upper thread is inside the take-up lever—this is the most common cause and it’s very fixable.
  • Raise the presser foot before threading so the tension discs open and grab the thread correctly.
  • Re-thread completely and confirm the thread passes through the take-up lever (the moving metal arm).
  • Start a simple, low-risk test design first (about 2,000 stitches) to reduce variables.
  • Success check: the stitch forms immediately with no wad of thread building under the throat plate in the first few seconds.
  • If it still fails: inspect the bobbin area for lint/fuzz and confirm the bobbin is seated and wound evenly.
• Q: What is the correct Brother SE-400 bobbin winding method to prevent loose tension and messy stitches?
  A: Follow the Brother SE-400 “snap in, slide right” routine and stop if the bobbin winds unevenly—an uneven bobbin causes unpredictable tension.
  • Snap the bobbin onto the winder shaft until a clear click is felt/heard.
  • Slide the winder shaft to the right and watch the thread build.
  • Stop immediately if the thread stacks like a cone (wide on one end, narrow on the other) and re-seat the thread in the tension disc path.
  • Success check: the bobbin feels rock-hard and the thread forms an even “pillar,” not spongy or lumpy.
  • If it still fails: clean lint from the bobbin area and re-wind with the thread path carefully seated.
• Q: How should Brother SE-400 users hoop fabric to avoid puckering, shifting, and hoop burn on T-shirts and delicate fabrics?
  A: Hoop Brother SE-400 projects “taut but neutral,” not “drum tight,” and buffer delicate fabric with stabilizer to reduce hoop burn.
  • Hoop wovens (cotton/denim) flat and firm with no sag; hoop knits flat without stretching the fabric ribs.
  • Use cutaway stabilizer for knits/stretch, tearaway for stable wovens; add water-soluble topping on towels/fleece.
  • Place stabilizer larger than the hoop as a buffer when hoop burn is a risk.
  • Success check: the fabric stays flat during stitching (no slipping or 1 mm shifts) and the design does not wrinkle when unhooped.
  • If it still fails: consider floating the fabric or moving to a magnetic hoop to reduce clamp stress on delicate or stretchy items.
• Q: What Brother SE-400 safety rules prevent needle injuries and hoop crashes during sewing and embroidery?
  A: Treat the Brother SE-400 as “live” whenever the start/stop button is green and keep a clear zone so the embroidery arm never hits objects.
  • Keep fingers, hair, drawstrings, and jewelry at least 4 inches from the needle bar when the machine is ready to run.
  • Clear a 12-inch radius around the machine so the hoop/embroidery arm cannot strike a mug, wall, or tools.
  • Turn the machine off before attaching the embroidery unit to avoid accidental motor engagement.
  • Success check: the hoop traces and stitches without contacting anything and the machine sound stays rhythmic (no grinding/whine).
  • If it still fails: stop immediately and re-check hoop clearance and embroidery unit attachment (it should lock with a solid snap and no wobble).
• Q: What is the safest way to import .PES designs to the Brother SE-400 by USB without lag or loading errors?
  A: Use clean, simple .PES files from reputable sources and keep the USB drive organized—bad files and cluttered drives commonly cause headaches.
  • Start with a simple test design (around 2,000 stitches) before attempting dense, high-stitch-count logos.
  • Format the USB stick cleanly (FAT32 is a common standard) and avoid hundreds of files in the root directory.
  • Avoid poorly digitized “free forum” designs early on because density jumps can break needles and destabilize stitching.
  • Success check: the design loads quickly on the Brother SE-400 LCD and traces within the hoop boundary without hesitation.
  • If it still fails: try a different USB stick and re-test with a known-good simple design.
• Q: When should Brother SE-400 owners upgrade from the standard plastic hoop to a magnetic hoop, and what magnetic hoop safety hazards must be considered?
  A: Upgrade when hooping time, hoop burn, or thick/delicate materials become the bottleneck, but handle magnetic hoops carefully because the magnets can pinch and can affect medical devices.
  • Try Level 1 first: improve stabilizer choice and hoop “taut but neutral” technique to reduce puckering and shifting.
  • Move to Level 2: use a magnetic hoop when standard hoop screws cause wrist strain, hoop burn appears on velvet/suede, or thick towels/jackets are hard to clamp.
  • Plan Level 3 if volume grows: combine magnetic hoop workflow with batch prep; if color changes become the time wall, consider a multi-needle machine.
  • Success check: hooping becomes fast and repeatable with no burn marks and fewer alignment do-overs.
  • If it still fails: stop using magnets around pacemakers/insulin pumps and keep fingers clear—magnets can snap together unexpectedly and cause severe pinches.
