Brother SE-400 4x4 Embroidery, Without the Headache: Sticky Stabilizer Hooping, Layout Screen Placement, and Clean 5-Color Stitch-Outs

Mastering the Brother SE-400: A "Safety First" Field Guide to Your First Complex Design

If you own a single-needle machine like the Brother SE-400, you are likely familiar with the specific emotional rollercoaster of embroidery: the machine looks friendly, the touchscreen is inviting, and then—right when you hit the green button—your fabric shifts, the hoop feels "almost" tight, and the design stitches out a millimeter off-center, ruining the garment.

This project—a multi-colored top hat and cane design—is the perfect "stress test" for beginners. It forces you to master the three non-negotiable pillars of machine embroidery: (1) Stabilizer Physics, (2) Hooping Mechanics, and (3) Digital Placement.

As someone who has trained operators on everything from home units to 100-head industrial lines, I can tell you this: the machine is rarely the problem. The variable is almost always the human hands setting it up. This guide will walk you through the process, not just telling you what to do, but explaining why it matters, using the sensory cues (sight, sound, touch) that professionals rely on.

Calm the Panic First: Decoding the Screen's Logic

The video demonstrating this project beings with the screen displaying a multi-color design and indicating five colors in the stitch sequence. If you are new to this, your first instinct might be panic: "I don't have those exact colors!" or "Why is it asking for pink when the hat is black?"

Here is the mindset shift that will save you hours of frustration: The machine is color-blind.

The Brother SE-400 generally does not have optical sensors to detect the thread spool you loaded. It only sees "Stitch Stop 1," "Stitch Stop 2," and so on. The colors shown on the LCD are digital suggestions, rarely matching the thread reality. Your job is to be the "General" of the operation; the machine is just the soldier executing orders.

The Golden Rule of Trust:

• Your Job: Keep the fabric stable (physics) and the thread path consistent (tension).
• The Machine's Job: Repeat the X/Y axis motion accurately.

If you understand this division of labor, you stop blaming the machine for puckering and start looking at your creative choices.

The "Hidden" Prep: Controlling Texture and Drag (Before Toucing the Hoop)

The tutorial utilizes Sulky Sticky+ self-adhesive stabilizer, applying it essentially like a giant sticker to the back of the fabric.

This distinction—placing it on the back—is critical. Beginners often try to float fabric on top of sticky stabilizer hooped separately, which is a valid technique, but for this specific method, we are creating a "fabric sandwich."

Why use adhesive stabilizer here? Because small, dense designs (like this top hat) exert a "pull force" on the fabric. If the fabric isn't fused to the stabilizer, the needle penetrations will draw the loose fabric inward, causing the dreaded "puckering" effect.

The Sensory Prep Check

Experienced embroiderers don't just look; they feel. When you apply the stabilizer, run your palm firmly across the fabric.

• Visual: Look for air bubbles trapped between the stabilizer and fabric. These are "death zones" where the stitching will distort.
• Tactile: The fabric should feel stiffer, almost like cardstock. If it still drapes like a soft t-shirt, your stabilizer might be too light.

Prep Checklist (The "Pre-Flight" Routine):

• hidden Consumble Check: Do you have temporary spray adhesive (if not using sticky backing)? Do you have sharp embroidery scissors?
• Cut fabric large enough to cover the 4x4 hoop with at least 2 inches of margin on all sides (hooping handles).
• Cut the Sulky Sticky+ to match the fabric size.
• Peel the backing and smooth the stabilizer onto the back of the fabric (wrong side).
• The "Cold Press": Press firmly with the heel of your hand to activate the adhesive bond.
• Confirm white bobbin thread is installed (standard 60wt or 90wt embroidery bobbin thread).
• Line up your 5 thread spools in stitching order on your desk.

If you are researching a embroidery machine for beginners, understanding this preparation phase is more valuable than knowing which button does what. Most failure happens here, at the kitchen table, before the machine is even turned on.

Hooping the Brother SA431 4x4 Frame: The "Snap" of Success

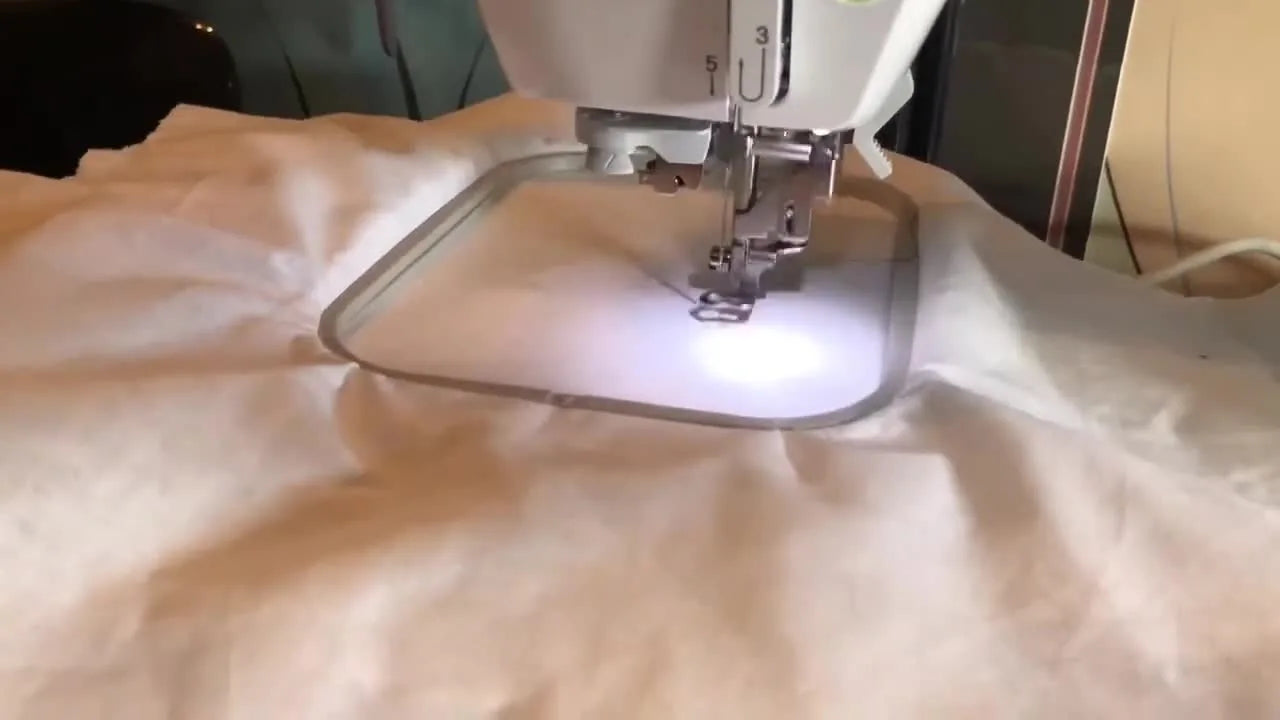

In the video, the fabric-and-stabilizer sandwich goes into the standard plastic hoop. The creator carefully aligns the inner hoop clips with the outer hoop slots until they engage.

Hooping is where "Experience" beats "Theory." The goal is "Neutral Tension."

The "Drum Skin" Myth

You will hear people say the fabric should be "tight as a drum." Be careful. If you pull the fabric until it screams, you stretch the fibers. When you remove the hoop later, the fibers snap back to their original size, creating deep wrinkles around your beautiful embroidery.

The Action:

1. Loosen the outer hoop screw significantly.
2. Place the inner hoop + fabric inside.
3. Tighten the screw just enough to hold it.
4. The Sensory Check: Gently pull the edges just to remove slack. Then, tighten the screw fully.
5. The Sound: You should hear or feel a defined "Click" or "Snap" as the inner ring seats into the bottom ring. If it feels mushy, it’s not seated.

The Pro Tip: If you find yourself constantly tugging the fabric or getting "Hoop Burn" (shiny ring marks that won't wash out), this is a limitation of standard plastic hoops. In production environments, we often switch to a magnetic embroidery hoop for this reason. Magnetic frames hold fabric firmly without the crushing force of a screw-clamp mechanism, which is safer for delicate fabrics and infinitely faster for your hands.

For now, if you are using the standard brother 4x4 embroidery hoop, aim for "Taunt but not Stretched."

Machine Setup: The "Safety Belt" Checks

The creator loads black thread first, installs the embroidery foot (Q foot), and confirms the machine is ready.

This sounds mundane, but let's look at the mechanical risks. The SE-400 is a robust machine, but it cannot defy physics.

Two Critical Observations

1. The Presser Foot Trap: In the video, the presser foot is lowered, turning the light green. Note: If you stitch with the presser foot up (a common fatigue error), you will create a "bird's nest" of tangled thread in the bobbin case within 3 seconds. The machine needs the foot down to engage the top tension discs.
2. Thread Path Hygiene: Notice the creator threads the machine deliberately. Thread must sit deep inside the tension discs. If you "miss" the tension disc, the machine will vomit loose loops of thread all over your design.

Setup Checklist (Execute right before touching the LCD):

• Hardware: Embroidery foot (Q foot) is screwed on tight. (Wiggle it to check).
• Hoop: Attached to the embroidery arm. Give it a gentle tug to ensure it is locked in.
• Bobbin: Area is clear of fuzz; bobbin is seated with thread pulling counter-clockwise (usually).
• Top Thread: Loaded for Color #1.
• Safety: Presser foot is DOWN (Green light on).
• Tools: Snips placed within reach (not on the machine bed where they can rattle into the needle).

If you are operating a brother sewing and embroidery machine, treating these checks like a pilot's pre-flight list will reduce your error rate by 90%.

LCD Management: Material Efficiency as a Skill

The video utilizes the layout screen to move the design toward the bottom of the hoop area.

Why? To save fabric. Embroidery consumables are expensive. If you center every small design, you waste the corners of your stabilizer and fabric.

The "Live" Feedback: As the creator taps the arrows on the touch screen, observe the embroidery arm moving physically. This is your visual confirmation.

• If the screen moves but the arm doesn't: You may be in "Edit" mode, not "Sewing" mode.
• If the arm moves: The machine is mechanically registered.

Learning hooping for embroidery machine technique is half the battle; the other half is using the digital tools to maximize your material usage.

The Size-Check Button: Your Insurance Policy

The video shows the creator pressing the "Size Check" (or Trace) function. The hoop travels to the four corners of the design’s bounding box.

Never skip this.

Even for a small 3.3cm x 3.6cm design, you must verify:

1. Needle Clearance: Will the needle hit the hard plastic of the hoop? (This breaks needles and can knock the machine timing out).
2. Fabric Edge: Will the design stitch off the fabric onto just the stabilizer?

The Visual Check: Lean in and watch the needle (which is up) relative to the hoop edge. You want a "safety buffer" of at least a pinky-width.

The Run: 5 Colors, 5 Stops, 5 Opportunities for Error

The video proceeds with the stitching: Black -> Blue -> Neon Green -> Orange/Pink.

On a single-needle machine like the SE-400, "multi-color" means "manual labor." You are the color changer.

The Rhythm of the Thread Change

1. Audio Cue: The machine stops and beeps.
2. Action: Lift presser foot.
3. Trim: Cut the thread at the spool, then pull the tail out from the needle eye. (Experts pull from the needle to avoid dragging lint backward into the tension discs).
4. Re-thread: Load the next color.


The Trap of Complacency: By Color #4, you will be tempted to rush. You might thread sloppily or forget to lower the presser foot. Resist this. Treat Color #5 with the same respect as Color #1.

Operation Checklist (At every stop):

• Wait for the machine to fully stop.
• Cut the top thread cleanly.
• Thread the new color, ensuring it "clicks" into the tension guides.
• CRITICAL: Lower the presser foot.
• Start the machine.
• Watch the first 10 stitch penetrations to ensure tension is good.

When comparing embroidery hoops for brother machines, remember that a good hoop holds the registration (alignment) perfectly through all these stops and starts. If your hoop slips even 1mm during a thread change, your outline will not match your fill.

The Physics of Stabilization: Why This Worked (And When It Won't)

The video’s method was successful: sticky stabilizer on the back + standard hooping.

Why it worked: The adhesive prevented the fabric from "flagging" (bouncing up and down with the needle), and the standard hoop provided mechanical tension.

When this fails: If you try this on a slippery satin or a thick hoodie, you might struggle.

• Thick fabrics: The inner hoop might pop out.
• Delicate fabrics: The "snap" of the hoop creates permanent "hoop burn."

The "Tooling Up" Discussion

In a professional setting, we diagnose pain points to upgrade tools.

• Pain Point: "I can't hoop this thick bag/towel; it pops out." -> Solution: Sticky Stabilizer helps, but a magnetic frame is better.
• Pain Point: "I have hoop marks on this velvet." -> Solution: A magnetic embroidery hoop uses vertical magnetic force rather than lateral friction, eliminating hoop burn.

Warning: Mechanical & Magnet Safety
* Needles: Keep fingers away from the moving needle area. A stitching finger injury is serious.
* Magnets: If you upgrade to magnetic hoops, be aware they are industrial strength. They can pinch skin severely if snapped together carelessly and interfere with pacemakers. Handle with respect.

Color Management: The Map vs. The Territory

The SE-400 lists sequence colors (Black, Electric Blue, etc.), but the creator ignores the names and uses their own palette.

This is standard industry practice. The screen is a Map of Structure, not a Rulebook of Color. Use the screen to see what part is stitching (e.g., "Ah, this is the hat band"), then choose your thread accordingly.

If you find yourself doing this for 50 shirts—stopping every 2 minutes to change threads—you will quickly realize why businesses upgrade to multi-needle machines. A machine like the SEWTECH multi-needle series automates these color changes, allowing you to press "Start" and walk away. That is the difference between specific capacity (hobby) and volume capacity (business).

Finishing: The Art of the Trim

The machine finishes. The hoop is removed. The creator trims the "Jump Stitches."

The Technique: Don't pull the loose threads up tight—you might pull the bobbin thread up to the top. Lift the thread gently and snip close to the fabric surface. Sharp, curved embroidery scissors are mandatory here; standard kitchen scissors will hack your design.

Quick Decision Tree: Stabilizer & Hooping Strategy

Use this logic flow to decide your method for future projects.

START: What is your fabric type?

1. Woven Cotton / Canvas (Stable):
   • Method: Standard Hoop + Tear-away Stabilizer.
   • Risk: Low.
2. Knit / T-Shirt (Stretchy & Unstable):
   • Method: Cut-away Stabilizer (Mesh) + Standard Hoop (Don't stretch!).
   • Risk: Medium (Puckering if stretched).
   • Upgrade: Magnetic Hoop ideal to prevent stretching.
3. Delicate / Velvet / Performance Wear (Marred easily):
   • Method: "Pop" out risk is high; Hoop burn risk is high.
   • Solution: Use a magnetic embroidery hoop to hold without bruising the fabric.
4. Small Items / "Un-hoopable" items:
   • Method: Sticky Stabilizer "Floated" (Hoop only stabilizer, stick item on top).
   • Note: Similar to proper sticky hoop for embroidery machine techniques, using adhesive backing is the key here.

Troubleshooting: Only The Real Problems

Here is a structured method to fix the most common issues seen with this workflow.

The Upgrade Path: From Hobbyist to Producer

If you completed this project, congratulations. You navigated the physical and digital requirements of embroidery.

As you advance, listen to your body and your workflow:

• The Physical Trigger: If your wrists hurt from tightening screws or you are ruining fabrics with hoop marks, investigate Magnetic Hoops. They are the standard for ergonomics and fabric safety.
• The Production Trigger: If you have orders for 20 hats and the thought of changing thread 100 times (20 hats x 5 colors) makes you want to quit, that is your signal to look at Multi-Needle Machines.

The Brother SE-400 is a fantastic teacher. It forces you to learn the hard way. Once you master the routine—Stabilize, Hoop, Trace, stitch—you can scale that knowledge to any machine in the world.

Whether you stick with the standard hoop for brother embroidery machine setup or evolve into professional gear, the secret ingredient is always the same: Preparation.

FAQ

• Q: On a Brother SE-400, why do the LCD thread colors not match the real thread colors I want to use for a 5-color design?
  A: The Brother SE-400 is generally “color-blind,” so treat LCD colors as stitch-stop labels, not mandatory thread choices.
  • Follow the stitch sequence order (Stop 1, Stop 2, etc.), then choose your own thread colors for each step.
  • Use the screen to identify which part is stitching (structure), not which brand/shade to load.
  • Success check: The machine finishes each color block cleanly and stops at the expected moments for manual thread changes.
  • If it still fails: Re-check that the correct color is threaded for the current stop and that the presser foot is down before restarting.
• Q: How do I apply Sulky Sticky+ self-adhesive stabilizer correctly on a Brother SE-400 to prevent puckering on a small dense design?
  A: Bond the sticky stabilizer to the back (wrong side) of the fabric to create a firm “fabric sandwich” before hooping.
  • Cut fabric to cover the 4x4 hoop with at least ~2 inches margin all around, then cut Sticky+ to match.
  • Peel backing and smooth Sticky+ onto the fabric back, pressing firmly with the heel of the hand (“cold press”).
  • Success check: The fabric feels noticeably stiffer (often closer to cardstock than a drapey T-shirt) and shows no trapped air bubbles.
  • If it still fails: Re-smooth to eliminate bubbles and confirm the fabric is truly bonded (not just lightly touching) before hooping.
• Q: How tight should fabric be hooped in a Brother SA431 4x4 hoop on a Brother SE-400 without causing hoop burn or distortion?
  A: Aim for neutral tension—taut but not stretched—because over-tightening can cause hoop marks and post-hoop wrinkling.
  • Loosen the outer screw a lot, seat the inner hoop fully, then tighten only after slack is removed (not after stretching).
  • Pull edges gently just to remove looseness, then tighten the screw to secure.
  • Success check: You feel or hear a clear “click/snap” as the hoop seats, and the fabric surface looks smooth without being dragged out of grain.
  • If it still fails: If hoop burn keeps happening or you keep tugging to get stability, switching to a magnetic hoop is often the next step for delicate fabrics.
• Q: On a Brother SE-400, what causes a bird’s nest (thread tangle under fabric) right after pressing Start, and how do I fix it fast?
  A: The most common cause is stitching with the presser foot UP, which prevents proper top tension engagement.
  • Stop immediately, lift the presser foot, and cut away the tangled threads from the bobbin area.
  • Re-thread the top thread deliberately so it seats into the tension guides, then lower the presser foot before restarting.
  • Success check: The underside switches from big loose loops to a normal, controlled stitch formation within the first few penetrations.
  • If it still fails: Clean lint from the bobbin area and confirm the bobbin is seated correctly with the thread pulling in the correct direction for that setup.
• Q: How do I use the Brother SE-400 “Size Check/Trace” function to prevent needle breaks from hitting the hoop or stitching off the fabric edge?
  A: Run Size Check/Trace every time to confirm the design’s bounding box clears the hoop and stays on fabric.
  • Tap Size Check/Trace and watch the hoop travel to the four corners of the design area.
  • Lean in and confirm the needle (up position) has a safety buffer from the hoop edge.
  • Success check: The traced corners stay inside the safe sewing field with visible clearance—no point comes close to striking plastic.
  • If it still fails: Reposition the design on the layout screen and trace again before stitching (do not “send it” and hope).
• Q: What is the safest way to do manual thread changes on a Brother SE-400 during a 5-color embroidery design without losing registration?
  A: Treat every stop like Color #1: change thread cleanly, re-thread correctly, and always restart with the presser foot DOWN.
  • Wait for the machine to fully stop and beep, then lift the presser foot to release tension for re-threading.
  • Cut at the spool and pull the thread tail out from the needle area (avoid dragging lint backward through tension discs).
  • Lower the presser foot before pressing Start, then watch the first 10 stitches closely.
  • Success check: The outline and fills continue lining up after each stop with no sudden shift or gaps.
  • If it still fails: If alignment shifts during stops/starts, re-hoop and ensure the stabilizer-to-fabric bond is firm; frequent slipping is a strong sign a magnetic hoop may help.
• Q: What safety risks should Brother SE-400 users know about needles and magnetic embroidery hoops during setup and stitching?
  A: Keep hands clear of the needle area during motion, and handle magnetic hoops as industrial-strength pinch hazards (especially for pacemakers).
  • Keep fingers away from the moving needle zone, especially during trace/size-check and the first stitches after restarting.
  • If using magnetic hoops, separate and join magnets slowly and deliberately to avoid skin pinches.
  • Success check: Hands never need to be near the needle path while the machine is running, and magnetic parts never “snap” together unexpectedly.
  • If it still fails: Pause and reset the workflow—move tools (snips) off the machine bed, re-check hoop attachment, and follow the machine manual’s safety guidance before continuing.
• Q: When Brother SE-400 embroidery keeps causing hoop marks, fabric shifting, or slow multi-color production, what is the best upgrade path from techniques to tools to capacity?
  A: Start with technique fixes, then upgrade to magnetic hoops for stability/ergonomics, and only then consider a multi-needle machine if color-change labor is the bottleneck.
  • Level 1 (Technique): Improve stabilizer bonding, hooping tension (no stretching), and always run Size Check/Trace.
  • Level 2 (Tooling): If hoop burn or slipping persists, a magnetic hoop often reduces crushing force and speeds hooping.
  • Level 3 (Capacity): If frequent manual thread changes are the main pain point for batches, a multi-needle machine is typically the efficiency solution.
  • Success check: Fewer re-hoops, consistent registration across color stops, and a noticeably smoother workflow without “panic fixes.”
  • If it still fails: Identify the primary trigger (hoop burn vs. shifting vs. thread-change time) and address that single constraint first instead of changing multiple variables at once.
