Brother Quattro 2 Innov-is 6700D Screen Tour That Actually Saves You Time: Built-In Designs, Hoop Icons, Arched Text, and the Needle Choices That Prevent Breakage

If you’ve ever stared at your Brother Quattro 2 Innov-is 6700D screen thinking, “This machine is amazing… but why do I still feel slow?”, I want you to stop and take a breath. In my 20 years of teaching machine embroidery, I have seen seasoned sewists reduced to tears not because they lack talent, but because modern interface friction kills creativity.

The good news is the interface is telling you almost everything you need—design size, stitch order, thread colors, and hoop compatibility—if you learn to decode it.

In this "White Paper" grade guide, I’m going to walk you through the exact on-screen path shown in the video: built-in design browsing (Disney/Pixar and florals), reading the design specs panel, using Embroidery Edit, and mastering the Array tool.

But we are going deeper than the buttons. I will add the "shop-floor" sensory details the screen doesn’t teach: the sound a properly tensioned hoop makes, the "drum-skin" feel of proper stabilization, and the exact moment when upgrading to a magnetic frame stops being a luxury and becomes a medical necessity for your wrists.

Get Oriented Fast on the Brother Innov-is 6700D Main Menu (So You Stop Tapping in Circles)

The video starts right where most beginners hesitate: the main embroidery menu with the big icons (Embroidery, Embroidery Edit, and the Disney section). This is your command center.

Here’s the mental model to navigate this without cognitive fatigue:

• Embroidery (The Library): This is for consumption. You are browsing what is already "baked" into the machine.
• Embroidery Edit (The Workshop): This is for construction. Go here to add lettering, combine designs, or tweak layout.
• Disney (The VIP Lounge): A specialized library category.

When you tap into Disney and scroll (the video uses Nemo as an example), do not fall in love with a thumbnail yet. Your eyes must immediately dart to the specs panel. Why? Because falling in love with a design that doesn’t fit your available hoop is the #1 cause of beginner frustration.

Read the Design Specs Panel Like a Pro: Dimensions, Thread Order, and Safety Gates

When the presenter selects a design (Belle is used as the example), the machine displays two critical data sets. Ignore the pretty picture for a second and look at the math.

1. Thread Color List (Right Side): The video references Sulky thread colors. Note: If you use a different brand (like Brothread or Madeira), print a conversion chart.

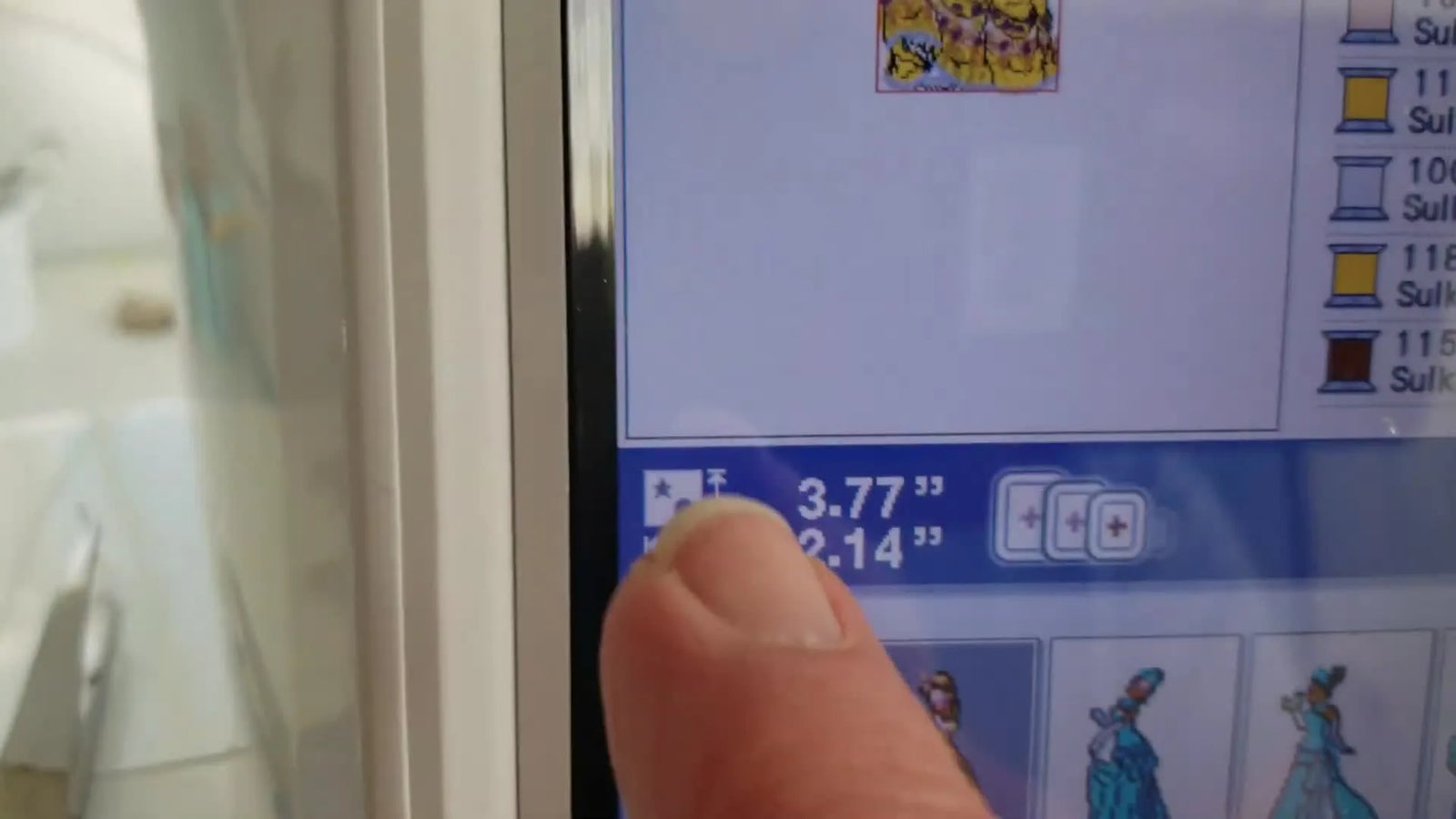

2. Design Info (Left Side): In the video, Belle is 3.77" x 2.14".

The "Go/No-Go" Safety Check

That number—3.77 inches—is not a suggestion. It is a boundary. On the same screen, you will see three hoop icons. These are your safety gates.

• Greyed out icon? The machine physically blocks you from using that hoop.
• Lit up icon? You are safe to proceed.

I tell my students: Treat the hoop icons as a permission slip. If you are planning to use a standard brother 4x4 embroidery hoop, you must verify the design fits before you hoop your fabric. If you force a 4.1" design into a 4x4 hoop, you will inevitably hit the frame, break a needle, and potentially knock the machine's timing out of alignment.

Don’t Let Big Florals Ambush You: The Physics of Large Hooping

The video jumps from Disney into the Floral category. One design highlighted (a cross-hatch/diamond style) displays as 7.63" x 6.09".

This is a Large Field Design. The physics change here.

• Small Field (4x4): Fabric stays relatively stable.
• Large Field (5x7 and up): Fabric wants to shift, "flag" (bounce up and down), and distort.

If you are using a brother 5x7 hoop, this design won't fit. You need the larger hoop. But more importantly, a design that is 7.63" wide requires impeccable stabilization.

The "Drum Skin" Sensory Check

When hooping for a design this large, you cannot rely on visual tightness. You need to use your hands and ears.

1. Tactile: Run your fingers over the hooped fabric. It should be taut, but not stretched like a rubber band (which distorts the grain).
2. Auditory: Tap the fabric with your fingernail.
   • Thud/Thump: Too loose. The needle will push the fabric down, causing bird-nesting.
   • Sharp "Tick" or "Drum" sound: Perfect tension.

The "Hoop Burn" Problem

To get that "drum sound" with a standard two-piece plastic hoop, you often have to crank the screw incredibly tight. This creates "hoop burn"—permanent creases on delicate fabrics like velvet or performance wear.

Professional Insight: If you struggle with hoop burn on large designs, this is the trigger point to investigate the brother magnetic embroidery frame. Because it uses magnetic force rather than friction to hold the fabric, it eliminates the "crush" marks while maintaining that essential drum-skin tension.

The "Hidden" Prep: USB Reality, Ergonomics, and the Stabilizer Decision Tree

The presenter points out a very real workflow friction: tipping the USB without a stick inserted gives you a “USB media is not loaded” error. Furthermore, the side port is hard to reach.

The "Pilot's Pre-Flight" Strategy

Don't let these small annoyances break your flow.

1. The USB Extender: Buy a short 6-inch USB extension cable. Leave it plugged into the machine. Now you can swap drives without groping the side of the machine blindly.
2. The Stabilizer Decision Tree: Stabilizer is not optional; it is the foundation of your house. Use this logic tree to make the right choice every time.

Decision Tree: Fabric → Stabilizer Strategy

• Scenario A: The fabric stretches (T-shirts, Polo, Minky, Knits)
  • Diagnosis: The needle loops will distort the fabric structure.
  • Prescription: Cutaway Stabilizer. No exceptions.
  • Sensory Check: If you pull the fabric and it moves, use Cutaway.
• Scenario B: The fabric is stable (Denim, Canvas, Towels)
  • Diagnosis: The fabric holds its own shape.
  • Prescription: Tearaway Stabilizer.
  • Caveat: If the design has a high stitch count (over 10,000 stitches), switch to Cutaway for safety.
• Scenario C: The fabric has pile/fluff (Towels, Fleece, Velvet)
  • Diagnosis: Stitches will sink into the fluff and disappear.
  • Prescription: Water Soluble Topper (Solvy) on top + Stabilizer on bottom.

Hidden Consumable Alert: Keep a can of Temporary Spray Adhesive (like 505) or a glue stick handy. Floating a piece of stabilizer under the hoop often saves a project that is slipping.

Prep Checklist (Do this *before* touching the screen)

• Clean the Bobbin Area: Remove the needle plate and brush out lint. (Lint buildup = messy looping).
• Insert USB: Plug it in before turning the machine on to ensure it mounts correctly.
• Design Check: Confirm dimensions on-screen (e.g., 3.77" x 2.14").
• Stabilizer Match: Does your stabilizer choice match the Decision Tree above?
• Needle Check: Is the needle straight? (Roll it on a flat surface; if the tip wobbles, bin it).


Embroidery Edit: Fonts, Letters, and Building Text Without Regrets

The presenter enters Embroidery Edit to build a name. This is the "Workshop." The machine allows you to combine built-in fonts with external designs.

She selects a serif font and types A B C D E F G.

Action: The "Type Once" Rule

Do not try to format as you type.

1. Select Font.
2. Type the full word/phrase.
3. Hit "Set" or "Enter."

Only after the text is on the screen should you worry about size or curvature. This prevents the machine from lagging.

Curve Text with the Array Tool (The "Pro" Button)

Most beginners manually rotate letters to make an arch. Stop doing that. The video shows the Array button. This is your magic wand.

• Action: Tap Array.
• Select: The "Upper Arch" icon.
• Result: The text instantly snaps into a perfect semi-circle.




In the video, the arched text is 1.70" x 5.05". Note that curving text increases the total width of the design. Always re-check that this new width fits your selected hoop!

Needle Choices: Why Schmetz Gold 75/11 is Your "Daily Driver"

The video features Schmetz “Gold” Titanium Nitride embroidery needles (Size 75/11).

The "Experience" Calibration

Why Titanium? Standard nickel-plated needles heat up due to friction. At 600-800 stitches per minute, a hot needle can melt polyester thread or synthetic stabilizers, causing "gummy" breaks. Titanium needles stay cooler and last roughly 3x longer.

• 75/11 Embroidery Needle: Your default for cotton, quilting cotton, and standard poly thread.
• 90/14 Embroidery Needle: Switch to this for heavy canvas, denim, or if you are using thicker metallic threads.
• 75/11 Ballpoint: Use only for knits to push fibers aside rather than piercing them.

Warning: Mechanical Safety
Always power off the machine or engage "Lock Mode" before changing needles. If your foot hits the pedal while your fingers are changing a screw, the needle bar can come down with 50lbs of force.

Hooping and Production Reality: The "Pain Point" Upgrade Path

The video focuses on the screen, but the physical act of hooping is where 80% of errors occur.

The "Standard Hoop" Reality

Standard hoops rely on friction and screw tension. They work fine for hobbyists doing 1-2 items. But if you are doing a run of 20 shirts, you will encounter:

1. Hand Fatigue: Screwing and unscrewing tightens the carpal tunnel.
2. Hoop Burn: Rings left on the fabric.
3. Slippage: The "pop" sound of fabric loosening mid-stitch.

When to Upgrade Mechanics

You don't need to suffer. We map solutions to your specific pain points:

• Pain: "My wrists hurt after 5 shirts."
  • Solution: An ergonomic embroidery hooping station. It holds the outer ring static so you can use gravity and body weight to hoop, sparing your wrists.
• Pain: "I hate the burn marks on my polo shirts."
  • Solution: This is the prime use case for magnetic embroidery hoops. The magnets snap the fabric flat without grinding the fibers against plastic ridges. They are faster, gentler, and safer for delicate items.
• Pain: "I can't align the logo in the same spot twice."
  • Solution: Use a hooping station with a predefined grid. Consistency is not luck; it is tooling.

Warning: Magnet Safety
embroidery machine hoops utilizing high-power magnets are not toys. They can pinch fingers severely. If you have a pacemaker, consult your doctor before handling strong magnetic fields.

Troubleshooting: The "Panic Button" Guide

When things go wrong, do not change the software settings. 99% of issues are physical. Use this "Low-Cost to High-Cost" troubleshooting hierarchy.

Operation Checklist: Run This Before Every Start

• Hoop Check: Fabric sounds like a drum (or magnets are fully snapped).
• Clearance: Nothing is behind the machine (wall, coffee cup) that the hoop arm will hit.
• Top Thread: Pulled through needle eye? (Feel for slight resistance "like flossing teeth").
• Bobbin: Is the tail cut short?
• Speed: New to this machine? Reduce speed to 350-600 SPM for the first layer.

The Verdict: From Operator to Master

The Brother Innov-is 6700D is a powerhouse, but it is a "garbage in, garbage out" system. The screen is your dashboard, but your hands are the engine.

Master the design specs reading. Respect the hoop limits. And when you find yourself fighting the physical materials—whether it's slipping loops or aching wrists—remember that professionals don't just "try harder." They upgrade their tools. Whether it's a Titanium needle or a magnetic embroidery hoop, the right tool turns a struggle into a workflow.

Now, go thread that machine. You’re ready.

FAQ

• Q: How do I use the Brother Innov-is 6700D design specs panel to prevent choosing the wrong embroidery hoop size?
  A: Use the on-screen design dimensions and hoop icons as a hard “go/no-go” gate before hooping any fabric.
  • Read the design size on the Design Info panel (example shown: 3.77" x 2.14") and treat it as a boundary, not a suggestion.
  • Check the three hoop icons: proceed only with a hoop icon that is lit; stop if the icon is greyed out.
  • Re-check hoop fit after edits (especially curved text with Array) because width can increase (example shown: 1.70" x 5.05" after curving).
  • Success check: the selected hoop icon stays lit for the chosen design, and the design loads without hoop warnings.
  • If it still fails: confirm the edited design width again and choose a larger hoop rather than forcing the stitch field.
• Q: How do I hoop fabric for large Brother Innov-is 6700D designs to stop flagging and bird-nesting during stitching?
  A: Hoop to “drum-skin” tension using touch and sound, not just visual tightness.
  • Tighten hooping until the fabric is taut but not stretched (avoid distorting the grain).
  • Tap the hooped fabric with a fingernail: adjust until the sound is a sharp “tick/drum,” not a thud.
  • Add stabilizer correctly before stitching, especially for large fields where fabric wants to shift.
  • Success check: the fabric produces a drum-like sound and does not bounce/“flag” when the needle begins stitching.
  • If it still fails: add a temporary spray adhesive or glue stick to prevent stabilizer/fabric slip, then re-hoop and test again.
• Q: How do I stop hoop burn marks on delicate fabric when using a standard Brother Innov-is 6700D two-piece embroidery hoop?
  A: Reduce screw-crank pressure and switch the holding method when hoop burn is the trigger.
  • Back off extreme screw tension and aim for firm-but-not-crushing hoop pressure.
  • Use proper stabilization so the project doesn’t rely on over-tight hoop friction to stay stable.
  • Consider upgrading to a magnetic embroidery frame when hoop burn persists, because magnetic hold often prevents “crush” rings while keeping fabric flat.
  • Success check: after unhooping, the fabric shows minimal to no permanent ring/crease, and stitch quality remains stable.
  • If it still fails: test on scrap with the same fabric/stabilizer combo and evaluate whether a magnetic frame or hooping aid is needed for that material.
• Q: How do I fix Brother Innov-is 6700D “USB media is not loaded” when loading embroidery designs?
  A: Insert the USB stick before trying to access USB, and simplify access with a short extension cable.
  • Plug the USB drive into the machine (the error occurs when the USB option is tapped without media inserted).
  • Leave a short USB extension cable plugged in so swapping drives is easy and you don’t struggle with the side port.
  • Retry the USB menu after the drive is fully seated.
  • Success check: the machine recognizes the USB and displays the design files instead of the “USB media is not loaded” message.
  • If it still fails: power-cycle and insert the USB before turning the machine on so the drive mounts cleanly.
• Q: What stabilizer should I use on the Brother Innov-is 6700D for T-shirts, denim, and towels using the fabric-to-stabilizer decision tree?
  A: Match stabilizer to fabric behavior first, then adjust for stitch count and pile.
  • Use cutaway stabilizer for stretchy fabrics (T-shirts, polos, knits, minky) because stretch distortion is the main risk.
  • Use tearaway stabilizer for stable fabrics (denim, canvas, towels), but switch to cutaway for higher stitch counts (over 10,000 stitches) as a safer choice.
  • Add water-soluble topper on top for pile/fluff fabrics (towels, fleece, velvet) so stitches don’t sink and disappear.
  • Success check: stitches sit on the surface cleanly (especially on pile with topper) and the fabric does not ripple or warp after stitching.
  • If it still fails: increase stabilization (often moving from tearaway to cutaway) and re-check hoop tension using the drum-sound test.
• Q: How do I fix bird nesting on the bottom on a Brother Innov-is 6700D without changing embroidery software settings?
  A: Re-thread the TOP thread correctly first; bird nesting is usually physical threading/tension, not design data.
  • Raise the presser foot before threading so the thread seats into the tension discs.
  • Re-thread the entire top path carefully and reinsert the thread through the needle eye.
  • Clean out lint in the bobbin area (remove needle plate and brush) if looping keeps happening.
  • Success check: the underside changes from a “nest” of loops to clean, controlled stitches with no wad forming.
  • If it still fails: change to a fresh embroidery needle (75/11 is the default shown) and verify the hooping is tight enough to prevent fabric bounce.
• Q: What needle size and safety steps should I follow when changing embroidery needles on the Brother Innov-is 6700D (Schmetz Gold 75/11 example)?
  A: Use the 75/11 embroidery needle as the daily default and power off or use Lock Mode before touching the needle area.
  • Power off the machine or engage Lock Mode before loosening the needle screw (prevent sudden needle-bar movement).
  • Use 75/11 embroidery needle for standard cotton and typical polyester thread; move to 90/14 for heavy canvas/denim or thicker/metallic threads.
  • Check needle straightness by rolling it on a flat surface; replace if the tip wobbles.
  • Success check: stitching runs without shredding or skipped stitches, and the needle change is completed with the machine unable to move unexpectedly.
  • If it still fails: treat thread shredding or skipped stitches as a needle-first issue—install a brand-new needle and re-test at a reduced speed for the first layer.
