Brother PRS100 “Basting in the Hoop” That Actually Works: Float Fabric, Kill Hoop Burn, and Stop the Thread Error Before It Starts

If the sheer speed and mechanical rhythm of your Brother PRS100 (Persona) ever made you feel a slight knot of anxiety in your stomach, take a deep breath. You are not alone. In my two decades of training embroidery professionals, I’ve seen seasoned sewers hesitate before hitting "Start" on this machine. It is capable, aggressive, and sometimes a bit "too smart" for its own good.

But control is just a matter of understanding the safeguards hidden in your menu.

The Basting in the Hoop feature is your primary safety net. It is the quiet superpower that transforms a "fingers crossed" attempt into a professional, predictable result—especially when you are floating delicate fabrics, battling pile (like towels), or trying to keep a slippery wash-away topper from ruining your day.

The Calm-Down Moment: What “Basting in the Hoop” Really Does (It’s Not Just Extra Stitches)

Let's demystify the physics here. When you engage "Basting in the Hoop" on the PRS100, the machine executes a large, long-stitch perimeter run around your design area before the actual embroidery data begins.

To a novice, this looks like a simple box. To an expert, this is Stabilization Management.

Embroidery is a battle against distortion. As the needle penetrates the fabric thousands of times, it creates a "push and pull" effect that warps the material. Basting mitigates this before it starts.

In practical terms, this simple box delivers three critical wins:

1. It anchors floated fabric: It secures your top fabric to the hooped stabilizer, preventing the "drift" that causes outlines to misalign.
2. It prevents "Hoop Burn": By floating fabric (lying it on top) and basting it down, you avoid crushing delicate fibers (like velvet or corduroy) between the inner and outer hoop rings.
3. It locks down Topper: It traps your wash-away topping (film) so the presser foot doesn’t drag it, fold it, or snag it during high-speed travel.

If you have ever watched a piece of topper get sucked into a dense fill stitch and felt that sinking feeling in your chest, basting is the preventative cure.

The “Hidden” Prep Pros Do First: Avoiding the Phantom Thread Error

Before you even touch the screen settings, we need to address a specific mechanical quirk of the Brother PRS100 that drives new users crazy.

The Symptom: You press start. The machine lowers the needle to baste, fails to form a stitch, and immediately throws a “Check upper and lower thread” error—even though your threading is perfect.

The Expert Diagnosis: The machine’s initial movement for basting is often a "jump" to the corner. If your bobbin thread tail is too short, the hook cannot catch it during that first swing. The sensor detects a missed stitch cycle and assumes a break.

The Sensory Fix:

1. Open the bobbin case cover.
2. Pull the bobbin tail: Don't just leave it at the cutter. Pull gently until you feel the spool turn—give yourself an extra 2-3 inches of tail.
3. Visual Check: Lay that tail across the stabilizer so the first needle drop stitches over it or near it.

If you are setting up a professional hooping station for machine embroidery, make this "Tail Check" a non-negotiable part of your routine. It is a small habit that reduces false alarms by 90%.

Warning: Mechanical Safety. Once you press Start, the PRS100 moves fast (up to 1,000 stitches per minute). Keep fingers, scissors, and tweezers at least 4 inches away from the needle bar. Never "chase" a loose thread with your hand while the machine is active.

Prep Checklist: The "Pre-Flight" Inspection

(Do not bypass these steps. Treat them like a pilot's checklist.)

• Stabilizer Integrity: Confirm your stabilizer is hooped drum-tight. Sensory Check: Tap it. It should sound like a drum skin, not a thud.
• Hoop Clearance: Check the back of the hoop. Is the stabilizer fully captured by the magnetic or screw lock?
• Fabric Placement: Is your fabric piece large enough to cover the entire basting area, not just the design?
• Topper Readiness: Cut your wash-away topper slightly smaller than the fabric but larger than the basting box.
• Consumable Check: Do you have your embroidery scissors (curved tip preferred) within reach for removal later?
• The "Tail Check": Is your bobbin thread pulled out nicely to ensure that first stitch catches?


Float Fabric Without the Pucker Panic: The Layering Logic

The video demonstrates the "Float Method," which is the industry standard for un-hoopable items. However, success relies on the correct friction between layers.

The "Sandwich" Formula:

1. Base: Tearaway or Cutaway stabilizer is hooped tightly in the standard frame.
2. Middle: Fabric is placed on top of the stabilizer (floating). It is not clamped.
3. Top: Wash-away topper is placed on top of the fabric.

Why this works: The hooped stabilizer provides the structural rigidity. The basting stitches provide the temporary clamping force.

If you are new to floating embroidery hoop techniques, this is the safest entry point. The PRS100’s basting stitches are long (approx 6-10mm), meaning they have very low grip strength—easy to pull out, but strong enough to hold fabric flat.

Pro Tip (Hidden Consumable): If your fabric is slippery (like satin or performance wear), a light mist of Temporary Spray Adhesive (like 505) on the stabilizer helps hold the fabric in place before the basting stitches lock it down.

The Brother PRS100 Basting Distance Setting: The 0.0–12.0 mm Range

This is the technical setting that separates the "okay" results from the "perfect" ones: Embroidery Basting Distance.

On the Brother PRS100, you have granular control over this buffer zone:

• Range: 0.0 mm to 12.0 mm
• Increment: 0.5 mm steps
• Factory Default: 5.0 mm

Why does this millimeter difference matter? The default 5.0 mm is a "safe" distance to keep the presser foot away from the design edge. However, if your design barely fits in a 100x100mm hoop, adding a 5mm border creates a 110x110mm footprint—triggering the machine to reject the hoop size.

The Fix: You must manually reduce the distance to "shrink" the total footprint.

Where to find it

Navigate to the Settings Menu (Page 1, usually near the bottom). Look for Embroidery Basting Distance.

Expert's "Sweet Spot" Guide

• The Everyday Standard (2.0 mm): The video shows 2.0 mm, and I agree. It keeps the stabilizer firm near the design without stitching into the design.
• The "Emergency Fit" (0.0 – 0.5 mm): Use this ONLY when your design extends to the absolute limit of the hoop. Risk: Removing these stitches is harder because they hug the design outline.
• The "Texture Saver" (6.0 – 10.0 mm): Use this for thick towels or fleece. If the basting is too close (2mm) on a thick towel, it will compress the pile right next to your satin stitch, creating an ugly "trench" or permanent indentation. Move it out to let the fabric breathe.

Crucial Memory Bank: The PRS100 remembers this setting. If you set it to 0.0mm for a logo today, it will look for that tight tolerance on tomorrow's towel—so always check.

The Order of Operations: The "Combine-First" Rule

This is the #1 reason for user frustration: Premature Basting.

The PRS100 applies basting as a "wrapper" around whatever is currently selected. If you apply it too early, it will only wrap the first object, leaving your subsequent text or additions outside the safety zone.

The Correct Workflow:

1. Import/Select your Main Design (e.g., the Star).
2. Add your Text or Monogram.
3. Position and Rotate everything. Finalize the layout.
4. LAST STEP: Press the Basting Icon (the pink flower/box).




What happens if you get the order wrong?

As shown in the video, if you baste the star then add the text, the basting box cuts right through your text or ignores it completely.

The Fix:

• Use the "Select" arrows to highlight the Basting Layer (it usually appears as the first color, often Black or Pink).
• Delete that layer.
• The machine will recalculate the boundary.
• Press the Basting Icon again. Now it wraps the whole assembly.




If you are handling a rush of holiday orders using a hooping for embroidery machine workflow, this sequence (Combine -> Align -> Baste) prevents the tragedy of stitching a perfect basting box right through the middle of a customer's name.

Setup Checklist: The "Go/No-Go" Decision

(Perform this immediately before pressing the green Start button)

• Distance Check: Is Embroidery Basting Distance set correctly? (e.g., 2.0mm for flats, 6.0mm for towels).

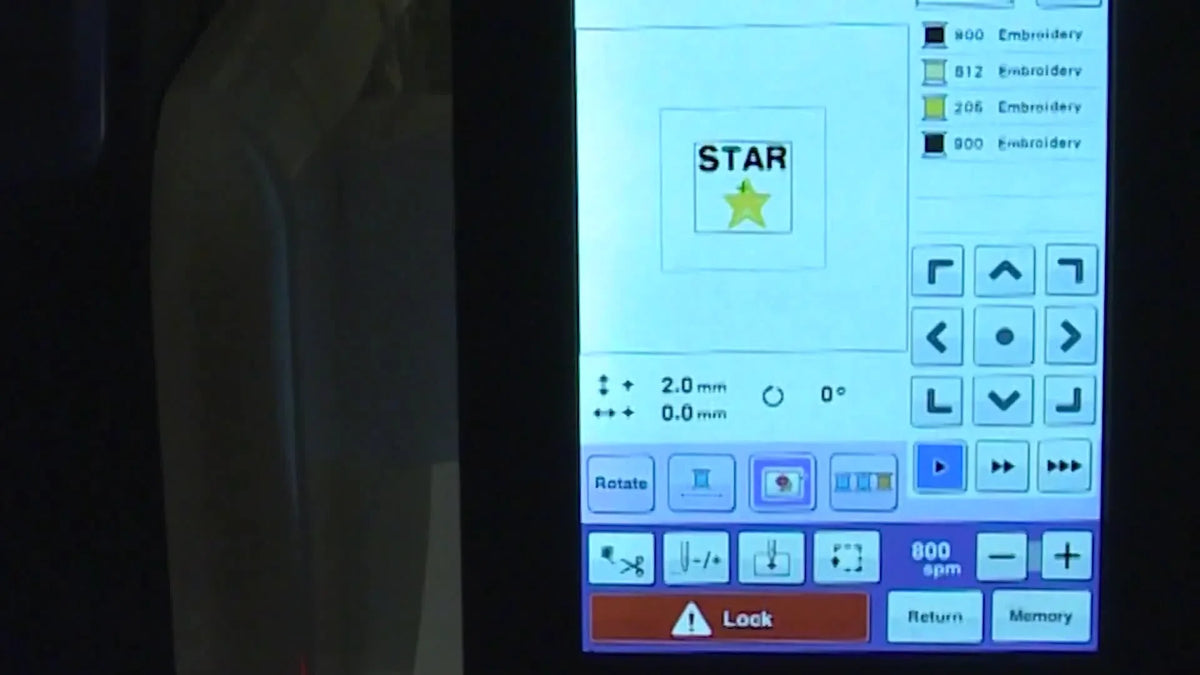

• Visual Containment: Does the pink basting line on the screen surround all design elements?
• Hoop Lock: Is the hoop physically snapped in and secure?
• Tail Length: Did you pull that extra bobbin tail?
• Clearance: Is the fabric draped so it won't get caught under the hoop arm moves?

The Stitch-Out: How to "Hand-Assist" Safely

When you press Start, the machine begins the basting run. This is a critical 10-second window.

The host demonstrates a technique I teach in workshops: Active Fabric Management. She gently holds the edges of the fabric/topper to keep them taut as the basting frame travels.

Sensory Cue: The fabric should feel flat, not pulled. You are essentially acting as a human clamp.

Safety Protocol: Keep your hands on the outside of the hoop frame. Never put your fingers inside the hoop area while the machine is moving. If the topper starts to ripple, hit the STOP button immediately, smooth it out, and resume. Don't try to fix it while the needle is firing.

Operation Checklist: The Post-Baste Inspection

(Stop the machine after basting finishes. Do not let it proceed to color 1 yet.)

• Tension Check: Look at the basting stitches. Are they sitting on top? (Good). Are they pulling the fabric too tight? (Bad).
• Squareness: Is the fabric square to the hoop? Basting acts as a visual grid. If it looks crooked now, it will look crooked later. Fix it now.
• Obstruction: Did a corner of the topper fold over? A quick snip or tape fix solves it.

The Removal: Clean extraction without fabric damage

Basting stitches are long jump stitches. They are designed to surrender.

The Extraction Protocol:

1. Flip the hoop over.
2. Snip the Bobbin Thread at one corner (where the knot is).
3. Flip back to the front.
4. Pull the top thread gently. The entire run should slide out like a ripcord.






Decision Tree: Fabric vs. Strategy

Use this logic flow to determine your setup. Do not guess; let the fabric dictate the tool.

Condition: What are you stitching on?

• A) Stable Woven (Cotton, Denim, Twill)
  • Strategy: Standard Hoop + Tearaway Stabilizer.
  • Topper: None needed.
  • Basting: Optional (use to verify placement).
• B) Deep Pile / Texture (Towels, Fleece, Velvet)
  • Strategy: Float Fabric + Cutaway/Tearaway + Basting (Set distance >5.0mm).
  • Topper: Mandatory water-soluble topper to keep stitches high.
  • Risk: Clamp marks (Hoop burn).
• C) Slippery / Delicate (Satin, Performance Silk)
  • Strategy: Float + Baste (Set distance 2.0mm).
  • Aid: Use spray adhesive or light tape.
  • Problem: Even basting needles can leave holes in silk.
• D) Production / Bulk (50+ Shirts)
  • Strategy: Stop floating. It's too slow.
  • Solution: Upgrade to Magnetic Hoops.

The Logic of Tool Upgrades: If you find yourself constantly floating fabric to avoid hoop burn (Scenario B & C), you are fighting your tools. The "Float method" is a workaround. The professional solution is a Magnetic Frame.

A magnetic embroidery hoop clamps the fabric firmly using magnetic force rather than mechanical friction. This eliminates the "crush" of hoop burn and removes the need to float-and-baste for stability, doubling your output speed.

Warning: Magnetic Hazard. Neodymium magnets used in embroidery frames are Industrial Grade. They can pinch fingers severely and must be kept away from pacemakers. Never let two magnetic brackets snap together without a separator.

Troubleshooting: The "Why is this happening?" Matrix

The "Why" Behind the Method: Cognitive Anchoring

The PRS100 is a machine of variables. The Basting feature is your variable control.

• 0.0mm - 0.5mm is your "Precision Fit" mode.
• 2.0mm is your "Quality Standard" mode.
• 8.0mm+ is your "Texture Protection" mode.

Understanding this doesn't just make you better at following a tutorial; it makes you a master of the machine's physics.

The Upgrade Path: When to Stop Struggling

As your skills mature, you will reach a crossroads. Technique can solve many problems, but it cannot solve physics or time.

1. Level 1 (Technique): Use the Basting features taught here. This solves alignment and stability for hobbyist-level projects.
2. Level 2 (Tooling): If you are tired of hoop burn or struggle with wrist pain from manual hooping, searching for a magnetic embroidery hoops for brother compatible frame is the logical next step. It replaces the "Float workaround" with a "Clamp solution."
3. Level 3 (Scale): If you are consistently hitting the limit of the 4x4 or 8x8 field, or if changing threads manually on the PRS100 is slowing down your 50-shirt order, you have outgrown the single-needle platform. This is where multi-needle machines (with auto-color change) become an investment in profit, not just a purchase.

If you are currently relying on a standard brother 4x4 embroidery hoop, mastering the basting distance (down to 0.0mm) is your immediate survival skill. But keep your eyes on the horizon—better tools are waiting when you are ready to scale.

Final Thought: The Brother PRS100 is a race car. Basting is your steering assist. Use it every time, and you’ll stop worrying about the crash and start enjoying the drive.

FAQ

• Q: How do I stop Brother PRS100 “Check upper and lower thread” error from popping up right when Brother PRS100 Basting in the Hoop starts?
  A: Pull a longer bobbin thread tail before pressing Start so the first basting stitch can catch cleanly.
  • Open the bobbin cover and gently pull the bobbin tail until you feel the spool turn; leave an extra 2–3 inches.
  • Lay the bobbin tail across the hooped stabilizer so the first needle drops stitch over/near the tail.
  • Press Start and let the basting run begin without touching the thread near the needle area.
  • Success check: the Brother PRS100 completes the basting box without immediately stopping and the error does not return.
  • If it still fails: stop the machine and re-check bobbin seating and threading per the Brother PRS100 manual, then repeat the tail-length check.
• Q: Why does Brother PRS100 say the hoop is too small after enabling Brother PRS100 “Basting in the Hoop,” and how do I fix it with Embroidery Basting Distance?
  A: Reduce Brother PRS100 Embroidery Basting Distance because the basting margin can push the total footprint outside the hoop limit.
  • Go to the Brother PRS100 Settings Menu and find “Embroidery Basting Distance” (range 0.0–12.0 mm, 0.5 mm steps).
  • Lower the distance from the factory 5.0 mm to a smaller value (often 2.0 mm; use 0.0–0.5 mm only for an emergency fit).
  • Re-check the on-screen basting outline to confirm it stays inside the hoop boundary.
  • Success check: the Brother PRS100 accepts the selected hoop size and shows the basting box fully contained.
  • If it still fails: remove the basting function temporarily to confirm the design fits, then re-enable basting with a smaller distance.
• Q: What is the correct workflow order for Brother PRS100 Basting in the Hoop so the basting box surrounds both design and text?
  A: Apply Brother PRS100 Basting in the Hoop last—after all design elements are combined, positioned, and finalized.
  • Import/select the main design, then add text/monogram, then rotate/position everything.
  • Only after the layout is final, press the Brother PRS100 basting icon to generate the basting layer.
  • If basting was added too early, select the basting layer, delete it, then re-apply basting so the boundary recalculates.
  • Success check: the pink basting line on the Brother PRS100 screen visually surrounds every element (design + text), with nothing outside the box.
  • If it still fails: confirm all elements are actually selected/combined before re-applying basting.
• Q: How do I judge correct hooping tightness for Brother PRS100 floating embroidery so fabric does not shift even after basting?
  A: Re-hoop the stabilizer “drum-tight,” then float fabric and let the basting stitches act as the temporary clamp.
  • Hoop the stabilizer first and tighten until it passes a tap test (do not hoop the fabric for floating jobs).
  • Place the fabric on top of the hooped stabilizer, then place wash-away topper on top if needed.
  • Run Brother PRS100 basting to anchor the layers; add a light mist of temporary spray adhesive if the fabric is slippery (a safe starting point—follow product directions).
  • Success check: tapping the hooped stabilizer sounds like a drum skin (not a dull thud) and the fabric does not “drift” when the basting completes.
  • If it still fails: stop and re-hoop tighter; shifting with basting often means the stabilizer was not tensioned enough.
• Q: What Brother PRS100 Embroidery Basting Distance should I use to reduce hoop burn on thick towels while using Brother PRS100 Basting in the Hoop?
  A: Increase Brother PRS100 Embroidery Basting Distance so the basting does not compress towel pile next to the design.
  • Set Embroidery Basting Distance farther out (often 6.0–10.0 mm for thick textures) before starting the basting run.
  • Use water-soluble topper on towels to keep stitches from sinking into the pile.
  • After basting finishes, pause and inspect for pile “trenches” near the basting line before continuing to color 1.
  • Success check: the towel pile near the design edge looks uncrushed and the basting line is not creating a visible indentation band.
  • If it still fails: switch to floating + basting as a workaround if you were hooping the towel directly, or consider a magnetic frame to reduce clamp marks.
• Q: What is the safe way to hand-assist fabric during Brother PRS100 Basting in the Hoop without risking finger injury at 1,000 stitches per minute?
  A: Keep hands outside the hoop frame and use the STOP button—never reach into the stitch field while the Brother PRS100 is moving.
  • Hold only the outer edges of fabric/topper to keep it gently taut as the basting frame travels.
  • Keep fingers, scissors, and tweezers at least 4 inches away from the needle bar once Start is pressed.
  • If topper ripples or folds, press STOP, smooth the topper, then resume—do not “chase” the problem while stitching.
  • Success check: the basting run completes smoothly with no snagged topper and your hands never enter the hoop opening.
  • If it still fails: re-cut the topper to a manageable size (smaller than fabric but larger than the basting box) and restart the basting step.
• Q: When should Brother PRS100 users stop floating and basting for bulk orders and move to magnetic embroidery hoops or a multi-needle machine for production speed?
  A: If floating + basting becomes your daily workaround (especially for 50+ garments), treat it as a capacity limit: optimize technique first, then upgrade tooling, then upgrade the platform.
  • Level 1 (Technique): use Brother PRS100 basting correctly (combine-first rule, correct distance, drum-tight stabilizer) to stabilize and verify placement.
  • Level 2 (Tool upgrade): move to magnetic embroidery hoops when hoop burn, slow hooping, or wrist strain makes floating the “default.”
  • Level 3 (Capacity upgrade): consider a multi-needle machine when manual thread changes and single-needle throughput cannot meet order volume.
  • Success check: your workflow hits consistent placement with fewer restarts and meets your daily output target without rushing.
  • If it still fails: track which failure repeats most (hoop burn, shifting, time per hoop) and upgrade the specific bottleneck first rather than changing everything at once.
• Q: What is the safest way to handle industrial magnetic embroidery hoops to avoid pinched fingers and pacemaker risk during embroidery setup?
  A: Treat magnetic embroidery hoop brackets as industrial-grade pinch hazards and keep them away from pacemakers.
  • Separate magnetic parts deliberately—do not let two brackets snap together without a separator.
  • Keep fingertips out of the closing path when placing magnetic clamps onto the frame.
  • Store magnets so they cannot slam together on a metal surface or onto each other.
  • Success check: clamps seat smoothly with controlled placement, with no “snap” impact and no finger contact points.
  • If it still fails: slow down the handling step and reposition using a safe grip area; if any medical device concerns exist, follow medical guidance and avoid strong magnets.
