Brother PRMS360 Magnetic Sash Frame on a PR1055X: The Fast, Wrinkle-Free Hooping Routine (Without Pinched Fingers or Hoop Burn)

If you have ever fought with a traditional screw-tension hoop—wrestling with the inner ring, tightening the screw until your fingers ache, leaving "hoop burn" marks on delicate velvet, and still getting a ripple right where your satin stitch lands—you know the specific frustration of embroidery mechanics.

Using a magnetic sash frame feels like cheating, but in the best possible way. It replaces brute force with physics. The Brother PRMS360 is engineered to make hooping faster and more consistent on PR-series multi-needle machines, but let’s be clear: it is not magic. It is a precision tool. It works only if you install it correctly and follow a specific magnet-loading order that controls fabric tension instead of trapping wrinkles.

As an embroidery educator with two decades on the production floor, I approach this not just as a "how-to," but as a survival guide for your equipment and your sanity. This post rebuilds the workflow to include the "old hand" sensory details—the clicks, the resistance, and the safety checks—that keep your table safe, your fingers unpinched, and your fabric stable.

The Brother PRMS360 Magnetic Sash Frame: What It Really Changes (and What It Doesn’t)

The PRMS360 is a magnetic sash frame system. Unlike a tubular hoop that uses friction between an inner and outer ring, this system uses a metal base mounted to the machine driver arms, with four magnetic sashes (bars) that clamp your fabric flat against the base.

The primary advantage here is speed and repeatability. In a production environment, time is currency. If you are hooping 50 left-chest logos, a magnetic frame allows you to slide the garment on, snap, snap, snap, and sew. It eliminates the "unscrew, re-screw" cycle that causes repetitive strain injury (RSI) in many shop owners.

However, we need to manage expectations. It does not magically fix poor stabilization choices or fabric that is being pulled out of shape. Magnets clamp; they do not replace the fundamentals of embroidery physics.

The Physics of the Grip:

• Traditional Hoop: Friction grip. Holds fabric like a drumhead. Can cause "hoop burn" (crushed fibers).
• Magnetic Frame: Compression grip. Holds fabric flat. almost zero hoop burn.

The Expert's Reality Check: If you treat this frame like a "stronger hoop" and yank fabric aggressively after the magnets are down, you will distort the grain. When the magnets come off, the fabric relaxes, and your perfect circle becomes an oval. The goal is "neutral tension"—taught, but not stretched.

Compatibility Reality Check: Brother PR Series Machines and the White Magnet Sensor Piece

In the video, the PRMS360 is demonstrated on PR-series machines. This includes popular models like the PR1000/PR1000e, PR1050X/PR1055X, PR655, and PR670e.

Here is the critical technical detail: The frame features a white magnet sensor piece located at the top center.

This sensor is the frame's ID card. It tells the machine, "I am the PRMS360, set my safe boundaries accordingly." The tutorial notes that if you remove that white sensor piece, the frame can theoretically be used across PR-series machines “like using the Fast Frame.”

My Professional Advice: That is a powerful statement, but it carries risk. The specific arm width and sensor locations vary slightly between generations of PR machines.

• Safe Zone: Keep the sensor on if your machine supports the PRMS360 natively.
• Risk Zone: If you bypass the sensor, you must manually trace your design to ensure the needle bar doesn't slam into the metal frame. A frame strike at 1000 SPM (Stitches Per Minute) can shatter a needle bar or throw off your timing gear.

If you are shopping and want to confirm if this frame fits your specific rig, the search phrase that usually yields the best forum discussions and compatibility charts is brother pr1055x hoops. This is where you will find user reports on whether the frame centers predictably on your specific model year.

The Grey Magnetic Sash Removal Tool: The No-Blood, No-Panic Way to Lift Magnets

The kit includes a grey magnetic sash removing tool. It looks like a plastic pry bar.

Do not lose this tool. Do not ignore this tool.

I have seen experienced operators try to remove these industrial-strength magnets with their fingertips. The result is often a blood blister or a pinched nerve when the magnet snaps back down unexpectedly.

The Sensory Technique:

1. Grip: Hold the tool firmly by the handle.
2. Engage: Insert the flat tip under the corner of the magnetic sash. Do not try to lift from the middle.
3. Listen: You want to hear a quiet separation, not a snap.
4. Action: Pry up one end to break the magnetic flux bond. Once the air gap is created, the sash lifts easily.

Warning: PINCH HAZARD
Industrial magnets are deceptively strong. They want to slam shut.
* Never place your finger between the sash and the frame base.
* Never try to "slide" the magnets off; they can scratch the coating.
* Pacemaker Safety: If you or your staff have a pacemaker, consult a doctor. These magnets generate strong fields that can interfere with medical devices.

If you are new to this accessory category, you will see people refer to it broadly as a brother magnetic sash frame, but standardizing the use of the removal tool is the difference between a "fast workflow" and a "painful afternoon."

The “Hidden” Prep Before You Mount the PRMS360: Protect Surfaces, Control Fabric, Avoid Rework

The video moves quickly into installation, but in a professional shop, Preparation (Prep) is 80% of the job. If you skip this, you will face the three enemies of embroidery: table scratches, shifting fabric, and poor registration.

1. Surface Contact: The "Scratch" Investigation

A common question is: "Does the frame scratch the table?" The answer is: It depends on your machine's suspension.

Some PR machines sit lower on their stands; others sit higher. The PRMS360 is heavy. When the machine runs at 800+ SPM, the arms flex. Even if it looks clear when stopped, the frame might tap the table during a heavy satin fill.

• The Sound: If you hear a rhythmic tap-tap-tap during sewing, stop immediately. That is the frame hitting your table or stand.
• The Fix: Do not guess. Protect the surface.
  • Bad Idea: Loose scrap fabric (it slides and gets caught).
  • Good Idea: A rubberized shelf liner or a towel with a non-slip backing.

2. Hidden Consumables: What You Need Nearby

Before you mount the frame, ensure you have these "hidden" supplies within arm's reach:

• Spray Adhesive (e.g., 505): Essential for floating stabilizers.
• Masking Tape: To tape down loose straps or sleeves that might get sewn over.
• Spare Needles (75/11 Ballpoint & Sharp): Changing a needle with a magnetic frame loaded is tricky; checking them beforehand is better.

3. Stabilizer Decision Tree

The video doesn't specify backing, but you must decide on stabilization before hooping. Magnetic frames do not provide the same multi-directional friction as round hoops, so your stabilizer choice is critical to prevent "flagging" (bouncing fabric).

Decision Tree: Fabric → Stabilizer Starting Point

Many beginners search for a magnetic frame for embroidery machine expecting it to solve puckering. It helps, but puckering is a math problem: Density vs. Stabilization. The magnet just holds the equation in place.

Prep Checklist: The "No-Regrets" Protocol

• Compatibility: Confirm your PR model is listed (PR1000 - PR1055X series).
• Cleanliness: Wipe the underside of the magnets. Any trapped grit will scratch your frame and your table.
• Protection: Place non-slip protective material under the arm area.
• Tools: Grey removal tool is on the right side of the machine (or your dominant side).
• Consumables: Stabilizer is pre-cut and ready.


Mounting the PRMS360 on Brother PR1055X Arms: Left Screw First, Then Right (Yes, It Matters)

The installation appears simple, but the Order of Operations is vital for alignment.

The Correct Sequence:

1. Slide the frame base onto the machine’s driver arms. Feel it seat fully against the backstops.
2. Tighten the LEFT mounting thumb screw first.
3. Tighten the RIGHT mounting thumb screw second.

Why Left First? On most brother PR driver systems, the left arm is the master driver for horizontal registration. Tightening the left screw first creates your "zero point." If you tighten the right first, or tighten them randomly, the frame can "walk" slightly diagonally.

If you are running a shop, consistency is profit. A frame that mounts the same way every time ensures that when you load a design at "Center," it is actually at Center.

For anyone comparing options, this repeatability is why people prefer reliable magnetic hoops for brother systems: you can train a new employee in five minutes without them developing bad habits that ruin garments.

Use the PR1055X Center Function: Make the Carriage Do the Work (and Keep Your Hands Clear)

On the PR1055X shown, the operator uses the touchscreen to center the frame before applying the fabric. Do not skip this.

The Mental Model: Trying to hoop a garment on a frame that is pushed off to the far left is an ergonomic nightmare. It twists your spine and changes your viewing angle, leading to crooked logos.

The Sequence:

1. Tap the hoop conversation icon on the main menu.
2. Select the "Center Frame" or "Move to Center" icon.
3. STOP. Look at the machine arms. Are they clear?
4. Confirm "OK."
5. The machine will drive the frame to the geometric center x/y position.

Warning: IMPACT ZONE
When the PR machine carriage moves, it moves with high torque.
* Keep hands clear.
* Keep loose sleeves clear.
* Keep tools off the frame base.
Confirm the movement prompt only when the visual check is complete.

This is a non-negotiable habit for safe operation.

Setup Checklist (Right Before Fabric Touches Frame)

• Mounting: Frame is fully seated; Left screw tight, Right screw tight.
• Position: Carriage has been legally moved to Center via the touchscreen.
• Safety: Workspace is clear of scissors, bobbins, and coffee cups.
• Ergonomics: You are standing directly in front of the needle bar, perfectly centered.


The 4-Sash Hooping Order That Prevents Wrinkles: Top Anchor → Sides → Bottom Pull

This is the core technique. The difference between a smooth garment and a wrinkled mess lies entirely in the order you snap these four magnets.

The "Anchor & Pull" Method:

1. Drape & Relax: Lay your fabric (and stabilizer) over the base. Smooth it gently with your hands. Do not pull it yet. It should look like a tablecloth.
2. Step 1: The Top Anchor (Center Sash).
   • Snap the top large magnetic sash first.
   • Sensory Check: This is your "North Star." Ensure the grain of the fabric is perfectly horizontal relative to this bar.
3. Step 2: The Right Flank.
   • Smooth the fabric to the right (gently). Snap the right small sash.
4. Step 3: The Left Flank.
   • Smooth the fabric to the left. Snap the left small sash.

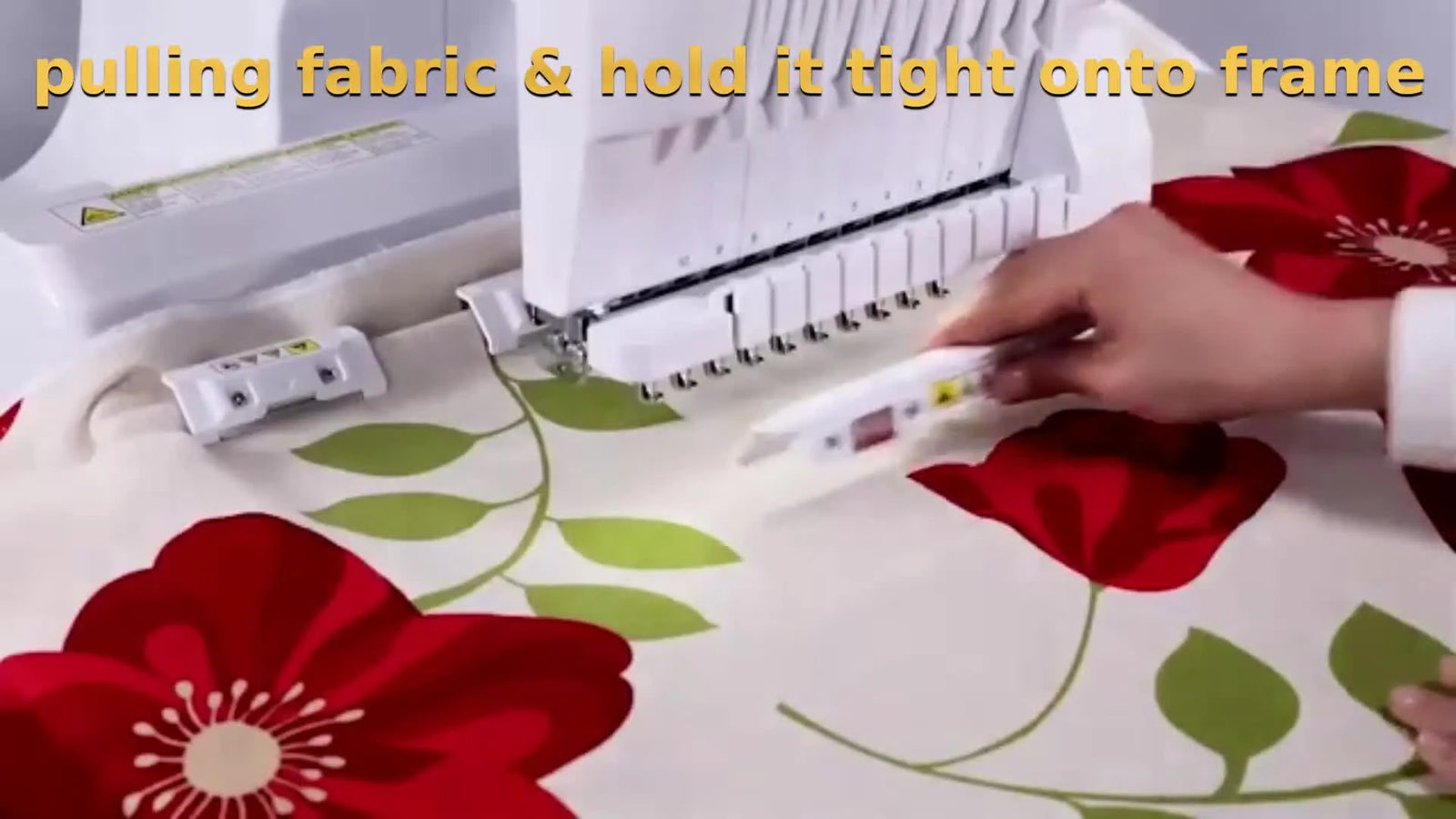

5. Step 4: The Bottom Tensioner (The "Pro Move").
   • Grasp the bottom of the fabric and the stabilizer firmly.
   • Pull taut downward. You want to remove the slack, but not stretch the fabric so hard it deforms.
   • While holding tension, snap the bottom large sash into place.

The Tactile Logic: By anchoring the top and sides first, you create a channel. The final bottom pull applies tension evenly across the vertical grain (warp), which is usually the strongest part of the fabric.

This structured approach is why professionals use magnetic embroidery hoops for bulk orders—once you memorize "Top, Side, Side, Down," your results become mechanically identical from Shirt #1 to Shirt #100.

The “Why” Behind the Bottom-Magnet Pull: Tension, Grain, and the Wrinkle You Don’t See Yet

Why focus so much on the bottom pull? Fabric is fluid. If you snap magnets randomly (e.g., Top, Bottom, then Sides), you often trap a bubble of air or fabric in the center. When the needle penetrates that bubble, the fabric shifts, and your outline registration fails.

The Physics of the Sequence:

• Top Anchor: Establishes the Y-axis zero point.
• Side Magnets: Constrain the X-axis movement prevents horizontal drift.
• Bottom Pull: Establishes Z-axis tension (flatness).

A common mistake is "chasing wrinkles"—lifting one magnet, pulling, snapping, then lifting another. This creates Uneven Tension Bias. One corner is tight, the other is loose. The needle will find the loose spot, and it will pucker.

The Golden Rule: Anchor, Square, then Tension.

Real-World Troubleshooting: Table Contact, Shifting Protection, and Uneven Clamp Feel

Things go wrong. Here is your field guide to fixing common issues without panicking.

The "Others have more clearance" Myth

You might read comments saying, "My frame doesn't touch the table!" Do not let this worry you. Frame clearance depends on your specific stand model and floor evenness. If yours touches, protect it. That is the only variable you can control.

The Upgrade Path: When Magnetic Frames Pay Off (and When You Need More)

If you are hooping occasionally for fun, the PRMS360 workflow is about comfort. If you are running a business, every second is a calculation of ROI (Return on Investment).

Commercial Diagnostic: When to Upgrade?

1. Pain Point: "Hooping takes longer than sewing."
   • Diagnosis: You are spending too much time adjusting screws for different fabric thicknesses.
   • Solution: Magnetic Hoops. This is the first line of defense. If the OEM Brother frame is out of budget, many shops successfully rely on high-quality reliable aftermarket options like Sewtech Magnetic Hoops, which offer the same speed advantages for PR machines at a scalable price point.
2. Pain Point: "I need to hoop thick jackets/Carhartt gear."
   • Diagnosis: Standard magnets might not hold heavy canvas seams.
   • Solution: MaggieFrame / High-Gauss Frames. You need specialized strong-magnet frames designed for thick substrates.
3. Pain Point: "I can't keep up with orders; I need more heads."
   • Diagnosis: Your single-head machine is the bottleneck. You are waiting for color changes.
   • Solution: Capacity Scaling. This is the moment to look at SEWTECH Multi-Needle Machines. Moving from a single 6-needle to a bank of machines, or a 15-needle commercial unit, changes your business model from "operator reliant" to "system reliant."

Whether you choose a magnetic hoop for brother or a full machine upgrade, the goal is the same: Remove the variables (human error, fatigue) so the machine can do the work.

Clean Finish Habits: What to Check Before You Hit Start

The video ends with hooping, but the job isn't done until you press the green button safely.

The "Pre-Flight" 20-Second Scan:

1. The Light Test: Shine a light across the fabric at a low angle. Do you see shadows/ripples? If yes, re-hoop.
2. The Tug Test: Gently tug the fabric edge. Does it slide? If yes, the magnet isn't seated or there is debris. Clean and re-seat.
3. The Obstruction Check: Ensure the sleeves of the garment are not tucked under the hoop where they will be sewn to the back (we have all done it).

Operation Checklist (The Final Gate)

• Surface: Fabric is smooth, taut (neutral tension), and grain-straight.
• Security: All 4 magnets are flat and fully engaged.
• Clearance: Excess fabric (sleeves/tails) is clipped or taped out of the sewing field.
• Safety: Hands are clear.
• Confidence: You are ready to sew.

By building this routine—Anchor, Square, Tension, Check—hooping transforms from a frustrating chore into a predictable, rhythmic part of your profitable embroidery workflow, whether you are using an hooping for embroidery machine setup at home or in a busy shop.

FAQ

• Q: Which Brother PR-series machines are compatible with the Brother PRMS360 Magnetic Sash Frame with the white magnet sensor piece?
  A: The Brother PRMS360 Magnetic Sash Frame is demonstrated on Brother PR-series machines such as PR1000/PR1000e, PR1050X/PR1055X, PR655, and PR670e, and the white sensor piece is used for safe boundary detection.
  • Confirm: Check whether the machine recognizes the frame ID with the sensor installed.
  • Keep: Leave the white sensor piece installed if the machine supports PRMS360 natively.
  • Trace: Run a manual trace test before stitching if anything about fit/centering feels off.
  • Success check: The machine does not show a “Check Frame” warning and the trace path clears the metal base.
  • If it still fails… Stop and do not stitch; an incorrect boundary can cause a frame strike—verify compatibility via the machine documentation or a confirmed model-specific chart.
• Q: How do I safely remove Brother PRMS360 magnetic sashes without pinching my fingers using the grey magnetic sash removal tool?
  A: Use the grey removal tool to lift one corner first—never pry with fingertips.
  • Insert: Slide the flat tip under a corner of the magnetic sash (not the middle).
  • Pry: Lift just enough to break the magnetic bond, then remove the sash smoothly.
  • Avoid: Keep fingers out of the gap and do not “slide” magnets off the base.
  • Success check: The sash releases with a quiet separation instead of a violent snap.
  • If it still fails… Reposition the tool closer to the corner and lift more gradually; if staff have pacemakers, follow medical guidance before working near strong magnets.
• Q: What is the correct 4-sash loading order for the Brother PRMS360 Magnetic Sash Frame to prevent wrinkles and registration issues?
  A: Load sashes in this order: top (anchor) → right → left → bottom (pull down while snapping).
  • Drape: Lay fabric and stabilizer relaxed over the base; smooth gently without stretching.
  • Anchor: Snap the top large sash first and align fabric grain square to the bar.
  • Square: Snap right small sash, then left small sash while smoothing outward.
  • Tension: Pull fabric and stabilizer downward to remove slack, then snap the bottom large sash.
  • Success check: Fabric looks flat under low-angle light with no trapped ripples or “bubbles.”
  • If it still fails… Re-hoop using the same order (don’t chase wrinkles by random lifting); check that you are not over-stretching the fabric.
• Q: Why does the Brother PRMS360 frame scratch or tap the table/stand during sewing on a Brother PR1055X, and how do I stop the contact?
  A: Table contact usually comes from stand clearance and arm flex at speed—protect the surface and stop sewing if you hear tapping.
  • Listen: Stop immediately if there is a rhythmic “tap-tap-tap” while stitching.
  • Protect: Place a rubberized non-slip shelf liner or a towel with non-slip backing under the arm/contact area.
  • Verify: Ensure the setup is stable and not rocking on an uneven floor/stand.
  • Success check: The tapping noise disappears and the frame clears the surface throughout the stitch cycle.
  • If it still fails… Re-check where the contact happens and increase protection thickness; do not continue sewing while the frame is hitting the table.
• Q: What prep supplies should be within reach before mounting the Brother PRMS360 Magnetic Sash Frame to avoid shifting and rework?
  A: Prep the “hidden consumables” before mounting so you don’t disturb the clamped fabric later.
  • Stage: Keep spray adhesive (e.g., 505) ready for floating stabilizer when needed.
  • Secure: Keep masking tape ready to hold sleeves/straps out of the sew field.
  • Prepare: Have spare needles (75/11 ballpoint and sharp) ready and check needle condition before loading the magnetic frame.
  • Success check: You can complete hooping and a final obstruction check without searching for tools or lifting magnets again.
  • If it still fails… If you must change needles or reposition fabric after clamping, fully de-magnetize/re-hoop rather than forcing adjustments under tension.
• Q: How do I fix “Fabric slips under the magnet” on the Brother PRMS360 Magnetic Sash Frame when using slick stabilizer like poly-mesh?
  A: Increase traction at the clamp and reduce slippage without over-stretching the fabric.
  • Clean: Wipe the underside of the magnets to remove lint/grit that reduces grip.
  • Add grip: Apply one layer of painter’s tape on the underside of the magnet for extra traction.
  • Re-hoop: Re-load using the top → sides → bottom pull order to set neutral tension.
  • Success check: A gentle tug on the fabric edge does not cause the fabric to creep under the sash.
  • If it still fails… Re-evaluate thickness/bulk under the sash line and adjust garment placement so seams are not sitting under the magnet edge.
• Q: When hooping takes longer than sewing on Brother PR-series machines, how do I decide between technique fixes, upgrading to magnetic hoops, or moving to SEWTECH multi-needle machines?
  A: Start with workflow consistency, then upgrade the clamping system, and only scale machines when capacity is the true bottleneck.
  • Level 1 (Technique): Standardize mounting (left screw first, then right) and always center the carriage before hooping to reduce redo time.
  • Level 2 (Tool): Use magnetic hoops/frames when screw-hoop adjustment time and repeatability are the main drag on output.
  • Level 3 (Capacity): Consider SEWTECH multi-needle machines when order volume exceeds what one head can produce, especially when color changes and run time limit throughput.
  • Success check: Hooping time becomes predictable and repeatable from garment to garment, with fewer re-hoops and less operator fatigue.
  • If it still fails… Track where time is actually lost (hooping vs. sewing vs. stoppages); upgrade the step that is consistently the bottleneck rather than guessing.
