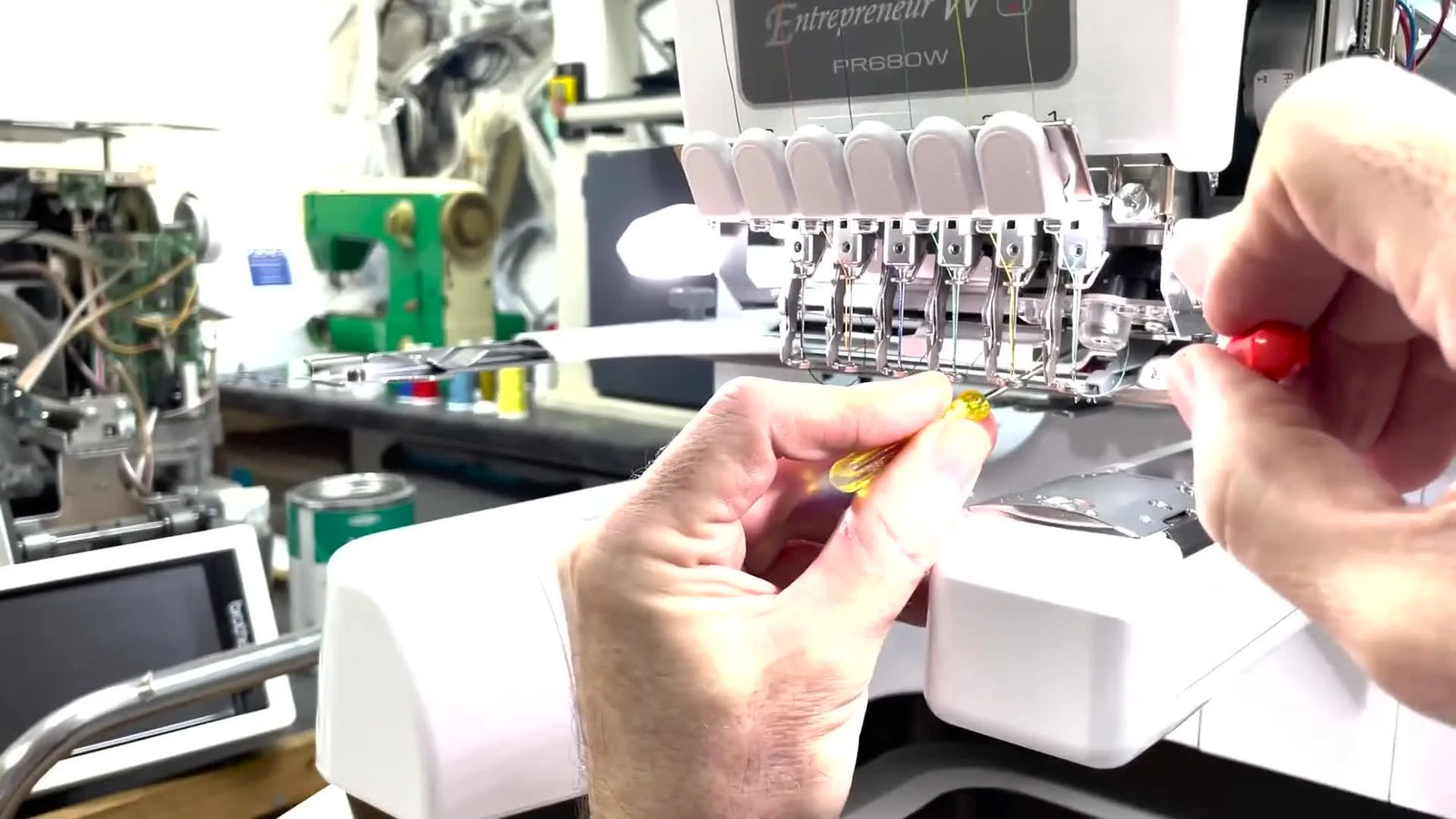

Brother PR680W Needle Threader Replacement: The “Click + Manual Test” Method That Prevents Repeat Failures

Comprehensive Guide: Replacing and Calibrating the Needle Threader on Brother PR Machines (Zero-Downtime Strategy)

When your Brother PR needle threader stops working, the silence in your workshop is deafening. It feels like the machine is "down" even if everything else causes the needle to move—especially if you are mid-order and the delivery clock is ticking.

Here is the truth from twenty years on the production floor: Needle threaders are consumable parts, but they shouldn't break often. If you are replacing them monthly, it’s not bad luck; it’s a symptom of a process issue.

The good news: on the Brother PR series (from the 6-needle to the 10-needle models), replacing a bent or broken needle threader is a predictable mechanical repair. It is fully doable if you move slowly, protect the spring, and test by hand before you ever touch the automatic threader button.

This article rebuilds the repair flow into a "zero-risk" protocol. We will cover the removal, the critical "click," the manual verification, and the hidden calibration screw. Finally, we will look at how to stop this from happening again by upgrading your hooping and stabilization logic.

The "Don't Panic" Primer: Understanding the Failure

A needle threader failure on a multi-needle head involves a simple mechanism. A rack drives the threader up and down, and the threader assembly rides on two shafts. The critical detail is a keyed relationship: a small ridge on the threader arm must drop into a specific cutout on the shaft.

If that keying isn’t seated—or if a needle is even slightly bent—the hook won't pass cleanly through the needle eye. It will strike the metal of the needle, bend the hook, and you are back to square one.

If you are running a brother pr 680w in a commercial setting, the real cost isn't the $30 part—it’s the downtime and the risk of making things worse by "testing" with the automatic button too early.

Warning: Physical Safety Hazard. Keep fingers, tools, and loose clothing clear of the needle area and the moving rack. A sudden slip with a screwdriver near the needle bar can cause puncture injuries or chip a needle, sending metal shards flying. Always power down when instructed.

The "Hidden" Prep Pros Do First: Tools, Lighting, and the Spring-Saving Plan

Before you remove a single screw, set your environment for success. The tech in the video makes this look quick because of muscle memory; your goal is to make it predictable.

Tools You Will Need

• Phillips screwdriver: For the casing screws.
• Allen key: The standard tool included with your machine for needle changes.
• Small flathead screwdriver: For controlled prying (we need two of these for best leverage).
• Brand New Needles: (Hidden Consumable) This is non-negotiable. Do not troubleshoot with used needles.

Prep Checklist (The "Pre-Flight" Check)

• Clear the Runway: Use a magnetic parts dish for screws. If a screw falls into the machine chassis, a 15-minute repair becomes a 4-hour nightmare.
• Lighting: Add a bright task light directed right into the side of the head. You need to see dark metal against dark metal.
• Spring Strategy: Identify the spring on the back shaft. Plan how you will shield it with your finger so it doesn't launch across the room.
• Needle Stock: Have a pack of size 75/11 or 80/12 needles ready to install immediately after the threader swap.


Visual Anchor: Lock the Machine to Needle Position 1

The repair starts with a software command. You must set the machine to Needle Number 1 position before opening the side of the head.

• On the machine interface, select Needle Position: 1.
• Sensory Check: Listen for the head to travel and stop. Confirm visually that the far-left needle is the one active over the throat plate.

This provides a consistent mechanical reference point. When working in tight quarters, consistency prevents disorientation later.

Disassembly: Accessing the Housing Without Drama

Opening the Brother PR side housing requires a finesse move: "Lift Up, Then Out."

1. Screw Covers: Use the tip of heavy needles or your Allen key to gently pop off the rubber screw covers on the side of the head.
2. Small Cover Removal: Remove the top two screws.
3. Large Cover Removal: Remove the three lower screws.
4. The Move: To remove the large plastic cover, do not just pull back. Lift it up slightly to clear the retaining lip, then pull it away from the machine.

Tech Tip: The technician notes that all screws on these side covers are identical. You won't mix up lengths, but keeping them in a magnetic dish is still best practice.

The Rack Rule: Power OFF Before touching the Mechanism

Once the side is open, you will see the metal rack mechanism that drives the threader up and down.

Crucial Step: Switch the machine OFF.

• Action: Manually push the metal rack down.
• Sensory Check: You should feel smooth, geared resistance. Push until the threader assembly is in a lower, accessible position (roughly level with the needle area).

Why? The stepper motors lock the position when powered on. Forcing them against the motor torque can damage the drive gears.

The Mechanism That Matters: The Shaft Cutout + Arm Ridge

The video uses a stripped-down service unit to demonstrate what is happening inside the dark machine head. This is the logic of the repair:

• The Shaft: The rear metal shaft has a machined cutout.
• The Threader: The plastic threader arm has a corresponding ridge.
• The Goal: That ridge must drop into the cutout.

Sensory Anchor (Auditory/Tactile): When seated correctly, you will often hear a sharp "Click" or feel the plastic "snap" home. Without this tactile feedback, the threader is not installed; it is simply resting there, waiting to fail.

Removing the Old Assembly: Tight Quarters, Slow Hands

In the actual machine head, space is tight. It feels awkward. This is normal.

1. Lift: Lift the small plastic arm up gently.
2. Leverage: Use your small flathead screwdrivers to lever the assembly off the shaft.
3. Extract: Grab the threader and the shoulder area. Rotate it slightly and ease it out to the right while moving the threader hook end to the left.
4. Watch the Spring: Warning: Keep your eye on the spring on the back shaft. Do not let it slide off.

If you are maintaining a brother pr1055x or similar model, remember: you are guiding the part off the shafts, not ripping it out. If you feel snagging, stop and wiggle it.

Installation: Chasing the "Click"

Installing the new threader is a reverse of the removal, but with higher stakes.

1. Align: Slide the new threader assembly onto the two shafts.
2. Push: Push the assembly back along the shafts.
3. The Critical Moment: Ensure the small ridge on the threader arm aligns with the shaft cutout. Push until it seats.
4. Sensory Verification: Did you feel the click? If it feels "mushy" or loose, it is not keyed. Pull it back slightly and try again.


The Safe Test: Brand-New Needle + Manual Rotation

This step separates professional techs from frustrated hobbyists. Do not turn the machine on yet.

1. Install a Brand New Needle: Old needles can be slightly bent (invisible to the naked eye). A bent needle will destroy your new threader immediately.
2. Manual actuation: With the power still OFF, use your hand to slowly rotate the threader mechanism or push the rack down to simulate a threading cycle.
3. Visual Check: Get your eyes down to needle level.
   • Success Metric: The hook passes perfectly through the center of the needle eye without touching the sides.
   • Action: If it rubs or hits the side, STOP. Do not force it.


When It Misses: Calibrating the "Hidden Screw"

If you installed it correctly (you felt the click) but the hook is still hitting the side of the needle eye, you need to calibrate. This is common on older machines.

1. Loosen: Loosen the hex screw on the threader shoulder about 3/4 of a turn. Do not remove it.
2. Locate: Find the "Hidden Screw" at the very end of the shaft (as shown in the video).
3. Adjust: Turn that end screw. This rotates the assembly axis.
   • Clockwise/Counter-clockwise: Move the threader hook left or right relative to the needle eye.
4. Verify: Hold the assembly steady. Tighten the shoulder screw back up.
5. Retest: Perform the Manual Rack Lower check again.


Why Needle Threaders Keep Failing (The "Root Cause" Analysis)

If you find yourself performing this repair every month, the threader is not the problem. The threader is the victim. The villain is usually deflection.

The Cycle of Destruction

1. Poor Staibilization/Hooping: The fabric is loose or too thick.
2. Deflection: The needle hits the fabric/seam and bends slightly.
3. The Strike: The automatic threader comes down, hits the bent needle, and the hook is crushed.

Troubleshooting Table (Low Cost → High Cost)

Setup Checklist: Reassembly Protocol

After calibration is verified manually, reassemble the machine.

Reassembly Checklist (Do not skip)

• Seating Check: Threader assembly is fully flush and clicked.
• Clearance Check: The hook passed through the new needle eye cleanly during the manual test.
• Lockdown: The shoulder screw is tightened.
• Spring Check: The spring is present and seated on the back shaft.
• Covers: Side covers reinstalled (Start with the bottom cover, then the top).
• FOD Check: No screws, tools, or debris left inside the housing.


Decision Tree: Fabric, Hooping, and Preventing Future Failures

To stop replacing threaders, you must stabilize your production environment. Use this decision logic to choose the right tools for the job.

Fabric / Project Scenario → Recommended Action

1. Is the item structured and hard to hoop (Caps, heavy bags, Carhartt jackets)?
   • YES: This is a high-risk zone for needle deflection.
     • Action: Use a titanium needle (stronger shaft). Even if you use a brother pr680w hat hoop, double-check your alignment. Consider upgrading to a Magnetic Hoop system to hold thick materials firmly without the "hoop burn" or tension distortion of unsure clamping.
   • NO: Proceed to 2.
2. Is the fabric stretchy (Performance wear, Knits)?
   • YES:
     • Action: Stabilizer is Key. Use a fusible cutaway mesh. If the fabric shifts, the needle bends. A machine embroidery hooping station can ensure consistent tension, reducing the chance of the fabric flagging (bouncing) and deflecting the needle.
   • NO: Proceed to 3.
3. Are you stitching high-volume batches (50+ items)?
   • YES: Fatigue leads to errors.
     • Action: Standardize your needle changes (e.g., every 8 hours of runtime). Standardize your hooping. If you struggle with repetitive strain, magnetic frames are a productivity investment that also protects the machine by reducing the force needed to hoop.

Warning: Magnet Safety. Magnetic hoops (like Mighty Hoops or Sew Tech magnetic frames) use powerful neodymium magnets. They can pinch fingers severely and affect pacemakers. Keep them away from sensitive electronics and handle with deliberate, two-handed control.

Operation Checklist: The First Powered Run

You are ready to power on.

Operation Checklist

• Power ON.
• Needle Check: Ensure the Brand New Needle is still strictly in position 1.
• First Cycle: Press the automatic threader button. Watch closely.
• Sensory Check: Listen for the smooth "whir-click-whir" sound. If you hear grinding, hit the Emergency Stop immediately.
• Thread Check: Verify the thread is pulled through the eye creating a loop.

If you are using specific accessories like brother pr680w hoops, ensure they are cleared from the arm before this test cycle.

Understanding the Upgrade Path

Many users search for terms like mighty hoops for brother pr670e because they are tired of fighting traditional hoops. While magnetic hoops are an investment, they are relevant to this repair because they solve the root cause: Poor Fabric Holding.

If your fabric is held securely and effortlessly:

1. The fabric doesn't flag/bounce.
2. The needle stays straight.
3. The threader doesn't get smashed.

Consider upgrading your hooping tools not just for speed, but as an insurance policy for your machine's mechanical health.

Final Thoughts: When to Call a Tech

This repair is well within the capabilities of an intermediate operator. You have saved yourself a trip to the service center and roughly $150 in labor fees.

However, recognize your limits. You should call a certified technician if:

1. The rack mechanism feels "gritty" or stuck when you push it manually.
2. You cannot get the hook to center in the eye, even with the adjustment screws maxed out.
3. The machine throws electronic error codes even after reassembly.

Keep a "Crash Kit" in your shop: one spare threader assembly, two screwdrivers, and a pack of fresh needles. With this kit and the knowledge above, a threader failure becomes a 15-minute minor maintenance task rather than a production-ending disaster.

FAQ

• Q: What must be prepared before replacing a needle threader on a Brother PR series machine to avoid immediate re-breakage?
  A: Replace the needle threader only after preparing bright lighting, a screw-control plan, and brand-new needles so the first test does not destroy the new hook.
  • Install: Set out a task light aimed into the head so the hook/needle eye contact is clearly visible.
  • Prepare: Use a magnetic parts dish so no screws drop into the chassis.
  • Stock: Put a pack of brand-new needles next to the machine and plan to install one immediately after the swap.
  • Success check: The work area is well-lit, all screws are contained, and a new needle is ready before any cover is removed.
  • If it still fails: If the new threader breaks again quickly, jump to root-cause checks—hooping/stabilization deflection and bent needles.
• Q: Why must a Brother PR series machine be switched OFF before manually pushing the needle threader rack down?
  A: Switch the Brother PR machine OFF before pushing the rack because forcing the rack while powered can fight the motor lock and risk gear damage.
  • Set: Open the side housing, then power the machine OFF before touching the rack.
  • Push: Press the metal rack down by hand until the threader assembly is in a lower, accessible position.
  • Feel: Move slowly and stop if anything binds.
  • Success check: The rack moves with smooth, geared resistance (not a jammed or gritty feel).
  • If it still fails: If the rack feels gritty or stuck, stop and call a technician for rack/gear inspection.
• Q: How can a Brother PR needle threader be confirmed as correctly installed on the shaft cutout (the “click” test)?
  A: A Brother PR needle threader is correctly keyed only when the arm ridge drops into the shaft cutout and you feel or hear a distinct “click.”
  • Align: Slide the new threader onto both shafts and push it back into position.
  • Seat: Match the ridge on the threader arm to the cutout on the rear shaft and press until it snaps home.
  • Re-try: If it feels mushy or loose, pull back slightly and seat again.
  • Success check: A sharp “click” (audible/tactile) and the assembly sits flush instead of floating.
  • If it still fails: If the click cannot be achieved, stop and re-check alignment and spring position before powering on.
• Q: How should a Brother PR needle threader be safely tested after replacement without using the automatic threader button?
  A: Test a Brother PR needle threader with the power OFF, a brand-new needle installed, and a slow manual cycle so the hook can be verified before any motor-driven action.
  • Install: Put in a brand-new needle (used needles may be slightly bent and can crush the new hook).
  • Actuate: With power OFF, manually rotate/actuate the mechanism or push the rack down to simulate a threading cycle.
  • Inspect: Get eye-level with the needle and watch the hook pass through the needle eye.
  • Success check: The hook passes perfectly through the center of the needle eye without touching either side.
  • If it still fails: If the hook rubs or hits the eye, stop immediately and proceed to calibration instead of pressing the automatic button.
• Q: How can the Brother PR needle threader hook alignment be corrected when the hook hits the side of the needle eye (hidden screw calibration)?
  A: If a Brother PR needle threader is clicked in but still hits the needle eye, use the shoulder hex screw and the end “hidden screw” to rotate alignment, then re-test manually.
  • Loosen: Back off the hex screw on the threader shoulder about 3/4 of a turn (do not remove it).
  • Adjust: Turn the end screw at the very end of the shaft to shift the hook left/right relative to the needle eye.
  • Lock: Hold the assembly steady and re-tighten the shoulder screw.
  • Success check: During a power-OFF manual cycle, the hook clears the needle eye dead-center with no contact.
  • If it still fails: If alignment cannot be centered even after adjustment, stop and call a technician.
• Q: Why does a Brother PR needle threader keep breaking in commercial production even after correct replacement?
  A: Repeated Brother PR needle threader failures usually come from needle deflection caused by poor stabilization/hooping, not from “bad parts.”
  • Diagnose: Treat every broken hook as a clue that the needle may be bending during stitching.
  • Fix Level 1: Improve stabilization and hooping so fabric does not shift or “flag/bounce,” and standardize frequent needle changes in high-volume work.
  • Fix Level 2: Consider upgrading to a magnetic hoop system to hold thick or hard-to-hoop items more firmly and consistently.
  • Success check: Fewer bent needles and the threader hook no longer strikes the needle during normal automatic threading.
  • If it still fails: If threader repairs are still frequent, inspect for gritty rack movement or mechanical wear and escalate to service.
• Q: What are the key safety risks when working around the Brother PR needle area and when using magnetic embroidery hoops?
  A: Brother PR needle-threader repairs require strict finger/needle safety, and magnetic hoops require pinch and pacemaker precautions.
  • Power down: Turn the machine OFF whenever hands or tools enter the needle/rack area to prevent sudden movement.
  • Keep clear: Maintain distance from the needle bar and rack; avoid slips with screwdrivers near needles to prevent punctures or chipped-needle shards.
  • Handle magnets: Use two-handed control with magnetic hoops and keep them away from pacemakers and sensitive electronics.
  • Success check: Hands never enter the mechanism while powered, and magnetic frames are opened/closed deliberately without finger pinch.
  • If it still fails: If any step feels unsafe or uncontrolled, stop and hand off the repair to a certified technician.
