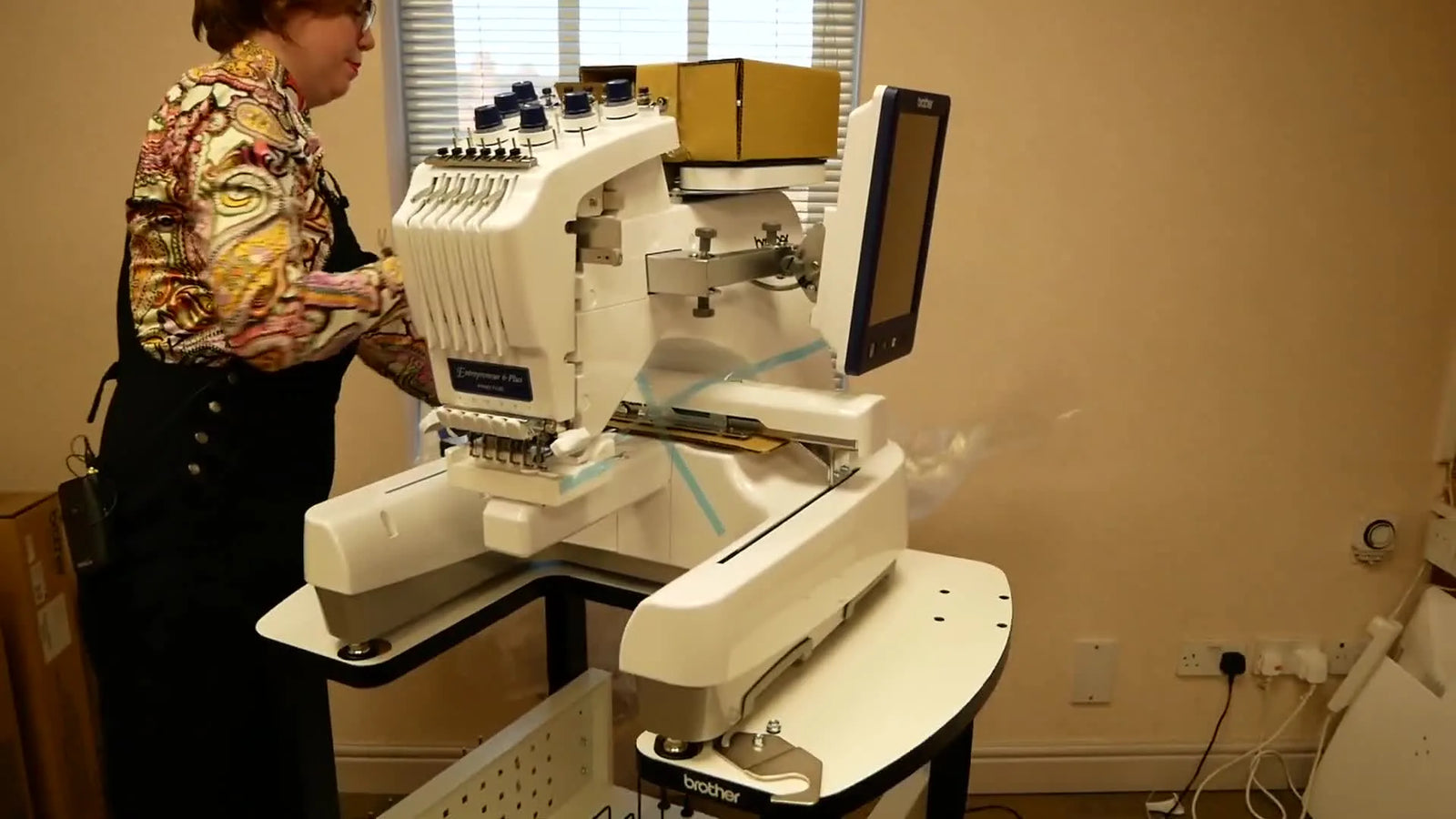

Brother PR670e Setup Without the Headaches: Unbox, Build the Thread Stand, Load the Bobbin (Clockwise), and Hoop Without Bending a Needle Bar

If your Brother PR670e just arrived (or you bought one slightly used), you’re likely feeling a volatile mix of excitement and paralysis. You are looking at a precision instrument that costs as much as a used car, and the fear of hearing a "crunch" sound on day one is real.

I have spent 20 years in commercial embroidery, and I can tell you this: Machine embroidery is not a talent; it is a sequence of mechanical compliances. If you respect the physics of the machine, it will print money for you. If you fight it, it will fight back.

This guide rebuilds the standard setup flow into an industry-grade protocol. We are moving beyond "how to assemble it" and into "how to set it up so it actually runs profitable production." We will cover the sensory cues—what a "good click" sounds like, what "correct tension" feels like—and the specific parameters that separate a hobbyist setup from a professional workstation.

Beat the Box: Removing the White Shipping Clips Without Tearing the Carton (and Why You Should Keep Them)

The machine ships in a large carton with a cardboard sleeve locked to the base by white plastic locking clips. To the novice, these look like disposable packaging. To a veteran, they are a critical asset.

The Action: Do not rip the cardboard. Locate the white clips at the base. You must squeeze the bottom tabs of each clip inward (pinching them) while simultaneously pulling the flap up. It requires a specific "pinch-and-pop" motion. There are six clips total. Once removed, the sleeve lifts straight up.

Expert Insight (The "Why"): Keep these clips and the box. If you ever need to ship your brother pr670e embroidery machine for service or move your shop, this packaging is the only safe way to transport a 90lb multi-needle machine without risking hairline fractures in the chassis.

Sensory Check:

• Touch: The clips should release with a firm snap, not a bend.
• Sound: You will hear the cardboard sleeve release tension/air as you lift it.


Lock the Brother PR/VR Stand Down First—A Wobbly Stand Makes Every Next Step Harder

Stability is the silent killer of embroidery quality. The video places the machine on the official Brother PR/VR stand. This is not just furniture; it is a vibration damper.

The Action: Secure the machine to the stand using the provided bolts. Once mounted, lock the casters (wheels) and tighten the stabilization feet until they press firmly against the floor.

The "Physics" of the Wobble: If your stand shakes, the machine's sensors can misinterpret that vibration as a needle bar collision or a motor fault. Furthermore, when you are hooping heavy items, a wobbly stand forces your body to compensate, leading to crooked hoop insertion.

Establish Your "Cockpit": Before you proceed, arrange your workspace. You need a "1-step radius" for your essential tools:

1. Curved embroidery scissors (Angle-tipped).
2. Tweezers (Long-nose).
3. Standard screwdriver (Flat & Phillips).
4. Hidden Consumable: A can of compressed air or a small brush (for lint) and machine oil (if required by the manual).


Build theThread Stand the “T-Shape” Way: The One Screw Everyone Forgets to Move

The thread stand arrives collapsed. Assembly seems intuitive, but there is one screw that 40% of new owners miss, leading to a "floppy" thread tree that causes tension issues later.

The Protocol:

1. Swing the Screen: Move the LCD screen forward to clear your working area.
2. Loosen & Lift: Loosen the pivot bolts on the horizontal guide bar. Slide the vertical support bars upward.
3. The "T" Lock: Tighten the bolts only when the structure forms a perfect, rigid "T" shape.
4. The Critical Step: Locate the "travel screw" stored in the stand's base and move it to the active support position. This locks the vertical column to the base.

Sensory Check:

• Touch: Grab the top of the thread tree and wiggle it gently. It should feel rigid, transferring movement to the machine base, not flexing at the joint. If it flexes, your tension will fluctuate during high-speed stitching (800+ SPM).

Prep Checklist (Pre-Flight Verified)

• Site Safety: Stand casters locked; stabilization feet touching the floor.
• Tool Readiness: Scissors, screwdrivers, and tweezers placed in the "Cockpit" zone.
• Structure: Thread stand locked in "T" shape; extra support screw installed.
• Debris Check: All shipping tape and foam removed from the needle bar area (use a flashlight to check behind the needles).
• Asset Protection: Shipping clips and box stored safely.


Frame Holder A on the Brother PR670e: The “Click-Seat” Install That Prevents Hoop Fit Drama

This is the interface between your design and the physical world. If Frame Holder A is 1mm off, your design is 1mm off—or worse, your needle hits the hoop.

The Action:

1. Remove the two black thumb screws.
2. Slide Frame Holder A onto the X-carriage rail.
3. Crucial: Do not tighten anything yet. Slide it until the locating pins on the arm drop into the corresponding holes on the carriage.
4. Then insert and tighten screws finger-tight.

Expert Warning: Only use Frame Holder A for the stock hoops. If you eventually upgrade to specialized gear, such as third-party magnetic embroidery hoops for brother, you may need to verify if they are compatible with Arm A or require a different bracket interface.

The Notch That Makes or Breaks It: Adjusting Brother Frame Holder Width So the Hoop Slides In Smoothly

This step causes the most anxiety. You must adjust the width of the holder arms to match your specific hoop size (e.g., 200x300mm vs 100x100mm).

The Mechanism: The arms do not slide freely; they click into indexed notches.

1. Loosen the large screw on the left holder arm.
2. Slide the arm outward.
3. Sensory Anchor: Listen for a sharp mechanical click as it settles into the preset slot for your hoop size.
4. Tighten the screw.

The "Goldilocks" Zone:

• Too Tight: You have to force the hoop in. This flexes the arm and causes "Hoop Burn" (fabric damage) or registration loss.
• Too Loose: The hoop rattles.
• Just Right: The hoop slides in with the resistance of a well-oiled drawer.

Commercial Context: If you start using aftermarket magnetic embroidery frames, be aware that their mounting brackets might require a slightly different notch setting or fine-tuning compared to the stock plastic hoops. Always index the machine to the frame you are using now.

First Power-On: Language Selection and the “Little Jig” Calibration You Should Let Finish

The Action: Switch the machine on. The screen wakes up. Select your language.

The "Jig": The machine will ask permission to move the arm. Acknowledge it, then step back. The carriage will move X and Y limits to find its "home" position.

• Safety Rule: Never touch the carriage during this initialization. If you restrict this movement, the motors will error out, or the calibration will be biased, leading to off-center designs.


Threading Needle #1 on a 6-Needle System: The Flossing Trick That Prevents Mystery Breaks

This is where 80% of "machine problems" actually originate. We are not just putting thread through a hole; we are seating it into a system.

The "Flossing" Technique:

1. Path: Route thread from the spool tree through the rear guides (1-6).
2. Tension Disks: As you bring the thread down to the tension knob, hold the thread taut with both hands (one above, one below).
3. The Action: Firmly pull the thread into the disk like you are flossing teeth.
4. Sensory Check: You should feel a distinct "pop" or resistance as the thread enters the tension plates. If it slides freely, it is not seated, and you will get "bird nesting" (loops) under the fabric.

Visual Confirmation: Ensure the thread passes under the check spring flap (the little wire that bounces). This spring creates the slack required for the stitch to form.

Automatic Needle Threading on the PR670e: Use the Tool, Use Tweezers, and Don’t Fight the Wire Guide

The Action:

1. Press the "Automatic Threading" button on the screen to align the mechanism.
2. Use the supplied tool to push the thread behind the tiny wire guide on the needle bar.
3. Hook thread under the threader fork and pull across to the cutter.
4. Press the button to thread.

Pro Tip: The wire guide is microscopic. Use your tweezers. Do not use your fingers; oils from your skin can attract lint to the needle bar over time.

Warning: Physical Safety
Keep hands, hair, and loose clothing/jewelry away from the needle area when the machine is powered on. Needles move at 1000 stitches per minute. A needle strike can shatter the metal, sending shrapnel into your eyes or face. Always wear glasses when observing close-up.

Bobbin Loading on the Brother PR670e: The Clockwise Rule (and the “Audible Click” Test)

The PR670e uses an industrial-style L-size bobbin case.

Rule #1: The Geometry of Unwinding Hold the bobbin case in your hand. Pull the thread. It must unwind Clockwise.

• Mnemonic: If you hold the thread tail up, the bobbin should look like the letter "p" (perfect). If it looks like a "q" (quit), flip it over.

Rule #2: The Seating Click Insert the case into the rotary hook. Push until you hear a sharp SNAP/CLICK.

• The "Silent" Error: If you don't hear the click, the bobbin is loose. It will fly out at 800 SPM, breaking the needle and possibly damaging the rotary hook (a $150+ part).




Setup Checklist (The "No-Crash" Protocol)

• Calibration: Machine powered on and completed "Home" movement without obstruction.
• Line of Sight: Thread path for Needle #1 is clear; thread is "flossed" deep into tension disks.
• Check Spring: Thread is visibly routed under the check spring.
• Bobbin Orientation: Verified winding is Clockwise ("p" shape).
• Bobbin Secure: Audible "CLICK" heard when inserting the bobbin case.
• Tail: Bobbin thread tail trimmed to 3-4 inches and tucked away.

Hoop Attachment on Frame Holder A: Slide It Flat, Expect Some Wobble, and Never Force Resistance

The Physics of Mounting: When sliding the hoop into the holder, keep it perfectly parallel to the floor. Inspect the metal ears on the hoop brackets; they must slide under the spring clips on the holder.

The "Wobble" Factor: Once locked in, the hoop will have a slight amount of "play" or wobble at the far end.

• Novice Fear: "It's broken!"
• Expert Reality: This tolerance is engineered to prevent the hoop from shaking the entire carriage apart during rapid direction changes. It is normal.






Warning: Magnetic Field Safety
If you upgrade to a magnetic embroidery hoop, be aware they use powerful Neodymium magnets. They can pinch fingers severely. Crucially, keep them away from pacemakers, credit cards, and the machine's LCD screen/main board area to prevent magnetic interference.

Needle Compatibility on the Brother PR670e: It Uses an Industrial Bobbin System, Not Industrial Needles

The Confusion: This machine looks industrial, but it uses Domestic Flat-Sided Needles (System HAx130EBBR / 130/705 H-E).

• The Mistake: Trying to force round-shank commercial needles (DBxK5) into this machine.
• The Result: You will destroy the needle clamp. Stick to the flat-sided system designated in your manual.


The "Why It Works" Layer: Physics & Prevention

1. The Lever Effect (Hooping)

Inserting a hoop at an angle creates a lever. With 10lbs of force on the end of a hoop, you exert massive torque on the drive gears. Always insert flat to distribute load.

2. Tension is Friction

The "flossing" step is vital because tension is simply controlled friction. If the thread rides on top of the disks, friction is zero, tension is zero, and you get a bird's nest.

Decision Tree: Fabric + Stabilizer Choices (The "Don't Ruin It" Guide)

The machine is ready. Now, don't ruin the job with the wrong chemistry.

Start Here:

1. Is the fabric stretchy? (T-shirts, Polos, Performance)
   • YES: Use Cutaway Stabilizer. (Tearaway will result in distorted, puckered designs).
   • NO (Denim, Canvas): -> Go to step 2.
2. Is the fabric thick/stable? (Caps, Bags, Jackets)
   • YES: Use Tearaway Stabilizer.
3. Does the fabric have "pile" or fluff? (Towels, Velvet, Fleece)
   • YES: You must add a Water Soluble Topping so stitches don't sink in.
   • Pro Tip: This is the perfect scenario to use a brother pr magnetic hoop to avoid crushing the texture with a traditional clamp.

Troubleshooting the Scary Stuff Early: Impact -> Cause -> Fix

Comment-based Watch Out: A common question is: "Can I use my old hoops?"

• Answer: Only if the brackets match. Trying to force a "close enough" hoop from a different brand (like Tajima or Happy) onto a Brother PR machine will bend the Frame Holder arms.

The Upgrade Path: When to Spend Money to Make Money

You have mastering the basics. Now, where are the bottlenecks?

Level 1: The "Hoop Burn" Bottleneck

If you are embroidering delicate items (Performance wear, velvet) and spending 5 minutes steaming out "hoop rings" after every job, you are losing profit.

• The Upgrade: A magnetic embroidery hoop.
• The Logic: It holds fabric with magnetic force, not friction. Zero hoop burn = Zero post-processing time.

Level 2: The Alignment Bottleneck

If you are doing team uniforms and cannot get the left-chest logo in the exact same spot on 50 shirts, your eyes are the problem.

• The Upgrade: A hooping station for brother embroidery machine.
• The Logic: Mechanical repeatability. You set the jig once, and every shirt loads in the exact same position.

Level 3: The Volume Bottleneck

If your single 6-needle machine is running 8 hours a day and you are turning away orders, you have hit the hardware ceiling.

• The Upgrade: A high-speed multi-needle system (like Sewtech's ecosystem of machines).
• The Logic: Scaling from one head to multiple heads is the only way to increase SPM (Stitches Per Minute) across the business.

Operation Checklist (Your Final "Go/No-Go")

• Hoop Check: Holder A width is set; hoop slides in flat; "Click" confirmed.
• Clearance: No fabric is bunched under the hoop (check underside!).
• Needle: Fresh flat-sided needle installed (Rule of thumb: Change every 8 hours of solid running).
• Speed: For the very first run, set the speed limit to 600 SPM (Sweet Spot) until you trust the setup. Then ramp to 1000.
• Trace: Run the "Trace" function on the screen to ensure the needle won't hit the hoop frame.

If you follow this sensor-based protocol—listening for the clicks, feeling the tension, respecting the physics—your Brother PR670e will be a workhorse, not a worry. Now, press start.

FAQ

• Q: How do I remove the Brother PR670e white shipping clips without tearing the carton, and should the shipping clips be kept for future transport?
  A: Remove the Brother PR670e shipping clips by squeezing the bottom tabs inward and “pinch-and-pop” lifting the flap—then keep the clips and box for any future move or service shipping.
  • Pinch: Locate each white clip at the base and squeeze the lower tabs inward.
  • Pull: Lift the cardboard sleeve straight up after all six clips release.
  • Store: Save the clips and the original box in a dry place for safe re-packing later.
  • Success check: Each clip releases with a firm snap (not a bend), and the sleeve lifts without ripping.
  • If it still fails: Recheck that both tabs are pinched at the same time; don’t pry from the top edge of the carton.
• Q: What is the correct “flossing” method for threading Needle #1 on a Brother PR670e to stop bird nesting (loops) under the fabric?
  A: Seat the top thread into the Brother PR670e tension disks by pulling it in firmly like flossing, then confirm the thread is routed under the check spring.
  • Hold: Keep the thread taut with both hands (one above, one below the tension area).
  • Floss: Pull firmly into the tension disks until the thread “pops” into place.
  • Verify: Confirm the thread goes under the check spring flap (the small bouncing wire).
  • Success check: You feel distinct resistance/pop entering the disks, and the thread is visibly under the check spring.
  • If it still fails: Re-thread the entire path from spool guides 1–6 and repeat the flossing step—most “mystery” loops are incomplete seating.
• Q: How do I load the Brother PR670e bobbin case correctly to avoid top-of-fabric loops or the bobbin case coming loose at speed?
  A: Load the Brother PR670e bobbin so it unwinds clockwise (“p” shape), then push the bobbin case in until an audible click confirms it is locked.
  • Orient: Hold the thread tail up and confirm the bobbin looks like a “p” (clockwise unwind), not a “q”.
  • Insert: Push the bobbin case into the rotary hook firmly.
  • Confirm: Do not start stitching until the case clicks into place.
  • Success check: The bobbin unwinds clockwise and you hear a sharp SNAP/CLICK during insertion.
  • If it still fails: Remove and reinsert the case—no click usually means it is not seated and can eject during sewing.
• Q: How do I set the Brother PR670e Frame Holder A width notch so a hoop slides in smoothly without forcing or rattling?
  A: Adjust the Brother PR670e frame holder arm to the correct indexed notch so the hoop slides in like a well-oiled drawer—never force resistance.
  • Loosen: Loosen the large screw on the left holder arm.
  • Slide: Move the arm outward until it drops into the correct notch.
  • Tighten: Tighten the screw after the notch is engaged.
  • Success check: You hear a sharp mechanical click into a notch, and the hoop slides in flat with controlled resistance (not jammed, not rattling).
  • If it still fails: Recheck you are using the correct hoop for Frame Holder A and re-index the notch to match the hoop you are mounting right now.
• Q: Is slight wobble normal after attaching a hoop to Brother PR670e Frame Holder A, and what mounting technique prevents hoop fit damage?
  A: A small amount of hoop wobble on Brother PR670e Frame Holder A is normal; mount by sliding the hoop perfectly flat so the metal ears go under the spring clips without leverage.
  • Inspect: Check the hoop bracket “ears” are aligned to go under the holder spring clips.
  • Slide: Keep the hoop parallel to the floor and slide it straight in—no upward angle.
  • Stop: Never force a hoop that binds; adjust width/notch first.
  • Success check: The hoop locks in with smooth insertion and shows only slight play at the far end (not loose rattling).
  • If it still fails: Remove the hoop and verify holder width notch setting and bracket alignment before trying again.
• Q: What needle system is compatible with a Brother PR670e, and what happens if round-shank industrial needles are used?
  A: Use domestic flat-sided needles specified for the Brother PR670e (the flat-side system noted in the manual); do not force round-shank industrial needles because they can damage the needle clamp.
  • Match: Confirm the needle has a flat side and matches the system listed in the Brother PR670e manual.
  • Replace: Install a fresh needle for setup and early test runs (a safe starting habit is changing regularly during production).
  • Avoid: Do not attempt to insert round-shank commercial needle systems into the clamp.
  • Success check: The flat-sided needle seats correctly in the clamp without resistance and stitches without immediate needle strikes.
  • If it still fails: Stop and recheck needle orientation/seating and verify the needle system against the machine manual before running again.
• Q: What safety rules should be followed during Brother PR670e first power-on calibration and around the needle area at 1000 stitches per minute?
  A: During Brother PR670e initialization and any powered-on operation, keep hands/hair/clothing away from the needle area and do not touch the moving carriage during the home “jig.”
  • Step back: Allow the X/Y home movement to complete without obstruction after powering on.
  • Clear: Keep fingers, jewelry, loose sleeves, and hair away from the needle zone anytime the machine is on.
  • Protect: Wear glasses when observing close-up near the needle area.
  • Success check: The machine completes the home movement smoothly with no obstruction, and you can trace/run without accidental contact near moving parts.
  • If it still fails: If an error occurs after interference, power down and restart, then let calibration complete untouched; if problems repeat, consult the manual/service guidance before continuing.
