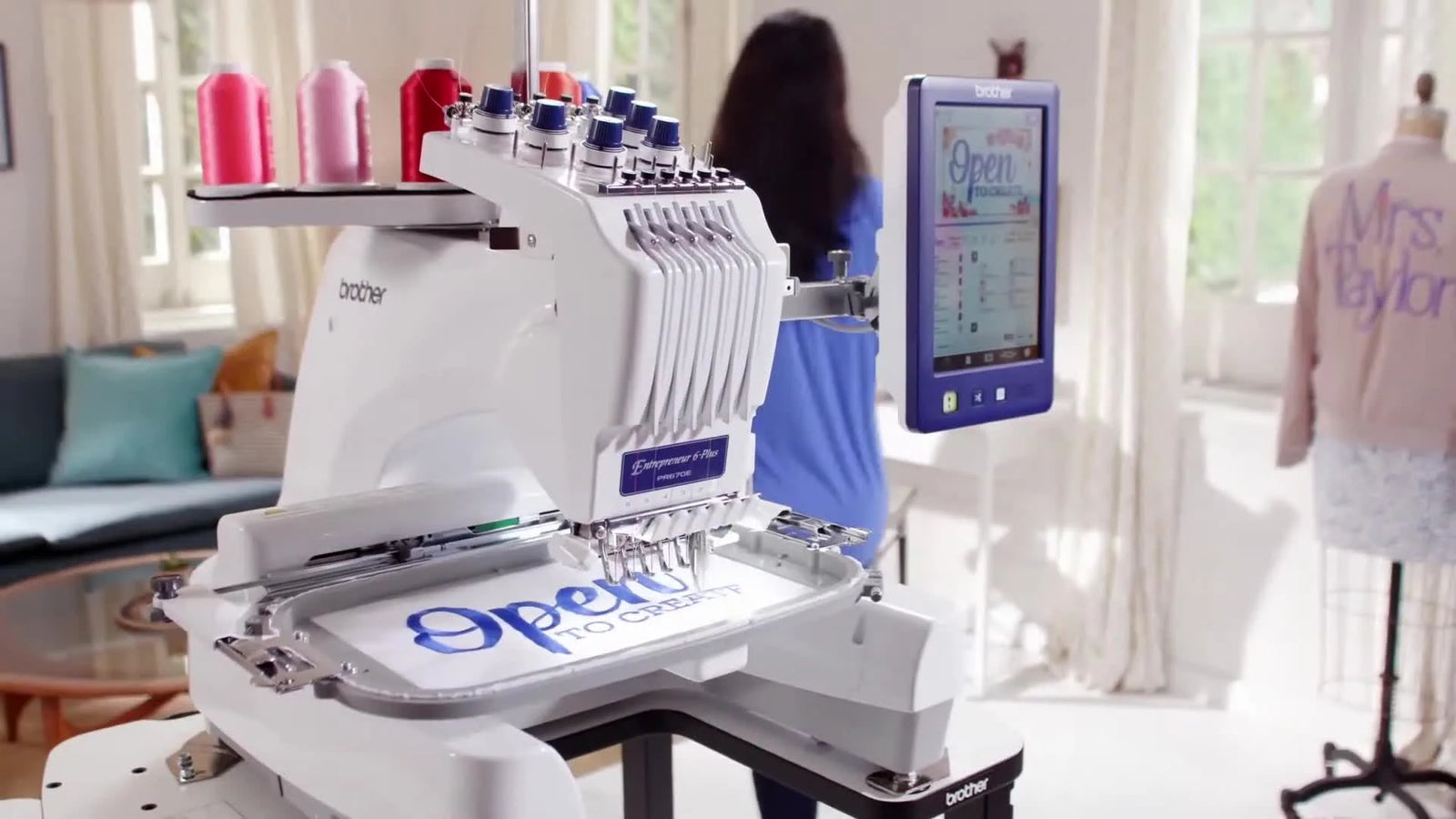

Brother PR670E in the Real World: Thread Faster, Align Smarter, and Stop Wasting Hoops on “Almost Right” Setups

Mastering the Brother PR670E: The "Experience-First" Guide to Multi-Needle Success

If you are looking at the Brother Entrepreneur 6-Plus (PR670E), you are likely in that exact specific, uncomfortable in-between stage. You have mastered the single-needle machine, but you are exhausted. You are tired of babysitting thread changes, tired of re-hooping caused by errors, and you want your home setup to behave closer to a small production line.

The promotional videos show the dream: push a button, walk away, profit. The reality of embroidery is less about magic and more about physics.

This guide acts as your operational white paper. We will strip away the marketing fluff and look at this 6-needle beast through the lens of a production manager. If you set this machine up the way a working shop would, it will save you hours of frustration and pile of ruined garments.

The PR670E "Calm Down" Primer: What This 6-Needle Head Actually Fixes

The Brother Entrepreneur 6-Plus (PR670E) is a semi-industrial 6-needle machine capable of 1000 stitches per minute (SPM). Its core promise is efficiency: stitching multi-color designs without stopping to manually swap thread spools.

However, after 20 years in this industry, here is the reality check I give every client moving up from a flatbed or single-needle machine:

• It does not fix physics: A 6-needle head doesn’t magically fix poor hooping, weak stabilization, or bad digitizing. If you feed it garbage, it will stitch garbage—just faster.
• It fixes rhythm: What it does eliminate is the constant stop-start capability limit of single-needle work. When stitching names, logos, or 3-color designs, the flow is continuous.
• The Profit Leak: Your biggest loss of money isn't the stitching speed; it is rework. Crooked placement, puckering, and thread breaks are what kill your hourly rate.

When you invest in a brother pr670e embroidery machine, you aren't just buying stitches; you are buying predictable repeatability.

The "Hidden" Prep: Thread Path, Hoop Grip, and Material Physics

Use the video tutorials for the basics, but use this section for the "street smarts" that prevent the machine from eating your fabric.

1. Threading Prep: The "Flossing" Test

The PR670E has a sophisticated thread path. The number one cause of "bird nesting" (that giant knot under the needle plate) is a missed tension disk.

• The Action: When you thread the machine, hold the thread at the spool with your right hand and pull the thread near the needle with your left.
• The Sensory Check: Floss it back and forth into the tension disks. You should feel a distinct resistance, similar to using dental floss between tight teeth. If it slides freely, it is not in the tension disk.
• The Check: Ensure the thread is seated deeply. If you skip this, the auto-threader will work, but the machine will loop instantly upon starting.

2. Hooping Physics: The Drum Skin Myth

Most advice says "tight as a drum." This is dangerous advice for stretchy fabrics. If you stretch a knit shirt like a drum, it will look great in the hoop, but the moment you unhoop it, the fabric relaxes and your embroidery puckers.

• Technique: You want "neutral tension." The fabric should be flat and taut, but not stretched out of its natural grain.
• The Burn Issue: Traditional plastic clamping hoops rely on friction. To hold slick items, you often have to tighten the screw aggressively, which leads to "hoop burn" (crushed fibers) that won't steam out.
• The Commercial Fix: If you find yourself over-tightening just to keep fabric still, you have outgrown friction hoops. This is the criteria for upgrading to magnetic hoops, which use vertical magnetic force rather than friction, securing the fabric without crushing the fibers.

Stabilization Decision Tree

Stabilizer (backing) is your foundation. Never guess.

• Is the fabric stretchy (T-shirt, Polo, Performance Wear)?
  • Decision: ALWAYS use Cutaway stabilizer. Tearaway will eventually disintegrate during washing, causing the design to distort.
• Is the fabric stable (Denim, Canvas, Towels)?
  • Decision: Tearaway stabilizer is acceptable. For towels, add a water-soluble topping to prevent stitches from sinking.
• Is the fabric white/sheer?
  • Decision: Use No-Show Mesh (Polymesh) cutaway to prevent the "badge effect" where the stabilizer shows through the shirt.

Prep Checklist: The "Pre-Flight" Routine

Do this before you even touch the screen.

1. Needle Check: Are you using the right needle? (Standard: 75/11. For knits: Ballpoint 70/10 or 75/11). Run your finger over the tip—if it scratches you, it will snag the fabric. Replace it.
2. Bobbin Check: Open the bobbin case. Blow out any lint. A single speck of lint here causes tension issues.
3. Hoop Check: Run your finger around the inner hoop ring. Any nicks or rough spots will snag delicate shirts.
4. Hardware Check: Ensure the bracket screws on the machine arm are tight. Vibration loosens these over time.


Auto Needle Threading: Speed vs. Safety

The video shows the automatic threading button as a magic fix. In production, we treat it as a precision tool.

The Production workflow:

1. Select the Needle: Tap the needle number on the screen.
2. Straighten the Path: Ensure the thread isn't twisted around the needle bar.
3. Engage: Press the auto-thread button.
4. The Sensory Check: Listen for the sterile mechanical whir-click. If you hear a grinding noise, STOP. The hook is likely bent or hitting the needle.

Warning: Mechanical Hazard. Keep fingers, loose sleeves, strings, and long hair away from the needle area during threading and stitching. The needle bars move with high torque and can puncture bone or pinch skin severely.

The "Sweet Spot" for Speed

The machine boasts 1000 Stitches Per Minute (SPM).

• Novice Mistake: Running everything at 1000 SPM. Friction generates heat, which melts polyester thread and causes breaks.
• Pro Tip: Set your default caps at 600 SPM and flats/shirts at 800 SPM. The time you save running at 1000 SPM is lost instantly if the thread breaks once. Speed is expensive; consistency is profitable.


The Droplight LED Marker: Precision Insurance

The Droplight (the red layout dot) is your insurance policy against skewed designs.

Practical Application for Profit

Placement error is the #1 reason for customer returns. "Close enough" is not acceptable for paid work.

1. Define the Center: Mark your garment with a crosshair using a water-soluble pen or chalk.
2. Align: Use the Droplight to match the needle drop exactly to your chalk mark.
3. Trace: Use the "Trace" button. Watch the LED light travel the perimeter of the design. Does it hit a button? Does it go off the edge of the hoop?

Hidden Consumable: Always keep a supply of air-erase pens or tailor's chalk near the machine. You cannot align what you haven't marked.

The 8" x 12" Field: Scaling Up Without Failure

The 8" x 12" (200mm x 300mm) field allows for jacket backs and large tote bags. However, large fields amplify physics problems.

The "Flagging" Phenomenon

In a large hoop, the center of the fabric is far from the frame edges. During rapid stitching, the fabric can bounce up and down (flagging). This causes skipped stitches and bird nesting.

The Fix:

• Stabilization: You need heavier backing or multiple layers for large designs.
• Hooping: This is where standard plastic hoops struggle to maintain tension across the center. If you plan to do many large jacket backs using a brother embroidery machine with 8x12 hoop, consider upgrading to a large magnetic frame. The magnetic force clamps the fabric consistently across the entire perimeter, reducing the "trampoline effect" in the center.


Free Arm & Cylinder Access: The Hidden Money Maker

The PR670E's "free arm" (the open space under the needle plate) is the reason you buy this machine over a flatbed. It allows you to stitch tubes: pant legs, sleeves, socks, and finished bags.

The Hoop Burn Problem on Finished Goods

When you are fighting to hoop a thick Carhartt jacket or a canvas tote bag on the free arm, you will battle the hoop screw. You have to unscrew it widely, shove the thick fabric in, and crank it down with force.

• The Result: Hand fatigue (Carpal Tunnel risk) and rings left on the fabric.
• The Solution Level 1: Use a "spray and float" technique (hoop the backing, spray adhesive, stick the bag on top). It's messy but works.
• The Solution Level 2: Magnetic Hoops. For tubular items, a magnetic embroidery hoop allows you to slide the bottom magnet inside the bag and snap the top magnet on. It takes 5 seconds versus 2 minutes of wrestling. If you are doing production runs of 50+ bags, this tool is mandatory for preserving your wrists.


Cap Frame: The Advanced Class

Caps are the most difficult item to embroider. The video makes it look easy, but caps require a very specific setup.

Cap Troubleshooting Guide

• Symptom: The design is distorted/crooked at the top.
  • Cause: The cap is "flagging" (bouncing) near the crown.
  • Fix: Use the cap clips (often binder clips) to secure the back of the cap to the driver tightly.
• Symptom: Needle breaks.
  • Cause: Stitching too close to the bill or center seam.
  • Fix: Ensure your design is digitized specifically for caps (bottom-up, center-out sequencing).
• Symptom: Thread breaks frequently.
  • Cause: Speed is too high.
  • Fix: Slow the machine down to 600 SPM or lower for caps.

When sourcing accessories, remember that a cap hoop for brother embroidery machine is a precision driver system. Ensure it is calibrated correctly to your specific machine.

The Screen & Workflow: Preventing "Operator Error"

The 10.1" screen is your command center. Use it to confirm, not just to view.

Setup Checklist: The "Go/No-Go" Decision

Do this immediately before pressing the flashing green start light.

1. Trace Check: Did I trace the design to ensure the needle won't hit the hoop? (Hitting a hoop at 1000 SPM can shatter the hoop and bend the main shaft).
2. Color Check: Do the colors on the screen match the thread cones actually on the machine? (The machine doesn't know you swapped Blue for Red).
3. Clearance Check: Is the back of the garment clear? (Ensure sleeves aren't folded under the hoop where they will be sewn shut).
4. Bobbin Check: Is there enough bobbin thread for this run?


Color Grouping & Resize: Digital Tools

The "Color Grouping" and "Auto Density" features are time-savers, but require human judgment.

Auto Density Reality

When you resize a design down by 20%, the machine automatically removes 20% of the stitches to prevent a bulletproof patch.

• The Limit: Do not resize more than 10-15% up or down on the machine. If you need to go from a 4-inch logo to a 2-inch logo, have it re-digitized. Computer algorithms cannot account for the way thread creates physical bulk.


The Professional Upgrade Path: When to Buy Tools

You are likely reading this because you want a professional finish. Professionalism is about consistency.

If you notice your production slowing down because of specific bottlenecks, here is your upgrade logic:

1. Pain Point: "I spend more time hooping than stitching."
   • Solution: Upgrade to Magnetic Hoops (like the SEWTECH variety). They self-align and reduce hooping time by 50-70%.
2. Pain Point: "My placement varies by 1/4 inch every shirt."
   • Solution: Look into hooping stations (like the hoop master embroidery hooping station) which provide a jig for consistent placement.
3. Pain Point: "I need to do 100 shirts by Friday."
   • Solution: This is when you consider adding a second machine. Two 6-needle machines beat one 10-needle machine for redundancy and throughput.

Warning: Magnet Safety. Magnetic hoops contain industrial-strength Neodymium magnets.
* Pinch Hazard: They snap together with extreme force. Keep fingers clear.
* Medical Risk: Keep at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Keep away from credit cards and phone screens.

In the world of production, items like magnetic embroidery hoops for brother machines are not "cheating"—they are leverage.

Operation & Maintenance Checklist (Post-Run)

Keep your machine healthy.

1. Lint Check: After every 4 hours of stitching, brush lint out of the bobbin case.
2. Oiling: Put one drop of embroidery machine oil on the hook race daily (or as the manual prompts). Do not over-oil, or you will stain fabrics.
3. Needle Rotation: If you have stitched 8 hours straight, change the needles. A $0.50 needle is cheaper than a ruined $20 polo shirt.

Final Thoughts: Ownership vs. Partnership

Buying the Brother PR670E is a major step. It is a relationship. Listen to the machine. If it sounds rhythmic and smooth (a "thump-thump-thump"), you are making money. If it sounds loud, metallic, or strained, stop immediately and check your checklist.

Master the prep, stabilize correctly, respect the speed limits, and this machine will build your business for years to come.

FAQ

• Q: How do I stop Brother PR670E bird nesting caused by a missed tension disk during threading?
  A: Rethread and “floss” the thread into the Brother PR670E tension disks until resistance is felt.
  • Action: Hold thread at the spool with the right hand and pull near the needle with the left, then floss back-and-forth into the tension disks.
  • Action: Reseat the thread deeply in the path before using the auto-threader.
  • Success check: The thread should feel like dental floss between tight teeth (clear resistance), not slide freely.
  • If it still fails: Stop the run and recheck bobbin-area lint and the entire thread path for a missed guide.
• Q: How tight should fabric be hooped on the Brother PR670E to prevent puckering on knits without causing hoop burn?
  A: Hoop knit garments on the Brother PR670E at neutral tension—flat and taut, but not stretched beyond the fabric’s natural grain.
  • Action: Smooth the fabric in the hoop until wrinkles are gone, then stop before the knit is “drum tight.”
  • Action: Avoid over-cranking the hoop screw just to stop slipping; that friction pressure is what causes hoop burn.
  • Success check: The fabric looks flat in the hoop and does not “snap back” noticeably when unhooped (minimal relaxation).
  • If it still fails: Use a magnetic hoop to clamp with vertical force instead of crushing fibers with friction.
• Q: Which stabilizer should be used on the Brother PR670E for T-shirts, polos, towels, and sheer white fabrics?
  A: Match stabilizer to fabric type on the Brother PR670E: cutaway for stretch, tearaway for stable, and no-show mesh for white/sheer.
  • Action: Use cutaway stabilizer for stretchy items like T-shirts, polos, and performance wear (tearaway can break down in washing).
  • Action: Use tearaway stabilizer for stable fabrics like denim and canvas; add water-soluble topping for towels to prevent stitch sinking.
  • Action: Use no-show mesh (polymesh) cutaway for white or sheer garments to reduce show-through (“badge effect”).
  • Success check: After unhooping, the design stays flat without distortion, and stabilizer does not visibly telegraph through the fabric.
  • If it still fails: Increase backing support (heavier or additional layers), especially for larger designs.
• Q: What is the safe default stitching speed on the Brother PR670E to reduce thread breaks compared with running at 1000 SPM?
  A: Use conservative speed caps on the Brother PR670E—typically 600 SPM for caps and about 800 SPM for flats/shirts to reduce break-related downtime.
  • Action: Set a default around 800 SPM for flats/shirts and slow to 600 SPM or lower for caps.
  • Action: Avoid running everything at 1000 SPM; heat and friction can melt polyester thread and trigger breaks.
  • Success check: The machine runs with consistent rhythm and fewer stops for thread breaks across a full design.
  • If it still fails: Recheck threading (tension-disk seating) and confirm the fabric is stabilized and hooped correctly.
• Q: How do I use the Brother PR670E Droplight LED marker and Trace function to prevent crooked placement and hoop strikes?
  A: Mark a center crosshair, align with the Brother PR670E Droplight, then run Trace before starting every paid job.
  • Action: Mark garment center with a water-soluble pen or tailor’s chalk.
  • Action: Align the needle drop point using the Droplight so it matches the crosshair precisely.
  • Action: Press Trace and watch the perimeter path to confirm it clears buttons, seams, and hoop edges.
  • Success check: The traced boundary stays fully inside the hoop and avoids obstacles before the first stitch.
  • If it still fails: Rehoop and repeat alignment; do not “send it” if Trace looks close.
• Q: What causes skipped stitches and bird nesting in the Brother PR670E 8" x 12" hoop area, and how do I reduce fabric flagging?
  A: Large-field sewing on the Brother PR670E can cause fabric flagging (bouncing) in the center; add stabilization and improve hoop grip consistency.
  • Action: Use heavier backing or multiple layers for large 8" x 12" designs to support the center span.
  • Action: Improve hooping so tension is maintained across the entire perimeter; standard plastic hoops may struggle on big jacket backs.
  • Success check: The fabric no longer “trampolines” during fast stitching, and skipped stitches/bird nests reduce noticeably.
  • If it still fails: Move to a large magnetic frame to clamp more evenly around the perimeter and reduce center bounce.
• Q: What safety steps should be followed when using Brother PR670E automatic needle threading and when handling magnetic embroidery hoops?
  A: Treat Brother PR670E auto-threading and magnetic hoops as pinch-and-puncture hazards—keep hands clear and respect magnet medical/electronics risks.
  • Action: Keep fingers, loose sleeves, strings, and long hair away from the needle area during auto-threading and stitching.
  • Action: Stop immediately if auto-threading sounds like grinding instead of a clean whir-click; do not force the mechanism.
  • Action: Handle magnetic hoops carefully—keep fingers out of the snap zone to avoid pinch injuries.
  • Success check: Auto-threading runs smoothly without abnormal noise, and magnetic frames close without pinching or slamming onto fingers.
  • If it still fails: Pause operation and consult the Brother PR670E manual; do not continue if there is metal-on-metal noise or uncontrolled magnet snapping.
