Brother PR655 Tension Problems? The “I-Test” + Deep Clean Routine That Stops Loops, Bird Nests, and Panic

When tension goes wrong on a multi-needle machine, it is visceral. The sound changes—from a rhythmic thump-thump to a strained grind. It feels personal, as if the machine is judging you mid-job.

I have spent two years in commercial embroidery shops and another decade teaching the craft. I’ve watched experienced shop owners cancel orders, and I’ve watched beginners nearly ship a machine back, all because of one cognitive trap: they tried to “fix tension” before they proved whether the machine was simply dirty.

Embroidery is an empirical science. It relies on physics, not luck. This post dismantles the fear of tension adjustment and rebuilds a calm, repeatable routine based on a Brother PR655 demonstration. (Note: These principles apply universally, from the domestic single-needle to the industrial 10-needle).

We will clean the exact places that create false tension readings, run a fast satin-stitch test that tells the truth, and then adjust only what actually needs adjusting.

The 1/3 Rule on Satin Stitches: How Brother PR655 Tension Should Look When It’s Truly Balanced

Balanced embroidery tension is not a mystery number on a dial—it is a visual relationship between two threads fighting for space.

On a standard satin stitch column (approx. 3mm - 4mm wide), the “healthy” target on the back of the fabric is:

• About 2/3 top thread (colored) on the sides.
• About 1/3 bobbin thread (white) strictly in the center.

Visual Anchor: Imagine a hot dog bun. The top thread is the bun; the bobbin thread is the hot dog. You want to see the hot dog clearly centered, occupying one-third of the width.

Mental Model for Rapid Diagnosis:

1. Bobbin Line Too Thin (Under 20%): The bobbin is pulling too hard (too tight), or the top is too loose. The "hot dog" is being squeezed out.
2. No Bobbin Line (All Top Color): The bobbin is critically tight. The top thread is being dragged completely underneath.
3. Bobbin Showing on Top of Fabric: The bobbin is effectively too loose (or top is too tight). It looks like white specks or "railroad tracks" on your finished design.

If you are running a brother pr655 embroidery machine in a production environment, this "1/3 check" is the fastest quality-control habit you can build. It catches problems before they become thread breaks, needle snaps, or ruined garments.

Clean Before You Touch Any Dials: The Lint Traps That Fake “Bad Tension” on Brother PR Machines

Here is the hard truth: A dirty machine makes perfect tension settings look wrong.

Lint is not just dust; it is friction. A piece of lint the size of a sesame seed trapped in your bobbin spring can drop tension efficiency by 50%. Before you touch a screw, you must clear the "false signals" from:

1. Bobbin housing area: Lint buildup changes drag.
2. Under the needle plate: Trimmed thread tails jam near the movable cutter knife.
3. Rotary hook area: Requires lubrication after cleaning.
4. Bobbin case tension leaf/spring: The invisible culprit.

This is why many users spend hours "researching" on forums and get nowhere: they are trying to tune a machine that is mechanically compromised.

The “Hidden” Prep Checklist (Pre-Flight Safety)

Do not skip this. Gather these tools before opening the machine.

• Debris Catcher: Place a white sheet of paper under the hoop arm/hook area. This highlights fallen screws and prevents oily lint from staining your table.
• Stiff-Bristle Paintbrush: Soft cosmetic brushes are useless here. You need stiff bristles to dislodge compressed lint cakes.
• The "Z" or S-Shaped Screwdriver: Essential for removing the needle plate without hitting the upper arm.
• Magnetic Tray: For holding the tiny needle plate screws (they vanish easily).
• Business Card / Cardstock: Cut a thin strip for "flossing" the bobbin case.
• Approved Oil: Only use clear, high-quality sewing machine oil (e.g., Zoom Spout). Never use 3-in-1 or WD-40.

Warning: Power OFF the machine before removing the needle plate or working near the hook/knife area. If your finger slips and hits the start button, or if a sensor trips, the moving cutter assembly can cause severe lacerations or needle punctures. Safety first.

The Deep-Clean Sequence on Brother PR655: Bobbin Housing, Needle Plate, Cutter Area, Then Hook Oil

This is the exact order shown—and it is the standard operating procedure (SOP) I recommend in real shops to prevent oiling over dirty lint (which creates "cement").

1) Clean the bobbin housing area

• Action: Remove the bobbin case. Use your stiff brush to sweep aggressively around the rotary hook.
• Goal: Knock out the "fluff clumps."
• Sensory Check: You should see dust falling onto your white paper sheet. If you don't see dust, dig deeper.


2) Remove the needle plate and clean underneath (The "Knife Zone")

• Action: Use the S-shaped screwdriver to loosen the two plate screws. Finish unscrewing with your thumb to avoid dropping them.
• Inspect: Look closely at the movable cutter knife (the mechanism that trims your thread).
• The Issue: Trimmed thread tails (about 3mm long) love to pile up here. They act like a wedge, preventing the knife from retracting or the thread from flowing.

3) Oil the rotary hook after cleaning

• Action: Apply one drop of oil to the race of the hook assembly.
• Constraint: Do not flood it. Too much oil sprays onto your fabric during the first run.
• Cycle: Turn the handwheel manually to distribute the oil.

If you are maintaining a brother pr655 6 needle embroidery machine for daily work, this clean-and-oil rhythm (every morning or every 8 running hours) is the cheapest insurance policy you can buy.

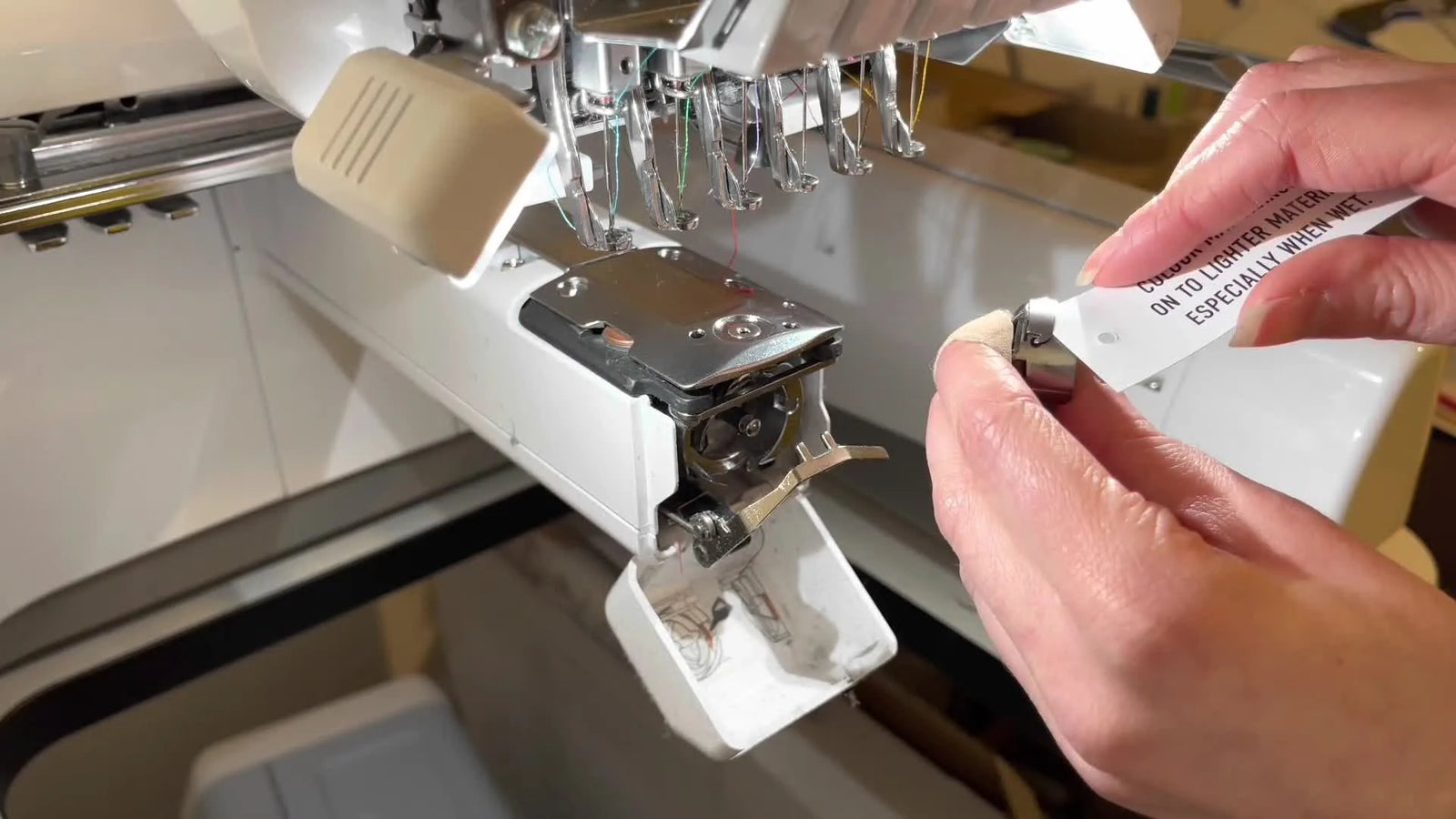

The Bobbin Case Tension Leaf Trick: Why a Thin Card Fixes What Screwdrivers Often Can’t

Most novices jump straight to the bobbin screw when tension looks weird. That is a mistake.

The "Floss" Technique:

1. Take your thin strip of cardstock or stiff paper.
2. Slide it under the metal tension leaf/spring on the side of the bobbin case.
3. Move it back and forth.
4. Sensory Check: You might feel a grit or resistance clearing. Pull the paper out and look for a tiny fuzz ball.

That microscopic fuzz ball was holding the spring open, causing zero tension. Screwing the tension tight would not have fixed it; cleaning it did.

A common beginner frustration: "I tightened the screw all the way and it's still loose!" Reason: Friction requires surface area contact. Lint breaks that contact.

Build the Fastest Tension Test File: The Brother Built-In “I” Satin Column That Tells the Truth

Stop testing tension on complex designs with 5000 stitches. You need data, not art. The "I-Test" is the industry standard for calibration.

On the Brother PR Machine:

1. Go to the built-in fonts. Choose a Sans-Serif (block style) alphabet.
2. Select the capital letter “I” (or a vertical bar).
3. Duplicate it six times.
4. Arrange them side-by-side.
5. Crucial: Assign a different needle to each "I" (Needle 1 for the first, Needle 2 for the second, etc.).

On a single-needle domestic machine, just stitch one "I".

Material Setup (The Scientific Control)

You cannot test tension on a flimsy t-shirt. The fabric stretch will lie to you.

• Fabric: Polyester Felt (stiff, consistent, non-stretchy).
• Stabilizer: Two layers of Tear-away or one layer of quality Cut-away.

This setup removes "fabric distortion" from the equation. If you are running a brother pr 680w or similar PR-series machine, keeping a designated "tension hoop" with this felt setup ready helps you diagnose issues in 60 seconds.

Setup Checklist (Pre-Calibration)

• Hoop: Use a small hoop (4x4 or similar). Ensure it is tightly bracketed.
• Threading: Rethread the upper path just to be sure. Missed tension discs are common.
• Bobbin: Use a fresh, full bobbin. Low bobbins (last 10%) often have erratic tension curls.
• Needle: Use a standard 75/11 needle.
• File: The 6 x "I" file, properly color-mapped.

Reading the “I-Test” Like a Pro: When Uniform Columns Mean “Adjust Bobbin,” Not Six Top Dials

Run the test. Flip the hoop over. Here is the diagnostic logic:

1. Scenario A: All 6 columns look the same.
   • Diagnosis: The variable common to all needles is the Bobbin.
   • Action: Adjust the bobbin case settings.
2. Scenario B: 5 columns look perfect, 1 looks bad.
   • Diagnosis: The variable is specific to that needle (Top tension knob, thread path, or needle condition).
   • Action: Troubleshoot that specific needle path only. Do not touch the bobbin.

In the demo, the bobbin line on the back was slightly too thin across all columns. Conclusion: The bobbin is globally too tight (or top is globally too loose). We adjust the bobbin.

The Only Bobbin Screw Move You Should Make First: 1/4 Turn Counter-Clockwise (Then Re-Test)

Adjusting a bobbin screw is like cracking a safe. Tiny movements matter.

The Procedure:

1. Identify the larger flat-head screw on the bobbin case (the smaller one is typically for holding the spring; don't touch it unless you know why).
2. Mark the current position mentally (e.g., "Slot is at 12 o'clock").
3. Turn Counter-Clockwise (Lefty-Loosy) exactly 15 minutes (1/4 turn).
4. Re-Test: Don't guess. Run the "I" file again next to the first one.

Pro Tip: Never turn more than 1/4 turn at a time. If you spin it wildly, you lose your baseline and enter "tension hell."

After the adjustment, the second test reveals the "sweet spot": a clean, consistent bobbin line occupying 1/3 of the width.

Why Top Tension Knobs Sometimes Feel Like They “Do Nothing” (And Why That’s Not a Bad Thing)

The demo creates an extreme scenario: cranking top tension very tight vs. very loose. The surprising result? Bobbin changes have a more drastic visual impact than top tension changes.

This teaches us the hierarchy of embroidery physics:

1. Foundation: Bobbin Tension (Must be set correctly first).
2. Fine Tuning: Top Tension (Used to balance distinct thread weights or specific needle issues).

If your bobbin baseline is wrong, manipulating the top knobs is like trying to straighten a picture frame on a sinking ship. Fix the ship (clean and set bobbin) first.

The “Feel Test” That Saves Jobs: Pulling Thread by Hand to Recognize Correct Resistance

Once your "I-Test" looks perfect, stop. Memorize the sensation.

The Sensory Anchor:

• Bobbin Pull: Hold the bobbin case in your hand. Pull the thread. It should feel smooth but firm—like pulling a spiderweb that refuses to break. If the case drops rapidly when you hold the thread (The "Yo-Yo Test"), it's too loose. If it lifts off your hand without thread coming out, it's too tight.
• Top Pull: Pull thread through the needle (presser foot down). It should feel like flossing your teeth—distinct resistance, but smooth glide.


If the machine sounds harsh or makes a ka-chunk noise, stop immediately. "Pushing through" a noise usually results in a bird's nest or a timing issue.

The Tension Disasters People Actually Panic About: Symptoms → Cause → Fix Matrix

Use this table when things go wrong mid-production. Always troubleshoot from Low Cost (Cleaning) to High Cost (Parts/Mechanic).

Owners of heavy-duty machines like the brother pr680w 6 needle embroidery machine often mistake "Carnage under the plate" for a hook timing issue. 90% of the time, it is just trapped thread refuse.

Decision Tree: Fabric + Stabilizer Choices That Prevent Puckering Before You Blame Tension

Tension gets blamed for puckering, but stabilization is usually the criminal. Physics dictates that stitches pull fabric inward; stabilizer resists that pull.

Use this decision logic:

1. Is your fabric stable (Denim, Canvas, Twill)?
   • Yes: Use Tear-away (2 layers crisscrossed).
   • Result: Crisp edges, easy cleanup.
2. Is your fabric stretchy or unstable (T-Shirts, Polo Pique, Performance Knits)?
   • Yes: You MUST use Cut-away.
   • Why: Tear-away will disintegrate under high stitch counts, causing the knit to relax and pucker after the hoop is removed.
   • KWD Context: Proper hooping for embroidery machine success relies on the stabilizer acting as the "foundation" for the building.
3. Is the fabric lofty (Fleece, Towels)?
   • Yes: Use Cut-away (bottom) + Water Soluble Topping (top).
   • Why: The topping prevents stitches from sinking into the pile.

Hooping Reality Check: When “Hoop Snap” and Fabric Shift Masquerade as Tension Problems

In the demo, there’s a moment where the hoop wasn’t seated correctly and it “snapped in” mid-stitch. This creates a registration error that looks like a tension shift.

The "Hoop Burn" Dilemma: Traditional plastic hoops require you to muscle the fabric into place.

• Risk 1: You stretch the fabric (causing puckers later).
• Risk 2: You screw it so tight it leaves "hoop burn" (shiny crushed fibers) that ruins delicate garments.
• Risk 3: Wrist fatigue/Carpal Tunnel from repetitive screwing.

The Tool Upgrade: This is why professionals eventually migrate to Magnetic Hoops. Unlike screw hoops, a magnetic hoop for brother embroidery machine clamps straight down. It holds fabric firm without forcing it into a "drum," reducing hoop burn and making re-hooping 3x faster.

Warning: Magnetic Hoops are Industrial Strength. They can pinch fingers severely. Keep them away from pacemakers and implanted medical devices due to strong magnetic fields.

The Upgrade Path That Actually Makes Sense: Fix the Baseline, Then Buy Speed

Do not buy a new machine because you are frustrated with tension. Fix the tension first. Once you have mastered the "I-Test" and cleaning routine, your bottleneck will shift from quality to quantity.

The Logical Progression:

1. Skill Upgrade (Level 1): Master the "1/3 Rule" and maintenance routine (This Guide).
2. Workflow Upgrade (Level 2): Invest in Magnetic Hoops or a specialized hooping station for brother embroidery machine. This standardizes placement (no more crooked logos) and speeds up the "load/unload" cycle.
3. Capacity Upgrade (Level 3): If your single-needle Brother or 6-needle PR655 is running 6+ hours a day and you are turning away orders, then it is time to look at newer Multi-Needle models.

Operation Checklist: The "Don't Cancel The Job" Reset

Next time you are ready to throw the machine out the window, breathe. Run this 15-minute reset:

• Clean: Remove bobbin case. Brush out housing.
• Deep Clean: Remove needle plate. Clear cutter area.
• Floss: Use cardstock under bobbin tension leaf.
• Oil: One drop on the hook.
• Test: Run the "I-Test" on felt.
• Analyze: Uniform error? Adjust Bobbin 1/4 turn. Isolated error? Check Thread Path/Needle.
• Inspect Needle: If using it for >8 hours, replace it.

Start with a clean machine, and the tension will follow.

FAQ

• Q: What is the correct Brother PR655 satin-stitch tension check on the back of the fabric using the “1/3 rule”?
  A: Use a 3–4 mm satin column and aim for about 2/3 top thread on the sides with 1/3 bobbin thread centered.
  • Stitch a simple satin “I” column and flip the hoop to inspect the underside.
  • Compare the underside to the “hot dog bun” visual: bobbin thread must stay centered, not drifting to edges.
  • Success check: The bobbin line is clearly visible only in the center and takes roughly one-third of the column width.
  • If it still fails: Clean the bobbin area and bobbin tension leaf before touching any tension screws.
• Q: What exact Brother PR655 cleaning points should be done before adjusting any tension dials or bobbin screws?
  A: Clean the bobbin housing, under the needle plate (cutter/knife zone), and the rotary hook area first, then oil the hook.
  • Power OFF the machine, remove the bobbin case, and brush lint out aggressively around the rotary hook.
  • Remove the needle plate and clear trimmed thread tails around the movable cutter knife.
  • Add one drop of approved sewing machine oil to the hook race only after cleaning.
  • Success check: You visibly remove lint/thread debris (often falling onto a white paper sheet) and the machine runs without harsh “grind/ka-chunk” sounds.
  • If it still fails: “Floss” the bobbin case tension leaf/spring with cardstock to remove hidden fuzz.
• Q: How does the Brother PR655 bobbin case “cardstock floss” technique fix bobbin tension that will not respond to the bobbin screw?
  A: Slide a thin strip of cardstock under the bobbin case tension leaf/spring and move it back and forth to clear lint that holds the spring open.
  • Remove the bobbin case and locate the metal tension leaf/spring on the side of the case.
  • Insert cardstock under the spring and “floss” until resistance/grit feeling clears.
  • Inspect the paper for a tiny fuzz ball and brush the area clean.
  • Success check: Bobbin thread pull feels smooth but firm, and the “I-test” underside stops looking suddenly loose/looped.
  • If it still fails: Re-clean under the needle plate (cutter zone) and re-test with a fresh, full bobbin.
• Q: How do you build the fastest Brother PR655 tension test file using the built-in “I” satin column across all needles?
  A: Use the built-in sans-serif capital “I,” duplicate it six times, and assign each “I” to a different needle to isolate bobbin vs. needle-specific issues.
  • Select a block/sans-serif alphabet and choose capital “I” (vertical bar).
  • Duplicate the “I” six times side-by-side and map each one to Needle 1 through Needle 6.
  • Stitch on polyester felt with two layers of tear-away or one layer of quality cut-away stabilizer.
  • Success check: The backs of the six columns show consistent, centered bobbin lines when tension is balanced.
  • If it still fails: If only one column is bad, rethread that needle path and replace that needle before touching the bobbin.
• Q: When the Brother PR655 “I-test” shows the same tension problem on all 6 needles, should Brother PR655 users adjust bobbin tension or six top tension knobs?
  A: If all six columns look the same, adjust the bobbin baseline first because the bobbin is the shared variable across all needles.
  • Run the 6-needle “I-test” and compare all columns on the underside.
  • Decide: uniform error = bobbin; one bad column = that specific needle path/top tension/needle.
  • Make one controlled bobbin adjustment and re-test next to the first sample (do not guess).
  • Success check: After re-test, the bobbin line returns to the centered 1/3 target across all columns.
  • If it still fails: Re-clean and “floss” the bobbin tension leaf; then rethread the upper path (missed discs are common).
• Q: What is the safest first bobbin screw adjustment on a Brother PR655 bobbin case when the bobbin line is too thin across all needles?
  A: Turn the larger flat-head bobbin tension screw exactly 1/4 turn counter-clockwise, then immediately re-test.
  • Identify the larger bobbin-case screw (avoid the smaller spring-holding screw unless you know why).
  • Mark the starting position mentally (for example, note where the screw slot points).
  • Turn counter-clockwise (lefty-loosy) by 1/4 turn only, then stitch the “I-test” again beside the first test.
  • Success check: The underside shows a clean bobbin line centered at about one-third width instead of an ultra-thin line.
  • If it still fails: Stop increasing turns—go back to cleaning the bobbin spring/knife area and confirm a fresh bobbin and correct threading.
• Q: What safety steps should Brother PR655 owners follow before removing the needle plate and cleaning near the cutter knife area?
  A: Power OFF the Brother PR655 before opening the needle plate area because the cutter assembly and needle zone can cause serious injury if the machine moves.
  • Switch power OFF before removing screws or working near the hook/knife area.
  • Use the correct S-shaped screwdriver and control screws with your fingers to prevent drops into the machine.
  • Place white paper underneath to catch screws and prevent oily lint from staining the table.
  • Success check: Needle plate removal and re-installation happen without accidental start-ups, lost screws, or fingers near moving parts.
  • If it still fails: Do not “push through” harsh noises—stop, re-check for trapped thread tails under the plate, then re-test.
• Q: How do magnetic embroidery hoops reduce hoop burn and fabric shifting compared with screw hoops, and what is the key safety warning for magnetic hoops?
  A: Magnetic hoops clamp straight down to reduce hoop burn and speed up re-hooping, but the magnets can pinch fingers severely and must be kept away from pacemakers/implanted medical devices.
  • Use magnetic clamping to avoid over-stretching fabric that later puckers when released from a screw hoop.
  • Watch for hoop seating issues (a hoop “snap-in” mid-stitch can mimic tension changes via registration shift).
  • Handle magnets deliberately—separate and place them slowly to avoid finger pinch injuries.
  • Success check: Fabric holds firmly without shiny crushed fibers (hoop burn) and designs stitch without sudden shifts from hoop movement.
  • If it still fails: Return to the baseline routine—clean, oil, and run the felt “I-test” before changing tension settings.
