Brother PR1055X Tote Bags & Flat-Brim Hats: The Clean, Repeatable Setup That Stops Shifting, Residue, and Needle Breaks

If you’ve ever tried to embroider a heavy canvas tote or a structured flat-brim hat, you already know the emotional arc: confidence at the start, panic when the fabric lifts, and that sinking feeling when a needle snaps or the design lands crooked.

Embroidery is a game of physics. Canvas fights back against the needle. Structured hats refuse to lay flat. The workflow demonstrated on the Brother PR1055X works not because the machine is magic, but because the operator treats these items like what they are: awkward, high-leverage substrates that punish sloppy setups.

I’m going to rebuild this process into a repeatable, production-friendly guide. We will look at the exact tactile cues—what to feel for, listen for, and check—to run this in a home studio or a small shop without breaking needles or ruining stock.

Don’t Panic—But Respect the Physics

A tote bag and a cap are exactly the kind of “real customer order” items that create bottlenecks. The good news: the Brother PR1055X used here is a 10-needle beast designed for this. But the machine doesn't stop the bag from moving—you do.

If you’re new to multi-needle workflows, here is the mental shift: Stabilization is not just about the backing. It is about creating a "sandwich" that cannot shift while a needle punches it 1,000 times a minute.

On tubular items (totes) and curved items (caps), your biggest losses come from rework—stitching in the wrong place, or "flagging" (fabric bouncing up and down) which leads to birdnesting.

The Tote Strategy: Durkee Frames + The "Painter's Tape Hack"

Tony’s tote method uses Durkee Easy Frames (8x8) with adhesive stabilizer. This allows you to "float" the tote rather than forcing bulky seams into a traditional inner/outer hoop. However, adhesive stabilizer leaves a gummy mess that ruins tools over time.

The Pro Move: The Tape Barrier In the video, Tony adds a critical step: Blue painter’s tape goes on the metal frame first.

1. Apply Tape: Cover the metal underside of the frame with painter's tape.
2. Apply Stabilizer: Stick the adhesive backing onto the tape.
3. Result: When you tear it away, the adhesive residue peels off with the tape. Your frame remains clean.

Why this matters: If you’re running 50 totes, residual adhesive creates drag, attracts lint, and eventually causes uneven hooping. Clean tools equal consistent tension.

One note on terminology: While Tony uses Durkee, you might see similar metal frame systems online. Users often compare brands, so search for durkee ez frames reviews to see if they fit your specific machine bracket.

Prep Checklist (The "Pre-Flight" Inspection)

• Frame: Durkee Easy Frame (8x8 shown) is clean; no old gum.
• Barrier: Blue painter’s tape applied to the metal contact points.
• Stabilizer: Floriani Perfect Stick Tearaway (or equivalent sticky backing) applied; backing paper scored and peeled.
• Needle: CRITICAL. Install a fresh Titanium Sharp 75/11 (e.g., Organ Chrome). Do not use a ballpoint needle on canvas; it will deflect and break.
• Safety: Binder clips (Small/Medium size) ready within reach.
• Consumables: Have a heat gun and tweezers nearby for cleanup.

Warning: Safety First. Keep fingers, loose sleeves, and tools away from the needle area once the machine is armed. A multi-needle machine stitches at high speed; a needle strike can puncture bone or shatter the needle plate.

Mounting the Frame: The "Zero-Wobble" Standard

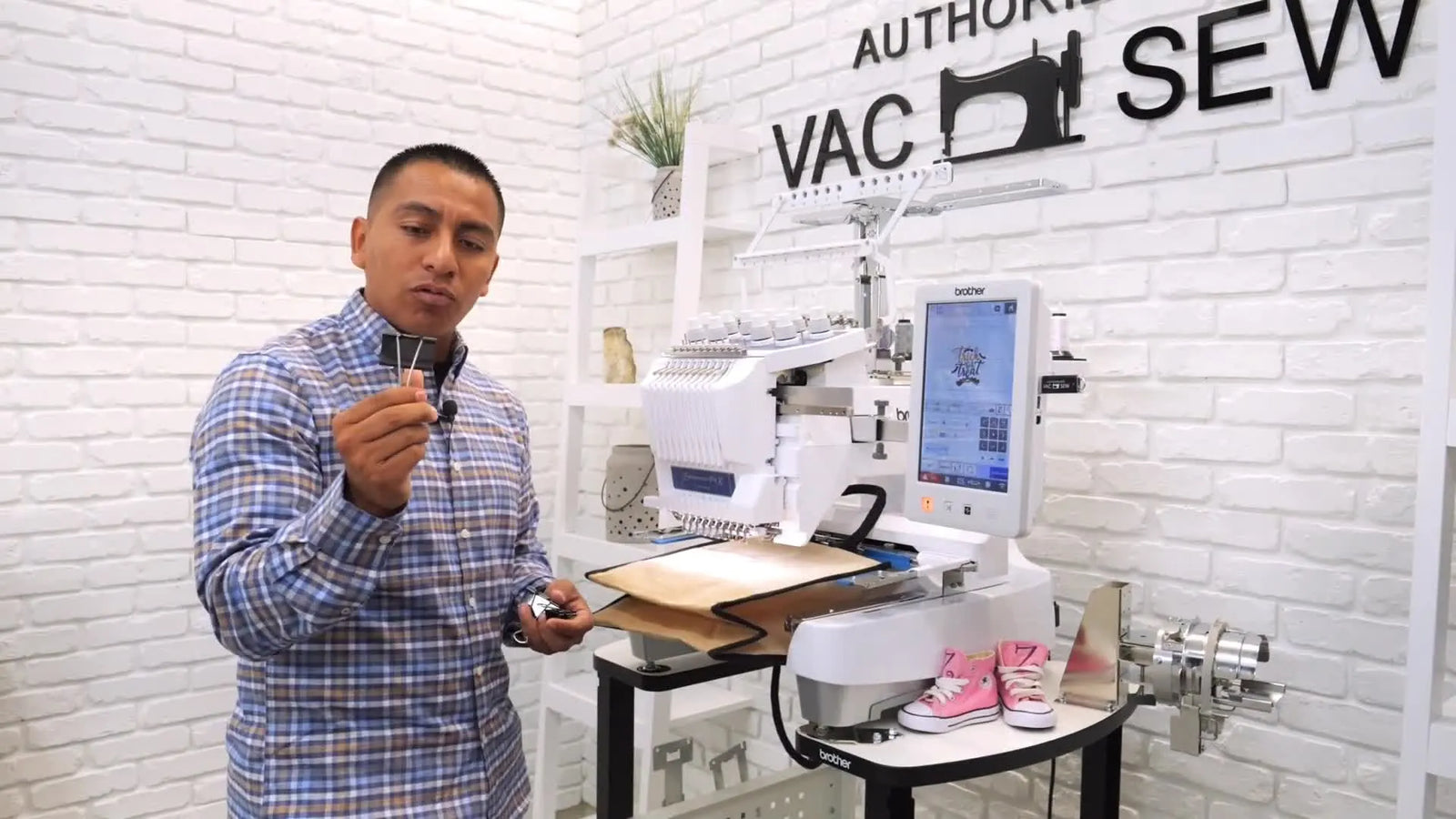

In the video, Tony inserts the Durkee frame claws into the blue A-frame base attachment on the machine arm.

The Tactile Check: Don't just slide it in. Push it until it stops.

• The Feel: It should feel "dead solid."
• The Test: Wiggle the frame tip up and down gently. The entire machine carriage should move. If the frame wiggles but the carriage doesn't, it is not seated.


Precision Alignment: The "Snowman" vs. Manual Rotation

This is the part that saves you from crooked text. It is impossible to hoop a tote bag perfectly straight by eye every time.

1. Rough Center: Press the tote onto the sticky stabilizer. Use your hands to feel the "free arm" of the machine underneath the tote to ensure the bag is roughly centered over the throat plate.
2. Apply Sticker: Place the "Snowman" positioning sticker on the tote where you want the design center.
3. Scan: Tap the Snowman button on the touchscreen. The machine scans the marker and—this is the magic—automatically rotates the design to match your crooked hooping.

Note: Always remove the sticker when prompted!

Setup Checklist (Before You Press Start)

• Adhesion: Tote pressed firmly onto the stabilizer (use a brayer roller or firm hand pressure).
• Clearance: Check under the hoop—ensure the tote handles are not caught underneath.
• Alignment: Snowman sticker scanned; design auto-rotated on screen.
• Sticker: REMOVED from the fabric.
• Path Check: Run a "Trace" (or trial key) to ensure the needle bar won't hit the metal frame.

The Secret Weapon: Binder Clips for Physics Management

Tony says it plainly: Canvas is heavy and textured. It does not like to stick to adhesive stabilizer.

The Physics of "Lift": As the needle penetrates, it pulls the fabric slightly up. On a heavy tote, gravity pulls the edges down. Eventually, the tote will peel off the sticky backing at the corners.

The Fix: Clip standard office binder clips to the edges of the frame/stabilizer/tote sandwich.

• Placement: Keep them far outside the stitch field (confirm this during the Trace step).
• Test: Gently tug the tote edge. You should feel immediate resistance, not a slow peeling sensation.


Needle Choice: Why "Sharps" Matter

Using an Organ Chrome Titanium Sharp 75/11 is not a suggestion; it is a requirement for canvas and structured caps.

• Chrome/Titanium: Heat resistant. Canvas generates friction; hot needles melt thread.
• Sharp Point: Punches through the tough weave. A ballpoint needle (common for knits) will try to push fibers aside, leading to deflection and snapped needles on canvas.

The Stitch-Out: Monitoring by Sound and Sight

Once the machine starts running "Trick or Treat," you stop looking at your phone. You monitor.

Sensory Monitoring:

1. Listen: You want a rhythmic, sewing-machine hum. A sharp "thump-thump-thump" usually means the needle is struggling to penetrate (dull needle) or the tote is flagging (lifting up).
2. Watch: Keep your eyes on the edges. If you see the fabric starting to "bubble" or lift away from the stabilizer, PAUSE immediately. Add another clip or press it down.


The Business Reality: When to Upgrade Your Tools

Tony’s method works for 5 totes. But what if you have an order for 100? Adhesive stabilizer requires peeling, picking, and re-taping. It is slow.

The Production Solution: High-volume shops often switch to magnetic embroidery hoops.

• Speed: You clamp the tote between strong magnets in seconds. No sticky backing required (use standard tearaway).
• Quality: No "hoop burn" (the shiny ring left by traditional plastic hoops).
• ROI: If a magnetic hoop saves you 2 minutes per bag, and you do 100 bags, you just saved over 3 hours of labor costs.

Warning: Magnetic Safety.
Magnetic frames are incredibly powerful. They can slam shut instantly.
* Pinch Hazard: Keep fingers clear of the mating surfaces.
* Medical Devices: Keep magnets away from pacemakers.
* Electronics: Keep away from phones and credit cards.

HATS: The "Structure" Challenge

Hats are harder than totes because they rotate. Simple friction isn't enough; you need mechanical locking.

1. The Cap Driver Installation

This is the heavy metal bracket that snaps onto the machine.

• The Rule: Tight is right.
• The Check: After tightening the mounting screws, grab the driver and shake it. If it moves, your design will have jagged edges. It must be rigid.


2. Hooping on the Jig

You cannot hoop a hat in mid-air. You need the "Cap Jig" (the heavy table mount).

1. Alignment: Slide the sweatband of the hat under the metal tab.
2. Centering: Align the center seam of the cap with the red line/groove on the jig.
3. Tension: Pull the strap at the back of the hat tight.
4. Locking: Use the side clips (if available) or the strap buckle. The hat should sound like a drum when tapped.

Search Tip: If you are looking for this entire system, the term cap hoop for brother embroidery machine generally refers to the specific driver/frame combo needed for your model.

3. Loading the Cap Frame (The "Click")

Take the framed hat off the jig and snap it onto the driver on the machine.

• Audible Cue: You must hear a distinct CLICK.
• Physical Cue: Three points must engage. If it clips on the left but floats on the right, you will crash the machine.
• Verification: lightly tug the frame. It should not budge.


3D Puff Tips: The Heat Gun Finish

To get the 3D raised effect:

1. Place 3D Foam over the design area.
2. Tape it down (don't rely on hope).
3. Stitch the design (high density Satin stitch cuts the foam).
4. Tear away the excess foam.

The "Blue Bits" Problem: You will see tiny bits of foam poking out.

• Fix: Use a heat gun (on low setting).
• Technique: Wave the heat gun over the design quickly. The foam shrivels and disappears into the thread. Do not linger, or you will melt the polyester thread or the hat mesh.




Troubleshooting Guide: Symptoms & Fixes

Decision Tree: Which Method for Which Job?

Scenario A: 1-5 Custom Tote Bags

• Tool: Durkee Frames + Adhesive Stabilizer.
• Why: Fast setup, low equipment cost.
• Watch out for: Residue on frames; use painter's tape trick.

Scenario B: 50+ Canvas Bags (Production Run)

• Tool: magnetic embroidery hoop.
• Why: Speed. No painter's tape needed. Snap on, stitch, snap off. Zero hoop burn.
• Cost: Higher upfront, pays off in labor savings.

Scenario C: Hats

• Tool: Dedicated Cap Driver & Frame.
• Why: Hats rotate. Magnets and flat frames cannot handle the 270-degree spin required for hats.
• Upgrade: If doing high volume, a dedicated multi-needle machine like the Brother PR1055X or SEWTECH equivalents becomes necessary to handle cap drivers efficiently without constant recalibration.


Final Thoughts

The difference between a hobbyist and a pro isn't the machine—it's the setup. If you control the physics (using binder clips, sharp needles, and tight hooping), the machine will do the rest.

If you find yourself fighting the materials constantly—hoop burn on totes, sore wrists from clamping, or residue cleanup—that is your signal. It’s time to look at the "Upgrade Conversation": moving to Magnetic Frames for speed or expanding your capacity with a dedicated SEWTECH multi-needle system to clear those bottlenecks.

Start with the tape trick and the binder clips. Master the "thump" sound of good stitching. Then, when the orders pile up, you’ll know exactly which tool you need to buy next.

FAQ

• Q: On the Brother PR1055X, how do I stop canvas tote fabric from lifting off sticky stabilizer and causing birdnesting during a stitch-out?
  A: Pause early and mechanically lock the tote to the frame with binder clips; sticky stabilizer alone often cannot hold heavy canvas.
  • Add binder clips to the outer edges of the frame/stabilizer/tote sandwich (keep clips well outside the stitch field).
  • Re-run Trace (trial key) to confirm the needle bar will not hit any clip or metal frame.
  • Press the tote down firmly onto the adhesive (a brayer or strong hand pressure helps).
  • Success check: tug the tote edge and feel immediate resistance (no slow peeling), and the fabric edge stays flat with no bubbling while stitching.
  • If it still fails: switch from adhesive workflows to a magnetic embroidery hoop for stronger clamping force and faster production handling.
• Q: On a Brother PR1055X tote workflow using Durkee Easy Frames, how do I prevent adhesive stabilizer residue from gumming up the metal frame?
  A: Use a blue painter’s tape barrier on the metal frame before applying sticky stabilizer so the residue lifts off with the tape.
  • Apply blue painter’s tape to the metal underside/contact points of the Durkee frame first.
  • Stick the adhesive stabilizer onto the tape (not directly onto bare metal).
  • Peel away after the job; replace tape as needed for the next run.
  • Success check: after removal, the frame feels clean (not tacky) and does not collect lint or drag during handling.
  • If it still fails: reduce how much adhesive is exposed to hardware and clean the frame/needle area before continuing.
• Q: On the Brother PR1055X, how do I confirm a Durkee Easy Frame is seated correctly on the arm attachment to avoid wobble and misalignment?
  A: Seat the frame until it stops, then do the “zero-wobble” wiggle test before stitching.
  • Push the frame into the attachment until it fully bottoms out (do not stop at “almost in”).
  • Wiggle the frame tip up/down gently to test seating.
  • Success check: the frame feels “dead solid,” and when the frame moves, the entire carriage moves with it (not the frame flexing independently).
  • If it still fails: remove and reinstall the frame—do not stitch until the seat is rigid.
• Q: On the Brother PR1055X, how do I prevent slightly crooked text on a tote when hooping is not perfectly straight?
  A: Use the Brother PR1055X “Snowman” positioning sticker scan so the machine can auto-rotate the design to match the hooping angle.
  • Place the tote on the sticky stabilizer and rough-center it over the throat area by feel.
  • Apply the Snowman positioning sticker at the intended design center and run the scan.
  • Remove the sticker when prompted, then run Trace to verify clearance.
  • Success check: the on-screen design rotation matches the tote’s real angle, and the traced needle path stays clear of the frame.
  • If it still fails: improve consistency with a dedicated hooping station and re-check that the tote is firmly adhered before scanning.
• Q: For canvas totes and structured caps on the Brother PR1055X, which needle should be used to reduce needle deflection and needle breakage?
  A: Use a fresh Organ Chrome Titanium Sharp 75/11; avoid ballpoint needles on canvas because they can deflect and snap.
  • Install a new Titanium Sharp 75/11 before starting the job (especially after any strike or heavy run).
  • Listen during stitching and slow down if needed (a safe starting point mentioned is 600 SPM max for reducing breakage risk).
  • Success check: the stitch-out sounds like a steady hum instead of repeated “thump-thump,” and needle breaks stop.
  • If it still fails: check for seam/structure impacts (caps) and confirm the substrate is not flagging or shifting.
• Q: When running sticky stabilizer on the Brother PR1055X, how do I fix a “gummy needle” caused by adhesive residue during tote embroidery?
  A: Stop and wipe the needle with an alcohol swab, then resume with cleaner handling to prevent repeat buildup.
  • Pause the machine as soon as stitch quality changes or the needle looks coated.
  • Wipe the needle carefully with an alcohol swab (keep hands clear of the needle area and resume only when safe).
  • Consider using titanium needles, which often resist gunk better in adhesive workflows.
  • Success check: thread feeds smoothly again and the stitch sound returns to a consistent rhythm without dragging.
  • If it still fails: reduce adhesive exposure and inspect the thread path for any residue transfer points.
• Q: What safety steps should be followed when using magnetic embroidery hoops/frames for tote production to avoid finger injuries and device damage?
  A: Treat magnetic frames as pinch hazards and keep magnets away from medical implants and sensitive electronics.
  • Keep fingers clear of mating surfaces before bringing magnets together (they can slam shut instantly).
  • Keep magnetic frames away from pacemakers/medical devices, and away from phones and credit cards.
  • Success check: the frame closes under control with no pinches, and the fabric is secured without shifting before stitching starts.
  • If it still fails: slow down the clamping motion, reposition hands, and only close magnets when alignment is already correct.
