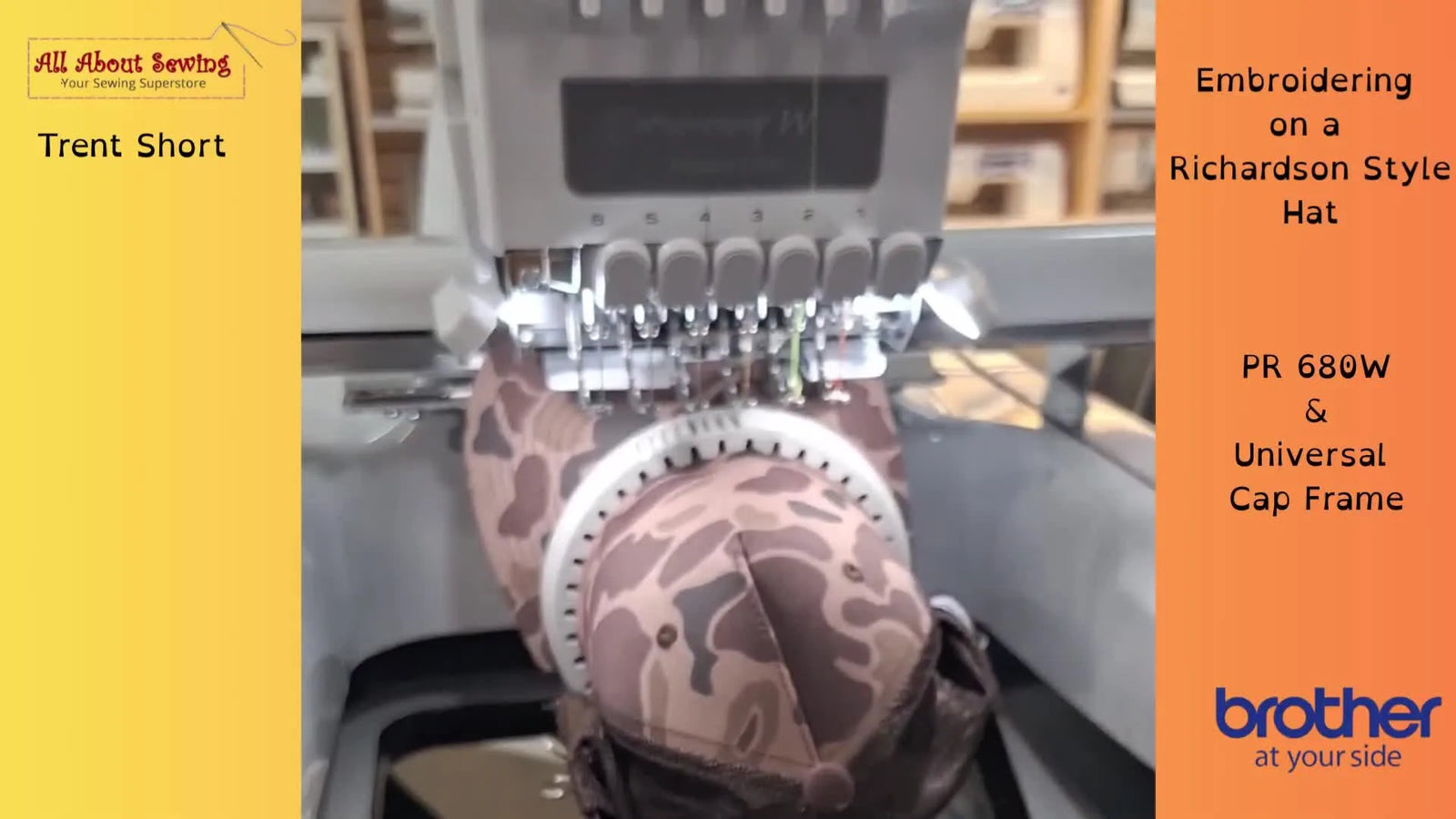

Brother PR 680W Richardson Hat Embroidery That Doesn’t Drift: The Universal Cap Frame “Pop-On” Method (Plus the Template Trick)

If you’ve ever stared at a structured cap clamped under a multi-needle head and thought, “One wrong move and I’m about to stitch a crooked logo forever,” you’re not being dramatic—you’re being realistic. Hat embroidery is an unforgiving discipline because the variables are stacked against you: the surface is spherical, the center seam is a visual liar, and the mechanical clearance under the head is terrifyingly tight.

In this workflow analysis, Trent demonstrates a clean, repeatable way to stitch a structured Richardson-style cap on a Brother PR 680W using a Universal Cap Frame. However, as an educator, I see two distinct layers here. There is the specific technique (how to run this hat without stabilizer), and there is the universal principle (how to use templates to remove anxiety).

We are going to break this down into a commercially viable, safety-first Standard Operating Procedure (SOP).

Keep Your Cool on the Brother PR 680W: Hat Embroidery Feels Risky, But It’s Not “Magic”

A lot of embroiderers panic the first time they mount a cap because the machine head looks like it’s destined to collide with the bill. That anxiety is valid—caps are bulky, rigid objects forced into a cramped driver area.

The difference between a hobbyist and a professional is not the absence of fear; it is the presence of a checklist. What I appreciate about Trent’s approach is that it rejects the "hope and pray" method. He calibrates the machine, loads the design, mounts the cap frame, verifies placement physically, and only then commits to stitching. That sequence is the psychological safety net that keeps you from wasting expensive inventory.

If you’re running a brother pr 680w, you must treat caps like a controlled industrial process: mount cleanly, verify twice, stitch once.

The “No Stabilizer” Call for a Structured Richardson Hat: When the Cap Itself Is the Backing

Trent’s key point—and the most controversial for beginners—is that for this specific structured Richardson cap, he does not add stabilizer. His logic is that the hat has enough "body" (rigidity) to hold registration on its own.

Expert Calibration: That statement is empirically true for this specific scenario—a rigid, fresh, stiff-front cap. However, in the "experience science" of embroidery, the trap is assuming all hats behave like this one.

Here is the expert lens used in high-volume shops:

• The Physics of Structure: A structured cap acts like its own stabilizer because the buckram (the stiff mesh inside the front panel) resists the "push and pull" forces of the needle penetration.
• The Danger Zone: A soft, unstructured "dad hat" behaves like a T-shirt. It creates a "flagging" effect—where the fabric bounces up and down with the needle—if you don't use backing. This leads to birdnesting and skipped stitches.
• The Density Factor: Even on structured caps, if you are stitching a high-density design (like a solid filled circle or dense lettering), the thread tension can still warp the hat surface.

The Verdict: Trent’s result is clean because the hat is strong and the design is open. But if you switch to a thinner cap, a foam-front trucker, or a vintage washed hat, you must use stabilizer (tearaway or cutaway) to keep the stitch field from shifting. When in doubt, follow the "Rule of Stability": It is better to waste 5 cents on backing than $15 on a ruined hat.

Mounting a Universal Cap Frame on the Cap Driver: The Sideways Slide That Prevents Head Collisions

This is the physical moment most people struggle with: getting the hat under the multi-needle head and onto the driver without snagging the bill or fighting the clearance.

Trent calls out a specific physical maneuver that is crucial for machine safety:

1. The Approach: With the machine calibrated and the design loaded, bring the cap to the driver area.
2. The Rotation: Turn the hat sideways (90 degrees) to slide the bill past the needle bar case.
3. The Engagement: Rotate it back upright once it clears the head.
4. The Lock: Slide it onto the driver cylinder. You shouldn't just push; you should feel a distinct tactile resistance followed by a "pop" or a solid "thunk" as it seats.
5. The Adjustment: Once it’s seated, adjust so the center mark/center seam area is visually aligned.

That sideways move matters because it minimizes the risk of the bill scraping the needle case, which can knock your laser alignment out of true or scratch the machine housing.

Warning: Pinch Point Hazard. Keep fingers, loose sleeves, and tools away from the needle area while positioning the cap. A multi-needle head has tight pinch points between the moving driver and the fixed head. A sudden jog of the machine can lead to severe needle strikes or hand injuries. Never put your fingers inside the hat while the machine is active.

Prep Checklist (before you touch the driver)

Before you even approach the machine, ensure these "hidden consumables" and tools are ready.

• Hardware: Universal Cap Frame and cap driver are mounted, screwed in tight, and verified stable.
• Substrate: Hat relies on a stiff front panel (structured). Check the sweatband area for loose threads that could snag.
• Visual Aid: Paper template of the design is printed at 100% scale and trimmed close to the design edge.
• Adhesion: Painter's tape or embroidery tape is pre-cut and ready.
• Fixation: Binder clips (medium size) are on hand for securing the sweatband.
• Needle Check: Ensure you are using sharp needles (typically 75/11 Sharp or Ballpoint depending on fabric) to penetrate the heavy buckram without deflection.


The Paper Template Alignment Trick: Make Placement Obvious on a Curved Hat Surface

Curved surfaces are visually deceptive. Your eyes can try to "center" a design, but they are fighting three different input signals: the curve of the bill, the vertical center seam, and the pattern of the fabric (especially on camo hats, which are notorious for hiding alignment errors).

Trent’s fix is one of the most practical habits you can steal from this workflow:

1. Print: Print the design on standard paper with crosshairs enabled in your software.
2. Tape: Tape the paper template directly to the front of the hat before it goes on the machine.
3. Align: Use the machine’s needle/laser position marker to line up with the crosshairs on the printed template.
4. Trace: Run a boundary/placement check (Trace) to ensure the design fits the printable area.

This is faster than unpicking thread, and it’s cheaper than replacing a cap. It allows you to visualize the final result before a single stitch is formed.

If you’re shopping for a brother pr680w hat hoop setup, prioritize buying extra frames so you can prep the next hat with a template while the first one is stitching. Repeatability is what turns "I can do hats" into "I can profitably sell hats."

Why this works (The Physics in Plain English)

On a cap, the stitch field is fighting two opposing physical forces:

• Curvature Spring-back: The hat wants to return to its natural curve, pushing against the flat frame.
• Stitch Tension (Pull Compensation): The thread tension pulls the fabric in toward the center of the fill.

A paper template acts as a "Truth Anchor." It doesn't change the physics, but it removes the parallax error of "eyeballing" a 2D design on a 3D sphere. You are aligning your machine's coordinate system to a fixed visual target, not a vague feeling.

Screen-to-Hat Verification on the Brother PR 680W: Don’t Trust the Seam—Trust the Check

Trent shows the digital placement on the machine screen matching the physical template. That’s the professional loop: confirm the design is where you think it is in both the physical world (the hat) and the digital world (the screen).

This is where many cap jobs go wrong when operators rush. They rely on the center seam alone. Reality Check: Seams are heavily manufactured and often crooked. If you align a perfectly straight design to a crooked seam, the design looks crooked. If you align to the visual center (the template) and ignore the seam variance slightly, the eye perceives it as straight.

Many professionals in the industry search for a hooping station for machine embroidery to solve alignment issues on flat garments. While a hooping station is less common for cap frames due to their shape, the mindset is identical: the goal is consistent registration (where the needle hits) rather than just "close enough."

Setup Checklist (right before stitching)

• Mechanical Lock: Hat is fully seated on the driver. Sensory Check: It should feel "locked in," not wobbly or bouncy.
• Center Verification: The seam or heavy center buckram is aligned centrally, but the Template is your primary guide.
• Ordinates Check: Needle/laser marker sits directly over the center crosshair of your paper template.
• Trace Pass: The boundary check (Trace) clears the bill and the sweatband. Auditory Check: Listen for any clicking or grinding that suggests the frame is hitting the limits.
• Template Removal: Crucial: Remove the paper template before hitting start!


Stitching the Design on the Brother PR 680W: Monitor Like a Pro, Not Like a Passenger

Once Trent is happy with placement, he removes the template and starts embroidering. The machine runs through the design (paw prints with names), and he monitors the stitch-out.

Speed Management: Trent might run his machine at high speeds, but for a structured hat like this, the "Sweet Spot" for quality is often 600–700 SPM (Stitches Per Minute). Running a cap at 1000 SPM increases the vibration and the chance of needle deflection on the center seam.

Sensory Monitoring:

• The Sound: A happy embroidery machine makes a rhythmic, mechanical hum. If you hear a sharp, metallic "clack," stop immediately—your needle may be hitting the needle plate or the frame.
• The Sight: Watch the first 100 stitches. Does the hat "pump" or breathe? If the fabric lifts up to meet the needle, your hooping is too loose, or you needed that stabilizer you skipped.

For higher-volume hat work, this is where a production upgrade starts to matter. A multi-needle workflow is efficient, but the real bottleneck is mounting and alignment. If your machine is stopped while you hoop, you are losing money.

The “Pop-Off” Release: Safely Unhooping a Hat from the Universal Cap Frame Without Bending the Bill

When the design finishes, Trent gets the completion lights and removes the hat. However, the removal is just as technical as the installation.

The Removal Sequence:

1. Unlock: Reach into the driver area (watch the needles!).
2. Release: Press the pressure spring clamps toward the back to release the lock.
3. The Pop: The frame releases tension.
4. The Twist: Give the hat a slight rotation/twist to shimmy it off the driver cylinder.
5. Unclip: Unlock the universal frame latch and remove the binder clips.

The "Twist" is essential. If you yank the hat straight out, you risk bending the bill against the machine head or stressing the driver mechanism. Treat the machine with mechanical sympathy suitable for a precision instrument.

The Binder Clip Habit: Tiny Organization Moves That Save Real Time in a Hat Workflow

Trent uses binder clips to hold the sweatband back—a classic shop trick—and then stores them right on the magnet pad or tray near the machine.

That seems minor, but in a real shop, "micro-organization" is what keeps you from losing time between orders. If you step away to find tape or a clip for every single hat, you add minutes to every hour.

The "Cap Kit" Strategy: If you do caps, build a kit that sits next to the machine:

• Pre-cut backing (if used).
• A roll of painter's tape.
• A stack of printed templates.
• Binder clips.
• Snips.

If you’re currently doing hats one at a time and dreaming about pacing up, the first upgrade is usually not a new machine—it’s a tighter, more organized workflow.

Decision Tree: When a Hat Can Run Without Stabilizer (and When It’s Asking for Trouble)

Use this decision tree as a starting point. "Maybe" is not a strategy; physics is.

Pro Tip: In commercial support, we find that 80% of "puckering" issues on caps are solved simply by adding a layer of tearaway stabilizer, regardless of the hat type.

Troubleshooting Universal Cap Frame Problems: Symptoms → Likely Cause → Fix

When things go wrong, don't guess. Follow the symptoms.

The Upgrade Path When Hats Become Real Orders: Faster Mounting, Less Wrist Strain, Fewer Misplacements

Once you can reliably stitch a structured cap like this, the next pain point you will hit is physical fatigue and production bottlenecks.

Here is the commercial reality: doing one hat is fun. Doing 50 hats is labor. When your hobby turns into a "side hustle," your tools need to evolve.

1. The Wrist Saver (For Flats): If mounting garments feels slow or your hands get tired from the repetitive motion of tightening screws, magnetic hoops (like those from SEWTECH) are the industry standard for relief. While you can't use flat magnetic hoops on caps, using them for your shirts and bags saves your wrist strength for the difficult cap jobs.
2. The Volume Solver: If you are consistently rejecting orders because you can't stitch fast enough, or if changing threads on a single-needle machine is killing your profit margin, a dedicated multi-needle setup (like SEWTECH multi-needle machines) creates a massive jump in productivity.
3. The Quality Protector: If you are seeing "hoop burn" (shiny marks) on your dark hats or garments, you need to look at your clamping pressure or switch to magnetic frames where applicable.

If you’re already comparing brother pr680w hoops for different jobs, think in terms of ROI (Return on Investment): the best tool isn't the cheapest one; it's the one that eliminates the "Re-Do."

Warning: Magnetic Field Safety. If you upgrade to magnetic hoops in your workflow, use caution. These use powerful Neodymium magnets.
* Pacemakers: Keep at least 6-8 inches away from implanted medical devices.
* Pinch Hazard: They snap together with immense force—do not get skin caught between them.
* Electronics: Keep away from credit cards and mechanical hard drives.

Operation Checklist (The "Don't Ruin The Hat" Final Pass)

• Calibration: Machine is calibrated and origin is set.
• Mounting: Hat is slid in sideways and "popped" onto the driver (Tactile check).
• Template: Paper template is taped, crosshairs aligned with laser/needle.
• Clearance: Space between hat and needle plate is clear; sweatband is clipped back.
• Trace: Boundary check runs smoothly without loud noises.
• Paper: TEMPLATE REMOVED. (Don't stitch the paper!).
• Start: Watch the first 100 stitches. Listen for the rhythm.
• Completion: Twist and release gently to preserve the cap shape.




FAQ

• Q: How do I prevent Brother PR 680W cap embroidery head collisions when installing a Universal Cap Frame on the cap driver?
  A: Use the sideways-slide entry so the bill clears the needle bar case without scraping.
  • Rotate the cap/frame 90° sideways, slide into the driver area, then rotate back upright.
  • Seat the frame onto the driver cylinder until it “pops”/“thunks” into a locked position—do not force it.
  • Keep fingers, sleeves, and tools out of the pinch-point zone while positioning.
  • Success check: The frame feels locked (not wobbly) and the bill clears during a Trace with no clicking/grinding.
  • If it still fails: Stop and re-approach—forcing the bill past the head is the fastest way to cause a strike.
• Q: Can Brother PR 680W structured hat embroidery run with no stabilizer on a Richardson-style cap, and when is stabilizer mandatory?
  A: No stabilizer can work on a stiff, structured cap with an open design, but soft or high-risk caps should use backing.
  • Confirm the cap is rigid/structured (stiff front panel) before attempting “no stabilizer.”
  • Add tearaway or cutaway if the cap is unstructured/soft, foam-front trucker style, mesh-heavy, worn/washed, or if the design is dense.
  • Run the first 100 stitches slowly and watch for fabric “pumping” (flagging).
  • Success check: The cap surface stays stable (no bouncing) and the stitch field does not shift or pucker early.
  • If it still fails: Re-hoop tighter and add a layer of backing—this often fixes cap puckering quickly.
• Q: How do I align a design on a Brother PR 680W cap hoop when the center seam is crooked and placement looks wrong?
  A: Use a 100% paper template with crosshairs as the placement truth, not the cap seam.
  • Print the design at 100% scale with crosshairs enabled and trim close to the design edge.
  • Tape the paper template to the front panel before mounting, then align the needle/laser marker to the crosshair.
  • Run a boundary check (Trace) to confirm the design clears the bill and sweatband zone.
  • Remove the paper template before pressing Start.
  • Success check: Screen placement matches the physical crosshair, and the Trace path stays clear with no contact sounds.
  • If it still fails: Ignore a visually crooked seam and re-center by the template—seams are often manufactured off-center.
• Q: What are the must-have prep items and needle checks before stitching a structured cap on a Brother PR 680W with a Universal Cap Frame?
  A: Prep the “hidden consumables” first so hooping is stable and the machine does not fight the material.
  • Verify the Universal Cap Frame and cap driver are mounted and tightened securely.
  • Pre-cut painter’s/embroidery tape and have medium binder clips ready to hold the sweatband back.
  • Use sharp needles suitable for heavy buckram (the blog notes 75/11 Sharp or Ballpoint depending on fabric).
  • Print and trim a paper template for placement verification.
  • Success check: The hat mounts cleanly, sweatband stays out of the stitch path, and the first stitches form without deflection or snagging.
  • If it still fails: Stop and swap to a fresh needle—dull or bent needles commonly cause problems on cap seams.
• Q: What is a safe stitching speed on a Brother PR 680W for structured cap embroidery to reduce needle deflection on the center seam?
  A: A safe starting point is often 600–700 SPM for structured caps to reduce vibration and seam impact.
  • Slow down further when the design crosses the center seam area if needle strikes are suspected.
  • Monitor the first 100 stitches instead of “set and forget,” especially on rigid buckram.
  • Stop immediately if a sharp metallic “clack” appears—do not let it keep running.
  • Success check: The machine sound stays a steady mechanical hum and needles do not break on first contact.
  • If it still fails: Re-check clearance with Trace and confirm the cap is fully seated/locked on the driver.
• Q: How do I fix Brother PR 680W cap “flagging” (hat bouncing) that causes birdnesting or skipped stitches on a Universal Cap Frame?
  A: Treat flagging as a stability failure: tighten the mount and add backing when needed.
  • Re-mount the cap so the frame is fully seated and locked on the driver (no bounce).
  • Clip the sweatband back with binder clips to remove interference and reduce lift.
  • Add a layer of stabilizer when the cap is soft/unstructured or when the stitch area is dense.
  • Success check: The cap does not lift up and down during needle penetration, especially in the first 100 stitches.
  • If it still fails: Stop and re-hoop—continuing while flagging is present usually ends in thread nests and registration shift.
• Q: When should hat embroiderers upgrade to SEWTECH magnetic hoops or SEWTECH multi-needle machines if cap mounting and alignment on a Brother PR 680W feels too slow?
  A: Upgrade based on the bottleneck: technique first, then time-saving tools for flats, then capacity for volume.
  • Level 1 (Technique): Standardize with paper templates, Trace checks, and a cap-side “kit” (tape, templates, binder clips, snips).
  • Level 2 (Tooling): Use magnetic hoops for flat goods (shirts/bags) to reduce wrist strain and keep energy for cap jobs (caps still use cap frames).
  • Level 3 (Capacity): Move to a dedicated multi-needle workflow when thread changes and machine downtime from mounting become the profit killer.
  • Success check: Fewer re-dos from misplacement, less idle machine time, and consistent first-pass placement.
  • If it still fails: Track where time is lost (mounting vs. alignment vs. thread changes) and upgrade only the step that is truly limiting output.
• Q: What magnetic hoop safety rules should be followed when using SEWTECH magnetic frames in an embroidery workflow?
  A: Treat magnetic hoops as a pinch and medical-device hazard—handle slowly and keep them away from sensitive items.
  • Keep magnetic hoops 6–8 inches away from pacemakers or implanted medical devices.
  • Control the snap: keep fingers clear when bringing magnets together to avoid skin pinch injuries.
  • Store away from credit cards and mechanical hard drives.
  • Success check: Hoops close without uncontrolled snapping, and no one’s hands enter the pinch zone during closure.
  • If it still fails: Switch to a slower, two-hand placement method and reorganize the work area so magnets are not handled in a cramped space.
