The Ultimate Brother Persona PRS 100 Setup Guide: From Unboxing to Production Flow

If you’ve ever stared at a tubular embroidery machine like the Brother Persona PRS 100 and thought, "One wrong move and I’m going to break something," you are not alone. That fear is valid—tubular machines look industrial and intimidating. But the real challenge isn't the touchscreen; it is the mechanical workflow.

Success with this machine isn't about memorizing the manual; it's about mastering the physical transitions: switching from flat brackets to cap drivers without stripping screws, fighting hoop burn on delicate garments, or crashing a hat bill into the needle bar.

This guide rebuilds the setup process into a zero-friction workflow. We will cover the specific "sweet spot" settings, sensory checks (what a locked hoop sounds like), and the critical safety protocols that keep your machine running and your fingers safe.

The "Don't Panic" Primer: Anatomy of the PRS 100

The video overview is calm, but let's look at this through the eyes of a technician. The PRS 100 is a single-needle workhorse, but unlike a flatbed domestic machine, it has an open arm (tubular arm). This allows you to embroider pockets, bags, and caps.

Two operational realities you must accept immediately:

1. Clearance is King: The area under the machine arm must remain empty. The presenter warns against loading up the shelf underneath.
   • The Risk: A hanging sweatshirt sleeve snags on a stray tool on the shelf, pulling the hoop during a 700 SPM (Stitches Per Minute) run. Result: Shifted design or broken needle.
2. Bracket Discipline: You will be swapping attachments frequently. The "secret" isn't speed; it's a repeatable routine. If you rush the swap, you risk cross-threading the thumb screws.

Note on Value: The bundle mentioned (approx. $6500 historically) often includes the stand. If you are setting up a workspace, the stand is distinct from a table—it minimizes vibration, which directly correlates to cleaner stitch registration.

The Cabinet Workflow: Set It Up Like a Factory, Not a Craft Room

The difference between a hobbyist and a pro is organization. The video showcases a drawer system, but we need to optimize this for trouble-free operation.

The "Hidden Consumables" You Need

The video shows thread and stabilizers. To run this machine safely, you must add these three items to your drawer immediately:

• Tweezers: For grabbing thread tails without putting fingers near the needle.
• Machine Oil Pen: For the rotary hook (one drop every 3-4 full bobbin changes).
• New Needles (75/11 Ballpoint & Sharp): Do not wait for a needle to break. Change it every 8-10 hours of running time.

The Adhesive Rule: The presenter uses a separate surface for spraying 505 Temporary Adhesive.

• Why this matters: If you spray adhesive near the machine, the sticky mist settles on the main circuit board fan and the needle bar. Over time, this causes "gumming up" and skipped stitches. Always spray at least 5 feet away.


The Prep Phase: The 60-Second "Landing Zone"

Before you loosen a single screw, create a staging area (a magnetic dish is perfect). Beginner mistakes happen when you hold a bracket in one hand and try to find a screw with the other.

Warning: Mechanical Safety
Never place your hands near the needle bar or moving carriage while the machine is powered on, even if it is not stitching. An accidental tap on the "Start" button or a sudden initialization movement can result in severe finger injury. Always keep hands outside the "Red Zone" (the hoop area) when the machine is live.

Prep Checklist: The "Go/No-Go" Pre-Flight

• Clearance: Is the shelf under the machine 100% empty of snag hazards?
• Staging: Are the thumb screws in a magnetic dish?
• Tools: Are your snips and tweezers on the table, not buried in a drawer?
• Consumables: Do you have the correct backing (Cutaway vs. Tearaway) ready?
• Needle Check: Is the needle straight? (Roll it on a flat surface; if the tip wobbles, toss it).


Fast Frames: The Sticky Solution (And The Bottleneck)

The video demonstrates the Fast Frames system—a hoopless frame used with sticky stabilizer. This is excellent for items that are hard to clamp, like tote bags or collars.

The Labeling Hack: The presenter writes the sewing field measurements directly on the metal frame. Do this. It prevents the heartbreak of designing a 5-inch logo for a 4-inch frame and hitting the metal frame (which breaks needles instantly).

If you are researching fast frames embroidery hoops, understand their role: they are problem solvers for "un-hoopable" items. However, they rely on sticky backing (Peel 'n Stick).

Installing Fast Frames (The Tactile Check)

1. Align: Place the bracket on the machine arm.
2. Seat: Wiggle it slightly. It should settle onto the registration pins. If it's floating, it's wrong.
3. Secure: Tighen the black thumb screws.
   • The Sensory Check: Tighten until finger-tight, then give it a tiny extra 1/8th turn. It should feel solid, with zero wiggle.

The Hidden Pain Point: Hooping Burnout

Fast Frames require you to stick the item down manually. If you are doing 50 shirts, this is slow. The adhesive builds up on the needle, causing thread breaks.

The Upgrade Trigger: If you find yourself fighting with sticky stabilizer residue or spending more time prepping frames than sewing, this is when professionals upgrade. A Magnetic Hoop system holds the garment firmly without sticky stabilizer, reducing hoop burn and prep time by 70%.

Stabilizer Science: The Physics of "Why"

The video shows Exquisite brand stabilizers. But beginners often guess which one to use. Let's replace guesswork with physics.

• Tearaway: Paper-like. It provides short-term support. Once torn away, the stitches are on their own.
• Cutaway: Fabric-like. It stays forever. It provides permanent structural support.
• Water Soluble Topping: Like plastic wrap. It prevents stitches from sinking into the "pile" (fuzz) of towels or fleece.

If you are confused about hooping for embroidery machine projects, remember this rule: If the fabric stretches, the stabilizer must NOT stretch.

Decision Tree: The "Safe Zone" Selection Guide

Stop guessing. Follow this flow to prevent puckering.

1. Is the fabric stretchy (T-shirt, Polo, Hoodie)?
   • YES: Use Medium Cutaway. (Tearaway will result in distorted/oval circles).
   • NO: Go to step 2.
2. Is the fabric thick with texture (Towel, Fleece)?
   • YES: Use Cutaway (backing) + Soluble Topping (on top).
   • NO: Go to step 3.
3. Is the fabric a stable woven (Denim, Canvas Tote)?
   • YES: Tearaway is acceptable.
4. Is the item slippery or hard to access (Backpack pocket)?
   • YES: Use Peel 'N Stick (Adhesive Tearaway).

Standard Brother Hoops: The "Click" Is Essential

To switch to standard plastic hoops, you must install "Hoop Holder A." This is the most common failure point for beginners: improper seating of the holder.

Step 1: Install Hoop Holder A

1. Locate the holder marked with a lowercase "a".
2. Install it with the "a" facing UP.
3. Tighten the thumb screws. The bracket should sit flush against the arm.


Step 2: The "Click" Test

Slide your 100x100mm hoop into the holder.

• The Sensory Anchor: Push until you hear a sharp, audible CLICK.
• The Check: Pull gently on the hoop. It should be locked. If it slides out without pressing the release lever, you have not engaged the lock.

If you are shopping for extra brother persona prs100 hoops, always test this locking mechanism immediately upon receipt. A loose hoop allows the design to shift, creating gaps between outlines and fills.

Setup Checklist: The Mechanical Audit

• Orientation: Is the "a" on the bracket facing up?
• Torque: Are thumb screws finger-tight + snugged?
• Lock: Did the hoop make the "click" sound?
• Clearance: Bounce the table slightly—does anything under the machine hit the arm?

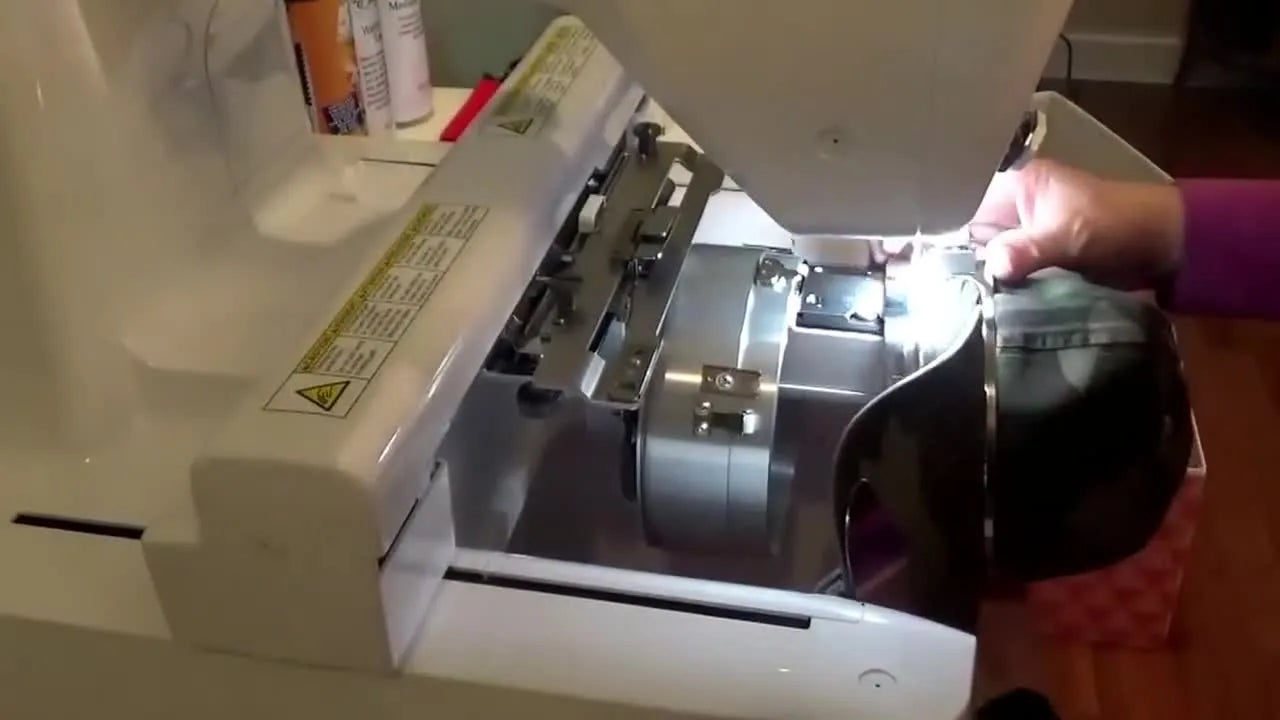

The Cap Driver: Mastering the Hat Attachment

Hats are high-profit items, but the cap driver scares people. The video provides a crucial visual cue: Hold it with the open mouth facing you.

Installation Protocol

1. Slide: Slide the driver onto the arm. The bottom plate goes between the machine runners.
2. Align: It must sit squarely on the registration pegs.
3. Tighten: Secure the thumb screws.
   • The Trap: If you have to force the screws, the driver is not seated. Remove it and try again. Forcing it will strip the threads on your $6,000 machine.

When setting up a cap hoop for brother embroidery machine, precision is vital. A misalignment of 1mm here equals a crooked logo on the forehead.

Loading the Hat: The "Sideways" Technique

Warning: The needle bar is an obstruction. If you ram the hat frame straight in, you will hit the needle.

1. Rotate: Turn the hat 90 degrees (sideways).
2. Insert: Slide it under the needle area.
3. Rotate Back: Turn it straight and align the slot with the white wheel.
4. Snap: Push until it locks.


Troubleshooting: Why Hats Shift

If your logo looks good on screen but stitches out crooked:

• Flagging: The cap fabric is bouncing up and down.
  • Fix: Ensure the cap is banded tightly on the driver. The sweatband should be pulled smooth.
  • Upgrade: Professionals use a specific embroidery hooping station to clamp caps consistently before they ever reach the machine.


Warning: Magnet Safety
If you upgrade to Magnetic Hoops for hats or garments, be aware: these use industrial-grade magnets. They can pinch fingers severely. Do not use magnetic hoops if you have a pacemaker. Keep magnets away from credit cards and machine screens.

The Bobbin Workflow

The PRS 100 has a front-access bobbin, which is a lifesaver. You do not need to remove the cap driver to change the bobbin.

The "One-Third" Rule

When checking your bobbin tension:

1. Look at the back of a satin stitch test.
2. The Visual Anchor: You should see 1/3 top thread color on the left, 1/3 white bobbin thread in the center, and 1/3 top thread on the right.
3. If you see only top thread, the bobbin is too tight. If you see only white thread, the bobbin is too loose.

Touchscreen & Memory Strategy

Treat the machine's memory like RAM, not a hard drive.

• Do not store 500 designs on the machine; it slows down the interface.
• Do keep your designs on a USB drive or PC.

When to Upgrade: The Growth Path

The PRS 100 is excellent, but as your skills grow, you will hit two walls:

1. Hooping Fatigue: Screwing and unscrewing frames hurts your wrists and slows production.
   • Level 1 Solution: Magnetic Hoops. They snap on, hold thick jackets instantly, and eliminate hoop burn. Terms like durkee fast frames often pop up, but magnetic hoops are generally the modern standard for ease.
2. Needle Limitation: The PRS 100 has one needle. If your logo has 4 colors, the machine stops 3 times for you to change thread.
   • Level 2 Solution: SEWTECH Multi-Needle Machines. When you have orders for 20+ caps, a machine that changes colors automatically is not a luxury; it is a profit multiplier.

Operation Checklist: Final Safety

• Obstruction Check: Visually trace the path of the hoop. Will it hit the back of the machine?
• Needle Clearance: Is the hat bill clear of the needle bar?
• Bobbin Level: Check the bobbin before starting a complex cap design.
• Sound Check: Listen to the first 100 stitches. A rhythmic "thump-thump" is good. A sharp "clack-clack" means stop immediately—your needle is hitting the hoop or needle plate.


FAQ

• Q: What hidden consumables should be kept in the drawer for safe, smooth operation on the Brother Persona PRS 100 embroidery machine?
  A: Keep tweezers, a machine oil pen, and fresh needles within arm’s reach to prevent rushed mistakes and avoid putting fingers near the needle area.
  • Add: Tweezers for grabbing thread tails without reaching near the needle bar.
  • Add: Machine oil pen for the rotary hook (use one drop every 3–4 full bobbin changes).
  • Add: New needles (75/11 ballpoint & sharp) and replace on a schedule (about every 8–10 running hours).
  • Success check: Thread tails can be cleared with tweezers and needle changes happen before breakage.
  • If it still fails… Review the pre-flight checklist items (tools staged, correct backing ready, needle straightness check).
• Q: How far away should 505 temporary adhesive be sprayed when prepping garments for the Brother Persona PRS 100, and why does distance matter?
  A: Spray 505 temporary adhesive at least 5 feet away from the Brother Persona PRS 100 to prevent adhesive mist from settling on the machine and causing gumming and skipped stitches.
  • Move: Use a separate spray surface away from the machine before hooping.
  • Keep: The machine area clean—avoid spraying near the needle bar and internal fan areas.
  • Success check: No sticky residue is visible on the needle area, and the machine runs without new skipped-stitch symptoms after spraying sessions.
  • If it still fails… Stop spraying near the workstation entirely and clean buildup before continuing.
• Q: How can beginners confirm Hoop Holder A is installed correctly on the Brother Persona PRS 100 so the standard plastic hoop does not slide out?
  A: Install the Brother Persona PRS 100 “Hoop Holder A” with the lowercase “a” facing up, then verify the hoop locks with a sharp click.
  • Confirm: The holder marked with a lowercase “a” is used, and the “a” faces UP.
  • Tighten: Thumb screws so the bracket sits flush against the arm (finger-tight plus snug).
  • Test: Slide the hoop in until an audible CLICK is heard.
  • Success check: The hoop cannot be pulled out unless the release lever is pressed.
  • If it still fails… Remove and reseat the holder—improper seating is a common cause of a loose lock and design shifting.
• Q: What is the tactile “seat and tighten” method to install Fast Frames brackets on the Brother Persona PRS 100 without wobble?
  A: Seat the Fast Frames bracket onto the registration pins first, then tighten finger-tight plus a tiny extra 1/8 turn so the bracket feels solid with zero wiggle.
  • Align: Place the bracket on the machine arm and wiggle slightly so it settles onto the pins (do not force).
  • Secure: Tighten the black thumb screws finger-tight, then add a small extra 1/8 turn.
  • Success check: The bracket has no floating feel and no side-to-side movement when gently nudged.
  • If it still fails… Stop and reseat the bracket—wobble usually means the bracket is not fully on the registration pins.
• Q: How do Brother Persona PRS 100 users diagnose bobbin tension using the “one-third rule” on a satin stitch test?
  A: Use the Brother Persona PRS 100 “one-third rule”: the back of a satin stitch should show 1/3 top thread color, 1/3 white bobbin thread, and 1/3 top thread color.
  • Stitch: Run a small satin stitch test before production.
  • Inspect: Look at the underside for the 1/3–1/3–1/3 balance.
  • Success check: The bobbin thread sits centered with equal top-thread “rails” on both sides.
  • If it still fails… If only top thread shows, bobbin tension is too tight; if only white bobbin shows, bobbin tension is too loose—retest after adjustment.
• Q: What causes a crooked logo when using the Brother Persona PRS 100 cap driver, and what is the quickest fix for cap shifting?
  A: Cap logos stitch crooked on the Brother Persona PRS 100 when the cap fabric shifts (often from flagging), so band the cap tightly and smooth the sweatband before stitching.
  • Load: Insert the hat using the sideways technique to avoid hitting the needle bar, then lock it fully.
  • Tighten: Pull the sweatband smooth and secure the cap firmly on the driver to reduce bouncing.
  • Success check: The cap fabric does not bounce up and down during the first stitches and the design tracks straight.
  • If it still fails… Improve consistency by clamping caps before they reach the machine using a dedicated hooping/clamping station method.
• Q: What safety rules should be followed around the needle bar and hoop area when operating the Brother Persona PRS 100 embroidery machine?
  A: Keep hands out of the Brother Persona PRS 100 hoop area (“red zone”) any time the machine is powered on, because accidental starts or initialization movement can cause severe finger injury.
  • Power: Treat the machine as live whenever it is on—even if it is not stitching.
  • Stage: Use a magnetic dish or staging zone so hands are not hovering near the needle while searching for screws.
  • Success check: All adjustments in the hoop/needle zone are done only when power is off, and tools—not fingers—handle thread tails near the needle.
  • If it still fails… Slow down and reset the workflow: clear the area, stage screws/tools first, then restart the setup step-by-step.
