Brother PE800 Threading That Actually Works: Wind a Bobbin, Seat the Silver Tension Bar, and Stop “Wonky” Stitches

The first time you sit in front of a Brother PE800, the machine looks like a promise of creativity. But when that first "bird’s nest"—a tangle of thread under the fabric—grinds your project to a halt, it feels like a betrayal.

I’ve spent 20 years in industrial embroidery, monitoring production lines where a single thread break costs money. Here is the hard truth I teach every apprentice: 90% of "machine problems" are actually "pathing problems."

Your PE800 is a precision instrument, not a magic box. It relies on tension, which is simply controlled resistance. If the thread slips out of a tension disc or misses a take-up lever, that resistance drops to zero, and the machine vomits thread.

This guide is your reset button. We are going to build a "Zero-Fail Ritual" for threading your machine. We will move beyond the manual’s dry instructions and focus on the sensory cues—what you should feel, hear, and see—to guarantee a perfect stitch-out.

The “Don’t Panic” Primer for the Brother PE800 Drop-In Bobbin System (and Why Tension Looks Random)

New users often obsess over the digital screen, but embroidery mechanics are purely physical. The Brother PE800 uses a "drop-in" bobbin system. It is reliable, but it is unforgiving of shortcuts.

Most tension drama stems from two specific invisible errors:

1. The Bobbin Leaf Spring Miss: The bobbin thread sits near the tension spring but not under it.
2. The Take-Up Lever Miss: The top thread rides alongside the lever arm rather than through the eyelet.

The Physics of Success

Think of your machine like a pulley system. The top thread and bottom thread are playing a game of Tug-of-War inside your fabric.

• Balanced Tension: The knot hides in the middle layer of the fabric (perfect).
• Bobbin too loose: The top thread pulls everything to the top (white thread showing on top).
• Top too loose: The bobbin thread pulls everything down (loops on the bottom).

When you miss a thread guide, you aren’t just "slightly off"—you have completely removed the brakes from that side of the Tug-of-War. The machine cannot compensate for this electronically.

The Hidden Prep Pros Do Before Winding a Brother PE800 Bobbin (Spool Caps, Direction, and Clean Starts)

Before you press the Start/Stop button, we must eliminate variables. A bad bobbin will ruin a project 20,000 stitches later. Do not rush this.

The video demonstrates using the standard 60wt Brother bobbin thread (usually white) on the horizontal spool pin. Note the orientation: the thread must unwind from the bottom of the spool.

Spool Cap Sizing: The "Goldilocks" Rule

In the video, the host swaps a small cap for a larger one. This is not about aesthetics; it is about drag consistency.

• Cap too small: The spool creates a "shelf" that the thread catches on every rotation. This causes a rhythm of tight-loose-tight-loose tension.
• Cap too big: The thread drags over the plastic rim, adding unnecessary tension.
• The Fix: Use a cap that is slightly larger than the spool diameter. When you spin the spool with your finger, it should feel stable, not wobbly.

Hidden Consumable Check

• Check your spool for "burrs": Run your finger along the rim of your thread spool. Is there a nick in the plastic? If so, sand it down or flip the spool. That tiny nick will snag your thread and snap needles.

Prep Checklist (Do this BEFORE winding)

• Thread Weight: Verify you are using 60wt or 90wt bobbin thread (thinner than the 40wt top thread).
• Spool Orientation: Thread unwinds from the bottom of the spool on the horizontal pin.
• Cap Fit: Spool cap is slightly larger than the spool; no gap between cap and spool.
• Bobbin Condition: Use a clean, empty Class 15 (SA156) bobbin. Never wind over old thread.
• Clearance: Remove any obstructions near the handwheel.

Warning: The bobbin winder spins at high RPM. Keep long hair, jewelry, and loose sleeves tied back. Do not attempt to "guide" the thread with your fingers once the motor starts—friction burns happen instantly.

Wind a Bobbin on the Brother PE800 Built-In Winder Without Lumps or Slack

A "spongy" bobbin is a disaster waiting to happen. You want a bobbin that feels solid, like a coin.

1) Mount the spool and follow the dotted-line path

Route the thread under guide #1 and around the pretension disc (back to front). Do not just lay it there—floss it in.

Sensory Check (Tactile): When you pull the thread after it passes the pretension disc, you should feel a distinct, consistent drag. If it pulls freely, you missed the disc.

2) Seat the bobbin and manual wrap

Place the bobbin on the shaft. Align the notch on the bobbin with the spring on the shaft until it slides down completely.

Wind the thread manually clockwise 5-6 times. It should be tight. Pass the thread through the guide slit on the winder base to cut it.

3) Engage the transmission

Push the bobbin winder shaft to the right. You will hear a firm click.

Sensory Check (Visual): Look at the Start/Stop button. It must turn from Red to Orange. If it is still red, the machine thinks you want to sew, not wind.

4) The "Speed Ramp" Technique

Press the orange button to start.

• Pro Tip: Do not let the thread tail whip around. If you didn’t use the cutter, hold the tail for the first 10 rotations, stop, trim it close, then resume.
• The "Jumping" Cue: Watch the video host. They stop when the bobbin slows down or starts to stutter/jump against the stopper. Do not overfill; an overfilled bobbin won't rotate in the case.

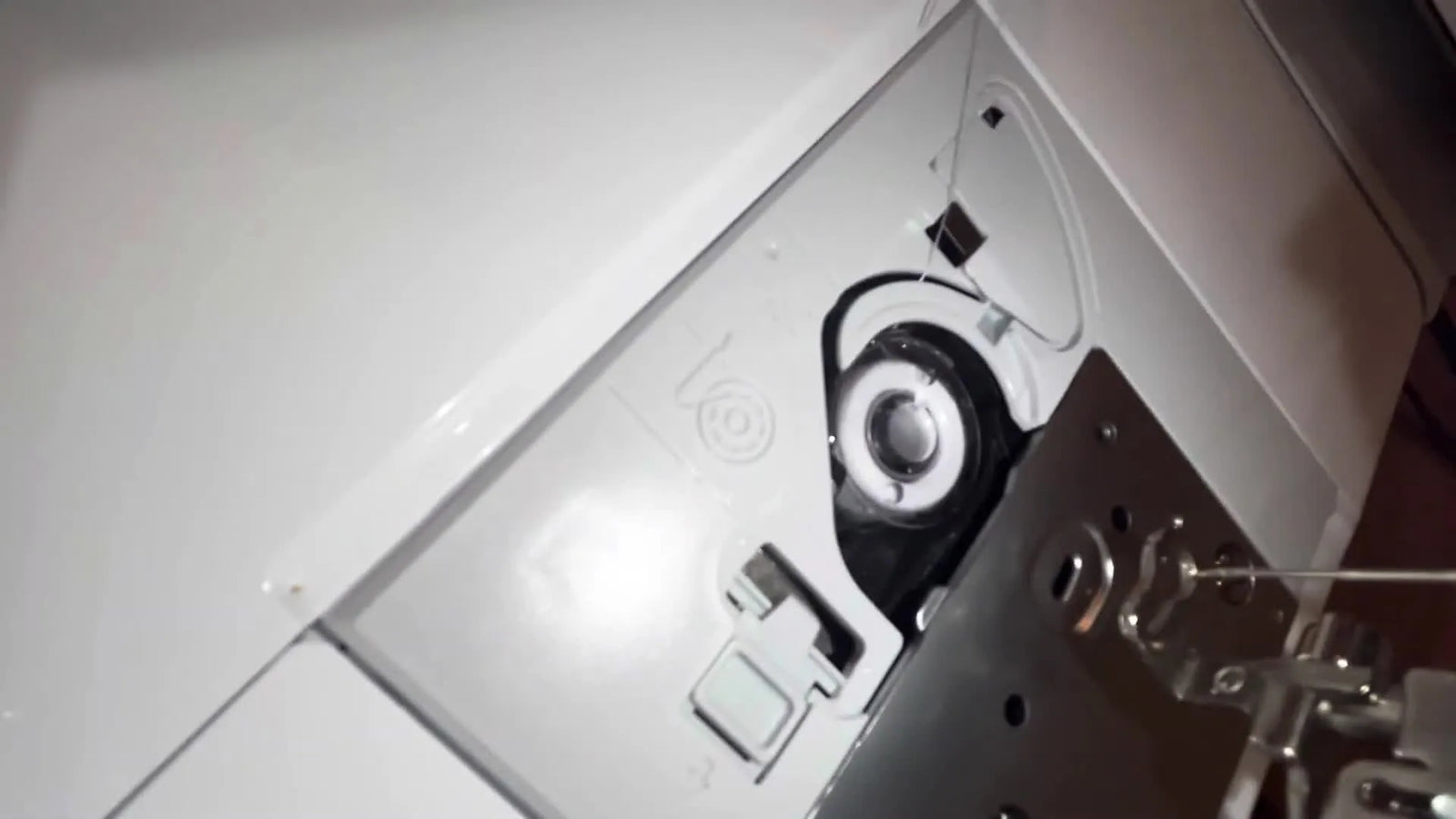

Load the Brother PE800 Bobbin the Right Way: The “P-Shape” Direction and the Silver Tension Bar That Fixes Wonky Stitches

This is the single most common failure point for beginners. If you ignore everything else, master this step.

1) The "P" vs. "q" Rule

Hold the bobbin up. The thread should hang down off the left side, forming the letter P.

• P = Perfect
• q = Quit (Wrong way)


Drop the bobbin into the raceway.

2) The Critical Move: The "Click" under the Leaf Spring

The video host points to a small metal plate (silver tension spring). Beginners often just lay the thread into the plastic groove above this metal part. That is wrong.

The Action:

1. Hold the bobbin still with your right finger so it doesn't spin.
2. With your left hand, pull the thread into the slit and under the silver metal leaf spring.
3. Sensory Check (Auditory/Tactile): You usually feel a tiny "snap" or resistance as it slides into place.
4. The "Floss Test": Pull the thread gently. The bobbin should spin in the case, but you should feel drag—similar to pulling dental floss. If it spins wildly with zero resistance, try again.

Then, guide the thread around the curve and cut it with the built-in blade. Reattach the clear plastic cover.

Contextual Insight: Many users struggle with fabric movement even when threading is perfect. This is often an issue with how the fabric is held. While we are fixing threading here, keep in mind that terms like hooping for embroidery machine often refer to the art of stabilization. Stable thread needs stable fabric.

Thread the Brother PE800 Upper Path (Guides 1–5) and Don’t Miss the Take-Up Lever Eye

Now for the top thread. Raise the presser foot first!

• Why? Raising the foot opens the tension discs. If you thread with the foot down, the thread floats on top of the discs and you get zero tension.

1) Mount and Cap

Standard procedure. Use a vertical spool stand if you have giant 5000m cones (the PE800 horizontal pin hates giant cones).

2) The "Floss" Through the Tension Channel

Follow the solid numbers 1, 2, and 3. When you come down channel 3 (the "U-turn"), keep the thread taut.

3) The Take-Up Lever Trap

Guide #4 is the Take-Up Lever. This silver arm moves up and down rapidly to pull the stitch tight.

The Error: It is possible to hook the thread behind the lever without it entering the hole (eye). The Fix: Look into the temptation of the machine. Make sure the thread passes from right to left and slides completely into the eyelet.

Sensory Check (Visual): Bob your head to the side and look. Is the thread inside the hole?

4) The Needle Bar Guide

Bring the thread down to Guide #6, the small metal hook right above the needle. This keeps the thread centered.

Use the Brother Automatic Needle Threader (Guides 6–7) Without Bending Anything

The automatic threader is delicate. It works on alignment, not force. If you mash it, you will bend the tiny internal hook.

1) The "Number 7" Dance

Hook the thread into guide #7 (the horizontal slot on the threader mechanism).

2) The Clean Cut

Pull the thread over the side cutter on the left.

• Why? The threader pulls a loop. If the tail is too long, the loop gets stuck. The cutter leaves the exact length needed.


3) The Soft Press

Lower the lever on the left. Do not slam it. Press it all the way down, then release it gently.

• Physics: The hook passes through the needle eye, grabs the thread, and pulls it back through.


Pull the loop through the back of the needle.

Sensory Check (Visual): Ensure the thread isn't twisted around the needle tip. It should go straight through the eye, front to back.

The “Why It Works” Layer: Tension Physics, Repeatability, and What Your PE800 Is Actually Doing

You have just established a "Closed Loop System."

1. Bobbin Spring: Provides drag on the bottom.
2. Upper Tension Discs: Provide drag on the top.
3. Take-Up Lever: Snaps the slack tight to lock the knot.

If any one of these fails, the system collapses. By memorizing this sensory routine (The Click, The Floss, The Visual Check), you eliminate variables.

When Skill Meets Tooling Limits

Once you master this threading routine, you will stop fighting the machine and start fighting time. Beginners struggle with threading. Intermediates struggle with hooping. Standard hoops require significant hand strength to tighten the screw, and they often leave "hoop burn" (white rings) on delicate fabrics or velvet.

If you find yourself dreading the setup process because twisting screw clamps hurts your wrists, or because you can't get thick towels clamped, this is not a skill failure—it is a tool limitation. This is why experienced users eventually upgrade to a brother pe800 magnetic hoop. These frames use powerful magnets to sandwich the fabric instantly, removing the friction of manual screwing and tugging.

Quick Decision Tree: When Your Setup Should Stay Stock vs. When a Magnetic Hoop Makes Sense

Use this logic flow to determine if you need to practice more or upgrade your gear.

Decision Tree (Workflow & Efficiency):

1. Are you experiencing recurring "Bird Nesting" (thread loops)?
   • Yes: STOP. This is a threading/tension issue. Re-read the guide above. Do not buy accessories yet.
   • No: My stitches are perfect, but setup takes too long. -> Go to 2.
2. Are you embroidering thick items (Towels, Carhartt Jackets) or delicate items (Velvet)?
   • Yes: Standard hoops struggle here. They pop off thick fabric and crush velvet.
   • Solution: A magnetic frame is the industry standard for these materials.
   • No: I mostly do cotton quilting squares. -> Go to 3.
3. Do you plan to run a small business (Etsy, Local Uniforms)?
   • Yes: Time is money. Re-hooping a standard frame takes 2-3 minutes. A magnetic hoop takes 10 seconds.
   • Solution: Search for a magnetic hoop for brother pe800 to cut labor costs.
   • No: This is pure leisure. -> Stick with stock hoops and enjoy the process.

Warning: Magnetic Safety
Magnetic hoops use industrial-strength magnets (neodymium).
* Pinch Hazard: They snap together with enough force to bruise precision fingers. Handle by the edges.
* Medical Device Safety: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them directly on laptops or near credit cards.

Troubleshooting Brother PE800 “Wonky Tension” and Loose Stitches (The 3-Minute Clinic)

Before you change software settings, check the hardware.

If you have verified all mechanical paths and still see issues, consider your consumables. Slippery threads (rayon) sometimes benefit from a "thread net" over the spool to prevent pooling.

Also, if you are moving into production runs, consistency matters. Many operators searching for magnetic embroidery hoops for brother pe800 are actually looking to stabilize their tension by stabilizing their fabric hold—loose fabric causes flagging, which ruins stitch quality regardless of threading.

Setup Checklist (The Pre-Flight Routine)

• Fresh Needle: Is the needle straight and sharp? (Replace every 8 hours of stitching).
• Bobbin Check: Is it "P" shaped? Did it click under the spring?
• Top Thread: Is it flossed deep between the tension discs? Is it in the Take-up Lever eye?
• Hooping: Is the fabric "drum-tight"? (Tapping it should sound like a drum).
• Clearance: Is the hoop clear of the wall/table?

Operation Checklist (The First 60 Seconds)

• Babysit the Start: Hold the thread tail for the first 3-4 stitches, then trim it.
• Listen: A rhythmic thump-thump is good. A harsh clack-clack involves the needle hitting the plate—STOP immediately.
• Inspect: Pause after the first color. Is the coverage solid? Any loops?

The Upgrade Path: From Hobbyist to Professional

The Brother PE800 is a fantastic learning platform. But as your skills grow, you will hit two walls: Hooping Speed and Thread Changes.

1. The Continuity Upgrade: If you are tired of hoop burn and wrist strain, upgrading to brother embroidery hoops that utilize magnetic tech is the logical Level 1 investment. It buys you comfort and speed without changing machines.
2. The Volume Upgrade: If you are rejecting orders because you can't stitch fast enough, or you hate changing threads for every color, you are ready for Level 2. This is where multi-needle machines (which SEWTECH supplies) change the game—holding 10+ colors at once and stitching at 1000 stitches per minute.

But for today? Master the thread path. Listen for the click. load your bobbin like a pro. The machine is ready; now you are too.

FAQ

• Q: How do I stop Brother PE800 bird nesting (loops and tangles under the fabric) right after starting a design?
  A: Rethread the Brother PE800 upper thread path with the presser foot UP, because bird nesting usually means the top thread has zero tension from a missed guide.
  • Raise the presser foot, pull the thread out completely, and rethread following the numbered path (do not “shortcut” any guide).
  • Confirm the thread is actually inside the take-up lever eye (not riding behind it).
  • Hold the top thread tail for the first 3–4 stitches, then trim.
  • Success check: after the first few stitches, the underside should not show large loose loops, and the stitch sound should be a steady rhythmic “thump-thump.”
  • If it still fails: re-seat the bobbin thread under the bobbin silver leaf spring and repeat the “floss/drag” checks.
• Q: How do I load the Brother PE800 drop-in bobbin correctly to prevent wonky tension and loose stitches?
  A: Load the bobbin in the “P-shape” direction and make sure the bobbin thread snaps under the silver tension leaf spring.
  • Hold the bobbin so the thread hangs off the left side like a letter P, then drop it into the raceway.
  • Pull the thread into the slit and deliberately slide it under the silver metal spring (do not leave it above the spring in the plastic groove).
  • Pull the thread around the curve and cut it with the built-in blade before closing the cover.
  • Success check: do the “floss test”—the bobbin should rotate, but the thread should have clear, consistent drag (not free-spinning).
  • If it still fails: remove lint and re-try the seating motion until the drag feels consistent.
• Q: How can I wind a Brother PE800 bobbin so it is not spongy, lumpy, or slack?
  A: Use the PE800 bobbin-winder path exactly and “floss” the thread into the pretension disc so the bobbin winds firm and even.
  • Route the thread under guide #1 and around the pretension disc back-to-front, then pull to confirm steady resistance.
  • Manually wrap the bobbin 5–6 turns clockwise, cut the tail using the winder base cutter, then start winding.
  • Stop before overfilling when the bobbin slows/stutters against the stopper.
  • Success check: the bobbin should feel solid “like a coin,” not soft or springy when pressed.
  • If it still fails: change to a clean, empty Class 15 (SA156) bobbin and confirm the spool cap is not causing snagging.
• Q: Why does the Brother PE800 Start/Stop button stay red when trying to wind a bobbin, and how do I fix it?
  A: Push the bobbin winder shaft fully to the right until it clicks, because the PE800 won’t enter winding mode without that engagement.
  • Slide the bobbin winder spindle to the right until a firm click is felt/heard.
  • Look at the Start/Stop button state before pressing it.
  • Restart winding only after the machine indicates bobbin-wind mode.
  • Success check: the Start/Stop button changes from red to orange before winding begins.
  • If it still fails: re-seat the bobbin on the shaft notch/spring so it drops fully into position, then engage again.
• Q: How do I use the Brother PE800 automatic needle threader without bending the hook or damaging the mechanism?
  A: Use alignment and a gentle full stroke—never force the Brother PE800 needle threader.
  • Set an appropriate needle size (the guide recommends 75/11 or 90/14 for better threader reliability).
  • Hook the thread into the threader’s guide slot (guide #7), then use the side cutter to leave a clean, short tail.
  • Lower the threader lever smoothly all the way down, then release gently and pull the loop through.
  • Success check: the thread passes straight through the needle eye front-to-back and is not twisted around the needle tip.
  • If it still fails: stop forcing the lever—recheck needle size and alignment, because a bent hook will keep failing.
• Q: What should I do on a Brother PE800 if white bobbin thread shows on top of the embroidery design?
  A: Re-seat the Brother PE800 bobbin thread under the silver leaf spring first, because a missed spring is a common cause of top-side bobbin show.
  • Remove the bobbin, reload it in the “P” direction, and slide the thread firmly under the tension spring.
  • Perform the “floss/drag” pull to confirm resistance.
  • Stitch a small test area before changing other settings.
  • Success check: the bobbin thread should stop floating on the top surface once the spring drag is correct.
  • If it still fails: treat it as a tension balance issue—recheck the upper threading path, especially the take-up lever eye.
• Q: When should a Brother PE800 user upgrade from standard screw hoops to a magnetic embroidery hoop, and when should the user upgrade to a multi-needle machine?
  A: Upgrade based on the pain point: fix threading first, then choose magnetic hoops for hooping limits, and choose multi-needle only when time/volume becomes the bottleneck.
  • Level 1 (skill): if bird nesting/loops recur, stop and rebuild the thread path and bobbin seating—do not buy accessories yet.
  • Level 2 (tool): if stitching is clean but hooping is slow, painful, or causes hoop burn (especially on thick towels or delicate velvet), a magnetic hoop often reduces setup friction.
  • Level 3 (capacity): if orders are limited by speed or constant thread changes, a multi-needle machine is the productivity step.
  • Success check: after the change, the main complaint disappears (threading issues stop after rethreading; hooping time drops when using magnets; throughput increases with multi-needle).
  • If it still fails: separate “stitch formation” problems (thread path/tension) from “fabric control” problems (hooping/stabilization) before upgrading again.
• Q: What magnetic hoop safety rules should Brother PE800 magnetic hoop users follow to avoid injuries and device interference?
  A: Treat magnetic hoops as industrial pinch hazards and keep them away from medical devices and sensitive electronics.
  • Grip magnets by the edges and control the snap—do not let the rings slam together on fingers.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Do not place magnetic hoops on laptops or near credit cards.
  • Success check: magnets close without pinching skin, and the work area stays clear of restricted devices/electronics.
  • If it still fails: pause use and reorganize the workflow so magnets are handled one at a time on a clear, stable surface.
